3000 Вт 6000 высокоскоростная Широкоформатная машина для лазерной резки драгоценного металла углеродистой стали трубы и листа
1 075 885,83 ₽ - 1 297 740,83 ₽
Новая высокая скорость хорошая цена 1000 Вт 2000 3000 нержавеющая сталь углеродистая Металлическое волокно лазерная резка
- Категория: >>>
- Поставщик: Jinan Apex Machinery Equipment Co. Ltd
Сохранить в закладки 1600959466896:
Описание и отзывы
Характеристики
New High Speed Good Price 1000w 2000w 3000w Stainless Steel Carbon Steel Metal Fiber Laser Cutting Machine Price
Features of 1530 fiber laser cutting machine:
1.Contemporary design: Open structure without cover, showing the cutting processing completely.
2.High processing accuracy: Equip with high torque servo motor and high precision imported reducer, high efficiency, favorable dynamic characteristics.
3.Good dynamics & cutting ability: High rigidity welded body with die-cast aviation aluminum gantry, improve the gantry strength and much lighter, enjoy good stability & durability.
4.Easy operation & intelligent: Adopt the professional digital control system, which is developed by Han’s Laser, achieving the features of good performance, high reliability and convenient operation.
5.Low running cost: Low accessing gas consumption by precision control, to ensure the low running cost, three types of auxiliary gas can be choose freely by customer.
2.High processing accuracy: Equip with high torque servo motor and high precision imported reducer, high efficiency, favorable dynamic characteristics.
3.Good dynamics & cutting ability: High rigidity welded body with die-cast aviation aluminum gantry, improve the gantry strength and much lighter, enjoy good stability & durability.
4.Easy operation & intelligent: Adopt the professional digital control system, which is developed by Han’s Laser, achieving the features of good performance, high reliability and convenient operation.
5.Low running cost: Low accessing gas consumption by precision control, to ensure the low running cost, three types of auxiliary gas can be choose freely by customer.
#Raycus fiber laser generator
#Cypcut control system
#Raytools cutting head
#Yaskawa Servo motor and driver for X,Y axis
#Serrate working platform table
#Taiwan PMI ball screw
#Taiwan helical YYC gears and racks
#Taiwan HIWIN square guide rail
#Hanli water chiller
#Japan Shimpo Reducer
#Heavy-duty welded bed, cast aluminum beam
#Raytools cutting head
#Yaskawa Servo motor and driver for X,Y axis
#Serrate working platform table
#Taiwan PMI ball screw
#Taiwan helical YYC gears and racks
#Taiwan HIWIN square guide rail
#Hanli water chiller
#Japan Shimpo Reducer
#Heavy-duty welded bed, cast aluminum beam
Machine specification | ||
Model & Name | APEX-1530 fiber laser tube cutting machine | |
Brand | APEXCNC | |
Working Area( X,Y axis travelling) | 1500mm*3000mm | |
Laser power | 3kw Raycus fiber laser generator (optional) | |
Wavelength | 1064nm | |
Cutting speed | depending on material and thickness | |
Positioning accuracy | ±0.02mm | |
Repositioning accuracy | ±0.01mm | |
Water cooling System | Constant temperature water chiller | |
Power supply | AC 380V/220V (customer demand) | |
Location system | Red dot indicator | |
Machine Package Dimension | 4300*2270*1350mm | |
Running Environment | Temperature: 0℃~45℃ | |
Raytools laser head
Optimized optical configuration, smooth and efficient airflow design; The laser head body is increased anti-collision function; Turntable focus adjustment and can be manually corrected, fine and flexible adjustment, adjustable range is 20mm,accuracy is 0.05mm.
Raycus laser source
Fiber laser generator with great and stable performance to have lifespan over 100,000 hours. Raycus/Max for choice. (The USA IPG Laser source is optional)
Yaskawa servo motor and driver
Use Japanese servo motors and drivers. Machine X is driven by a motor, Y is driven by two motors, and Z (laser head auto focusing) is driven by a motor.

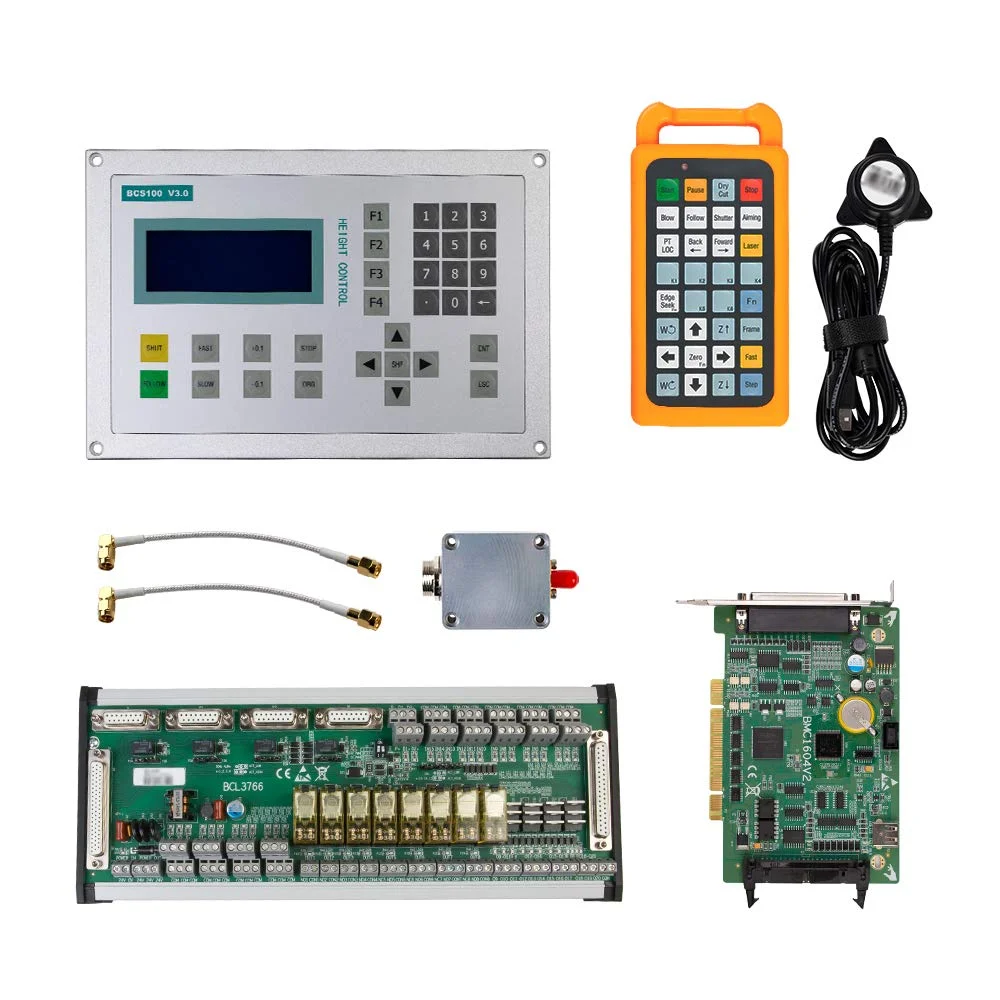

Cypcut control system
Easy to learn and easy to operate ,this can accurately control the operation of the cutting head to maximize the utilization of materials and reduce tailing ,FSCUT 2000 and others optional ,please choose according to seller's advice
Hanli water chiller
An experienced and very popular water chiller brand, becoming the leading brand of water chillers in China with its stable quality and low energy consumption.
Auto lubrication
This machine accessory is applied to lubricate the machine rail and block in order that it runs smoothly and fast improving the working efficiency.
Taiwan YYC gear and rack
High carbon content, high compressive strength and high hardness.Low thermal sensitivity reduce the loss of equipment in using.
Taiwan HIWIN guide rail
Adopted Taiwan Hiwin linear guide rail, high positioning accuracy, scroll guide, reduce wear to maintain accuracy for a longer time.
Aviation Aluminum Beam
It is manufactured with aerospace standards and formed by 4300 tons press extrusion molding. After aging treatment, its strength can reach 6061 T6 which is the strongest strength of all gantries. Aviation aluminum has many advantages, such as good toughness, light weight, corrosion resistance, anti-oxidation, low density, and greatly increase the processing speed.

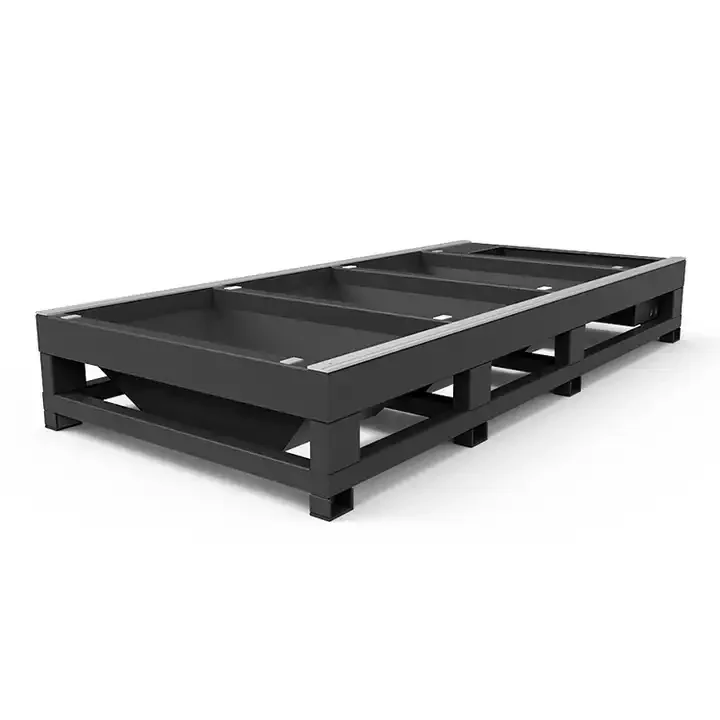

The cast iron bed (custom)
It is welded by heavy steel plate, the current mainstream bed structure, high stability;Effect force annealing treatment, high mechanical strength, not easy to deform; Reinforcing ribs are arranged inside the bed to increase the strength and tensile resistance of the bed, and effectively avoid deformation of the bed; The weight of the bed, the small vibration of the machine,and the good shock resistance ensure the improvement of cutting accuracy.
Application:
Application Materials:

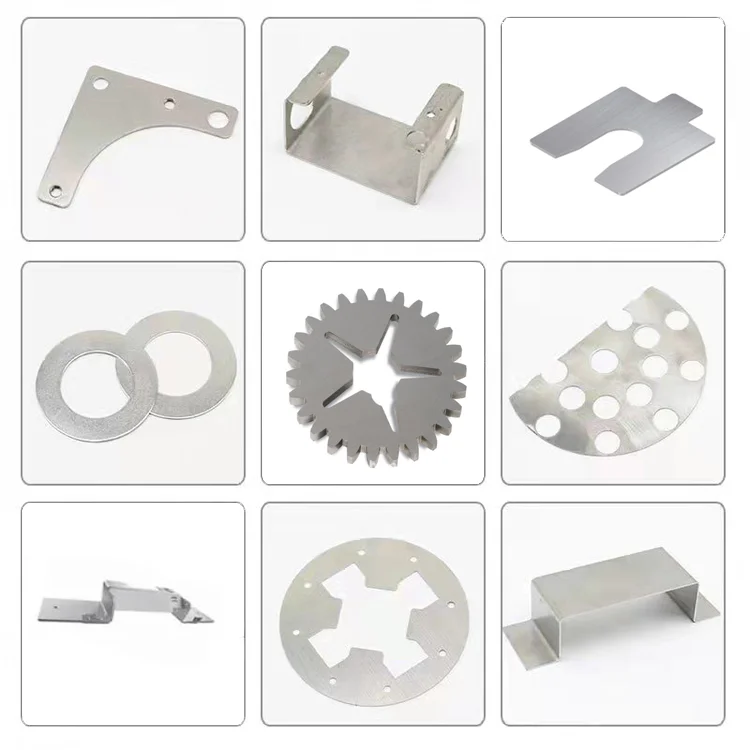

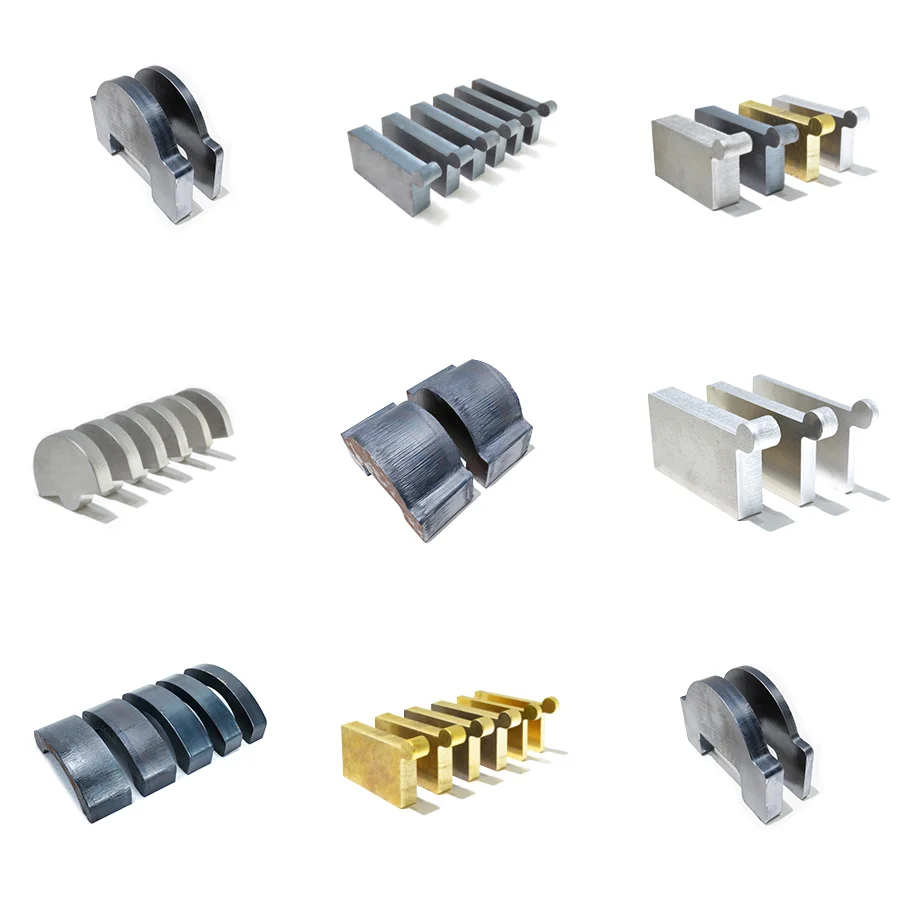

Fiber Laser Cutting Equipment is suitable for metal cutting like Stainless Steel Sheet, Mild Steel Plate, Carbon Steel Sheet, Alloy Steel Plate, Spring steel Sheet, Iron Plate, Galvanized Iron, Galvanized Sheet, Aluminum Plate, Copper Sheet, Brass Sheet, Bronze Plate, Gold Plate, Silver Plate, Titanium Plate, Metal Sheet ect.
Application Industries:
Applied in sheet metal processing, aviation, spaceflight, electronics, electrical appliances, subway parts, automobile, machinery, precision components, ships, metallurgical equipment, elevator, household appliances, gifts and crafts, tool processing, adornment, advertising, metal foreign processing various manufacturing processing industries.
Fiber Laser Cutting Equipment is suitable for metal cutting like Stainless Steel Sheet, Mild Steel Plate, Carbon Steel Sheet, Alloy Steel Plate, Spring steel Sheet, Iron Plate, Galvanized Iron, Galvanized Sheet, Aluminum Plate, Copper Sheet, Brass Sheet, Bronze Plate, Gold Plate, Silver Plate, Titanium Plate, Metal Sheet ect.
Application Industries:
Applied in sheet metal processing, aviation, spaceflight, electronics, electrical appliances, subway parts, automobile, machinery, precision components, ships, metallurgical equipment, elevator, household appliances, gifts and crafts, tool processing, adornment, advertising, metal foreign processing various manufacturing processing industries.
1.Anti-collision package edge: All parts of the machine are covered with some soft materials, mainly the use of pearl wool.
2.Fumigation wooden box: Our wooden box is fumigated, do not need to check the wood, saving the transport time.
3.Whole film packaging machine: Avoid all damage that may occur during delivery. Then we will cover the plastic package tightly to ensure that the soft material is covered intact, also avoiding water and rust.The outermost is a wooden box with a fixed template.
4.Wooden box at the bottom of a solid iron socket for easy handling.
2.Fumigation wooden box: Our wooden box is fumigated, do not need to check the wood, saving the transport time.
3.Whole film packaging machine: Avoid all damage that may occur during delivery. Then we will cover the plastic package tightly to ensure that the soft material is covered intact, also avoiding water and rust.The outermost is a wooden box with a fixed template.
4.Wooden box at the bottom of a solid iron socket for easy handling.
Jinan Apex Machinery Equipment Co., Ltd. is situated in Jinan, Shandong, China. We are a professional and good reputation manufacturer of CNC router, laser engraving machine, CNC plasma cutter, laser cutting machine, laser marking machine etc. The new and existing customers that are spread throughout South America, Middle East, Southeast Asia, Africa, Europe and other counties of the world and the machines have passed the CE certificate.
APEX CNC has 10 modern production and processing workshops, including the R&D workshop which can do special design for clients, 6 assembly workshops, 2 riveting and welding workshops, 2 machine processing workshops, more than 600 employees. Our machines are most popular among multi industries, and clients covering almost all the countries who doing importing and exporting business. Welcome to cooperate and to be our big sales agent.
Products including: CNC router, 5 axis machining center, 4 axis machining center, ATC CNC router, General 3 axis CNC router, CNC wood lathe, mold CNC milling machine, CO2 laser engraving cutting machine, and plasma cutting machine. Applications: woodworking, advertising, Marble, Metal, Non-metal, MDF, plastic, etc.
The aim of Jinan Apex CNC Equipment is to continuously upgrade the technique, to help our customers produce the best quality and high precision products, and offer the best after-sale service.
We are looking for reliable and excellent distributors all over the world. In addition to high-quality products and good after-sales service, we will also provide you with competitive prices, cooperate with your advertising, and provide a variety of advertising materials, text, pictures, and videos. For engraving and cutting a variety of different materials, we can provide professional design schemes and even drawings. We sincerely look forward to your cooperation and joining.
1. 24 hour Technical support by phone, e-mail or WhatsApp around the clock.
2. Friendly English version manual and operation video CD disk.
3. Machine will be adjusted before it is delivered, operation disk/CD was included.
4. Our technician can give you remote guide online if you have any questions.
5. Engineers available to service machinery overseas, seller and buyer discuss the charges.
3. Machine will be adjusted before it is delivered, operation disk/CD was included.
4. Our technician can give you remote guide online if you have any questions.
5. Engineers available to service machinery overseas, seller and buyer discuss the charges.
Q1: Do you have CE document and other documents for customs clearance?
A1: Yes, we have CE, Provide you with a one-stop service.At first we will show you and and after shipment we will give you CE/Packing list/Commercial Invoice/ Sales contract for customs clearance.
Q4: Do you have after sales support?
A4: Yes, we are happy to give advice and we also have skilled technicians available across the world, We need your machines running in order to keep your business running.
A1: Yes, we have CE, Provide you with a one-stop service.At first we will show you and and after shipment we will give you CE/Packing list/Commercial Invoice/ Sales contract for customs clearance.
Q2: If we are interested in your machine, how do we choose?
A2:1. What main job you do with the machine?
A2:1. What main job you do with the machine?
2. What is your request max working area? __mm* __mm?
3. What's your material diameter and length?
4. What material you want to cut,stainless steel,carbon steel?
Please tell us, then we can recommend the suitable machine to you.
3. What's your material diameter and length?
4. What material you want to cut,stainless steel,carbon steel?
Please tell us, then we can recommend the suitable machine to you.
Q3: How about warranty?
A3: 3 years quality guaranty, the machine with main parts(excluding the consumables) shall be changed free of charge(some parts will be maintained) when if any problem during the warranty period.
A3: 3 years quality guaranty, the machine with main parts(excluding the consumables) shall be changed free of charge(some parts will be maintained) when if any problem during the warranty period.
Q4: Do you have after sales support?
A4: Yes, we are happy to give advice and we also have skilled technicians available across the world, We need your machines running in order to keep your business running.
We also have CNC router, Co2 laser engraving machine, CNC plasma cutter, laser cutting machine, laser marking machine.
Please feel free to contact us if you need the good quality machine, best price and the reassuring after sale service！！！
