Products Description

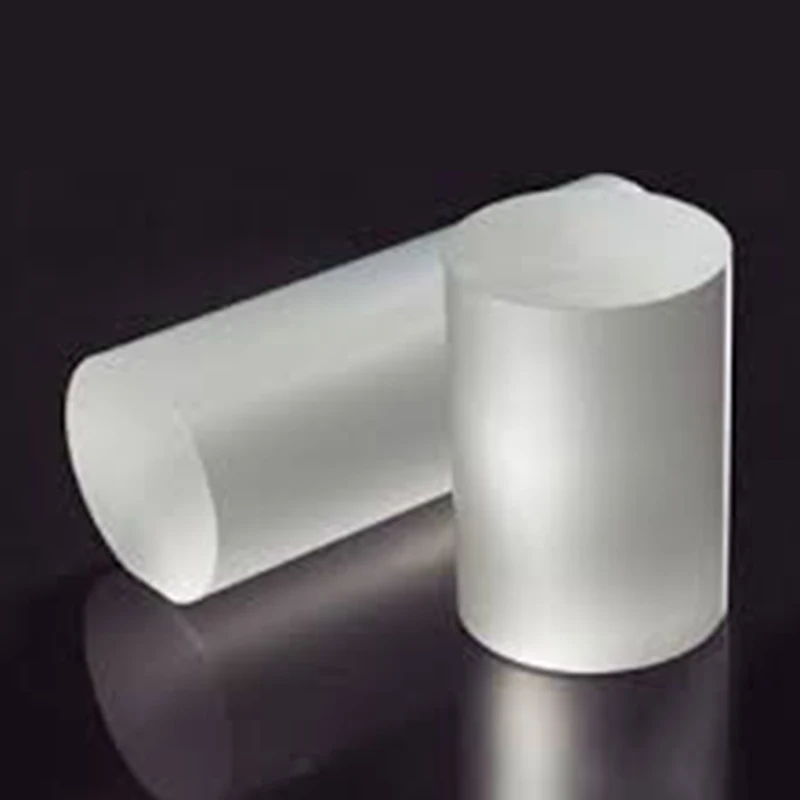

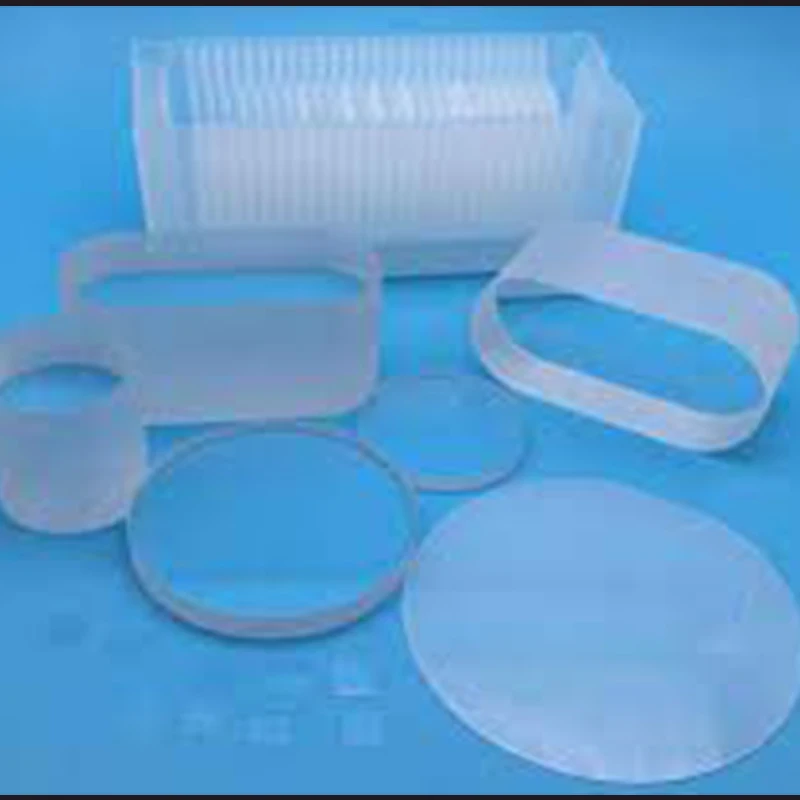

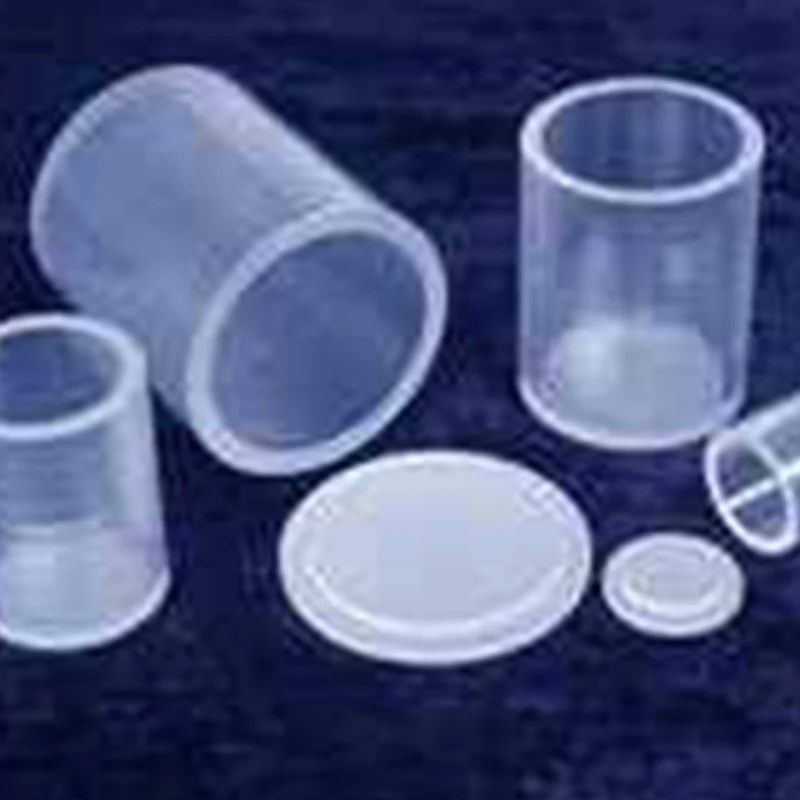

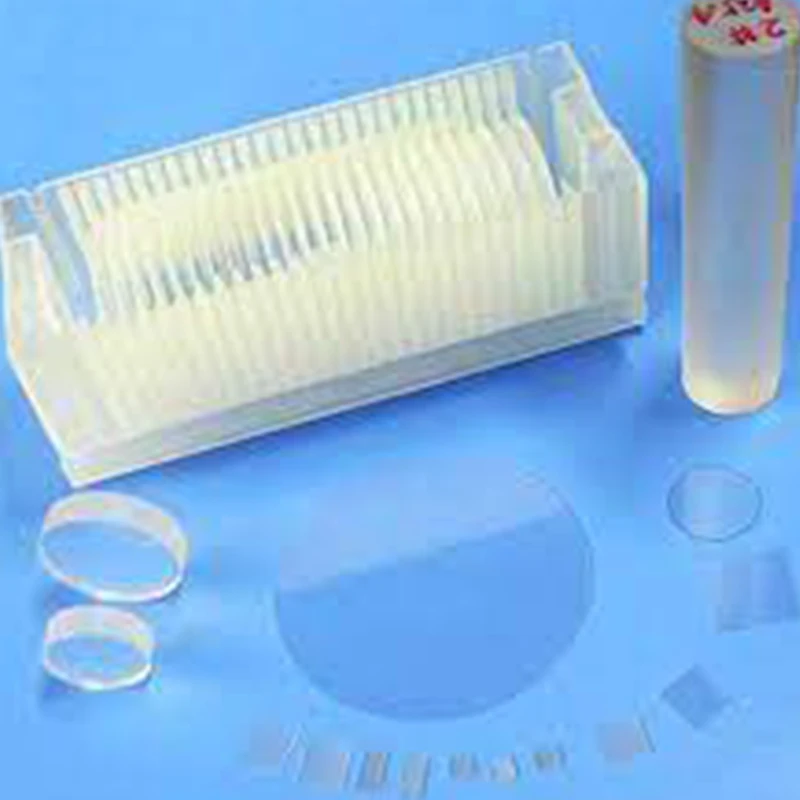

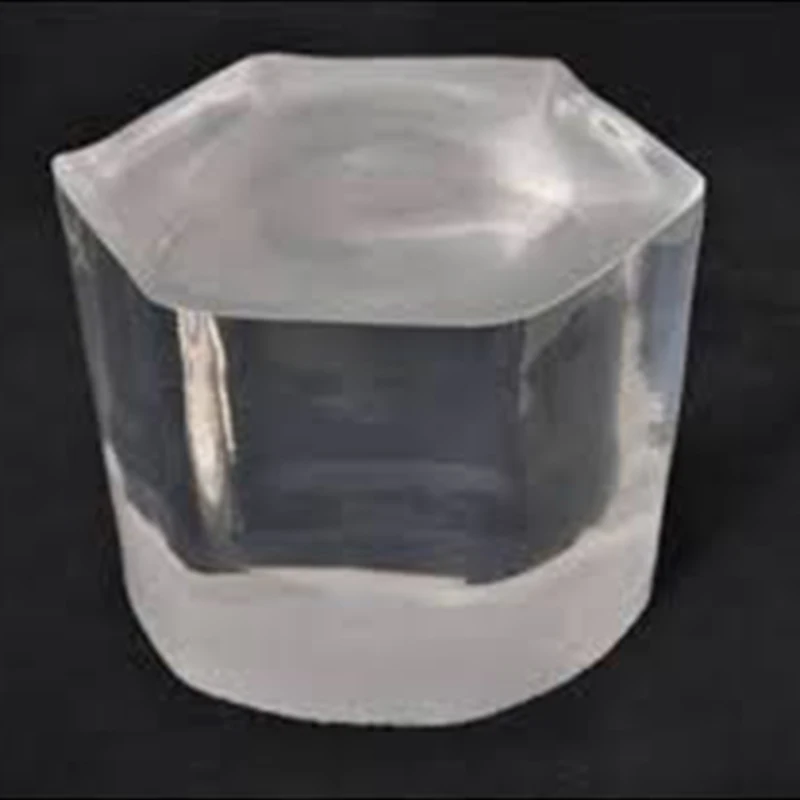

Al2O3 Sapphire
Al2O3 Sapphire single crystal is an excellent multifunctional material. It has high temperature resistance, good thermal conductivity, high hardness, infrared transmittance, and good chemical stability. Widely used in multiple fields such as industry, national defense, and scientific research (such as high-temperature infrared windows). At the same time, it is also a widely used single crystal substrate material, which is the preferred substrate for the current blue, purple, and white light emitting diodes (LEDs) and blue laser (LD) industries (requiring the epitaxial growth of gallium nitride thin films on sapphire substrates), and is also an important superconducting thin film substrate.
Product Parameters
Syngony | hexagonal crystal system | ||||
Lattice constants | a=4.748Å c=12.97Å | ||||
Density | 3.98（g/cm3） | ||||
Melting point | 2040℃ | ||||
Growing directions | Tira method, bubble method | ||||
Mohs hardness | 9 | ||||
Refractive index | At 300K, C, 1.762 @630nm ⊥C，1.770 @630nm | ||||
Thermal expansion coefficient | 5.8x10-6/K | ||||
Thermal conductivity (cal/℃ cm s) | ⊥c | //c | |||
23℃ | 0.055 | 26℃ 0.060 | |||
77℃ | 0.040 | 70℃ 0.041 | |||
Loss angle tangent @ 293K | 1×10-4（1MHz） | ||||
Dielectric constant *103-109Hz @ 25 ℃ | ∥C，11.5 ⊥C，9.3 | ||||
Transmittance | Ø 80％@ 400~4000nm | ||||
Crystallographic orientation | A-plane | <11-20> | 2.379A | ||
R-plane | <1-102> | 1.740A | |||
M-plane | <10-10> | 1.375A | |||
C-plane | <0001> | 2.165A | |||
Crystallographic tolerance | ±0.5° | ||||
Conventional dimensions and tolerances | 103,105,1010,1515,2015,2020 or custom-made | ||||
Conventional thickness and tolerance | 0.5mm，1.0mm | ||||
Polishing | Single or double-sided | ||||
Surface roughness | Ra＜1nm （5×5μm） | ||||
Package | 100 clean bag, 1000 ultra-clean room | ||||
Company Profile
Shanghai Opticrystal Materials Co., Ltd was established in 2014 , mainly engaged in the R&D, processing and sales of optical crystals, electronic and semiconductor materials, as well as laboratory equipment, spare parts, consumables and other products.
With a professional R&D, processing and sales team. Our products have been widely sold and used in laser processing, new energy vehicles, photovoltaics, optical communications, aerospace, ships, nuclear detection, medical beauty, consumer electronics, electricity, Environmental protection, scientific research and other fields, the products are exported to Europe, America and Southeast Asia and other regions.
Why Choose Us
FAQ
1. Who are we?
We are based in Shanghai, China, and the company started from 2014. Products have been sold to Europe (30.00%), North America(30.00%), South America(20.00%) and East Asia (20%).There are total about 35 employees in our company.
We are based in Shanghai, China, and the company started from 2014. Products have been sold to Europe (30.00%), North America(30.00%), South America(20.00%) and East Asia (20%).There are total about 35 employees in our company.
2. How can we guarantee quality?
With over 10 years manufacturing experience and strict quality control system, the products quality is ensured. Also samples are available before mass production; Always final Inspection before shipment.
3.What can you buy from us?
With over 10 years manufacturing experience and strict quality control system, the products quality is ensured. Also samples are available before mass production; Always final Inspection before shipment.
3.What can you buy from us?
Ⅰ. Optical Crystals :
Laser crystals: Nd:YAG, Cr4+:YAG, Yb:YAG, Tm:YAP, Ho:YAG , Ho:YAP, Er:YAG, Er: glass, Nd:YLF, Nd:YVO4, Ti3+:Al2O3 and bonded crystals.
Laser crystals: Nd:YAG, Cr4+:YAG, Yb:YAG, Tm:YAP, Ho:YAG , Ho:YAP, Er:YAG, Er: glass, Nd:YLF, Nd:YVO4, Ti3+:Al2O3 and bonded crystals.
Scintillation crystals: Ce:LuAG, Ce:GAGG, Ce:YAG.
Piezoelectric crystals: BaTiO3, Quartz, (PMN-PT), LiTaO3, LiNbO3,LGS.
Magneto-optic crystals: TGG, TSAG,TLF, KTF, CeF3, YIG.
Magneto-optic crystals: TGG, TSAG,TLF, KTF, CeF3, YIG.
Acousto-optic crystal: TeO2.
Birefringent crystals: YVO4, α-BBO.
Nonlinear crystals: β-BBO, KDP, DKDP, LBO, KTP, PPLN. Metal Single crystals: Al, Cu, Mg, Ni.
Nonlinear crystals: β-BBO, KDP, DKDP, LBO, KTP, PPLN. Metal Single crystals: Al, Cu, Mg, Ni.
Single crystal substrates: Al2O3, GGG/NGG/SGGG,LSAT, LaAIO3, MgO, MgAl2O4, SrTiO3, YSZ, TiO2.
Gemstones: Ruby, Sapphire, Emerald.
Ⅱ. Precision Optics:
Optical windows, filters, lenses, prisms, objective lenses, cylindrical mirrors, mirrors, beam combiners, beam expanders,
wedge mirrors, glued mirrors, etc.; materials include BK7, K9, quartz glass, sapphire, silicon Si , Germanium Ge, zinc selenide ZnSe, calcium fluoride CaF2, magnesium fluoride MgF2, barium fluoride BaF2, zinc sulfide ZnS and so on.
Ⅲ. Optical Devices:
Photoelectric Pockels Cell: BBO, KDP, DKDP, LN/MgO:LN, LGS, KTP, RTP. Faraday Optical Isolators: Polarization-independent isolator, polarization-dependent isolator, near-infrared visible light free-space isolator, in-line isolator, circulator, etc.
Optical Modulators: lithium niobate phase modulators, fiber-coupled acousto-optic modulators, spatial acousto-optic
modulators, acousto-optic Q switches, acousto-optic filters, acousto-optic deflectors, and acousto-optic drivers.
Optical windows, filters, lenses, prisms, objective lenses, cylindrical mirrors, mirrors, beam combiners, beam expanders,
wedge mirrors, glued mirrors, etc.; materials include BK7, K9, quartz glass, sapphire, silicon Si , Germanium Ge, zinc selenide ZnSe, calcium fluoride CaF2, magnesium fluoride MgF2, barium fluoride BaF2, zinc sulfide ZnS and so on.
Ⅲ. Optical Devices:
Photoelectric Pockels Cell: BBO, KDP, DKDP, LN/MgO:LN, LGS, KTP, RTP. Faraday Optical Isolators: Polarization-independent isolator, polarization-dependent isolator, near-infrared visible light free-space isolator, in-line isolator, circulator, etc.
Optical Modulators: lithium niobate phase modulators, fiber-coupled acousto-optic modulators, spatial acousto-optic
modulators, acousto-optic Q switches, acousto-optic filters, acousto-optic deflectors, and acousto-optic drivers.
Special Optical Fiber:
special silica optical fiber, single optical fiber, optical fiber bundle, optical fiber passer, optical fiber collimator.
Ⅳ. Semiconductor Materials:
Quartz, diamond, GaAs, Si, Ge, ZnO, AlN, GaN, GaO, SiC, LiTaO3, LiNbO3, etc.
special silica optical fiber, single optical fiber, optical fiber bundle, optical fiber passer, optical fiber collimator.
Ⅳ. Semiconductor Materials:
Quartz, diamond, GaAs, Si, Ge, ZnO, AlN, GaN, GaO, SiC, LiTaO3, LiNbO3, etc.
Ceramic Substrates: Si3N4, Al2O3, AlN, ZrO2.
Sputtering targets: single crystal target, metal target, alloy target, ceramic target, compound target, rare earth target.
Ⅴ. Laboratory equipment and consumables:
Optical platforms, translation stages, mirror frames, teaching experiment modules, spectrometers, power meters, lasers, pulsed
xenon lamps, scientific research electric furnaces, performance testing equipment, consumables, etc.
4. What services can we provide?
Free samples
Customization
24hours online service.
Ⅴ. Laboratory equipment and consumables:
Optical platforms, translation stages, mirror frames, teaching experiment modules, spectrometers, power meters, lasers, pulsed
xenon lamps, scientific research electric furnaces, performance testing equipment, consumables, etc.
4. What services can we provide?
Free samples
Customization
24hours online service.
After sales service
Packaging & Delivery
Похожие товары
QDLASER CW-5200 лазерный водяной охладитель для охлаждения одной 150 Вт или двойной 100 CO2 лазерные трубки
808nm 50W VCSEL лазерный диод
36,00 $
Мини-зеленый лазерный диодный модуль 4 5 мм APC прямой зеленый свет 520 нм точечный Лазер МВт
13,00-30,00 $
HL-30 переключателя потока S & A Hall (оригинальный HL-12)

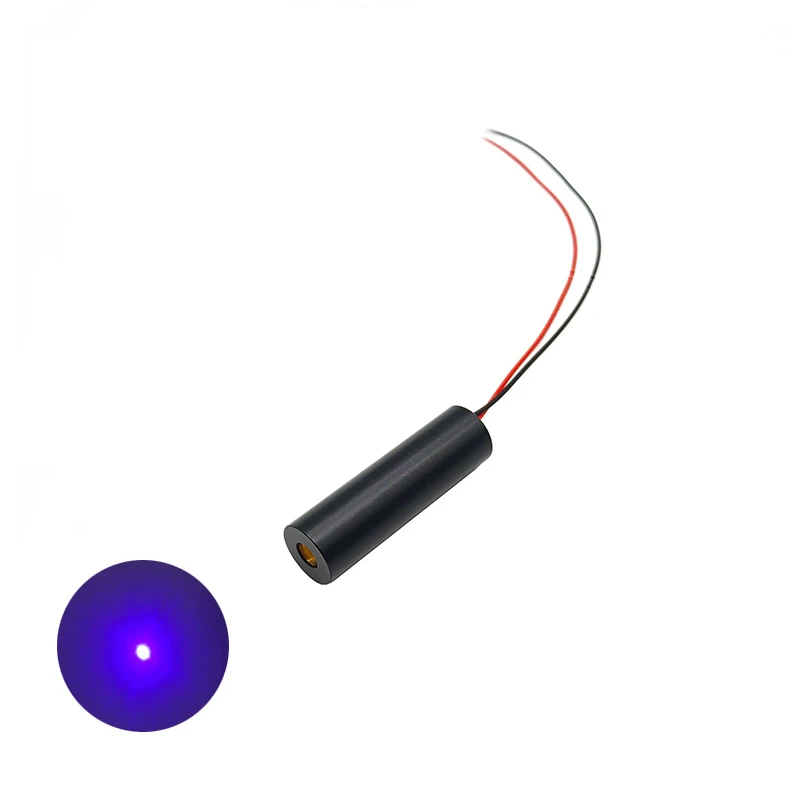

Фокус Dot фиолетово-синий 50 МВт высокой мощности лазерный диод модуль 405nm
