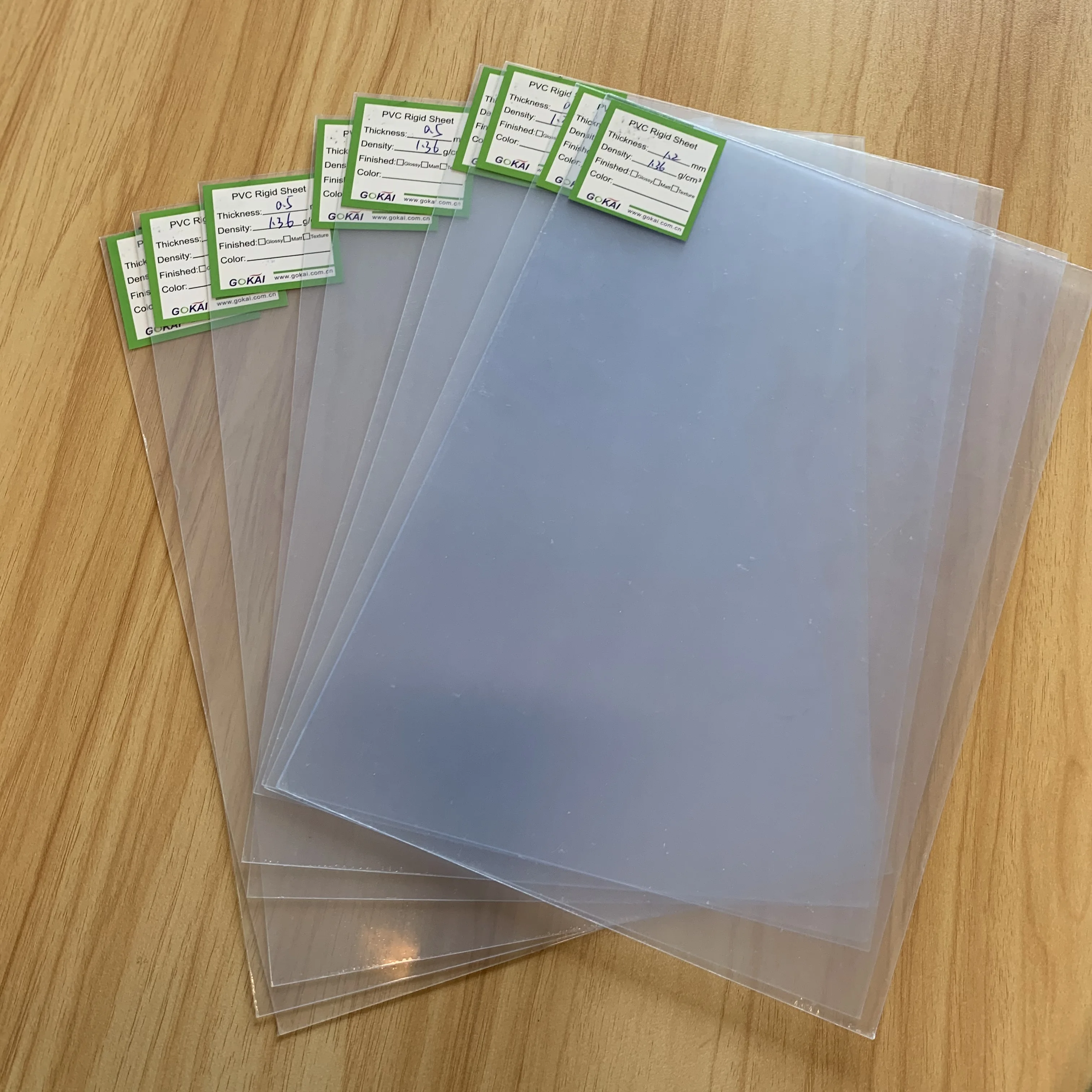

Прозрачная пластиковая пленка ПВХ жесткий лист ПВХ доска твердая жесткая

Сохранить в закладки 1600959622196:


Цена:*

Количество:

  • В избранное

Описание и отзывы

Характеристики






Product Description




































Size



 1220*915mm 915*1830,1200*2000,1220*2440mm  etc



Material






PVC






Density



1.36-1.55 g/cm3



Thickness



 0.2mm—10mm



Color



Clear, milky, opal, black, red, blue, yellow, green, frosted, tinted etc



Note:



Custom colors, thickness, and sheet sizes - No Problem!



















PVC Rigid sheet is extruded from Environmental friendly compound having smooth & glossy surface finish.










Main Features



  • Smooth & Gloss

  • Easy to Fabricate

  • Good Printability

  • Low Flammability

  • Non Corrosive

  • Non Toxic

  • High Impact Strength

  • Good Sound & Thermal Insulation

  • Self Extinguishing

  • Resistance to Oscillation & Vibration



Suitable For



  • Cutting

  • Sawing

  • Shearing

  • Punching

  • Drilling

  • Milling

  • Rivetting

  • Welding

  • Painting

  • Embossing

  • Photo Mounting

  • Engraving



Applications



  • Advertising Signs

  • Displays

  • Walls and Partitions

  • Bathroom Fittings

  • Models & Prototypes

  • Panels & Cabin

  • Embossing & Engraving

  • Point of sale

  • Switch Board

  • Ventilation Duct





















Technical Properties

































































































































PropertiesTestUnitValue

Physical


DensityDIN53479g/cc1.40 to 1.55
HardnessDIN53505Shore D80
Hardness Water AbsorptionDIN53490%0.1

Mechanical


Tensile StrengthDIN53455MPa≥ 45
Elongation at BreakDIN53455%≥ 60
E ModulusDIN 53457MPa2500 - 3000
Charpy Impact StrengthDIN 53253KJ/M²≥ 7.5
Izod Impact StrengthASTM D256KJ/M²No Break
Charpy Impact StrengthDIN 53253KJ/M²> 7.5
Flexural StrengthDIN 53452MPa80
Drop Impact Strength
(Height : 1.8 m & mass : 0.3 kg x thickness)
IS 6307--Pass
Compressive Strength at 10% DeformationDIN 53421MPa60

Thermal


Vicat (B/50)DIN 53460ºC80
Heat Deflection Temperature @ 1.8 MPaDIN 53461ºC65
Coefficient of linear Thermal ExpansionASTM D 696ºC-17.07 x 10-5

Electrical


Surface ResistivityASTM D 257W2.8 X 10 16
Volume ResistivityASTM D 257W-cm8.1 x 10 15
Dielectric

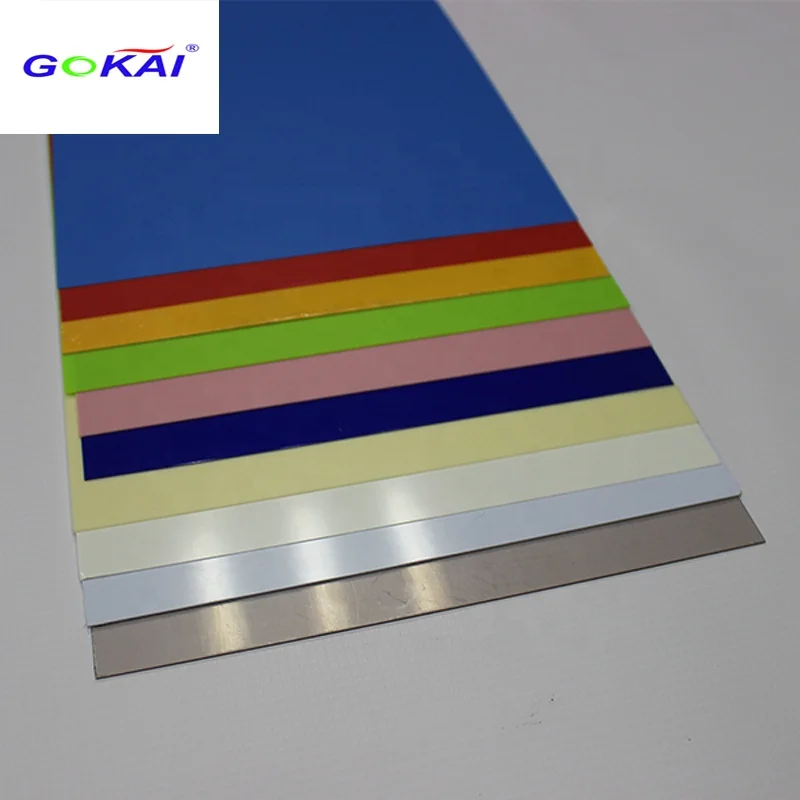

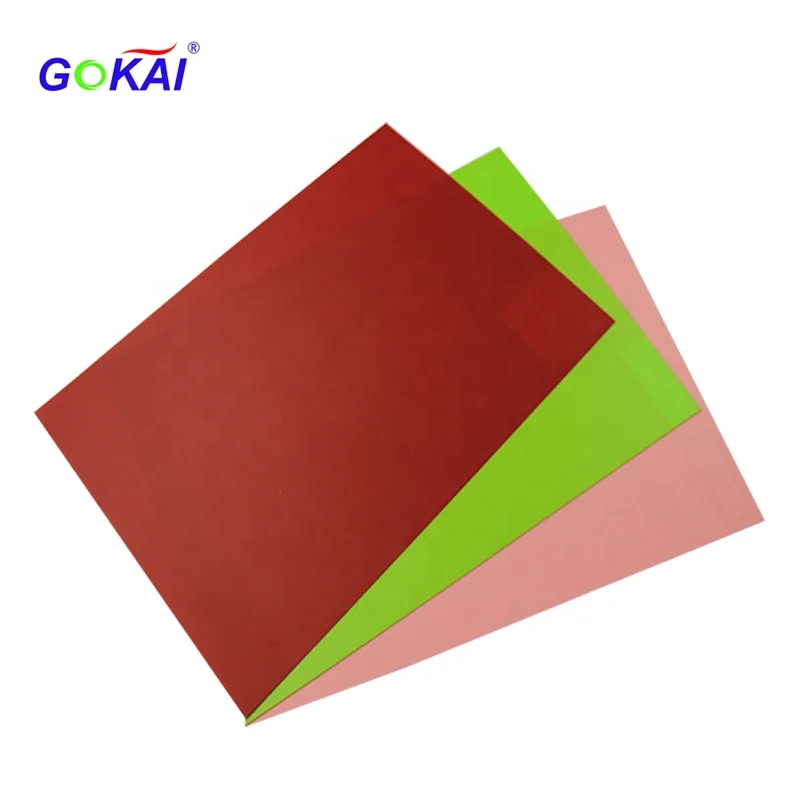

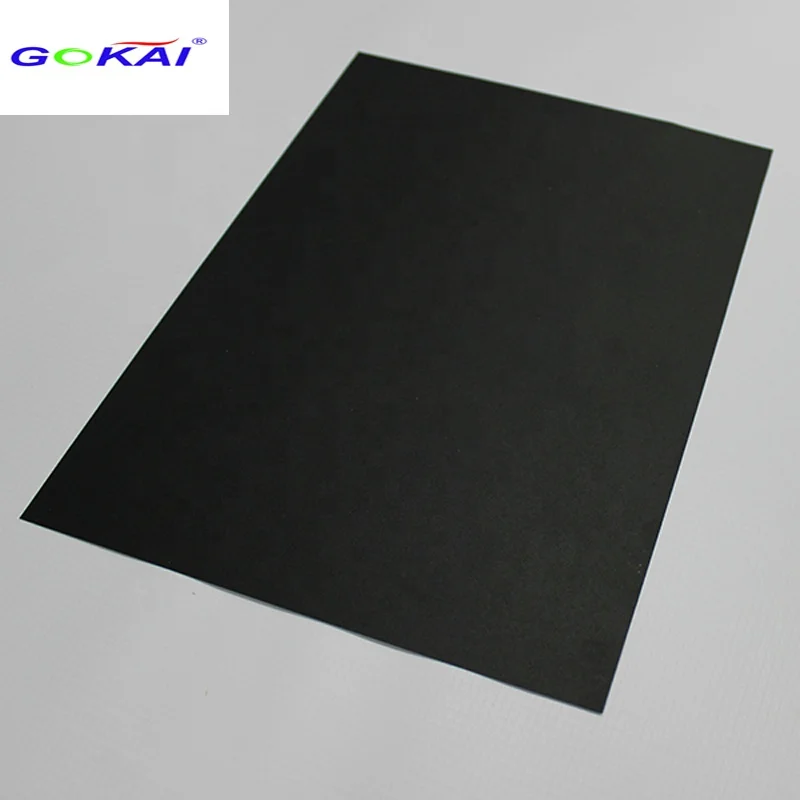

HTB1RUSiwh9YBuNjy0Ffq6xIsVXa8.jpgHTB1LW3lnRyWBuNkSmFPq6xguVXa1.jpgHTB1iZoZnTXYBeNkHFrdq6AiuVXat.jpg











Benifits of   Rigid film






Rigid films are durable and have a long shelf life.They resist oil, grease, water, and chemicals.


They have extremely high-impact strength and edge-tear resistance.


The films are flame resistant and self-extinguishing.


They can be UVstable.These films perform on your machinery. They can be processed in a variety of ways and work without pretreatment for all printing technologies applying UV-drying inks.





They have extremely high-impact strength and edge-tear resistance.


The films are flame resistant and self-extinguishing.








They are dimensionally stable with exceptional layflat properties.Ink adheres uniformly to these films and the print quality is outstanding.With rigid film We have maximum packaging integrity for our film so your material is clean , our rigid films are recyclable.





Production Processes



Calendering
Extrusion (Cast & Blown)








Rigid film  Printing Methods



We formulate rigid  films so that you can achieve beautiful results using almost any printing method:



  1. Screen printing

  2. Offset printing (Ox/UV)

  3. Rotogravure printing

  4. Flexographic printing

  5. Letter press printing

  6. Digital printing

  7. Thermotransfer printing

  8. Large-format printing








Rigid film Converting Methods



Rigid filmcan be converted in multiple ways:






  1. Metallized

  2. Coated

  3. Laminated (heat or adhesive)

  4. Flocked





Rigid film Methods



Rigid films can be finished in numerous ways:






  • Folded, bent, sewn

  • Grooved, embossed, scored

  • Punched, bored, die-cut, cut

  • Thermoformed on all current machine types

  • Glued with dispersion-, solvent-, and hot-melt adhesives

  • Welded in thermal-, impulse-, high frequency-, and ultrasound-contact processes



Our Services



  • Cutting to size based on client's wishes

  • adaptability

  • fast responsiveness

  • option of smaller batches

  • advising in the transformation of sheets into end products

  • custom-made colours

  • support and close cooperation in development

  • large number of different gross sheet formats




  Samples Sets of Plastics


We  have clear and colored Plexiglass, PVC foam board celuka and other plastic samples. We are working hard to create sample chains of all our sheet products for you.





Tired of the little 2"x2" sample chip? We offers  a variety of formats .- to make sure that what we have is a match for your application. The large format of the samples allows you to better evaluate the color, the stiffness, chemical resistance, or light transmission of each material.


Feel free to ask for free samples!



Company Information


Shanghai Gokai Industry Co.,Ltd. specialise in researching, developing, manufacturing and distributing PVC Foam Board,PVC Free Foam Board,Color PVC Board,PVC Celuka Foam Board,Acrylic Sheet,PMMA,Acrylic Bath Sheet; is a professional manufacturer of board

      The Company was founded in 2009, has set up factories in Qingpu Shanghai,Shaoxing ,Huzhou Zhejiang, Introduced advanced production equipment and processing technology. The world-leading equipment and rich experience with this process and this material have enable Gokai to create the PVC Foam Boards/Sheets  and Acrylic Sheet. that is perfectly matched to the requirements of the market.





  The quality of work processes and consequently of the products made is one of the strategic directions of the company. The basic aim of our company is the quality manufacture of products that satisfy the needs and demands of customers, while constantly caring for a healthy and safe environment. Development, manufacture and marketing are carried out in accordance with the requirements of the international ISO 9001:2008 quality standard.
Our company wishes to follow only the best, which is why we do quality work in all areas. By this means we are managing and improving our business operations and increasing the satisfaction of our customers.
