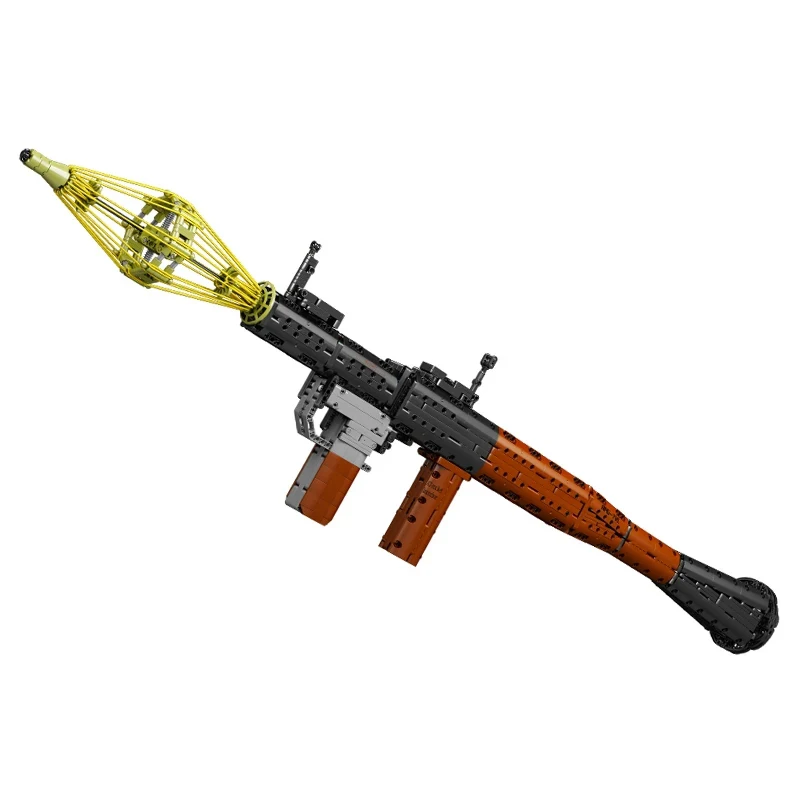

Форма король 14017, технический реактивный гранатомет, Боевая винтовка, имитация оружия, конструктор, конструктор, игрушки
26,16 $ - 27,85 $

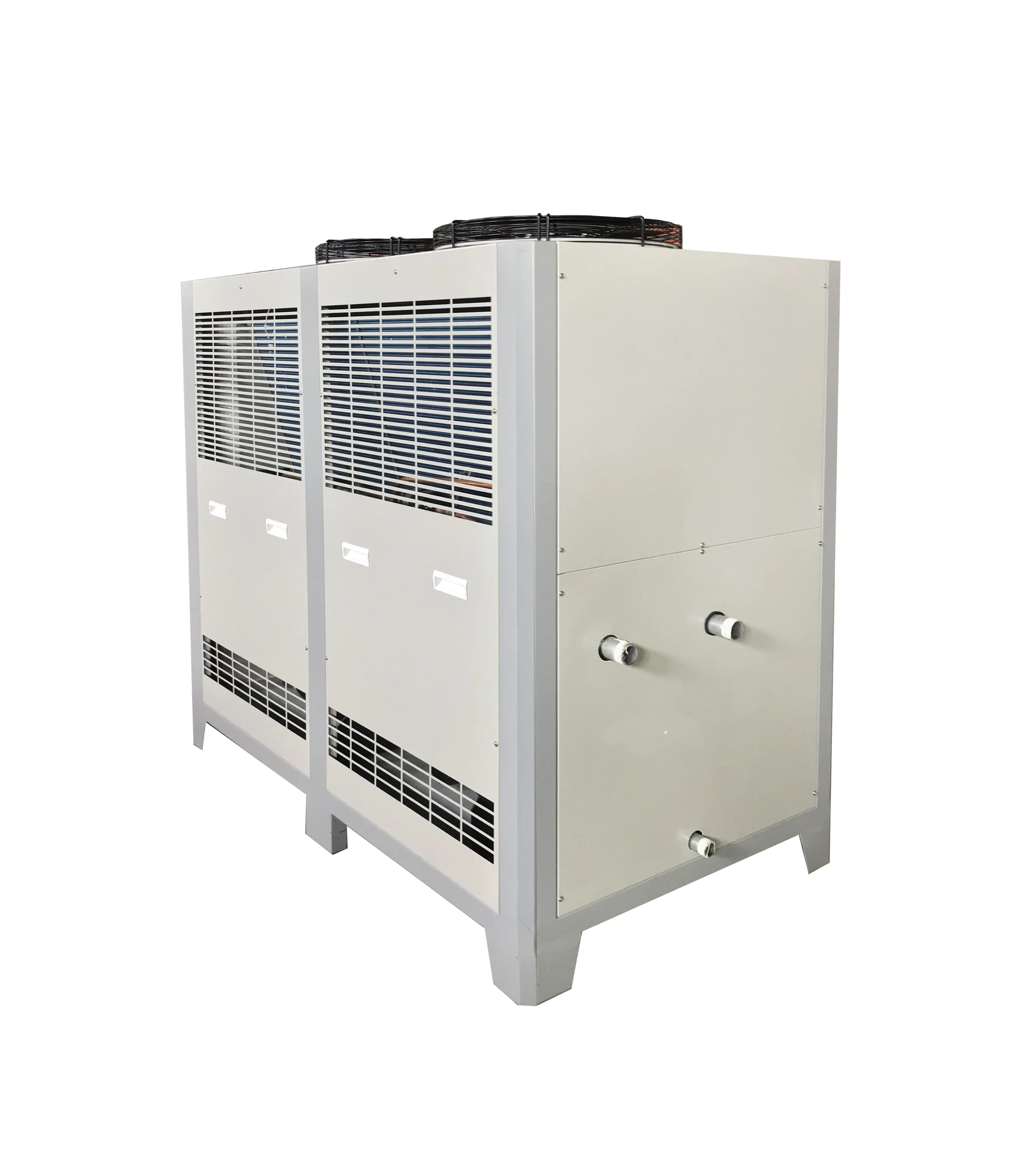

Высокое качество 5HP 10HP 20HP с воздушным охлаждением промышленный гликоль охладитель воды для продажи
- Категория: >>>
- Поставщик: Jinan Mgreenbelt Machinery Co. Ltd.
Сохранить в закладки 1600960598879:
Описание и отзывы
Характеристики

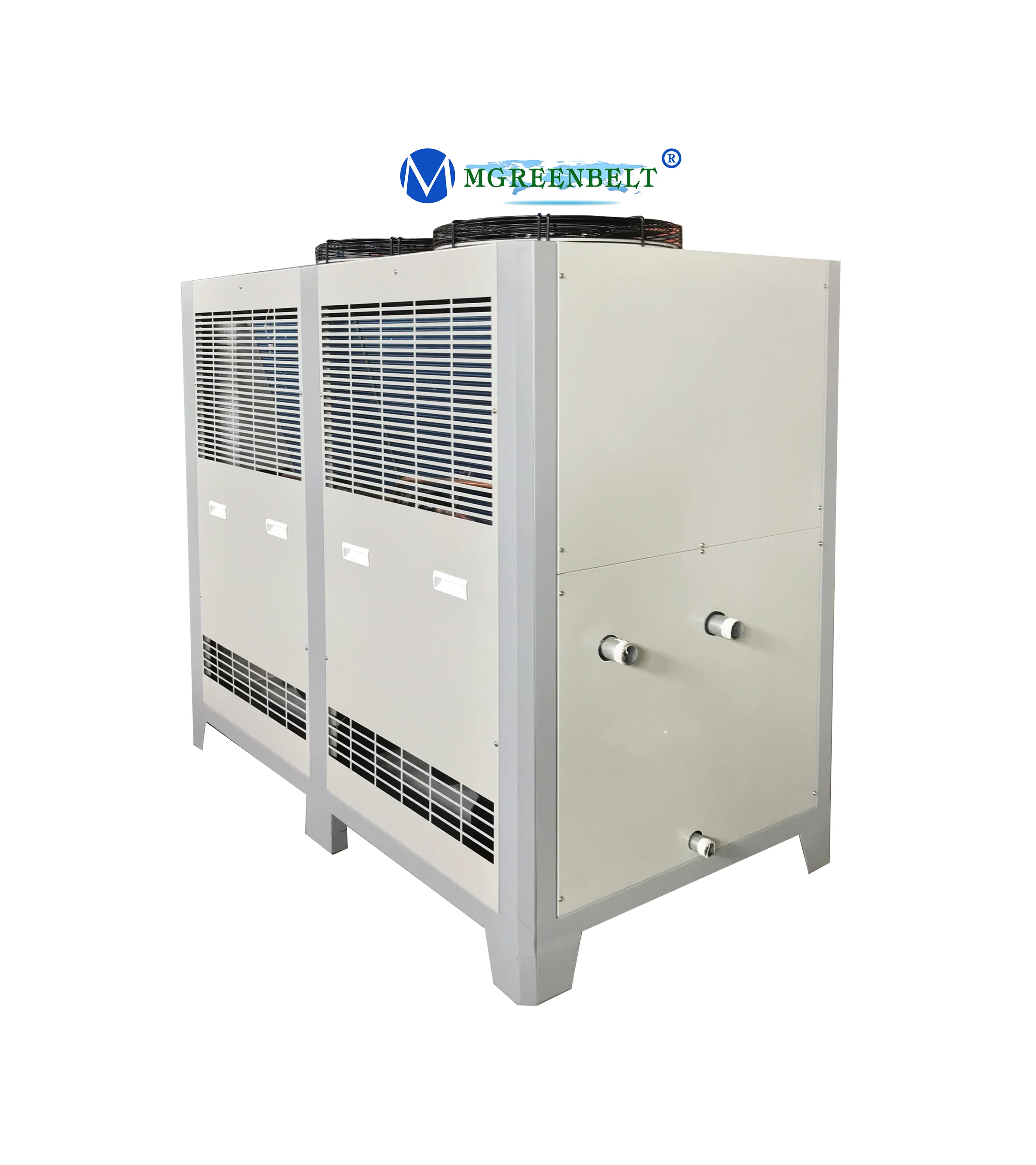

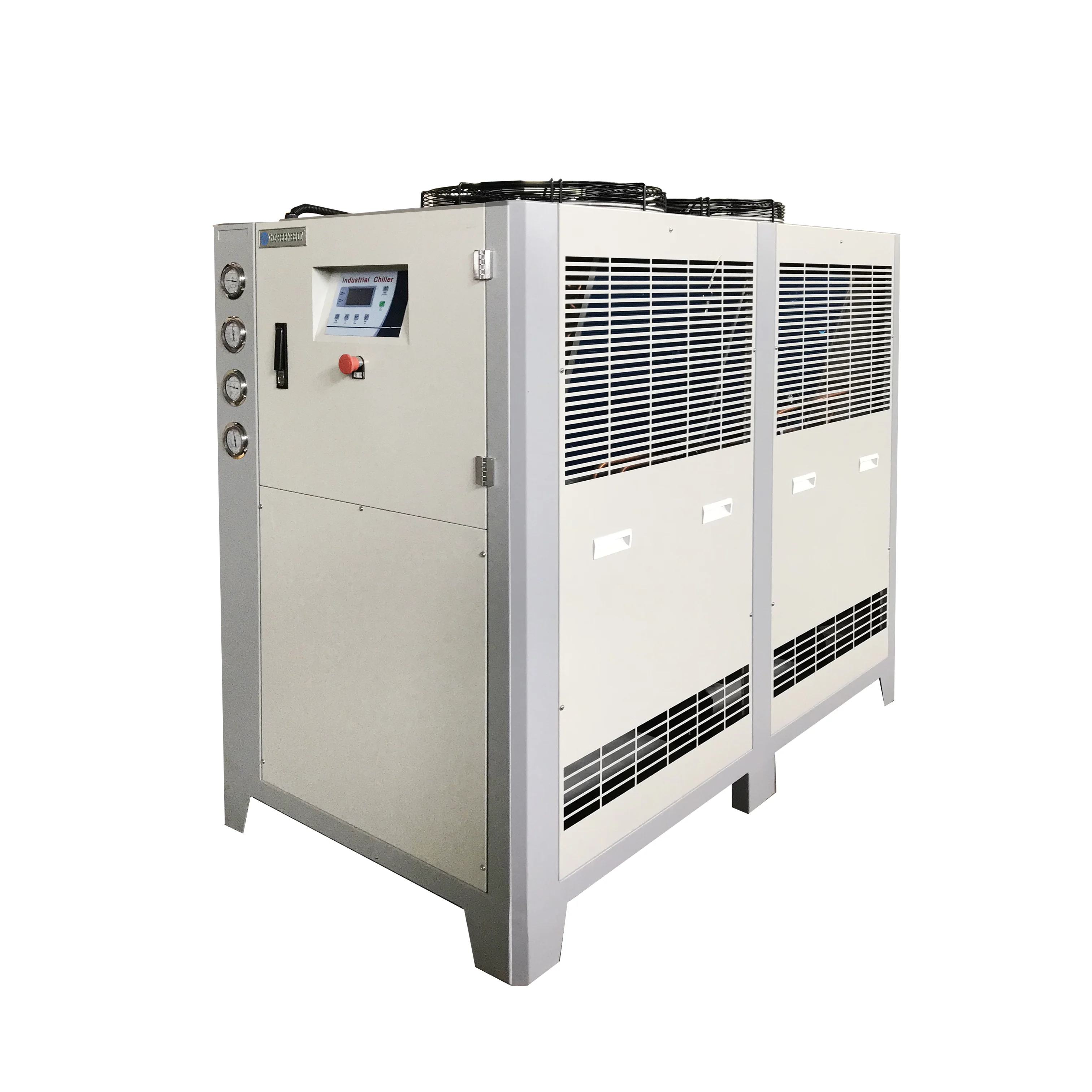

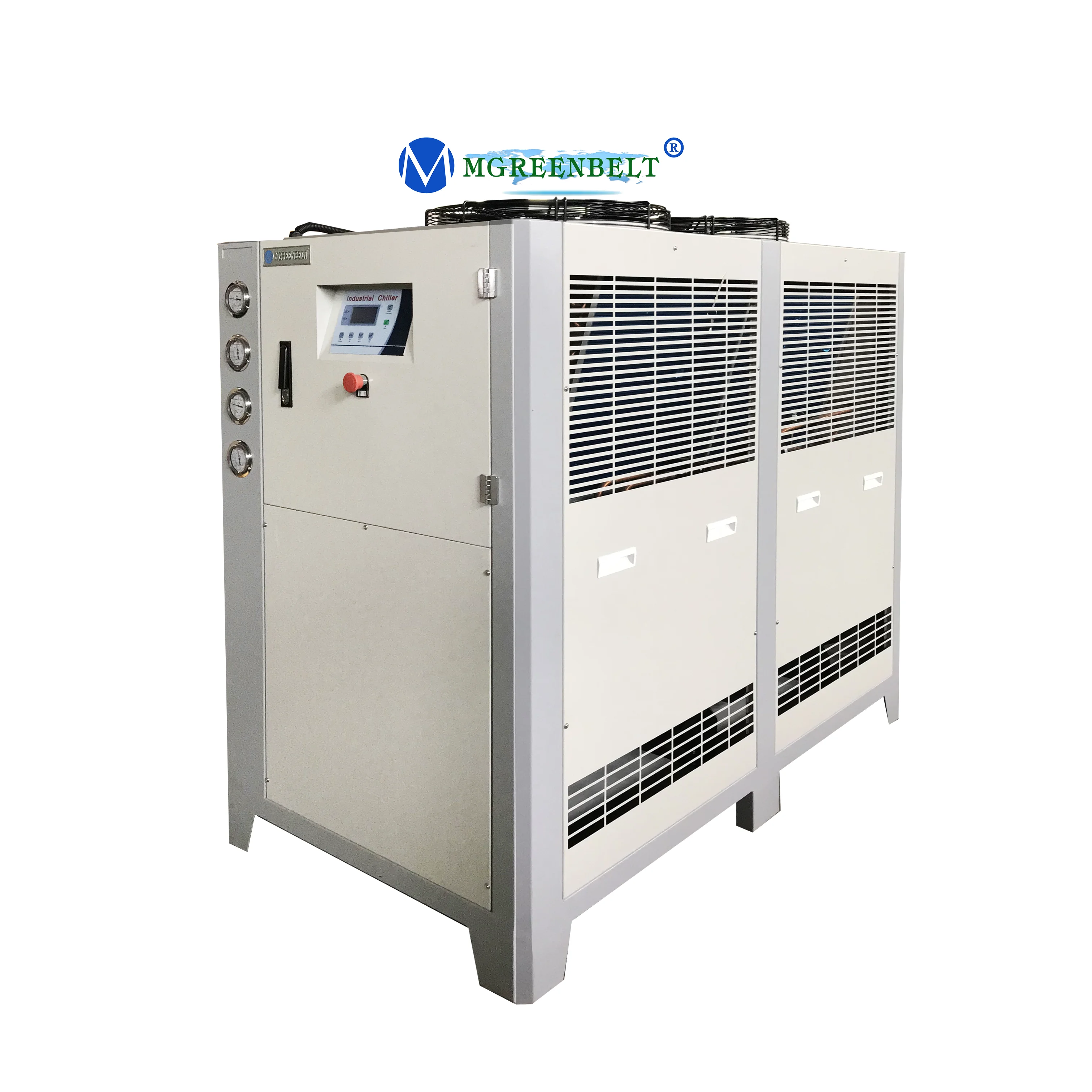

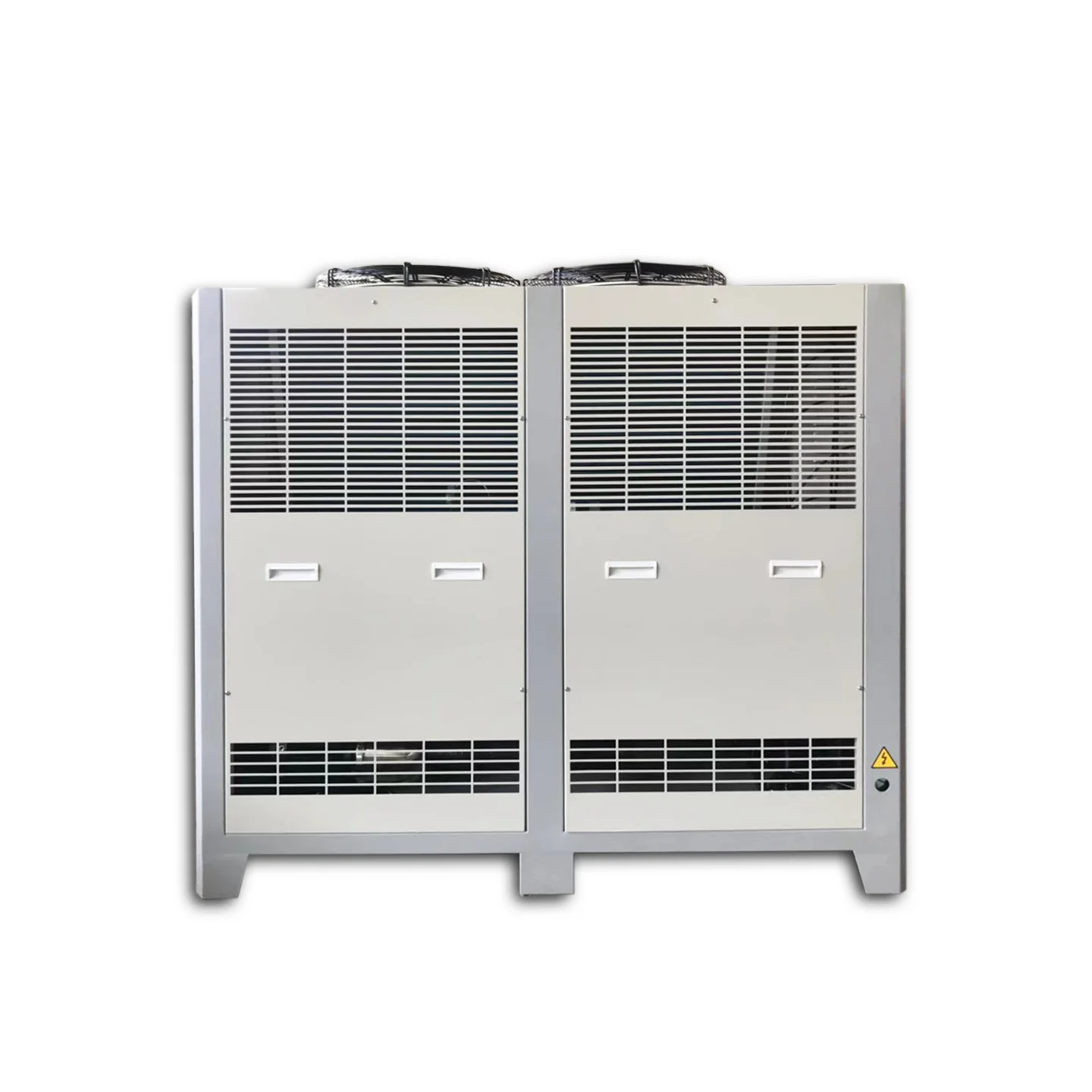

High Efficiency Save Electricity Water Cooled Chiller 10hp Industrial Water Cooler Chiller Air Water Chiller
Product Description
Specification
Model | MG-5C | MG-10C | MG-15CD | MG-20CD | MG-25CD | MG-30CT | MG-40CF | ||||||||
Cooling capacity | Kcal/h | 11524 | 23048 | 35948 | 47558 | 55212 | 71896 | 95116 | |||||||
kw | 13.4 | 26.8 | 41.8 | 55.3 | 64.2 | 83.6 | 110.6 | ||||||||
power | kw | 5.05 | 9.91 | 13.56 | 19.63 | 24.48 | 30.2 | 38.52 | |||||||
Power input | 3PH-380V-50HZ | ||||||||||||||
Refrigerant | Type | R22/R407C | |||||||||||||
Control | Thermostatic expansion valve | ||||||||||||||
Compressor | Type | Hermetic scroll type | |||||||||||||
Power（kw） | 4.1 | 4.1*2 | 5.36*2 | 8.13*2 | 9.79*2 | 8.13*3 | 8.13*4 | ||||||||
Evaporator | Type | SS Tank with coil or Shell and tube | |||||||||||||
Water flow m³/h | 2.3 | 4.59 | 7.17 | 9.48 | 11.01 | 14.33 | 18.96 | ||||||||
Capacity L | 80 | 200 | 275 | 360 | 360 | 530 | 740 | ||||||||
Inlet/Outlet | DN25 | DN32 | DN40 | DN40 | DN40 | DN65 | DN65 | ||||||||
Condenser | Type | High efficiency hydrophilic aluminum foll finned type | |||||||||||||
Power | 0.58 | 0.58*2 | 0.67*2 | 0.937*2 | 1.7*2 | 0.937*3 | 1.7*4 | ||||||||
pump | Type | Centrigual water pump | |||||||||||||
Power kw | 0.37 | 0.55 | 1.5 | 1.5 | 1.5 | 3 | 3 | ||||||||
Lift m | 24 | 20 | 20 | 20 | 20 | 22 | 21 | ||||||||
Protection System | Compressor overheat protection, high/low pressure protection,phase missing/sequence protection, flow rate protection, anti-frozen protection. | ||||||||||||||
Dimension | L mm | 1220 | 1560 | 1800 | 2050 | 2050 | 2720 | 2450 | |||||||
W mm | 600 | 840 | 900 | 990 | 990 | 1120 | 1400 | ||||||||
H mm | 1200 | 1530 | 1600 | 1740 | 1865 | 1800 | 2110 | ||||||||
Wight | kg | 200 | 450 | 750 | 850 | 900 | 1150 | 1350 | |||||||
Company Profile
Jinan Mgreenbelt Machinery Co., Ltd is a water chiller and cold room manufacturer, our main product range include industrial water chiller, cold storage and air compressor equipment.
In order to meet the need of different customer, we specialized the main industrial:
Plastic industry use water chiller: different capacity and cooling type; Include plastic injection machine water chiller, plastic extruder water chiller, plastic blowing water chiller and etc;
Brewery use glycol chiller: outlet temperature can satisfy 0 deg C, -5 deg C, -10deg C or much lower based on your need; Include Beer Chiller, Distillery Chiller, Winery Chiller and etc;
Chemical industry chiller: the lowest temperature can be -40 deg C; Chemical And Pharmaceutical Use Chiller, Explosion-Proof Chiller
Other industry equipment working cooling.
In order to meet the need of different customer, we specialized the main industrial:
Plastic industry use water chiller: different capacity and cooling type; Include plastic injection machine water chiller, plastic extruder water chiller, plastic blowing water chiller and etc;
Brewery use glycol chiller: outlet temperature can satisfy 0 deg C, -5 deg C, -10deg C or much lower based on your need; Include Beer Chiller, Distillery Chiller, Winery Chiller and etc;
Chemical industry chiller: the lowest temperature can be -40 deg C; Chemical And Pharmaceutical Use Chiller, Explosion-Proof Chiller
Other industry equipment working cooling.
Packing & Delivery
Package:
LCL SHIPMENT: Use plastic foam protect, then ply wooden case package.
FCL: If the equipment enough package with 20"or 40" container, will use plastic foam package and wooden pallet.
Shipping Terms:
1. We can arrange the shipping by sea, by air, by truck and train based on your requirements, but kindly remind the refrigerant
gas can't allowed by air ,so you must filling them when machine arrive if you choose the air ship.
2. FOB,CFR,CIF,DDU can be accepted.
3. Any port of CHINA we can sent, if you have other goods will packaged in one container, we would like to arrange that for you.
LCL SHIPMENT: Use plastic foam protect, then ply wooden case package.
FCL: If the equipment enough package with 20"or 40" container, will use plastic foam package and wooden pallet.
Shipping Terms:
1. We can arrange the shipping by sea, by air, by truck and train based on your requirements, but kindly remind the refrigerant
gas can't allowed by air ,so you must filling them when machine arrive if you choose the air ship.
2. FOB,CFR,CIF,DDU can be accepted.
3. Any port of CHINA we can sent, if you have other goods will packaged in one container, we would like to arrange that for you.
Customer Reference
FAQ
Q:How to choose a right chiller model? A:Please make sure the details as follow:
1.What's the flow rate need?
2.Inlet and outlettemperature need ?
Then we will calculate what's hte cooling capacity you need.
1.What's the flow rate need?
2.Inlet and outlettemperature need ?
Then we will calculate what's hte cooling capacity you need.
Q: How to quote a accurate solution for you?
A:After make sure the cooling capacity,please inform us:
1.What's the power supply need? Phase/Voltage/Frequency.
2.What's the refrigerant need? R22/R407C/R410A/R134A and etc.
A:After make sure the cooling capacity,please inform us:
1.What's the power supply need? Phase/Voltage/Frequency.
2.What's the refrigerant need? R22/R407C/R410A/R134A and etc.
If this water chiller not suitable for your working need, we have different chiller series, please choose it as follows.
1. Air Cooled Scroll Chiller : cooling capacity range from 1 ton to 35 tons;
2. Water Cooled Scroll Chiller : cooling capacity range from 1 ton to 40 tons;
3. Air Cooled Screw Chiller : cooling capacity range from 20 tons to 150 tons;
4. Water Cooled Screw Chiller :cooling capacity range from 25 ton to 400 tons;
Temperature range: -25 deg C~+35 deg C based on different industry working need.
1. Air Cooled Scroll Chiller : cooling capacity range from 1 ton to 35 tons;
2. Water Cooled Scroll Chiller : cooling capacity range from 1 ton to 40 tons;
3. Air Cooled Screw Chiller : cooling capacity range from 20 tons to 150 tons;
4. Water Cooled Screw Chiller :cooling capacity range from 25 ton to 400 tons;
Temperature range: -25 deg C~+35 deg C based on different industry working need.
Our service
Technical service
1, We calculate the capacity and recommend the best models.
2, We design and develop the new products according to your requirement besides our standard products
3, We supply you the professional refrigeration technical support and electronic technical support for your installation,
debugging and operation.
4, We supply the spare parts and technical support in & after the warranty time.
5, We supply the training course to your workers at our factory if you need.
After-sale service
1, where the purchase of our company's products will be implemented in three guarantees: debugging, training and guidance
installation. All products are free warranty for 12 months, lifelong maintenance, fully ensure that customers have no worries.
2. The company has a perfect after-sales system to ensure that customers' after-sales problems are solved in time to achieve
customer satisfaction and recognition.
3. Timely and considerate on-site maintenance services.
4. Lifelong free pre-sales, sales, after-sales technical support.
1, We calculate the capacity and recommend the best models.
2, We design and develop the new products according to your requirement besides our standard products
3, We supply you the professional refrigeration technical support and electronic technical support for your installation,
debugging and operation.
4, We supply the spare parts and technical support in & after the warranty time.
5, We supply the training course to your workers at our factory if you need.
After-sale service
1, where the purchase of our company's products will be implemented in three guarantees: debugging, training and guidance
installation. All products are free warranty for 12 months, lifelong maintenance, fully ensure that customers have no worries.
2. The company has a perfect after-sales system to ensure that customers' after-sales problems are solved in time to achieve
customer satisfaction and recognition.
3. Timely and considerate on-site maintenance services.
4. Lifelong free pre-sales, sales, after-sales technical support.
Recommend Products
Похожие товары
Высококачественный немецкий Ретрактор Seletz Gelpi, Ретрактор, хирургические инструменты от Hasni, хирургический индивидуальный логотип, сделано в Пакистане

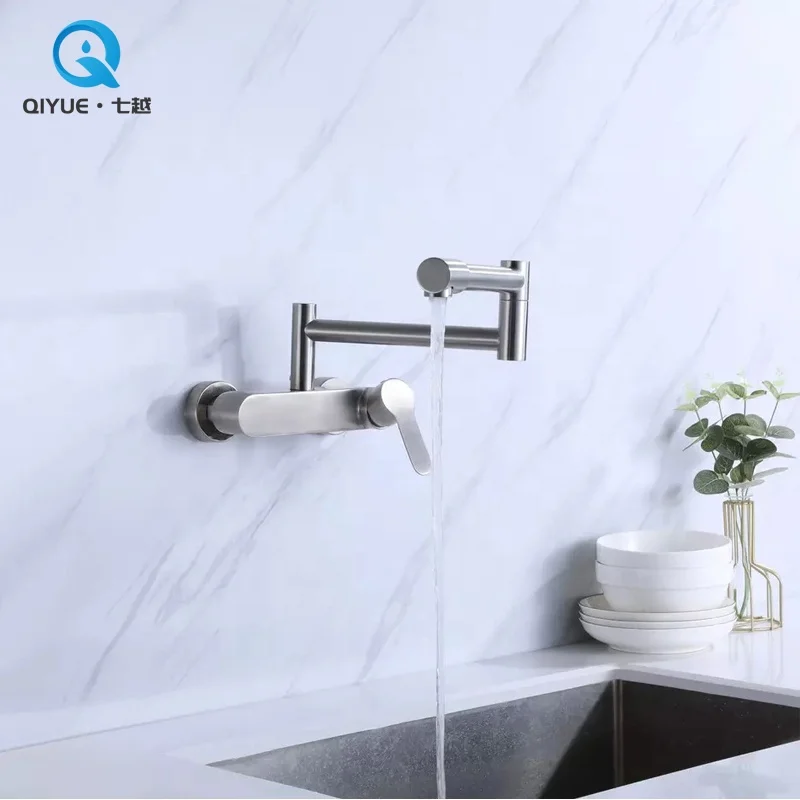

Современный Поворотный однорычажный настенный Длинный Носик из нержавеющей стали 304, гибкий матовый кухонный кран, смесители

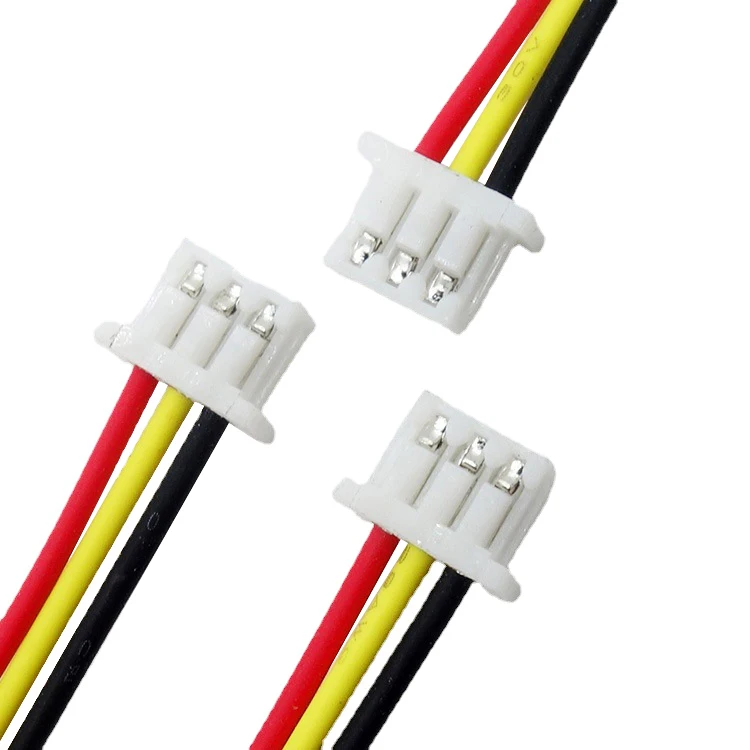

OEM высококачественный соединитель molex 2/3/4/5/6/7 штырьковый разъем pico blade штекер 3,7 в батарея с кабельным проводом

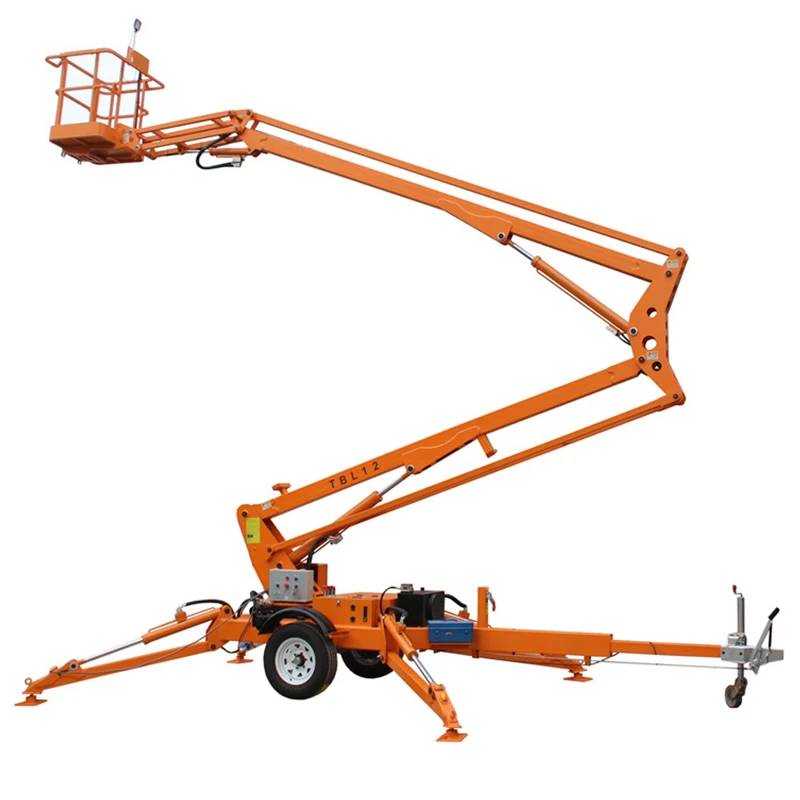

Телескопическая паук надземная Рабочая платформа подъемников буксируемая подъема стрелы
3 200,00 $ - 4 250,00 $

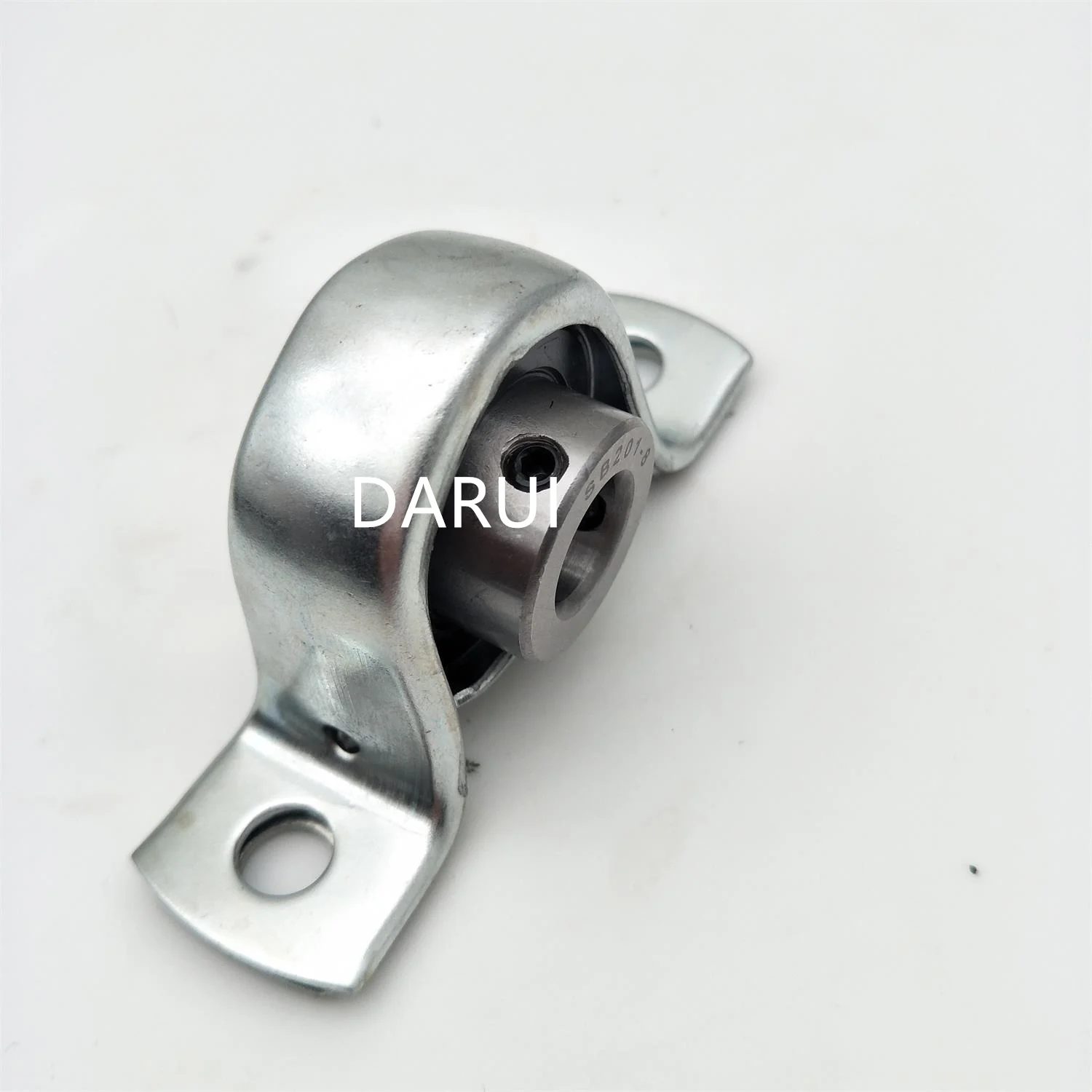

Высокоточный опорный подшипник koyo подшипники с тонкими PFL-204 шаровой подшипник, изготовленные в Китае

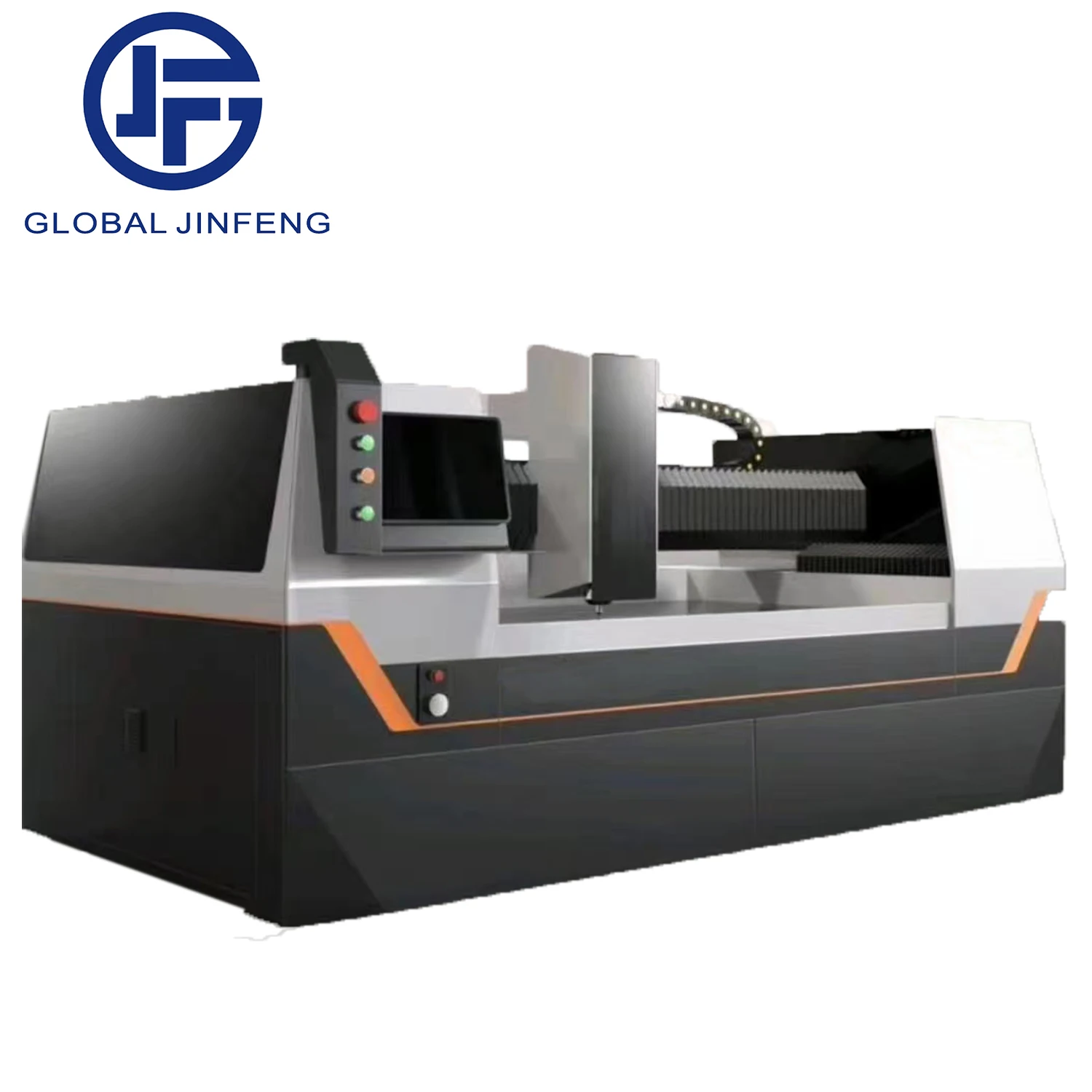

Китайский CNC стеклянный горизонтальный CNC Многофункциональный сверлильный фрезерный станок дверной оконный стеклянный Рабочий центр
