28% скидка! Покупка фестиваля 1000 Вт горячая Распродажа волоконно-лазерная резка для металла сталь алюминий
172 199,40-229 599,20 ₽

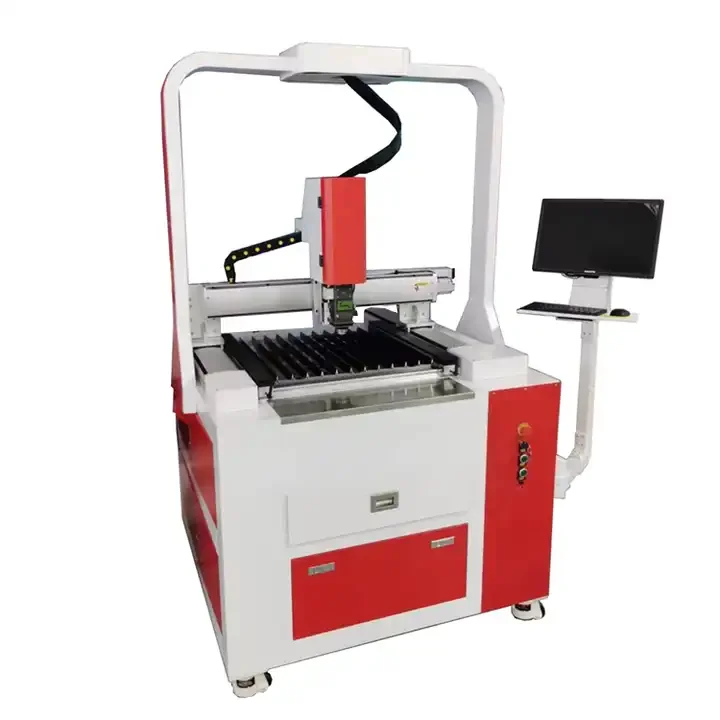

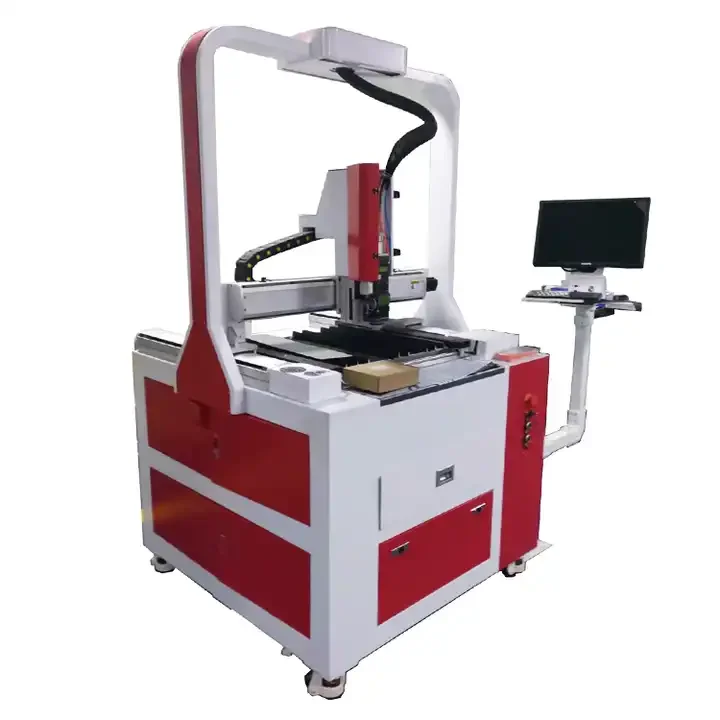

Эффективный новый тип 5050 1000 Вт небольшой размер стола волоконно лазерная резка прецизионное оборудование для лазерной резки металла
- Категория: >>>
- Поставщик: Jinan Apex Machinery Equipment Co. LtdJinan Ltd
Сохранить в закладки 1600960735965:
Описание и отзывы
Характеристики
Efficient new type 5050 1000W small table size fiber laser cutting machine precision metal laser cutting equipment
Features of fiber laser cutting machine:
1. Low cost and the power consumption is 0.5-1.5kw/h; Customer can cut all kinds of metal sheets by blowing air.
2. High-performance. Imported the original packaged fiber laser, with stable performance and the lifespan is over 100,000 hours.
3. High speed and efficiency, the speed of cutting metal sheets close to tens of meters.
4. The laser maintenance-free.
5. The cutting edge looks perfect and the appearance is smooth and beautiful.
6. Imported the transmission mechanism and servo motor, and high cutting accuracy.
7. Dedicated software enables graphic or text to be instantly designed or processed. Flexible and easy operation.
2. High-performance. Imported the original packaged fiber laser, with stable performance and the lifespan is over 100,000 hours.
3. High speed and efficiency, the speed of cutting metal sheets close to tens of meters.
4. The laser maintenance-free.
5. The cutting edge looks perfect and the appearance is smooth and beautiful.
6. Imported the transmission mechanism and servo motor, and high cutting accuracy.
7. Dedicated software enables graphic or text to be instantly designed or processed. Flexible and easy operation.
#Raycus fiber laser generator
#Shanghai Cypcut control system
#Raytools cutting head
#Japan Yaskawa Servo motor and driver for X,Y axis
#Automatic following adjust focus system
#Serrate working platform table
#Location system:Red dot indicator
#Taiwan PMI ball screw
#Taiwan helical gears and racks
#Taiwan HIWIN square guide rail
#CW 5200 ndustrial chiller
#MOTOVARIO reducer
#Shanghai Cypcut control system
#Raytools cutting head
#Japan Yaskawa Servo motor and driver for X,Y axis
#Automatic following adjust focus system
#Serrate working platform table
#Location system:Red dot indicator
#Taiwan PMI ball screw
#Taiwan helical gears and racks
#Taiwan HIWIN square guide rail
#CW 5200 ndustrial chiller
#MOTOVARIO reducer
#Heavy-duty welded bed, cast aluminum beam
Machine specification | ||
Model & Name | APEX-5050 fiber laser cutting machine | |
Brand | APEXCNC | |
Working Area( X,Y axis travelling) | 500mm*500mm | |
Laser power | 1000W Raycus fiber laser generator (optional) | |
Wavelength | 1064nm | |
Cutting speed | depending on material and thickness | |
Positioning accuracy | ±0.02mm | |
Repositioning accuracy | ±0.01mm | |
Water cooling System | Constant temperature water chiller | |
Power supply | AC 380V/220V (customer demand) | |
Location system | Red dot indicator | |
Running Environment | Temperature: 0℃~45℃ | |
Raytools laser head
1. The cutting laser head has great advantages in medium power large platform cutting applications.
2. laser head is completely sealed which avoiding optical parts polluted by dust.
3. The laser head adopts two-point centering adjustment, focusing adopting imported motor drive, which improves the punching efficiency
Cypcut control system
(1) Cypcut controller is designed for sheet metal
processing industry launched a full-featured open loop
control system.
(2) Easy installation, easy adjustment, excellent a performance, complete solutions, which is a popular
fiber laser cutting machine control system.
processing industry launched a full-featured open loop
control system.
(2) Easy installation, easy adjustment, excellent a performance, complete solutions, which is a popular
fiber laser cutting machine control system.
Raycus laser source
1. Higher laser utilization
2. High electro-optical conversion efficiency
3. The output core diameter is smaller and the energy density is high, which can precisely cut small objects
2. High electro-optical conversion efficiency
3. The output core diameter is smaller and the energy density is high, which can precisely cut small objects
CW-5200 water chiller
Professional cooling systems, refrigeration temperatures are shown in table, the water temperature in excess of the prescribed temperature refrigeration unit automatically when cooling, refrigeration unit automatically stops when the water temperature below the specified temperature refrigeration.
Taiwan HIWIN guide rail
Long life with high speed, high accuracy and smooth linear motion.
Ball screw
high precision,long life the load drive structure is compact, can effectively reduce the driving torque. Including the clamping system on the working table.
Yaskawa servo motor and driver
High-performance servo motor adopts a one-step locking connector, which is highly resistant to vibration and shock. The debugging is convenient, operation is more stable, the positioning faster, which can match servo drive to control the position , speed and torque .

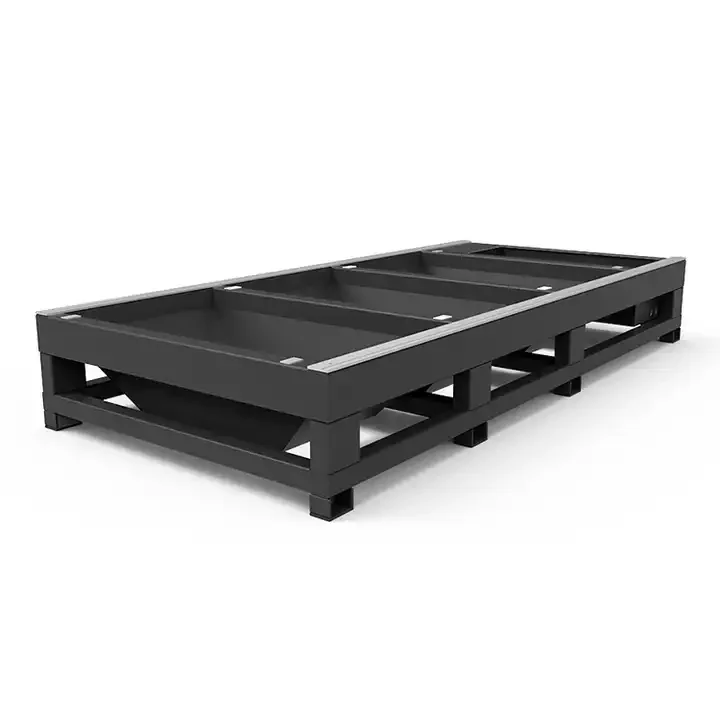

Heavy plate welding machine body
To optimize the design of the sectional welding lathe bed
Lathe bed in the middle of reinforcing bar, improves the
lathe bed stability, prevent deformation of lathe bed.
Lathe bed in the middle of reinforcing bar, improves the
lathe bed stability, prevent deformation of lathe bed.
Application:
Application industry:
Glasses, electronic appliances, and other sophisticated hardware, microelectronics industry.

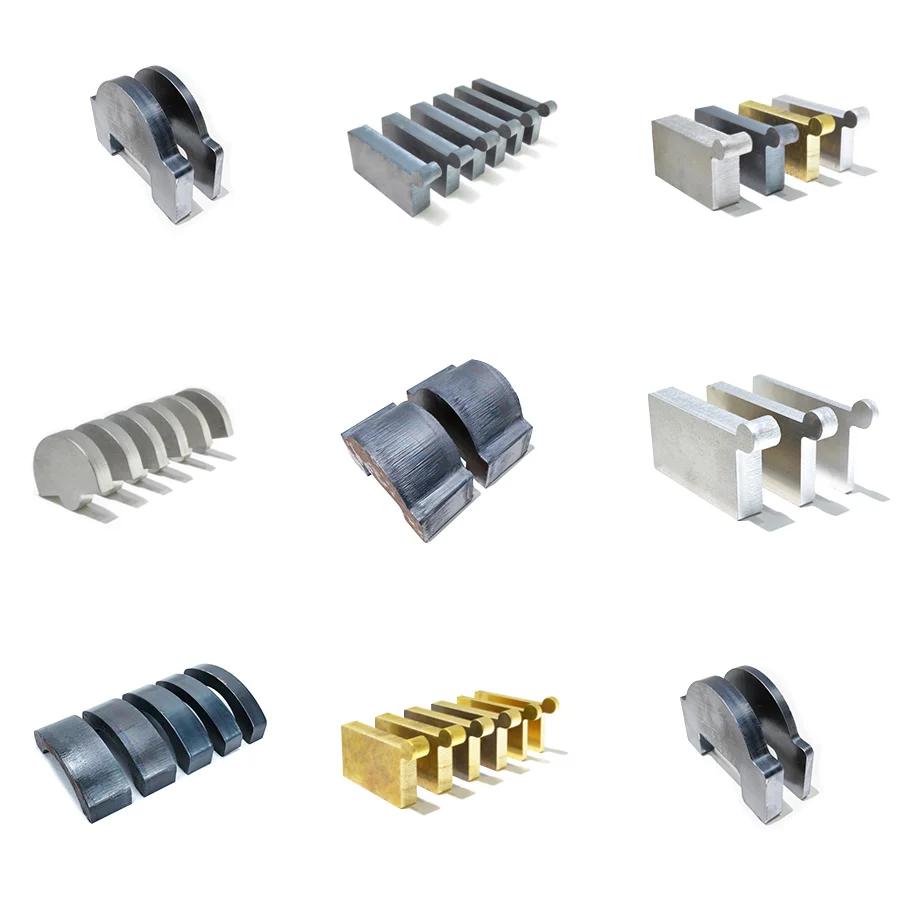

Application materials:
Professional for cutting various thin metal sheets, steel plate, stainless steel plate, cutting galvanized sheet, electrolytic plates, and other metal materials.
Glasses, electronic appliances, and other sophisticated hardware, microelectronics industry.
Application materials:
Professional for cutting various thin metal sheets, steel plate, stainless steel plate, cutting galvanized sheet, electrolytic plates, and other metal materials.
1. Anti-collision package edge: All parts of the machine are covered with some soft materials, mainly the use of pearl wool.
2. Fumigation wooden box: Our wooden box is fumigated, do not need to check the wood, saving the transport time.
3. Whole film packaging machine: Avoid all damage that may occur during delivery. Then we will cover the plastic package tightly to ensure that the soft material is covered intact, also avoiding water and rust.The outermost is a wooden box with a fixed template.
4. Wooden box at the bottom of a solid iron socket for easy handling.
2. Fumigation wooden box: Our wooden box is fumigated, do not need to check the wood, saving the transport time.
3. Whole film packaging machine: Avoid all damage that may occur during delivery. Then we will cover the plastic package tightly to ensure that the soft material is covered intact, also avoiding water and rust.The outermost is a wooden box with a fixed template.
4. Wooden box at the bottom of a solid iron socket for easy handling.
Jinan Apex Machinery Equipment Co., Ltd. is situated in Jinan, Shandong, China. We are a professional and good reputation manufacturer of CNC router, laser engraving machine, CNC plasma cutter, laser cutting machine, laser marking machine etc. The new and existing customers that are spread throughout South America, Middle East, Southeast Asia, Africa, Europe and other counties of the world and the machines have passed the CE certificate.
APEX CNC has 10 modern production and processing workshops, including the R&D workshop which can do special design for clients, 6 assembly workshops, 2 riveting and welding workshops, 2 machine processing workshops, more than 600 employees. Our machines are most popular among multi industries, and clients covering almost all the countries who doing importing and exporting business. Welcome to cooperate and to be our big sales agent.
Products including: CNC router, 5 axis machining center, 4 axis machining center, ATC CNC router, General 3 axis CNC router, CNC wood lathe, mold CNC milling machine, CO2 laser engraving cutting machine, and plasma cutting machine. Applications: woodworking, advertising, Marble, Metal, Non-metal, MDF, plastic, etc.
The aim of Jinan Apex CNC Equipment is to continuously upgrade the technique, to help our customers produce the best quality and high precision products, and offer the best after-sale service.
We are looking for reliable and excellent distributors all over the world. In addition to high-quality products and good after-sales service, we will also provide you with competitive prices, cooperate with your advertising, and provide a variety of advertising materials, text, pictures, and videos. For engraving and cutting a variety of different materials, we can provide professional design schemes and even drawings. We sincerely look forward to your cooperation and joining.
1. 24 hour Technical support by phone, e-mail or WhatsApp around the clock.
2. Friendly English version manual and operation video CD disk.
3. Machine will be adjusted before it is delivered, operation disk/CD was included.
4. Our technician can give you remote guide online if you have any questions.
5. Engineers available to service machinery overseas, seller and buyer discuss the charges.
3. Machine will be adjusted before it is delivered, operation disk/CD was included.
4. Our technician can give you remote guide online if you have any questions.
5. Engineers available to service machinery overseas, seller and buyer discuss the charges.
Q1: Do you have CE document and other documents for customs clearance?
A1: Yes, we have CE, Provide you with a one-stop service.At first we will show you and and after shipment we will give you CE/Packing list/Commercial Invoice/ Sales contract for customs clearance.
Q4: Do you have after sales support?
A4: Yes, we are happy to give advice and we also have skilled technicians available across the world, We need your machines running in order to keep your business running.
A1: Yes, we have CE, Provide you with a one-stop service.At first we will show you and and after shipment we will give you CE/Packing list/Commercial Invoice/ Sales contract for customs clearance.
Q2: If we are interested in your machine, how do we choose?
A2:1. What main job you do with the machine?
A2:1. What main job you do with the machine?
2. What is your request max working area? __mm* __mm?
3. What's your material diameter and length?
4. What material you want to cut,stainless steel,carbon steel?
Please tell us, then we can recommend the suitable machine to you.
3. What's your material diameter and length?
4. What material you want to cut,stainless steel,carbon steel?
Please tell us, then we can recommend the suitable machine to you.
Q3: How about warranty?
A3: 3 years quality guaranty, the machine with main parts(excluding the consumables) shall be changed free of charge(some parts will be maintained) when if any problem during the warranty period.
A3: 3 years quality guaranty, the machine with main parts(excluding the consumables) shall be changed free of charge(some parts will be maintained) when if any problem during the warranty period.
Q4: Do you have after sales support?
A4: Yes, we are happy to give advice and we also have skilled technicians available across the world, We need your machines running in order to keep your business running.
