ZTRFM полностью автоматическая высокоскоростная гофрированная машина для формовки листового листа крыши

ZTRFM полностью автоматическая высокоскоростная гофрированная машина для формовки листового листа крыши

Категория: >>>
Поставщик: Cangzhou Zhongtuo International Trade Co. Ltd.Cangzhou Ltd.

Цена:30 000,00-32 000,00 $*

Количество:

В избранное

Описание и отзывы

Характеристики

Product Description

ZTRFM full automatic High speed corrugated roof sheet roll forming machine

ZTRFM full automatic High speed corrugated roof sheet roll forming machine：

1.High quality and high speed:30-40m/min

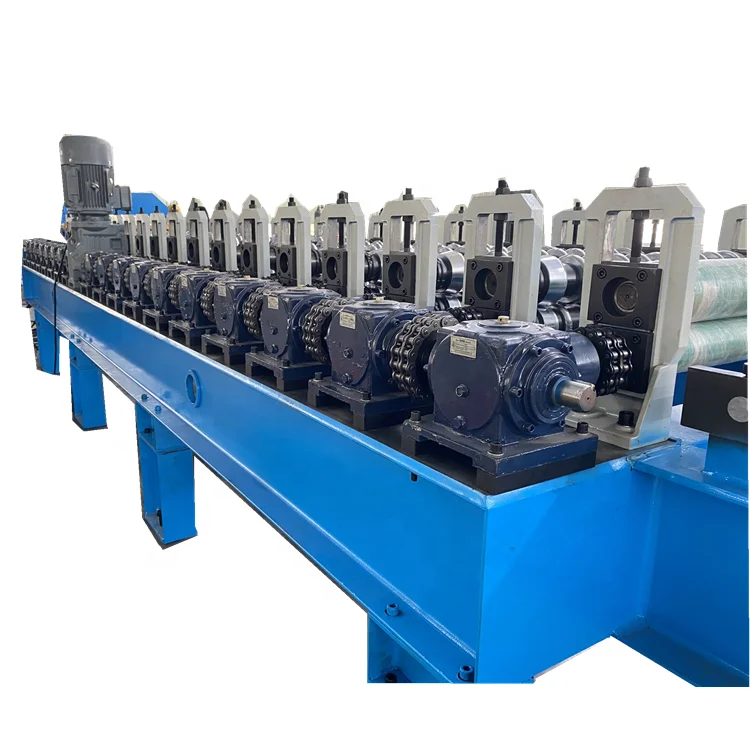

2.Gearbox transmission:working more stable and long life-time
3.6m auto stacker
4.5T hydraulic decoiler

advantage:
1. The system is easy to operate and use. PLC: Siemens(Can customize as customer require) 2. customized:design the machine according to your specification and profile drawing.

3. Speed higher:normal speed 10-15m/min,and this machine speed can up to 30-40m/min.
4. the surface of the final product is very smooth and beautiful without any scratch on the surface.

Machines are customized as your drawing,here hot sale drawing profiles for your reference.

ZTRFM full automatic High speed corrugated roof sheet roll forming machine
1.Formed Material	PPGI,GI,AI		Thickness:0.3-0.8mm Width:914mm/1450mm(customized)
2.Decoiler	Hydraulic automatic decoiler		Manual decoiler(will give you as free）

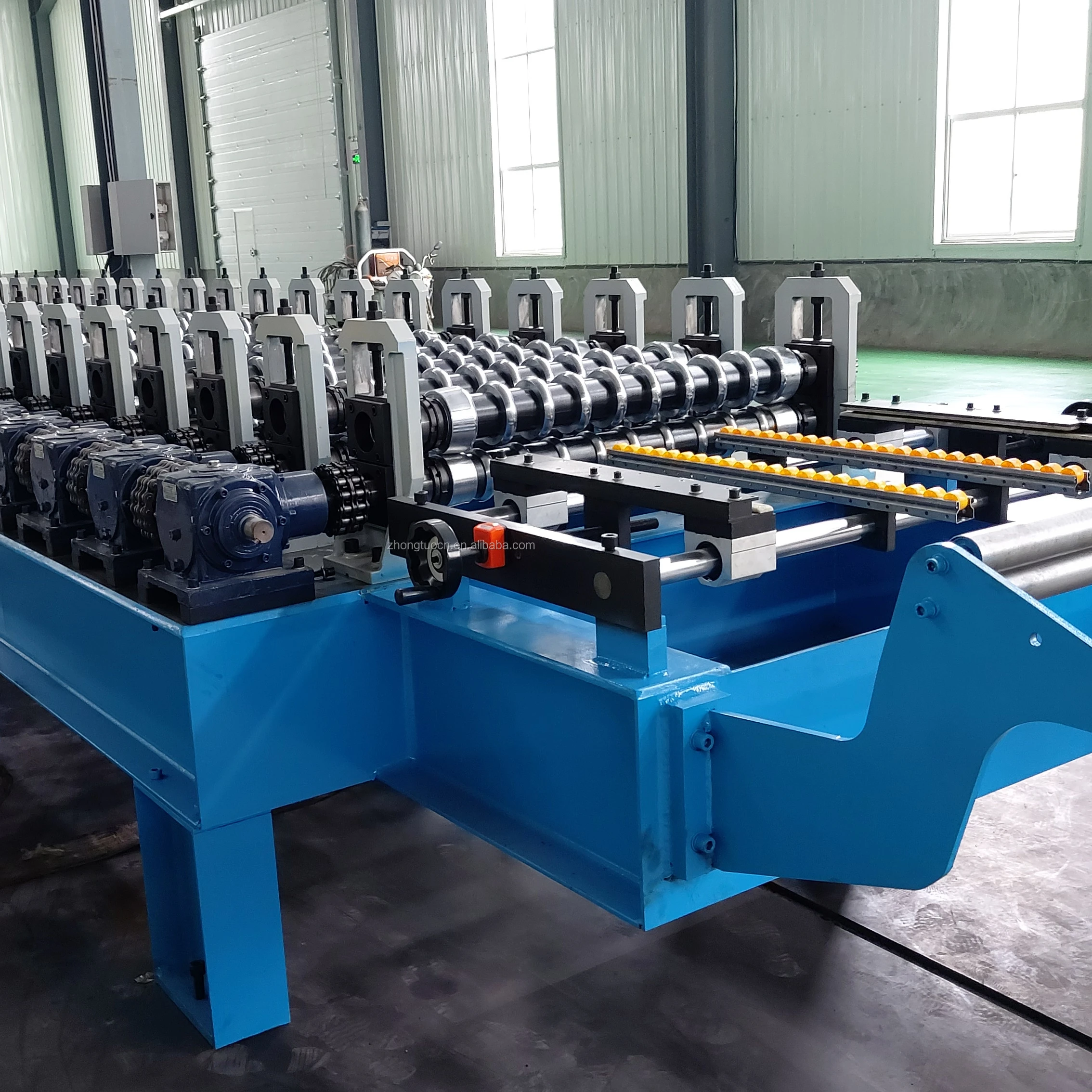

3.Main body	Roller station		22 rows(As your requirement)
		Diameter of shaft		80mm solid shaft
		Material of rollers		45# steel, hard chrome plated on the surface
		Machine body frame		350 H steel
		Drive		Chain transmission
		Dimension(LWH)		1050016501400 mm(customize)
		Weight		15T

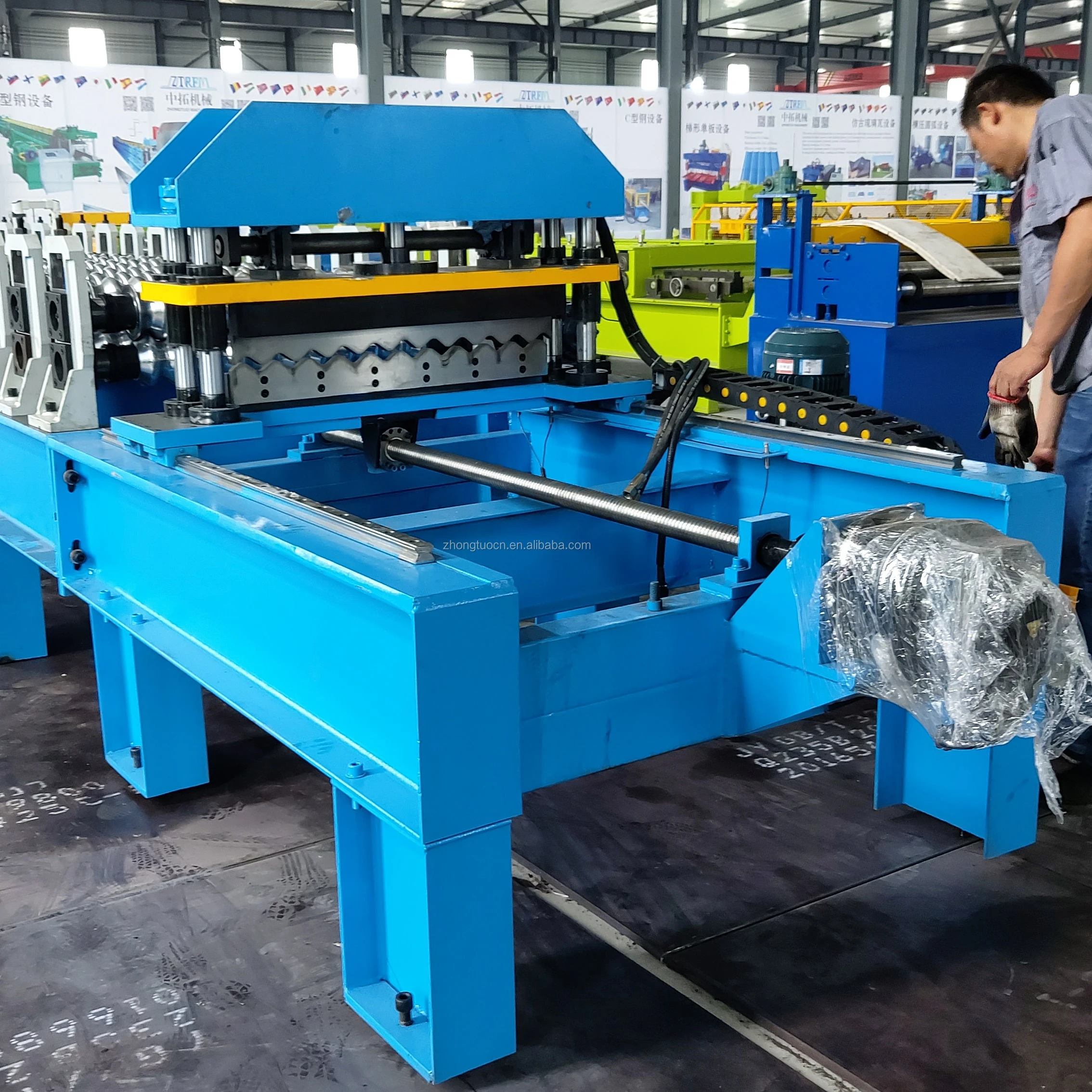

4.Cutter	Automatic		cr12mov material, no scratches, no deformation
5.Power	Motor Power		5.5KW
		Hydraulic system power		5.5KW
6.Voltage	380V 50Hz 3Phase		As your requirement
7.Control system	Electric Box		Customized(famous brand)
		Language		English(Support multiple languages)
		PLC		Automatic production of the whole machine. Can set batch, length, quantity, etc.
18.Forming Speed	30-40 m/min		The speed is adjustable
