SHANTUI 3 тонный колесный погрузчик L36 B5
- Категория: >>>
- Поставщик: Sinomada Heavy Industry (Changsha) Co. Ltd.
Сохранить в закладки 1600963509758:
Описание и отзывы
Характеристики
Hot Product Link
Contact
Kim Liu
Sales Manager
E-mail: kim@sinomada.com
Sales Manager
E-mail: kim@sinomada.com
Whatsapp/Wechat/Mobile: +86-15675387331
Tel: +86-1567-5387-331
Sinomada Heavy Industry (Changsha) Co., Ltd.
Add: Room 4718, Building C2, Wanda Plaza, Xiangjiang Middle Road, Kaifu District, Changsha, Hunan, China
Tel: +86-1567-5387-331
Sinomada Heavy Industry (Changsha) Co., Ltd.
Add: Room 4718, Building C2, Wanda Plaza, Xiangjiang Middle Road, Kaifu District, Changsha, Hunan, China
Product Description
Power System
· Weichai electronically controlled engine conforms to the China-III non-road machinery emission regulation, featuring high intelligence and efficiency, high parts interchangeability, and low maintenance cost.
· The machine is provided with three power modes, namely no-load, medium-load, and heavy-load modes, at choice depending on the actual working load to realize the reasonable match among power, efficiency, and energy consumption.
Drive System
· The Hangzhou Advance 6t special planetary transmission + torque converter or ZF200 transmission + torque converter is applied to realize more reasonable match and faster response.
· The KD gear, 1st gear, and 2nd gear of the electronic control transmission are shifted automatically to ensure simple and flexible operations.

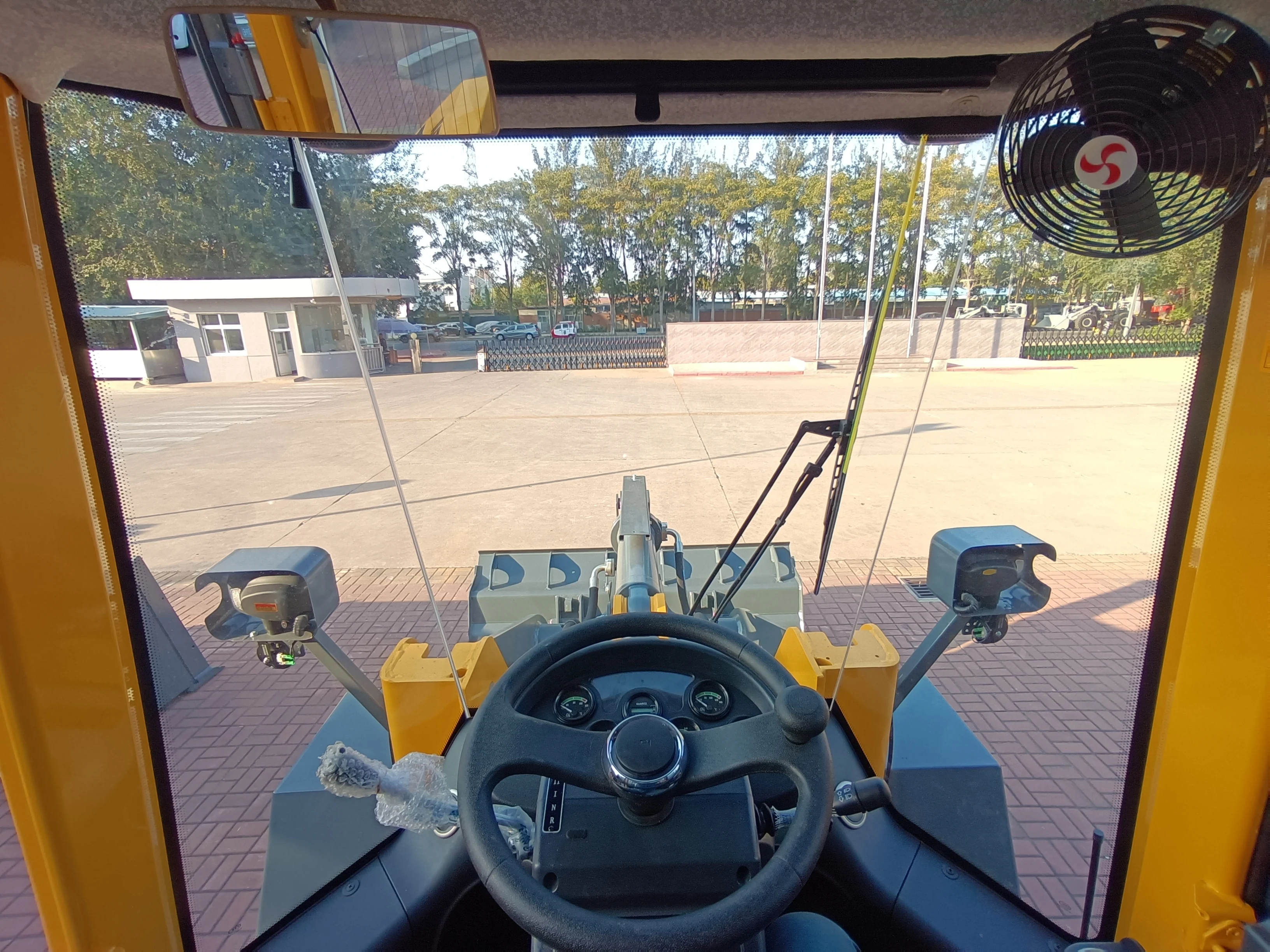

Driving/Riding Environment
· The new generation cab with all-new design optimization and large door structure is mold formed to guarantee broader vision and more fashionable appearance.
· All-new cushioned seat with large adjustment range provides the driver with the most comfortable operating posture.
· The locations of joysticks, pedals, and seat are reasonably arranged to achieve higher operating comfort. The standard pilot control system features handy and comfortable operations.
· The standard radio and audio provides more abundant personalized driving/riding experience and guarantees the comfortable and safe driving/riding environment.
Structural Parts
· All-new heavy-load frame and working device with enhancement design achieve more reasonable force application and meet the needs
of continuous, heavy-load, and severe working conditions.
· The bucket in arc structure design reduces the material penetration resistance. The spill plates are designed on the top to effectively prevent the falloff of material and prolong the lives of rear hinge pins.
· With 3,400mm wheelbase, the machine guarantees high tipping load and good stability.
· The new boom features excellent adaptability, with the dumping height reaching 3,325mm.
Convenient Maintenances
· The hoods, cab, ladder, and handrails of the machine are optimized and upgraded to realize powerful human-machine interaction and easy maintenances.
· Weichai electronically controlled engine conforms to the China-III non-road machinery emission regulation, featuring high intelligence and efficiency, high parts interchangeability, and low maintenance cost.
· The machine is provided with three power modes, namely no-load, medium-load, and heavy-load modes, at choice depending on the actual working load to realize the reasonable match among power, efficiency, and energy consumption.
Drive System
· The Hangzhou Advance 6t special planetary transmission + torque converter or ZF200 transmission + torque converter is applied to realize more reasonable match and faster response.
· The KD gear, 1st gear, and 2nd gear of the electronic control transmission are shifted automatically to ensure simple and flexible operations.
Driving/Riding Environment
· The new generation cab with all-new design optimization and large door structure is mold formed to guarantee broader vision and more fashionable appearance.
· All-new cushioned seat with large adjustment range provides the driver with the most comfortable operating posture.
· The locations of joysticks, pedals, and seat are reasonably arranged to achieve higher operating comfort. The standard pilot control system features handy and comfortable operations.
· The standard radio and audio provides more abundant personalized driving/riding experience and guarantees the comfortable and safe driving/riding environment.
Structural Parts
· All-new heavy-load frame and working device with enhancement design achieve more reasonable force application and meet the needs
of continuous, heavy-load, and severe working conditions.
· The bucket in arc structure design reduces the material penetration resistance. The spill plates are designed on the top to effectively prevent the falloff of material and prolong the lives of rear hinge pins.
· With 3,400mm wheelbase, the machine guarantees high tipping load and good stability.
· The new boom features excellent adaptability, with the dumping height reaching 3,325mm.
Convenient Maintenances
· The hoods, cab, ladder, and handrails of the machine are optimized and upgraded to realize powerful human-machine interaction and easy maintenances.

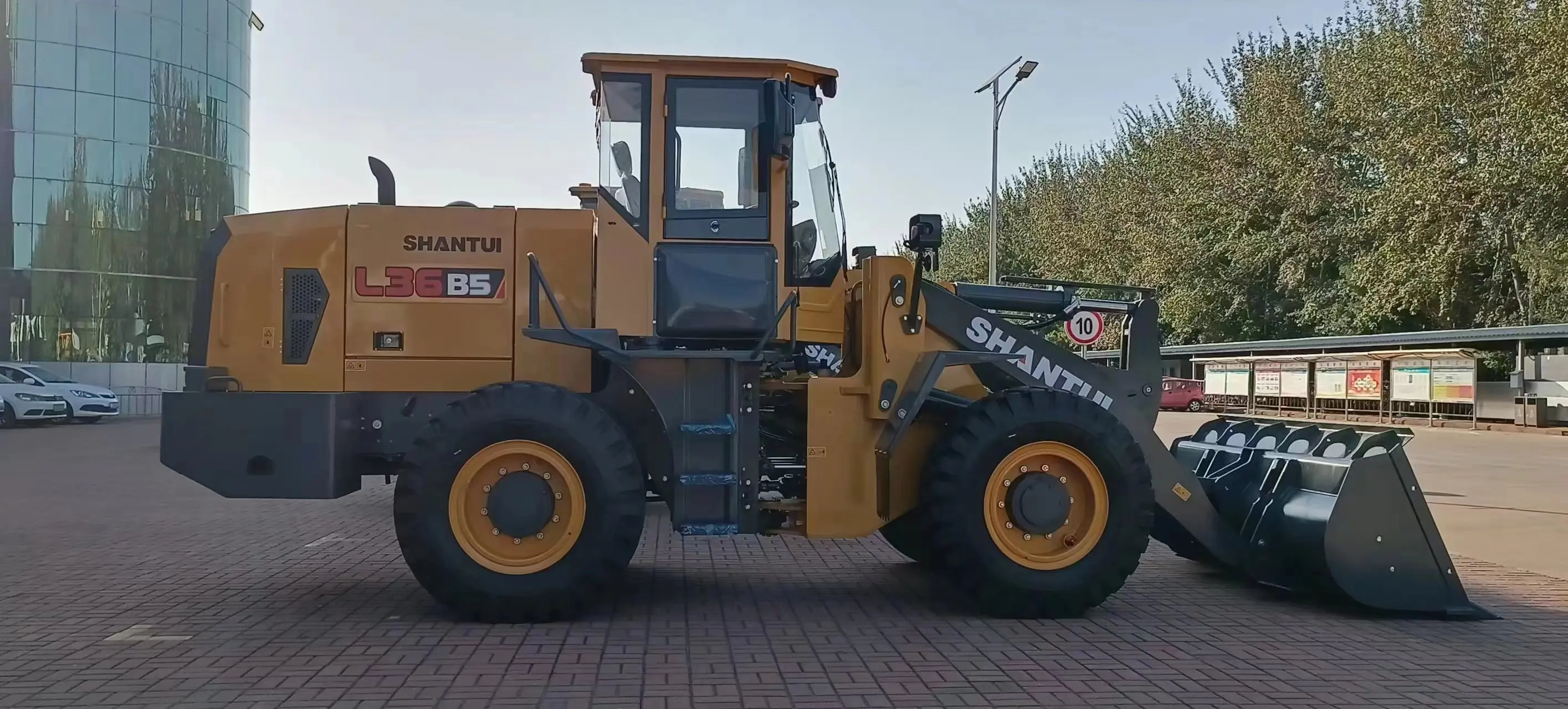

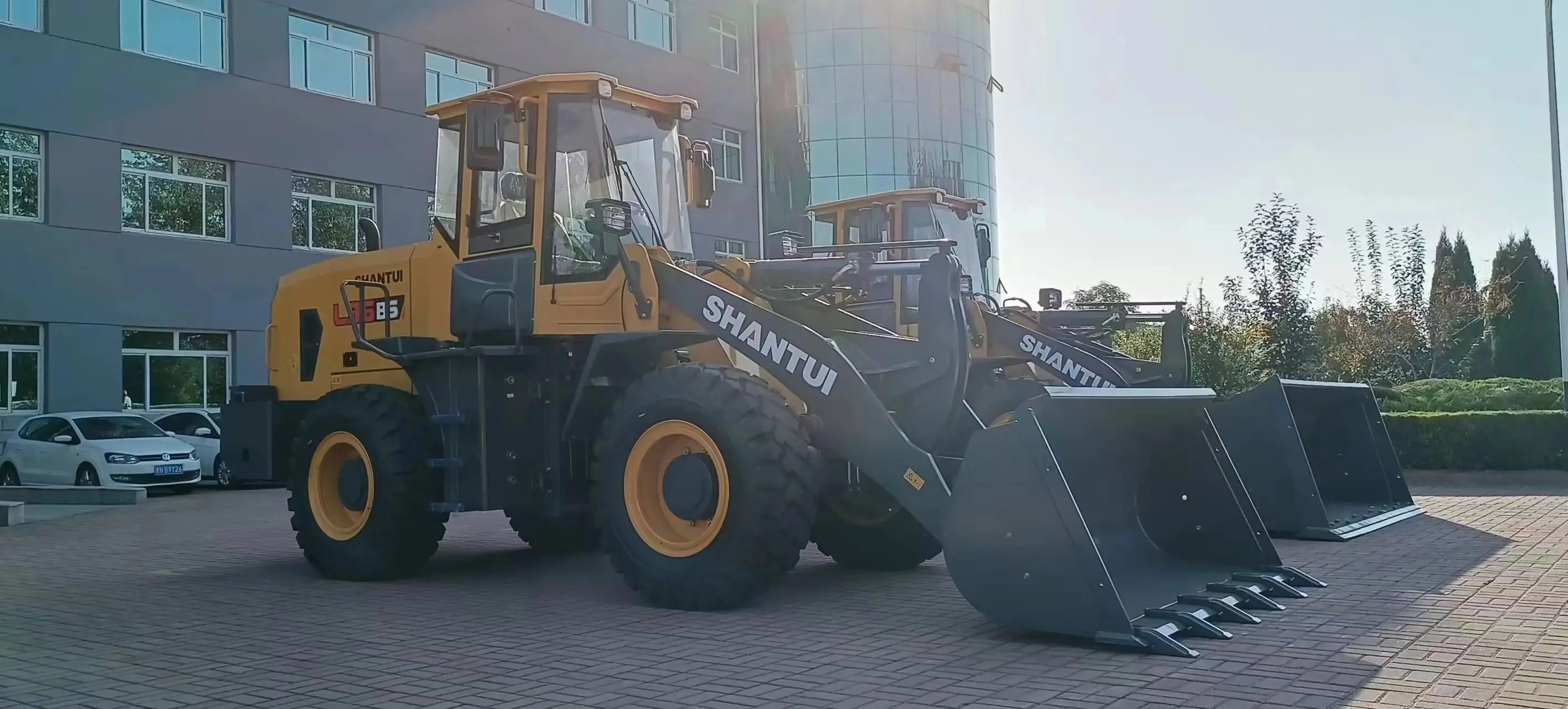

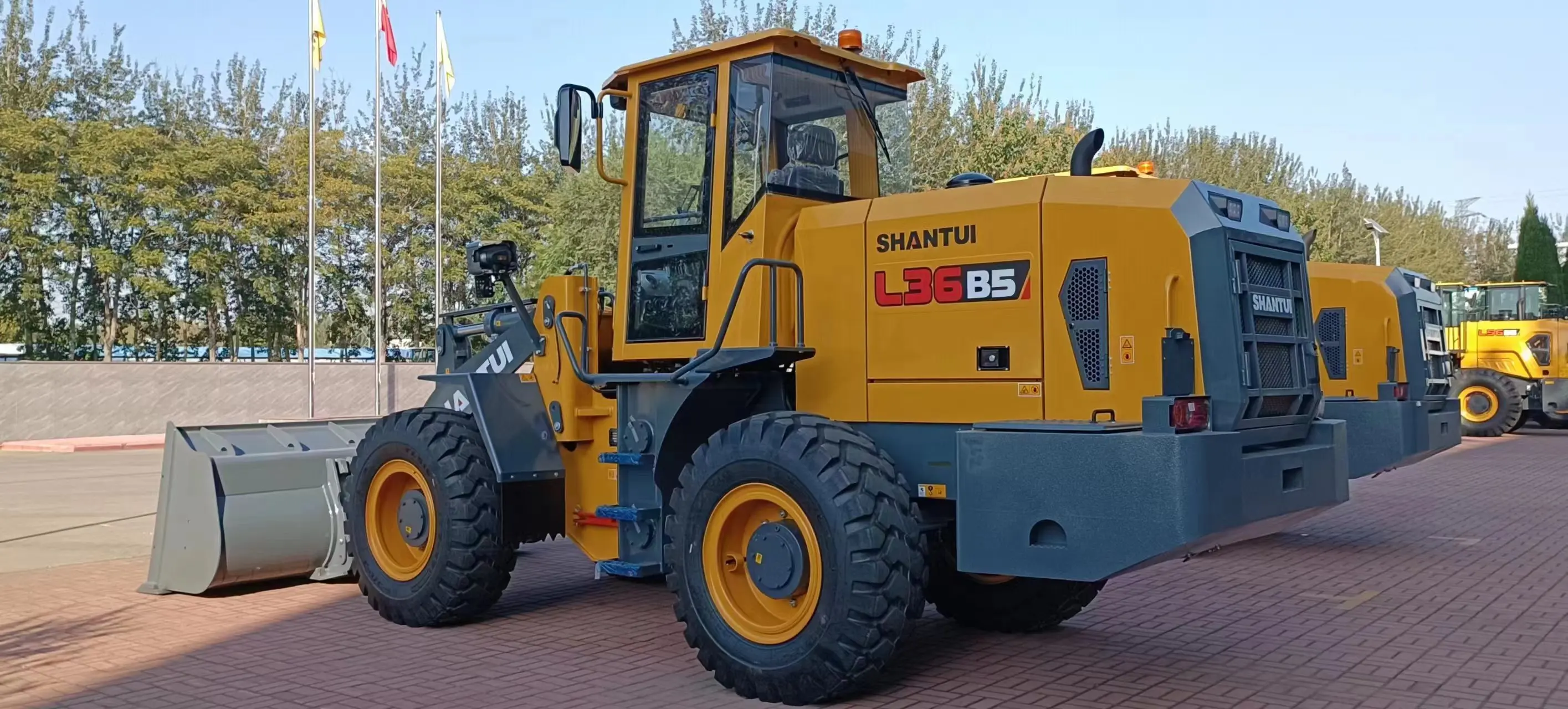

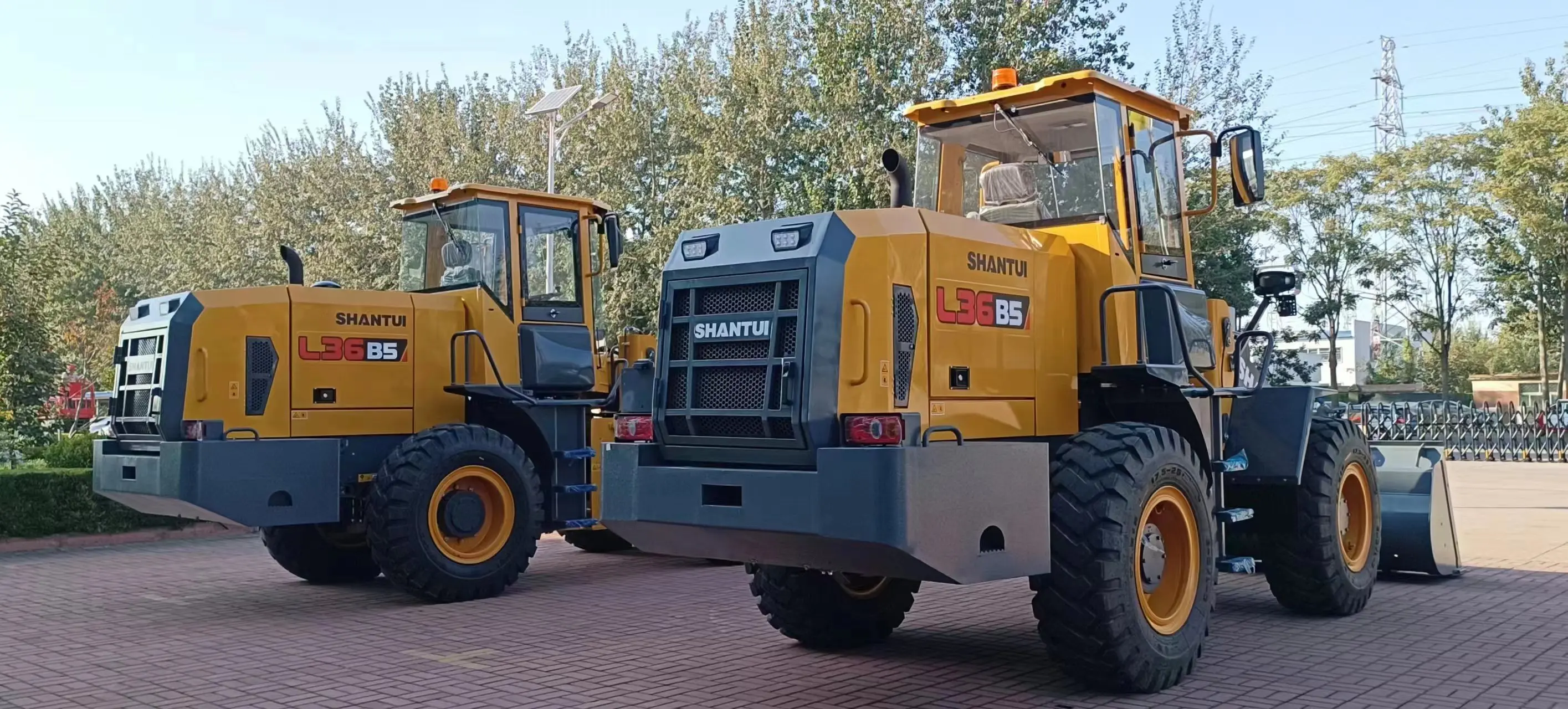

Product Show
Product Paramenters
ENGINE | ||
Emission Regulation | Tier 2/Stage ll | |
Make | Weichai | |
Model | WP6G125E22 | |
Rated Power | 92kW@2,200rpm | |
Max Torque | 500N·m | |
Displacement | 6.754L | |
Number of Cylinders | 6 | |
Aspiration | Turbocharged | |
LOADER ARM PERFORMANCE | ||
Tipping Load-Full Turn | 60 kN | |
Bucket Breakout Force | 95±3 kN | |
Maximum Dump Angle at Full Height | 45° | |
Dump Clearance at Full Height Discharge | 3250mm | |
Dump Reach at Full Height Discharge | 1000mm | |
Maximum Hinge Pin Height | 4060mm | |
Maximum Digging Depth,Bucket Level | 15mm | |
Bucket Capacity | 17㎡ | |
Operating Weight | 10300kg | |
TRANSMISSION | ||
Transmission Type | Countershaft, power shift | |
Torque Converter | Single stage, three elements | |
Maximum Travel Speed,fwd | 36km/h | |
Maximum Travel Speed,rev | 28km/h | |
Number of Speeds,fwd | 4 | |
Number of Speeds, rev | 2 | |
AXLES | ||
Differential Front Type | Conventional | |
Differential Rear Type | Conventional | |
Axle Oscillation | ±10* | |
STEERING | ||
Steering Configuration | Articulated | |
Steering System Pressure | 14 Mpa | |
BRAKES | ||
Service Brake Type | Caliper disc brake | |
Service Brake Actuation | Air over Hydraulic | |
Parking Brake Type | Flexible shaft control | |
Parking Brake Actuation | Mechanical | |
TIRES | ||
Tire Size | 17.5-25 | |
HYDRAULIC SYSTEM | ||
Main Pump Type | Gear | |
Main Relief Pressure | 16 Mpa | |
Raise time | 5.0S | |
Total Cycle Time | 9.0S | |
SERVICE CAPACITY | ||
Fuel Tank | 200L | |
Hydraulic oil Tank | 165L | |
Engine Oil | 14L | |
Axles,each | 36L | |
Transmission | 36L | |
Cooling System | 27kg | |
DIMENSIONS | ||
Length | 7450mm | |
Width | 2430 mm | |
Height | 3180mm | |
Wheelbase | 2850 mm | |
Wheel Tread | 1850mm | |
Ground Clearance | 345mm | |
Turn Angle, Either Side | 35° | |
Turning Radius,Outside of Tire | 5700mm | |
Turning Radius, Center of Tire | 5450mm | |
Turning Radius, Bucket Carry | 6250 mm | |
