20kV SIP 3 кабель 1x35 1x50 1x70 1x95 1x120 самоподдерживающий ABC
- Категория: >>>
- Поставщик: Henan Kingyear Aluminum Industrial Co. Ltd.
Сохранить в закладки 1600964198384:
Описание и отзывы
Характеристики
20kV SIP-3 Cable 1X35 1X50 1X70 1X95 1X120 Self Supporting ABC Wire Cable
WHY CHOOSE US
KINGYEAR Cable is one of the leading cable products production enterprise in China,our mainly products are ABC Aerial Bundled Cable, electric wire,power cable, control cable,bare conductor (AAC/AAAC/ACSR).
PRODUCT DESCRIPTION

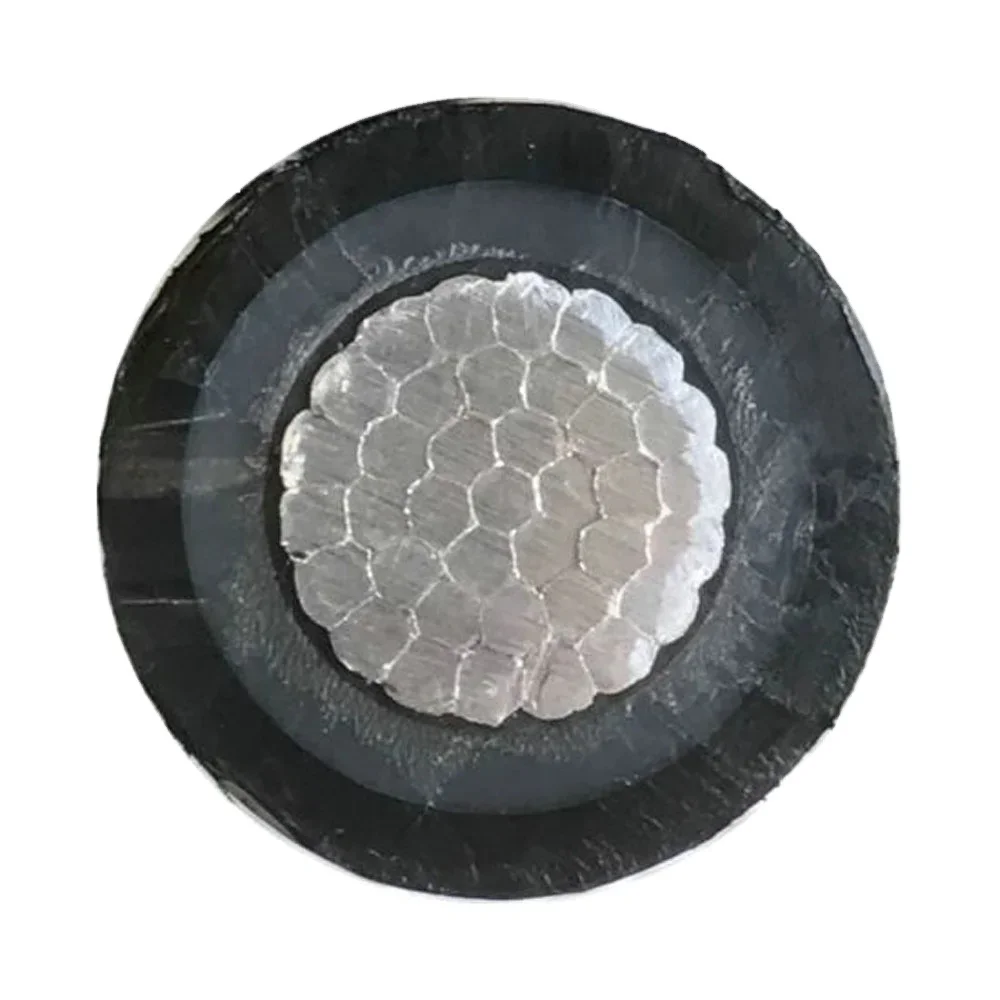

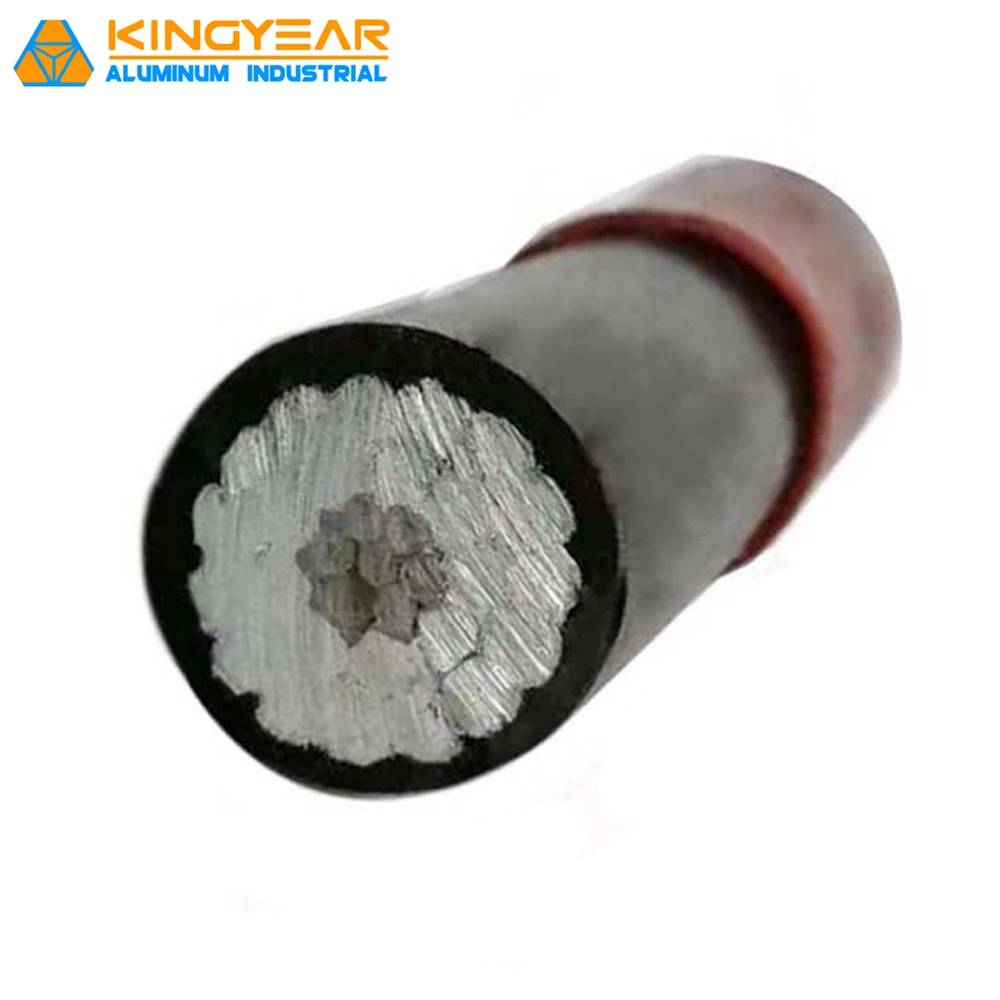

20kV SIP-3 Cable 1X35 1X50 1X70 1X95 1X120 Self Supporting ABC Wire Cable
Description:
SIP-3 is a self-supporting, single-core, high-voltage wire. The conductor is made of aluminum. Light stabilized XLPE insulation. The insulation is absolutely UV and ozone resistant. Does not lose its protective qualities during the entire operational period.
The main difference between the SIP-3 cable and other types of insulated wire is the voltage for which it is designed. That is, wires for example SIP-4 or SIP-5 type are used in networks with a voltage of 0.66 / 1 kV, then type 3 – at a voltage of 20 or 35 kV. This voltage must be indicated in the marking of the wire.
For use in overhead power transmission lines for alternating voltage of 20 kV (used for lines for voltages of 10, 15 and 20 kV) and 35 kV (for lines for voltage 30 kV and 35 kV) with a nominal frequency of 50 Hz.
Basically, the most demanded cross-sectional sizes of 20 and 35 kV in the SIP-3 wire are 1 × 35, 1 × 50, 1 × 70, 1 × 95, 1 × 120, 1 × 150, 1 × 185, 1 × 240, the price naturally depends from the section, the larger the square, the higher, since more aluminum is used in the production of this SIP.
When choosing this type of wire, it is important to understand that there is one core in it, therefore, when planning to buy a SIP-3 wire, calculating the connection length in meters, you need to multiply by the number of wires in one direction (2 phases or 3), etc., understanding that this is the price per meter of vulture wire, one core.
Design:
Multi-wire sealed aluminum conductor;
Light-stabilized XLPE insulation;
Application:
The cable is used for the installation of overhead power lines (PTL), it transfers and distributes electricity to consumers with high quality, the parameters of the alternating current in the network must correspond to the characteristics of 20 kV (35 kV maximum), 50 Hz. The laying is carried out in areas with a temperate, cold and tropical climate on the territory of industrial and marine areas (sea coast, salt lake shore, areas with saline sand). Designed for use in overhead power transmission lines, with a suspension on supports or facades of buildings and structures.
The conductor is used when constructing sections of routes, branches and taps in compliance with the rules for voltage distribution. Self-supporting wire SIP-3 can be mounted in urban areas, rural areas, unpopulated areas, where it is required to lay long lines with minimal voltage losses. Due to the possibility of mounting on poles installed at a great distance from each other, the cable is laid in places of any complexity. Due to the possibility of selecting the required cross-section, a reduction in material costs for the construction of additional substations is achieved.
They are widely used for urban development, as well as for sparsely populated areas, where it is necessary to build power lines of great length with minimal voltage losses, to supply power to consumers of the 1st category.
This is the best solution for designers and construction and installation organizations for the construction of protected high-voltage lines of high reliability.
Specifications:
Rated alternating voltage – 20/35 kV
Rated frequency – 50 Hz
The minimum permissible bending radius during laying is 10 cable
The technical data of 20kV SIP-3 Cable 1X35 1X50 1X70 1X95 1X120 Self Supporting ABC Wire Cable
The main difference between the SIP-3 cable and other types of insulated wire is the voltage for which it is designed. That is, wires for example SIP-4 or SIP-5 type are used in networks with a voltage of 0.66 / 1 kV, then type 3 – at a voltage of 20 or 35 kV. This voltage must be indicated in the marking of the wire.
For use in overhead power transmission lines for alternating voltage of 20 kV (used for lines for voltages of 10, 15 and 20 kV) and 35 kV (for lines for voltage 30 kV and 35 kV) with a nominal frequency of 50 Hz.
Basically, the most demanded cross-sectional sizes of 20 and 35 kV in the SIP-3 wire are 1 × 35, 1 × 50, 1 × 70, 1 × 95, 1 × 120, 1 × 150, 1 × 185, 1 × 240, the price naturally depends from the section, the larger the square, the higher, since more aluminum is used in the production of this SIP.
When choosing this type of wire, it is important to understand that there is one core in it, therefore, when planning to buy a SIP-3 wire, calculating the connection length in meters, you need to multiply by the number of wires in one direction (2 phases or 3), etc., understanding that this is the price per meter of vulture wire, one core.
Description
The SIP-3 wire is deciphered as follows:
S – self-supporting, means no need for auxiliary supporting structures, cables, extensions, insulators and support beams;
I – insulated, indicates that the conductive core has a protective coating;
P – wire
3 – type of design
S – self-supporting, means no need for auxiliary supporting structures, cables, extensions, insulators and support beams;
I – insulated, indicates that the conductive core has a protective coating;
P – wire
3 – type of design
Design:
Multi-wire sealed aluminum conductor;
Light-stabilized XLPE insulation;
Application:
The cable is used for the installation of overhead power lines (PTL), it transfers and distributes electricity to consumers with high quality, the parameters of the alternating current in the network must correspond to the characteristics of 20 kV (35 kV maximum), 50 Hz. The laying is carried out in areas with a temperate, cold and tropical climate on the territory of industrial and marine areas (sea coast, salt lake shore, areas with saline sand). Designed for use in overhead power transmission lines, with a suspension on supports or facades of buildings and structures.
The conductor is used when constructing sections of routes, branches and taps in compliance with the rules for voltage distribution. Self-supporting wire SIP-3 can be mounted in urban areas, rural areas, unpopulated areas, where it is required to lay long lines with minimal voltage losses. Due to the possibility of mounting on poles installed at a great distance from each other, the cable is laid in places of any complexity. Due to the possibility of selecting the required cross-section, a reduction in material costs for the construction of additional substations is achieved.
They are widely used for urban development, as well as for sparsely populated areas, where it is necessary to build power lines of great length with minimal voltage losses, to supply power to consumers of the 1st category.
This is the best solution for designers and construction and installation organizations for the construction of protected high-voltage lines of high reliability.
Specifications:
Rated alternating voltage – 20/35 kV
Rated frequency – 50 Hz
The minimum permissible bending radius during laying is 10 cable
The technical data of 20kV SIP-3 Cable 1X35 1X50 1X70 1X95 1X120 Self Supporting ABC Wire Cable
Wire nomenclature | Number of cores and nominal cross-section, mm2 | Nominal outer diameter of SIP-3, mm | Estimated weight of the SIP-3 wire, 1 km / kg |
Self-supporting insulated wire SIP-3, rated voltage, 20 kV | 1х35 | 12 | 186 |
1х50 | 13 | 215 | |
1х70 | 15 | 282 | |
1х95 | 16 | 364 | |
1х120 | 18 | 445 | |
1х150 | 19 | 540 | |
1х185 | 21 | 722 | |
1х240 | 24 | 950 | |
Self-supporting insulated wire SIP-3, rated voltage, 35 kV | 1х35 | 14 | 209 |
1х50 | 16 | 263 | |
1х70 | 17 | 334 | |
1х95 | 19 | 421 | |
1х120 | 20 | 518 | |
1х150 | 22 | 618 | |
1х185 | 24 | 808 | |
1х240 | 26 | 1045 |
Similar Products（Different structure; Different size）
Any customized standard are all can be designed by our R&D team.
RELATED PRODUCT
COMPANY STRENGTH
COMPANY PROFILE
HENAN KINGYEAR GROUP was founded in 2006,located in the Gongyi industry area of Henan Province.Occupies more than 1200,000 square meters,more than 800 employees.Our company consists of 3 main subsidiaries,Business specialized in development,manufacture and distribution of aluminum and cable products.Mainly including aluminum plate,aluminum coil,bare aluminum conductor,aerial bundled cable,Low voltage and medium voltage power cable,Electrical wire,control cable,etc... CLICK MORE
PLANT AND OFFICE SHOWN:
3 workshops of 1Abc Cable Xlpe Insulated Aerial Bundle Cable and Bare Conductor AAC/AAAC/ACSR. 1 office building of international trade.
TESTING MACHINE SHOWN:
Abc Cable Xlpe Insulated Aerial Bundle Cable testing :
Abc Cable Xlpe Insulated Aerial Bundle Cable testing :
CERTIFICATE SHOWN:
ISO,CE,CCC,ROHS,UL,VDE of Abc Cable Xlpe Insulated Aerial Bundle Cable.
CUSTOMER
After more than 20 years of development, our customers have spread to more than 40 countries and regions around the world, And more than 50% are old customers.The power cable,control cable,ABC cable,bare conductor(AAC/AAAC/ACSR) are more favorited by them.We are proud of our good quality---KINGYEAR CABLE.
PACKAGE
PACKAGING FLOW of 20kV SIP-3 Cable 1X35 1X50 1X70 1X95 1X120 Self Supporting ABC Wire Cable.
Some of our products packaging records shown:
They are about20kV SIP-3 Cable 1X35 1X50 1X70 1X95 1X120 Self Supporting ABC Wire Cable.
FAQ
Q:I didn't find the 20kV SIP-3 Cable 1X35 1X50 1X70 1X95 1X120 Self Supporting ABC Wire Cable which I need in this page?
A:If you didn't find the species of cables you need, please contact us directly, we will reply you quickly.
Q:What's your minimum order quantity?
A:It is not so sure, you can confirm it with us. Normally, it will be 1000 meters.
Q:What's your delivery time?
A:It depends on whether we just has the stock for your type.Normally,it takes about 7-15days to achieve production.
Q:How can I get a sample from your company? Is the sample free?
A:If you need the sample to check the quality, please contact us,we will send you the free sample, but the freight charge should be paid.
Q:How to ensure quality ?
A:For any quality problems, we will arrange the technical personnel to solve or return the goods as soon as possible, and bear the corresponding customer losses.
Q:What if the cable which we need have some differences on specifications from yours?
A: Any difference, we can design and produce according to your requests, which include cable, color, material, processing requirement etc.
Похожие товары

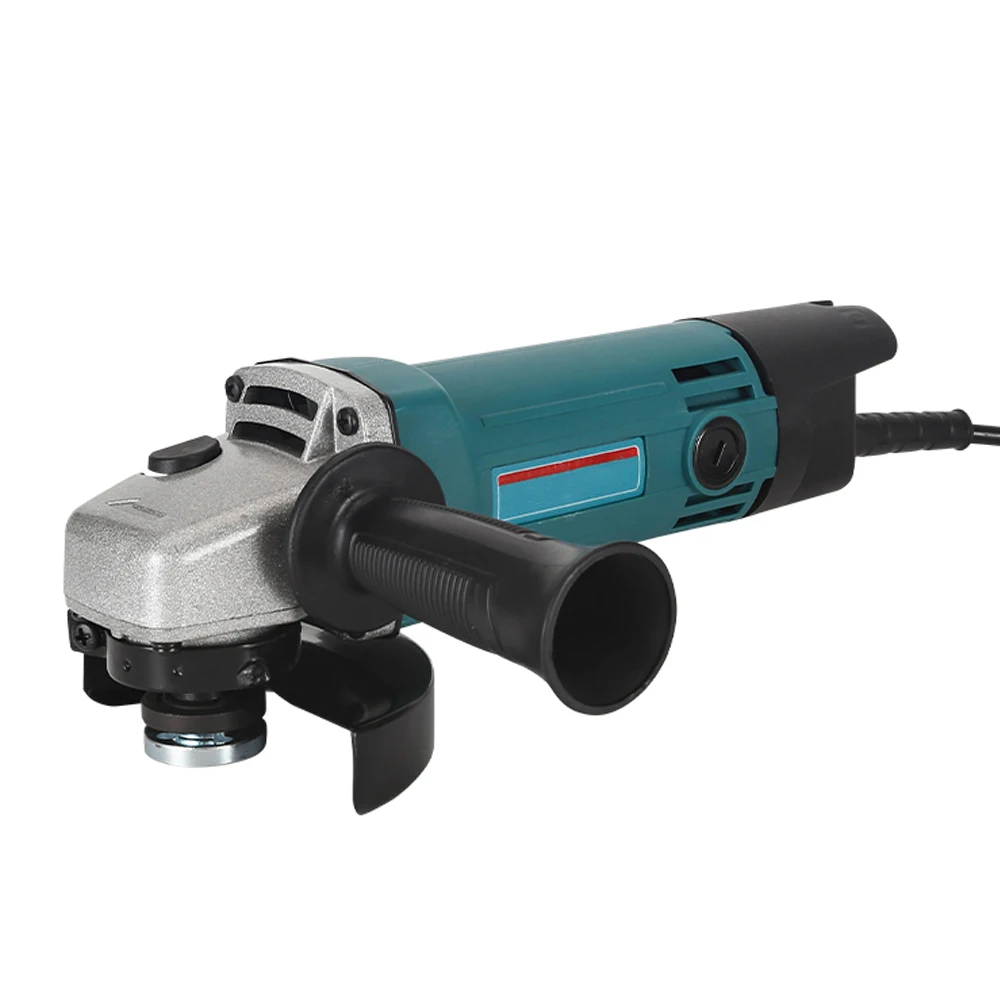

Эдон AG100-JP06 100 мм мини электрический портативный угловая шлифовальная машина Недорогие электроинструменты угловая шлифовальная машина угол
7,00 $ - 11,00 $

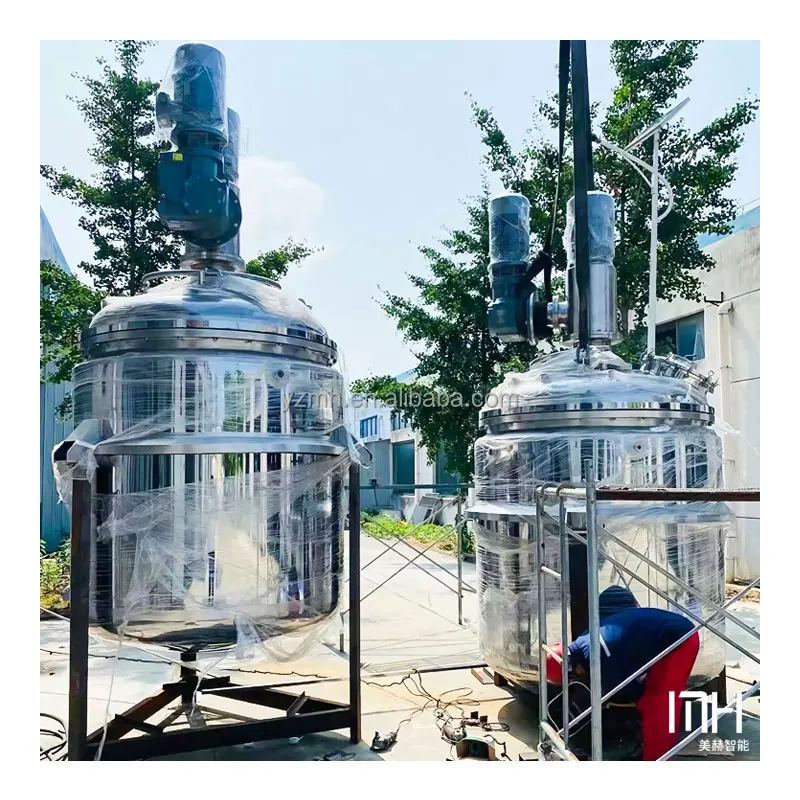

Двухслойный нагревательный вакуумный химический реактор для перемешивания жидкости MH 304 из нержавеющей стали

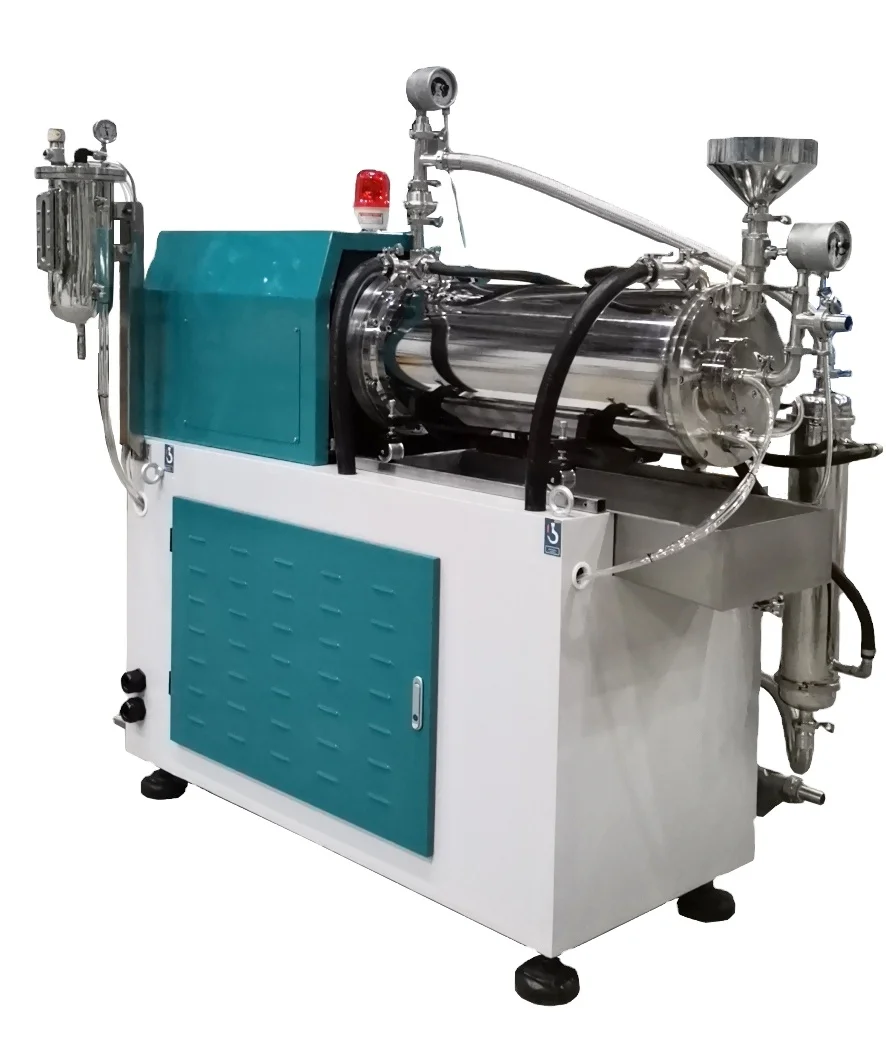

Наномельница динамического разряда для пестицидов, производство концентрата подвески
22 180,00 $ - 23 500,00 $
Новый оригинальный пульт дистанционного управления для XBOX серии X | S MEDIA успешно координирует все это с пультом PDP Gaming Media Xbox
5,88 $ - 6,76 $

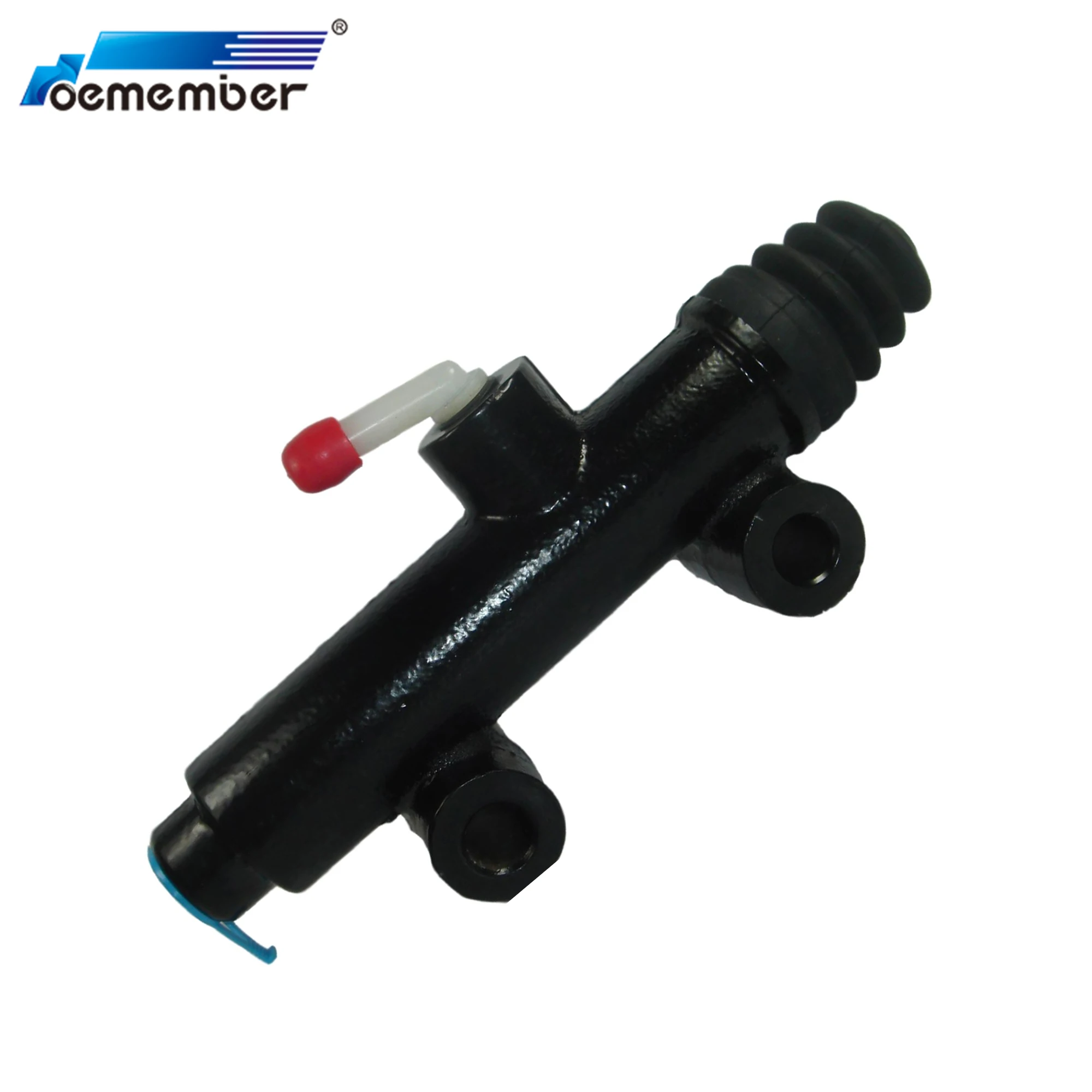

Универсальный высокопроизводительный главный цилиндр сцепления грузовика KG23017.1.1 42063311 от завода-поставщика для
