50 кВт 500 кВт небольшой турготурбинный гидрогенератор речной воды

50 кВт 500 кВт небольшой турготурбинный гидрогенератор речной воды

Категория: >>>
Поставщик: Guangxi Dasheng Machinery Manufacturing Co. Ltd.

Цена:216 012,40 ₽ - 648 037,20 ₽*

Количество:

В избранное

Описание и отзывы

Характеристики

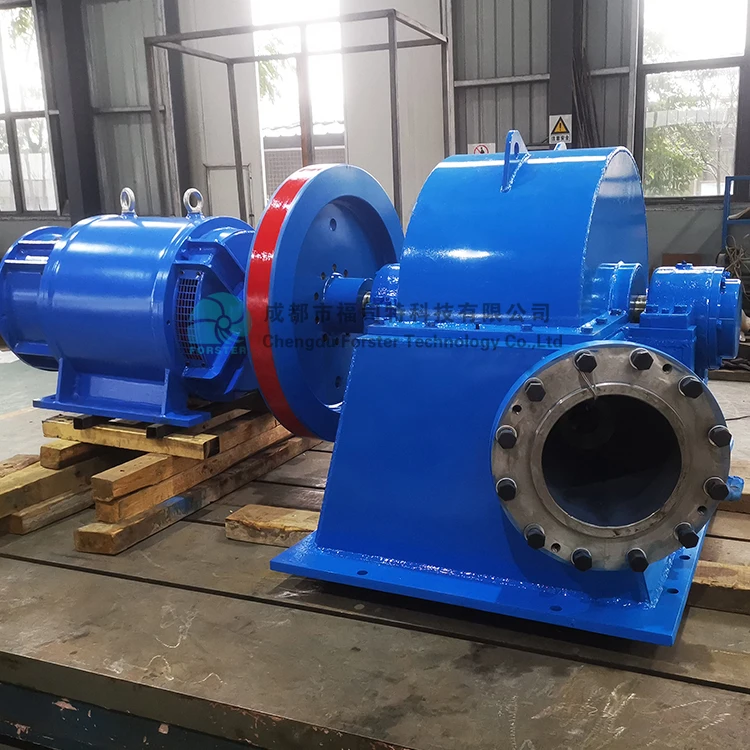

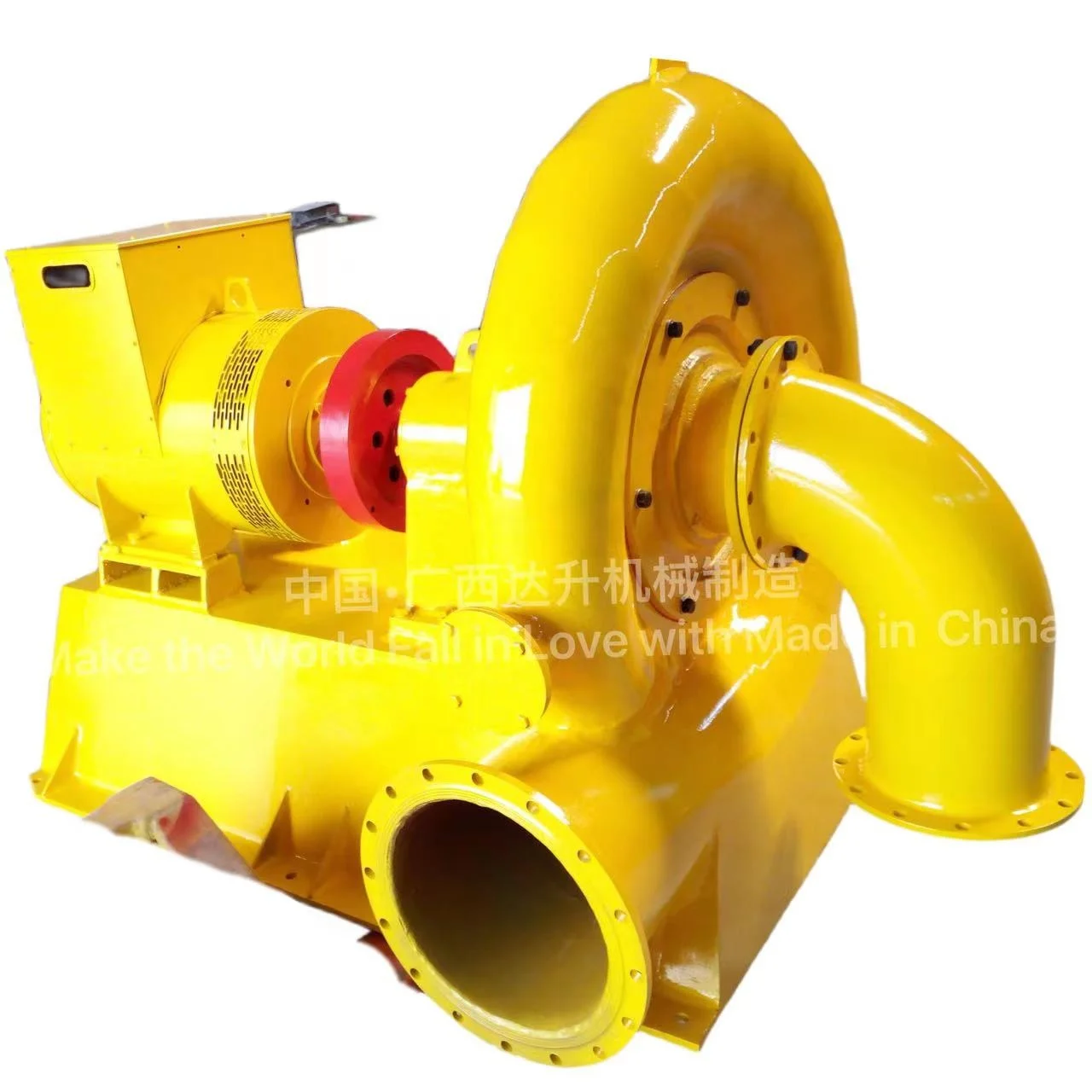

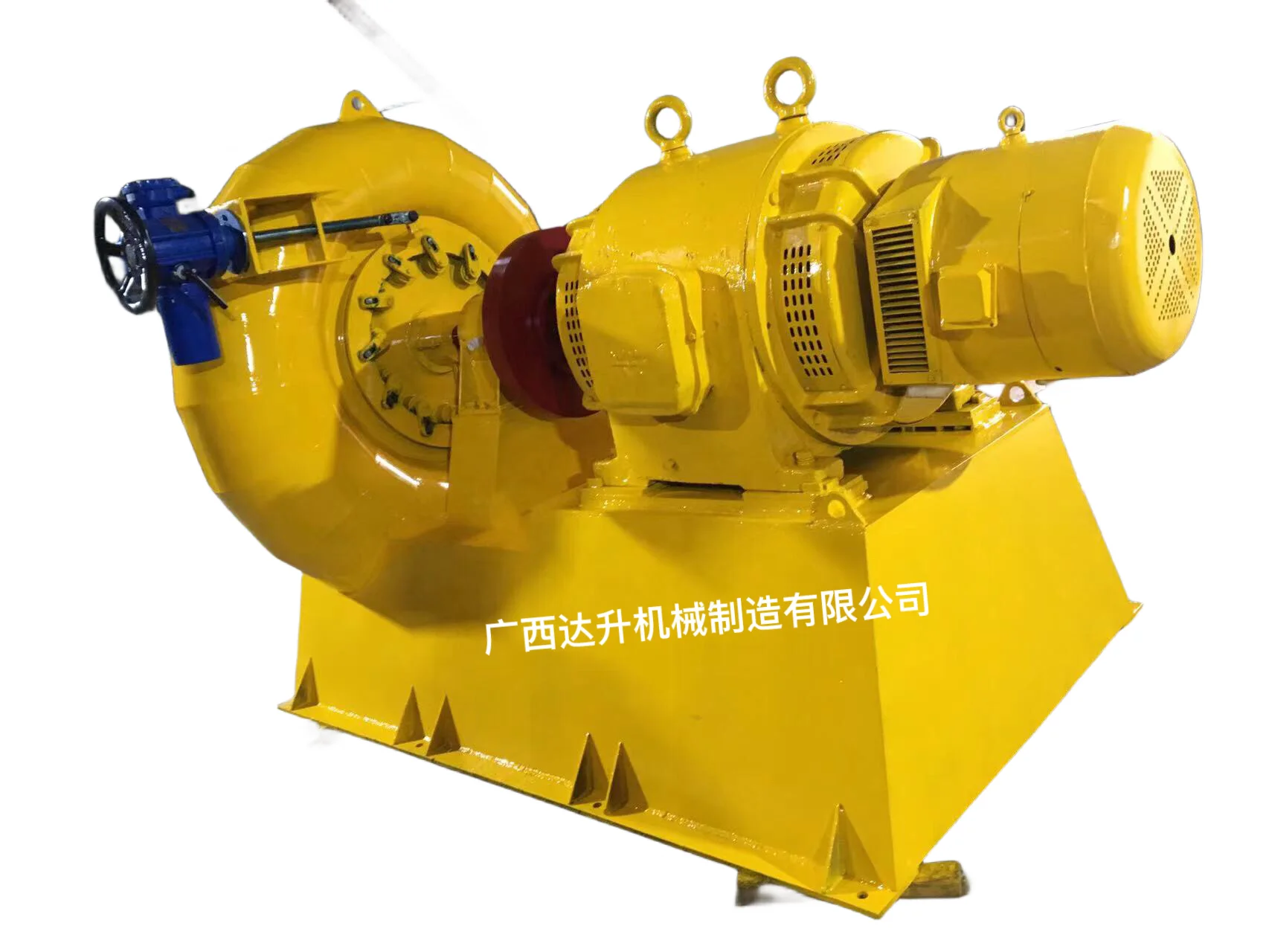

50kw Small Turgo Turbine Hydro Generator River Water Hydro Plant

electric generator is inclined electric generator (horizontal) . It is mainly used for power generation in middle and high water head river. According to actual river and water drop, it can install 30-125KW small power generator station. Suitable for exporting developing countries, domestic water-rich, power-poor countries (Africa, South , Delta region) , especially for the"One Belt, One Road" countries. Domestic applicable to farm projects, tourism projects, power supply, medium/large-scale farms, mines and so on. Welcome to inquire. Friendly Reminder: the price of this product is not the actual price, because our products are non-standard, please contact customer service to provide the drop and flow, choose a good model on-site price, then place an order. Welcome. Thank you

30KW-50KW (1) 20231024161702

Product Description

1) Simple installation

2) The mini turgo turbine is open channel installation, which suitable for low water head.

3) Suitable for household electricity( lamp, phone charging, rice cooker, induction cooker and other ordinary appliances) every family can install one unit.

4) Output electricity based on water flow, the water flow become bigger, output electricity will be higher; when the dry season coming and water flow become smaller, the unit still can produce electricity but output electricity become lower.

5) Small size, light weight.

6) Generator winding is made by copper wire.

Product Parameters

XJ02-turgo turbine performance data and supporting table
Model	Turbine Parameters				Generator Parameters			Water Intake
	Design head(m)	Under the design head		Design speed (r/min)	The power of generator	The runaway speed	Rated speed(r/min)	dianeter
	Design head(m)	Flow rate (m3/s)	The output(kw)	Design speed (r/min)	The power of generator	The runaway speed	Rated speed(r/min)	dianeter
XJ-W-50/1 x 8	45	0.378	129.7	537	125	500	900	200mm
	45	0.378	129.7	537	125	500	900	200mm
	50	0.399	151.8	566	125	500	900	//
	55	0.418	179.7	593	160	500	900	/y
	60	0.437	205.5	620	200	600	1080	//
	65	0.455	230.6	645	200	600	1080	//
	70	0.472	256	669	250	600	1080	//
	75	0.489	283.1	693	250	600	1080	//
	80	0.505	314.3	716	250	600	1080	//
	85	0.52	345.5	738	320	750	1350	//
	90	0.535	377.4	759	320	750	1350	//
	95	0.55	409.5	780	400	750	1350	//
	100	0.556	440.9	800	400	750	1350	//
	110	0.592	504	839	500	750	1350	//
	120	0.618	565.9	876	500	750	1350

Our main products included:

1.Kaplan turbine generators series.

2.Turgo turbine generators series,e.g. vertical type horizontal type.

3.Tubular turbine generators series ,e.g. Bulb type and shaft extension type.

4. Francis turbine generators series.

5.Pelton turbine generators series and double turbine generators series and so on.

6.Other auxiliary equipment for hydropower plant, such as water turbine generator, water turbine control panel, water turbine governor, water turbine valve, water turbine transformer, automatic electrical equipment, electricity meter, pressure tube, et
