SUNNYMED Reliable Quality Affordable Price

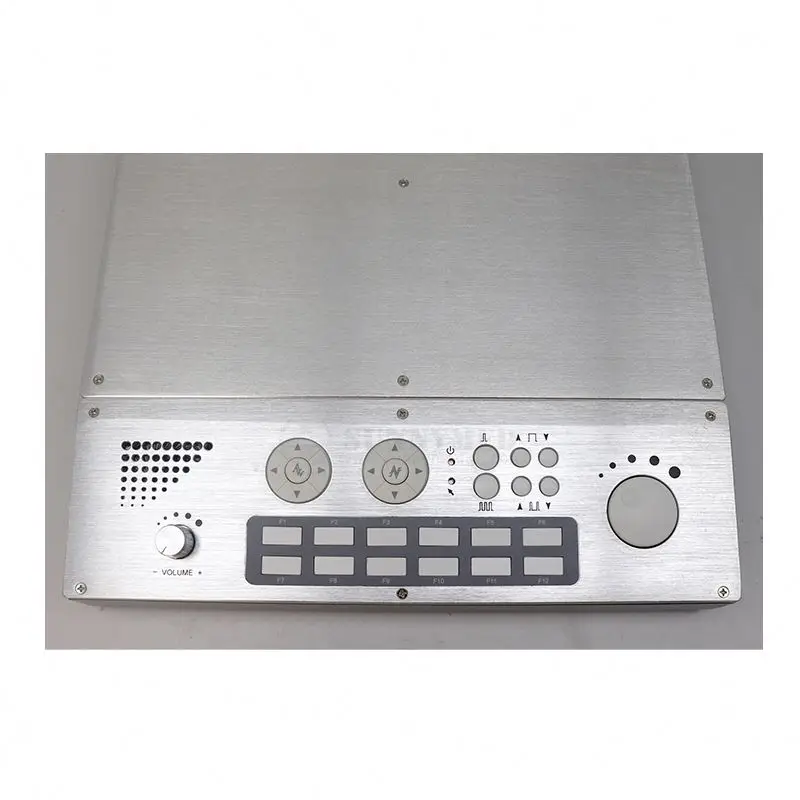

EMG Device with Real-Time Muscle Activity Monitoring for Neuromuscular Diagnostics




Why this model?




Test system
EP system
BAEP: sound stimulate, 40Hz short voice stimulate
VEP: mode switch stimulate, flash stimulate
SEP: SEP
NCS system
MCS, SCS, F wave, H reflex, Blink reflex, RNS
EMG
General EMG
Main system part
A/D conversion resolution
16Bit
Sampling ratio
2000kHz
Analysis time
5-5000ms
Amplifier part
Sensitivity
0.05μV- 20mV/Grid
CMRR
≥100dB
Filter frequency
Low-pass: 1Hz-3000Hz(-3dB), High-pass: 10Hz-20000Hz(-3dB)
Gain amplifies
25-400000 times
Stimulator part
Constant current
0.2-100mA
Pulse width
50-1000μS
Stimulation frequency
1Hz-50Hz
Auditory stimulator
Stimulation waveform
40Hz Short, Sound Stim
Stimulation polarity
nondense wave, dense wave and alternant wave
Sound intensity
40-120dB(5dB per level)
Visual stimulator
Display
CRT display, size more than 200*200mm
Mode
tessellation, horizontal bar and vertical bar
Stimulation view
all-view, half-view and quarter-view
Resolution
3x4, 6x8, 12x16, 24x32, 48x64
Flash stimulator
all quench, left light, right light, l&r light




Our state-of-the-art Electromyography (EMG) Machine is designed to record the bioelectric activity of nerve muscles, providing critical insights into their functional state. This sophisticated equipment, combined with nerve conduction speed measurement, offers a comprehensive auxiliary diagnosis for various neuromuscular disorders.

Comprehensive Diagnostic Capabilities:

Electromyogram (EMG): Capture and analyze muscle electrical activity for accurate diagnosis.
Motor Conduction Studies (MCS): Measure motor nerve conduction velocity for evaluating neuromuscular function.
Sensory Conduction Studies (SCS): Assess sensory nerve conduction velocity to detect peripheral neuropathies.
F-Wave and H-Reflex Testing: Diagnose nerve root lesions and assess nerve conduction.
Repetitive Nerve Stimulation (RNS): Evaluate neuromuscular junction disorders.
Blink Reflex: Investigate cranial nerve function.
Evoked Potentials (EP): Includes Visual Evoked Potential (VEP), Brainstem Auditory Evoked Potential (BAEP), and Somatosensory Evoked Potential (SEP) for comprehensive neurological assessments.
Key Features:

Professional EMG/EP Platform: The machine's advanced platform ensures rapid and accurate completion of all tests, minimizing patient discomfort.
Neuro and Muscle Navigation System: Simplifies test selection and enhances workflow efficiency.
Powerful Normal Values System: Automatically contrasts patient data with normal values for precise diagnostics.
Flexible Software Design: Configure system parameters to meet specific diagnostic needs.
High-Speed Data Collection: Ensures accurate readings with electromagnetic interference suppression, photoelectric isolation, and low noise levels.

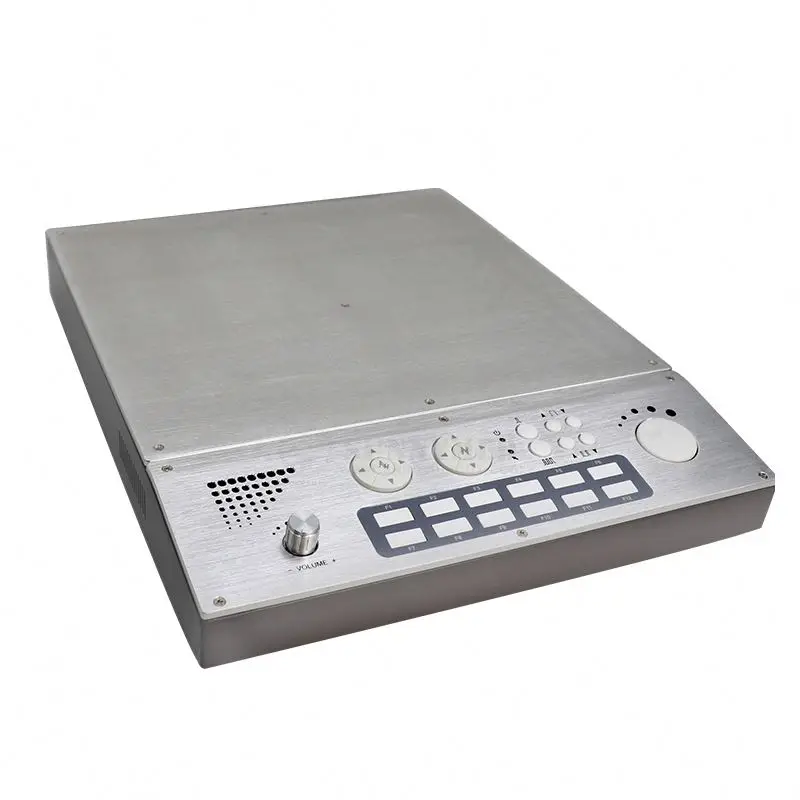

Compact and Mobile Design: The integrative hardware system is lightweight and easy to transport, making it ideal for various clinical environments.
Technical Performance:

Main System:

A/D Conversion: 16-bit resolution for detailed signal capture.
Sampling Rate: 200kHz for high-fidelity data acquisition.
Analysis Time: Ranges from 5 to 5000ms, accommodating various test protocols.
Stimulation Frequency: Adjustable from 0.1 to 50Hz for diverse testing requirements.
Amplifier:

Channels: Four-channel system for multi-site recording.
Sensitivity: 0.05μV-20mV/Grid for detecting even the smallest signals.
Noise Levels: EMG ≤ 4μV(Vpp), EP ≤0.1μV(Vpp) with 1000 times averaging.
Common-Mode Rejection Ratio: ≥ 100dB for accurate signal discrimination.
Filter Frequencies: Adjustable from 1Hz to 20kHz for optimal signal clarity.
Gain Amplification: From 25x to 400000x for a wide range of signal intensities.
Stimulators:

Current Stimulator: Constant current from 0.2-100mA with pulse widths between 50-1000μS, featuring short circuit and overload protection.
Auditory Stimulator: Delivers sound stimuli at 40Hz, with adjustable sound strength (40-120db) and multiple stimulation modes.
Visual Stimulator: Offers tessellation, horizontal and vertical bar patterns, with resolutions from 3x4 to 48x64, and various visual field settings.
Physical Characteristics:

Dimensions: 420mm × 350mm × 46mm (L × W × H)
Net Weight: 6KG

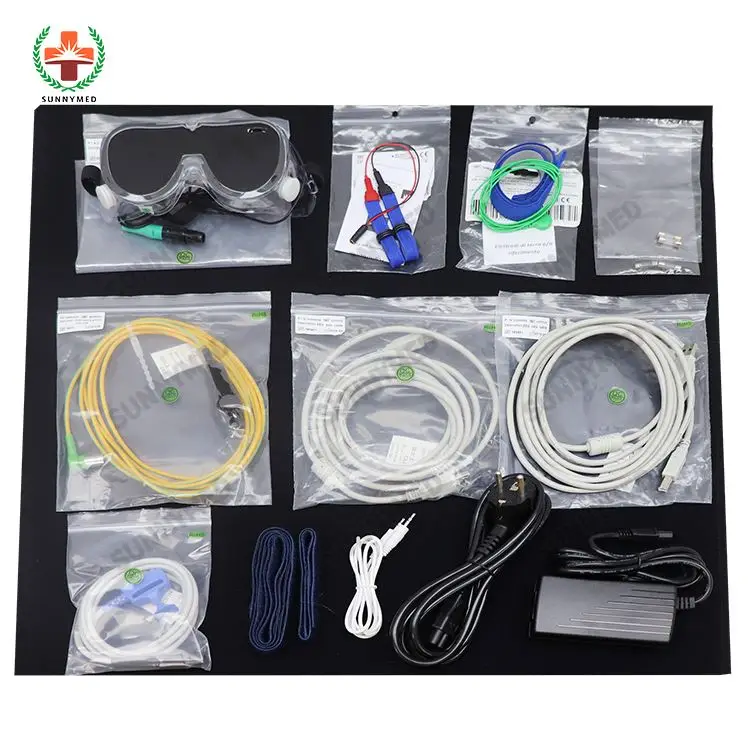

Accessories Included:

Disk, Power Cord, Power Adapter, USB Cable, Audio Cable, Earth Cable
Current Stimulator

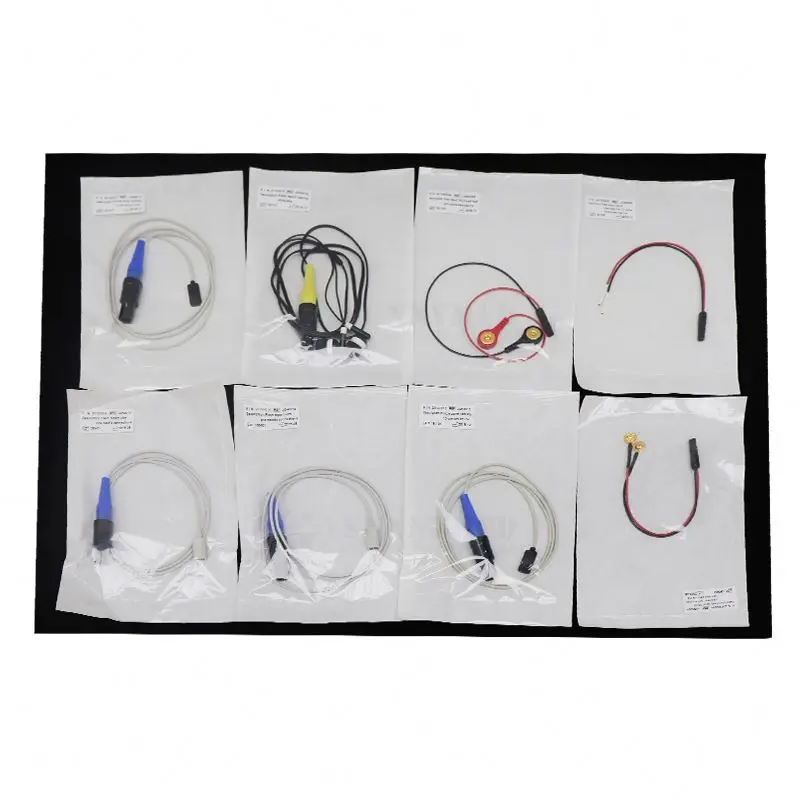

A variety of electrodes (Bipolar, Unipolar, Concentric, Surface)
Conversion Cables
Fuses (0.1A/250V, F1.6AL250V)
Flash Stimulator, Audio Stimulator
This EMG machine offers unmatched precision, flexibility, and ease of use, making it an essential tool for neurologists, physiotherapists, and researchers dedicated to diagnosing and treating neuromuscular disorders.


Product packaging




FAQ


1. How to buy?
A. Contact our sale directly!

B. Place the order online.




2. How to pay?
A. Trade assurance
B. Credit Card
C. Paypal in Alibaba
D.T/T(Bank Transfer)
E. Western union
F. L/C

Return policy


3. How long to wait for the order?
A. Ready stock within 24 hours
B. OEM need 2-7 working days
C.
Safety delivery:special one-to-one inspection service before arranging the delivery




4. How to use our product?
A. Video tutorial: including installation, operation, repairing and maintenance
B.
Real Time Online Video Call at your convenience: Pre-sales and after-sales online video training


5. Warranty and after-sales service
A.12-60 months
B. After-sales service: Reply within
8 hours


Packing&Delivery




For more detailed images and videos
please contact with us!


Why Choose Us


We are based in Guangdong, China, starting from 2014. Products are sold to South America, Southeast Asia, North America, and Africa, ect. .
