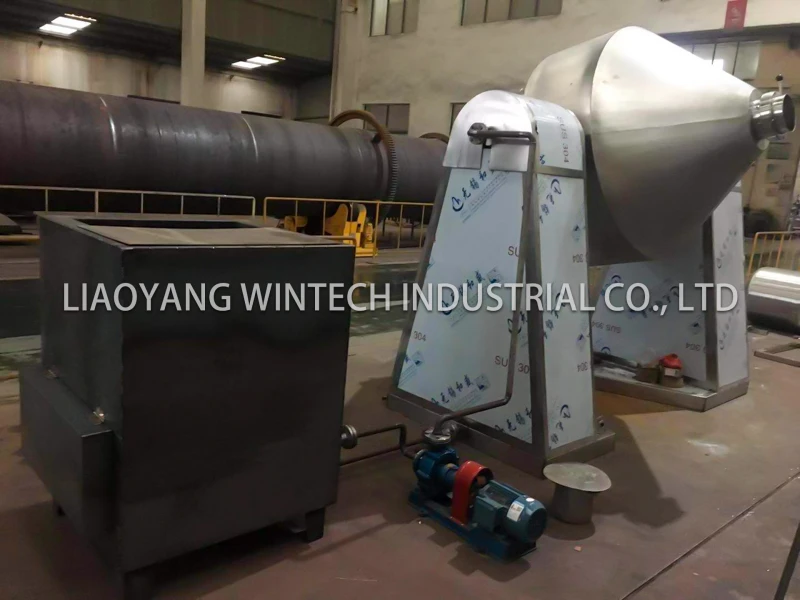

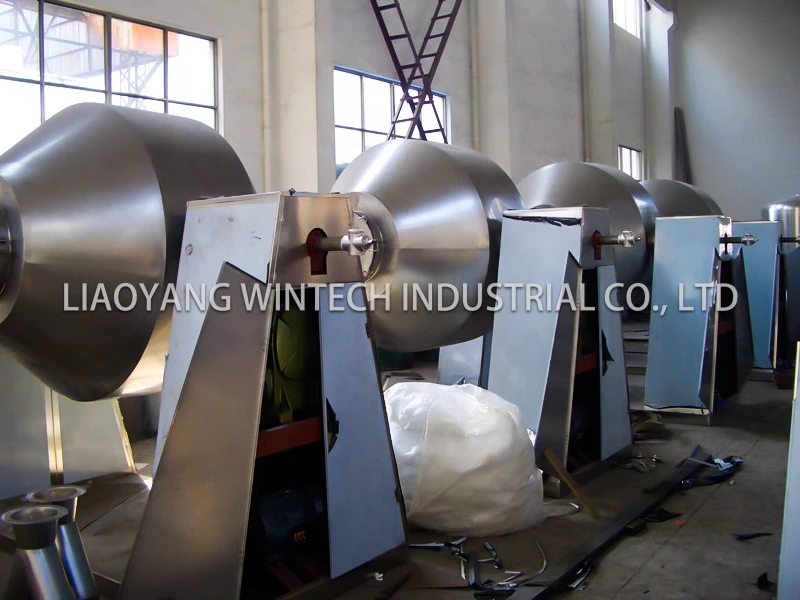

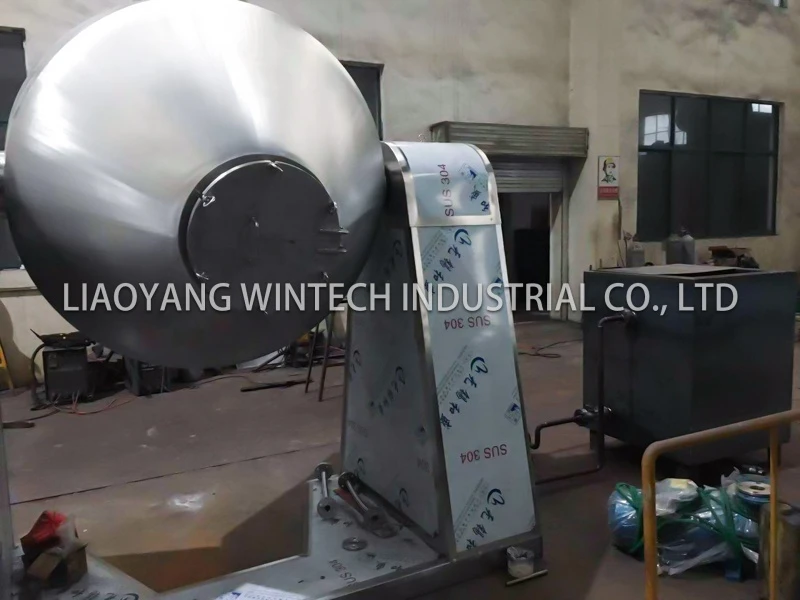

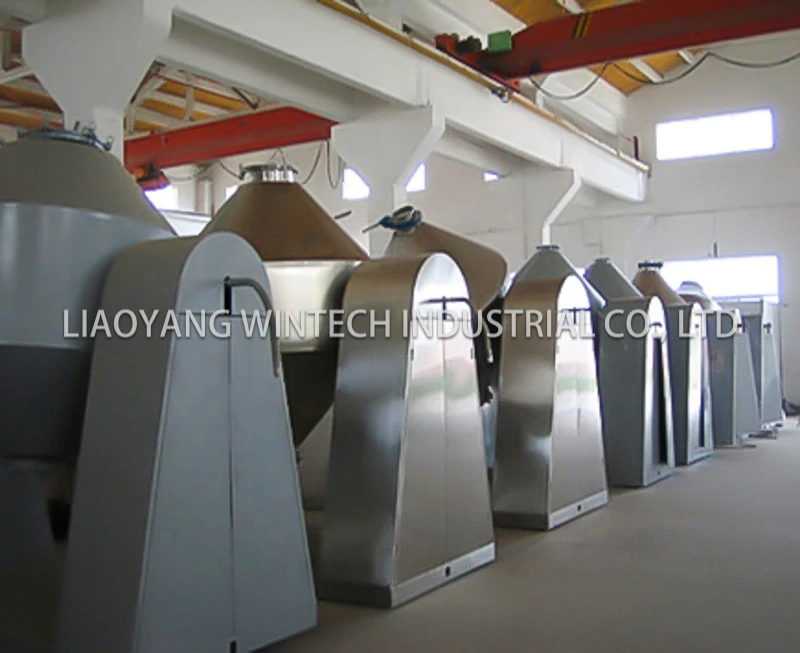

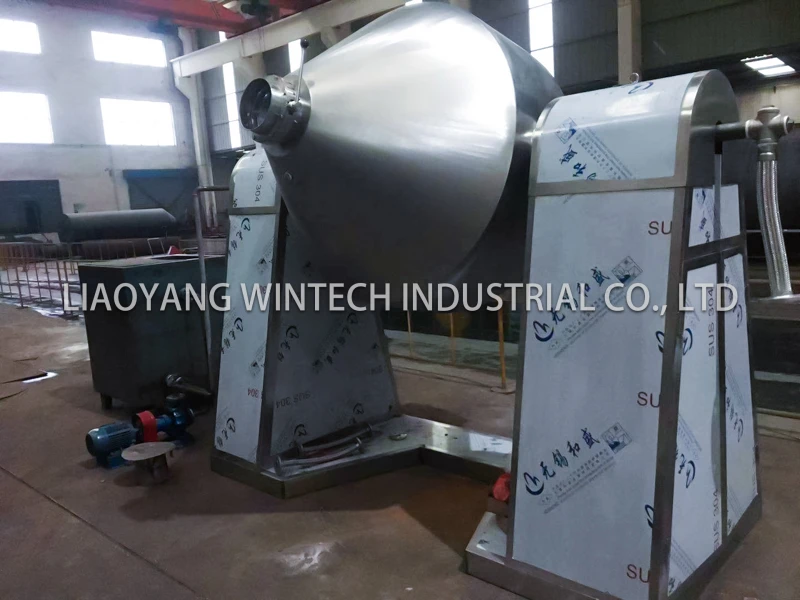

Double Cone Vacuum Dryer for Drying Plastic Resins and Polymers
Product Description
SZG Conical Vacuum Dryer is a new generation drying device developed by our factory on the basis of combining the technology of
similar equipment. Therefore it is stable in operation. The special design guarantees two shafts realize good concentricity.
The main body of SZG rotating vacuum dryer is double cone tank, steam or hot water inside sealed jacket canheat the inner shell in
vacuum state. As for working medium, it may be thermal oil or steam or hot water.
Features
1.When oil is used to heat, use automatic constant temperature control. It can be used for drying biology products and mine. Its temperature of operation can be adjusted form 20-160 ℃ .
2.Compared to ordinal dryer, its heat efficiency will be 2 times higher.
3.The heat is indirect. So the raw material can not be polluted.
4.It is in conformity with the requirement of GMP. It is easy in washing and maintenance.
Applications
It is suitable for the raw materials that need to concentrate, mixed and dried at low temperature (for example, biochemistry) products in chemical, foodstuff industries. Particularly it is suitable for the raw materials that are easy to be oxidized, volatilized and have night heat sensitivity and is toxic and not permitted to destroy its crystal in drying process.
PRODUCT SPECIFICATIONS
Item | Spec | ||||||||
name | 100 | 350 | 500 | 750 | 1000 | ||||
Total Volume （L） | 100 | 350 | 500 | 1000 | 1500 | ||||
Working Volume (L) | ≤50 | ≤175 | ≤250 | ≤375 | ≤500 | ||||
Heating Area (M3) | 1.16 | 2 | 2.63 | 3.5 | 4.61 | ||||
Speed (rpm) | 4-6 | ||||||||
Powder (KW) | 0.75 | 1.1 | 1.5 | 2 | 3 | ||||
Occupled Area (L*w)(mm) | 2160*800 | 2260*800 | 2350*800 | 2550*1000 | 2860*1300 | ||||
Rotating Height (mm) | 1750 | 2100 | 2550 | 2490 | 2800 | ||||
Working Temperature(oC) | Tank Inside≤85,jacket≤140 | ||||||||
Vacuum Pump with Condenser (KW) | 2kw | 2kw | 3kw | 3kw | 5kw | ||||
Vacuum Pump without Condenser (KW) | 1.5KW | 2.2KW | 1.5KW | 4KW | 4KW | ||||
Weight (kg) | 800 | 1100 | 1200 | 1500 | 2800 | ||||
Item | Spec | ||||||||
name | 1500 | 2000 | 3500 | 4500 | 5000 | ||||
Total Volume （L） | 1500 | 2000 | 3500 | 4500 | 5000 | ||||
Working Volume (L) | ≤750 | ≤1000 | ≤1500 | ≤2250 | ≤2500 | ||||
Heating Area (M3) | 5.58 | 7.5 | 11.2 | 13.1 | 14.1 | ||||
Speed (rpm) | 4-6 | ||||||||
Powder (KW) | 3 | 4 | 5.5 | 7.5 | 11 | ||||
Occupled Area (L*w)(mm) | 3060*1300 | 3260*1400 | 3760*1800 | 3960*2000 | 4400*2500 | ||||
Rotating Height (mm) | 2940 | 2990 | 3490 | 4100 | 4200 | ||||
Working Temperature(oC) | Tank Inside≤85,jacket≤140 | ||||||||
Vacuum Pump with Condenser (KW) | 7kw | 9.5kw | 11kw | 20.5kw | 22kw | ||||
Vacuum Pump without Condenser (KW) | 5.5KW | 11KW | 11KW | 15KW | 18.5KW | ||||
Weight (kg) | 3300 | 3600 | 6400 | 7500 | 8600 | ||||
Company Profile
LIAOYANG WINTECH INDUSTRIAL CO.,LTD, takes Centrifugal Filter Equipment and Drying Equipment processing and manufacturing as the main industry, main products are Horizontal Decanter Centrifuge, Disc Centrifuge, Tubular Centrifuge, Flat Series Centrifuge, CO2 Supercritical Extraction Equipment, Spray Dryer, Fluid Bed Dryer, Drying Oven, Drum Dryer and corresponding supporting equipment, eg. food line, chemical line. At the same time, to undertake standards and non-standard products. Our equipment is exported to Europe, America, Southeast Asia, Africa and other countries, and has been praised by foreign customers.
Our company has professional engineers with strong new product development ability, and can develop equipment products according to the actual needs of customers. Our company has ISO 9001 certification, CE certification and other relevant authoritative parts of professional identification and recognition. At the same time, facing the fierce market competition, our company is relying on its own advantages, integrating external resources, optimizing internal management, constantly exploring and innovating, and striding forward in the direction of business specialization and diversification. Our company adheres to the business philosophy of quality and service, and wholeheartedly provides high-quality products and services for new and old customers to meet the needs of customers to the maximum extent. Serve customers, achieve customers, sincerely look forward to cooperating with new and old customers to create a better future.
Our company follows strict quality controls and various systematic procedures. We take utmost care of quality at every stage of the manufacturing process.Our research and development wing is our asset that develops and incorporates innovative ideas and products. Our Team is full of experienced and qualified professionals, who have sound knowledge about the quality of our machinery.
We sincerely invite you to be our long term relationship friend , and we always prepared to provide our best services for you and would like you to know below we want to present :
1. Each machine is manufactured by professional experienced staff.
2. 12 months warranty + 100% QC inspection Before Shipment.
1. Each machine is manufactured by professional experienced staff.
2. 12 months warranty + 100% QC inspection Before Shipment.
3. Overseas services provided. Technicians can be sent to spot for guiding the installation and debugging. Training operators and accomplish the commissioning.
4. Consultant services for whole machine life, 24 hours technical support by email and phone.When warranty date expired , lifetime maintenance service is provided and at buyer’s cost.FAQ
Frequency Asked Questios:
Q: Can I visit your company?
A: Of course. There are many foreign customers come to visit our company. Our company is in Liaoyang, you can come by air. Welcome to visit us.
Q: What’s the quality of your machine?
A: Our company follows strict quality controls and various systematic procedures. We take utmost care of quality at every stage of the manufacturing process. You can rest assured with the quality absolutely.
Q: What to do if the machine has problems?
A: We provide 24 hours online service, so you can feel free to contact us with e-mail or phone.
Q: How long is the warranty?
A: We will provide one-year warrantee to make sure your machine runs consistently.
Q: Can I visit your company?
A: Of course. There are many foreign customers come to visit our company. Our company is in Liaoyang, you can come by air. Welcome to visit us.
Q: What’s the quality of your machine?
A: Our company follows strict quality controls and various systematic procedures. We take utmost care of quality at every stage of the manufacturing process. You can rest assured with the quality absolutely.
Q: What to do if the machine has problems?
A: We provide 24 hours online service, so you can feel free to contact us with e-mail or phone.
Q: How long is the warranty?
A: We will provide one-year warrantee to make sure your machine runs consistently.
Похожие товары

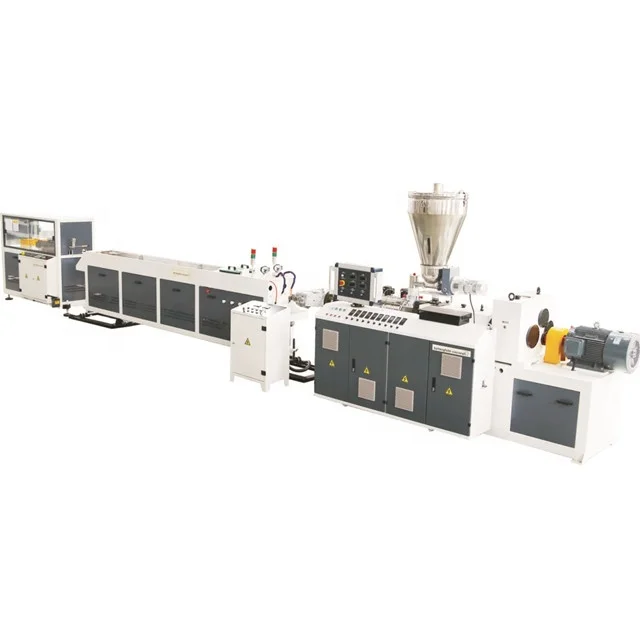

20-110 мм ПВХ Электрический экструдер для труб, машина и производственная линия
25 000,00 $ - 30 000,00 $

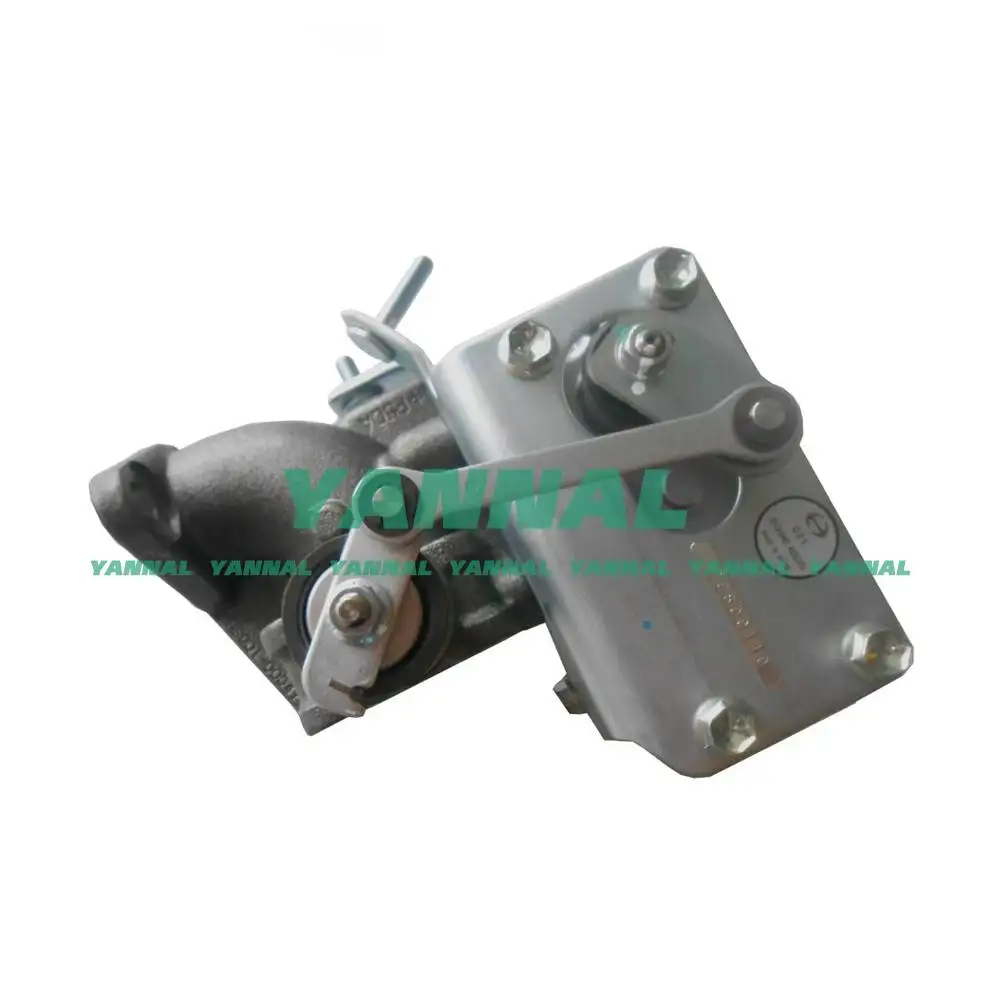

B9946-650 клапан Egr P11C для Hino

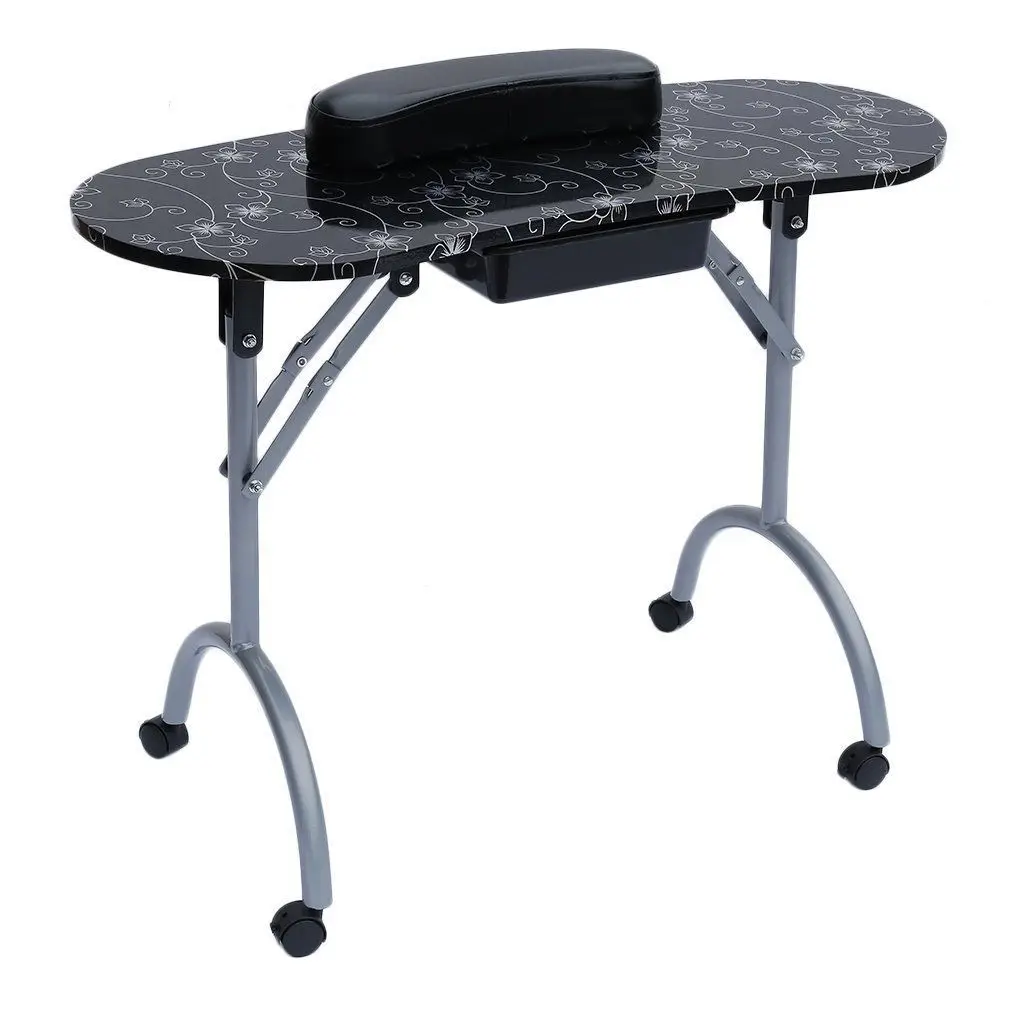

Стол для маникюра, складной стол, Современный портативный стол для маникюра, черно-белый
45,00 $ - 52,00 $

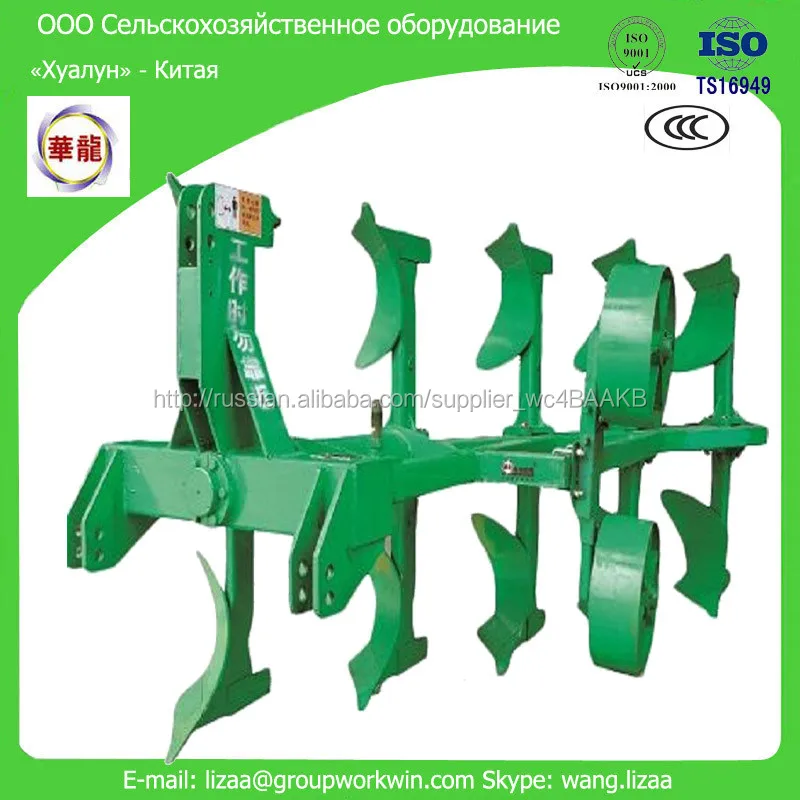

1LF-530 Оборачивающий плуг Почвофреза Reversible plow

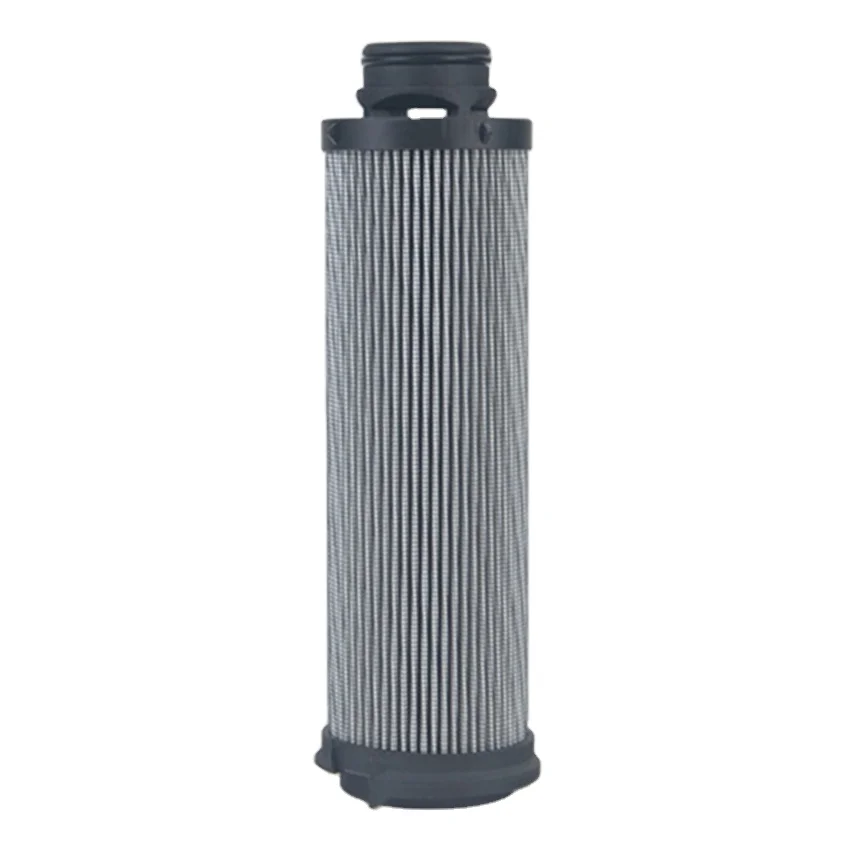

Высокоэффективный фильтрующий элемент гидравлического масляного фильтра 944432Q
16,62 $ - 18,62 $
Бесплатные образцы, репеллент от насекомых, масло цитронеллы, Противомоскитный пластырь для ребенка
0,18 $ - 0,22 $

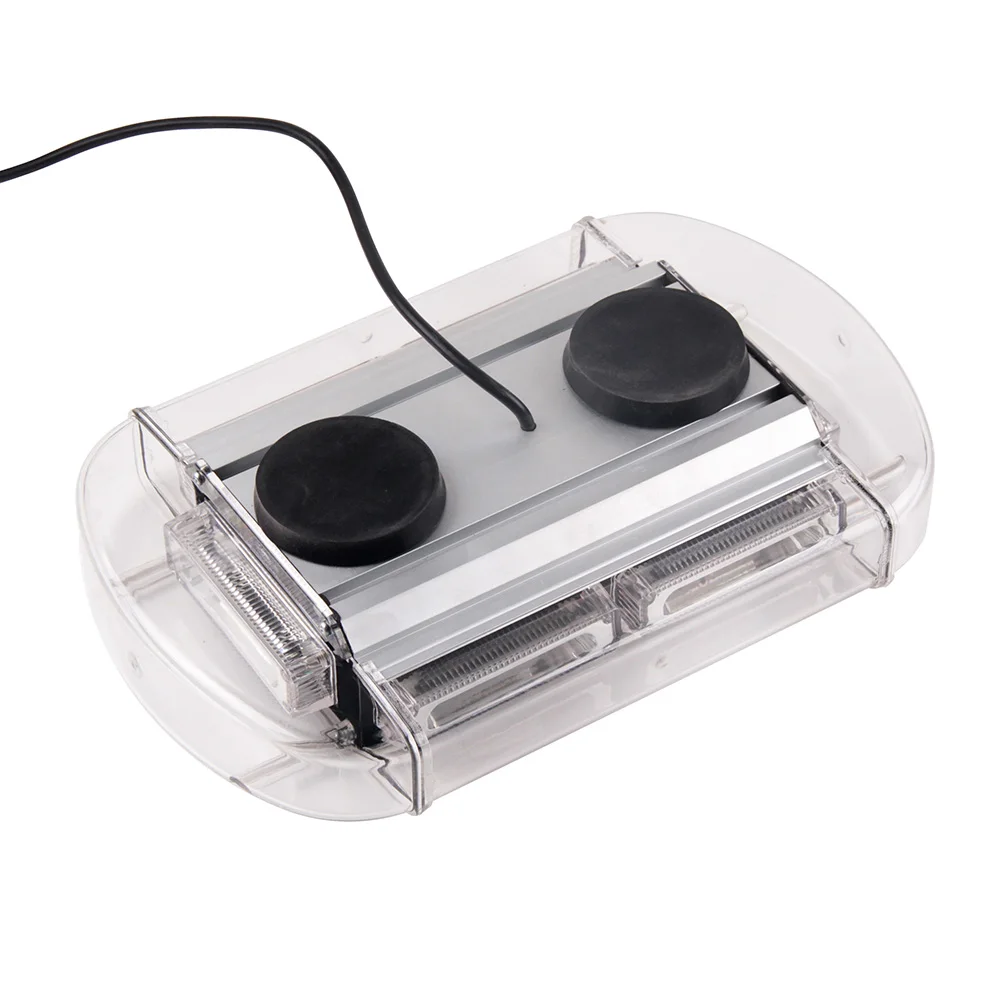

CIGO LED-835-1 мини-световые огни, предупреждающие знаки 12-24 В, Автомобильное оборудование, светодиодная Стробоскопическая сигнальная лампа
