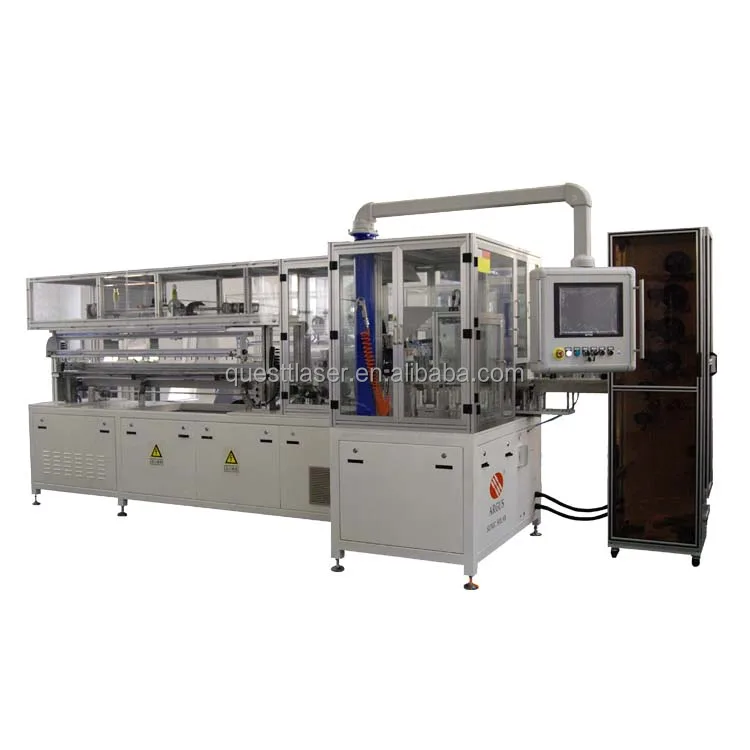

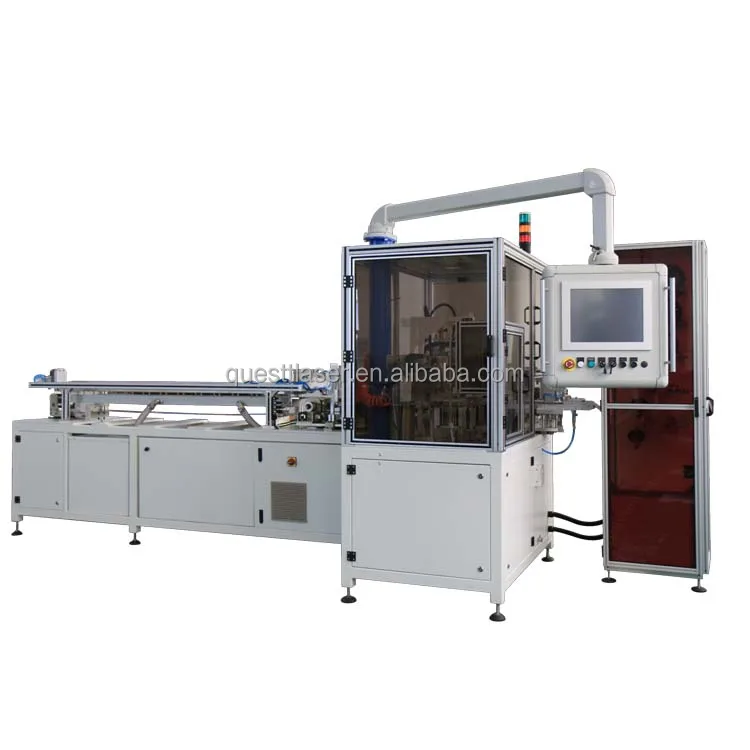

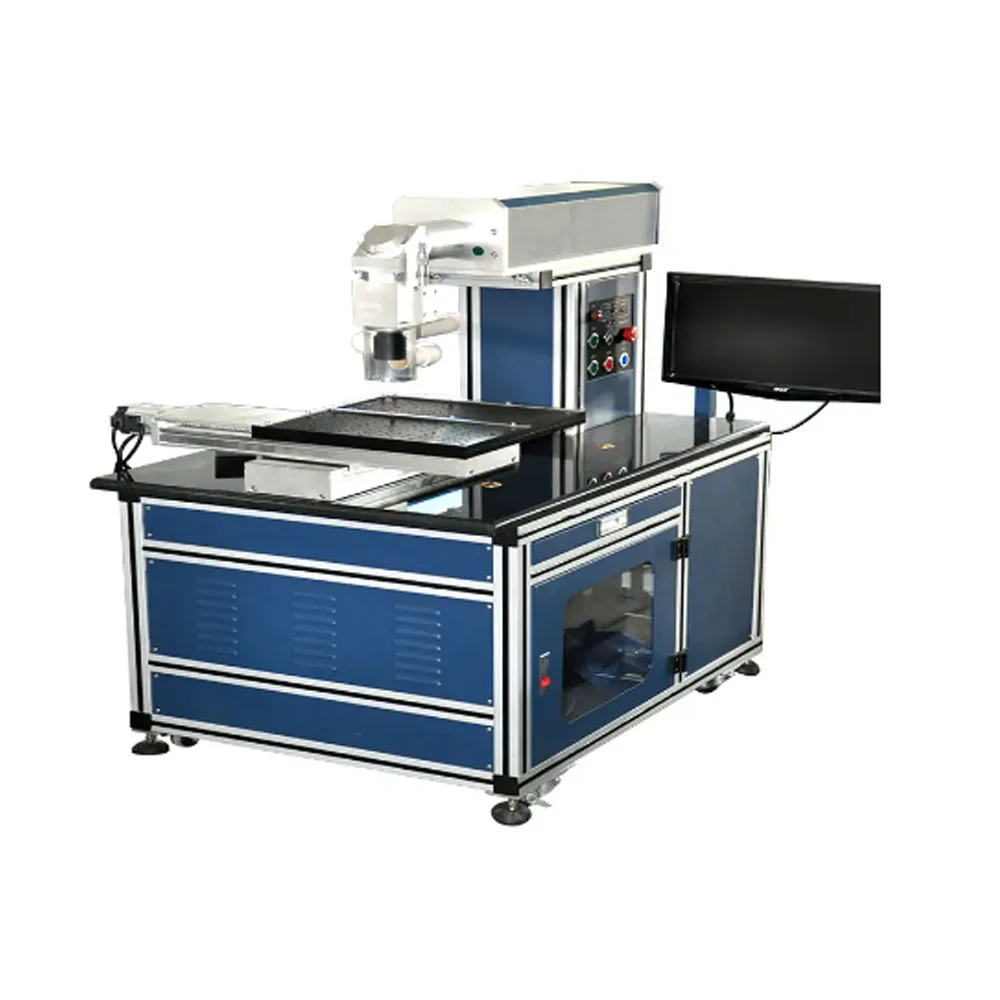

Лазерный резак для солнечных батарей с функцией сортировщика

Лазерный резак для солнечных батарей с функцией сортировщика

Категория: >>>
Поставщик: Wuhan Questt Asia Technology Co. Ltd.Wuhan Ltd.

Цена:*

Количество:

В избранное

Описание и отзывы

Характеристики

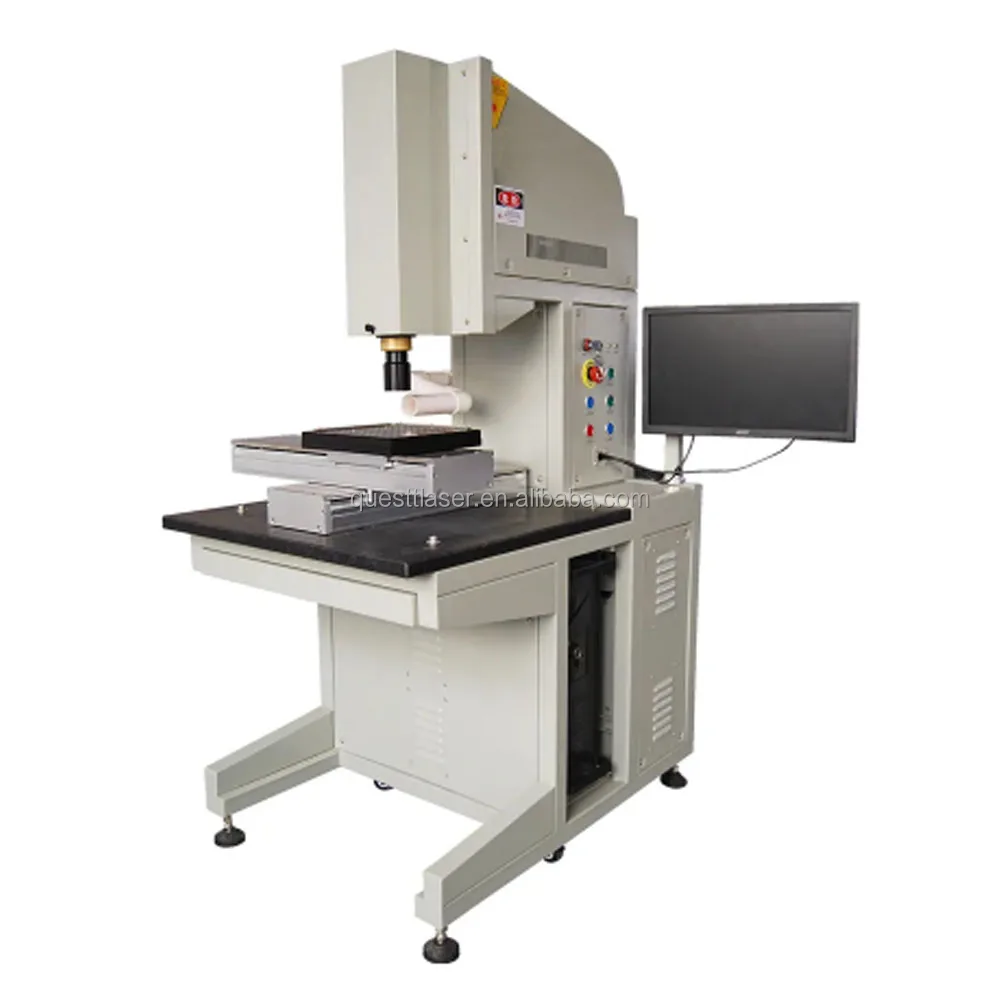

Laser Dicing Saw for Semiconductor Wafer Cutting

laser scribing machine,fiber laser scribing machine,solar cell cutting machine,solar cell laser scribing machine, solar cell

scriber ,silicon wafer fiber laser scribing machine.

1.New prodcut solar cell scriber laser scribing machine of Questt laser.New designed machinery structure make the whole machine
more concise and convenient for operation.Re-write partial source codes of solar cell scriber laser scribing machine software to
ensure more and more stable and faster run.

2.High quality laser scribing machine / solar cell scriber .Imported fiber laser to display better laser beam quality(standard
base model),thinner cutting slit and smoother cutting edge.

3.The PV cells laser cutting/solar cell scriber's independent research.International standard moduler design,needed no
mainternace,can keep uninterrupted continuous operation of new solar cell scriber laser scribing machine.

4.Convenient operation is intergrated into machine for smaller equipment volume and more convenient operation.The control software
of solar cell scriber laser scribing machine is designed specially for fiber laser scirbing mahine by our own company Sunic Laser.

5.T-style duplex worktable of fiber laser scribing machine runs alternately,to promote the working efficiency.And the max speed of
laser scribing machine can reach 20mm/s.

Technical Parameters

Technical Index	Technical Parameter
Type specification	QA20
Wave lengh of laser	1064nm
Laser power	20W
Laser repetition frequency	20Khz-100khz
Max scriber speed	200mm/s
Scriber line width	±10μm
Scribing line width	<30μm
Work platform size	350x350mm
Power supply	380V(220V)/50HZ/1.5KVA (customized)
Cooling ways	Forced-air cooling
Working temperature	0-35℃
Working humidity	5-95%
Package	Standard Wood Package for Export, Customs Suffocating Free
Work platform	The adsorption of double gas warehouse vacuum,the T-model platform is double position works in turn
