Products Description
The hydraulic double roller crusher is mainly used for fine crushing operations with particle size requirements of less than 80mm and finished products of 50-20mm. Applicable material： River pebble, Calcite, quartzite, marble, cobble, bentonite, iron ore, bluestone, mountain stone, water slag, limestone, weathered sand, Diabase, granite, basalt. Highway, railway, high-rise buildings, municipal, hydropower dam construction, concrete mixing station, sand and stone field, etc
Model | Feeding size (mm) | Discharging size (mm) | Capacity (t/h) | Motor power (kw) | Weight (t) | Dimension (mm) |
2PG400×250 | <35 | ≤2-8 | 2-10 | 2×5.5 | 1.3 | 2110×870×810 |
2PG610×400 | <65 | ≤2-20 | 5-20 | 2×15 | 3.9 | 3510×1420×1030 |
2PG750×500 | <75 | ≤2-25 | 10-40 | 2×18.5 | 9.5 | 4210×1630×1260 |
2PG800×600 | <80 | ≤2-25 | 12-45 | 2×22 | 10.8 | 4505×1780×1320 |
2PG1000×700 | <100 | ≤3-30 | 20-65 | 2×30 | 14.9 | 5310×2175×1595 |
2PG1200×800 | <120 | ≤3-35 | 35-80 | 2×37 | 25.5 | 6290×2270×1870 |
2PG1500×800 | <130 | ≤3-45 | 50-120 | 2×75 | 33.7 | 7460×2410×2290 |
2PG1600×1000 | <150 | ≤3-50 | 60-140 | 2×90 | 41.2 | 8220×2680×2475 |
Working Principle
1. The interior is equipped with a dustproof plate with good sealing performance, avoiding the splashing of small materials aftercrushing, resulting in less dust and low working noise.
2. This machine is equipped with safety protection settings. When an unexpected metal iron piece enters the crushing chamber, the protection device is activated, and the equipment operates normally when the iron piece leaks out.
3. The abrasive gap of this machine can be adjusted before 1mm~20mm, and the size of crushed particles can be controlled after adjustment according to the crushing requirements.
3. The abrasive gap of this machine can be adjusted before 1mm~20mm, and the size of crushed particles can be controlled after adjustment according to the crushing requirements.
The hydraulic roller crusher is a kind of machine which is extended by the spring roller crusher. The advantage of hydraulic
structure is that it can control the pressure between two reliefs accurately. Long-term continuous operation can still guarantee the crushing pressure between two rollers. Therefore, the equipment of roller crusher in the grinding system can give full play to the production capacity of the grinding equipment. Generally, the output can be increased by 30%~40%, and the total energy consumption can be reduced by 20%-30%.
structure is that it can control the pressure between two reliefs accurately. Long-term continuous operation can still guarantee the crushing pressure between two rollers. Therefore, the equipment of roller crusher in the grinding system can give full play to the production capacity of the grinding equipment. Generally, the output can be increased by 30%~40%, and the total energy consumption can be reduced by 20%-30%.
We will supply the wear parts with factory price . You can buy from our factory
The main structure of the wheel gearing is composed of fixed roll, movable roll, drive shaft, machine box, chassis, cover piece,and long gear cover. The motive power of the machine comes from the V-belt pulley of the electro motor, and a pair of middle reduction gear will make the fixed roll rotate, and then a pair of long gear drive on the other side of the fixed roll will drive the movable roll, and the two rolls perform relative movement to squeeze the materials.

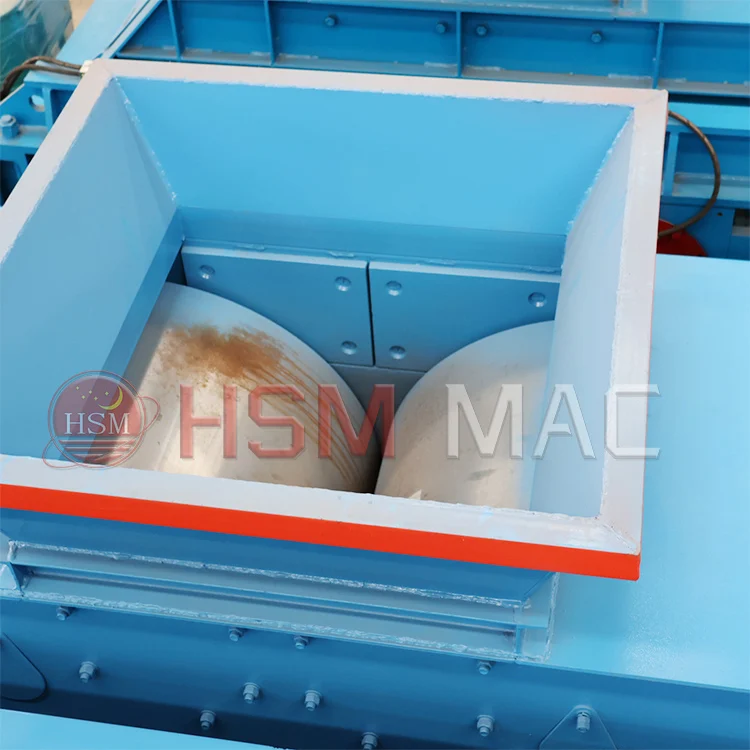

Details Images
If you want to learn more product information, please click here to contact us!!!

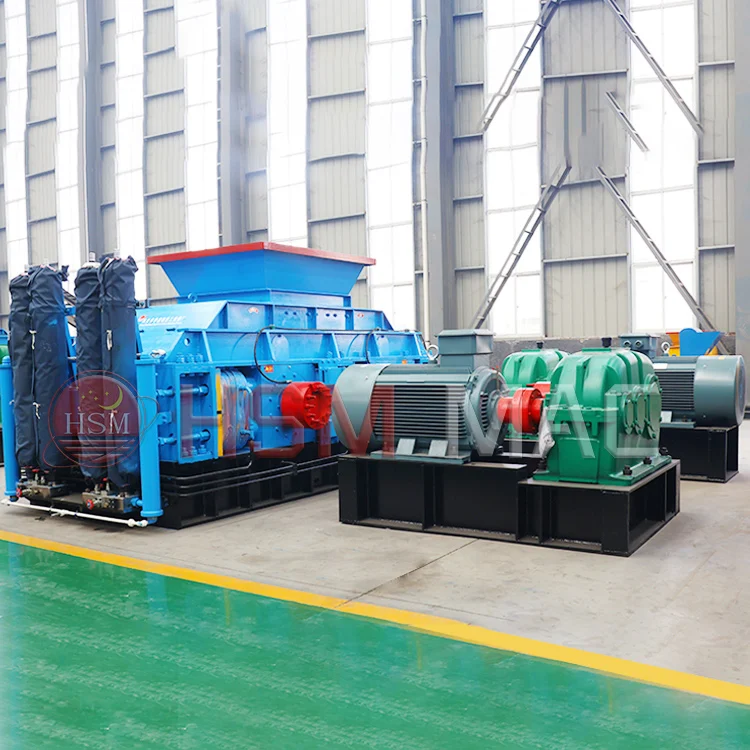

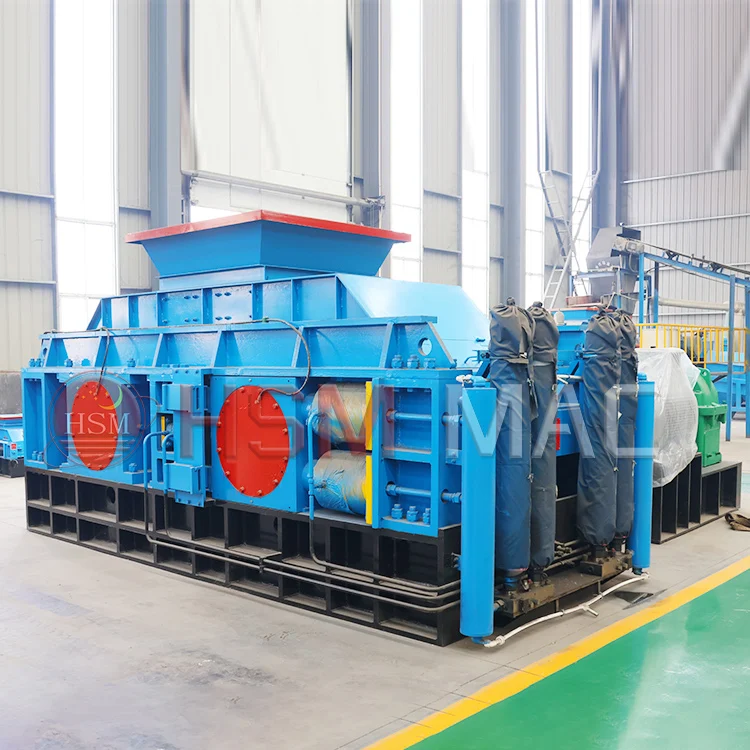

Product Display

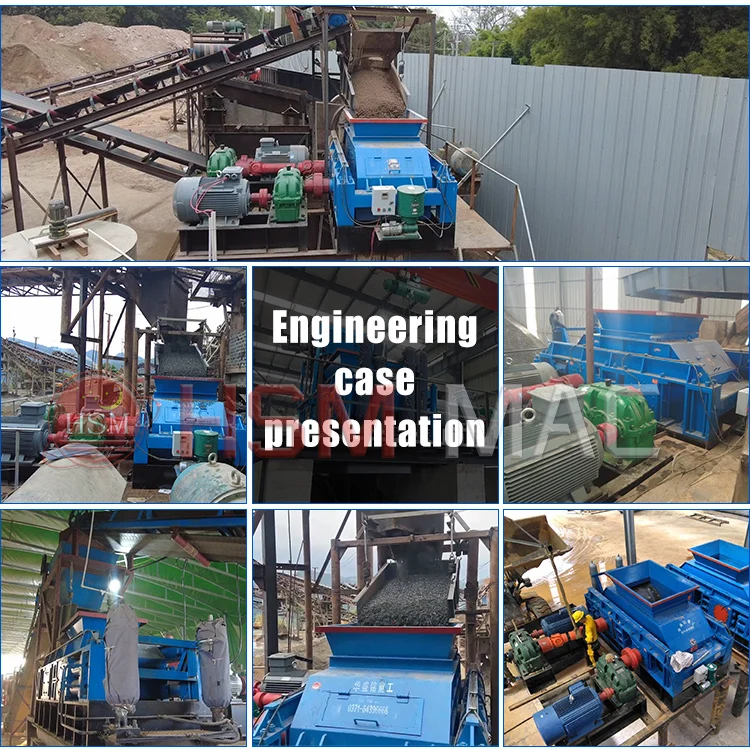

Customer Photos
Company Profile
FAQ
1.How long is the warranty period about machine?
Our machine warranty period is 1 year. Wearing parts and problem coursed by worker's wrong operation are not included.
2.What is the after sale service of your company?
We will provide foundation drawing to the clients for installation. Besides, we can provide installation service, workers training service, etc.
3.Can you provide wearing parts?
We are a factory, we produce machine parts. We can provide you with all the accessories needed for the machine.
4.Can you provide me a solution and quotation?
Of course. Please give us your details about project, raw material, the capacity, max feeding size, the output size, the usage of final products, etc.
2.What is the after sale service of your company?
We will provide foundation drawing to the clients for installation. Besides, we can provide installation service, workers training service, etc.
3.Can you provide wearing parts?
We are a factory, we produce machine parts. We can provide you with all the accessories needed for the machine.
4.Can you provide me a solution and quotation?
Of course. Please give us your details about project, raw material, the capacity, max feeding size, the output size, the usage of final products, etc.
