Мотоцикл 200cc/250cc бесщеточный для мотоциклов Yamaha внедорожных и бензиновые скутеры
- Категория: >>>
- Поставщик: Chongqing DY Tech Co. LTD.Chongqing LTD.
Сохранить в закладки 1600967890004:
Описание и отзывы
Характеристики
Chongqing Diyang Science & Technology Development Co., Ltd.
China's leading automobile enterprise integra ting product design, manufacturing and international trade.
1. Established in 2001, it mainly produces two-wheel road and off-road motorcycles, three-wheel motorcycles and motorcycle spare
parts ,and has a mature domestic and over seas business team.
2、In 2023, the retro curved beam motorcycle Cub Pro 125 will be launched heavily, enjoying a better configuration than the Honda Super Cub at a lower price.
3、It supports customization of exclusive colors and texts, and the seats and rear seats can be replaced, it can be used for carrying people and goods.
parts ,and has a mature domestic and over seas business team.
2、In 2023, the retro curved beam motorcycle Cub Pro 125 will be launched heavily, enjoying a better configuration than the Honda Super Cub at a lower price.
3、It supports customization of exclusive colors and texts, and the seats and rear seats can be replaced, it can be used for carrying people and goods.
Product Description

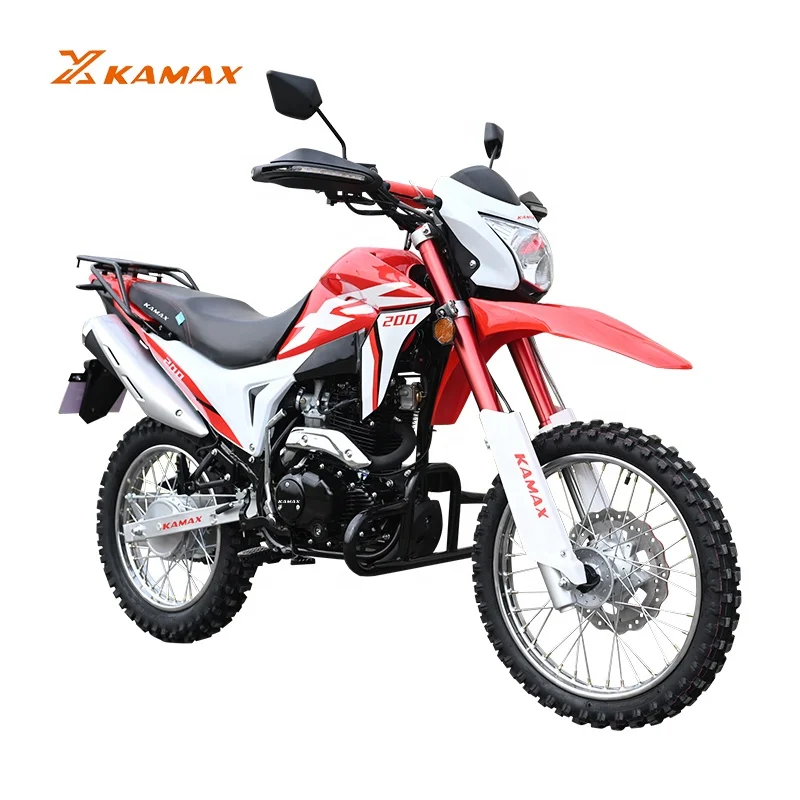

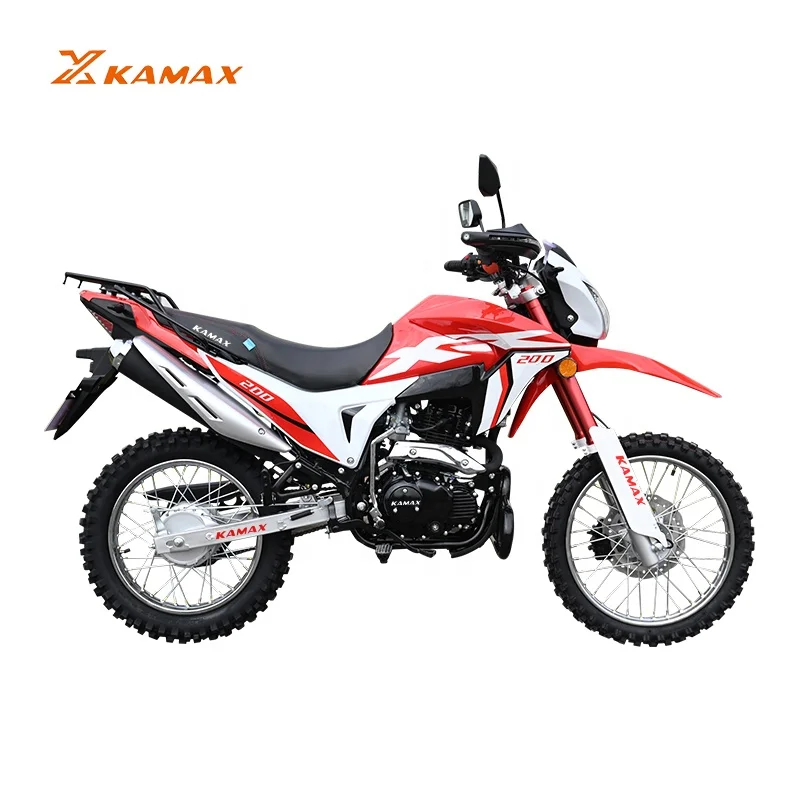

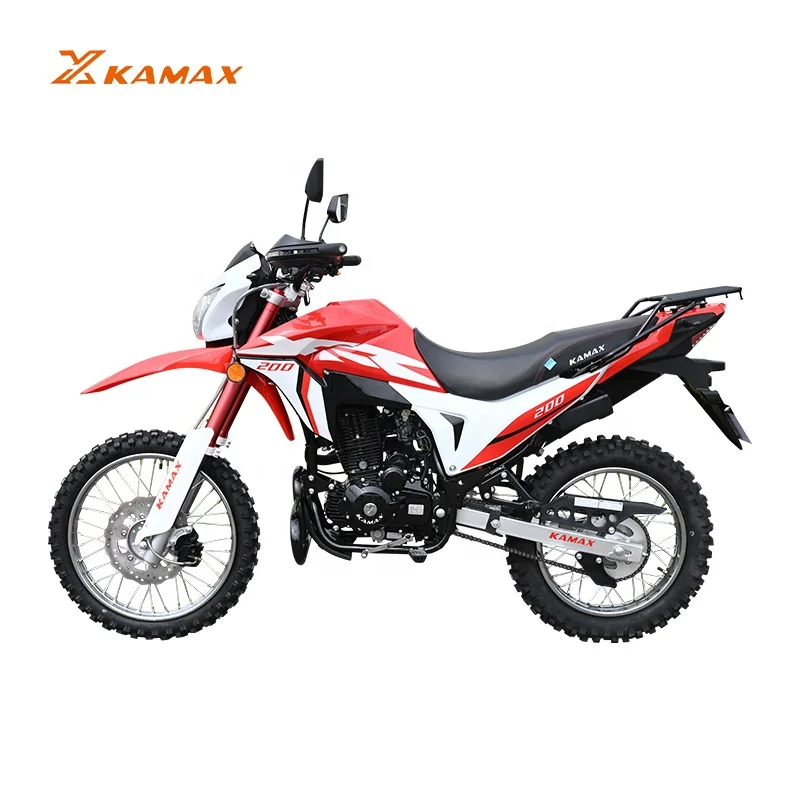

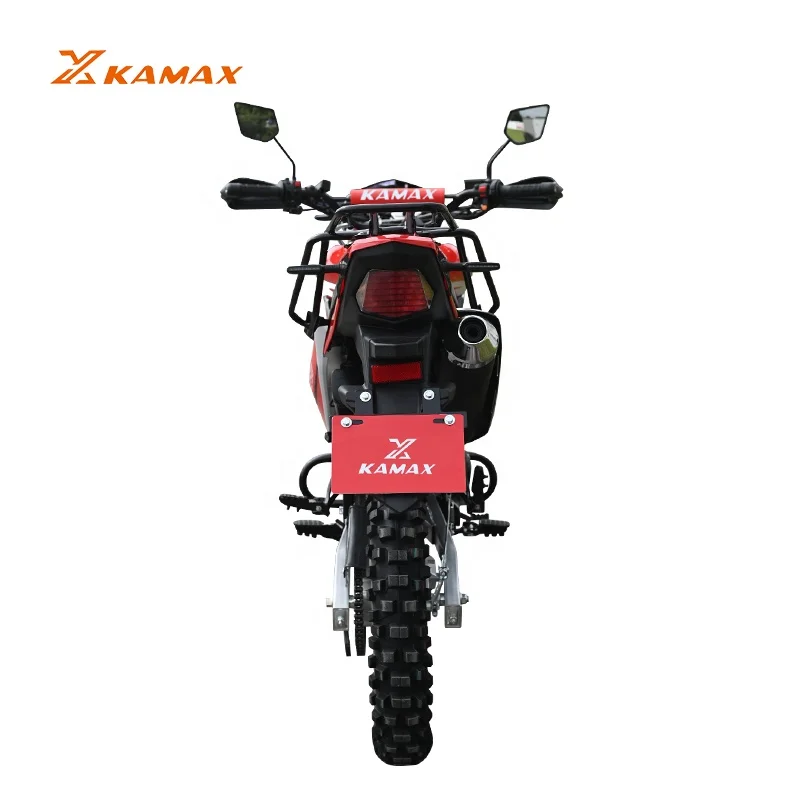

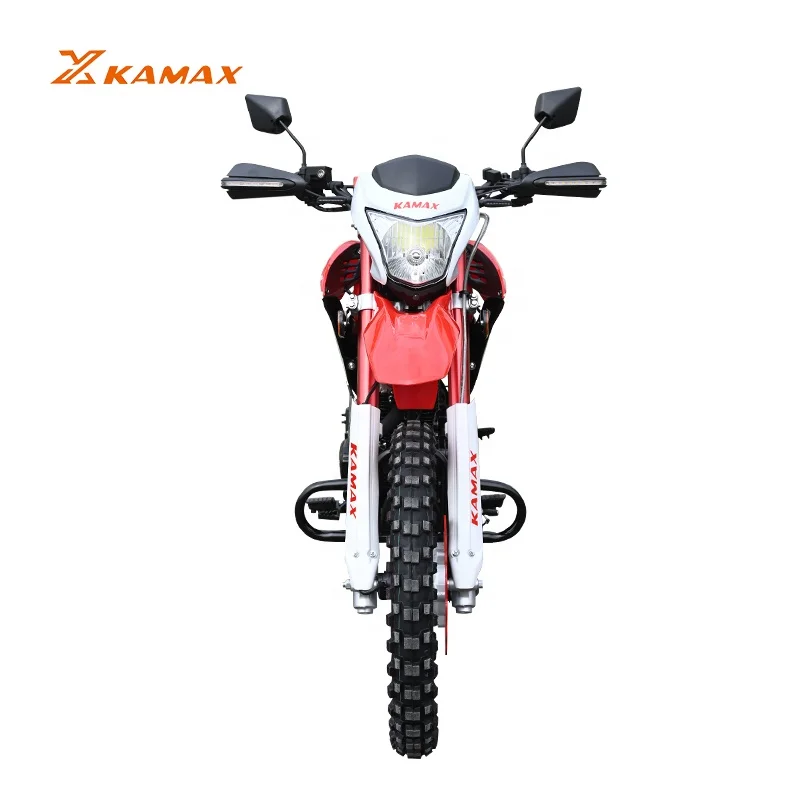

XN200, the choice of the brave!
Escape the hustle and bustle of the city and enter the embrace of nature.
Product Details
Product Paramenters
Category | Spec | Technical specifications (200CC ) | ||
ENGINE | Type (Cooling, stroke, configuration) | Single-cylinder, inclined, four-stroke, air-cooled, external balance shaft. | ||
Displacement (cc) | 196.4ml | |||
Bore x Stroke (mm) | 63.5mm×62.2mm | |||
Compression Ratio | 9.2：1 | |||
Max. Power Output (kW/ rpm) | 10KW(7000r/min) | |||
Max. Torque (Nm/ rpm) | 13N.m(5500r/min) | |||
Idling speed (rpm) | 1500r/min | |||
V-Max (km/h) | ≥100km/h | |||
Oil Capacity (L) | 1.4L | |||
FUEL SYSTEM | Carburation (Type) | Piston-driven | ||
Aircleaner (Type) | Single-stage dry paper filter element | |||
Fuel Tank Capacity (L) | 11L | |||
Fuel Consumption (km/L) | 100km/2.8L | |||
ELECTRICAL SYSTEM | Starter (Type) | Electric foot-start | ||
Battery Capacity (V/AH) | 12N6.5-3A 135×65×105 | |||
Sparkplug Type | CDI | |||
DRIVETRAIN | Clutch Type | Wet multi-plate manual clutch | ||
Transmission Type | Chain drive | |||
Final Drive | 13:40 | |||
FRAME | Type | Circular tube cradle type | ||
CHASSIS | Dimensions, LxWxH (mm) | 2090mm×870mm×1210mm | ||
Wheelbase (mm) | 1370mm | |||
Caster Angle (°) | 26° | |||
Seat Height (mm) | 880mm | |||
Ground Clearance (mm) | 270mm | |||
Net Weight (F/R) (kg) | 124kg | |||
Max. Carrying Capacity (F/R) (kg) | 150kg | |||
SUSPENSION | Type Front (incl axle travel - mm) | Hydraulic spring, front and rear dual shock absorbers, with a 170mm travel. | ||
Type Rear (incl axle travel - mm) | Hydraulic spring, adjustable single rear shock absorber with a travel of 45±5mm. | |||
WHEELS | Type Front | Sprocket wheel | ||
Type Rear | Sprocket wheel | |||
Rim Size Front | 1.85×17 | |||
Rim Size Rear | 2.15×17 | |||
Tyres Front | 3.50-17 | |||
Tyres Rear | 4.60-17 | |||
BRAKES | Type Front (incl calipers - mm) | Disc brake with a braking travel of 15-25mm. | ||
Type Rear (incl calipers - mm) | Disc brake with a braking travel of 15-25mm. | |||
OTHERS | Oil | SF 15W/40 | ||
Type of horn | Bowl-shaped electric horn | |||
Type of spark plug | D8TC | |||
Gear ratio: Initial gear ratio | 4.055 | |||
First gear: Second gear: Third gear: Fourth gear: | 2.769；1.880；1.440 ；1.130；0.960 | |||
Tire pressure（front/rear） kPa | 225kpa；225kpa | |||
Dynamic wheel ratio (front/rear) | 1 | |||
Engine sprocket | 520-13 | |||
Rear sprocket | 520-40 | |||
Chain | 520-104 | |||
About Company
Chongqing Diyang Science and Technology Development Co., Ltd
Founded in 2001，is one of the largest motorsports cooperation in China. integrated with product design, manufacture and international trade of all kinds of motorcycle products. Starting from a parts-oriented manufacturer and all those years dramatic growth, we now has an annual productivity of 300.000 units in more than100 models. ranging from motorcycles, ATVs, UTVs and other core parts of motorcycle with its own patent，such as engine, tyre, battery etc.
Our Department of Research and Development is dedicated in designing and reverse-engineering a great variety of products using cutting-edge technologies including mould shaping, 3D data and rapid prototyping.
Since early 2000, our international markets have been expanding from South Asia, Africa, Oceania to Mid-east, Europe North and South America. Not only do our products meet most commonly recognized international certificates, such as EPA ,EEC and CARB. To satisfy our every custom.
Since early 2000, our international markets have been expanding from South Asia, Africa, Oceania to Mid-east, Europe North and South America. Not only do our products meet most commonly recognized international certificates, such as EPA ,EEC and CARB. To satisfy our every custom.
Customer visits & feedback
Packaging & Shipping
FAQ
Q: why choose us?
A:We are a company with more than 20 years cross-border trade experience. There are amounts of products for you to choose from,and we provide high-quality products with a great advantage price for our customer.
Q: what are your main products?
A: Our main products are tricycle cargo, motorcycle, tricycle accessories and motorcycle accessories.
Q: what is the moq?
A: We do not have a specific minimum order quantity
Q: what are the terms of payment?
A: TT, D/P, D/A, sight l/c, West Union, paypal, Moneygram, Alibaba trade assurance or any way you like, we can discuss the
details.
Q1: Can I order sample?
A1: Yes, we accept sample order.
Q5: Can I customized the motorcycle?
A: Yes, we will customize products according to the customer’s requirement.
Q6: How can I contact with your company?
A: You can contact with us in the following ways:
E-mail: customermanager@kamaxgroup.com
A:We are a company with more than 20 years cross-border trade experience. There are amounts of products for you to choose from,and we provide high-quality products with a great advantage price for our customer.
Q: what are your main products?
A: Our main products are tricycle cargo, motorcycle, tricycle accessories and motorcycle accessories.
Q: what is the moq?
A: We do not have a specific minimum order quantity
Q: what are the terms of payment?
A: TT, D/P, D/A, sight l/c, West Union, paypal, Moneygram, Alibaba trade assurance or any way you like, we can discuss the
details.
Q1: Can I order sample?
A1: Yes, we accept sample order.
Q5: Can I customized the motorcycle?
A: Yes, we will customize products according to the customer’s requirement.
Q6: How can I contact with your company?
A: You can contact with us in the following ways:
E-mail: customermanager@kamaxgroup.com
Похожие товары
Отличное качество классический ретро стиль 125cc дешевый уличный легальный 250cc гоночный внедорожный велосипед

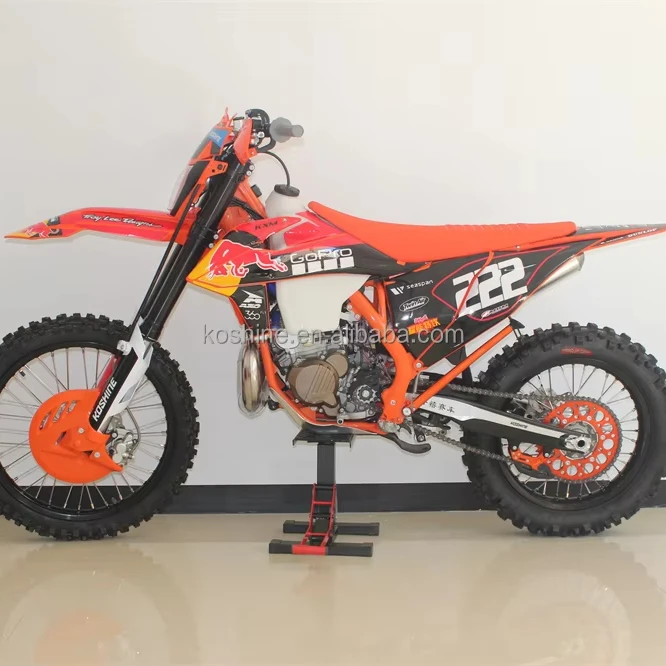

Лидер продаж двухтактный велосипед Koshine 250cc с большой мощностью внедорожный
373 535,12-385 584,64 ₽

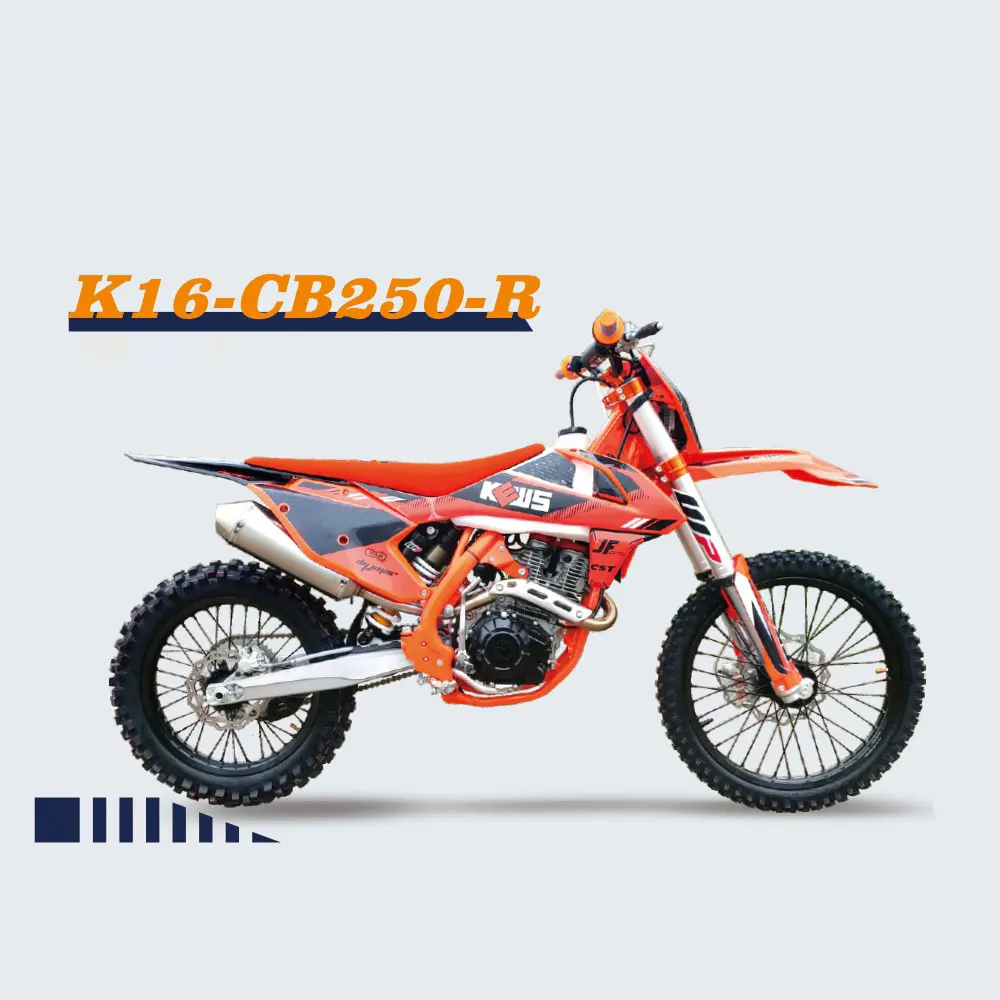

Kews K16 CB250-R KTM с воздушным охлаждением 4-тактный Мотокросс 250cc внедорожные мотоциклы dirtbike двигатель для взрослых эндуро Байк
180 501,81-204 600,85 ₽

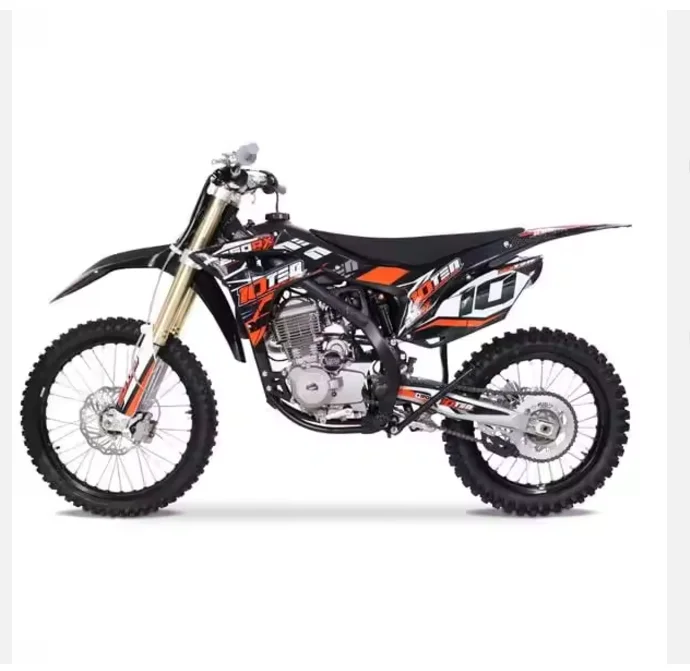

Оригинальный внедорожный мотоцикл 250cc 21/18 96 см 10 десятков 250RX 4-тактный Электрический газовый топливный опции с воздушным охлаждением
