3000 Вт Ручной Волоконно-лазерный станок для очистки сварочный аппарат углеродистой нержавеющей стали алюминиевый Металл железо пайка
1 013 943,96 ₽ - 1 047 007,35 ₽
Самая сильная Лазерная небольшая лазерная сварочная машина беспрерывная волоконная ручная для паяльника
- Категория: >>>
- Поставщик: Sichuan Strongest Laser Technology Co. Ltd
Сохранить в закладки 1600967949978:
Описание и отзывы
Характеристики
PRODUCTPARAMETERS
Project | Unit | STR-HW350 | STR-HW450 | STR-HW550 | ||
Rated input power supply | - | single phase 220V | single phase 220V | single phase 220V | ||
Input power frequency | Hz | 50/60 | 50/60 | 50/60 | ||
Rated input power | W | 3800 | 4200 | 5400 | ||
Welding speed | cm/min | 20~80 | 20~80 | 20~80 | ||

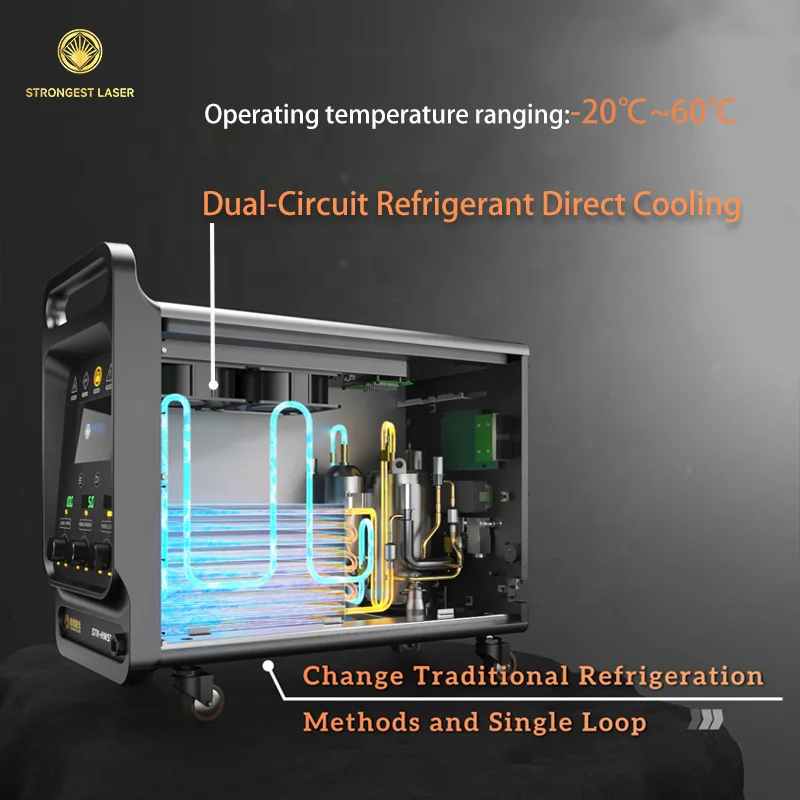

Cooling mode | - | Dual-Circuit Refrigerant Direct Cooling | ||||
Working temperature | ℃ | -20~60 | -20~60 | -20~60 | ||
Working humidity | % | -30~70 | -30~70 | -30~70 | ||

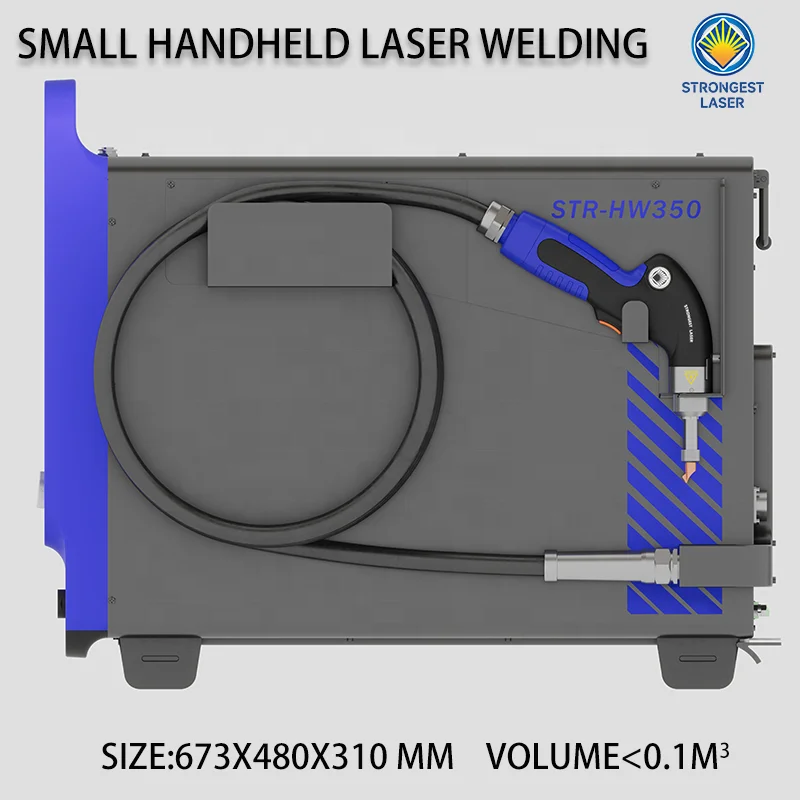

Product dimensions | mm | 673×480×310 | 673×505×310 | 673×505×310 | ||
Product weight | kg | 43 | 43 | 45 | ||
Applicable Wire Diameter | mm | 0.8/1/1.2/1.4/1.6 | ||||
Number of preset process packages | unit | 24 | 30 | 40 | ||
Number of customizable process packages | unit | 20 | 20 | 20 | ||
Output mode | - | Integrated armored cable+welding gun | ||||
Welding mode | - | Spot welding/continuous spot welding/pulse welding/ continuous welding | ||||
Applicable materials
----------------------
Suitable for welding various metals, including but not limited to aluminum, stainless steel, carbon steel, galvanized sheet, brass, etc.
Parameters Matrix for Welding with Wire Fed | ||||||||
Aluminum | Stainless Steel | Galvanized Sheet | Carbon Steel | |||||
STR-HW550 | ≤6mm | ≤6mm | ≤6mm | ≤6mm | ||||
STR-HW450 | ＜4mm | ＜4mm | ＜4mm | ＜4mm | ||||
STR-HW350 | ＜3mm | ＜3mm | ＜3mm | ＜3mm | ||||
Parameters Matrix for Self-fluxing Welding | ||||||||
Aluminum | Stainless Steel | Galvanized Sheet | Carbon Steel | |||||
STR-HW550 | ≤6mm | ≤6mm | ≤6mm | ≤6mm | ||||
STR-HW450 | ＜4mm | ＜4mm | ＜4mm | ＜4mm | ||||
STR-HW350 | ＜3mm | ＜3mm | ＜3mm | ＜3mm | ||||
*The above data are the maximum averaged full penetration obtained through multiple rounds of experiments.
PRODUCT COMPARISONS
COMPANY PROFILE
STR based on its core competence in high power fiber laser technologies, STR has always been committing itself to R&D and equipment production in such application fields as conventional laser welding, special laser hybrid welding and precision cutting. It is a "National High-Tech Enterprise" engaged in R&D, production, sales, and technical service.
Guided by market demand and the national strategy of supporting the development of emerging industries and industrialization, STR has strengthened the comprehensive competitiveness of its core technologies, key components, and main products, and gradually established a product system in high-end industrial applications, defense applications, and other fields.
Over the years of development, STR has provided various services to over 1000 enterprise users and professional services for over 10,000 times. Its sales network covers over 30 provinces and provincial-level municipalities in China, and its products are exported to dozens of countries including the United States and some in Europe, and Southeast Asia.
MORE +
Factory&Office Area.
We have our own factory and office area. Factory: 302, Block 11, Haolang Industrial Park, Airport Road 4, Chengdu, Sichuan; Office: 904, 9th Floor, Zone A, Building 1, No. 200 Tianfu Fifth Street, Chengdu High tech Zone, China (Sichuan) Pilot Free Trade Zone.
Technology & R&D.
The domestic first-class R&D team drives industry technological innovation.
Warehouse&Application Testing.
Including a 4000 square meter optical cleaning workshop, and equippewith a full spectrum of internationally advanced experimental instruments and equipment.
CERTIFICATIONS
Accept your suggestions and criticisms and correct them in time
Seeing your praise is our unremitting motivation.
True evaluation >>
CUSTOMER TESTIMONIALS
EXHIBITION
APPLICATION
FAQ
Q1: How to select the suitable machine? |
A1:Tell us your material, detail requirements by words, pictures or video. We will recommend you the suitable model with the reasonable price. |
Q2: How about the lead time? |
A2:For the standard machine, the delivery time is 3-7 days after the payment.For the non-standard machine, the delivery time is 7-15 days after the payment. |
Q3:How to install and use it? |
A3:We have the instruction Book, Operational manual and Training Videoinside the machine.We also can provide the training on line by free. |
Q4:How to do it if we meet the issue during the operation? |
A4:You can send the wrong information to us by mail, we can help us solveit by mail.phone, or video communication. |
Q5:Do you provide the onsite service if we needed? |
A5:Yes. We can provide the onsite service if you needed. But need the cus-tomer pay. |
