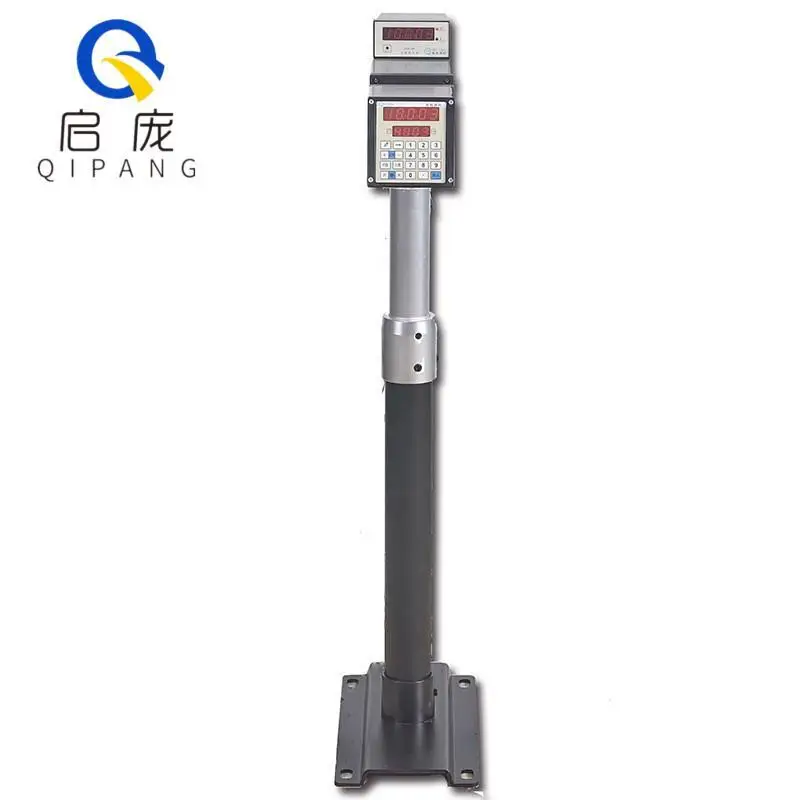

Прибор для измерения диаметра лазера Qipang микрометр лазерный кабель Диаметр измерительного кабеля
- Категория: >>>
- Поставщик: Shanghai Qipang Industrial Co. Ltd.
Сохранить в закладки 1600968326786:
Описание и отзывы
Характеристики
Product Description

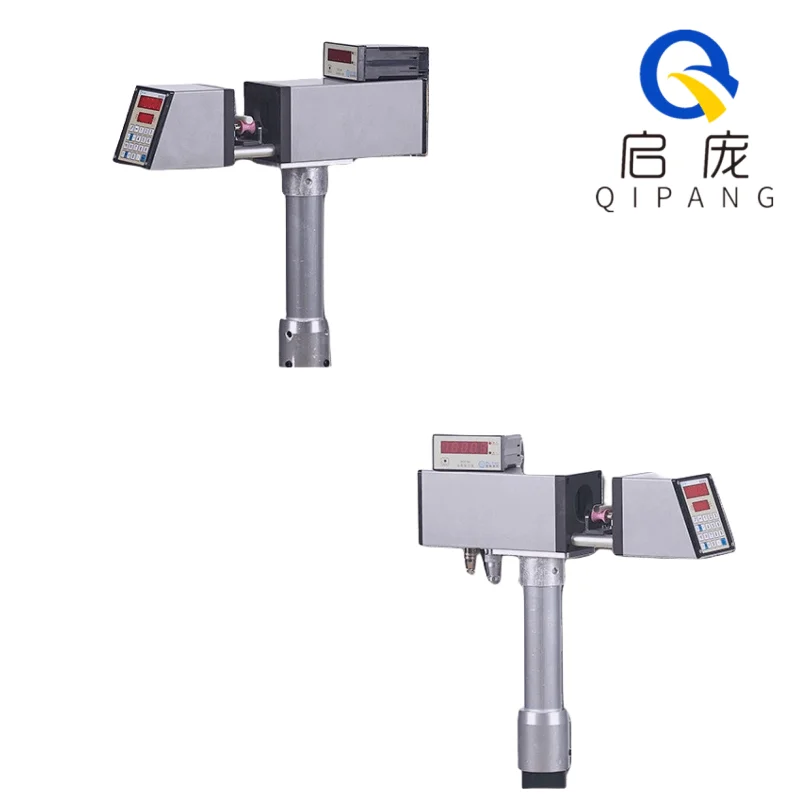

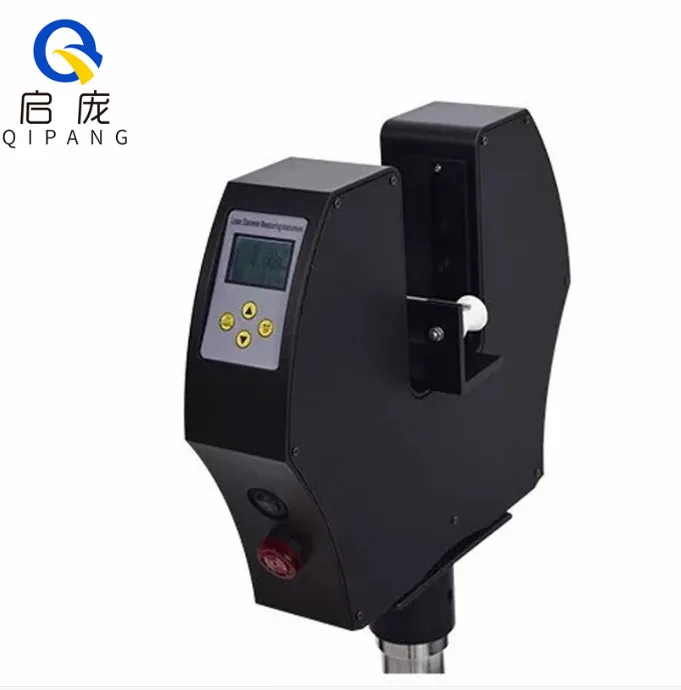

Qipang laser diameter measuring instrument micrometer laser cable diameter measurement cable diameter measurement
cable diameter measurement Range 0.1-25mm is a non-contact dynamic measuring device specially designed to measure round workpieces such as electric wire & cables, optical fibers, plastic and glass tubes, and bearings. It is a professional measuring instrument that displays diameter and deviation values and can also control diameter automatically based on user requirements. The device is equipped with an Fθ optical lens, which ensures that even when the measured wire is shaking, it does not affect the accurate measurement result. It is a high-speed, high-precision, and stable performance instrument with a semiconductor laser of long service life.
Description
cable diameter measurement Range 0.1-140mm
1. Suitable for online measurement of any round wires and workpieces.
2. Non-contact measurement, high-speed inspection, high precision, and stable performance.
3. With Fθ optical lens, shaking has a minor influence on the measured wire.
4. With an inbuilt PID control module, wire diameter can be automatically controlled.
5. Long-distance displays of various dimensions are equipped with an all-dimensional revolving operating panel.
6. With multi-address RS232/485 communication interface.
7. With Switzerland’s brushless DC motor, it could be adapted to working under severe environments.
2. Non-contact measurement, high-speed inspection, high precision, and stable performance.
3. With Fθ optical lens, shaking has a minor influence on the measured wire.
4. With an inbuilt PID control module, wire diameter can be automatically controlled.
5. Long-distance displays of various dimensions are equipped with an all-dimensional revolving operating panel.
6. With multi-address RS232/485 communication interface.
7. With Switzerland’s brushless DC motor, it could be adapted to working under severe environments.
LST-3025 | LST-3040 | LST-70/90/100/140 | |
Measuring range: | 0.1-25mm | 0.5-40mm | 1-70/120/140mm |
Measurement accuracy: | ±0.001mm | ±0.003mm | ±0.004mm |
Resolution: | 0.001mm | 0.001mm | 0.001mm |
Length*Width*Height: | 290*66*170mm | 400*68*175mm | 504*86*230mm |
Weight: | 20KG | 20KG | 15KG |
Key control, accurate display
Support height is adjustable
Ultra-tight foam inner packing, outer packing using cartons.

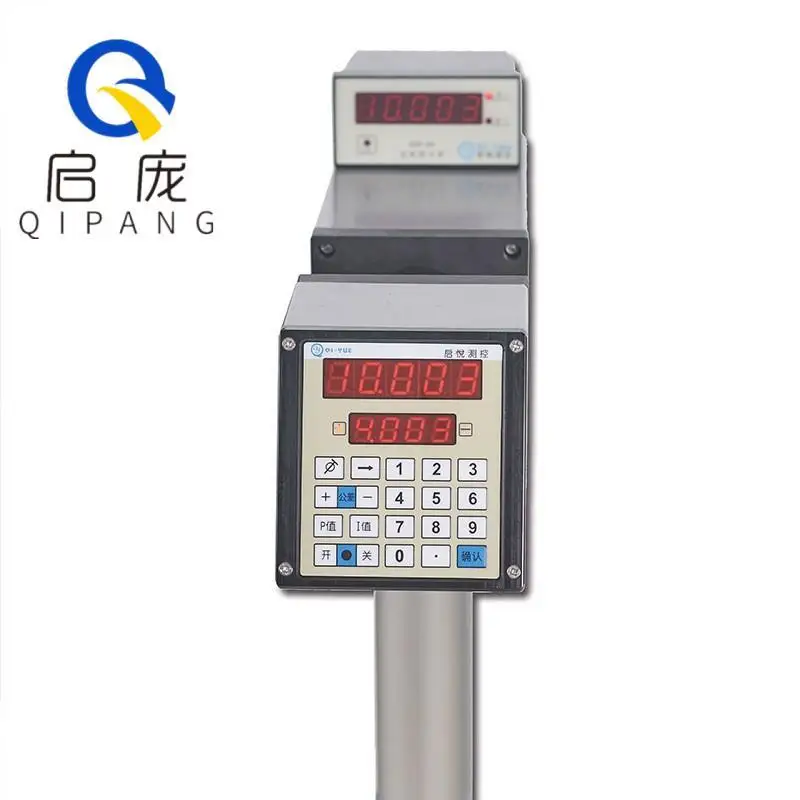

Cable Diameter Measuring Display.
Both sides can be displayed, and the 485 interface matches the cable diameter measuring.
LST-3025 dynamic outer diameter measurement and control instrument is a new generation of outer diameter measurement and control instrument of our company. It uses high-speed pulse infrared light source. High -precision CCD and computer digital image processing technology and other new devices. Long life , high scan rate, good dynamic performance and other characteristics.LST-3025 adopts the integrated structure of measurement, display and control, which is very convenient for installation and use.
cable diameter measurement, 485 interface of the display screen
The QP3025 Laser Diameter Measuring Range 0.1-25mm is suitable for use in a wide range of industries, including but not limited to:
1. Electric wire & cable manufacturing industry
2. Optical fiber and cable manufacturing industry
3. Plastic tube manufacturing industry
4. Glass tube manufacturing industry
5. Bearing manufacturing industry
6. Automotive industry
7. Construction industry
8. Aerospace and defense industry
9. Medical devices manufacturing industry
10. Telecommunications industry
1. Electric wire & cable manufacturing industry
2. Optical fiber and cable manufacturing industry
3. Plastic tube manufacturing industry
4. Glass tube manufacturing industry
5. Bearing manufacturing industry
6. Automotive industry
7. Construction industry
8. Aerospace and defense industry
9. Medical devices manufacturing industry
10. Telecommunications industry
Installation location:
LST-3020/QP-3025 Diameter Measurer Monitor and Controller can be mounted front or behind of cooling trough.
When it is mounted in the front of the cooling trough, an optimized controlling effect may be obtained through in-time feedback due to the proximity of the measuring head to the extruder. But at this time the plastic coating is not cured, so the set nominal value must be accordingly.
Front-Of-The-Cooling-Troug-Installation
When it is mounted in the behind of the cooling trough, the measured value is the real diameter of the wire or cable. But the controlling effect is not so good because of the large control lag. Be sure to blow dry the tested wire or cable, otherwise, the measuring precision will be affected by the water coating around the wire or cable.
Behind-Of-The-Cooling-Trough-Installation
QIPANG cable Laser diameter measuring and control device diameter gauge machine Pipe Laser Digital Measuring Instrument
FAQ
1. Is it possible to measure other shapes of workpieces aside from round ones?
No, the QP3025 Laser Diameter Measuring Range of 0.1-25mm is designed specifically for measuring round workpieces only.
2. Is it possible to control diameter manually rather than automatically?
No, the instrument is equipped with an inbuilt PID control module, which only allows for automatic control based on user
requirements.
3. Can it measure workpieces with a larger diameter than 25mm?
No, the measuring range of the instrument is 0.1-25mm—workpieces with a diameter larger than 25mm cannot be measured.
4. Can the instrument be connected to a PC or remote controller?
Yes, the QP3025 Laser Diameter Measuring Range 0.1-25mm has a multi-address RS232/485 communication interface and two synchronic
serial ports, allowing a PC or remote controller connection.
5. Is the instrument durable and suitable for use in harsh environments?
Yes, the instrument is equipped with Switzerland’s brushless DC motor, which allows it to adapt to working under severe
environments, making it highly durable.
No, the QP3025 Laser Diameter Measuring Range of 0.1-25mm is designed specifically for measuring round workpieces only.
2. Is it possible to control diameter manually rather than automatically?
No, the instrument is equipped with an inbuilt PID control module, which only allows for automatic control based on user
requirements.
3. Can it measure workpieces with a larger diameter than 25mm?
No, the measuring range of the instrument is 0.1-25mm—workpieces with a diameter larger than 25mm cannot be measured.
4. Can the instrument be connected to a PC or remote controller?
Yes, the QP3025 Laser Diameter Measuring Range 0.1-25mm has a multi-address RS232/485 communication interface and two synchronic
serial ports, allowing a PC or remote controller connection.
5. Is the instrument durable and suitable for use in harsh environments?
Yes, the instrument is equipped with Switzerland’s brushless DC motor, which allows it to adapt to working under severe
environments, making it highly durable.
Похожие товары
Эко-растворитель с низким запахом, 1000 мл, 1 5 л
5,50 $ - 12,00 $

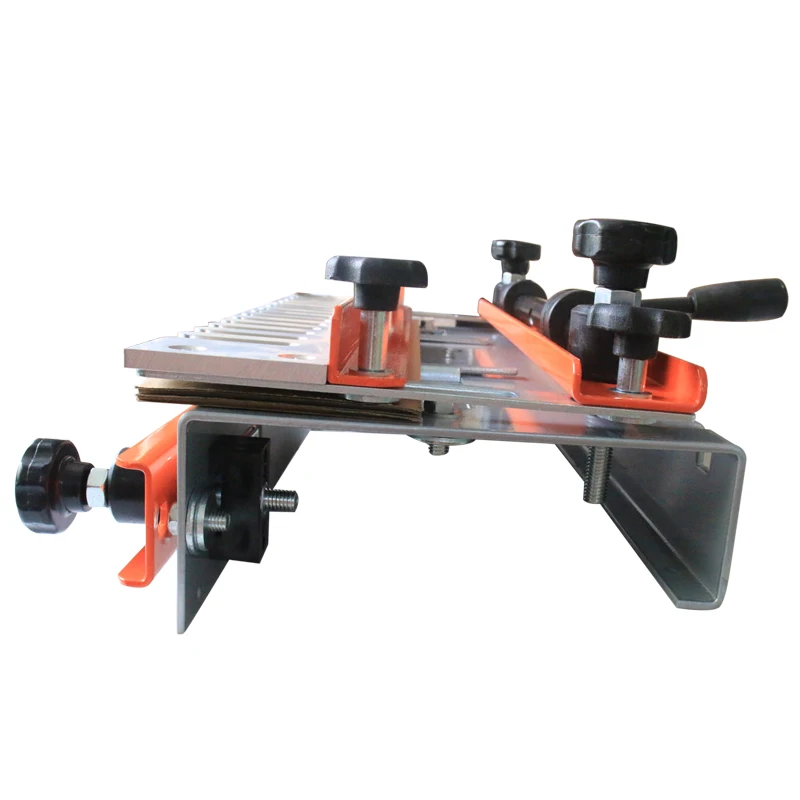

Зажим «Ласточкин хвост» с уникальной системой зажима cam-action быстро зафиксирует две доски, чтобы разрезать хвосты и булавки
69,99 $
Greentek красный/белый/серый/черный/желтый/зеленый красочный 4 0 мм розетка ЭКГ Кнопка электрода провод
2,80 $ - 3,80 $
Гидрокси-бутилацетат/бутил 2-гидроксиацетат Cas 7397-62-8

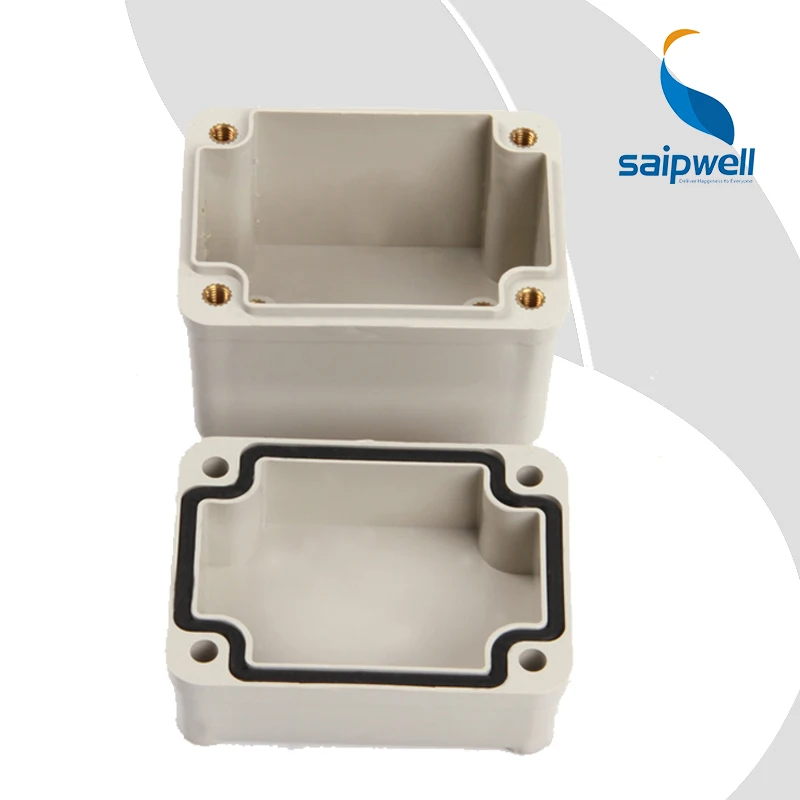

корпус коробки IP65 высокое качество ABS пластик распределительная коробка завод лучшие цены испания электронные чехол рейке
