Китайский дизельный фермерский Мини Компактный гусеничный колесный погрузчик с системой обратного изображения

Китайский дизельный фермерский Мини Компактный гусеничный колесный погрузчик с системой обратного изображения

Категория: >>>
Поставщик: Shandong Gongchuang International Trade Co. Ltd.

Цена:760 237,55 ₽*

Количество:

В избранное

Описание и отзывы

Характеристики

Products Description

Why Choose Our loader？

1. Convenient operation: The operation of the loader is simple and clear, and the user can adjust the length and angle of the arm according to different tasks, which is very convenient.

2. High safety: the two-way driver has a wide field of vision, which increases the monitoring of the working area. The machine also has a variable amplitude power limiting control systen to ensure that no overload occurs.

3. Versatile: can provide vertical lifting capacity and horizontal extension capacity, suitable for many projects that require fast movement and high count.

4. Strong flexibility: the is installed at the front end of the frame, which can be turned easily, and it is easier to adapt to the needs of the site, and there is no problem with the turning radius of the front wheel.

Machine configuration as follows:

1.Integrated stamping hood

2.Integrated stamping counterweight

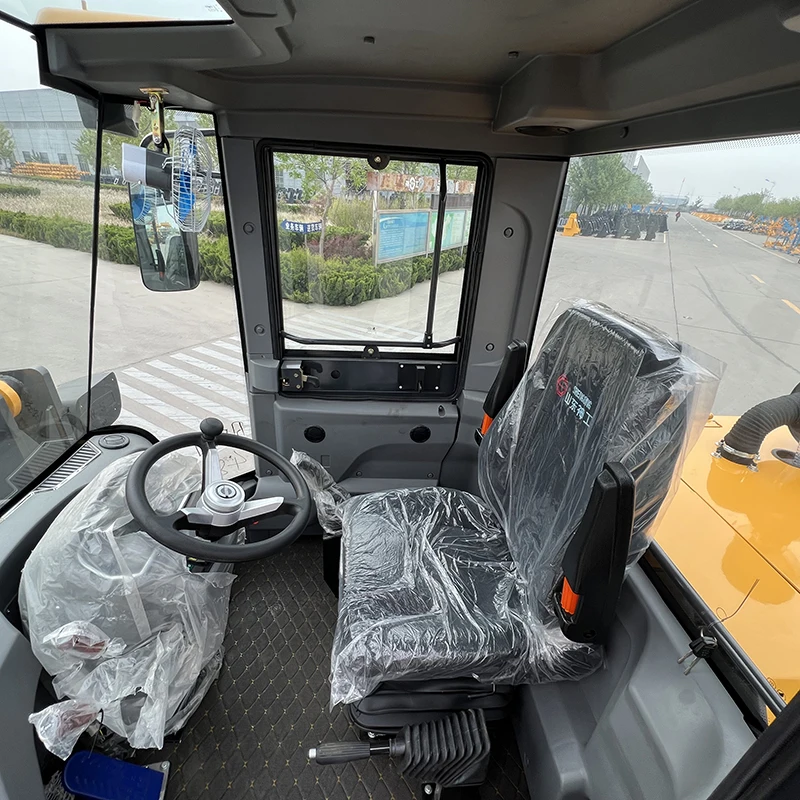

3.High configuration with Bluetooth driver's cab

4.Hydraulic Power Steering
5.Continuously variable automatic transmission transmission with running gear 6.One lever operating lever

7.Aviation shock absorption seats

_Model		Model	GA-920	GA-932	GA-942
Overall size	LWH(mm)	315013001500	570019302750	590020502850
		Wheelbase(mm)	2050	2180	2340
		Track width（mm）	1280	1510	1550
		Lifting height(mm)	2400	3200	3560
		Unloading distance（mm）	730	850	900
		Min.ground clearance（mm）	250	230	310
		Turning radius(mm)	2900	3400	3400
Machine parameters	Bucket width(mm)	1300	1900	1800
		Bucket capacity（m³）	0.5	0.6	1
		Rated load（KG）	800	1000	1800
		Total weight(KG)	2200	3200	4400
		Lifting center cylinder(mm)	inner 35,outer 73	inner 50,outer 100	inner 60,outer 110
		Lifting side cylinder(mm)	inner 35,outer 73	inner 45,outer 90	inner 50,outer 102

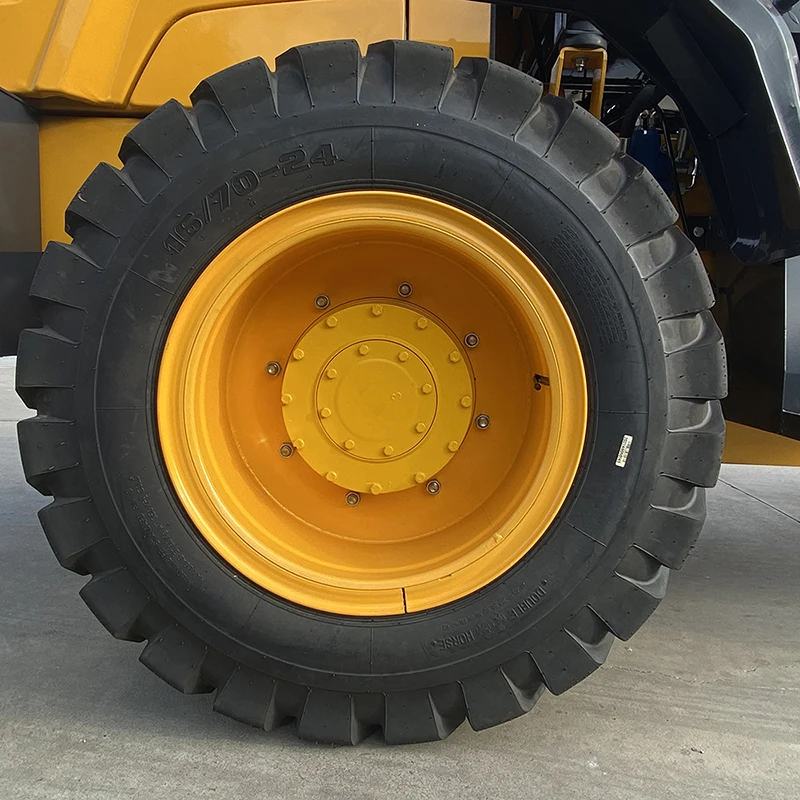

		Tire	1000-6	20.5/70-16	16/70-20
Engine	Brand/Model	Huadong 490	Yunnei 490	Yunnei 4102
		Rated power(KW)	40	58	76
		Rated speed（r/min）	2400	2400	2400
		Form	Four-stroke	Four-stroke	Four-stroke
		Weight(KG)	230		360
Transmission system	Torque converter size	265 type integrated	265 type integrated	265 type integrated
		Torque converter form	hydraulic transmission	hydraulic transmission	hydraulic transmission
		Transmission form	hydraulic shift	hydraulic shift	hydraulic shift
		Gear position	two forward,two backword	two forward,two backword	two forward,two backword，Double high and low speed
		Fuel tank capacity(L)	28	50	85
		Fuel size(mm)	380170450		420300750
		Standard bridge	narrow wheel	Cast steel wheel side bridge	Middle wheel side cast steel bridge
Hydraulic system	Standard form	gear pump	gear pump	single lever operation
		Lifting time(S)	4	7	7
		Falling time(S)	3	6	6
Braking System	Vehicle braking	air brake	air brake	air brake
Braking System		Parking braking	mechanical handbrake	mechanical handbrake	mechanical handbrake
Other	Main gear pump	CBF-32	CBF-40	CB-2063
		Traveling pump	316	CNB-F316	CBF200
		steering gear	160	250	NBF-200
		Dispenser	16F	18F	20A
		Walking speed（KM/H）	30	40	35
		Boom thickness(mm)	16	25	30

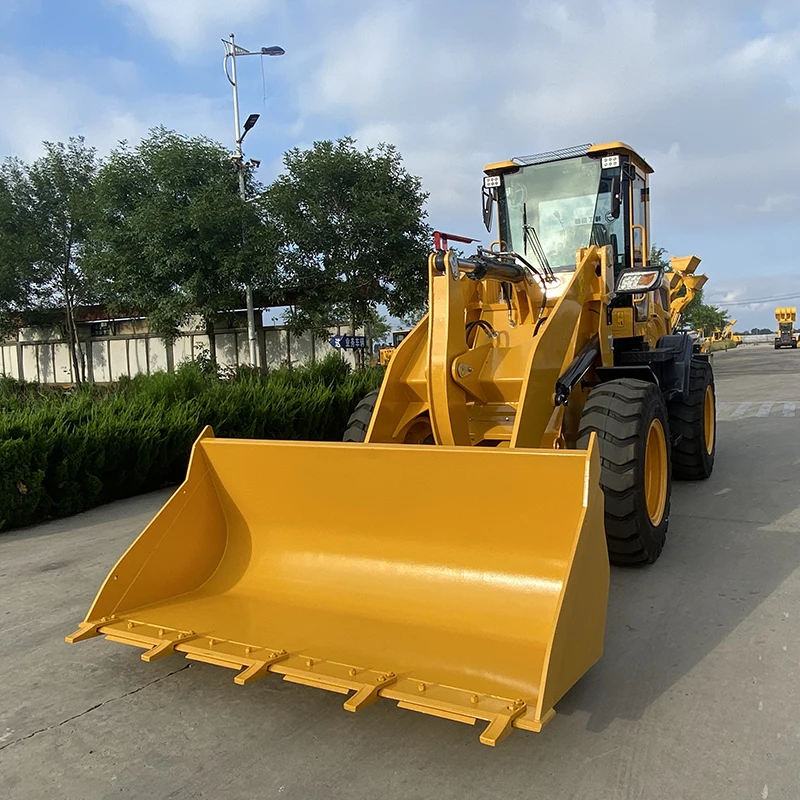

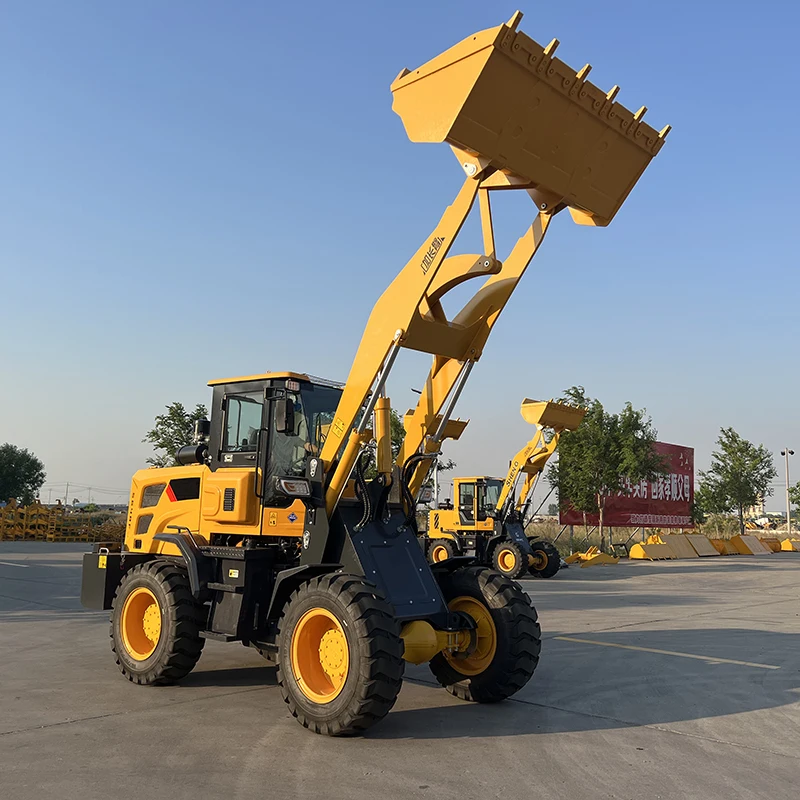

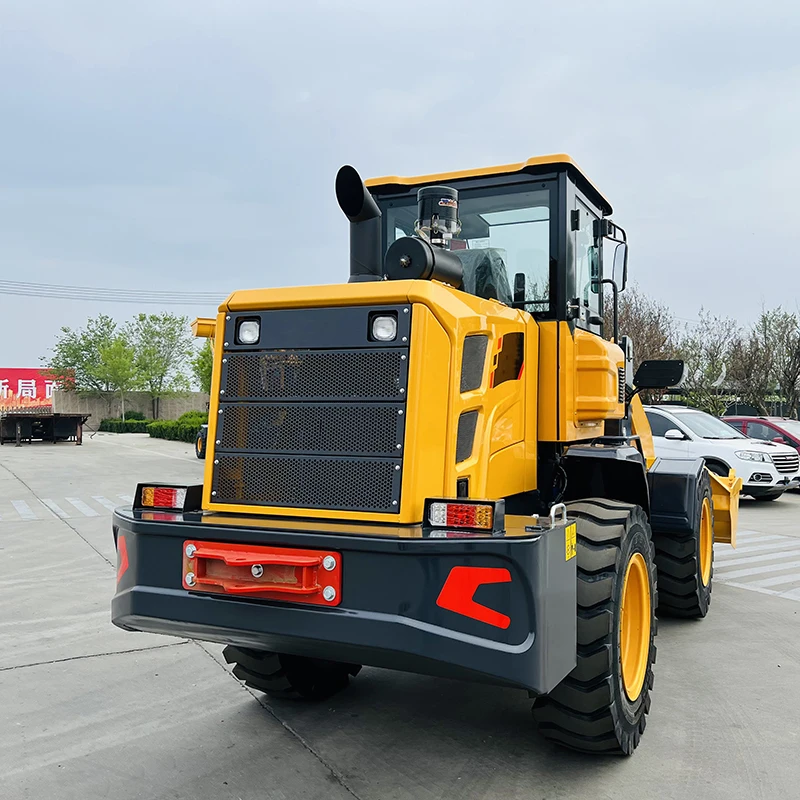

Details Images

Optional Attachment

8 tons of wheel loaders can be equipped with the above tools:
with rock bucket/ with big bucket / with wood grab/ with tube grab / with pallet fork /with fork/ with snow plough / with side-dump bucket /with quick hitch /with lift/with high dump bucket/with long boom/with wood grapple/
