                                           Hydro demolition solution

Comparison

Advantage of Hydrodemoliton

 Safety

• More safter, dam or bridge can be operated on line


• Concrete-break is selective by hydrodemoliton, the concrete-steel will be protected well and without any damage to concrete nearby. Because of shaking, the concrete-steel will be damaged or dehisced by rotating millingmachine. The mat surface will be shaped by hydrodemolition, and good for binding between new and old materials.


• Extend the life of bridges and buildings, quality can be controlled and structure safety.

Efficient                                                 Environmental-friendly

• High  efficient, 10-22 times than knocking .               Reduce construction waste scraps.


• Precision, depth and width can be controlled .          Reduce CO₂ scraps.


• Extend the life of bridges and buildings ,quality.        Reduce shaking for better occupational health.

            can be controlled and structure safety.                     Less noise than drilling.

Specification

Model series          Max working pressure(BAR)      Flow rate( L/min)    Power(KW)

   550                                    1200                                         240                       565

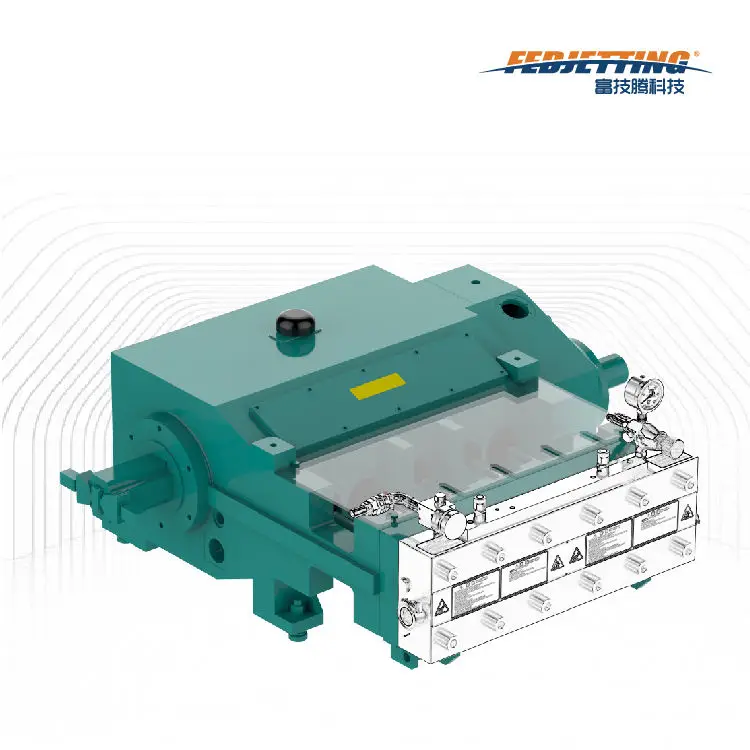

Fluid end                                                                     Power end

Low hydro-kinetic, extend the lifetime of system                              Export for the US market

Stroke:100mm, low line speed                                                             Crankshaft made by 42CrMo, 4:1 forging

Cord parts such as unive valve and packing packed from US         Ratio: 3.57, 504 rpm on the full load

Patented unx valve, stable and high efficiency                                  Forced lubrication

Imported pneumatic bypass valve                                                       Oil temperature alarm adn oil pressure alarm

Gauge imported from WIKA made in Germany

Reduced down time and maintenance

Intelligent                                                                   Customize water tank(selective)

Romote controller system                                                                        No-pressure filter system

Low water level shutdown system                                                           Double 10 um filter bags for longer life

Water temperature shutdown system                                                      Imported mechanical floating valve can eliminate

Water pressure switch to keep the pressure of the                                 the water hammer

water into the pump is elligible                                                                  Low warer level shutdown system

Differential pressure alarm

Oil pressure alarm

Oil temperatuer alarm

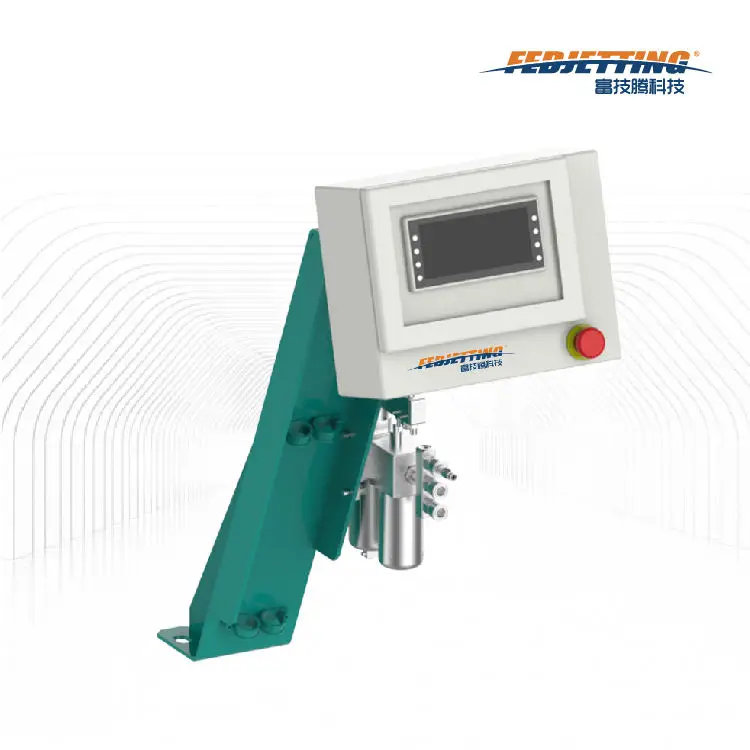

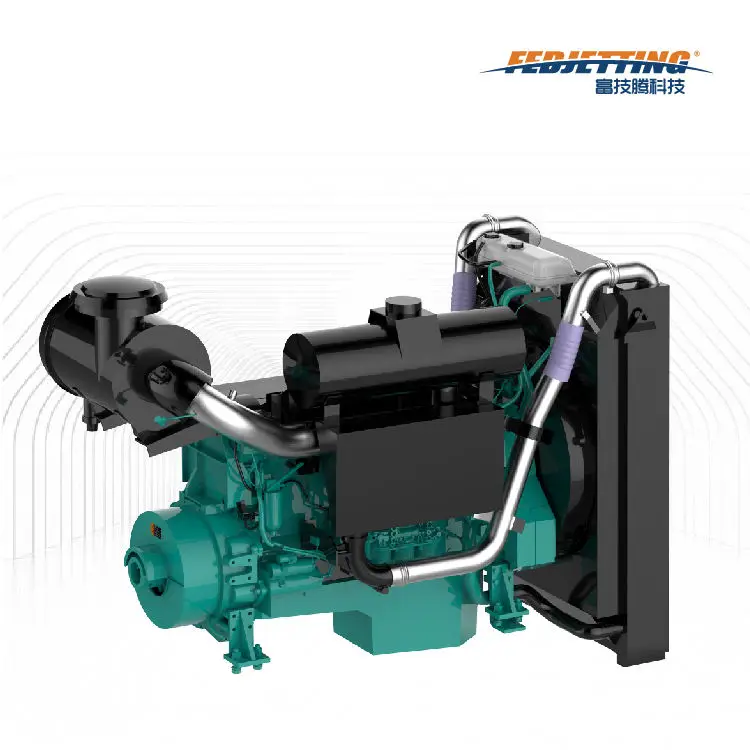

Diesel engine                                            Control system

VOLVO engine                                                                   Customized imported controller

Max rotation speed: 1900rpm                                             Real-time monitoring diesel engine operating sate

Advanced fuel injection technology, heat efficiency            Able to meet the harsh working conditions of high vibration, dust, etc.

9.8MJ/KWh, low fuel consumption                                      IP65.

Volvl engine oil, every 1000 hour to update

European III A emission standard

Service network all over China, easy to maintain

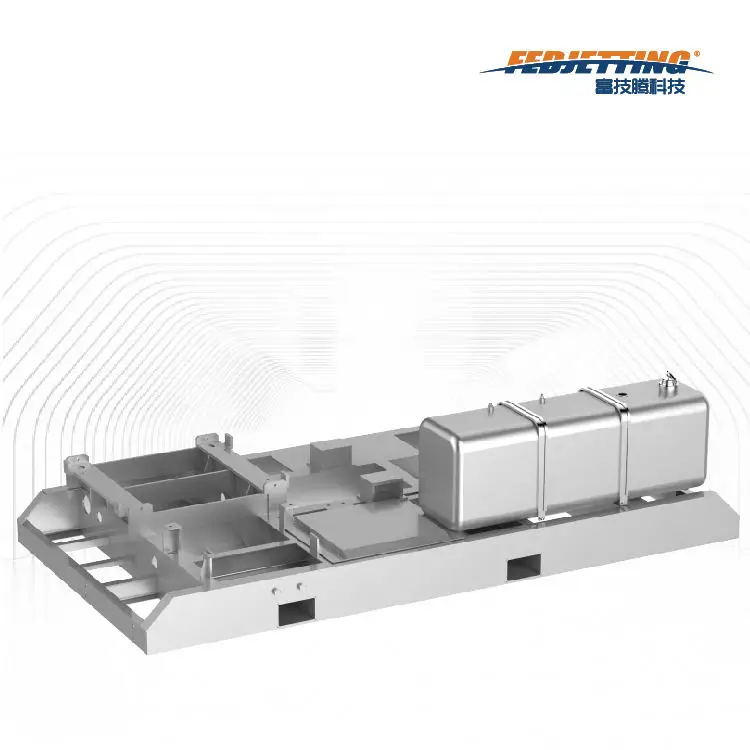

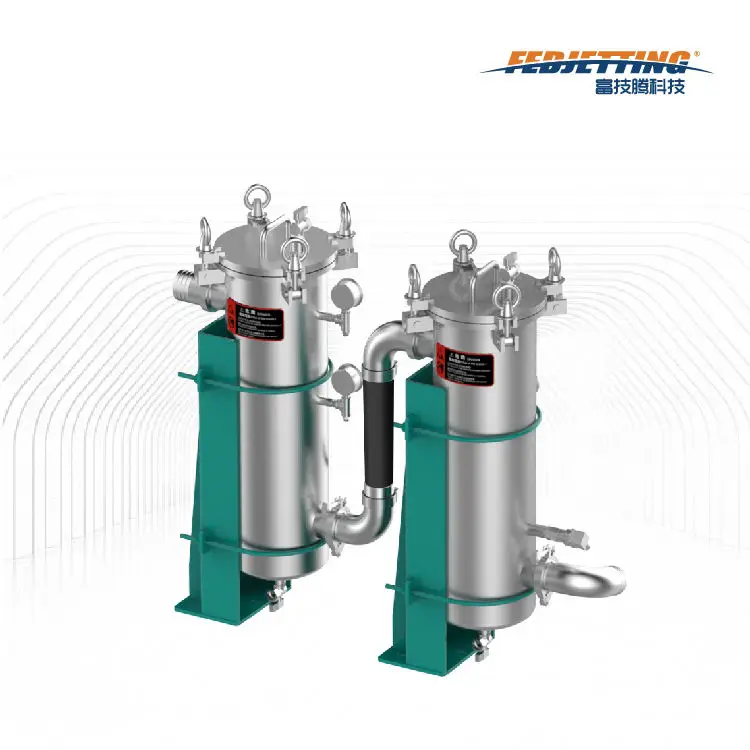

FIlter                                                                        Frame

Customized double filter                                   Maching datum of large milling machine to ensure the accurate of the assemby

especially for transport                                     Galveanized frame to meet the long term anticorrosion requirements

infrastructure                                                     550L aluminum fuel tank(with fuel level sensor)

Hydrodemoliton Robot

Function

Depth control

Easy settings, depth between 1-200mm.

Shape control

Different shapes can ge setting by program easily

Wireless remote controller

Operated by robot flexible, the data such as pressure, temperature canbe displayed in robot vehicle

Rectify deviations by lidar

The deviations of the robot can be rectified by lidar, adapt to complex environment.

Specification

Dimension  :      2100mm*1800mm*1100mm                      Efficient  :          1.8m3/h

Weight        :    1450kg                                                        Max surmountable obstacle: Max 120mm

Pressure     :   1350bar                                                        Flow rate  :     176L/min or 215L/min

Driven type  : AC 380V or diesel engine                              Remote distance : Max 500m

Max depth  :  1-200mm continuous adjust                          Width :  Max 1000mm
