Керамическое покрытие ролик Anilox для флексографической печати
150,00-200,00 $
Flexo Roll Printing Cylinder Engraver for Label Printer
- Категория: >>>
- Поставщик: Gakei Youpin (guangzhou) Industry And Trade Co. Ltd.Gakei Ltd.
Сохранить в закладки 1600972318088:
Описание и отзывы
Характеристики
Product Description
1.Base roller process:
All the base rollers are produced by ourself. For the base roller, normally we adopt the #45 seamless steel tube and the thickness is from 15mm-25mm based on the dimension of the roller. And we can also make the special thickness according to customers requirement. But normally the above mentioned information is enough for the long life use of finished products.
All the base rollers are produced by ourself. For the base roller, normally we adopt the #45 seamless steel tube and the thickness is from 15mm-25mm based on the dimension of the roller. And we can also make the special thickness according to customers requirement. But normally the above mentioned information is enough for the long life use of finished products.
And we can also use No5 series aluminum as the base roller if the customer has the requirement on the weight to be light enough.
We will check all the dimensions according to customer confirmed drawing, surface roughness, straightness, dynamic balance, cylindricity and so on. If there is any small problem on these information we will not use the roller for next step but to make a new one to make sure the quality.
We will check all the dimensions according to customer confirmed drawing, surface roughness, straightness, dynamic balance, cylindricity and so on. If there is any small problem on these information we will not use the roller for next step but to make a new one to make sure the quality.
2.Ceramic spraying
We are using the famous plasma spraying machine and it is from Switzerland Oerlikon.And the chrome oxide ceramics we are using are also from this supplier and it can reach a hardness 1200HV. The advantage of this supplier’s ceramic powder is the evenness degree can be controlled well, 80% can be between 15u-35u but other brand especially the brand made in China only 30% can be controlled between 15u-35u.
We are using the famous plasma spraying machine and it is from Switzerland Oerlikon.And the chrome oxide ceramics we are using are also from this supplier and it can reach a hardness 1200HV. The advantage of this supplier’s ceramic powder is the evenness degree can be controlled well, 80% can be between 15u-35u but other brand especially the brand made in China only 30% can be controlled between 15u-35u.
3.Antiseptic treatment
It is easily for the ceramic anilox rollers to reach the solvent with corrosion. Once the solvent reached the base roller, it will be corroded bubble then we can not use it any more. But because we use the nanoscopic sealant to coat on the surface of the ceramic. And this kind of sealant can reach the tiny cell so it can realize a good production against the corrosion.
It is easily for the ceramic anilox rollers to reach the solvent with corrosion. Once the solvent reached the base roller, it will be corroded bubble then we can not use it any more. But because we use the nanoscopic sealant to coat on the surface of the ceramic. And this kind of sealant can reach the tiny cell so it can realize a good production against the corrosion.
4.Precise delivery on the inks
For each roller, we will make the trial engraving before the real engraving. And after that we will use the scanner to scan each layer to test the volume of the cell then according to the realationship between the LPI and BCM to make sure the LPI we would like to reach.
5.Quality Control
We have the quality control system during the whole production from the very beginning to the end and our principle is to make sure each roller is qualified.
For each roller, we will make the trial engraving before the real engraving. And after that we will use the scanner to scan each layer to test the volume of the cell then according to the realationship between the LPI and BCM to make sure the LPI we would like to reach.
5.Quality Control
We have the quality control system during the whole production from the very beginning to the end and our principle is to make sure each roller is qualified.
Parameters
1. Screen count range: 30-2000 LPI
2. Maximum width: 5500mm ( with axis)
3. Diameter range: 25-600 mm
4. Cell angle: 60°,45°,30°and other special requirements
5. Cell shape: hexagon, quadrangle and line, etc and the many morn cell shapes may meet your requirement.
1. Screen count range: 30-2000 LPI
2. Maximum width: 5500mm ( with axis)
3. Diameter range: 25-600 mm
4. Cell angle: 60°,45°,30°and other special requirements
5. Cell shape: hexagon, quadrangle and line, etc and the many morn cell shapes may meet your requirement.
Specification
Product name | Flexo Ink Ceramic Anilox Roller For Flexo Machine |
Usage | Flexo Printing Machine |
Model | customize |
Feature | Durable |
MOQ | 1 Piece |
Package | Wooden Box |
Material | Stainless Steel,Ceramic |
Application | Printing Machie |
Delivery time | 25days(<10000 Sets) |
Payment | TT.Western Union Paypal Ect |
Packing & Delivery
Packaging:
Wooden carton packaged with iron support frame for good delivery,or according to your requirements.
Shipping:
(1)By Express :2~5working days (Including DHL,UPS,EMS,Fedex)
(2)By Sea:21~45working days
(3)By Air:3~7working days
(4)By Truck:28-33working days
Tips: We will send you a tracking number or BL documents after the goods was shipped .
(1)By Express :2~5working days (Including DHL,UPS,EMS,Fedex)
(2)By Sea:21~45working days
(3)By Air:3~7working days
(4)By Truck:28-33working days
Tips: We will send you a tracking number or BL documents after the goods was shipped .
Company Profile
Jiaqi Youpin (Guangzhou) Industry and Trade Co., Ltd was founded in 2009.We are main do printing consumables,such as creasing matrix,ceramic anilox roller,diecutting rules,cleaning of anilox roller etc.The Company is committed to improving domestic&foreign packaging and printing technology,focus on Diecutting and Flexo-printing,work closely with international renowned partners to supply the advanced technology and high-quality materials.We provide solutions and excellent technology service for the customers with advanced production equipment,high production efficiency and quality products.We will, as always, Adhere to the principle of "good faith management", and "quality comes from focus and quality creates success". with high quality products, favourable prices, advanced service network, to provide customers with reliable, stable, good cooperative environment.
FAQ
1. who are we?
We are based in Guangdong, China, start from 2020,sell to Eastern Europe(50.00%). There are total about null people in our office.
2. how can we guarantee quality?
Always a pre-production sample before mass production;
Always final Inspection before shipment;
3.what can you buy from us?
creasing matrix,ceramic anilox roller,tesa tape,rubber roller,die making machine
4. why should you buy from us not from other suppliers?
Jiaqi Youpin (Guangzhou) Industry and Trade Co., Ltd was founded in 2009.We have more than 10 years of flexo customer and offset customer printing experience.we has our own factory and technical tearm.we can offered our professional solutions to our custom
5. what services can we provide?
Accepted Delivery Terms: FOB,EXW；
Accepted Payment Currency:USD;
Accepted Payment Type: T/T;
Language Spoken:English
We are based in Guangdong, China, start from 2020,sell to Eastern Europe(50.00%). There are total about null people in our office.
2. how can we guarantee quality?
Always a pre-production sample before mass production;
Always final Inspection before shipment;
3.what can you buy from us?
creasing matrix,ceramic anilox roller,tesa tape,rubber roller,die making machine
4. why should you buy from us not from other suppliers?
Jiaqi Youpin (Guangzhou) Industry and Trade Co., Ltd was founded in 2009.We have more than 10 years of flexo customer and offset customer printing experience.we has our own factory and technical tearm.we can offered our professional solutions to our custom
5. what services can we provide?
Accepted Delivery Terms: FOB,EXW；
Accepted Payment Currency:USD;
Accepted Payment Type: T/T;
Language Spoken:English
Похожие товары

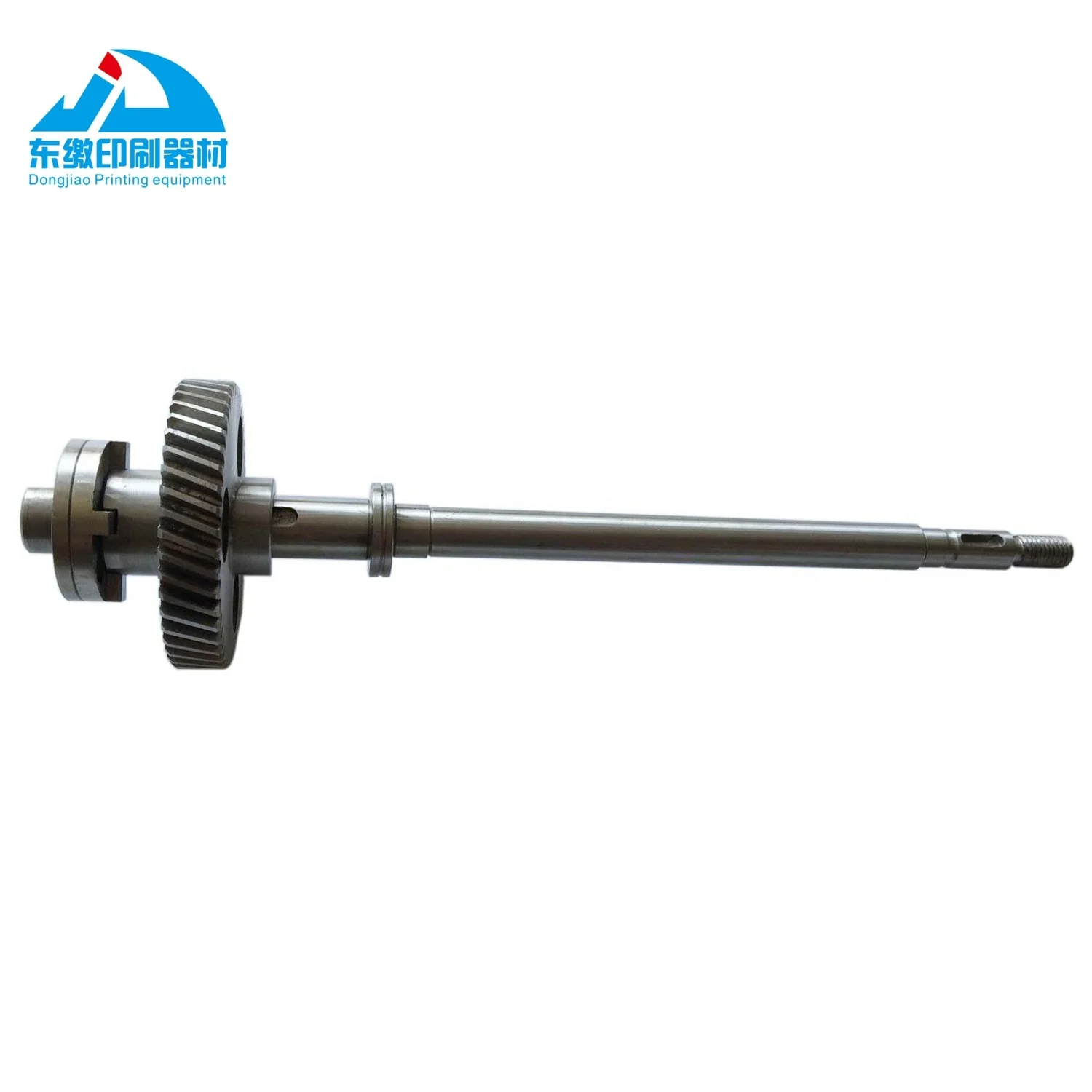

1 шт. вал для печатной машины Heidelberg
15,00-16,00 $
Anilox Rollers for Flexo Printing Roller Manufacturer
100,00 $
Factory Direct Selling Ceramic Anilox Roller for Flexo Printing Machine Label
300,00 $

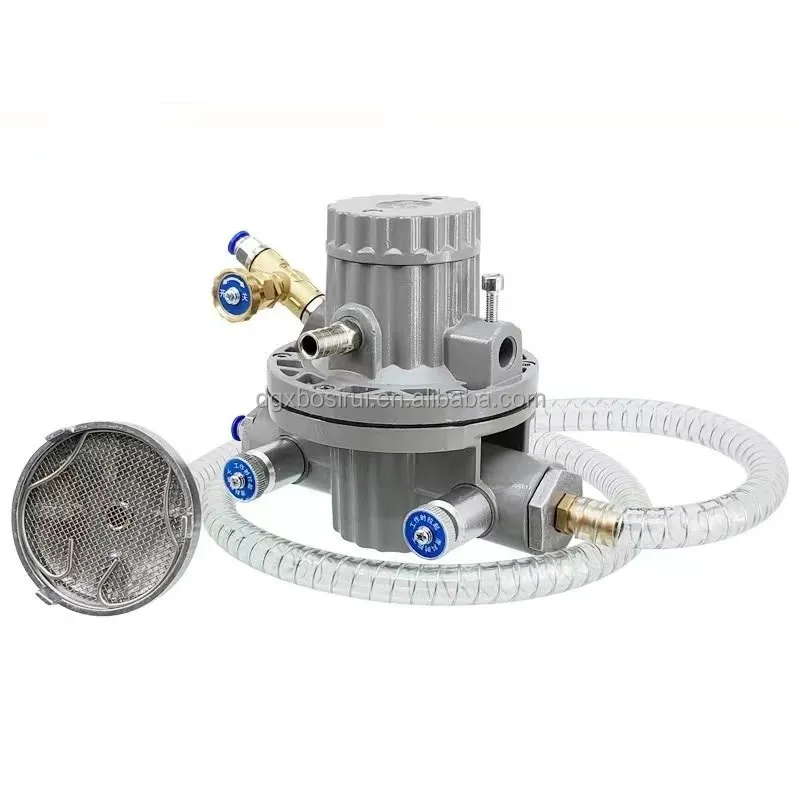

Flexographic Printer Spare Parts Ink Pump for Flexo Printing Corrugated Plants Machine
