36 кВт 42 высокомощный конденсатор для хранения Портативный точечный сварочный аппарат 18650 литиевая батарея ячейка точечной сварки

36 кВт 42 высокомощный конденсатор для хранения Портативный точечный сварочный аппарат 18650 литиевая батарея ячейка точечной сварки

Категория: >>>
Поставщик: Chengdu Heltec Energy Technology Co. Ltd.

Цена:*

Количество:

В избранное

Описание и отзывы

Характеристики

Products Description

Note:

We have ready stock in our Poland / USA /Russia / Brazil warehouse. If you want to place an order, please contact us in advance to check the stock for cheaper and more convenient shipping options.

Heltec Spot Welder SW01+SW02 Series Performance ComparisonModel

73SA Down Pressing
Rocker Arm

HT-SW01A

HT-SW01A+

HT-SW01B

HT-SW01D

HT-SW01H

HT-SW02A

HT-SW02H

Standard Welding
Pen Model

√

Pure Nickel Welding
to LFP on Aluminum Electrode

70A Separate

70BN
Integrated

70B
Integrated

75A (25mm²)
Separate

75A (35mm²)
Separate

75A (50mm²)
Separate

Pure Nickel THK (Welding Pen)

√

Nickelage/Stainless Steel THK
(Welding Pen)

≤0.2mm

≤0.25mm

≤0.3mm

≤0.4mm

Pulse Power (Peak)

≤0.25~0.3mm

≤0.3mm

≤0.4mm

≤0.5mm

≤0.6mm

10.6KWOutput Current (Peak)

10.6KW

11.6KW

12KW

21KW

36KW

42KW

Pulse Time (Max)

2000A

2500A

3500A

6000A

7000A

Charging Time

5ms

10ms

20ms

MT Pedal Precision
Spot Welding

√

AT Auto Trigger
Spot Welding

√

Voltage Test Function

√

Resistance Measurement

√

Real Welding
Current Display

√

Memory Function

√

Seller's Suggestion:

HT-SW02A is equipped with 75A spot welding machine,the power is 36KW, the thickest can be 0.3mm Copper with flux, 0.3mm Aluminum nickel composite slice, 0.4mm Pure nickel, 0.6mm Nickelage, it is recommend.

HT-SW02H is equipped with 75A spot welding pen and 73B spot welding pen , the power is 42KW, the thickest can be 0.5mm Copper with flux, 0.4 mm Aluminum nickel composite slice, 0.4mm Pure nickel, 0.6mm Nickelage, it is recommended.

The 75A split spot welding pen is mainly used for lithium iron phosphate to nickel, and the 73B spot welding pen is used for 18650 batteries. The surface of 18650 is stainless steel, which is easy to spot welding.

Picture of 73B (25mm²) Integrated spot welding pen :

Heltec SW02 series welding machine comparison table

Model	HT-SW02A	HT-SW02H
Pulse Power	36KW	42KW
Spot welding pen type	75A(35mm2)	75A(50mm2)
Welding Principles	DC Energy Storage Super Farad Capacitor
Copper-Copper (with flux)	0.15~0.35mm	0.15~0.4mm
Copper-Stainless steel	0.15~0.3mm	0.15~0.35mm
Copper-Aluminum	0.1~0.2mm	0.1~0.4mm
Peak welding energy	720J(Max)	840J(Max)
Milliohm resistance measurement	×	√
Charge current display	√	√
Output voltage	5.6-6.0V (DC)
Power supply	AC 110V / 220V
Charging current	10-20A
Energy grade	0-99T(0.2m/T)
Welding mode	AT: automatic induction MT: foot-operated
Pulse time	20ms
Welding tool	Mobile pen spot welding Push down spot welding (Optional)
Charging time	≤18 minutes
AT Preloading delay	√
Dimension	240140200mm
Net weight	6.4kg
AC Plug	AU/EU/US/UK to choose

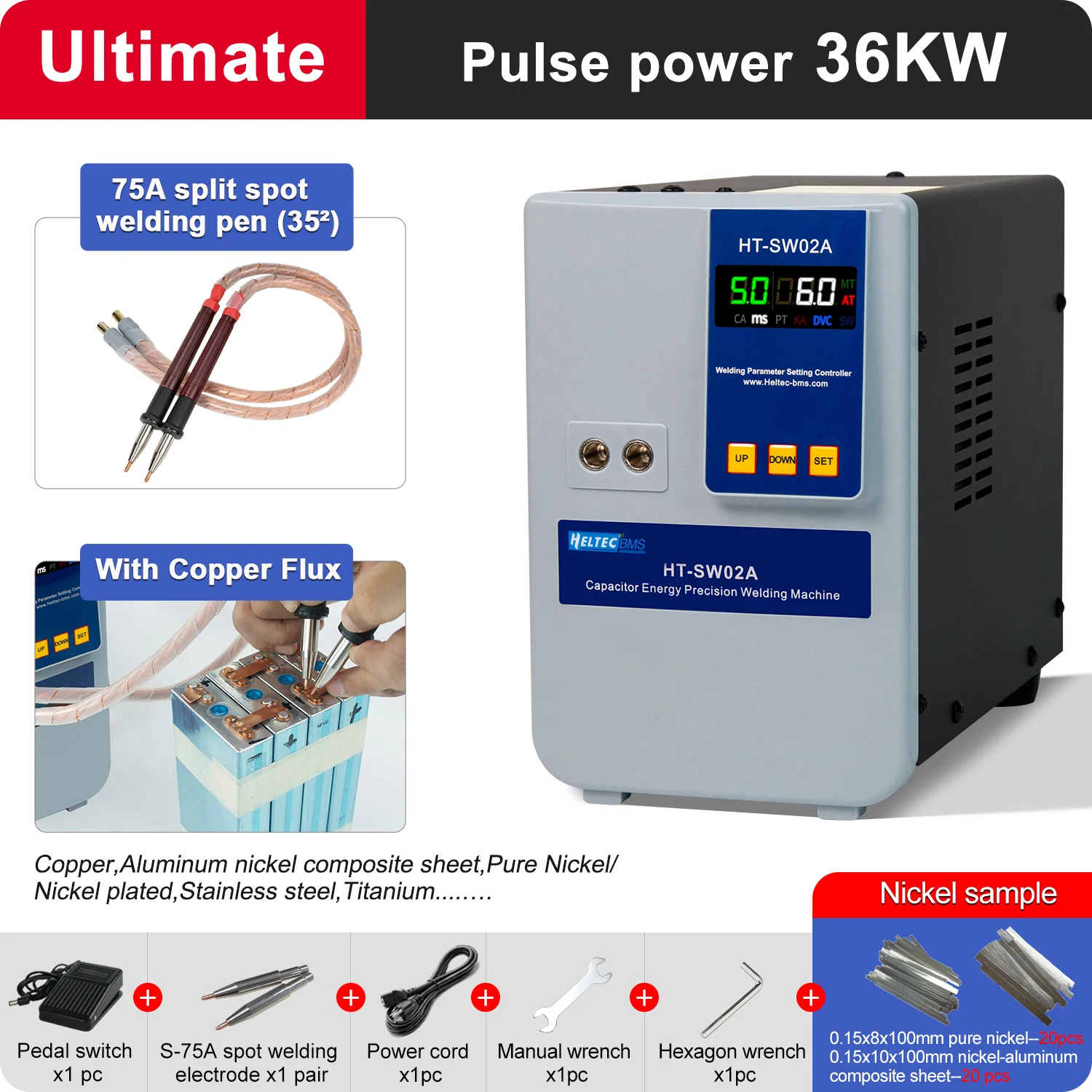

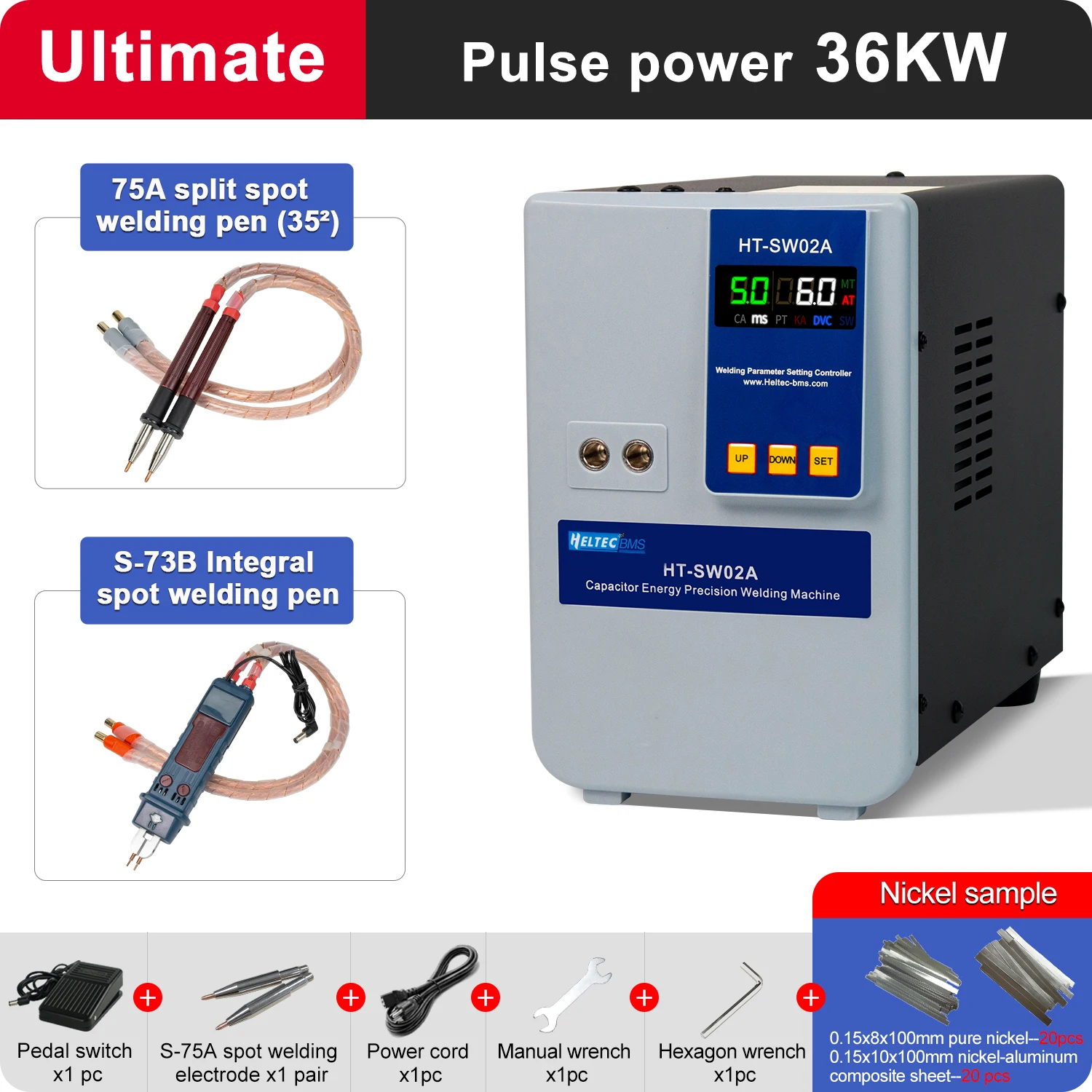

HT-SW02A packing HT-SW02A+73B packing

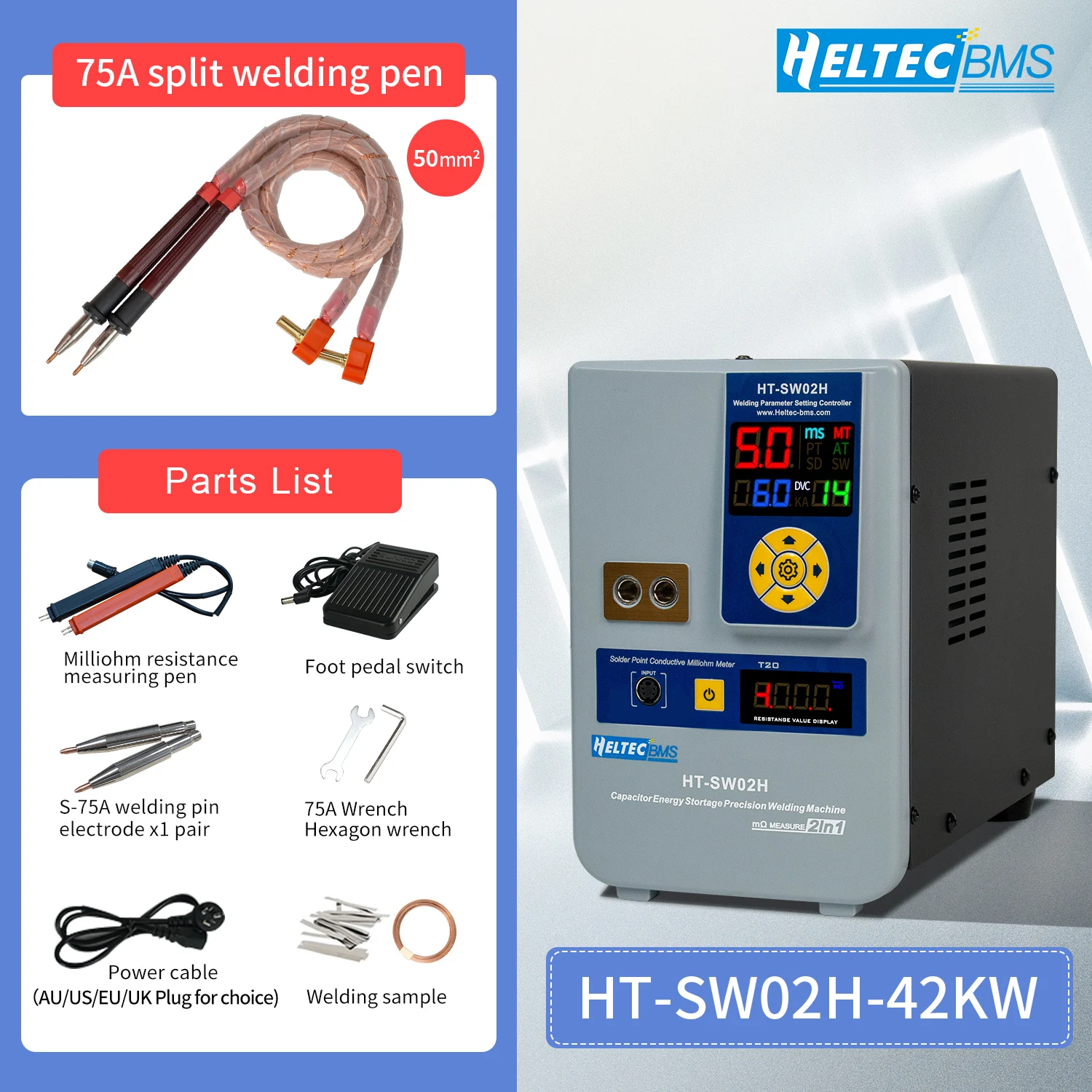

HT-SW02H packing

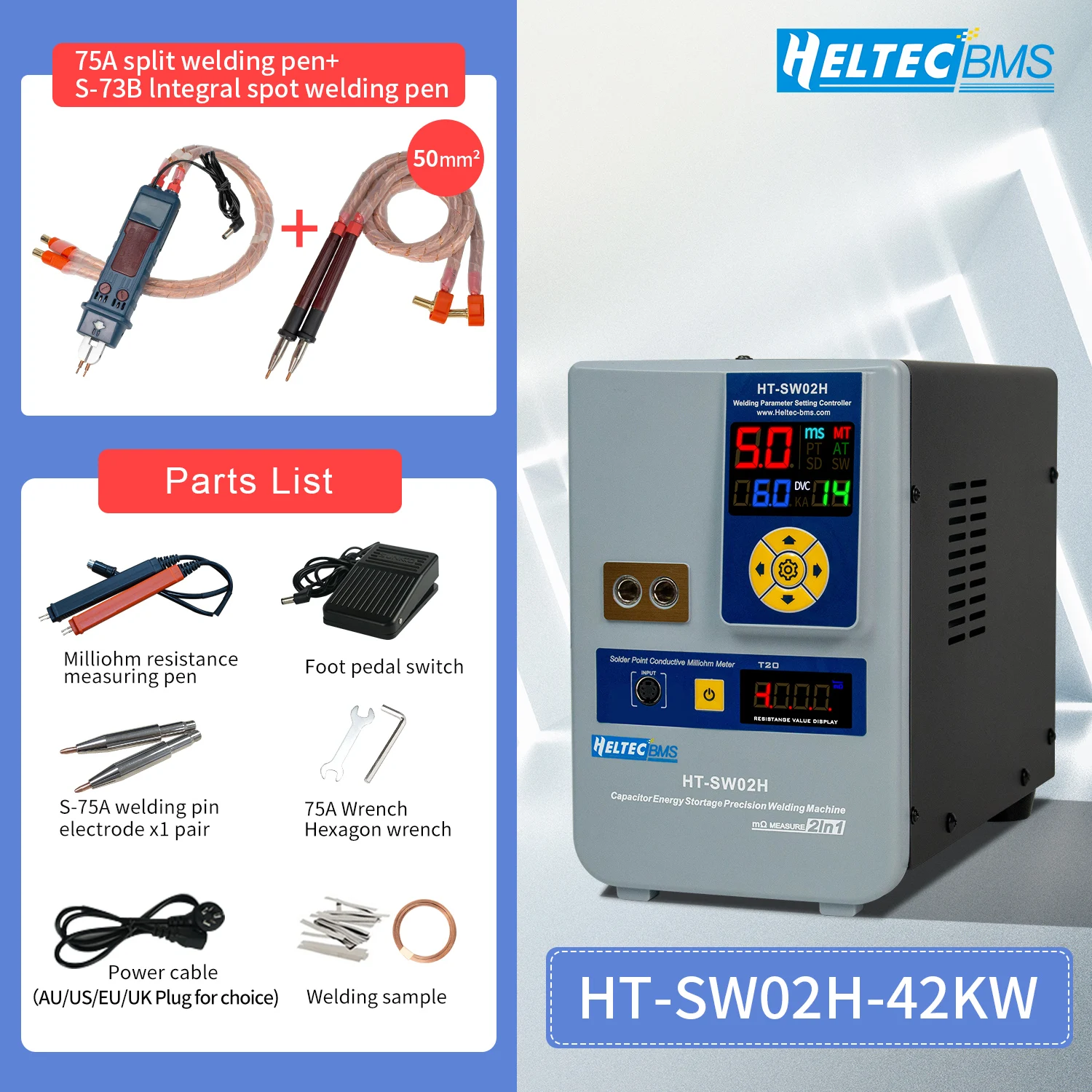

HT-SW02H+73B packing

FAQ

1. Can you accept customization?
A: Yes，our company has a design department.And we provide Hardware design,ARM and Mbed system software design... If you want to know our service, please click here: why choose us.

2. How long will it take for sample making and mass production?
A: It takes 3-5 days to make the sample, and 7-30 days for mass production.

3.How about the productivity of your company?
A: We have enough storage for most of our products, if you need customize we have SMT factory to fulfill your needs after you pay for the products.

4.What about the mode of transportation ?
A: According to the quantity and volume, we will choose the most suitable and cost-effective way of transportation for you. Of course, you are also free to choose the most convenient one.

5.How do you guarantee the quality of your products?
A: We have professional instruments and equipment for development and test, and we use manual inspection. Each product will be tested before packaging.

Packing & Shipping

Company Profile

Chengdu Heltec Energy Technology Co., Ltd, as known as HeltecBMS, is one professional manufacture located in Chengdu, Sichuan, China. We focus on battery management system for many years. We design, produce, and sell hardware BMS, Smart BMS, Active Balancer, battery welding machine, battery maintenance and test instruments and other accessories. All these products are widely used in lithium battery industry.

We have strong technical R&D teams, scientific production platform and strict quality control system that allow us to provide all kinds of services including BMS design and manufacturing, sample orders and batch orders, OEM and ODM orders. We have professional engineer support, high efficiency sales team and reliable quality products that attract customers from all over the world. We are honored as the excellent supplier of many companies all around the world including Europe, USA, Canada, Australia, Brazil, Japan, Korea and South Africa.

We are reliable supplier of the battery management system industry with 1 year warranty. We deeply believe that on the road to innovation, we are not standing still. We constantly, with reliable quality requirements, to meet the market demand as the goal, development and production of exquisite appearance, excellent performance, energy conservation and environmental protection green products, is committed to be a leader in the market. We welcome new and old customers from all walks of life to contact us for future business relationships and mutual success.

Новые поступления

Новинки товаров от производителей по оптовым ценам

36 кВт 42 высокомощный конденсатор для хранения Портативный точечный сварочный аппарат 18650 литиевая батарея ячейка точечной сварки

Описание и отзывы

Характеристики

Похожие товары

Автоматический сварщик из стальной клетки, машина для проволочной сетки, источник питания, сварочное оборудование для ювелирных изделий золота

Инвертор точечной сварки, источник питания, портативный аккумулятор, мини-аппарат точечной сварки для эмалированной проволоки

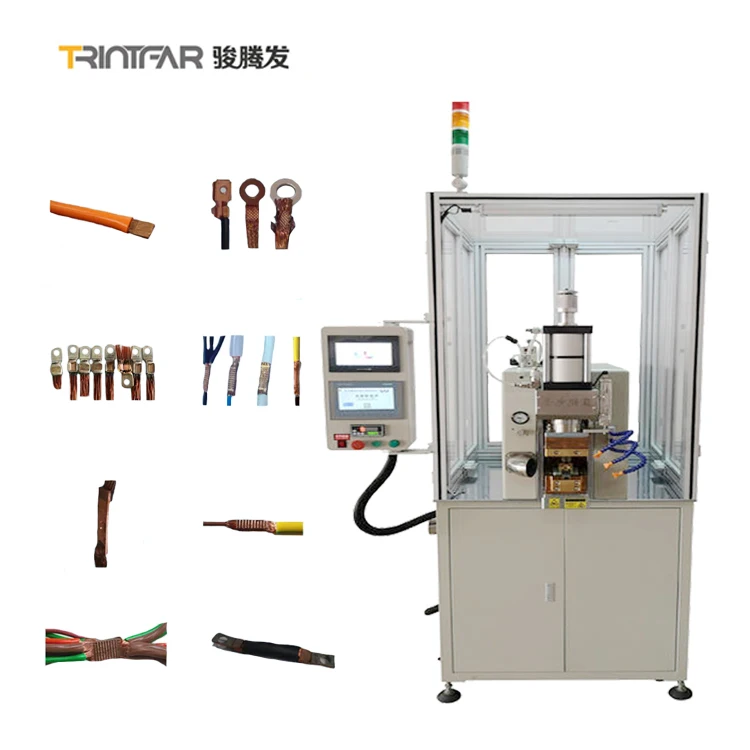

Заводская цена медной проволоки точечной сварки машины
