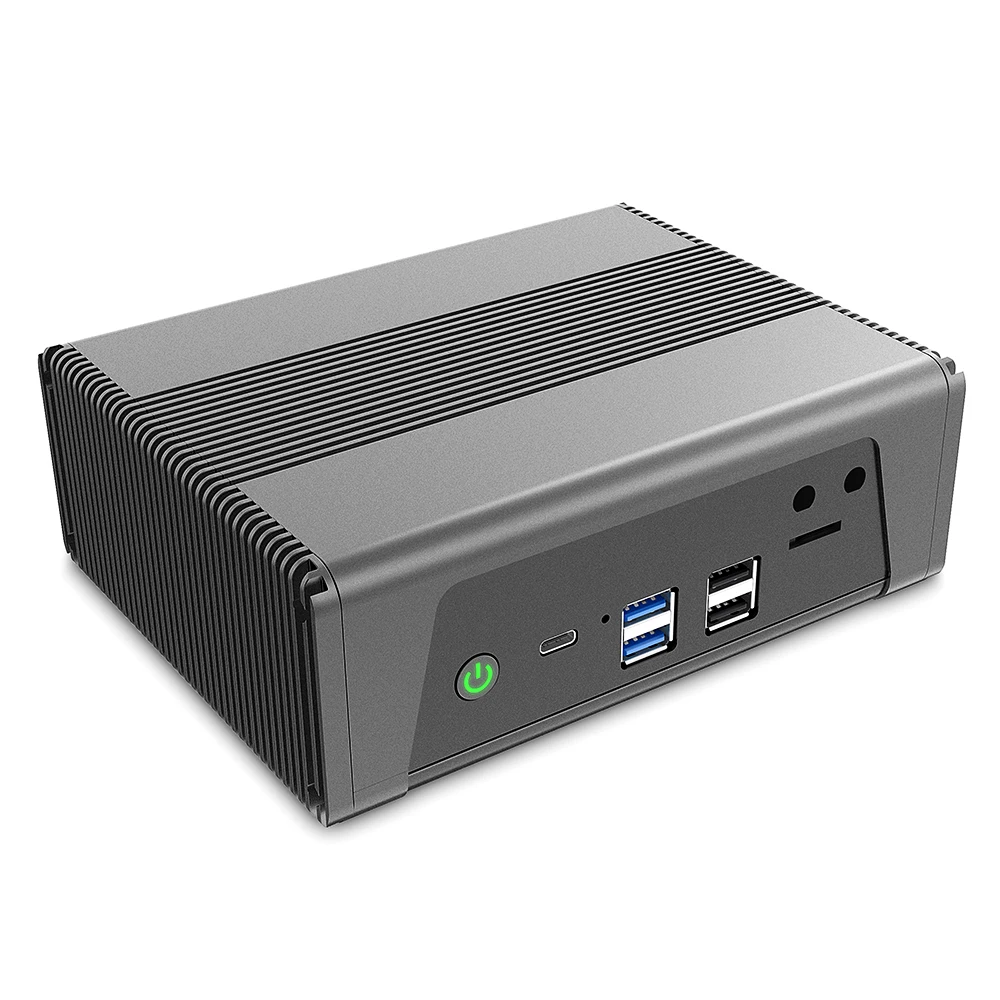

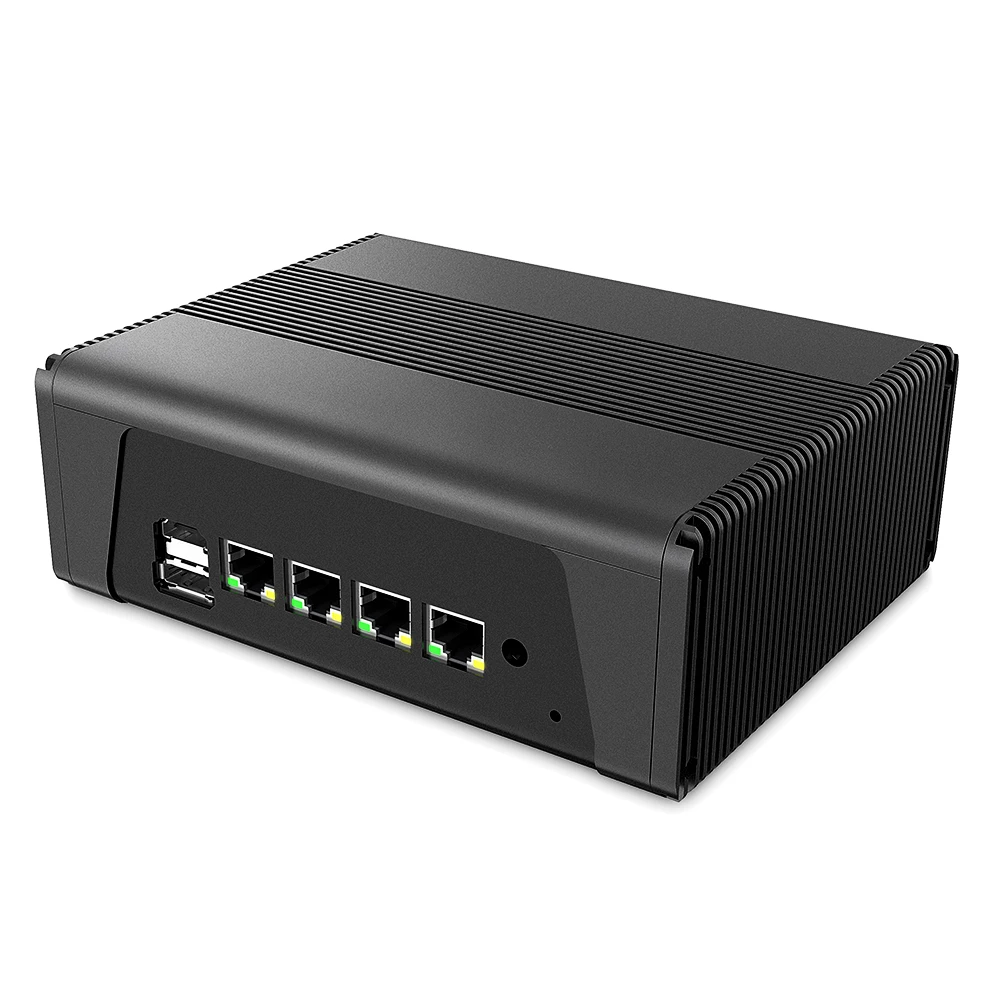

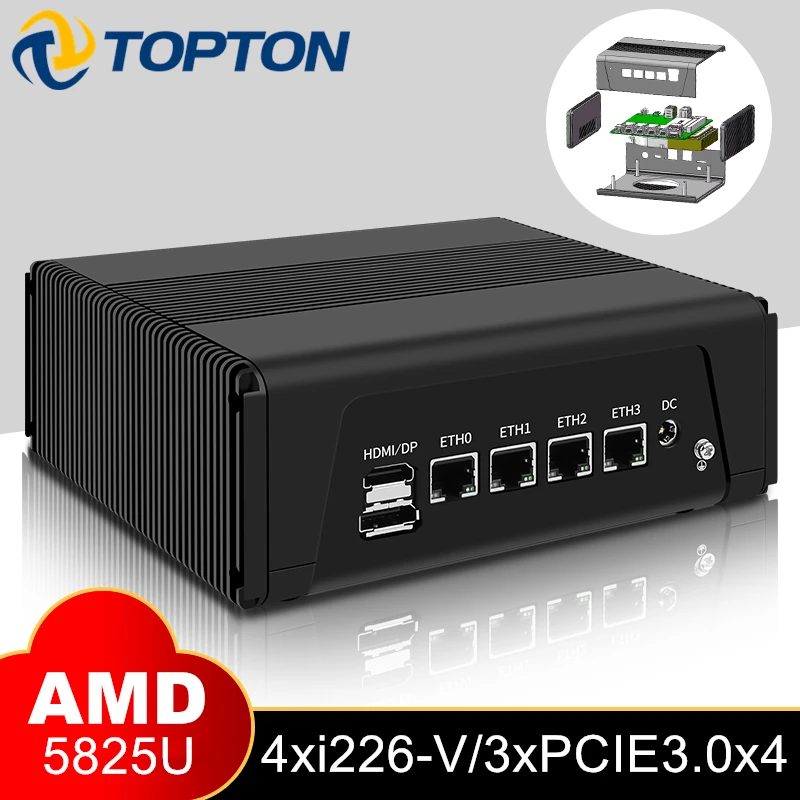

Мини ПК Topton 2 5G NAS серверный брандмауэр новый программный маршрутизатор R7 5825U 5800U R5 5600U 4x i226 V 3 * NVMe SATA 3x4K UHD
- Категория: >>>
- Поставщик: Dongguan Tuofuton Electronic Technology Co. Ltd.
Сохранить в закладки 1600972738926:
Описание и отзывы
Характеристики
Topton new AMD Soft Router R7 5825U 5800U R5 5600U 4x i226-V 2.5G NAS Server Firewall Appliance 3*NVMe 2*SATA 3x4K UHD Mini PC
Processor parameter for referance only
Processors; Cores & Threads ; Cache ; Base Frequency; Max Turbo Frequency ; TDP ; Graphics
Ry-zen 5 5600U; 6 cores, 12 threads; 16M; 2.30 GHz to 4.20 GHz; 15W; AMD Ra-deon Graphics 7 Core 1800MHz
Ry-zen 7 5800U; 8 cores, 16 threads; 16M; 1.90 GHz to 4.40 GHz; 15W; AMD Ra-deon Graphics 8 Core 2000MHz
Ry-zen 7 5825U; 8 cores, 16 threads; 16M; 2.00 GHz to 4.50 GHz; 15W; AMD Ra-deon Graphics 8 Core 2000MHz
Processors; Cores & Threads ; Cache ; Base Frequency; Max Turbo Frequency ; TDP ; Graphics
Ry-zen 5 5600U; 6 cores, 12 threads; 16M; 2.30 GHz to 4.20 GHz; 15W; AMD Ra-deon Graphics 7 Core 1800MHz
Ry-zen 7 5800U; 8 cores, 16 threads; 16M; 1.90 GHz to 4.40 GHz; 15W; AMD Ra-deon Graphics 8 Core 2000MHz
Ry-zen 7 5825U; 8 cores, 16 threads; 16M; 2.00 GHz to 4.50 GHz; 15W; AMD Ra-deon Graphics 8 Core 2000MHz
Product Highlight

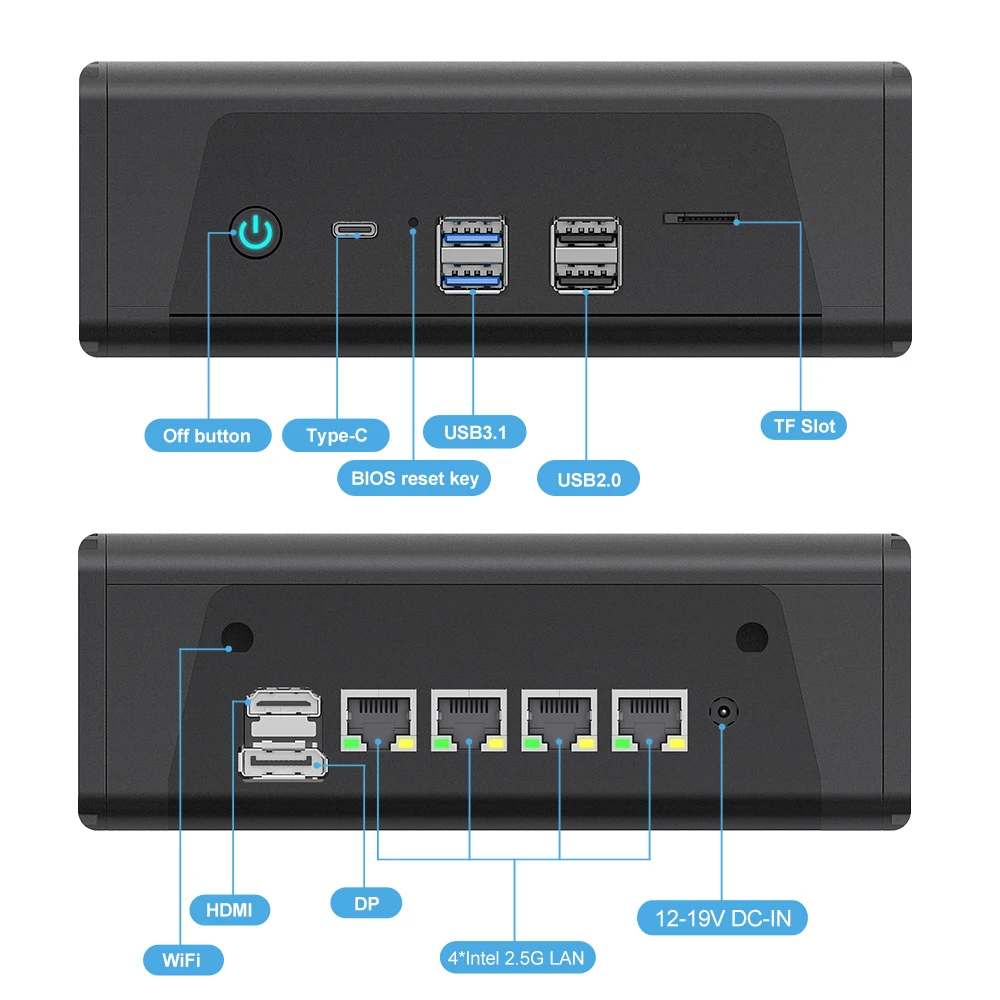

-4xIn-tel i226-V 2.5G UDE filter pure RJ45 LANs, 2xUSB3.1, 2xUSB2.0, 1xUSB Type-C, 1xTF card slot.
-2xDDR4 SODIMM non-ecc ram slot, support 3200MHz.
-Support five storage: 2xM.2 NVMe/PCIe3.0x4 2280 SSD(via M.2 2232 to 2280 PCB adapter board)+1xM.2 NVMe/PCIe3.0x4 SSD(an interface on the motherboard of CPU's side)+1x2.5''SATA3.0 SSD/HDD(internal mounting)+1x2.5''SATA3.0 SSD/HDD(external from knock-out hole).
-1xM.2 KEY-E 2232 slot, support WiFi connection, also support transfer to 1xM.2 NVMe/PCIe3.0x4 2280 SSD with PCB adapter board.
-Full-featured Type-C support data, display, reverse charging.
-TF card slot support storage and system disk boot.
-Support three display: 1xHD-MI2.0, 1xDP1.4, 1xType-C, 3x4K@60Hz UHD video display.
-Support wide voltage 12-19V input.
-Support TPM2.0, ESXI, PVE, Watchdog, Auto power on, RTC, PXE boot, Wake-on-LAN etc.

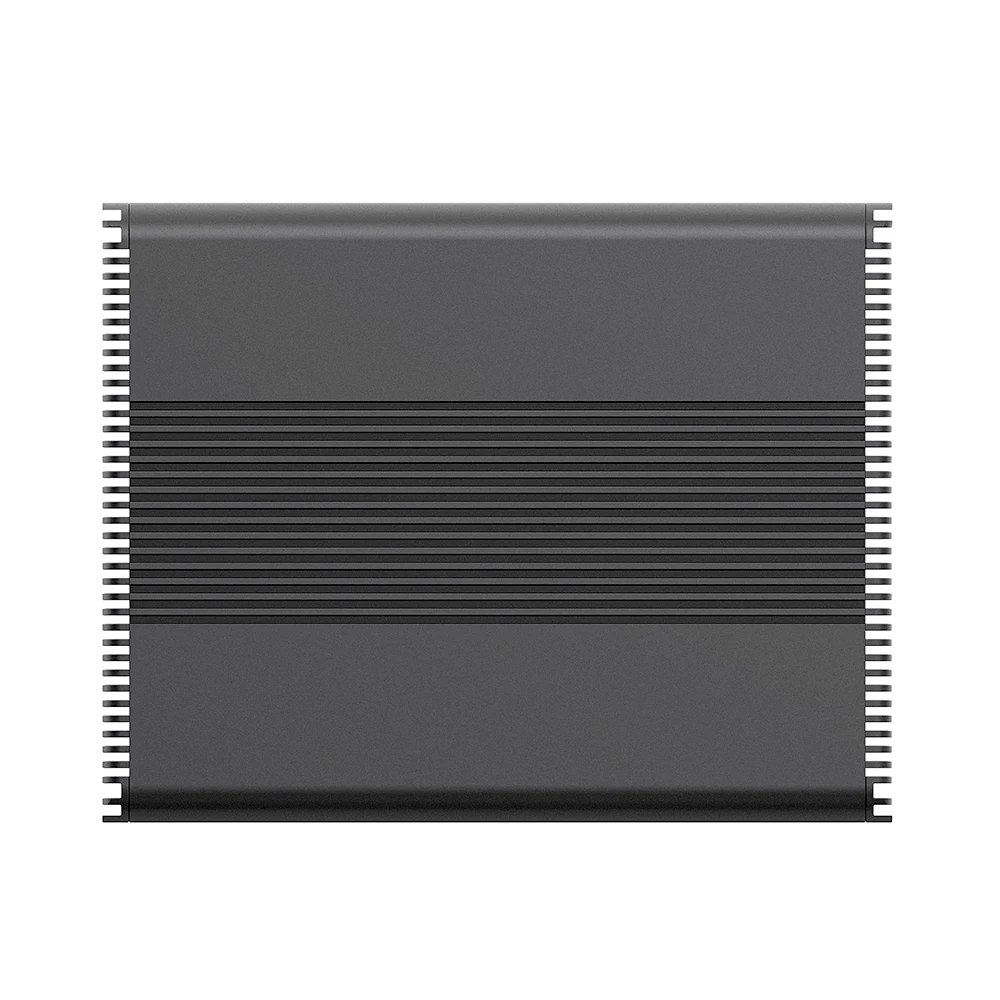

-Full Aluminum Alloy high quality solid-built shell, excellent cooling performance, Exquisite production craft on outside design.
-Turbo silent fan with dual copper tube, durability for industrial grade field, work as long as 7x24 hours.
-4xIn-tel i226-V 2.5G UDE filter pure RJ45 LANs, 2xUSB3.1, 2xUSB2.0, 1xUSB Type-C, 1xTF card slot.
-2xDDR4 SODIMM non-ecc ram slot, support 3200MHz.
-Support five storage: 2xM.2 NVMe/PCIe3.0x4 2280 SSD(via M.2 2232 to 2280 PCB adapter board)+1xM.2 NVMe/PCIe3.0x4 SSD(an interface on the motherboard of CPU's side)+1x2.5''SATA3.0 SSD/HDD(internal mounting)+1x2.5''SATA3.0 SSD/HDD(external from knock-out hole).
-1xM.2 KEY-E 2232 slot, support WiFi connection, also support transfer to 1xM.2 NVMe/PCIe3.0x4 2280 SSD with PCB adapter board.
-Full-featured Type-C support data, display, reverse charging.
-TF card slot support storage and system disk boot.
-Support three display: 1xHD-MI2.0, 1xDP1.4, 1xType-C, 3x4K@60Hz UHD video display.
-Support wide voltage 12-19V input.
-Support TPM2.0, ESXI, PVE, Watchdog, Auto power on, RTC, PXE boot, Wake-on-LAN etc.
-Full Aluminum Alloy high quality solid-built shell, excellent cooling performance, Exquisite production craft on outside design.
-Turbo silent fan with dual copper tube, durability for industrial grade field, work as long as 7x24 hours.
Package List
1xMini PC
1xPower Adapter
1xPower Cord
1xM.2 2232 to 2280 PCB adapter board
1xSATA Cable
1xScrews Bag
1xinternal 8010 Fan (store gift, dual fan reduce temperature greatly)
1xMini PC
1xPower Adapter
1xPower Cord
1xM.2 2232 to 2280 PCB adapter board
1xSATA Cable
1xScrews Bag
1xinternal 8010 Fan (store gift, dual fan reduce temperature greatly)
Notice:
Cost is based on CPU R5 5600U barebone system (include sample cost) , different CPU and configuration cost different too, more quantity, better price, please feel free contact us for more details price!
Product Description
Application area
What's the mini computer can do?
1. Office work: Office, Skype, yahoo, outlook and all other office requirement support and runs perfect;
2. Design work: Photoshop, CoreIDRAW, Dreamweaver, IIIustrator, Flash, Indesign and others;
3. Game playing: Support most online games and PC games, like Warcraft, Counter-Strike (CS).
4. Entertainment: Support blu ray 1080P and 4k video play, XBMC and others.
1. Office work: Office, Skype, yahoo, outlook and all other office requirement support and runs perfect;
2. Design work: Photoshop, CoreIDRAW, Dreamweaver, IIIustrator, Flash, Indesign and others;
3. Game playing: Support most online games and PC games, like Warcraft, Counter-Strike (CS).
4. Entertainment: Support blu ray 1080P and 4k video play, XBMC and others.
Customizable
About Print Logo：
Pls send us a high-resolution file by JPG/PDF/PNG format).
Why Choose Us
Topton Technology Co.,Ltd :
2. OEM/ODM Service For big order quantity.
3. Free to Install Operating System(Windows/Linux/Pfsense/Ubuntu etc) before delivery.
4. Over 10 years experience in computer industry,We sure to provide you our best service and support to increase your sales and market shares!!!
1. 3 Years long warranty, Confident to cooperation with us!!!
2. OEM/ODM Service For big order quantity.
3. Free to Install Operating System(Windows/Linux/Pfsense/Ubuntu etc) before delivery.
4. Over 10 years experience in computer industry,We sure to provide you our best service and support to increase your sales and market shares!!!
1. Raw Material
Raw Material,CPU, Ram, Storage, Battery, Wifi etc
2. Professional SMT process
Automatic SMT production line +
8 inspection processes
3. Function Test
Every PC must test for at least 2 hours
4. Assembly
Produce 500+ Computer every day
5. Aging Test
Long time aging test(3D Mark,AIDA64) to ensure high-quality
6. Package
Safety packaging to ship ( Accept customized packaging )
Safety packaging to ship ( Accept customized packaging )
Certifications
Packing & Delivery
1.Delivery Time: 1 ~ 3 Days for one sample, 15 Working days for a large quantity.
2.Packaging Way: 1unit packed into a individual box, 10units individual box a Pack.
3.Shipping Way: Small QTY, Our customer can choose ship by DHL, Fedex, UPS. For large QTY, We can support to ship by air or by sea.
2.Packaging Way: 1unit packed into a individual box, 10units individual box a Pack.
3.Shipping Way: Small QTY, Our customer can choose ship by DHL, Fedex, UPS. For large QTY, We can support to ship by air or by sea.
FAQ
Q1. Can you provide OEM/ODM service? How much do I need to pay for your OEM service?
Re: Yes we can. The charges for OEM service depends on the different level of customize. the process of customization is following:
1) provide your specific requirement.
2) our design engineer draw the design draft.
3) you confirm the design draft.
4) we start produce it.
Q2. Can you print my logo on the mini computer ?
Re: Yes, it is support . And we can make print your logo on the PC for free by laser engraving!
Q3. What is the Minimum Order Quantity (MOQ)?
Re: We can support 1unit sample for your test.
Q4. What is the lead time of your products?
Re: Sample order: 3-7 working days . Bulk order:3~15 working days ( depends on order qty);
Q5. How will you deliver my goods to me?
Re: We can ship by DHL, UPS, FedEx, TNT, etc international air express services;
Q6. What's the warranty?
Re: 3 years long warranty ! Whole lifetime technical support, Buy with confidence!
Re: Yes we can. The charges for OEM service depends on the different level of customize. the process of customization is following:
1) provide your specific requirement.
2) our design engineer draw the design draft.
3) you confirm the design draft.
4) we start produce it.
Q2. Can you print my logo on the mini computer ?
Re: Yes, it is support . And we can make print your logo on the PC for free by laser engraving!
Q3. What is the Minimum Order Quantity (MOQ)?
Re: We can support 1unit sample for your test.
Q4. What is the lead time of your products?
Re: Sample order: 3-7 working days . Bulk order:3~15 working days ( depends on order qty);
Q5. How will you deliver my goods to me?
Re: We can ship by DHL, UPS, FedEx, TNT, etc international air express services;
Q6. What's the warranty?
Re: 3 years long warranty ! Whole lifetime technical support, Buy with confidence!
Похожие товары

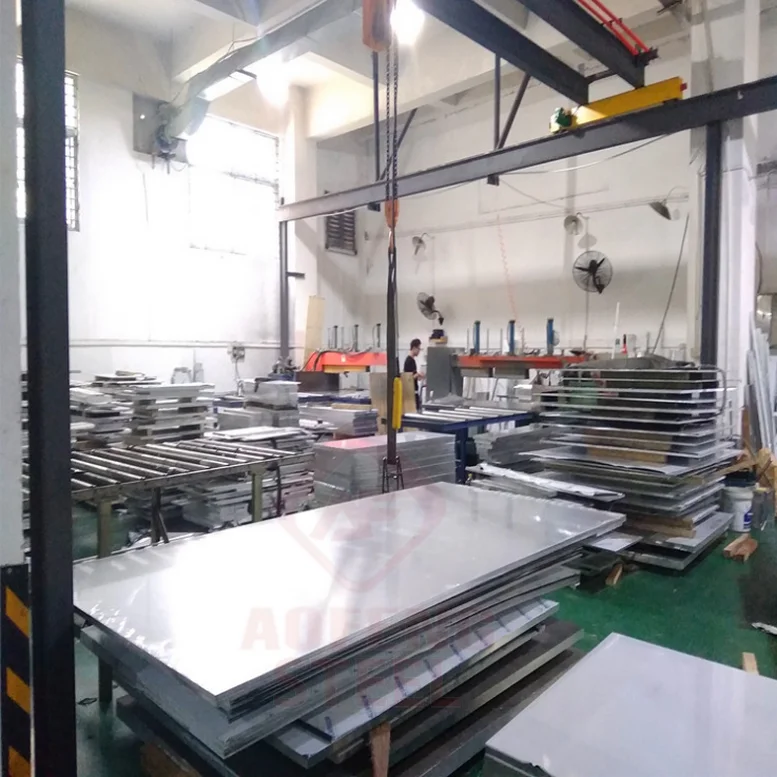

6061 6062 6063 6082 7075 5083 5052 H111 качественная алюминиевая плита/лист из сплава
1,75 $ - 1,95 $
Упаковочная машина Doypack для мешков на молнии, специально разработанная для готовых мешков на молнии, машина для наполнения мелких гранул
29 999,00 $
Хорошее качество многофункциональный йога фитнес-тренажер приседаний 4 трубки для езды на велосипеде напряжение экспандер для езды на велосипеде канат для перетягивания
1,21 $ - 1,52 $

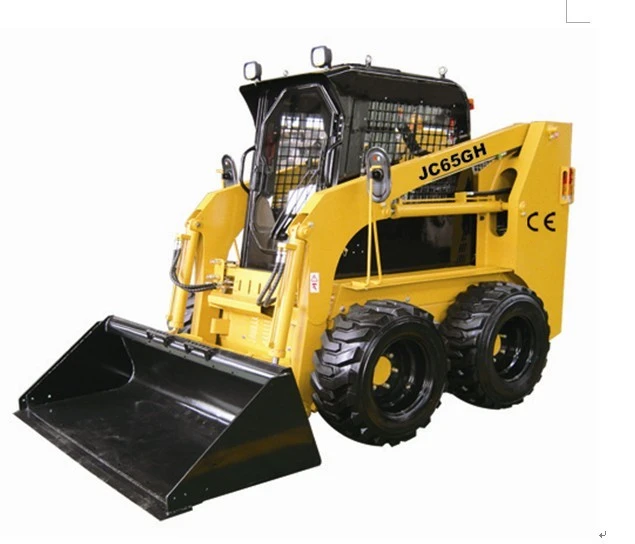

Погрузчик с задней разгрузкой ковша грузоподъемность 950 кг с 75hp дизельный двигатель
300 мАч светодиодный беспроводные наушники, стерео наушники-вкладыши TWS с сенсорным управлением спортивные гарнитуры подавления шумов наушники
7,50 $ - 8,20 $

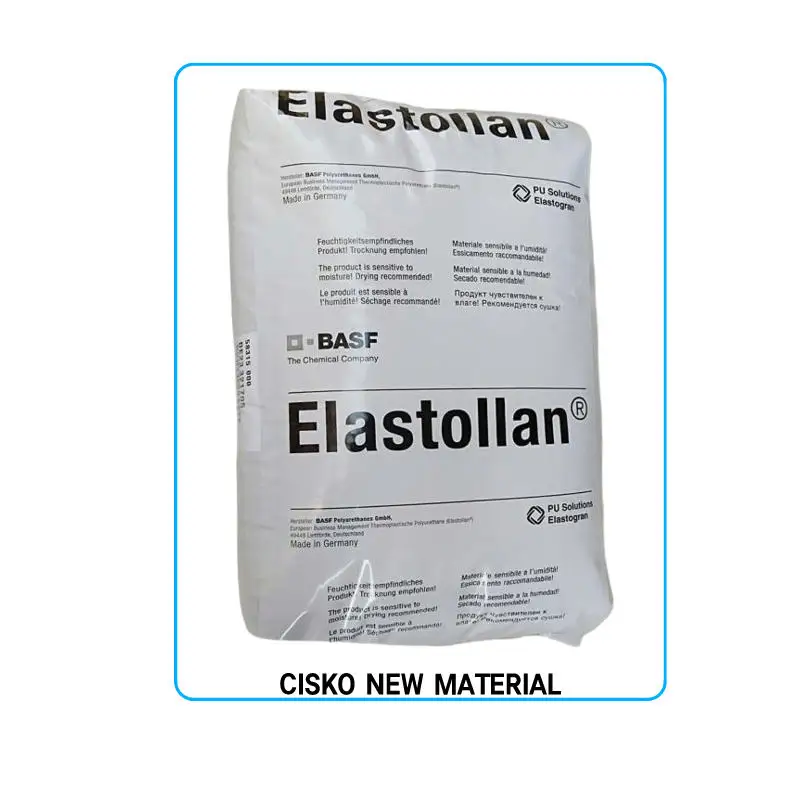

ТПУ эластоллан 1190 A 10 FC(1190A10FC)/1190 A(1190A)/1191 A FHF( 1191AFHF) термопластичный полиуретан
