5 кВт 1 DC12V 300ah Mppt выключенный Инвертор постоянного тока в переменный солнечный инвертор сосновый синусоидальный
47 060,25-47 852,13 ₽
Гибридный солнечный инвертор 3 5 кВт Однофазный 50 60 Гц
- Категория: >>>
- Поставщик: Jiaxing Feiya New Energy Co. Ltd.Jiaxing Ltd.
Сохранить в закладки 1600972931561:
Описание и отзывы
Характеристики
Products Description Produkte Beschreibung

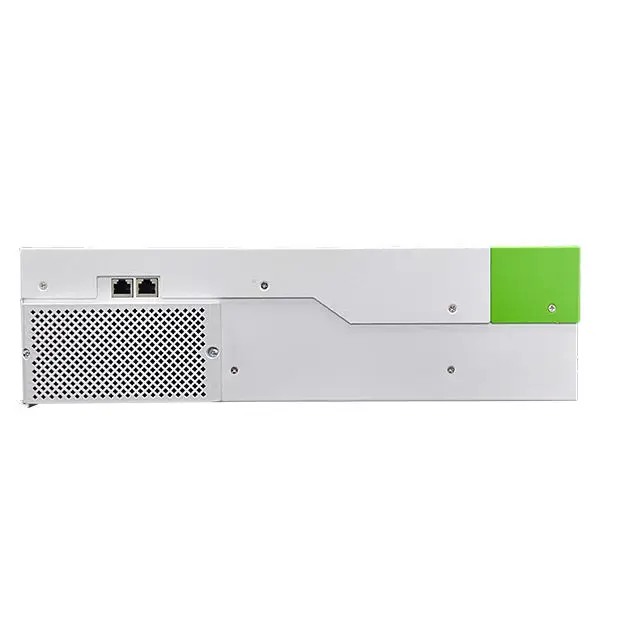

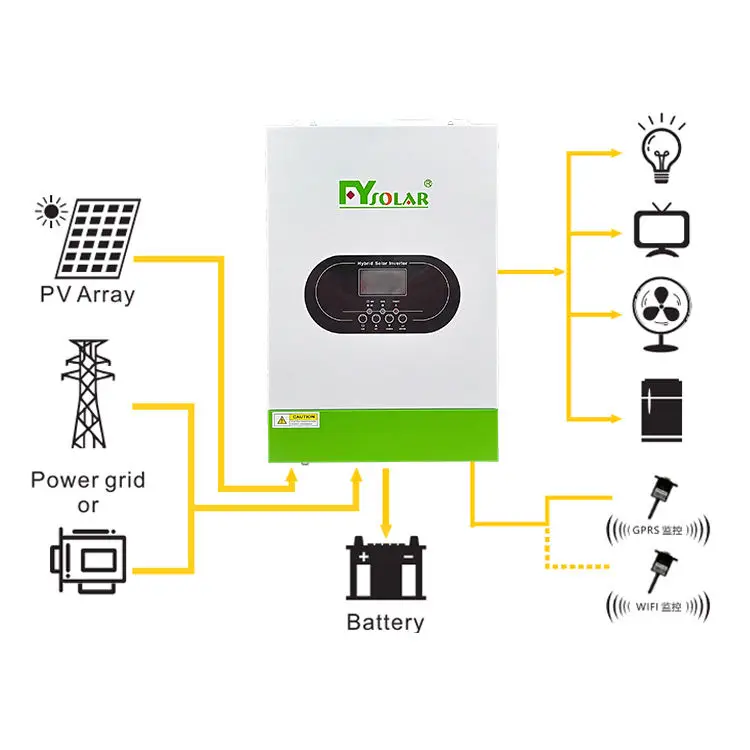

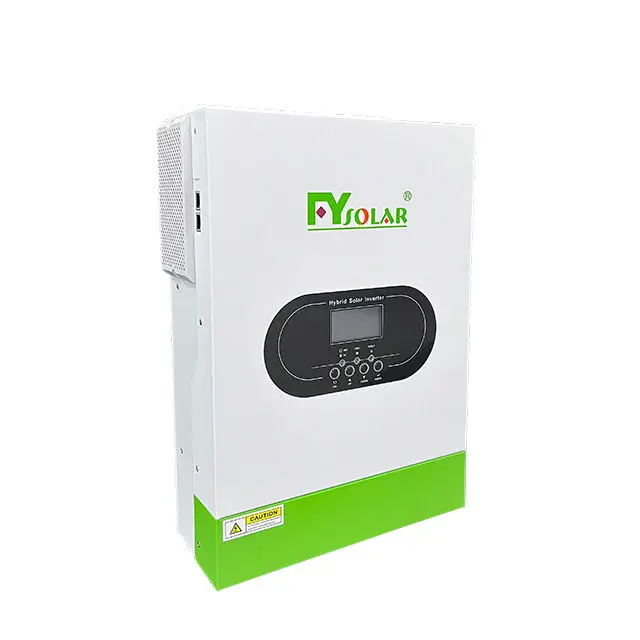

High Frequency Hybrid Solar Inverter
Off Gird FY 3509 Series (3.5KW/5.5KW)
Off Gird FY 3509 Series (3.5KW/5.5KW)
Features
*Pure sine wave solar inverter
*Output power factor 1
*High PV input voltage range
*Built-in MPPT solar controller.
*Battery equalization function to optimize battery performance and extend lifecycle. *Inverter running without battery
*Built-in anti-dusk kit for harsh environment *Parallel operation with up to 12 units, support parallel in 1phase/3phase, support wireless parallel
*Support mutliple output priority: UTL, SOL, SBU, SUB.
*Support mutliple output priority: UTL, SOL, SBU, SUB.
*WiFi/GPRS remote monitoring.
*RS485 communication for BMS(Optional)
Selection Guide Auswahlhilfe
Model | FY 3509-3.5kw | FY 3509-5.5KW | FY 3509-5.5KW-PC | |||
CAPACITY | 3.5KVA/3.5KW | 5.5KVA/5.5KW | 5.5KVA/5.5KW | |||
Parallel Capability | NO | NO | YES,12 units | |||
INPUT | ||||||
Nominal Voltage | 230VAC | |||||
Acceptable Voltage Range | 170-280VAC(For personal Computer);90-280vac(For Home Appliances) | |||||
Frequency | 50/60 Hz(Auto sensing) | |||||
OUTPUT | ||||||
Nominal Voltage | 220/230VAC±5% | |||||
Surge Power | 7000VA | 11000VA | 11000VA | |||
Frequency | 50/60Hz | |||||
Waveform | Pure Sine wave | |||||
Transfer Time | 10ms(For personal Computer);20ms(For Home Appliances) | |||||
Peak Efficiency(PV to INV) | 96% | |||||
Peak Efficiency(Battery to INV) | 94% | |||||
Overload Protection | 5s@>=150% load; 10s@110%~150% load | |||||
Crest Factor | 2:1 | |||||
Admissible Power FACTOR | 0.6~1（inductive or capacitive) | |||||
BATTERY | ||||||
Battery Voltage | 24VDC | 48VDC | 48VDC | |||
Floating Charge Voltage | 27VDC | 54VDC | 54VDC | |||
OverCharge Protection | 33VDC | 63VDC | 63VDC | |||
Charging Method | CC/CV | |||||
Solar Charger & AC Charger | ||||||
Solar Charger TYPE | MPPT | |||||
Max.PV Array Power | 4000W | 5500W | 5500W | |||
Max.PV Array Open Circuit Voltage | 500VDC | |||||
PV Array MPPT Voltage Range | 120VDC~450VDC | |||||
Max.Solar Input Current | 15A | 18A | 18A | |||
Max.Solar Charge Current | 100A | 100A | 100A | |||
Max.AC Charge Current | 60A | 60A | 60A | |||
Max.Charge Current | 100A | 100A | 100A | |||
PHYSICAL | ||||||
Dimensions,D x W x H(mm) | 448x295x120 | |||||
Package Dimensions,D x W x H(mm) | 560x375x190 | |||||
Net Weight(Kg) | 9 | 10 | 10 | |||
Communication Interface | USB/RS232/Dry-contact | |||||
ENVIRONMENT | ||||||
Operating Temperature Range | （-10℃ to 50℃） | |||||
Storage temperature | （-15℃ ~ 60℃） | |||||
Humidity | 5% to 95% Relative Humidity(Non-condensing) | |||||
WHAT CAN WE OFFER YOU
Company Profile Firmenprofil
Jiaxing Feiya New Energy Co., Ltd.
Jiaxing Feiya New Energy Co., Ltd.is located in Jiaxing City, Zhejiang Province, China. It is a company specializing in the sales and service of solar panels, solar systems and inverters.
We have our own brand – FY solar, and have long-term cooperation with many brands to provide customers with more comprehensive choices.
So far, our solar energy series products have been sold well in all provinces and cities across the country, and exported to Europe, Asia, Africa, the Middle East and other countries and regions, completing a large number of family, commercial and industrial supporting services. Due to the excellent product quality and remarkable performance, it is well received by customers.
We take integrity, quality and professionalism as our corporate tenet, and wholeheartedly provide customers with thoughtful services, and are committed to providing customers with cost-effective high-performance solar modules, so that enterprises can always remain competitive in the fierce market competition and achieve rapid and stable development of enterprises.
We have our own brand – FY solar, and have long-term cooperation with many brands to provide customers with more comprehensive choices.
So far, our solar energy series products have been sold well in all provinces and cities across the country, and exported to Europe, Asia, Africa, the Middle East and other countries and regions, completing a large number of family, commercial and industrial supporting services. Due to the excellent product quality and remarkable performance, it is well received by customers.
We take integrity, quality and professionalism as our corporate tenet, and wholeheartedly provide customers with thoughtful services, and are committed to providing customers with cost-effective high-performance solar modules, so that enterprises can always remain competitive in the fierce market competition and achieve rapid and stable development of enterprises.
Certifications Zertifizierungen
Our Factory Unsere Fabrik
