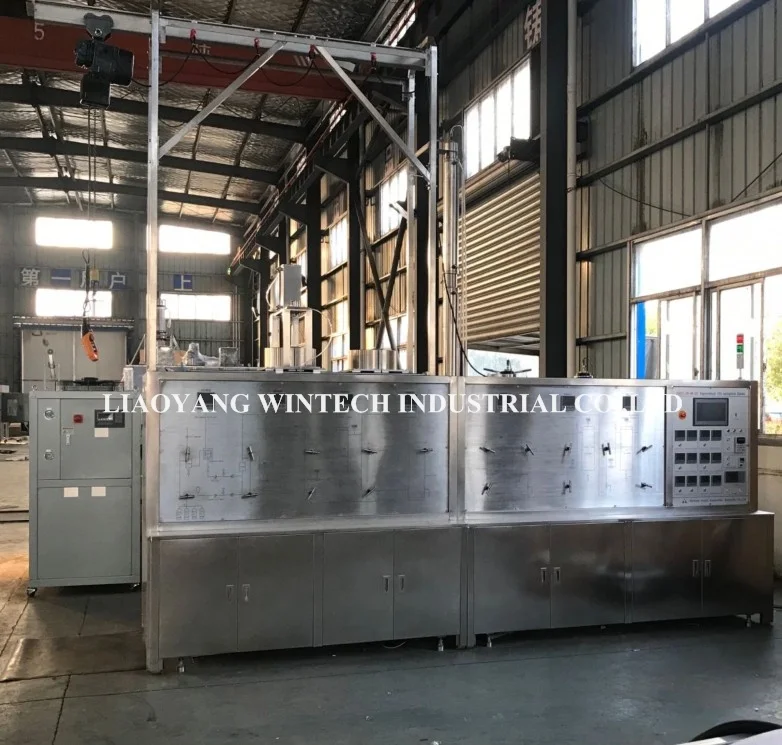

Усовершенствованная Сверхкритическая машина для экстракции жидкости лаванды каротина и чесночного масла из трав
- Категория: >>>
- Поставщик: Liaoyang Wintech Industrial Co. Ltd.
Сохранить в закладки 1600973254410:
Описание и отзывы
Характеристики
Products Description
Advanced Supercritical Fluid Extraction Machine for Lavender, Carotene, and Garlic Oils from Herbal Essentials
CO2 Supercritical fluid extraction (SFE) is the newest subject in modern chemical analysis and food purification.
Supercritical fluid is a kind of material state between gas and liquid, which is neither gaseous nor liquid. This kind of material can only exist when its temperature and pressure exceed the critical point. The density of supercritical fluid is larger, similar to that of liquid, and its viscosity is close to that of gas. Therefore, supercritical fluid is an ideal extractant.
Advantages and Features:
1. Combination of extraction and separation;
2. The extraction pressure and temperature can be adjusted according to different materials;
3. Low extraction temperature can effectively prevent the oxidation and escape of heat sensitive components, and keep the biological activity completely;
4. CO2 is cheap, high purity, easy to make, can be recycled, non-toxic, no solvent toxic residues, to prevent the extraction process of human body toxicity and environmental pollution.
5. The polarity of supercritical fluid can be changed. Under certain temperature conditions, as long as the pressure is changed or appropriate entrainer is added, substances with different polarity can be extracted, which has a wide range of applications.
Working Principle:
Supercritical fluid extraction and separation process is based on the relationship between the solubility of supercritical fluid and its density, that is, the influence of pressure and temperature on the solubility of supercritical fluid. When the gas is in the supercritical state, it becomes a single phase state with properties between liquid and gas, and has a density similar to that of liquid. Although the viscosity is higher than that of gas, it is obviously lower than that of liquid, and the diffusion coefficient is 10-100 times of that of liquid. Therefore, it has good permeability and strong solubility to the material, and can extract some components from the material.
In the supercritical state, the supercritical fluid is contacted with the substance to be separated to selectively extract the components of polarity, boiling point and relative molecular weight in turn. The density and dielectric constant of supercritical fluid increase with the increase of pressure, and the polarity of supercritical fluid increases. Of course, the extract corresponding to each pressure range can not be single, but the best proportion of mixed components can be obtained by controlling the conditions. Then, the supercritical fluid is transformed into a common gas phase by means of decompression and heating, and the extracted substances are completely or basically separated automatically, so as to achieve the purpose of separation and purification,

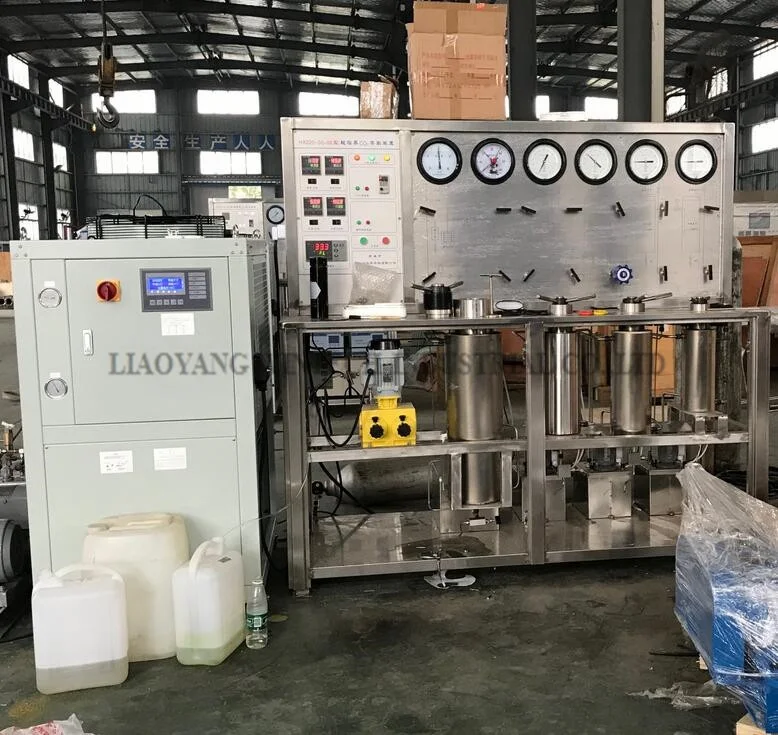

Product More Pictures

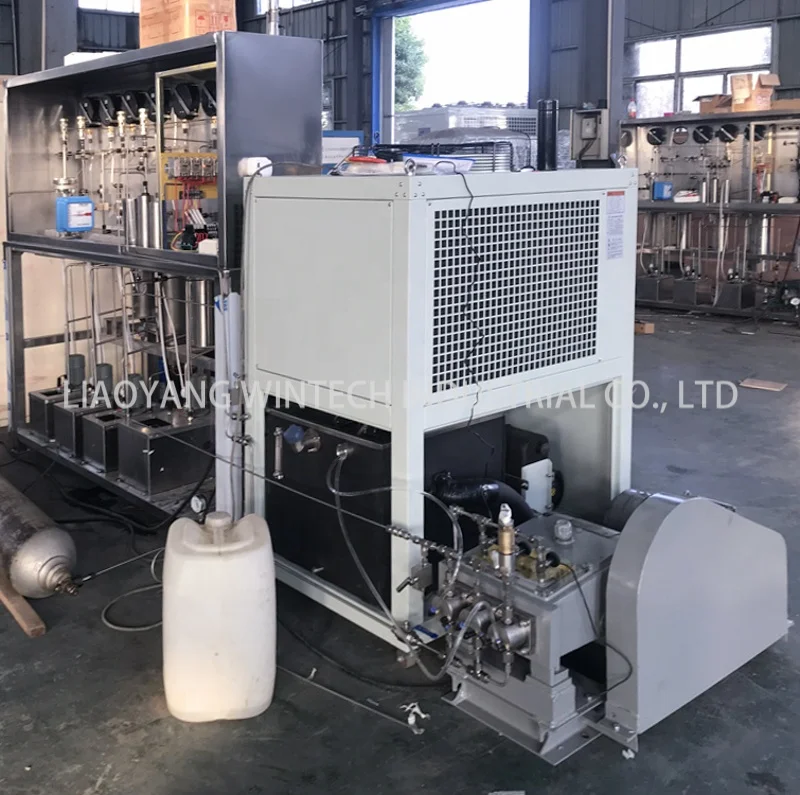

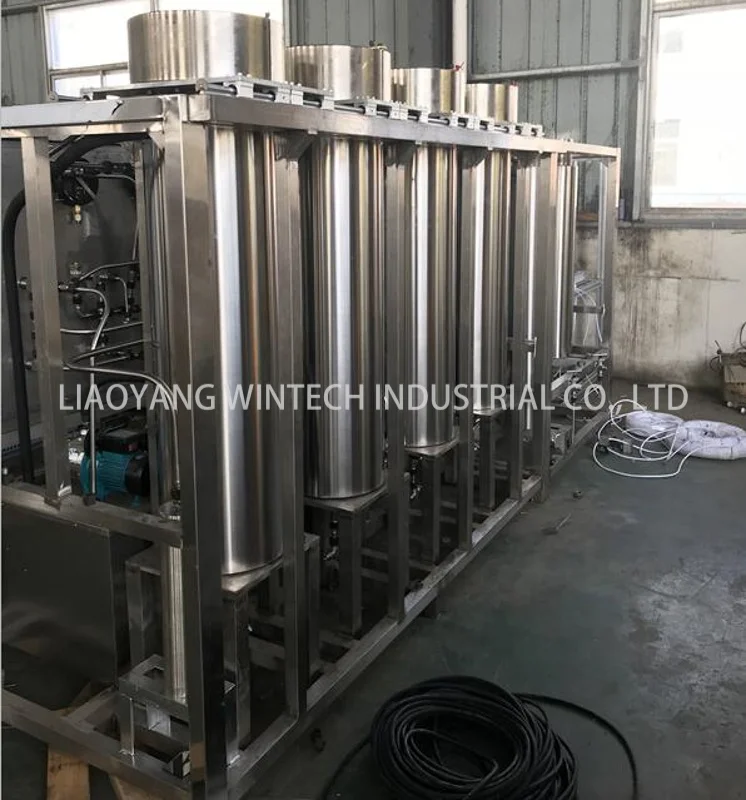

Detail Display:
Application Field
Fields | Application | ||||||
Chemical Industry | 1. Extracting effective ingredient 2. Concentraction and purification 3. Separating and purification of fatty mixtures 4. Removing of organic solvents | ||||||
Food | 1. Separating of bacteria 2. Extracting of essence and flavor 3. Extracting of animal fat, plant fat and fatty solubility ingredients 4. Extracting of plant alkali 5. Extracting of food colorant 6. Removing odor, color, acid and organic solvents | ||||||
Cosmetics | 1. Extracting of essence and flavor 2. Purification of essence and flavor | ||||||
Petroleum | 1. Separating of oil and residual oil 2. Clean of oil core 3.The regeneration of the lubricating oil | ||||||
Chemical Industry | 1. Separating of hydrocarbon 2. Purification of chemical synthesis material 3. Separating of co-boiling mixture 4. Recovery of reacted material 5. Dehydration of water soluble power of organic solution | ||||||
Environmental | 1. Removing harmful metal ion from matenal soil and radiation waste water 2. Fine cleaning | ||||||
Others | Super-conduction, semi-conduction, ceramics, catalytic reaction of enzyme, super-fine particles and supercritical reaction. | ||||||
Product Parameters
NO | Model | Capacity | Pressure | Power | CO2 Pump Flow | Dimension |
1 | WT-0.5 | 0.5L | 50Mpa | 10 KW | 50 L/H | 2500*2500*1600 mm |
2 | WT-1 | 1L | 50Mpa | 10 KW | 50 L/H | 2500*2500*1600 mm |
3 | WT-5 | 5L | 50 Mpa | 18 KW | 50 L/H | 2500*2500*1600 mm |
4 | WT-10 | 10L | 50 Mpa | 18 KW | 100 L/H | 3000*2500*1600 mm |
5 | WT-20 | 10L*2 | 40 Mpa | 25 KW | 200 L/H | 3000*3000*1800 mm |
6 | WT-30 | 10L*3 | 40 Mpa | 30 KW | 210 L/H | 5000*4800*1800 mm |
7 | WT-50 | 25L*2 | 40 Mpa | 45 KW | 400 L/H | 5000*5000*4200 mm |
8 | WT-100 | 50L*2 | 40 Mpa | 60 KW | 800 L/H | 6200*6000*4500 mm |
9 | WT-120 | 30L*4 | 40 Mpa | 60 KW | 800 L/H | 6800*6000*4500 mm |
10 | WT-150 | 50L*3 | 40 Mpa | 63 KW | 1000 L/H | 7200*6000*4500 mm |
11 | WT-200 | 50L*4 | 40 Mpa | 65 KW | 1000 L/H | 7800*7000*4500 mm |

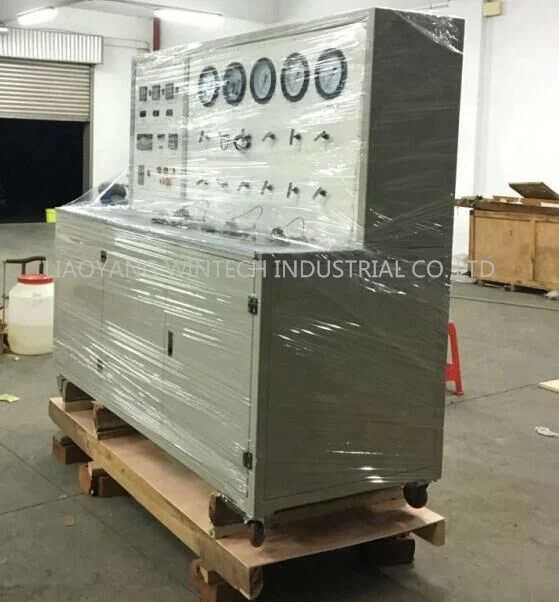

Product Packaging
Company Profile
Our Services:
We sincerely invite you to be our long term relationship friend , and we always prepared to provide our best services for you and would like you to know below we want to present:
1. Each machine is manufactured by professional experienced staff.
2. 12 months warranty + 100% QC inspection Before Shipment.
3. Overseas services provided. Technicians can be sent to spot for guiding the installation and debugging. Training operators and accomplish the commissioning.
4. Consultant services for whole machine life, 24 hours technical support by email and phone.When warranty date expired, lifetime maintenance service is provided and at buyer’s cost.
Our Honors:
Our Customers:
Our Factory:
LIAOYANG WINTECH INDUSTRIAL CO., LTD is a Centrifugal Filter Extraction Equipment processing and manufacturing as the main industry, the main products are CO2 Supercritical Extraction Equipment, Horizontal Decanter Centrifuge, Disc Centrifuge, Tubular Centrifuge, Flat Series Centrifuge, and corresponding supporting equipments, eg. food line, chemical line. At the same time to undertake standards and non-standard products. Our equipment is exported to Europe, America, Southeast Asia, Africa and other countries, and has been praised by foreign customers.
Our company has professional engineers with strong new product development ability, and can develop equipment products according to the actual needs of customers. Our company has ISO 9001 certification, CE certification and other relevant authoritative parts of professional identification and recognition. At the same time, facing the fierce market competition, our company is relying on its own advantages, integrating external resources, optimizing internal management, constantly exploring and innovating, and striding forward in the direction of business specialization and diversification. Our company adheres to the business philosophy of quality and service, and wholeheartedly provides high-quality products and services for new and old customers to meet the needs of customers to the maximum extent. Serve customers, achieve customers, sincerely look forward to cooperating with new and old customers to create a better future.
FAQ
1. What does need from me to quote a price?
(1) Raw materials to be extracted.
(2) Production capacity per batch, we can offer both experimental model and mass production model, big capacity of machine can be customized according to your request for your request.
2. What material can you process with this machine?
Our CO2 supercritical extraction machine is widely used in extracting Hemp oil, Rose essential oil, Garlic oil, Curcumin, Caffeine, Herbs oil, Wheat embryo oil, Fish oil, Tobacco essential oil, Arteannuin, Sundrops oil, Gingerol, Pepper haematochrome, Hops extract etc.
3. Does the CO2 can be reused?
Yes. CO2 can be used in circulation.
4. What is the highest pressure does your machine can suffer?
50Mpa. Our standard design is 40Mpa. It can also be customized.
5. Can we do extraction test before purchasing?
Of course, we can do extraction test with your raw material and send you videos and pictures for your reference. And if it is convenient, we sincerely invite you to visit our factory and look forward to meeting you.
6. Can we visit your factory?
Of course, we welcome you to visit our factory. If it's not convenient for you, we also provide video conference service to visit factory and solve your problems.
7. How will my order be packed, can you provide the installation service?
Plywood case. And we will assemble and test the machine before packing. Installation: We will send English manual after your purchase. If you need the help of engineer, we will send one professional engineer for assembling and training for workers.
8. How long does it take to produce the machine once I place my order ?
The Supercritical CO2 extract machine' process flow is complex. Generally it takes about 40-50 workdays to produce. We are responsible for the quality of machine our customers. Every procedure and details has to be inspected strictly. If you are in a hurry, we can arrange for urgent production.
Related Products
Похожие товары
Оптовая продажа, игла для картриджа для татуировки бровей, устройство для микропигментации, цифровая машина для перманентного макияжа
0,32 $ - 0,55 $

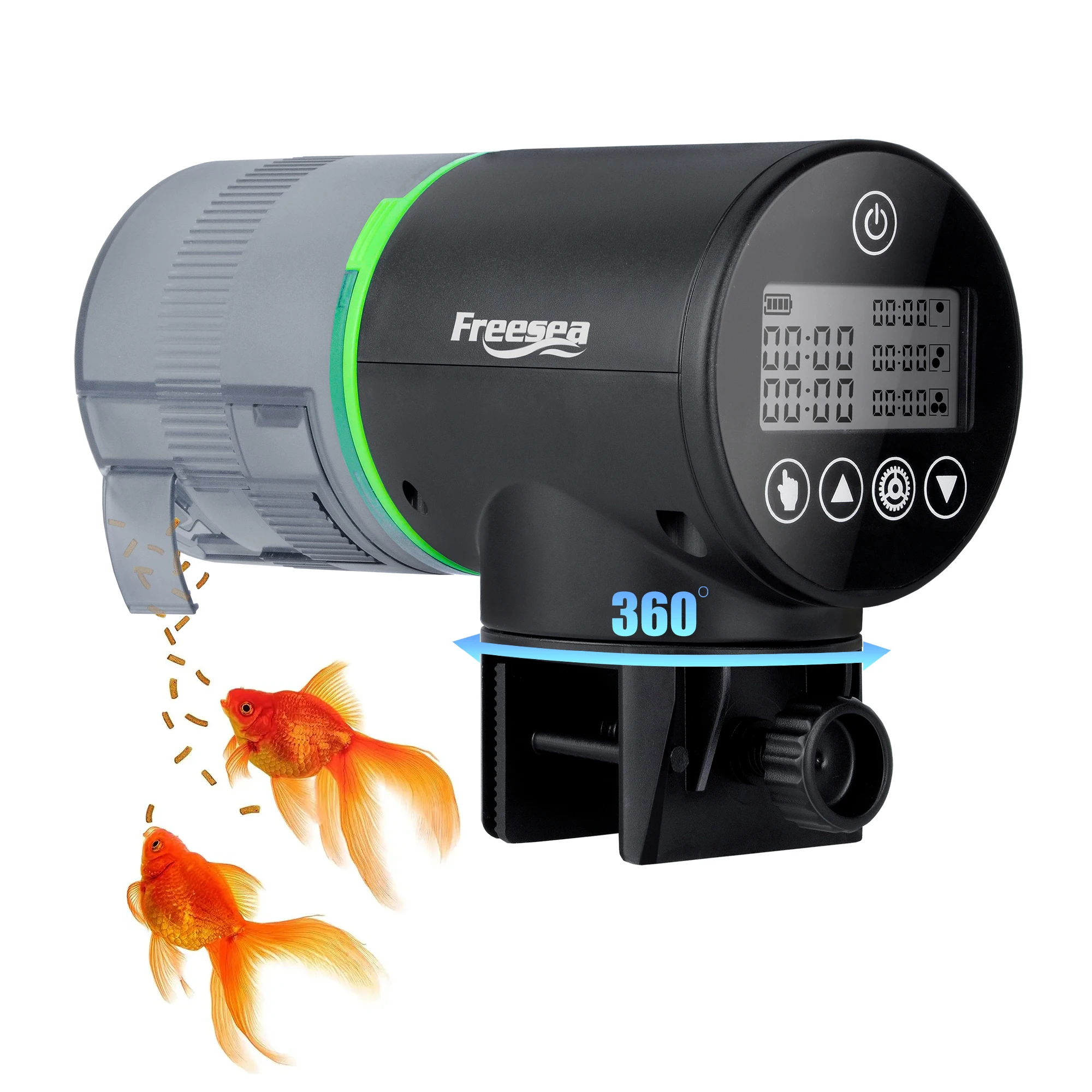

Заводская изготовленная на заказ Оптовая цена аквариум Рыбная ферма кормушка цифровой ЖК автоматический умный электронный Таймер Фидер
4,20 $ - 5,63 $
Промышленный теплогенератор горелка масляная модель 50 для отработанного масла котлов горячей воды с открытым топливным
102,00 $ - 203,00 $

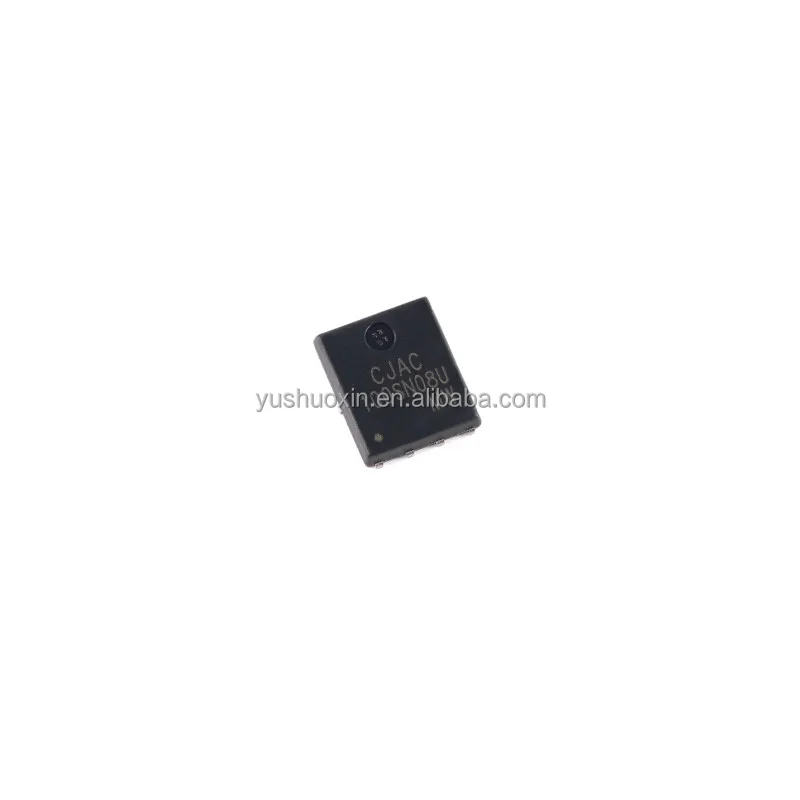

Поставка Новый оригинальный N-channel MOSFET 100A80V PDFNWB5x6-8L-B пакет
