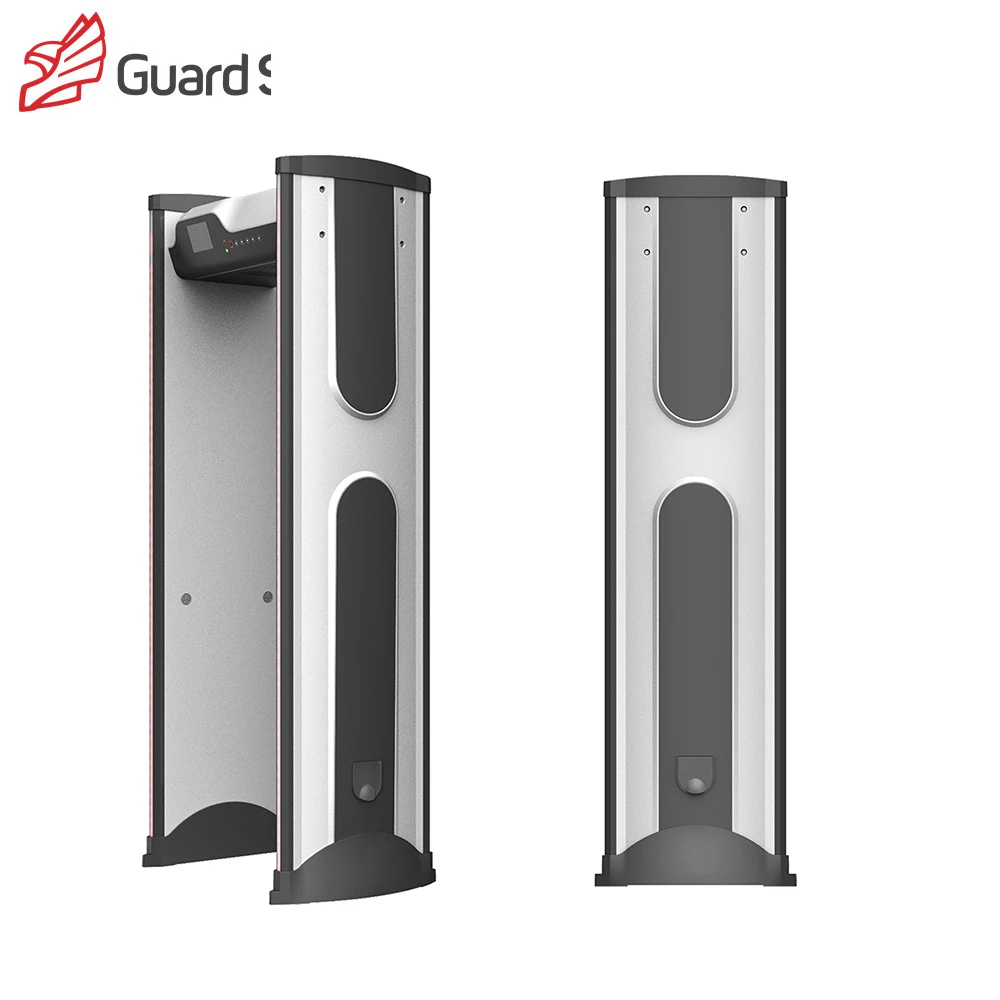

Интеллектуальное обнаружение 24 охранных 33 зоны небольшой металлический контрольный прохождение через металлоискатель
800,00 $ - 1 100,00 $
Небольшая Сверхкритическая экстракционная Машина Для Экстракции Масла из роз имбиря лаванды и водорослей
- Категория: >>>
- Поставщик: Liaoyang Wintech Industrial Co. Ltd.
Сохранить в закладки 1600973997278:
Описание и отзывы
Характеристики
Product Overview
High Quality Good Sale Essential Oil CO2 Supercritical Fluid Extraction Machine with Direct Selling Price
The supercritical fluid CO2 extraction machine is a new-type separation technology in modern chemical separation.The supercritical extraction takes CO2 as the solvent. As CO2 fluid under super critical state has larger density and dielectric constant, larger dissolvability against substances, which can change abruptly when pressure and temperature change therefore it has not only the selection of dissolvability against some substances, the separation of the solvent with the extracted substances is also easily.
The super critical CO2 extraction is specially suitable for extraction of fat-soluble and heat sensitive substances with the high boiling point, and is suitable for fine separation of different components, i.e. Super critical fine distillation.
Take CO2 as the solvent to make extraction and purification upon a lot of products such as biological production, foodstuff, etc.The device mainly consists of extraction kettle, separation kettle, fine distillation column,CO2 high pressure pump, entrainer pump, refrigeration system, heat exchange system, purifying system, pressure stabilizing system of extraction kettle, CO2 tank, flow meter, temperature and pressure control (protection) system etc.
FEATURES AT A GLANCE
HIGH YIELD
SAFETY OPERATION
SIMPLE CONTROL
EASY MAINTENANCE
VERSATILITY
HIGH TECH PROCESS
Left elevation
Back elevation
Right elevation
Working Principle
Supercritical fluid extraction and separation process is based on the relationship between the solubility of supercritical fluid and its density, that is, the influence of pressure and temperature on the solubility of supercritical fluid. When the gas is in the supercritical state, it becomes a single phase state with properties between liquid and gas, and has a density similar to that of liquid. Although the viscosity is higher than that of gas, it is obviously lower than that of liquid, and the diffusion coefficient is 10-100 times of that of liquid. Therefore, it has good permeability and strong solubility to the material, and can extract some components from the material. In the supercritical state, the supercritical fluid is contacted with the substance to be separated to selectively extract the components of polarity, boiling point and relative molecular weight in turn. The density and dielectric constant of supercritical fluid increase with the increase of pressure, and the polarity of supercritical fluid increases. Of course, the extract corresponding to each pressure range can not be single, but the best proportion of mixed components can be obtained by controlling the conditions. Then, the supercritical fluid is transformed into a common gas phase by means of decompression and heating, and the extracted substances are completely or basically separated automatically, so as to achieve the purpose of separation and purification.
PRODUCT SPECIFICATIONS
No | Model | Capacity | Pressure | Power | CO2 pump flow | Dimension |
1 | WT-0.5 | 0.5L | 50Mpa | 10Kw | 50L/H | 2500*2500*1600mm |
2 | WT-1 | 1L | 50Mpa | 10Kw | 50L/H | 2500*2500*1600mm |
3 | WT-5 | 5L | 50Mpa | 18Kw | 50L/H | 2500*2500*1600mm |
4 | WT-10 | 10L | 50Mpa | 18Kw | 100L/H | 3000*2500*1600mm |
5 | WT-20 | 10L*2 | 40Mpa | 25Kw | 200L/H | 3000*3000*1800mm |
6 | WT-30 | 10L*3 | 40Mpa | 30Kw | 210L/H | 5000*4800*1800mm |
7 | WT-50 | 25L*2 | 40Mpa | 45Kw | 400L/H | 5000*5000*4200mm |
8 | WT-100 | 50L*2 | 40Mpa | 60Kw | 800L/H | 6200*6000*4500mm |
9 | WT-120 | 30L*4 | 40Mpa | 60Kw | 800L/H | 6800*6000*4500mm |
10 | WT-150 | 50L*3 | 40Mpa | 63Kw | 1000L/H | 7200*6000*4500mm |
11 | WT-200 | 50L*4 | 40Mpa | 65Kw | 1000L/H | 7800*7000*4500mm |
Application Scope
High-tech industry
1. Extracting effective ingredient
2. Concentration and purification ingredients
3. Separating and purification of fatty mixtures
4. Removing of organic solvents
2. Concentration and purification ingredients
3. Separating and purification of fatty mixtures
4. Removing of organic solvents
Food industry
1. Separating of bacteria
2. Extracting of essence and flavor
3. Extracting of animal fat, plant fat and fatty solubility ingredients
4. Extracting of plant alkali
5. Extracting of food colorant
6. Removing odor, color, acid and organic solvents
2. Extracting of essence and flavor
3. Extracting of animal fat, plant fat and fatty solubility ingredients
4. Extracting of plant alkali
5. Extracting of food colorant
6. Removing odor, color, acid and organic solvents
Chemical industry
1. Separating of hydrocarbon
2. Purification of chemical synthesis material
3. Separating of co-boiling mixture
4. Recovery of reacted material
5. Dehydration of water soluble power of organic solution
2. Purification of chemical synthesis material
3. Separating of co-boiling mixture
4. Recovery of reacted material
5. Dehydration of water soluble power of organic solution
Cosmetics industry
1. Extracting of essence and flavor
2. Purification of essence and flavor
Petroleum industry
1. Separating of oil and residual oil
2. Clean of oil core
3.The regeneration of the lubricating oil
Environmental industry
1. Removing harmful metal ion from matenal soil and radiation waste water
2. Fine cleaning

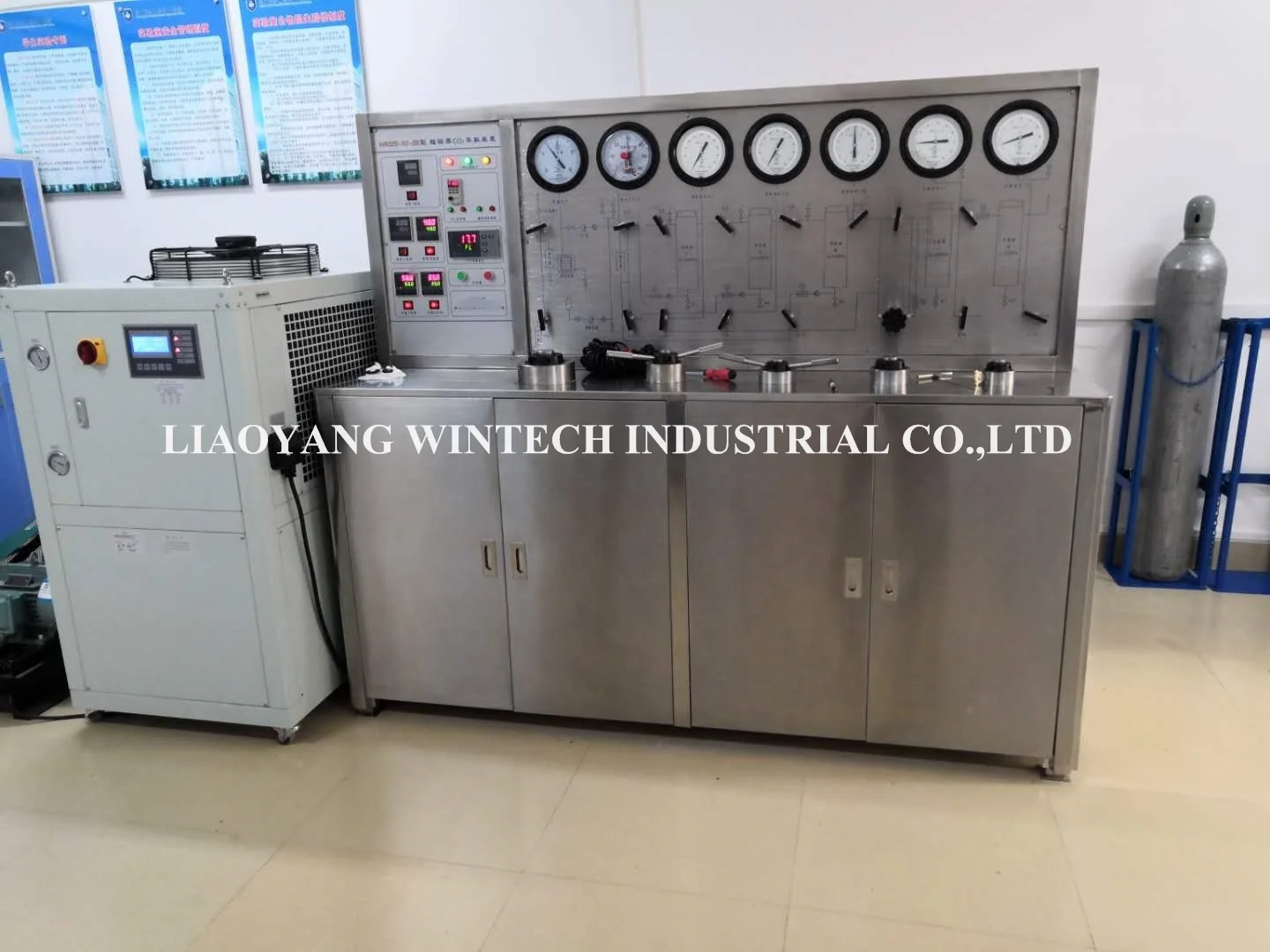

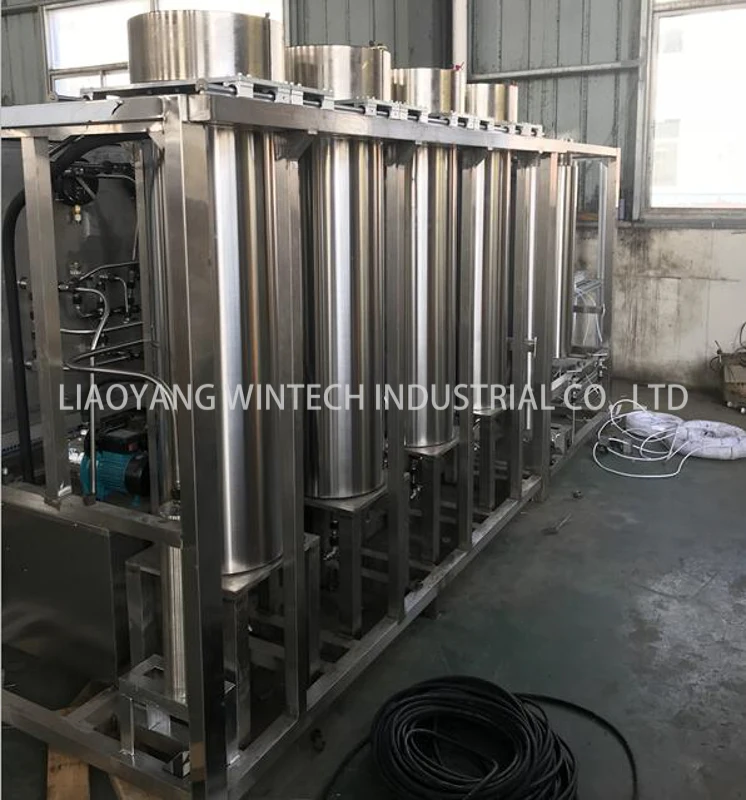

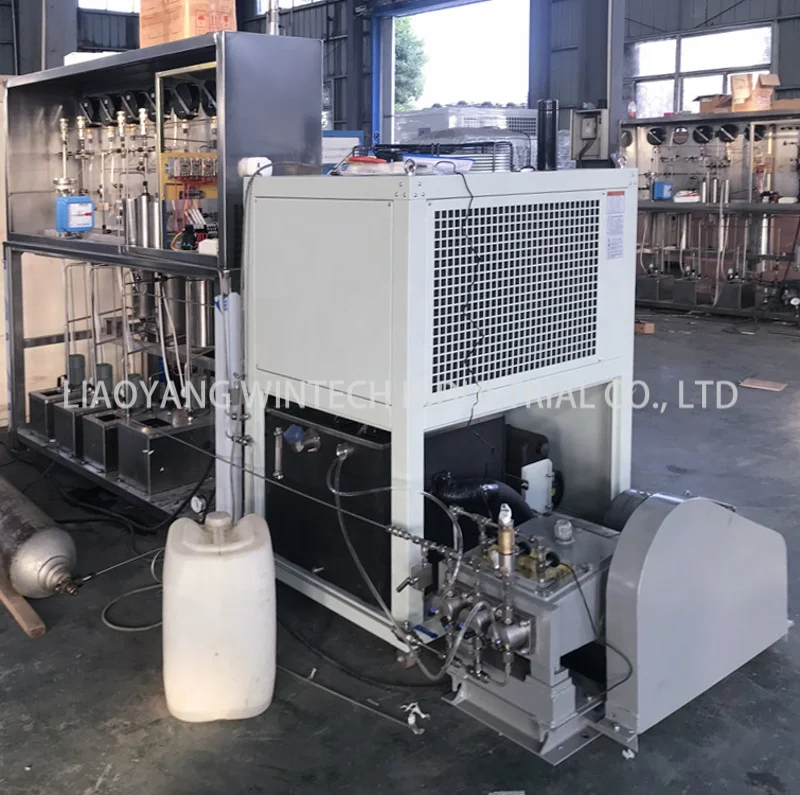

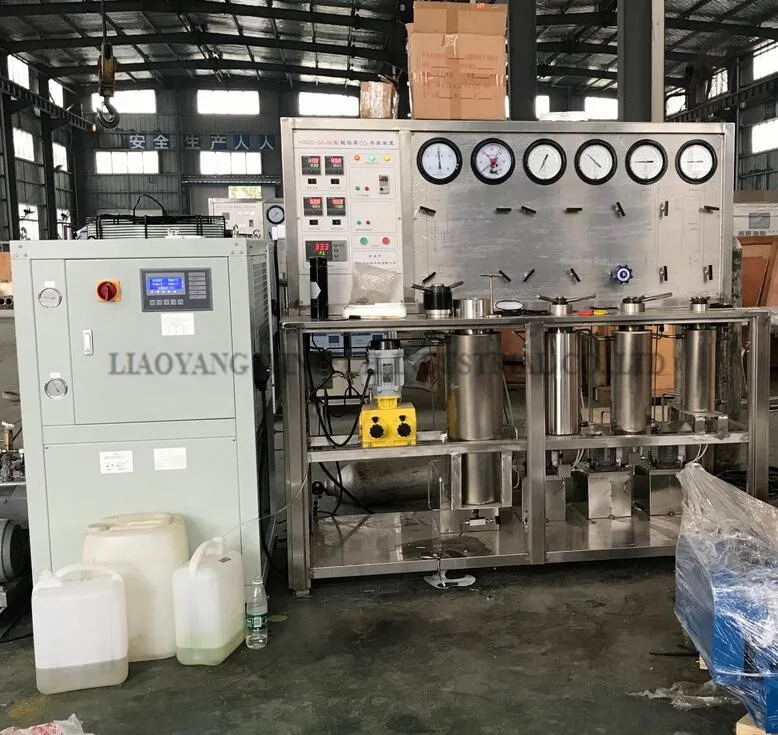

Product More Pictures
Packing Photos
Company Profile
LIAOYANG WINTECH INDUSTRIAL CO., LTD takes Centrifuge Equipment and Drying Equipment processing and manufacturing as the main industry, main products are Horizontal Decanter Centrifuge, Disc Centrifuge, Tubular Centrifuge, Flat Series Centrifuge, CO2 Supercritical Extraction Equipment, Spray Dryer, Fluid Bed Dryer, Drying Oven, Drum Dryer and corresponding supporting equipment. At the same time, to undertake standards and non-standard products. Our equipment is exported to Europe, America, Southeast Asia, Africa and other countries, and has been praised by foreign customers.
Our company has professional engineers with strong new product development ability, and can develop equipment products according to the actual needs of customers. Our company has ISO 9001 certification, CE certification and other relevant authoritative parts of professional identification and recognition. At the same time, facing the fierce market competition, our company is relying on its own advantages, integrating external resources, optimizing internal management, constantly exploring and innovating, and striding forward in the direction of business specialization and diversification. Our company adheres to the business philosophy of quality and service, and wholeheartedly provides high quality products and services for new and old customers to meet the needs of customers to the maximum extent. Serve customers, achieve customers, sincerely look forward to cooperating with new and old customers to create a better future.
Our company follows strict quality controls and various systematic procedures. We take utmost care of quality at every stage of the manufacturing process.Our research and development wing is our asset that develops and incorporates innovative ideas and products. Our Team is full of experienced and qualified professionals, who have sound knowledge about the quality of our machinery.
We sincerely invite you to be our long term relationship friend , and we always prepared to provide our best services for you and would like you to know below we want to present :
1. Each machine is manufactured by professional experienced staff.
2. 12 months warranty + 100% QC inspection Before Shipment.
3. Overseas services provided. Technicians can be sent to spot for guiding the installation and debugging. Training operators and accomplish the commissioning.
4. Consultant services for whole machine life, 24 hours technical support by email and phone.When warranty date expired, lifetime maintenance service is provided and at buyer’s cost.
Related Products
FAQ
1. What does need from me to quote a price?
(1) Raw material
(2) Production capacity per batch, we can offer both experimental model and mass production model, big capacity of machine can be customized according to your request for your request.
2. What material can you process with this machine?
Our CO2 supercritical extraction machine is widely used in extracting a variety of essential oils and ingredients.
3. Does the CO2 can be reused?
Yes. CO2 can be used in circulation.
4. What is the highest pressure does your machine can suffer?
50Mpa. Our standard design is 40Mpa. It can also be customized.
5. Can we do extraction test before purchasing?
Yes, we can do extraction test with your raw material and send you videos and pictures for your reference. And if it is convenient, we sincerely invite you to visit our factory and look forward to meeting you.
6. Can we visit your factory?
Sure, we welcome you to visit our factory. If it's not convenient for you, we also provide video conference service to visit factory and solve your problems.
7. How will my order be packed, can you provide the installation service?
Plywood case. And we will assemble and test the machine before packing. Installation: We will send English manual after you purchase. If you need the help of engineer, we will send one professional engineer for assembling and training for workers.
8. How long does it take to produce the machine once I place my order ?
The Supercritical CO2 extract machine' process flow is complex. Generally it takes about 40-50 workdays to produce. We are responsible for the quality of machine our customers. Every procedure and details has to be inspected strictly. If you are in a hurry, we can arrange for urgent production.
Похожие товары

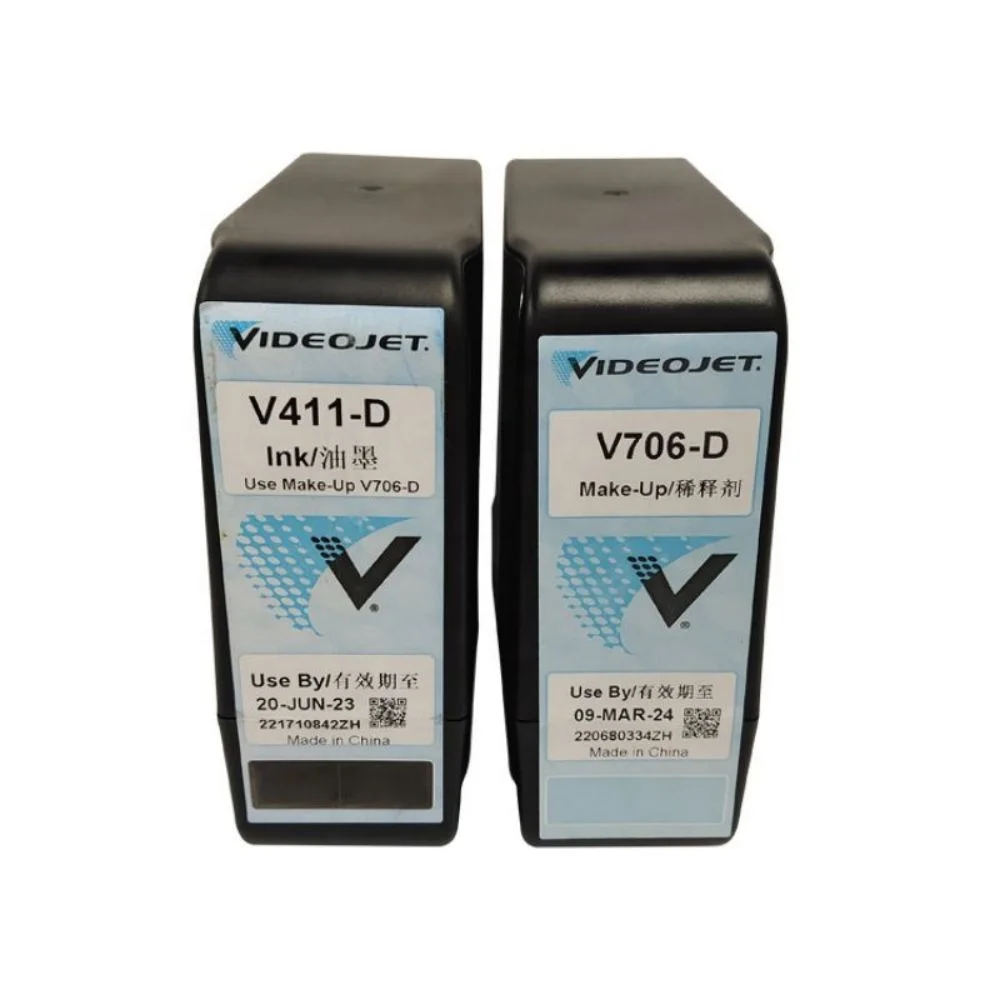

Чернила для макияжа, V7206-D растворителей, жидкие V411-D чернила для 1580 и 1240 Принтеров CIJ
Фирменная индивидуальная питательная глубоко-Увлажняющая сыворотка для лица, мгновенная подтяжка лица и омоложение
1,31 $ - 1,71 $

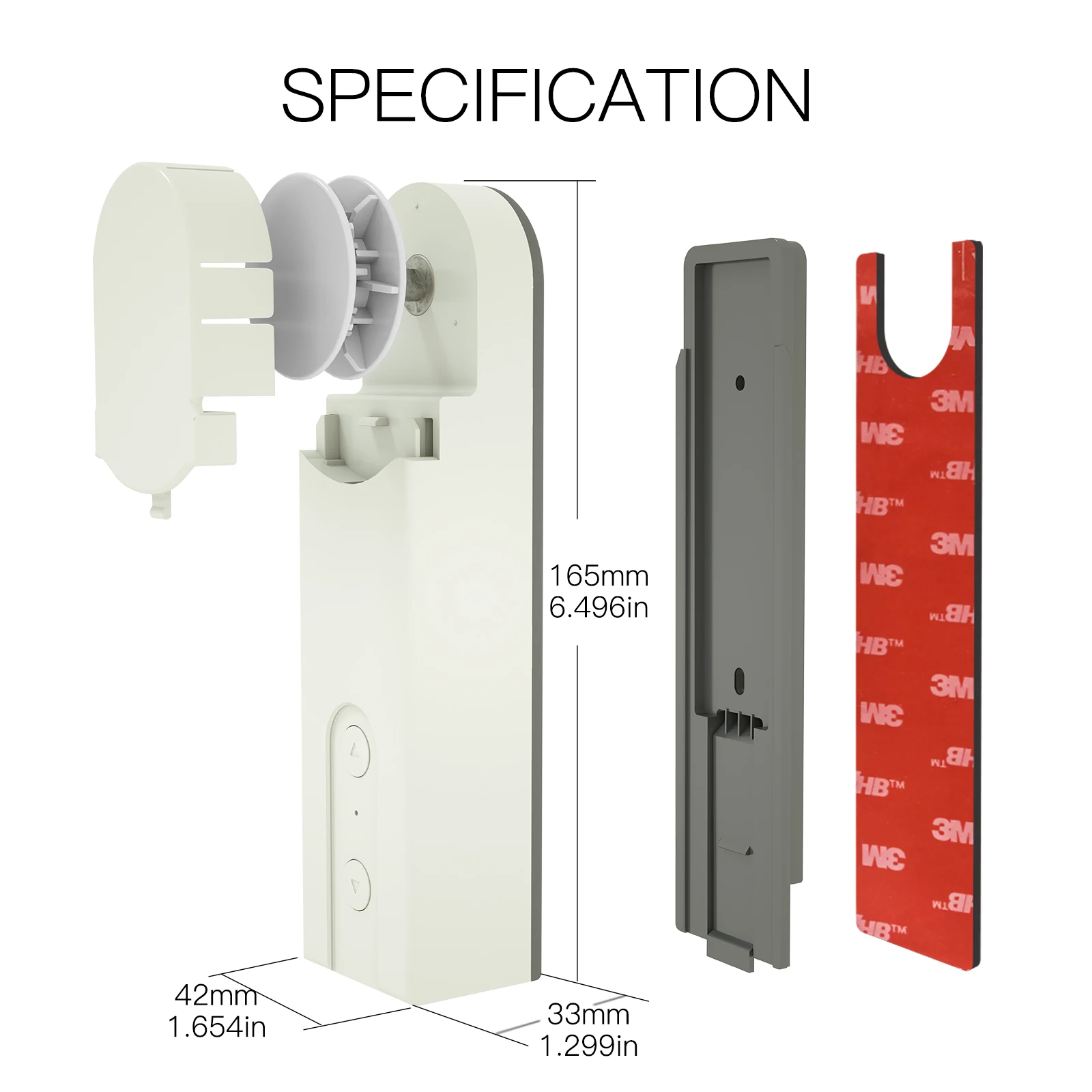

Умный двигатель для штор Tuya с Wi-Fi, Натяжной шнур для занавесок, привод для рулонного затвора «сделай сам» с дистанционным управлением
25,20 $ - 33,65 $

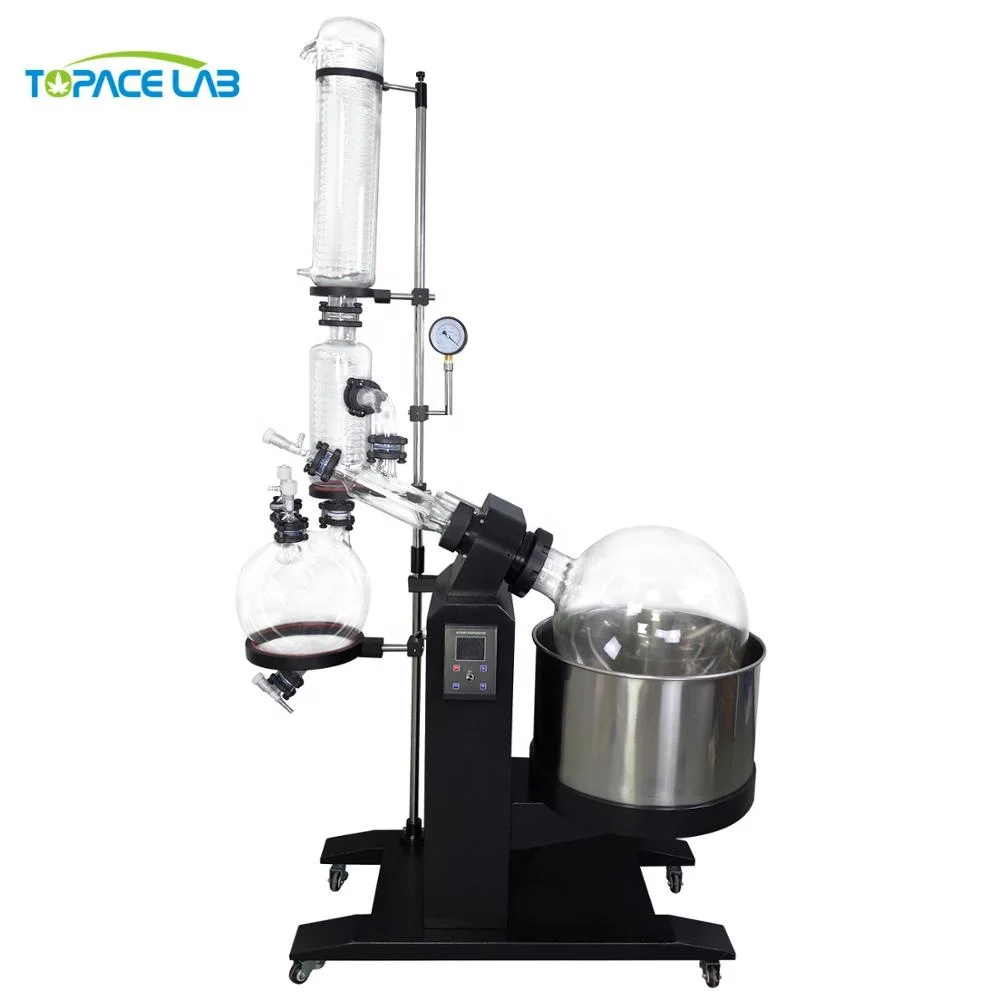

Topacelab, заводская цена, Электрический подъемный вакуумный роторный испаритель 2L-50L для лаборатории по лучшей цене
3 900,00 $ - 4 000,00 $

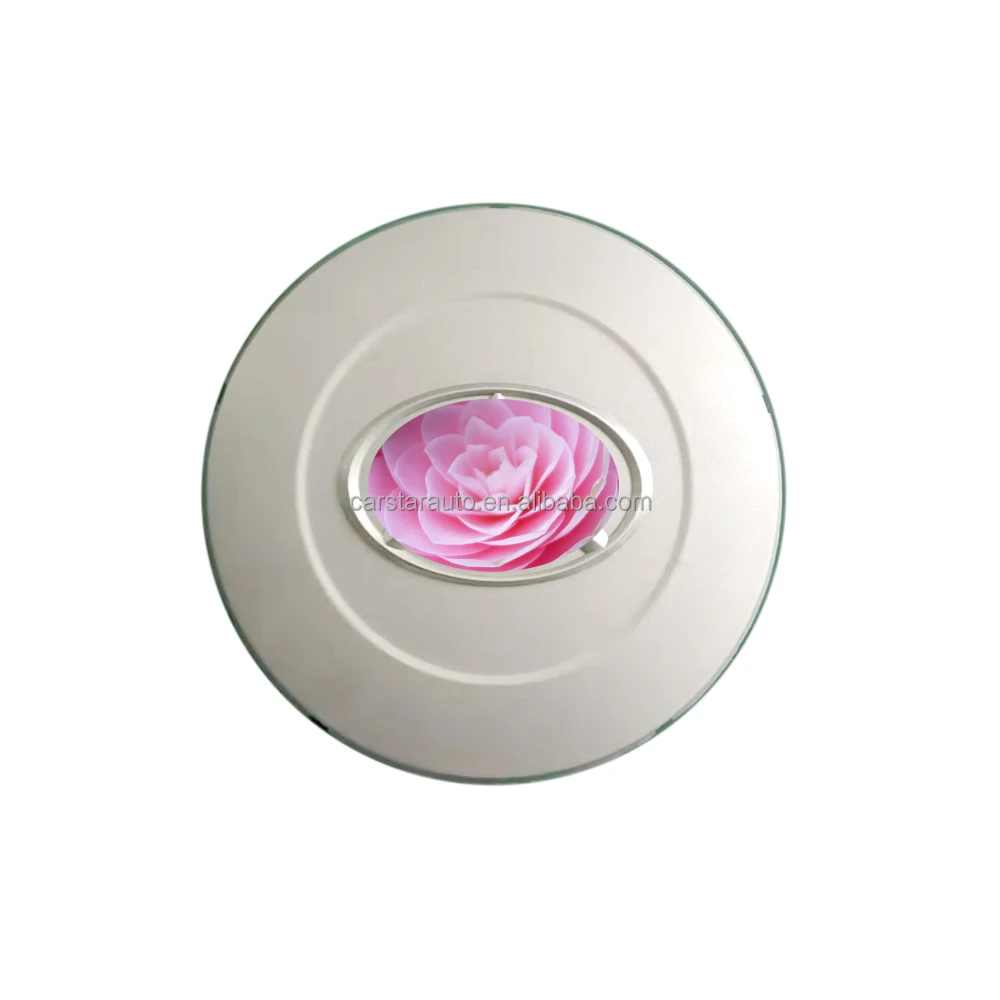

Автозапчасти, детали кузова автомобиля, Центральная крышка колеса, колпачок колеса для sain MAXUS V80 C00000116
2,29 $ - 3,99 $

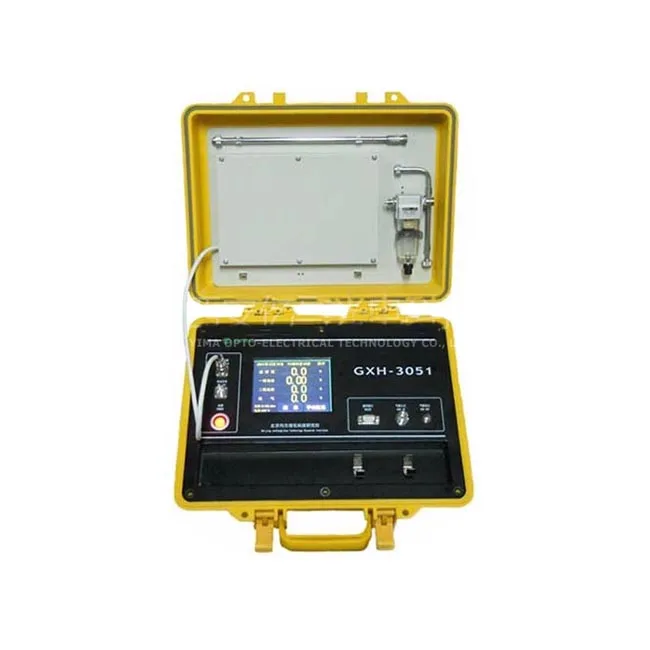

JFQ-3150E портативный анализатор биогаза (5

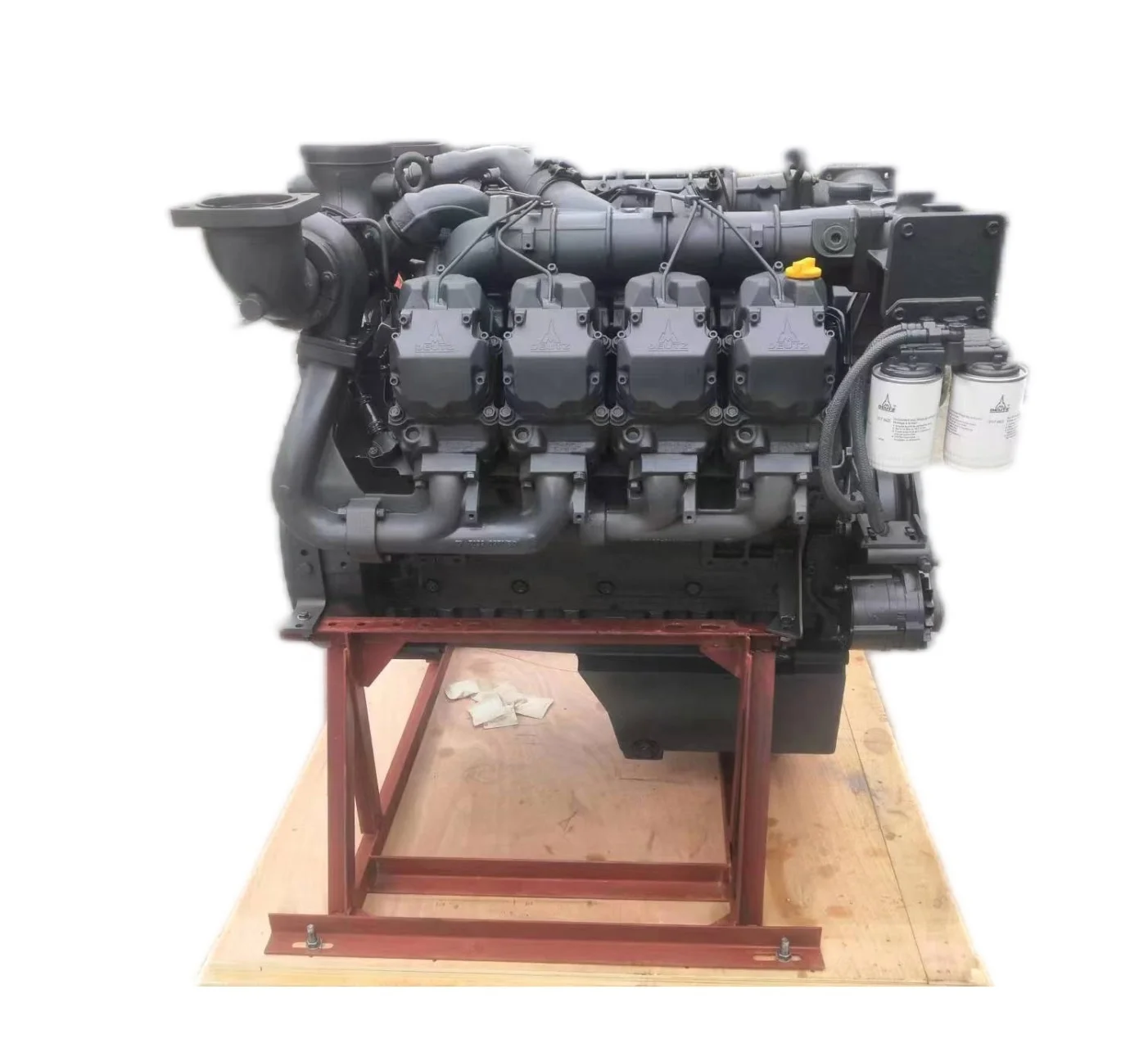

Дизельный двигатель DEUTZ BF8M1015CP-LA G2 G2B G3 G3B G4 G5 для наземного генератора
