Автоматическая сварочная машина с двойной проволочной сеткой автоматическая для сварки
- Категория: >>>
- Поставщик: Guangdong Hwashi Technology Inc.
Сохранить в закладки 1600974172393:
Описание и отзывы
Характеристики
Product Description
Automatic double wire mesh welding machine, automatic weld a machine for welding double cross wire mesh
Refrigerator Wire Shelf Production Line Machine Steel Wire Mesh Spot Welding Machine is H-type wire mesh multi-head automatic welding machine. It adopts ten electrodes and equips with automatic feeding system. The wire will be dropped to the fixture automatically to achieve full automatic loading. After that it will automatically execute the feeding and welding. Its one-way and double-layer feeding device can move forward and back automatically to finish the welding and the welding distance can be set at random .It is suitable for the batch production of wire mesh with multiple-points welding.
The welding manner is one-way double-layer automatic stepping feeding with 10 welding heads. The effective welding width is 1200mm while the effective welding length is 1000mm. This machine is composed of main machine body, welding transformer, pneumatic drive device, upper and lower electrodes, automatic wire filling device, electrical control system, cooling system, and PLC operation control system.
The welding manner is one-way double-layer automatic stepping feeding with 10 welding heads. The effective welding width is 1200mm while the effective welding length is 1000mm. This machine is composed of main machine body, welding transformer, pneumatic drive device, upper and lower electrodes, automatic wire filling device, electrical control system, cooling system, and PLC operation control system.
Functions Options
1. Power Supply:Type: Three-phase MF DC power supply system OR two-phase AC power supply system Quantity: One set of power supply system OR two sets of power supply system (double efficiency)
2. Feeder: Double-layer automatic feeder (cycle working, accurate stepping position via servo motor) OR manual feeder
3. Unloading Device: Automatic unloading device OR manual unloading device
4. Automatic Bending device
5. Automatic Straightening and Cutting Machine
We can customize the machine according to your requirement, if you need more detailed information about the above functions, please contact us.
Detailed Description
1.This Gantry Row welding machine is specialized in fast production of wire mesh. It is suitable for the product with more y wire and less x wire
2.The welding power source is three-phase. The welding manner is one-way double-layer automatic stepping feeding with 12 welding heads. (adjustable according to your product)
3.The effective welding width is 1200mm while the effective welding length is 3000mm. (adjustable according to your product)
2. Feeder: Double-layer automatic feeder (cycle working, accurate stepping position via servo motor) OR manual feeder
3. Unloading Device: Automatic unloading device OR manual unloading device
4. Automatic Bending device
5. Automatic Straightening and Cutting Machine
We can customize the machine according to your requirement, if you need more detailed information about the above functions, please contact us.
Detailed Description
1.This Gantry Row welding machine is specialized in fast production of wire mesh. It is suitable for the product with more y wire and less x wire
2.The welding power source is three-phase. The welding manner is one-way double-layer automatic stepping feeding with 12 welding heads. (adjustable according to your product)
3.The effective welding width is 1200mm while the effective welding length is 3000mm. (adjustable according to your product)
Intelligent welding control system
Automatic welding by inputting coordinate data of welding position, welding current and other data.
Welding Heads and Fixtures
Processing and design according to the drawings of each wire shelf product. (customized)
Automatic Wire Filling System
You can put the precut straight wires into the hopper, then the wire filling machine will do the wire filling into the fixture automatically. It helps to increase the working efficiency and reduce labor force.
Automatic Double-layer Feeder
When one fixture is under welding process, the wire filling system will load the wires onto the other fixture at the same time. When finish welding, the feeder will automatically exchange the fixture. So the efficiency can be increased.
Input Power | 380v+10%/50HZ |
Rated Power | 100KVA*2 |
Welding Power Source | 1.AC Pules power /2.MF DC Power |
Max. Secondary Short Circuit Currente | 32kva |
Maximun Wiring Speed | 200m/s |
Effective Welding Lenght | 3000mm(Customized) |
Effective Welding Width | 1000mm/1200mm1400mm (Customized) |
Welding Head | 6 Sets/8 Sets/10 Sets (Customized) |
Moving Control | Manual Drive/Automatic |
The Rated Pressure | 0.5Mpa |
Other Related Machines
Model 1
Manual Wire Mesh Welding Machine
1. Manual wire loading and welding machine;
2. The number of electrode could be customized according to your requirement.
3. Low in price
4. Suitable for welding small wire mesh
5. Low efficiency
6. Suitable for 100mm-500mm wire mesh
Manual Wire Mesh Welding Machine
1. Manual wire loading and welding machine;
2. The number of electrode could be customized according to your requirement.
3. Low in price
4. Suitable for welding small wire mesh
5. Low efficiency
6. Suitable for 100mm-500mm wire mesh
Model 2
Wire Mesh X,Y Axis Automatic Moving And Welding Machine
1. Single Welding Electrode;
2. Manual wire loading;
3. X, Y axis automatic feeder and automatic welding
4. Low cost
5. Simple structure and easy assembly
6. Change fixtures for welding different sizes of wire mesh
7. Suitable for wire mesh within 1mx1m
Wire Mesh X,Y Axis Automatic Moving And Welding Machine
1. Single Welding Electrode;
2. Manual wire loading;
3. X, Y axis automatic feeder and automatic welding
4. Low cost
5. Simple structure and easy assembly
6. Change fixtures for welding different sizes of wire mesh
7. Suitable for wire mesh within 1mx1m
Model 3
Automatic Wire Mesh Cantilever Type Welding Machine
1. Multiple welding electrodes;
2. Manual wire loading;
3. Automatic feeder and automatic welding
4. Single power supply system
5. Only one electrode can work at one time and take turns.
6. Doublelayer feeder, worker can do continuous loading of wires to keep the machine cycle working;
7. Suitable for wire mesh whose width is within 1000mm, length is not restricted.
Automatic Wire Mesh Cantilever Type Welding Machine
1. Multiple welding electrodes;
2. Manual wire loading;
3. Automatic feeder and automatic welding
4. Single power supply system
5. Only one electrode can work at one time and take turns.
6. Doublelayer feeder, worker can do continuous loading of wires to keep the machine cycle working;
7. Suitable for wire mesh whose width is within 1000mm, length is not restricted.
Model 4
Automatic Wire Mesh Welding Machine With Double-Layer Feeder
1. Multiple welding electrodes;
2. Manual wire loading;
3. Automatic feeder and automatic welding
4. Double power supply system
5. Two electrodes can work at one time and take turns.
6. Doublelayer feeder, worker can do continuous loading of wires to keep the machine cycle working.
7. High efficiency ,High cost
8. Suitable for wire mesh whose width is within 2000mm, length is not restricted.
Automatic Wire Mesh Welding Machine With Double-Layer Feeder
1. Multiple welding electrodes;
2. Manual wire loading;
3. Automatic feeder and automatic welding
4. Double power supply system
5. Two electrodes can work at one time and take turns.
6. Doublelayer feeder, worker can do continuous loading of wires to keep the machine cycle working.
7. High efficiency ,High cost
8. Suitable for wire mesh whose width is within 2000mm, length is not restricted.
Model 5
Wire Mesh Automatic Welding Machine with automatic wire filling system
1. Multiple welding electrodes;
2. Automatic wire loading system;
3. Automatic feeder and automatic welding
4. Double power supply system
5. Two electrodes can work at one time and take turns.
6. Save labor force ,High automation level
7. Cycle working
Wire Mesh Automatic Welding Machine with automatic wire filling system
1. Multiple welding electrodes;
2. Automatic wire loading system;
3. Automatic feeder and automatic welding
4. Double power supply system
5. Two electrodes can work at one time and take turns.
6. Save labor force ,High automation level
7. Cycle working
Model 6
Wire Mesh Automatic Welding Machine with automatic wire dropping system and wire bending system
1. Multiple welding electrodes;
2. Automatic wire loading system;
3. Automatic feeder and automatic welding and automatic bending.
4. Double power supply system
5. Two electrodes can work at one time and take turns.
6. Save labor force ,High automation level
7. Cycle working .
Wire Mesh Automatic Welding Machine with automatic wire dropping system and wire bending system
1. Multiple welding electrodes;
2. Automatic wire loading system;
3. Automatic feeder and automatic welding and automatic bending.
4. Double power supply system
5. Two electrodes can work at one time and take turns.
6. Save labor force ,High automation level
7. Cycle working .
Production line supporting machine
Wire Flattening and Cutting Machine
This machine is able to process the round wire into flat wire. It will automatically feed the round wire and cut it into required length.
Normally you will need to prepare the 8mm wire coil, and make it into 12x3mm flat wire strip.
Normally you will need to prepare the 8mm wire coil, and make it into 12x3mm flat wire strip.
Wire Frame Bending Machine
This machine helps to bend the flat or round wires into square shape wire frame. It is able to bend multiple wires at the same time so as to increase production rate.
Wire Frame Double T-Butt Machine
This machine is used to weld the cross bars of the wire shelf to the wire frame. The double head design helps to increase the production rate. Easy Operation. We can also design the automatic moving and welding application.
2D Wire Handle Bending Machine
This machine is used to bend the wire handle. It is suitable for 2-6mm wire bending. And you can bend any shape of the wire without changing mould.

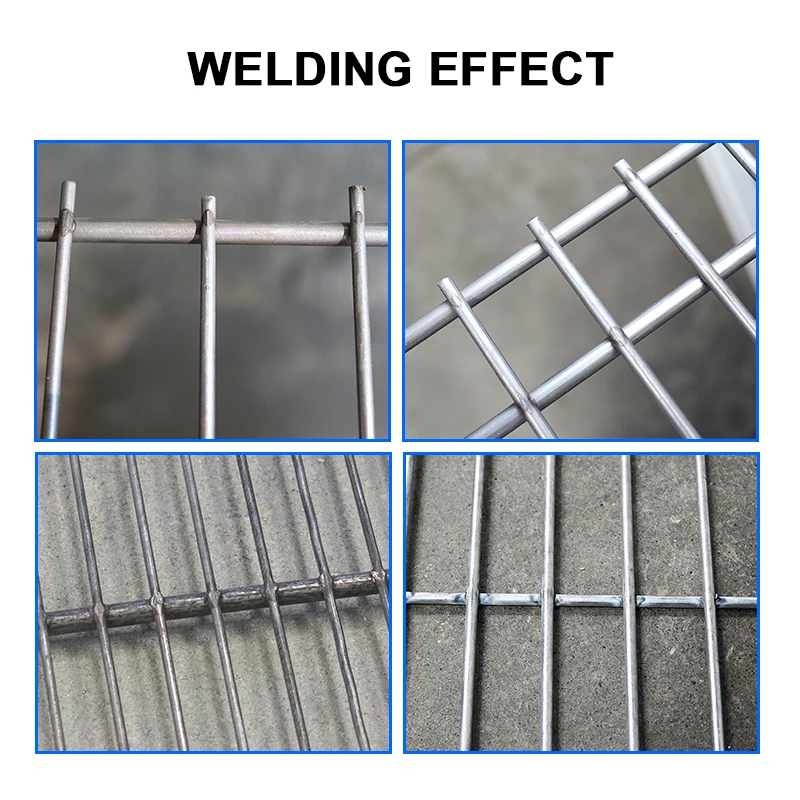

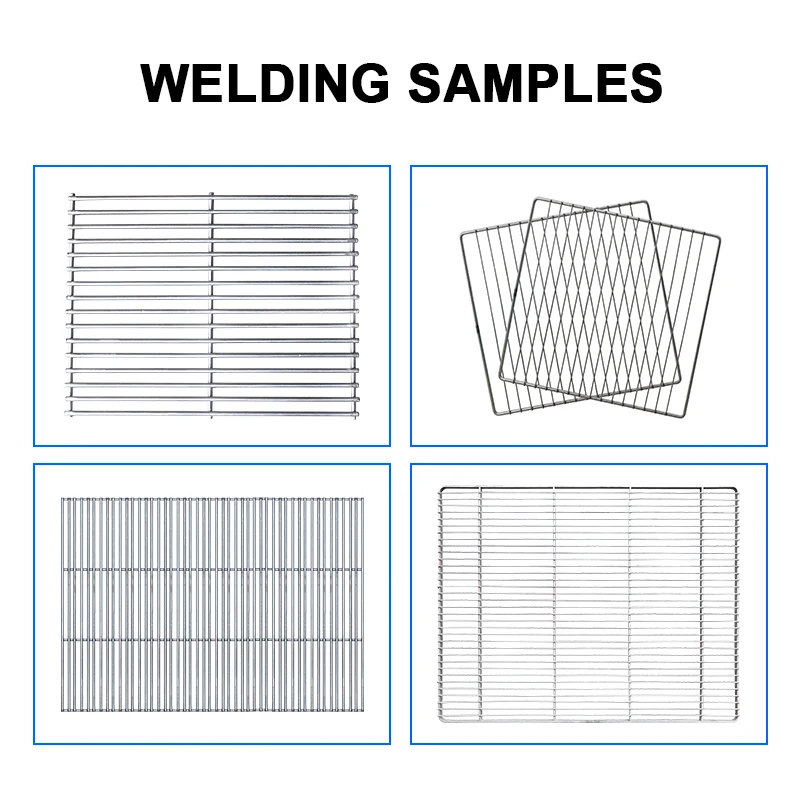

Application and samples
We can provide customized service for you. Our engineers will discuss the specific welding requirement with you and come out withthe suitable technical proposal based on your samples or drawings.
Factory & Certificate
HWASHI 22 years+ experience welding solutions expert
Guangdong Hwashi Technology Inc. which was established in 2001, is located in Huizhou, Guangdong province in China. We are the high-tech enterprise which is specialized in developing, manufacturing, and selling of resistance welding machine, automatic welding machine and industrial robot station. We have total two manufacturing plants covering an area about 60000 square meters.There are about 200 staffs in Hwashi, and among which there are more than 20 mechanical and electrical engineers. Most of our engineers got more than 10 years experience in welding industry. Until now, we got more than 70 patents regarding the welding machine projects. Our machines have been exported to more than 70 counrties in the world. And we have local distributor in Russia, Turkey, Romania, Saudi Arabia, Malaysia, Indonesia, India, and USA, etc. who will provide you professional pre-sales and after-sales service in local.
Certifications
We have passed the international certifications such as CE certification, ISO 9001 quality management system certification, Alibaba enterprise certification and design patents.
After-sales service & Customer visiting
1.spot welding machine 1 years warranty except consumable parts
2.Plenty of technical support online is available
3.Quick Back-up Parts Available&Technical Assistance
4."Training Video","Instruction Book",and"Operation Manual"will be offered
2.Plenty of technical support online is available
3.Quick Back-up Parts Available&Technical Assistance
4."Training Video","Instruction Book",and"Operation Manual"will be offered
Packing & Delivery
Acceptable Delivery Terms
EXW, FOB, C&F, CIF, DDU, DDP
Quality Control
Strictly control all aspects of incoming materials, processing, assembly, commissioning, testing, packaging and shipping to ensure the performance and quality of welding products.
Professional Package
1. Whole film packaging machine;
2. Anti-collision package edge;
3. Wooden box and pallets with iron binding belt.
EXW, FOB, C&F, CIF, DDU, DDP
Quality Control
Strictly control all aspects of incoming materials, processing, assembly, commissioning, testing, packaging and shipping to ensure the performance and quality of welding products.
Professional Package
1. Whole film packaging machine;
2. Anti-collision package edge;
3. Wooden box and pallets with iron binding belt.
Service Team& feedback
Professional Team
Over the years, Hwashi has cultivated a large number of talented, dedicated and innovative Hwashi people. We have a professional team of experts with rich experience in electrical engineering, mechanical design and welding technology.
Since its establishment 22 years ago, hwashi technology has traveled to all corners of the world, participated in more than 100 exhibitions and served more than 8,000 customers
FAQ
Q1: What is the price of your machine?
Answer: our machines are customized for your requirements. If you want to get the appropriate price, please provide us the following information.
Answer: our machines are customized for your requirements. If you want to get the appropriate price, please provide us the following information.
* The material and thickness of your product
* The minimum and maximum size of your product
* The welding position of your products
* The automation level that you want to achieve
* It would be better if you can provide us the detailed product drawings so our engineer can come out with the suitable
technical proposal and price for you.
Q2: What is the warranty period of your machine?
Answer: our standard warranty period is one year after shipment. If you want to extend the warranty period, there will be extra cost.
Q3: What if my machine damaged doing the warranty period?
Answer: firstly, our engineer will help you to diagnose the problem via online guidance. if any parts damaged during the warranty period, we will send the parts to you for replacement free of charge. If you can not fix he problem by replacement of the new parts, we will send engineer to your factory to help fixing the machine.
Q4: What is the delivery time of your machine?
Answer: it depends on the complexity of your machine. Most of our standard machine we got in stock, then we can shape the machine with the seven days after receiving your payment. If you need the Customized machine, normally it would take about 30-90 days to complete the machine.
Q5: Can we send the sample to you for welding test?
Answer: yes. You can send us the samples for welding test and we will send you the pictures and videos after the testing. If you need, we can also send the samples back to your country so you can check the welding quality by yourself before ordering the machine.
Q6: Can you provide us the machine drawings and technical proposal?
Answer: yes. After receiving your detailed requirement and product drawings, our engineer will come out with the suitable
technical proposal with the basic machine concept drawings to you. Be size after you placing the order we will send you the more detailed design drawings of the machine to you for confirmation. Only after you confirming the drawings then we will start the manufacturing process.
Q7: What’s your payment terms?
Answer: we can accept the following payment terms: T/T, L/C, Western Union, Alibaba trade assurance. (we prefer you to choose the Alibaba trade assurance order. If you are not satisfied with the machine that you order, or we delay the shipping time, then you can apply the complaint on alibaba.com. )
Q8: How can we install the machine?
Answer: for some simple machines we will provide you the english operation manual, the operation video and also we will provide you the online guidance and training to your engineer so you can set up the machine easily. For some complicated machines, we will send engineer to your country to help installation and training. But there will be extra cost for Engineer, including the salary,visa cost, round-trip ticket cost, and accommodation fee will be covered by the buyer.
* The minimum and maximum size of your product
* The welding position of your products
* The automation level that you want to achieve
* It would be better if you can provide us the detailed product drawings so our engineer can come out with the suitable
technical proposal and price for you.
Q2: What is the warranty period of your machine?
Answer: our standard warranty period is one year after shipment. If you want to extend the warranty period, there will be extra cost.
Q3: What if my machine damaged doing the warranty period?
Answer: firstly, our engineer will help you to diagnose the problem via online guidance. if any parts damaged during the warranty period, we will send the parts to you for replacement free of charge. If you can not fix he problem by replacement of the new parts, we will send engineer to your factory to help fixing the machine.
Q4: What is the delivery time of your machine?
Answer: it depends on the complexity of your machine. Most of our standard machine we got in stock, then we can shape the machine with the seven days after receiving your payment. If you need the Customized machine, normally it would take about 30-90 days to complete the machine.
Q5: Can we send the sample to you for welding test?
Answer: yes. You can send us the samples for welding test and we will send you the pictures and videos after the testing. If you need, we can also send the samples back to your country so you can check the welding quality by yourself before ordering the machine.
Q6: Can you provide us the machine drawings and technical proposal?
Answer: yes. After receiving your detailed requirement and product drawings, our engineer will come out with the suitable
technical proposal with the basic machine concept drawings to you. Be size after you placing the order we will send you the more detailed design drawings of the machine to you for confirmation. Only after you confirming the drawings then we will start the manufacturing process.
Q7: What’s your payment terms?
Answer: we can accept the following payment terms: T/T, L/C, Western Union, Alibaba trade assurance. (we prefer you to choose the Alibaba trade assurance order. If you are not satisfied with the machine that you order, or we delay the shipping time, then you can apply the complaint on alibaba.com. )
Q8: How can we install the machine?
Answer: for some simple machines we will provide you the english operation manual, the operation video and also we will provide you the online guidance and training to your engineer so you can set up the machine easily. For some complicated machines, we will send engineer to your country to help installation and training. But there will be extra cost for Engineer, including the salary,visa cost, round-trip ticket cost, and accommodation fee will be covered by the buyer.
Похожие товары
DN серии AC пневматический проекционный сверхмощный точечный сварочный аппарат многоточечный проволочный
110 208,40 ₽ - 275 521,00 ₽
Проекции точечной сварки гайка сварочный аппарат
Холодная сварочная машина установленная на тележке для легкой сварки медной/алюминиевой проволоки и полосы
39 564,82 ₽ - 53 891,91 ₽
Ультразвуковая машина для склеивания шариков из золотой проволоки низкомощный чип-аккумулятор полупроводниковый внутренний свинцовый шаровой шарик
771 348,60 ₽
Машина точечной сварки для электронных эмалированных полупроводниковых устройств ультразвуковая ручная проволочная машина склеивания проводов
539 910,96 ₽ - 550 931,80 ₽
Ультразвуковая паяльная машина с золотым шариком низкомощные лазерные устройства и другая полупроводниковая внутренняя свинцовая сварка
771 348,60 ₽
Ультразвуковая паяльная машина с золотым шариком низкомощные лазерные устройства и другая полупроводниковая внутренняя свинцовая сварка
771 348,60 ₽
Новые поступления
Новинки товаров от производителей по оптовым ценам
Hantek щупы осциллографа автоматический Тестовый Кабель Ht30a Bnc к банану двойная Банановая головка многоцелевое автомобильное
3,10-3,44 $
Горячая распродажа ручная работа традиционная деревянная урна для домашних животных квадратная коробка золы собак и кошек персонализированная Лучшая цена
Промышленная серия CL Бесшумная цепь стальная зубчатая Фланцевая контактная звездочка соединяющая бесшумные цепи
1-1,50 $
Irdmco экологически чистый минималистичный прямоугольный деревянный ящик для хранения стеллаж поделок и детских игрушек Домашняя мебель гостиной
Технология сенсорных перчаток и аксессуары для детей от дождя холода M725132-334
1,07-1,40 $
GY6 6 Pin AC гоночный CDI для CG125 CG250 двигателя Dirt Pit Bike ATV Quad
Парик из синтетического волокна для косплея
9,85-12,66 $
Прямая Продажа с фабрики 65 см Модернизированный подвесный стерео голографический проектор светодиодный вентилятор высокой четкости экран 3D дисплей
155-185 $
