Самобогревающий битументранспортный бак битумный прицеп
- Категория: >>>
- Поставщик: Dezhou Feiteng Road Construction Equipment Co. Ltd.
Сохранить в закладки 1600974751625:
Описание и отзывы
Характеристики
Product Description

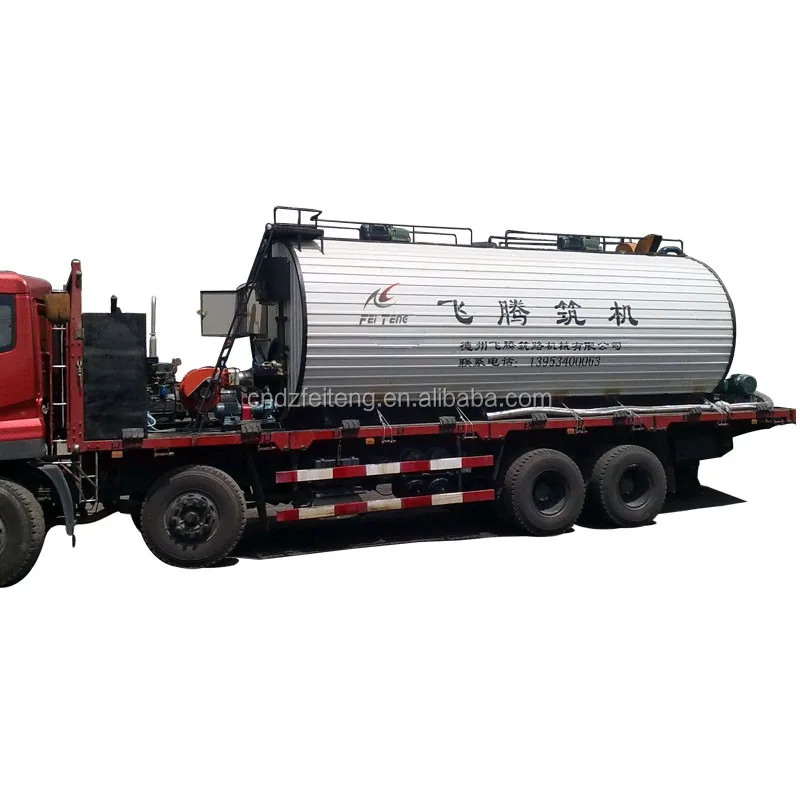

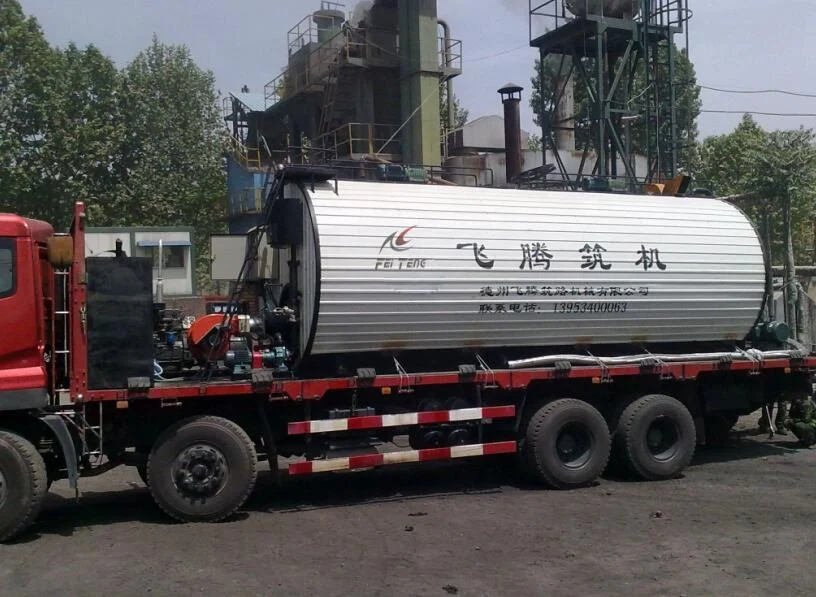

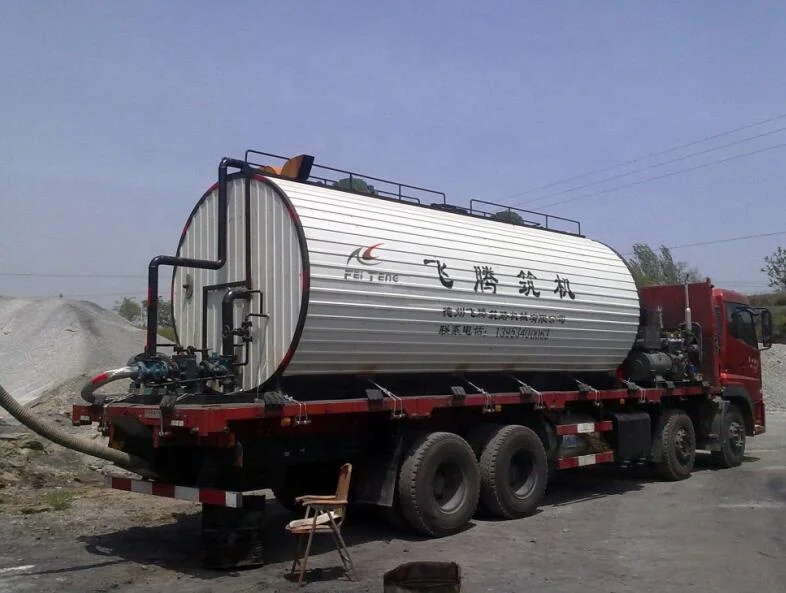

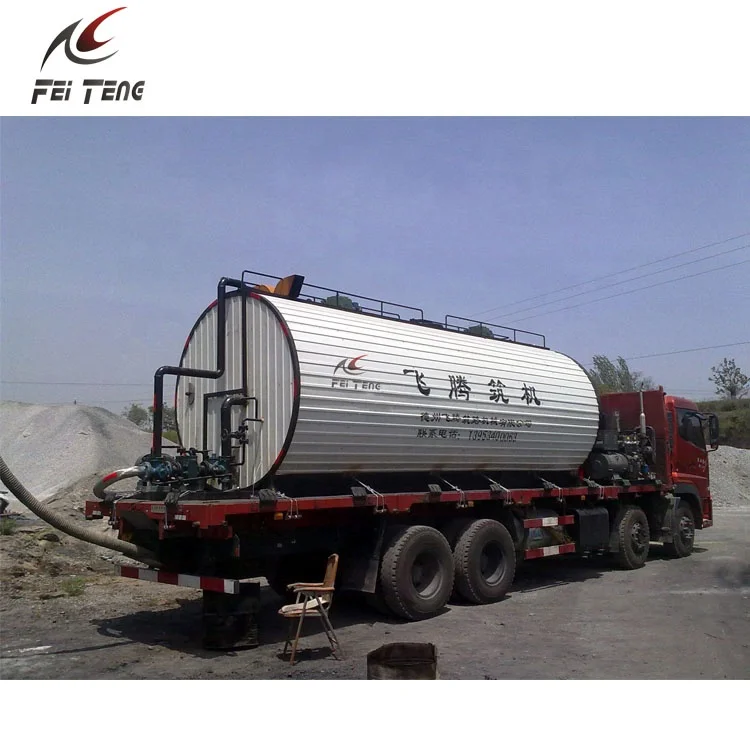

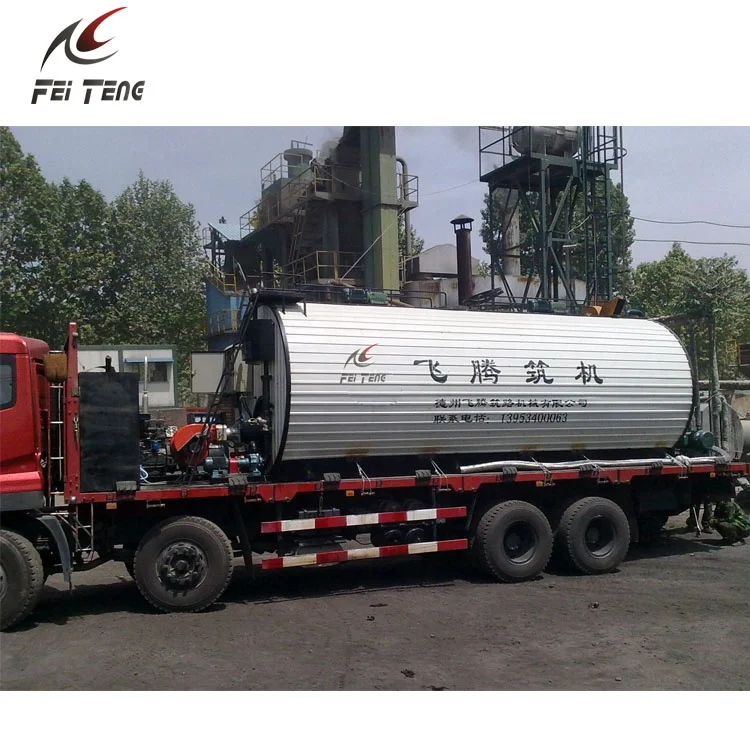

Bitumen Transportation Tank Bitumen Tanker Trailer Asphalt Heating Tank
This product is designed for asphalt distributor and gravel spreading vehicles sync sealer away from the asphalt plant during the construction, due to their own small asphalt loading capacity, frequent round trip to asphalt plant and delaying the construction process.
Strong heating ability (can be heated in transit), automatic temperature control.
Features
Equipped with diesel burner and temperature controller, the temperature controller shut down the burner when the asphalt temperature reaches set temperature, and will restart the burner when the asphalt temperature drops.
Our storage tanks have serpentine heating coils, liquid asphalt in the tank is indirectly heated by hot thermal oil flowing through the coils.
The exhaust pipes are also serpentine in the tanks to be used to heat up the asphalt, which saves the fuel.
A manway is located in the top of each compartment. An access ladder is provided on the outside of the tank and inside each compartment. Each compartment also has a combination vent and overflow pipe.
An valve in the bottom of each compartment allows the tank to be completely drained.
All our tanks are covered with fiberglass insulation, temperature drop is no more than 10% of the atmospheric temperature changes in 24 hours.
The tanks are provided with bitumen pumps and unloading pocket so it can be easy used either loading your equipment or being recharged by a transport container.
Product Paramenters
Item | Parameter |
Heating | Diesel burner, heat transfer oil |
Heating rate | 20 ℃/hour |
Oil consumption per ton bitumen | 2-4 kg, continuous working |
Highest bitumen temperature | 200 ℃ |
Total volume | 4 cbm |
Dimensions | diameter 2.2*5.9 m, horizontal cylinder |
Landing leg | Longitudinal entire |
Bitumen pump flow rate | 25 cbm/h |
Total power | ≈5 kw |
Power requirements | 380 V 50 Hz AC power |
Heat transfer oil working temperature | 180-240 ℃ |
Heat transfer oil pump flow rate | 10 cbm/h |
Bitumen temperature control | Automatic temperature control |
Heat transfer oil temperature control | Automatic temperature control |
Detailed Images
Recommend Products
Manufacturing Technique
Company Profile
Our Advantages
FAQ
Q: Are you Factory or trading company ?
A: We are Factory with 15 years of production experience.
Q: What's your advantages?
A: More than 15 years experience, professional design, fast delivery and quick response.
Q: How's about the payment terms?
A: We usually accept T/T, LC. T/T: 30% in advance as down payment, the balance before delivery.
Q: How's about the trade terms?
A: EXW, FOB, CFR and CIF are acceptable.
Q: How about the delivery time?
A: Usually we need about 20 days production time after down pay.
Q: How about after-sale service?
A: Our products' quality warranty is one year after delivery, we can provide online support, also can send out our engineers to your place if you want.
Q: What should I do for the quality problems?
A: If you meet quality problems please send to me the products photo first ,our after service department will deal with for you.
A: We are Factory with 15 years of production experience.
Q: What's your advantages?
A: More than 15 years experience, professional design, fast delivery and quick response.
Q: How's about the payment terms?
A: We usually accept T/T, LC. T/T: 30% in advance as down payment, the balance before delivery.
Q: How's about the trade terms?
A: EXW, FOB, CFR and CIF are acceptable.
Q: How about the delivery time?
A: Usually we need about 20 days production time after down pay.
Q: How about after-sale service?
A: Our products' quality warranty is one year after delivery, we can provide online support, also can send out our engineers to your place if you want.
Q: What should I do for the quality problems?
A: If you meet quality problems please send to me the products photo first ,our after service department will deal with for you.
