G202 4G GSM контроллер доступа Открыватель ворот автоматический раздвижных дверей Дистанционный переключатель реле (Замените RTU5024)
- Категория: >>>
- Поставщик: Shenzhen Fengdu Technology Co. Ltd.
Сохранить в закладки 1600975703768:
Описание и отзывы
Характеристики
Specification
Warranty | 1 Year |
After-sale Service | Online technical support |
Project Solution Capability | Others |
Application | Outdoor or gate door |
Design Style | Modern |
Place of Origin | Shenzhen |
Brand Name | Fengdu |
Model Number | G202 4G |
Product name | GSM 4G Remote Controller G202 |
Rated Voltage | DC 9V~36V/1A |
Working temperature | -10℃~+60℃ |
Storage temperature | -20℃~+60℃ |
Relative humidity | 0-90%, No condensati |
Wired Switch | Supports |
Antenna | 50 Ω SMA |
SIM Card | Nano type, 3V |
Current | 12V20ma |
Security Mode | Fail Safe with Signal |
Description
Note: this device can not work in USA Canada , Can Used in Australia ,NZ,CO,Europe,Asia .please note .

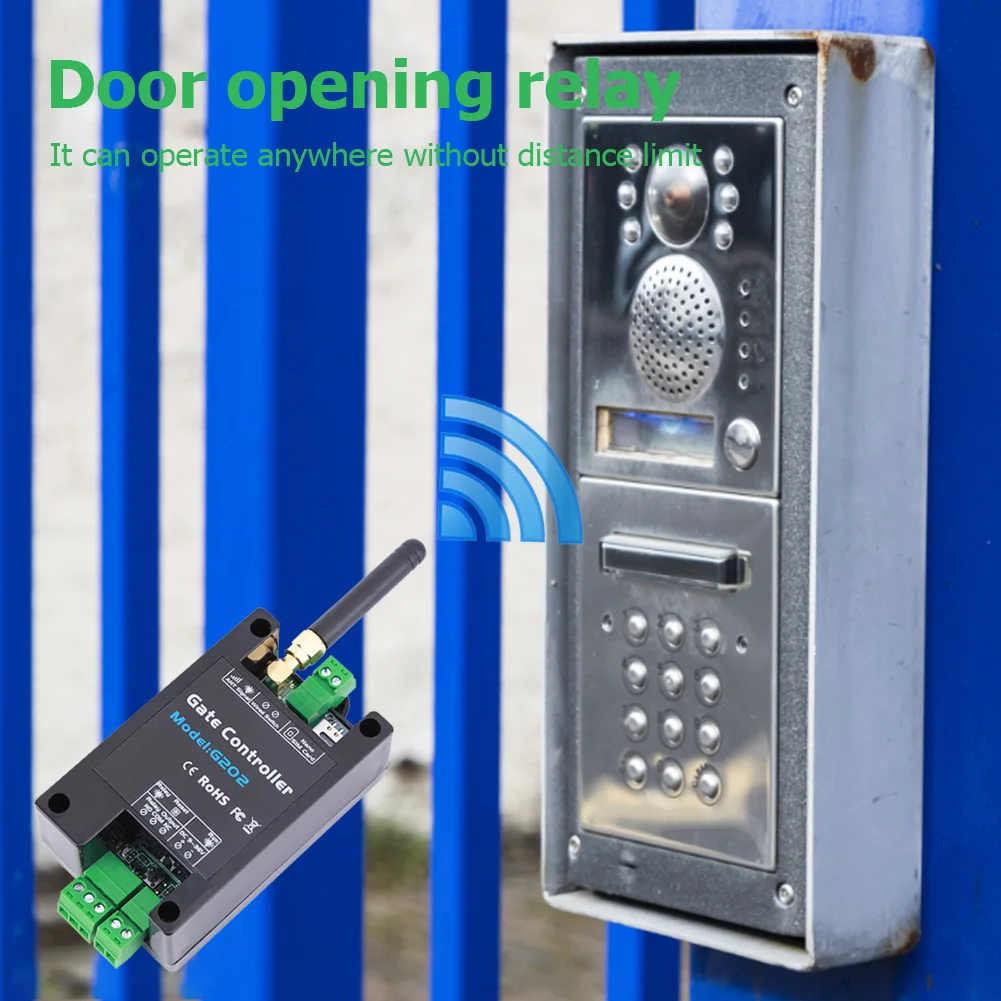

The GSM/4G Gate Opener G202 is a very simple device which can be used for authorized door access, controlling gates, switching of
remote equipment, car parking systems. Actually the GSM/4G Gate Opener G202 can be used in places which requires turning ON/OFF your system, machines, equipment remotely with a FREE call from your mobile phone and protect your assets.
Just dial from Authorized User number then the Barrier and doors are opened, or the machine are turn on or off by the GSM/4G Gate Opener. There are no call costs, the GSM/4G Gate Opener rejects the call from authorized number then carries out the turn ON/OFF action.
The GSM/4G Gate Opener G202 is a very simple device which can be used for authorized door access, controlling gates, switching of
remote equipment, car parking systems. Actually the GSM/4G Gate Opener G202 can be used in places which requires turning ON/OFF your system, machines, equipment remotely with a FREE call from your mobile phone and protect your assets.
Just dial from Authorized User number then the Barrier and doors are opened, or the machine are turn on or off by the GSM/4G Gate Opener. There are no call costs, the GSM/4G Gate Opener rejects the call from authorized number then carries out the turn ON/OFF action.
Technical specifications:
Work frequency:
2G: GSM: 850/900/1800/1900MHz
4G:
4G-C:GSM/4G:900/1800, LTE-FDD B1/B3/B5/B8 LTE-TDD:B34/B38/B39/B40/B41
4G-E:GSM/4G:900/1800,LTE-FDD B1/B3/B5/B7/B8/B20
4G-SA:GSM/4G: 850/900/1800/1900MHz LTE-FDD B1/B3/B5/B7/B8/B28/B66
Communication protocol: GSM/4G PHASE 2/2+ (include data service)
2G: GSM: 850/900/1800/1900MHz
4G:
4G-C:GSM/4G:900/1800, LTE-FDD B1/B3/B5/B8 LTE-TDD:B34/B38/B39/B40/B41
4G-E:GSM/4G:900/1800,LTE-FDD B1/B3/B5/B7/B8/B20
4G-SA:GSM/4G: 850/900/1800/1900MHz LTE-FDD B1/B3/B5/B7/B8/B28/B66
Communication protocol: GSM/4G PHASE 2/2+ (include data service)
Related Voltage of the Output Relay: 3A/240V AC
Wired Switch: Supports
Attention: This device only support 2G/4G, 4G is compatible with 2G ，but don't support 3G.
Features
1.No call charges. The GSM/4G Gate Opener rejects the call from authorized number, then the relay will turn
ON/OFF on the first ring;
2.It is no longer traditional to open the door, but it is more interesting to shake the mobile phone to unlock the door.
3.Multiple applications. (gates, bollards, barriers, garage doors, shutters and access doors or machines);
4.Secure - Using caller ID for identification, unknown callers are ignored;
5.Can be operated from anywhere, no distance limit;
6.Add or remove users by SMS Text command;
7.No need to provide a remote control for different users;
8.Up to 200 authorized phone numbers can be configured;

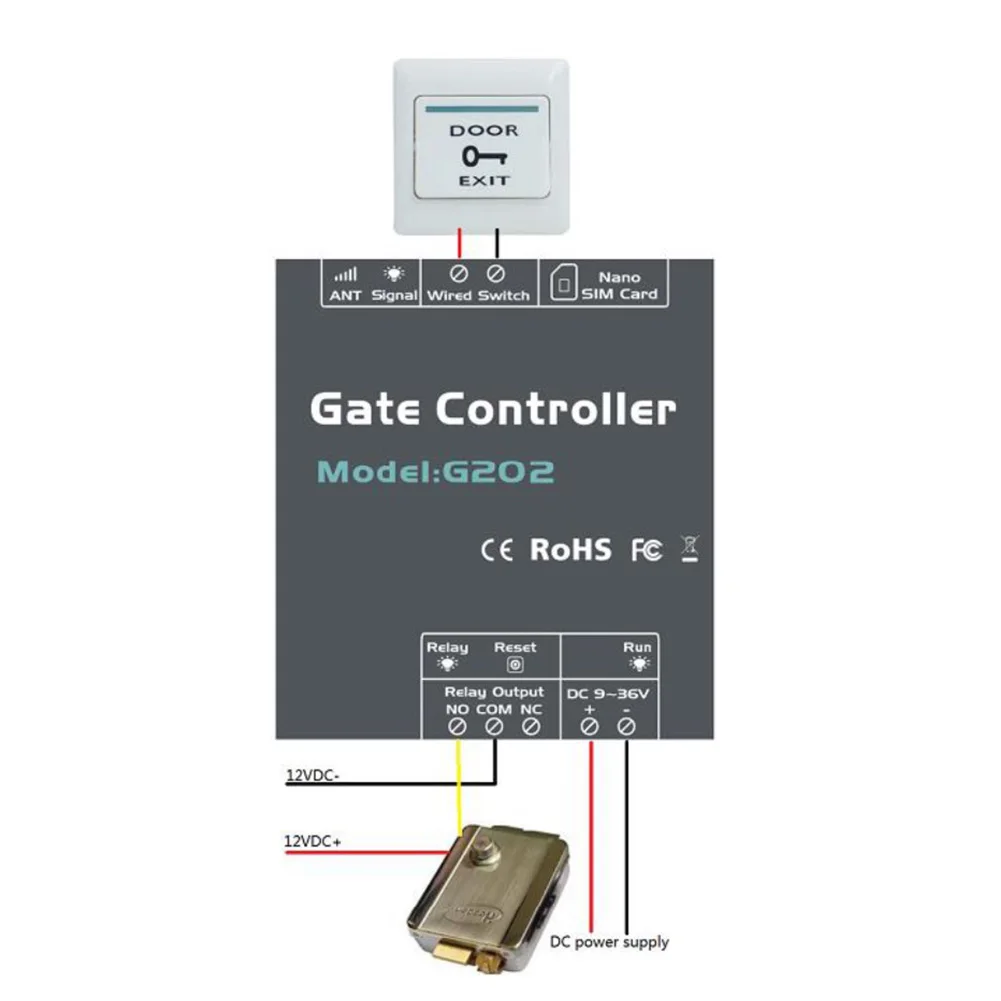

9.One output with relay （3A/240VAC）for connecting the switch of the door or machines;
10.The relay action will return a SMS confirmation to the owner, this function is editable by user;
11.Based on GSM/4G Network, applied to many applications.
Attention: This device only support 2G/4G, 4G is compatible with 2G ，but don't support 3G.
Features
1.No call charges. The GSM/4G Gate Opener rejects the call from authorized number, then the relay will turn
ON/OFF on the first ring;
2.It is no longer traditional to open the door, but it is more interesting to shake the mobile phone to unlock the door.
3.Multiple applications. (gates, bollards, barriers, garage doors, shutters and access doors or machines);
4.Secure - Using caller ID for identification, unknown callers are ignored;
5.Can be operated from anywhere, no distance limit;
6.Add or remove users by SMS Text command;
7.No need to provide a remote control for different users;
8.Up to 200 authorized phone numbers can be configured;
9.One output with relay （3A/240VAC）for connecting the switch of the door or machines;
10.The relay action will return a SMS confirmation to the owner, this function is editable by user;
11.Based on GSM/4G Network, applied to many applications.
Our Company
We are a leading manufacture and trading company in electronical industry for more than 10 years also have a professional R&D team with years of export experience along with excellent quality, advanced services and competitive prices. FENGDU has won numerouscustomer's trust and support.
FAQ
Q1:Are you manufacture or trading company?
A1:We are a professional manufacturer specialize in smart home products.
Q2:What is the MOQ?
A2:As usual,there is ready stock for our regular & hot selling models. So any order quantity is welcome.
Q3:Can I customize LOGO and customized functions?
A3:Yes you can. Packaging, products, instructions can be printed logo. and functions we have professional R&D team to support best
service.
Q4:How about the quality of your products?
A4:Our raw materials are purchased from qualified suppliers.
Q5:How long is the warranty time of the products?
A5:The warranty period is 2 years from the factory,if there are individual quality problems, we will replenish the customer in the
next batch of orders.
A1:We are a professional manufacturer specialize in smart home products.
Q2:What is the MOQ?
A2:As usual,there is ready stock for our regular & hot selling models. So any order quantity is welcome.
Q3:Can I customize LOGO and customized functions?
A3:Yes you can. Packaging, products, instructions can be printed logo. and functions we have professional R&D team to support best
service.
Q4:How about the quality of your products?
A4:Our raw materials are purchased from qualified suppliers.
Q5:How long is the warranty time of the products?
A5:The warranty period is 2 years from the factory,if there are individual quality problems, we will replenish the customer in the
next batch of orders.
