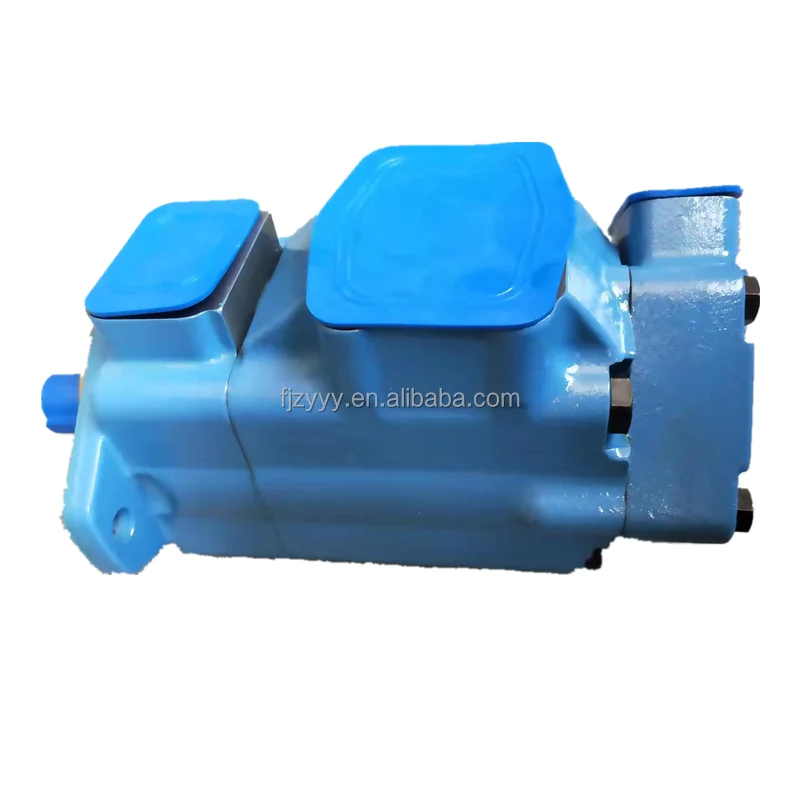

20vq 25vq 35vq 45vq Vq Vane Pump Cartridge Kit Vane Pump Repair Parts 35VQ35A11C20 25VQ21A1A20 25VQ21A1D20L 45VQ60A86A20
68,00 $ - 88,00 $
Заводская цена промышленный гликолевый воздушный охладитель с водяным охлаждением со стандартом CE для напитков
- Категория: >>>
- Поставщик: Jinan Mgreenbelt Machinery Co. Ltd.
Сохранить в закладки 1600977358525:
Описание и отзывы
Характеристики
Company Profile
Products Description

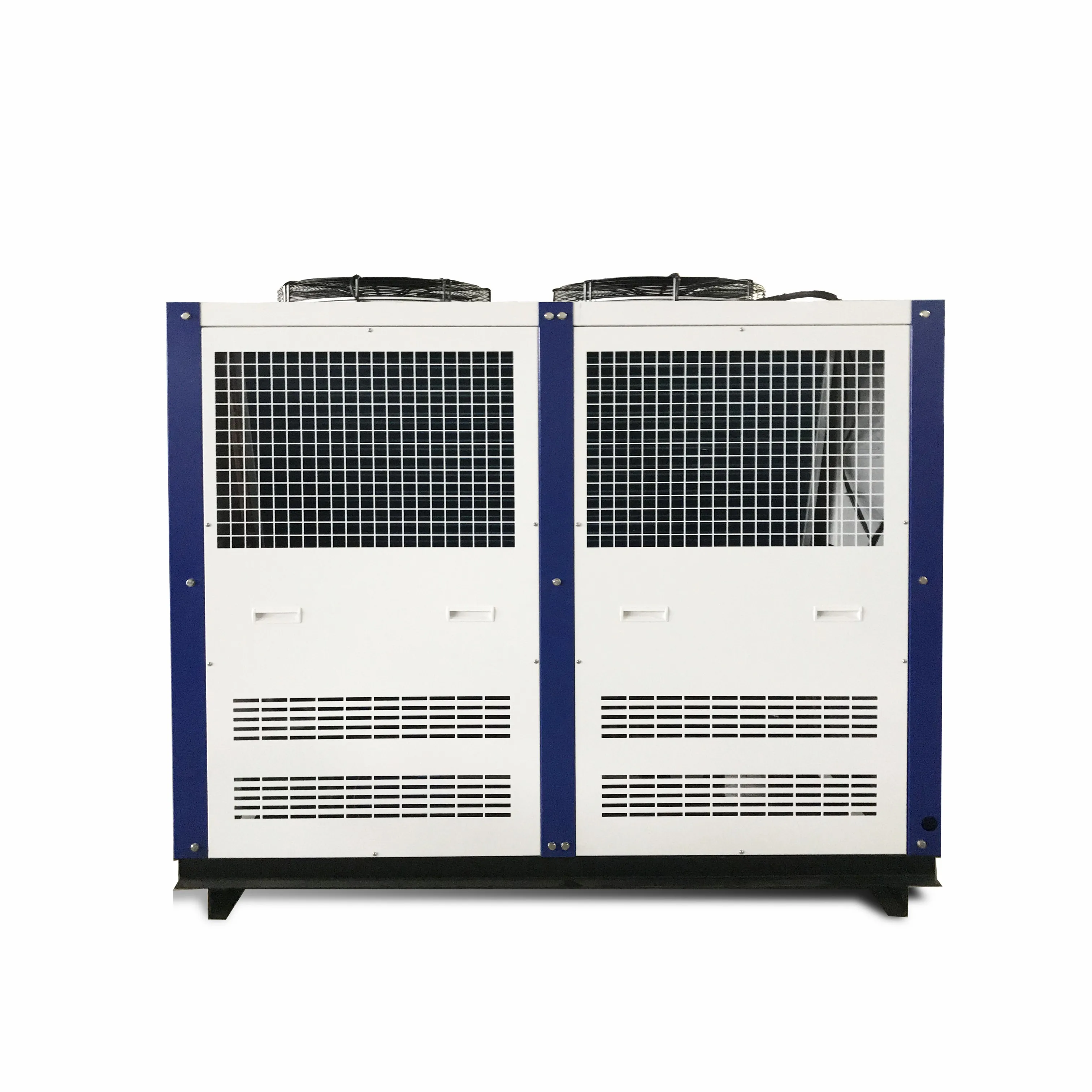

Mgreenbelt Air Cooled Scroll Chiller Features：
1. Regular case color
Blue and white cabinet, all aircraft cabinet. (Color can be customized)

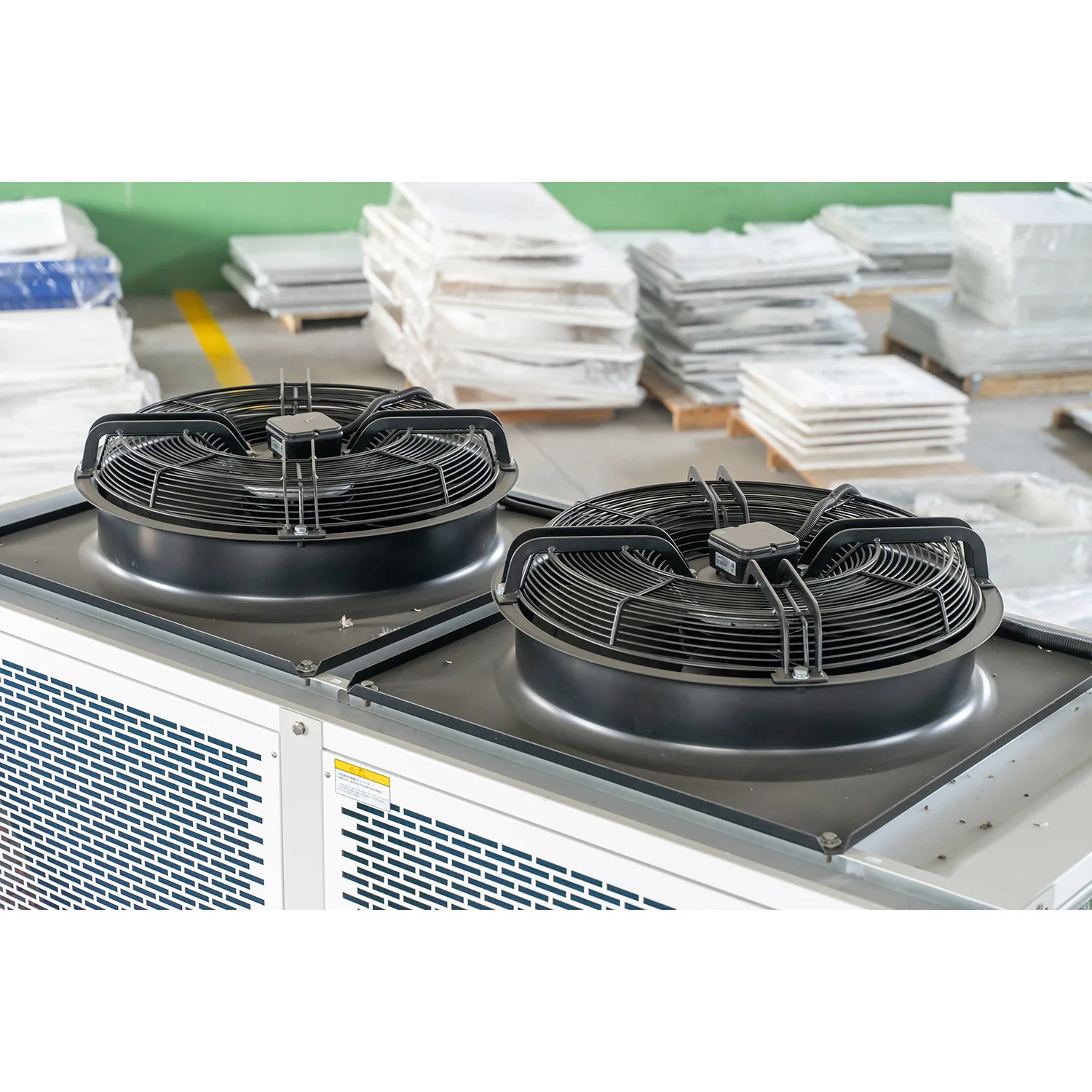

2. Condenser fan
Low noise external rotor axial flow fan. Mainly have Marr, Dunli, Shimmer, Yonghan and other brand fans.
3. The evaporator
High efficiency shell and tube evaporator (directly connected to the user's equipment), the main forms are shell and tube type,
water tank coil type, plate replacement.

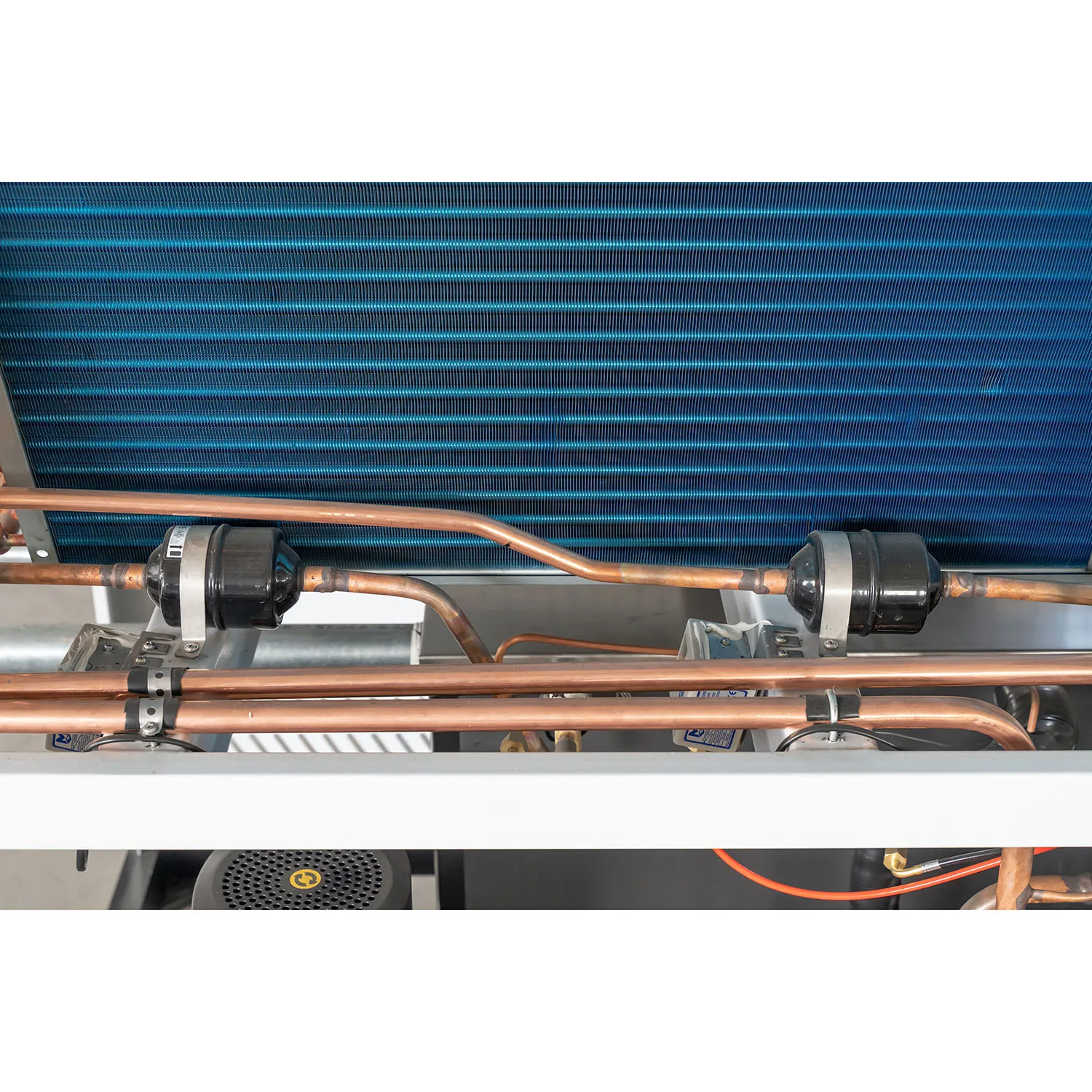

4. The condenser
Hydrophilic aluminum window corrugated finned copper pipe with internal thread, high heat exchange efficiency.

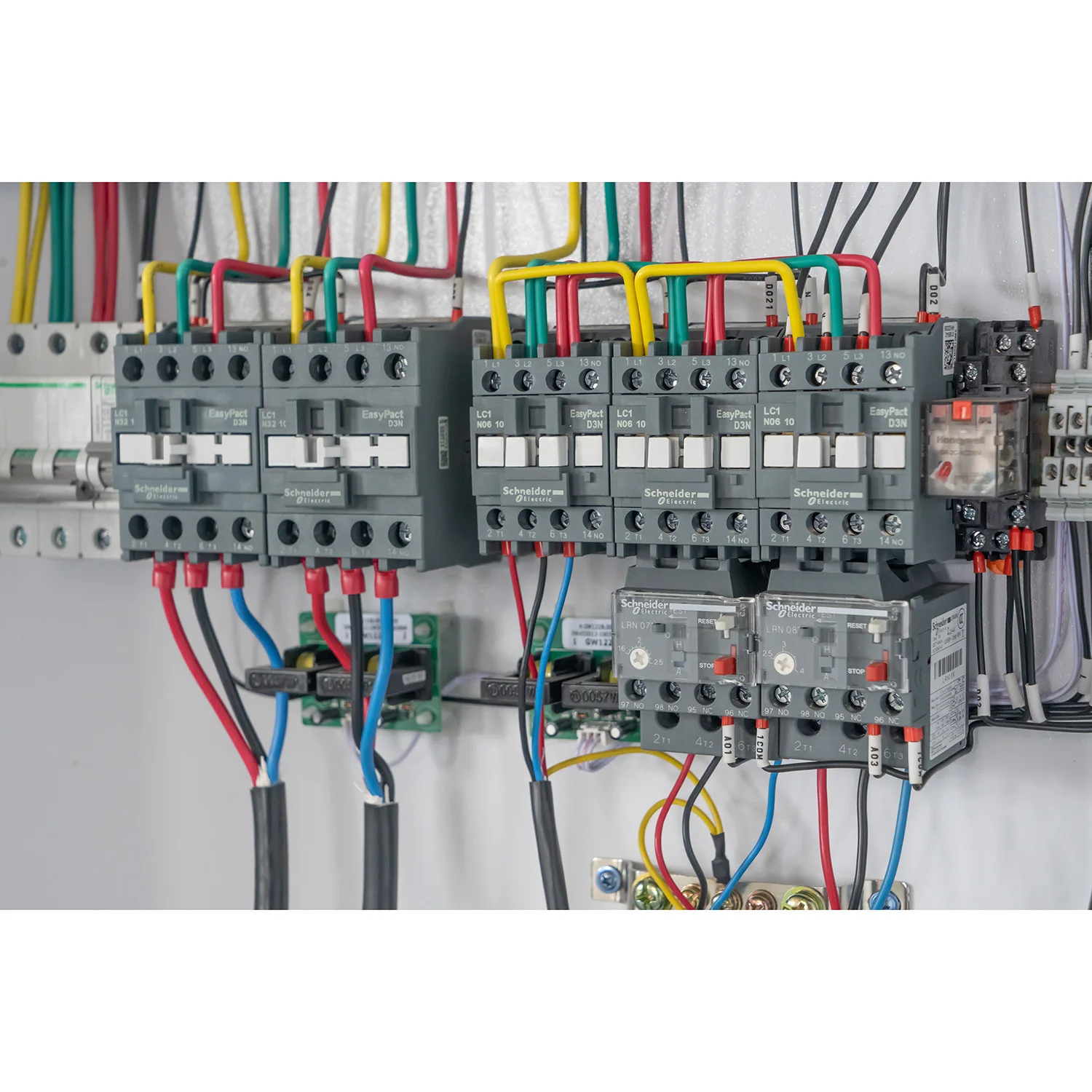

5. Electric parts
All electrical control parts adopt international famous brand Schneider electrical parts, the quality is guaranteed.
6. Control panel
Microcomputer control, good man-machine interface, within the safe operating range of the unit, the unit can be freely set
operation conditions; Once set, the unit can realize automatic operation, automatic adjustment.

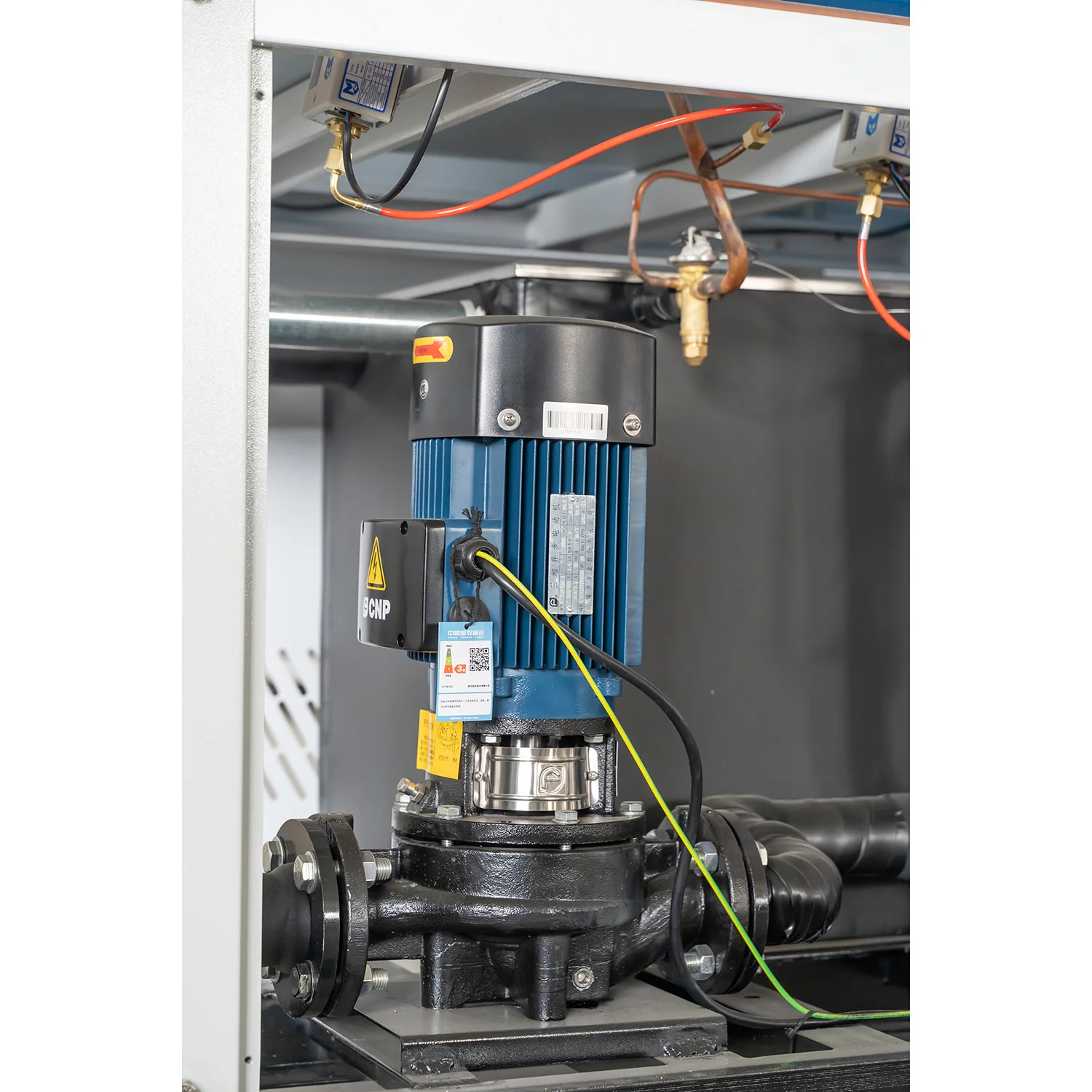

7. Built-in chilled water pump and water accessories
Blue and white cabinet, all aircraft cabinet. (Color can be customized)
2. Condenser fan
Low noise external rotor axial flow fan. Mainly have Marr, Dunli, Shimmer, Yonghan and other brand fans.
3. The evaporator
High efficiency shell and tube evaporator (directly connected to the user's equipment), the main forms are shell and tube type,
water tank coil type, plate replacement.
4. The condenser
Hydrophilic aluminum window corrugated finned copper pipe with internal thread, high heat exchange efficiency.
5. Electric parts
All electrical control parts adopt international famous brand Schneider electrical parts, the quality is guaranteed.
6. Control panel
Microcomputer control, good man-machine interface, within the safe operating range of the unit, the unit can be freely set
operation conditions; Once set, the unit can realize automatic operation, automatic adjustment.
7. Built-in chilled water pump and water accessories
Auto display the temperature, protect, fault code and compressor, working situation, each parts para is shown to the control
panel, easy operation.
panel, easy operation.
Current-overload protector, high-and-low pressure switches, electronic time delayer, fault display system-safe and durable.
world famous brand compressors from Panasonic, Copland, Danfoss etc, new and original (not re-condition) compressors; low noise
and super cooling. Available three
compressor --economical and efficient.
and super cooling. Available three
compressor --economical and efficient.
Optional Shell and tube evaporators with large heat exchange capacity and stable heat exchange effect..
low noise and small vibration. Air cooled chiller is easy installation, not need cooling tower.
High efficiency, 30% higher than normal condenser; aluminum finned copper tube- separate circuit, excellent cooling, quiet with
low electric consumption.
low electric consumption.
Technical Specifications
Model | MG-3C | MG-5C | MG-10CD | MG-15CD | MG-20CD | MG-30CT | |||||
Cooling capacity（Kcal/h) | （Kcal/h) | 11524 | 23048 | 35948 | 47558 | 71896 | |||||
(KW) | 13.4 | 26.8 | 41.8 | 55.3 | 83.6 | ||||||
Input Power | （KW) | 5.05 | 9.91 | 13.56 | 19.63 | 30.2 | |||||
Power | 3PH-380v-50Hz | ||||||||||
Refrigerant | R22/R407C/R410a/R134 | ||||||||||
Compressor | Type | Hermetic scroll type | |||||||||
Power(kw) | 4.1 | 4.1*2 | 5.36*2 | 8.13*2 | 8.13*3 | ||||||
Evaporator | Type | SS Tank with coil or Shell and tube | |||||||||
Water flow(m3/h) | 2.3 | 4.59 | 7.17 | 9.48 | 14.33 | ||||||
Tank volume(L) | 80 | 200 | 275 | 360 | 530 | ||||||
Condenser | Type | High efficiency hydrophilic aluminum foll finned type | |||||||||
Motor power(KW) | 0.58 | 0.58*2 | 0.67*2 | 0.937*2 | 0.937*3 | ||||||
Dimension | L(mm) | 1200 | 1560 | 1800 | 2050 | 2720 | |||||
W(mm) | 600 | 840 | 900 | 990 | 1120 | ||||||
H(mm) | 1200 | 1530 | 1660 | 1740 | 1800 | ||||||
Weight | (KG) | 200 | 450 | 750 | 85 | 1150 | |||||
Factory production
Customer Photos
Product Packaging
Package:
LCL SHIPMENT: Use plastic foam protect, then ply wooden case package.
FCL: If the equipment enough package with 20"or 40" container, will use plastic foam package and wooden pallet.
Shipping Terms:
1. We can arrange the shipping by sea, by air, by truck and train based on your requirements, but kindly remind the refrigerant
gas can't allowed by air ,so you must filling them when machine arrive if you choose the air ship.
2. FOB,CFR,CIF,DDU can be accepted.
3. Any port of CHINA we can sent, if you have other goods will packaged in one container, we would like to arrange that for you.
LCL SHIPMENT: Use plastic foam protect, then ply wooden case package.
FCL: If the equipment enough package with 20"or 40" container, will use plastic foam package and wooden pallet.
Shipping Terms:
1. We can arrange the shipping by sea, by air, by truck and train based on your requirements, but kindly remind the refrigerant
gas can't allowed by air ,so you must filling them when machine arrive if you choose the air ship.
2. FOB,CFR,CIF,DDU can be accepted.
3. Any port of CHINA we can sent, if you have other goods will packaged in one container, we would like to arrange that for you.
FAQ
Q:How to choose a right chiller model? A:Please make sure the details as follow:
1.What's the flow rate need?
2.Inlet and outlettemperature need ?
Then we will calculate what's hte cooling capacity you need.
Q: How to quote a accurate solution for you?
A:After make sure the cooling capacity,please inform us:
1.What's the power supply need? Phase/Voltage/Frequency.
2.What's the refrigerant need? R22/R407C/R410A/R134A and etc.
If this water chiller not suitable for your working need, we have different chiller series, please choose it as follows.
1. Air Cooled Scroll Chiller : cooling capacity range from 1 ton to 35 tons;
2. Water Cooled Scroll Chiller : cooling capacity range from 1 ton to 40 tons;
3. Air Cooled Screw Chiller : cooling capacity range from 20 tons to 150 tons;
4. Water Cooled Screw Chiller :cooling capacity range from 25 ton to 400 tons;
Temperature range: -25 deg C~+35 deg C based on different industry working need.
Any requirements, pls feel free to let me know:
Jackie Qi
Shandong Mgreenbelt Machinery Co.,Ltd
Tel:+86 17686681003
Whatsapp/Wechat:+86 17686681003
Email:Jackie@mgreenbelt.com
Web: www.chiller-china.com
1.What's the flow rate need?
2.Inlet and outlettemperature need ?
Then we will calculate what's hte cooling capacity you need.
Q: How to quote a accurate solution for you?
A:After make sure the cooling capacity,please inform us:
1.What's the power supply need? Phase/Voltage/Frequency.
2.What's the refrigerant need? R22/R407C/R410A/R134A and etc.
If this water chiller not suitable for your working need, we have different chiller series, please choose it as follows.
1. Air Cooled Scroll Chiller : cooling capacity range from 1 ton to 35 tons;
2. Water Cooled Scroll Chiller : cooling capacity range from 1 ton to 40 tons;
3. Air Cooled Screw Chiller : cooling capacity range from 20 tons to 150 tons;
4. Water Cooled Screw Chiller :cooling capacity range from 25 ton to 400 tons;
Temperature range: -25 deg C~+35 deg C based on different industry working need.
Any requirements, pls feel free to let me know:
Jackie Qi
Shandong Mgreenbelt Machinery Co.,Ltd
Tel:+86 17686681003
Whatsapp/Wechat:+86 17686681003
Email:Jackie@mgreenbelt.com
Web: www.chiller-china.com
Похожие товары
Заводская Двухстенная чашка из нержавеющей стали Изолированная бутылка для напитков стакан бутылка для воды 500 мл термальный
Новые стильные эластичные повязки унисекс из полиэстера для взрослых для женщин, спортивные повязки для бега, спортивные повязки для занятий спортом, бамбуковые повязки на голову
1,20 $ - 1,30 $
Открытый сад водный декор скульптура мраморные статуи лебедя бассейн водопад фонтан
320,00 $ - 350,00 $
Супер прозрачная пвх pc pet доска для сгибания линии

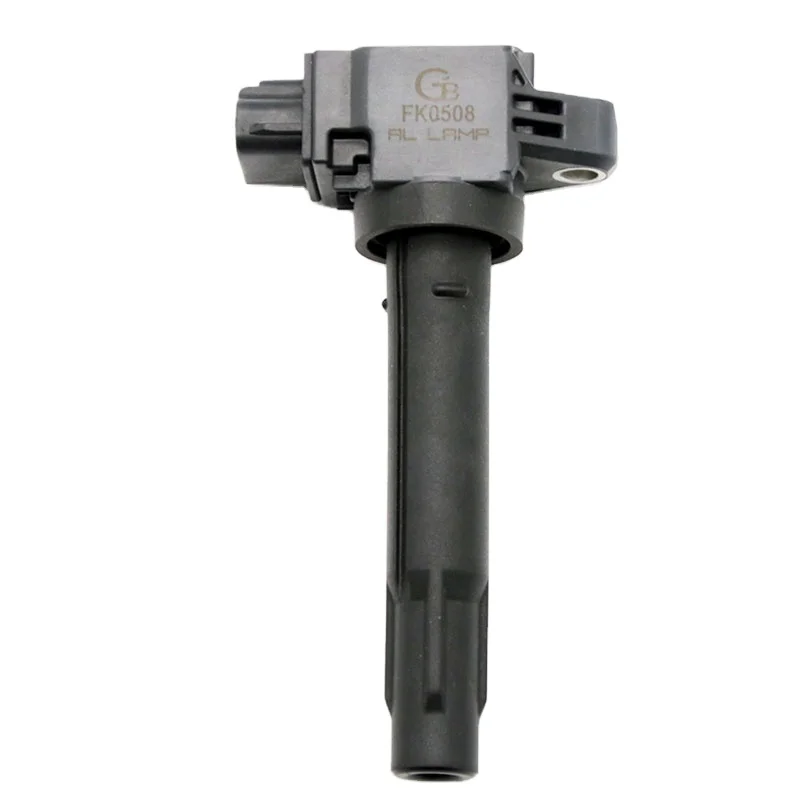

Автозапчасти, высокопроизводительная катушка зажигания FK0508 33400-81P00 для Suzuki 3340081P00 катушки зажигания
