Полноцветный креативный экран
37 224,75 ₽ - 41 001,17 ₽
Открытый 3d рекламный светодиодный экран щит наружный для маркетинга
- Категория: >>>
- Поставщик: Shaanxi Shuangqi Technology Co. Ltd.
Сохранить в закладки 1600977445088:
Описание и отзывы
Характеристики
Recommend Products
Product Details
Aging test time

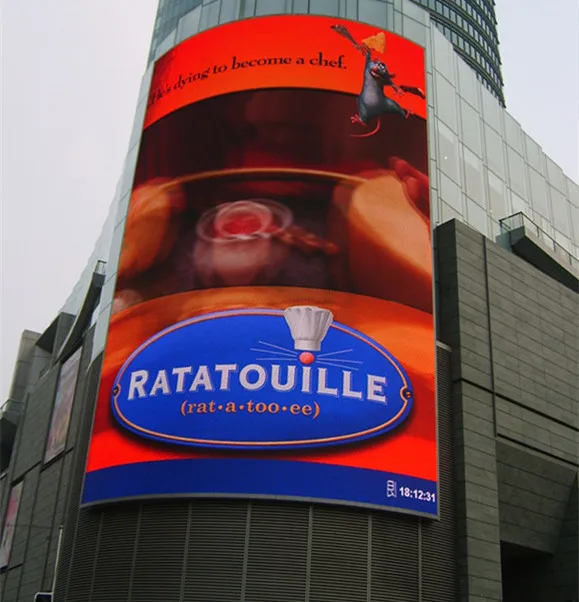

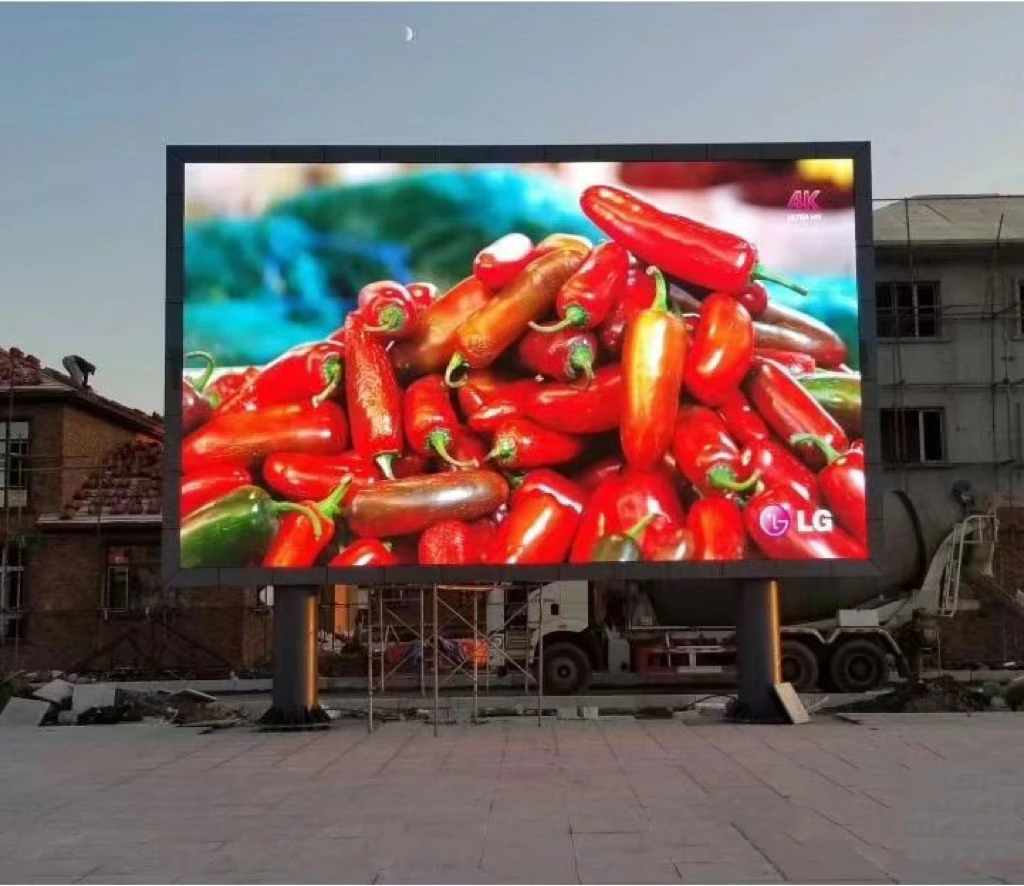

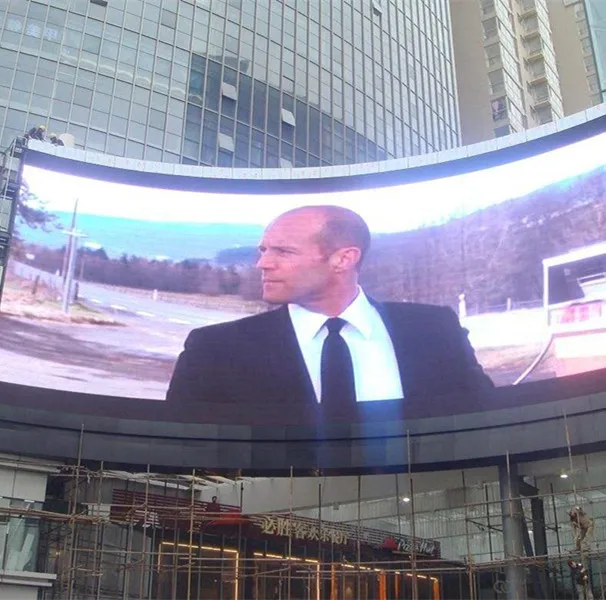

Product Application
Fix led display installation methods
led display control system
Specification
Specification | Parameter |
Product name | P8 outdoor display |
Pixel Pitch | 8mm |
Pixel density(dots/㎡) | 15625 |
LED configuration | 1R1G1B |
SMD3535 Outdoor | |
Module size | 320（W）×160（H）/256（W）×128（H）/320（W）×320（H） |
Cabinet size | customized |
LED control system | NOVA |
Refresh rate（Hz） | ≥3840Hz |
Grey scale | 14bit |
Power supply | AC110V-220V |
Average Power consumption | <280W/㎡ |
Maximum power consumption | <800W/㎡ |
Module voltage | DC4.2V-5V |
Input Voltage | AC220±20%(V)-50/60Hz |
Cabinet material | Outdoor Iron Cabinet |
Cabinet weight（kg/㎡） | ≤40kg/㎡ |
Scanning Method | 1\\5/Scanning Constant Current |
Color Temperature | 6500K±500 |
Brightness | ≤5500cd/(adjustable) |
Brightness Control | Auto-adjusting 0-100 levels |
Color temperature | 5500K-9300K |
The best Viewing distance | 8M-20M |
Viewing Angle | (H)160°/(V)140° |
Working temperature/humidity | -20℃～+60℃ |
Working temperature/humidity | 10%-95% |
Control Method | Synchronized |
Lifetime | ＞100,000 hours |
IP rating | IP65 |
Packing & Delivery
To better ensure the safety of your goods, professional, environmentally friendly, convenient and efficient packaging services will be provided. Wooden case is about 25-30kg.
Sea Transport Air Transport
Company Profile
Shuangqi is a China based manufacture of LED Video Displays for virtually any event, or application. We offer Indoor and outdoor led display such as event and stage led display, foldable led display, and transparent led display , in this business we started in 2011, we have a full-time staff of dedicated production professionals to ensure your success.
"Quality is our culture" 90% of led display production equipment is imported from japan and germeny, "With us your money in safe"full refund in case of bad quality "Time is gold" for you and us ,we have professional team work whom can making nice quality in short time.
FAQ
Important Knowledge of Led display
1. What are Pixel Pitch, Pixel Density, LED QTY, and Pixel Configuration?
Pixel Pitch is the distance between neighboring pixels.
Pixel Density is the quantity of pixels per square meter.
LED QTY is the quantity of LED lamps per square.
Pixel Configuration is the description of the consistence of a pixel, for instance, we use 1 red lamp, 1 green lamp, and 1 blue lamp to compose a pixel, the pixel configuration is 1R1G1B.
2. What are LED Type, Module size and Module resolution?
LED Type is the description of LED lamp, for instance, the brand, the shape in physical, the size of the lamp, etc.
Module size is the measurement of a module.
Module resolution is the number of pixels per module.
3. What is Drive Method, driving IC and Power supply?
Drive Method: always we use static, 1/2scan,1/4 scan, 1/8 scan, 1/16 scan, the latter one contributes to less brightness than the former. We always use the static outdoor, and use the different kinds of scan indoor.
Driving IC is the generic term for several kinds of IC, that are used to control the LED lamps, and as a bridge between the control system and lamps.
Power supply: a kind of device that used as a transfer from 220V AC into 5V DC. It always seems like a box in the cabinet.
4. What is viewing angle?
Viewing angle is the maximum angle at which a display can be viewed with acceptable visual performance. It includes horizontal viewing angle and vertical viewing angle.
Normal question
1. How long could I receive the inquiry reply?
You will get a reply within 24 hours.
2. What’s your warranty?
Two years warranty, whole life maintenance.
3. What’s your leading time?
Production normally takes 20-30 days.
4. What’s your term of delivery?
We accept EXW, FCA,FOB, CFR, CIF, DDU, etc. You can choose anyone which is most convenient to you.
1. What are Pixel Pitch, Pixel Density, LED QTY, and Pixel Configuration?
Pixel Pitch is the distance between neighboring pixels.
Pixel Density is the quantity of pixels per square meter.
LED QTY is the quantity of LED lamps per square.
Pixel Configuration is the description of the consistence of a pixel, for instance, we use 1 red lamp, 1 green lamp, and 1 blue lamp to compose a pixel, the pixel configuration is 1R1G1B.
2. What are LED Type, Module size and Module resolution?
LED Type is the description of LED lamp, for instance, the brand, the shape in physical, the size of the lamp, etc.
Module size is the measurement of a module.
Module resolution is the number of pixels per module.
3. What is Drive Method, driving IC and Power supply?
Drive Method: always we use static, 1/2scan,1/4 scan, 1/8 scan, 1/16 scan, the latter one contributes to less brightness than the former. We always use the static outdoor, and use the different kinds of scan indoor.
Driving IC is the generic term for several kinds of IC, that are used to control the LED lamps, and as a bridge between the control system and lamps.
Power supply: a kind of device that used as a transfer from 220V AC into 5V DC. It always seems like a box in the cabinet.
4. What is viewing angle?
Viewing angle is the maximum angle at which a display can be viewed with acceptable visual performance. It includes horizontal viewing angle and vertical viewing angle.
Normal question
1. How long could I receive the inquiry reply?
You will get a reply within 24 hours.
2. What’s your warranty?
Two years warranty, whole life maintenance.
3. What’s your leading time?
Production normally takes 20-30 days.
4. What’s your term of delivery?
We accept EXW, FCA,FOB, CFR, CIF, DDU, etc. You can choose anyone which is most convenient to you.
