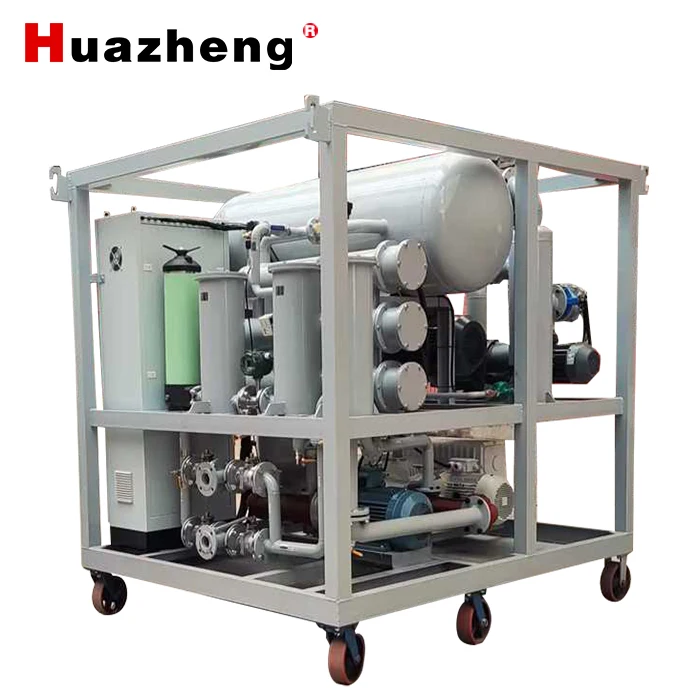

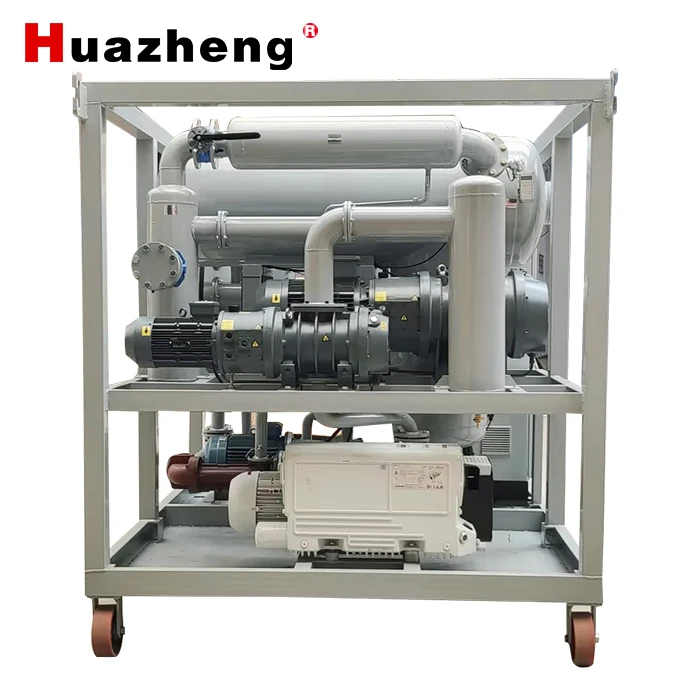

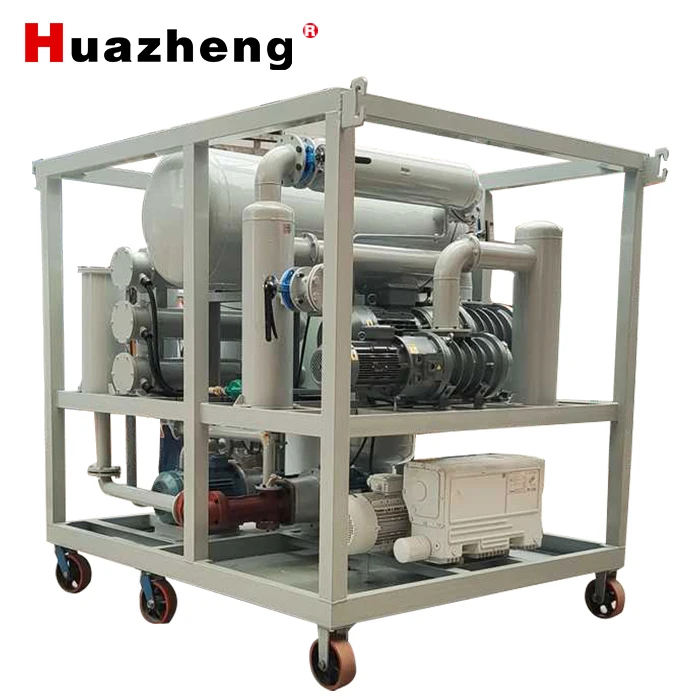

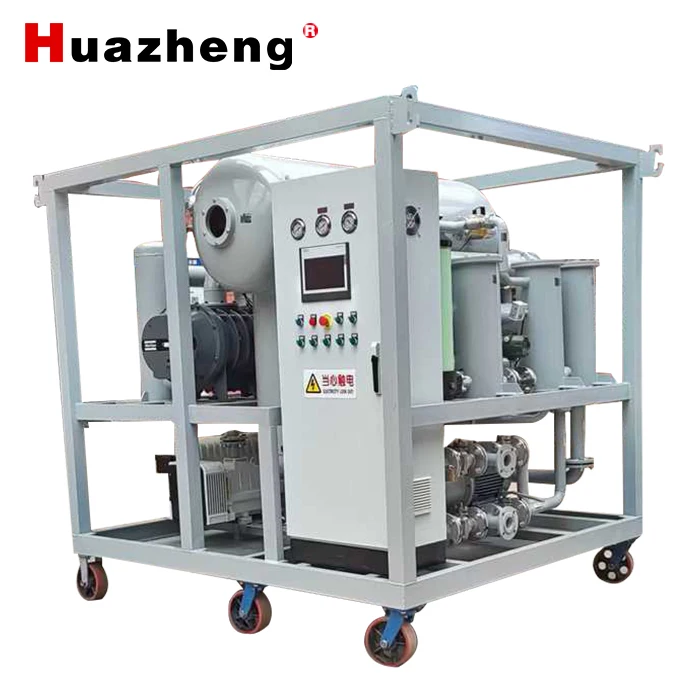

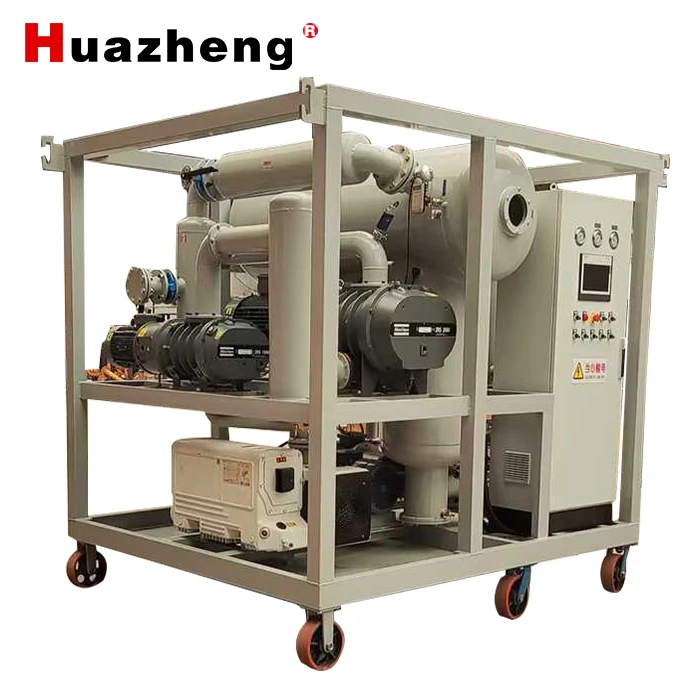

Сделано в Китае оптовая цена Диэлектрический масляный фильтр установка для очистки трансформатора масла 12000L/h с PLC

I Parameter

Model:   HZLY-200A

Nominal flow: 12000L/h

Net oil capacity: 200L/min

Pumping rate: 1080M³/h

Working pressure: ≤5Pa

Working oil temperature: 20 ~ 80℃

Working power supply: 50Hz380V three-phase three-wire

Heating power: 150kw (Separate control by four groups)

Total power: 165kw

Operating noise: ≤75dB(A)

In/out flange: DN50

Vacuum interface flange: DN50

Shape Size: 195×189×218cm

Weight of equipment: 2150kg

Continuous working hours:≥200 hours

Average failure-free working time:≥5000 hours

II. Product net oil indicators

Oil to be treated

Breakdown voltage:>30 kV (spherical pole);

Water content:≤50 ppm;

Gas content:≤10%(volume ratio);

After many processes

Breakdown voltage:>75 kV (spherical pole);

Water content:≤5 ppm;

Gas content:≤0.1%(volume ratio);

Acetylene content:0

HUAZHENG Electric Manufacturing (Baoding) Co., Ltd is established in year of 2008, located at Baoding city, Hebei province, China. It is a professional company specializing in the development and production of electric power testing equipment. Main Product:  transformer oil test series, high voltage test series, cable fault location system, microcomputer relay protection test set, etc. All of our products comply with international quality standard and obtained CE and ISO 9001 certificate. Heibei Huanhai Import & Export Trading Co.,Ltd is a trading company established by Huanhai Electric.

We insist on customer orientation and provide you with high quality products, reasonable prices, timely delivery and efficient service. We are willing to work with global clients for joint development and create value and success for our customers continuously.

We have our own manufacturing factory,pls see the below certificate,we are the direct supplier.

We are a new enterprise engaged in development,produce & sale a serious of power system products, such as Cable fault tester,  transformer test class, lightning arrester test class, comprehensive test class.

From the date of purchase within one year instrument,the warranty time is 12 months.This is the piriod of free repair replacement, lifetime supply of maintenance and technical services. If the instrument has been found anomalies or malfunctions please contact us to arrange the most convenient treatment options.
