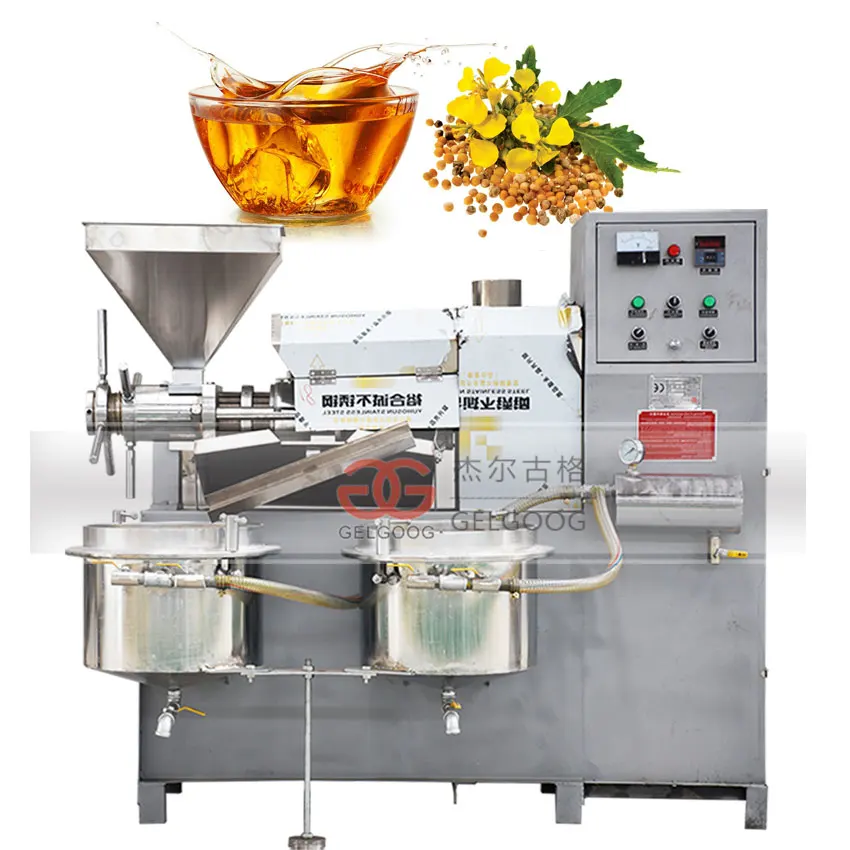

Parameters of Canola Oil Extraction Machine
Model | GG-ZX80 | GG-ZX100 | GG-ZX120 | GG-ZX130 |
Spiral Diameter | 80mm | 100mm | 120mm | 130mm |
Spiral Speed | 47r/min | 38r/min | 37r/min | 32r/min |
Power | 5.5KW | 7.5KW | 11-15KW | 15-18.5KW |
Vacuum Pump Power | 0.75KW | 1.5KW | 1.5KW | 1.5KW |
Heater Powder | 2.2KW | 2.2KW | 3.0KW | 3.0KW |
Capacity | 65-130Kg/h | 140-200Kg/h | 200-300Kg/h | 300-500Kg/h |
Weight | 880Kg | 1250Kg | 1500Kg | 1800Kg |
Dimnesion(mm) | 1500*1300*1550 | 1700*1300*1650 | 2050*1300*1800 | 2100*1300*1800 |
Materials | Oil Content | Gelgoog | Other manufacturers |
Peanut | 45%-50% | 39%-44% | 35%-43% |
Sesame | 50%-60% | 44%-54% | 39%-45% |
Almond | 50%-65% | 40%-45% | 35%-43% |
Walnut | 65%-70% | 50%-60% | 45%-55% |
Soybean | 10%-15% | 10%-12% | 8%-10% |
Sunflower Seed | 45%-54% | 38%-48% | 35%-43% |
Pine Nuts | 50%-55% | 45%-60% | 42%-56% |
Pumpkin Seeds | 30%-35% | 24%-29% | 20%-27% |

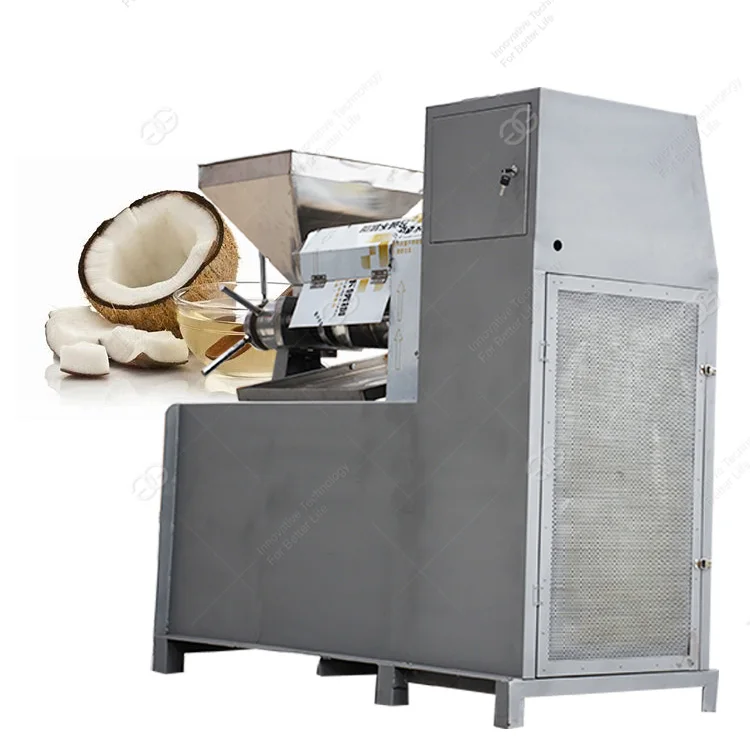

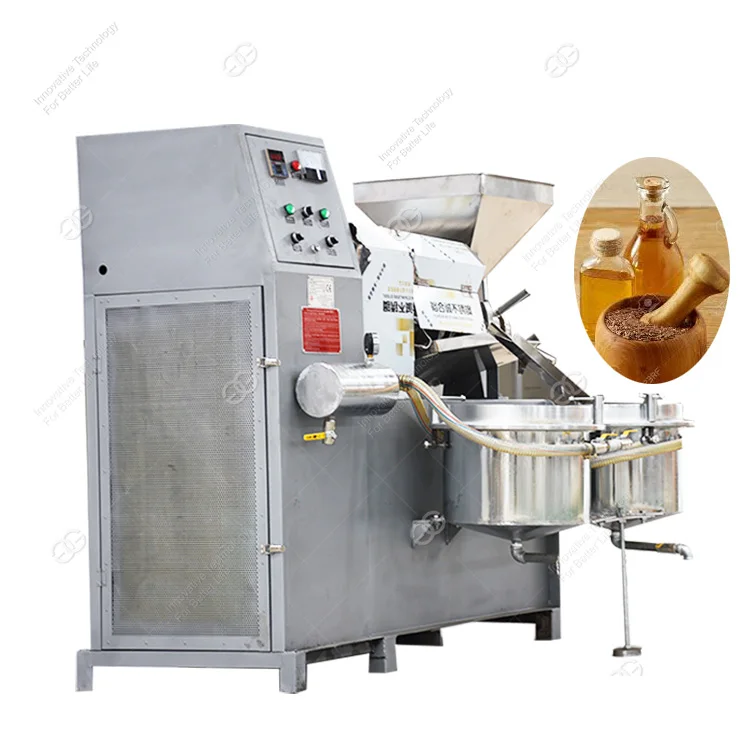

The cocoa bean oil press machine mainly uses cocoa beans, peanuts, almonds, sunflower seeds and other oils, and the machine is widely used in commercial and industrial fields.
Due to the advancing action of the rotating screw shaft in the press, the press material is continuously advanced forward, and at the same time, the shortening of the screw pitch on the screw shaft and the increase of the diameter of the root circle, and the reduction of the inner diameter of the press, make The volume of the squeezing space is constantly shrinking and the crushing effect is exerted on the pressed material. After the material is compressed, the grease is squeezed out of the gap of the squeezer, and the material is pressed into a cake and discharged from the end of the squeeze.
1. What is the material for the screw press?
Oil crops such as peanut, soybean, rapeseed, sesame, oil sunflower, flax seed, camellia seed, cottonseed, pepper seed, walnut kernel, tung seed, ramie, almond, palm, coconut shell, etc.
2.What is the reason for not producing oil or low oil yield?
The material is not wet or too dry, the oil drain is blocked by the oil slag or the squeezer is too tightly assembled.
3. What is the oil content of the slag?
Generally hot pressed slag oil content of 6-10% (according to the appropriate temperature of the pressing temperature)
4. What are the requirements for working temperature?
Cold pressing oil requires 2-3 times of pressing, oil pressing temperature (below 100 degrees Celsius), hot pressing once, oil extraction temperature (130-145 degrees Celsius)
5. What are the requirements for materials?
Oil content 8%, 5% water content 10%.
1.24 hours online response to customer news.
2. Professional business personnel recommend the right machine for you according to your needs.
3. If you want to visit the factory, you will be accompanied by a dedicated business person.
1. Give the installation video.
2. The warranty period is one year.
3. Engineers can install overseas.
