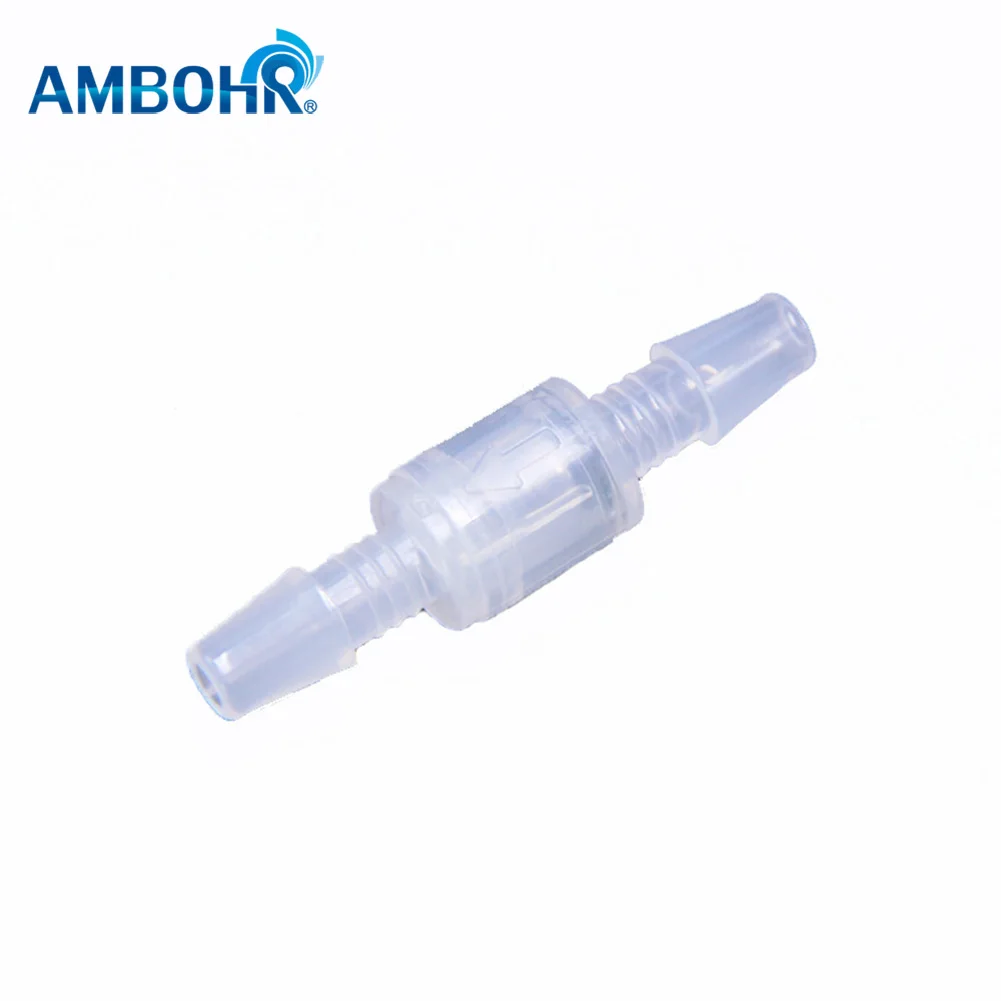

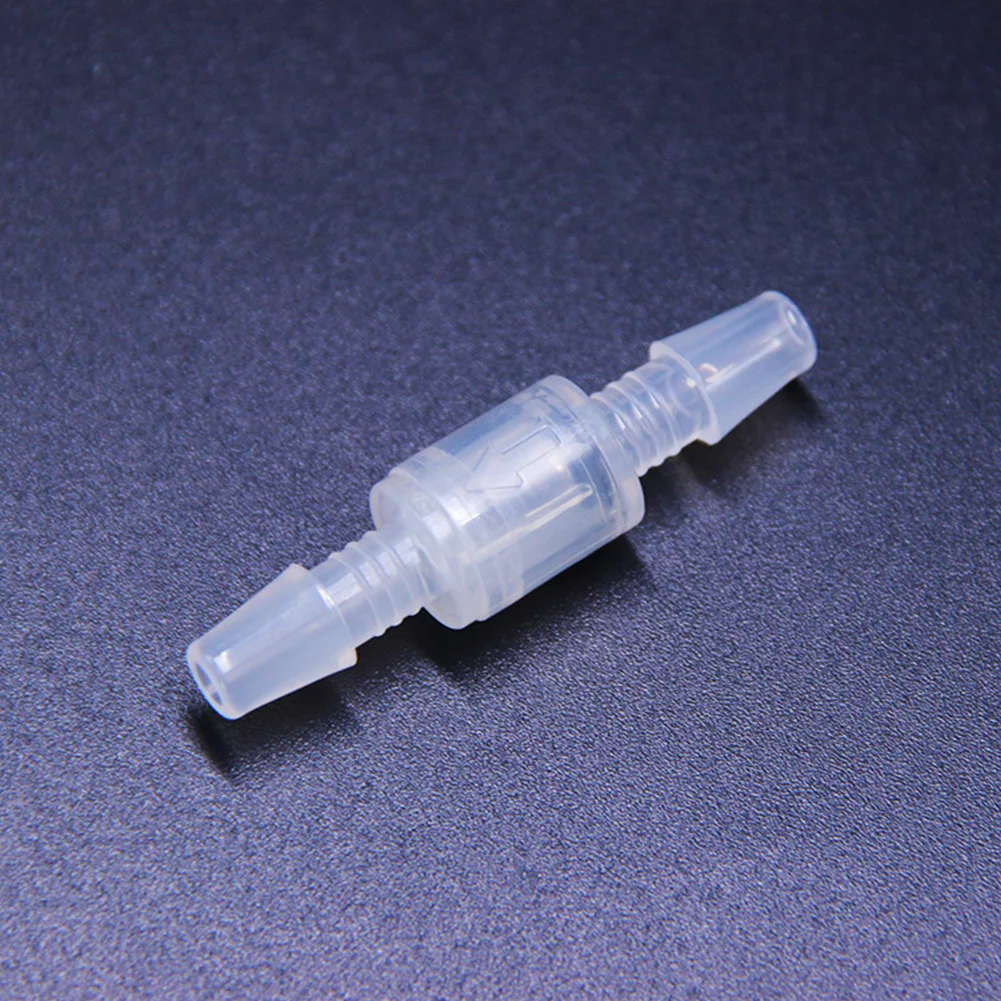

Обратный клапан AMBOHR DCV1604DVL
- Категория: >>>
- Поставщик: Ambohr Electric Co. Limited
Сохранить в закладки 1600978956809:
Описание и отзывы
Характеристики
Test Drive This Product
Still not sure? We offer free product samples for many of our products.
No strings attached. We believe in our products and we
think you will too, once you give them a try.
Get A FREE Sample >>>
Product Description

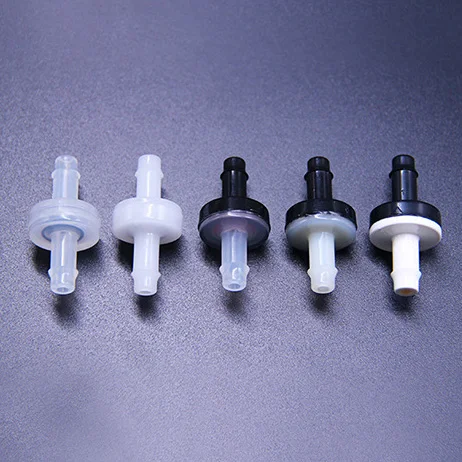

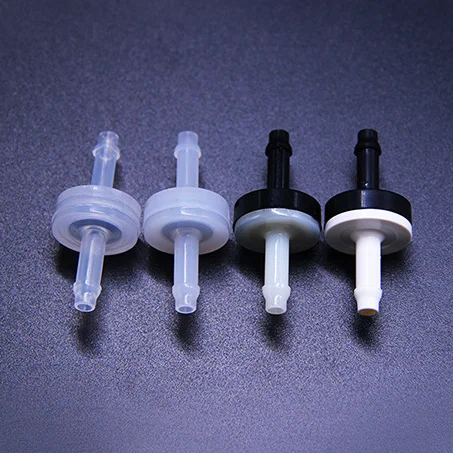

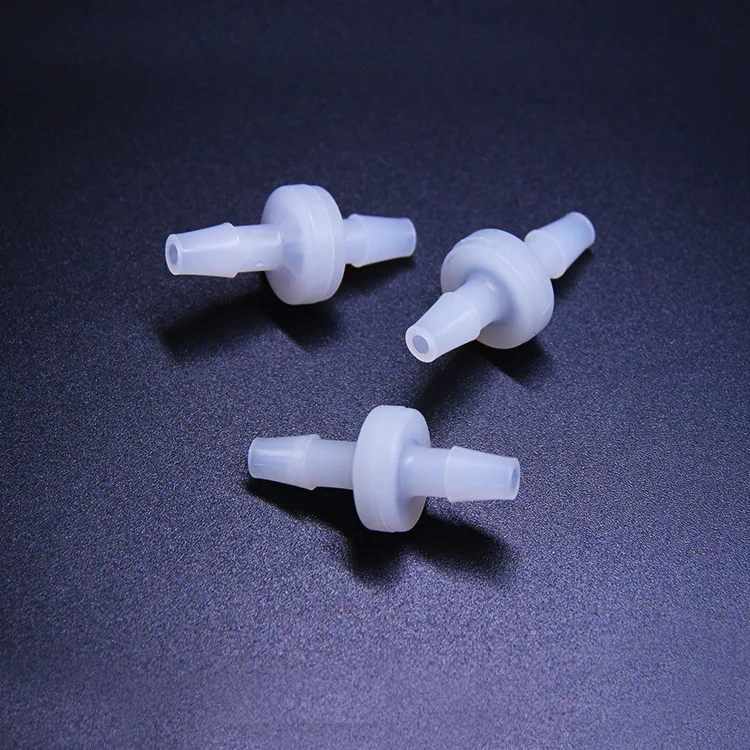

DCV0416DVN small plastic anti-ozone diaphragm check valve
Diaphragm check valves have three parts including inlet end, outlet end and diaphragm, it can be applied to industries such as automobiles, chemicals, and food...
Optional Material
• Gas fuel tank explosion-proof Applying rubber umbrella core.
• Post-surgical assistive device Applying spring ball-type safety relief valve
• Household steam mop Applying spring ball-type safety relief valve.
• Post-surgical assistive device Applying spring ball-type safety relief valve
• Household steam mop Applying spring ball-type safety relief valve.
• Medical scaling machine Applying spring lever-type safety relief valve.
• Wild camping air cushion Applying spring lever-type safety relief valve

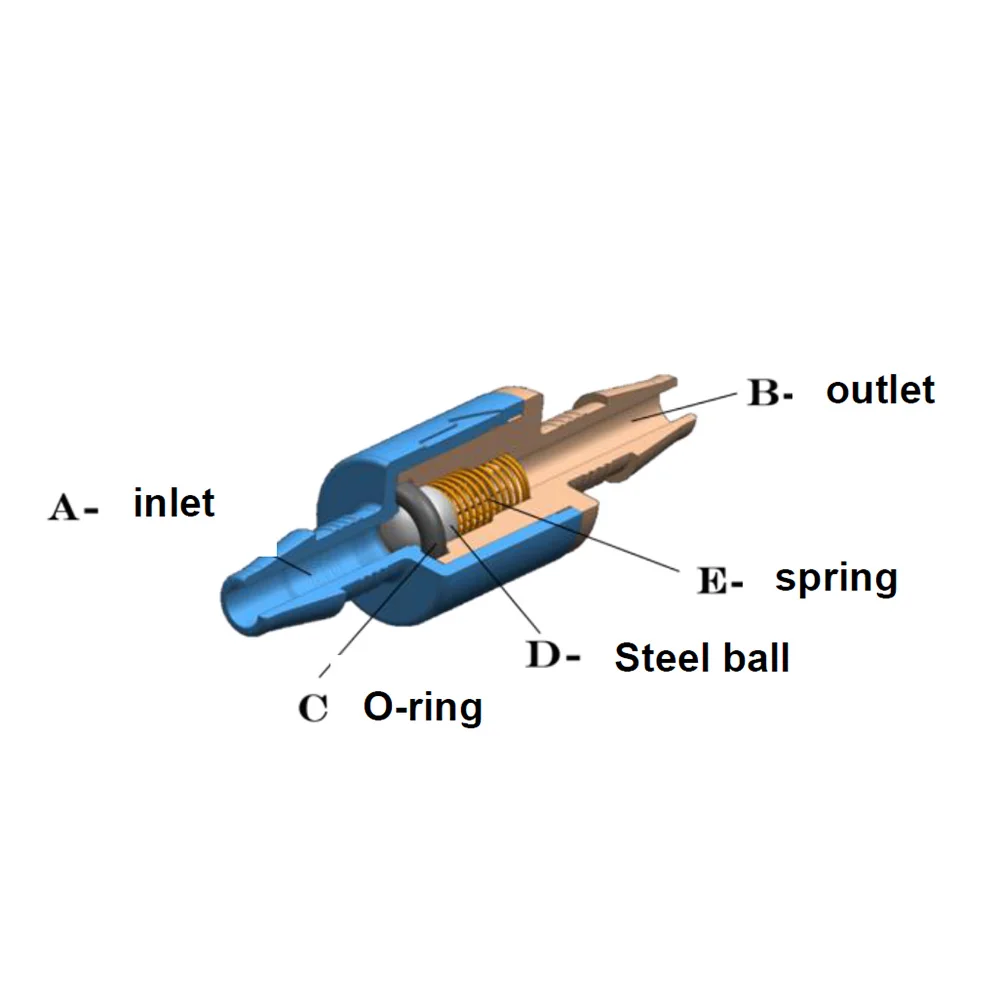

Part number | Optional Material | ||||
A | PP | PVDF | |||
B | PP | PVDF | |||
C | EPDM | VMQ | FKM | ||
D | SUS316L | ||||
E | SUS304（SUS316、SUS302), | ||||
Different specifications of spring material selection | |||||

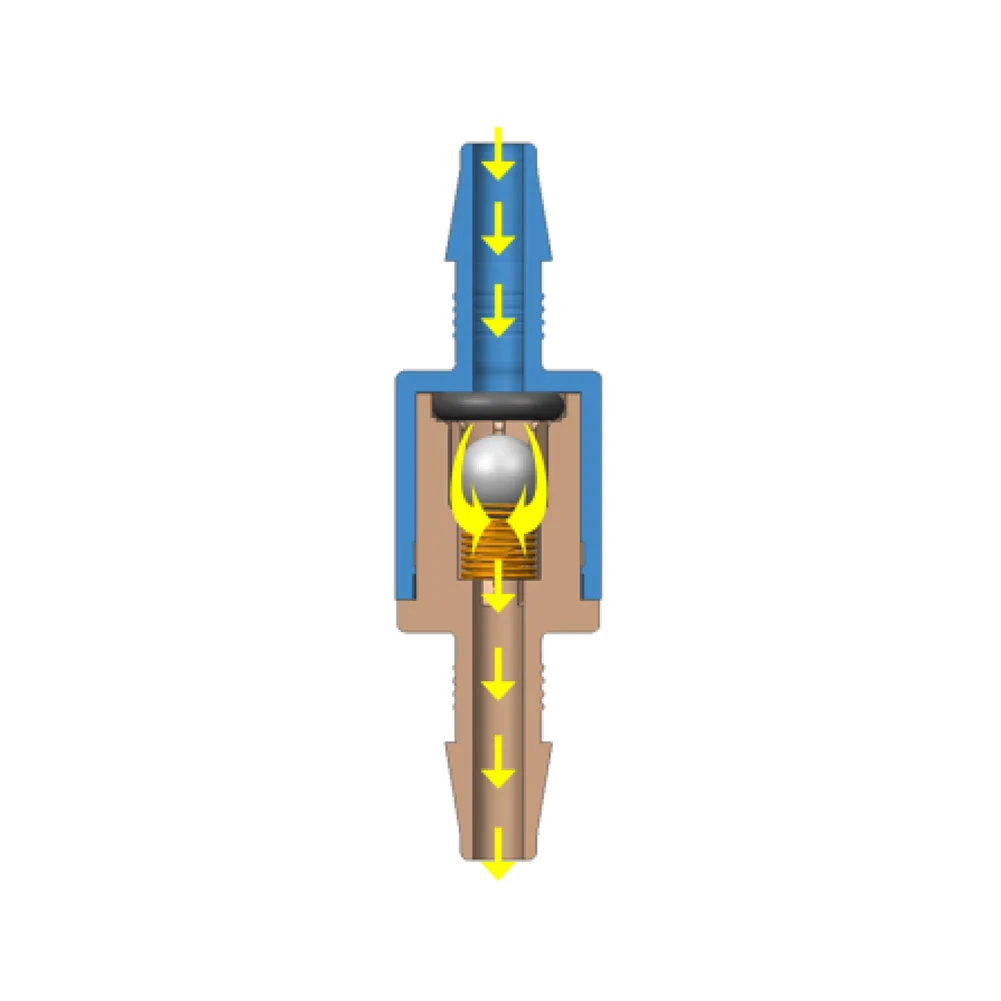

When the fluid pressure of the inlet end is less than the pressure relief value, it is in a sealing state；when products is still standing, it is in a sealing state.
When the fluid pressure of the inlet end is
greater than the pressure relief value, the steel ball is pushed forward, and the fluid flows out around the steel ball, thereby achieving the function of safe pressure relief.
greater than the pressure relief value, the steel ball is pushed forward, and the fluid flows out around the steel ball, thereby achieving the function of safe pressure relief.
Code | Specification | a（±0.5） | b（±0.3） | c（±0.1） | d（±0.1） | |||||
0216 | 1/8" | 36.0 | ø12.5 | ø4.8 | ø2.6 | |||||
0316 | 3/16" | 44.0 | ø12.5 | ø6.5 | ø3.2 | |||||
0416 | 1/4" | 52.0 | ø12.5 | ø8.6 | ø3.6 | |||||
Code can be customized | ||||||||||
Code | Specification | a（±0.5） | b（±0.3） | c（±0.1） | d（±0.1） | e（±0.1） | ||||||
0216 | 1/8" | 26.0 | ø12.5 | ø4.8 | ø2.6 | ø3.1 | ||||||
0316 | 3/16" | 30.0 | ø12.5 | ø6.5 | ø3.2 | ø3.1 | ||||||
0416 | 1/4" | 34.0 | ø12.5 | ø8.6 | ø3.6 | ø3.1 | ||||||
Code can be customized | ||||||||||||

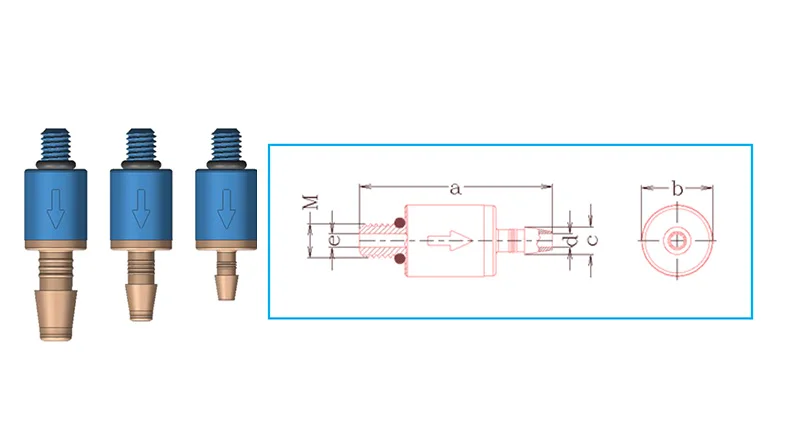

Code | Specification | a（±0.5） | b（±0.3） | c（±0.1） | d（±0.1） | e（±0.1） | M |
1602 | 1/8" | 26.0 | ø12.5 | ø4.8 | ø2.6 | ø2.4 | M6 |
1603 | 3/16" | 30.0 | ø12.5 | ø6.5 | ø3.2 | ø2.4 | M6 |
1604 | 1/4" | 34.0 | ø12.5 | ø8.6 | ø3.6 | ø2.4 | M6 |

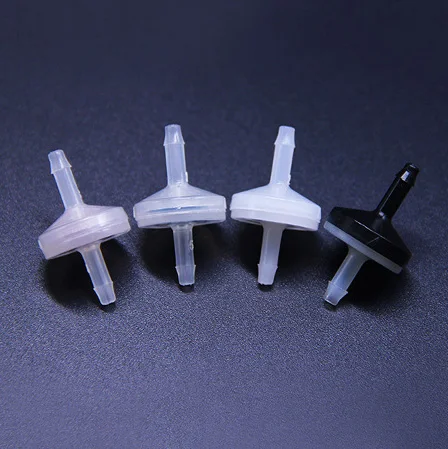

Diaphragm check valves
• Installation method: straight-in hose
• Opening pressure: less than 2kpa
• Maximum back pressure: 2kg
• Structure: diaphragm check valve
Hose connection size options
• 0116: Suitable for 1/16" inner diameter
hose interface 1/16"≈ 1.6mm
• 0216: Suitable for 3/32" inner diameter
hose interface 3/32"≈ 2.4mm
• 0316: Suitable for 3/16" inner diameter
hose interface 3/16"≈ 4.8mm
• 0416: Suitable for 1/4" inner diameter
• 0416: Suitable for 1/4" inner diameter
hose interface 1/4"≈ 6.4mm
• 0516: Suitable for 5/16" inner diameter
• 0516: Suitable for 5/16" inner diameter
hose interface 5/16"≈ 7.9mm
• 0616: Suitable for 3/8" inner diameter
• 0616: Suitable for 3/8" inner diameter
hose interface 3/8"≈ 9.5mm
• 0816: Suitable for 1/2" inner diameter
• 0816: Suitable for 1/2" inner diameter
hose interface 1/2"≈ 12.7mm
WHY AMBOHR OZONE GENERATORS ARE SUPERIOR
• Better uniformity of dimension.
• The ultrasonic welding technique can make products solid and effectively.
• Reduce cost.
Product Application
ONE PASS & NON-RETURN

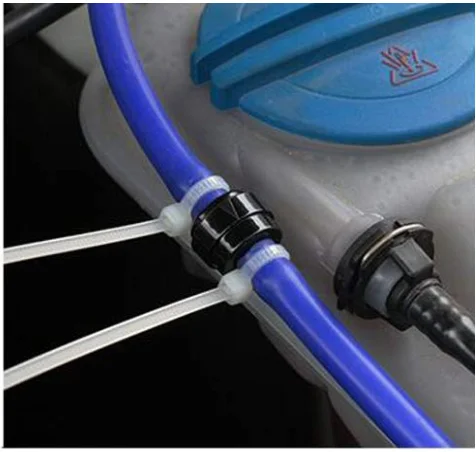

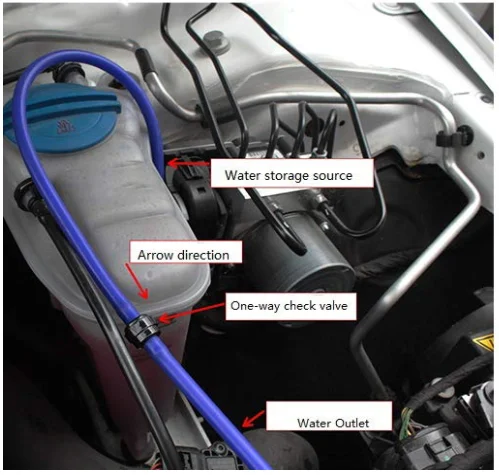

Auto Industry：Automobile fuel system, Wiper system and Carbon tank system
Chemical Industry：Pesticide mixture and irrigation
Food and Beverage：Coffee machine, Beer fresh-keeping, Liquid filling machine
Industrial Machinery：Ink supply system, Fuel supply system、Water cycle refrigerating system
Medical Auxiliary Instruments：Medical air bed、Oxygen generator, Rehabilitation system after
surgery, Ozone sterilization device
Swimming Pool and Hydrotherapy：Disinfecting system of circulating water
Water treatment：Ozone ions purify water
Chemical Industry：Pesticide mixture and irrigation
Food and Beverage：Coffee machine, Beer fresh-keeping, Liquid filling machine
Industrial Machinery：Ink supply system, Fuel supply system、Water cycle refrigerating system
Medical Auxiliary Instruments：Medical air bed、Oxygen generator, Rehabilitation system after
surgery, Ozone sterilization device
Swimming Pool and Hydrotherapy：Disinfecting system of circulating water
Water treatment：Ozone ions purify water
Related Products
Product Catalog
Our Advantages
After Sales Services
•One year warranty and lifetime maintenance.
Multilingual Staff
•We support Global partners with our experienced and qualified, multilingual staff.
Bear Responsibility
•100% accountability / 0 excuses.
Online 24*7
•Online 24*7 service to solve your problems
High Quality
•Our products have passed SAA, UL, CE, RoHS and other certifications...
Requests & Rest
•You make requests, and we do the rest.
About Us
YOU MAKE REQUESTS, WE DO THE REST.
About Us
AMBOHR®, your reliable supplier of technical products as well as for OEM production.
We support a network of national and global partners with our experience and our qualified, multilingual staff. Partnership and
long-term cooperation are very important to us..
We are very attentive to the needs of our customers and can thus constantly expand our product range. Customer service and a
growing product range with an attractive price / performance ratio can be offered.
Let us know, we look forward to working with you.
Q1: What's your warranty ?
A1: The warranty is 1 year. We deliver new and faultless products. Also, we are responsible to repair and replace the defective ones in the warranty period, meanwhile we provide life-long free technical support and maintenance.
Q2: How to proceed an order?
A2: 1. let us know your requirements or application.
2. We quote according to your requirements or our suggestions.
3. You confirm the samples and place deposit for formal order.
4. We arrange the production.
Q3: What's the standard of package?
A3: Inner box and out carton are made as per international standard. We also can make special design according to your needs.
And if necessary, goods will be packed by pallet to avoid any damage.
Q4: Could you do OEM/ODM?
A4: Sure,OEM/ODM is acceptable, and please supply with the brand letter of Authorization.
Q5: What is the payment terms?
A5: T/T, Western Union and L/C is acceptable. Moreover, you can place order on Alibaba though Trade Assurance.
Q6: What' your advantages?
A6: 1. We can provide the most comprehensive products.
2. We have the professional engineer team which can provide free consultation and design services. The customize will be according
to your drawings or samples.
3. Your inquire will be replied within 6 hours any time.
4. Our Freight forwarders are faster, safer, and more convenient, and we can make sure the delivery on time.
A1: The warranty is 1 year. We deliver new and faultless products. Also, we are responsible to repair and replace the defective ones in the warranty period, meanwhile we provide life-long free technical support and maintenance.
Q2: How to proceed an order?
A2: 1. let us know your requirements or application.
2. We quote according to your requirements or our suggestions.
3. You confirm the samples and place deposit for formal order.
4. We arrange the production.
Q3: What's the standard of package?
A3: Inner box and out carton are made as per international standard. We also can make special design according to your needs.
And if necessary, goods will be packed by pallet to avoid any damage.
Q4: Could you do OEM/ODM?
A4: Sure,OEM/ODM is acceptable, and please supply with the brand letter of Authorization.
Q5: What is the payment terms?
A5: T/T, Western Union and L/C is acceptable. Moreover, you can place order on Alibaba though Trade Assurance.
Q6: What' your advantages?
A6: 1. We can provide the most comprehensive products.
2. We have the professional engineer team which can provide free consultation and design services. The customize will be according
to your drawings or samples.
3. Your inquire will be replied within 6 hours any time.
4. Our Freight forwarders are faster, safer, and more convenient, and we can make sure the delivery on time.
Sales Promotion
Похожие товары
Электрический регулирующий шаровой клапан из нержавеющей стали, высокотемпературный азотный кислородный редукционный клапан, изготовленный в Китае
Высококачественный полированный промышленный и автомобильный латунный кованый регулирующий клапан от надежного индийского поставщика
129,61 ₽
Электрически нагреваемый редукционный клапан BVF H1BR1 для образцов испарения жидкости или предварительного нагрева образцов газа
82 300,73 ₽ - 83 380,79 ₽

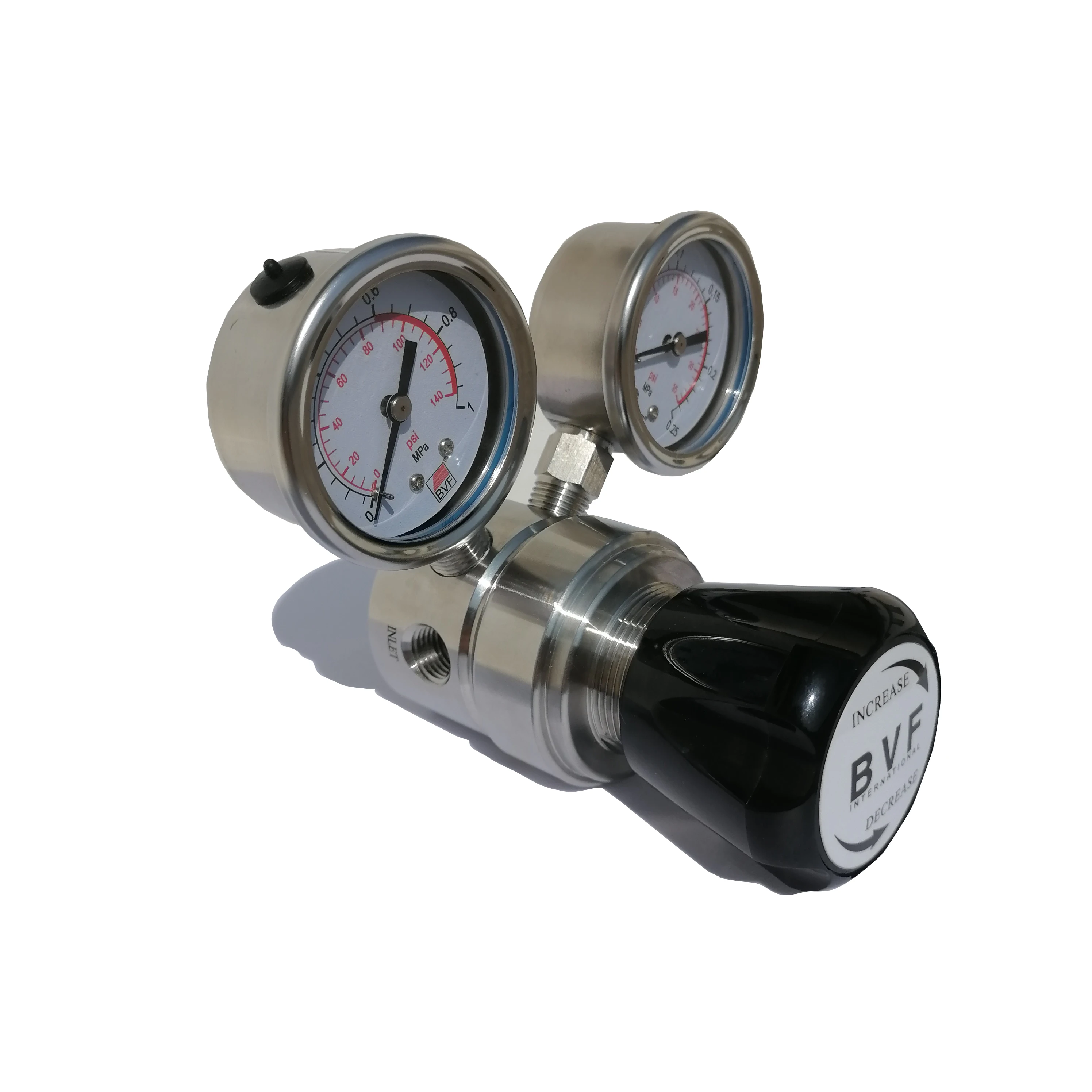

Прецизионный редукционный клапан высокого потока диафрагмы BVF BR3, регулятор давления низкого давления
