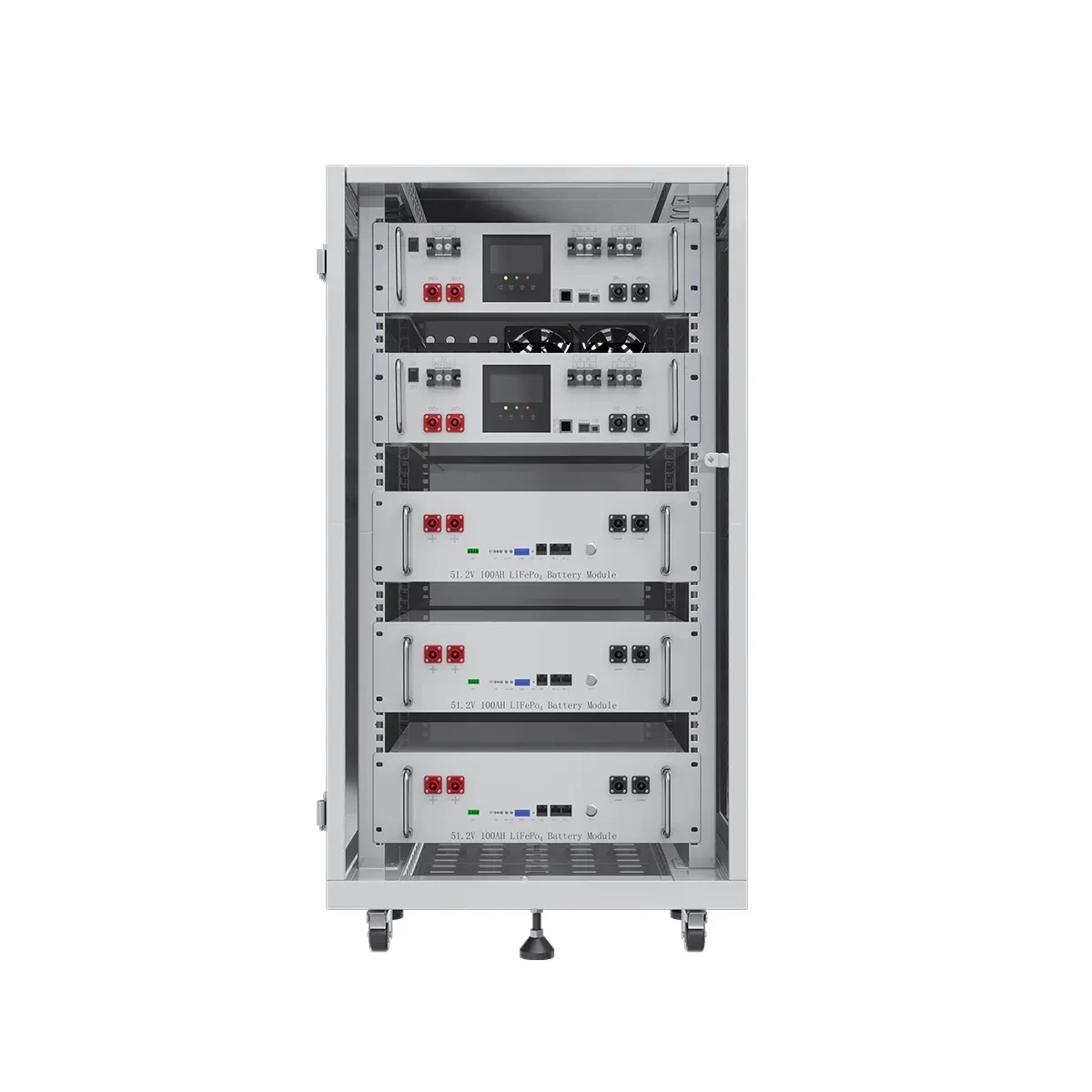

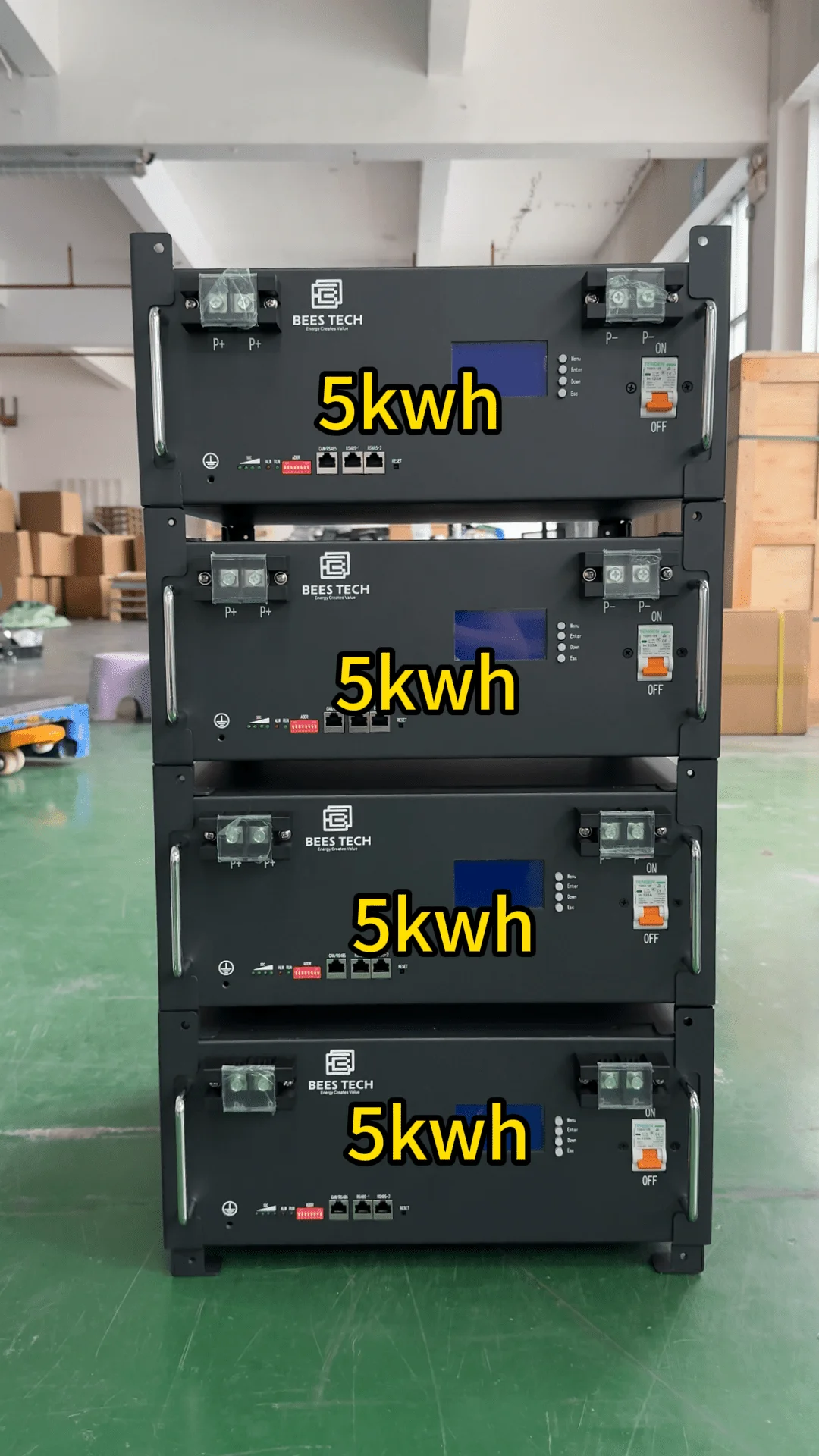

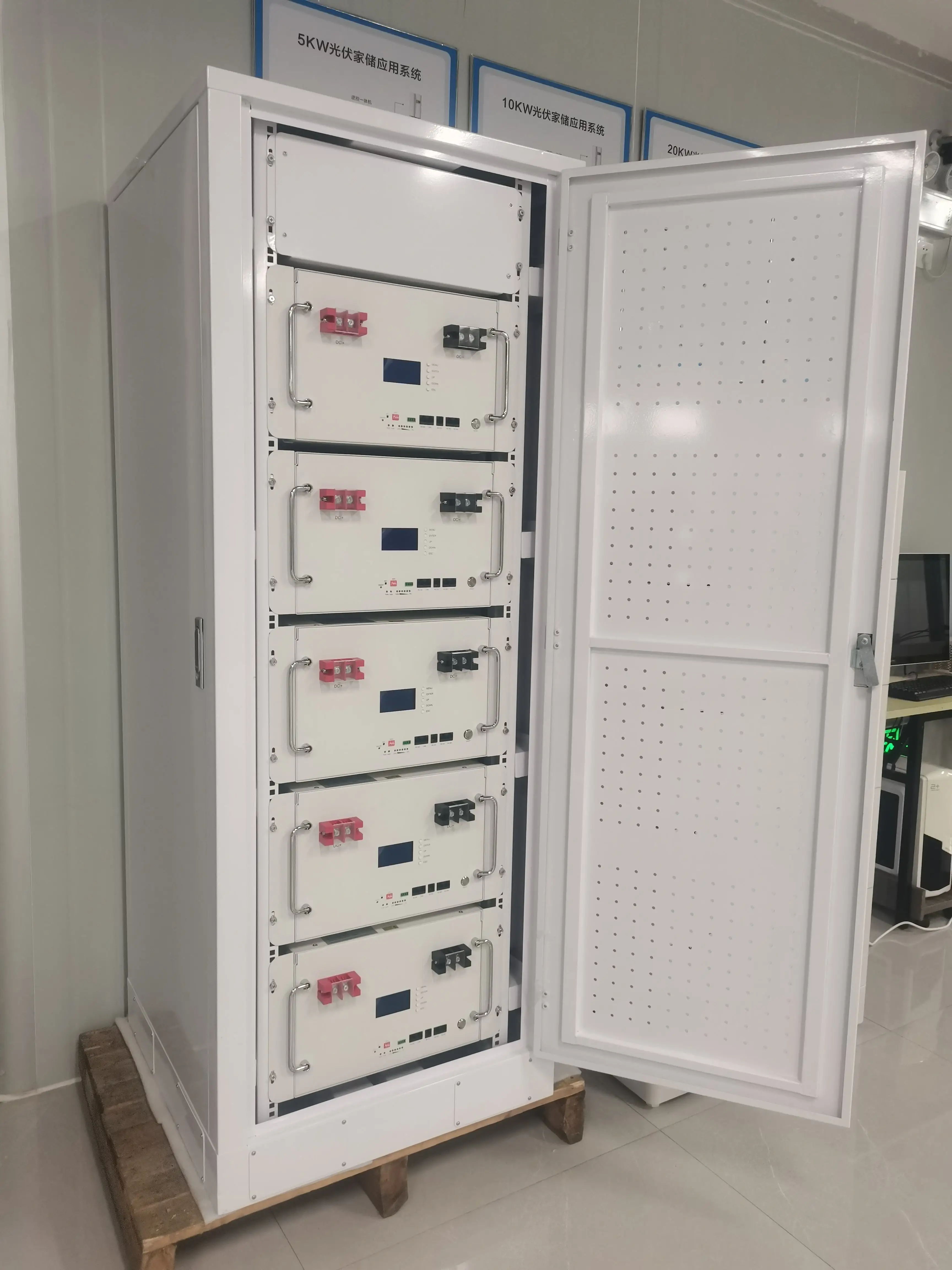

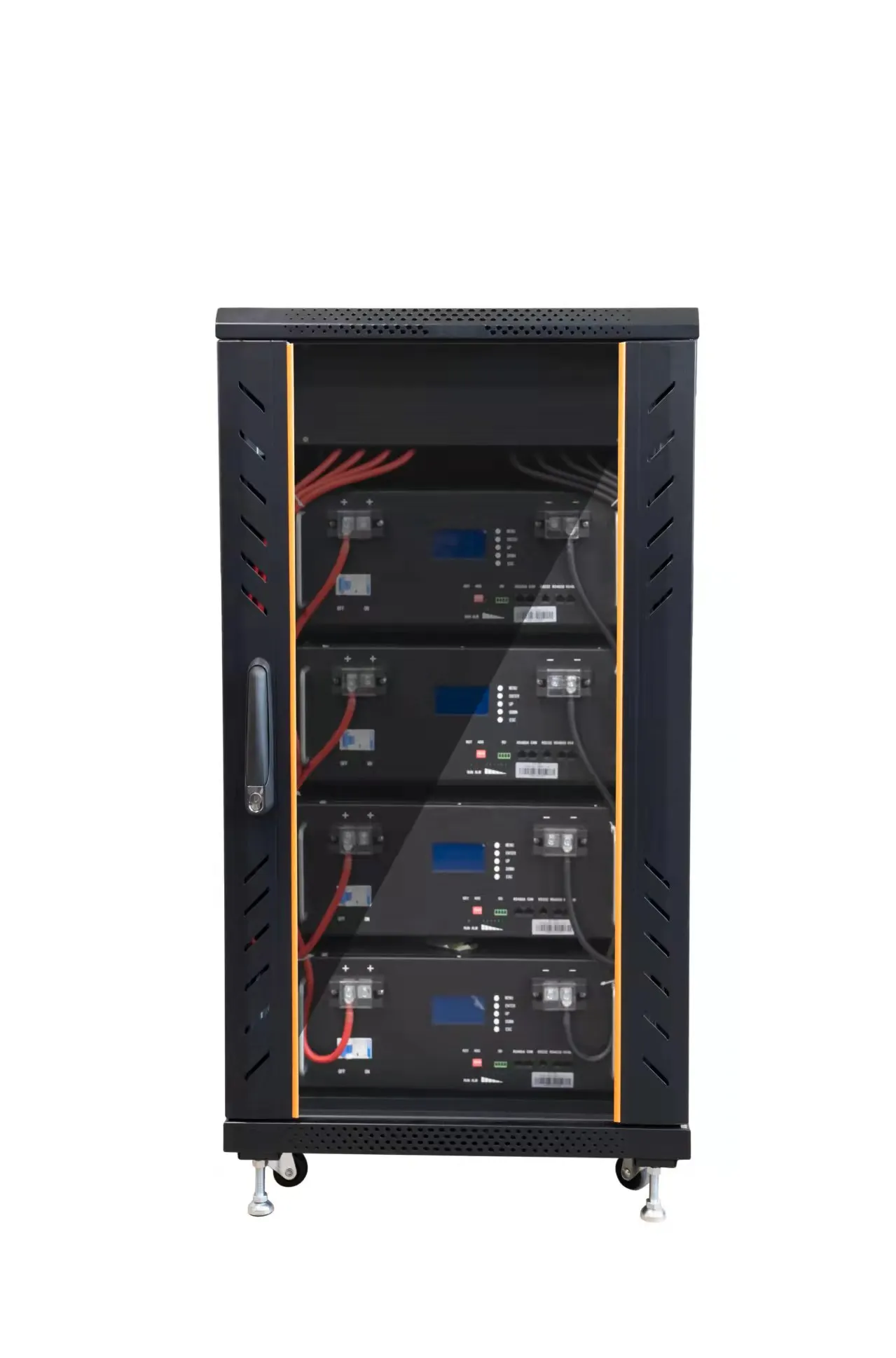

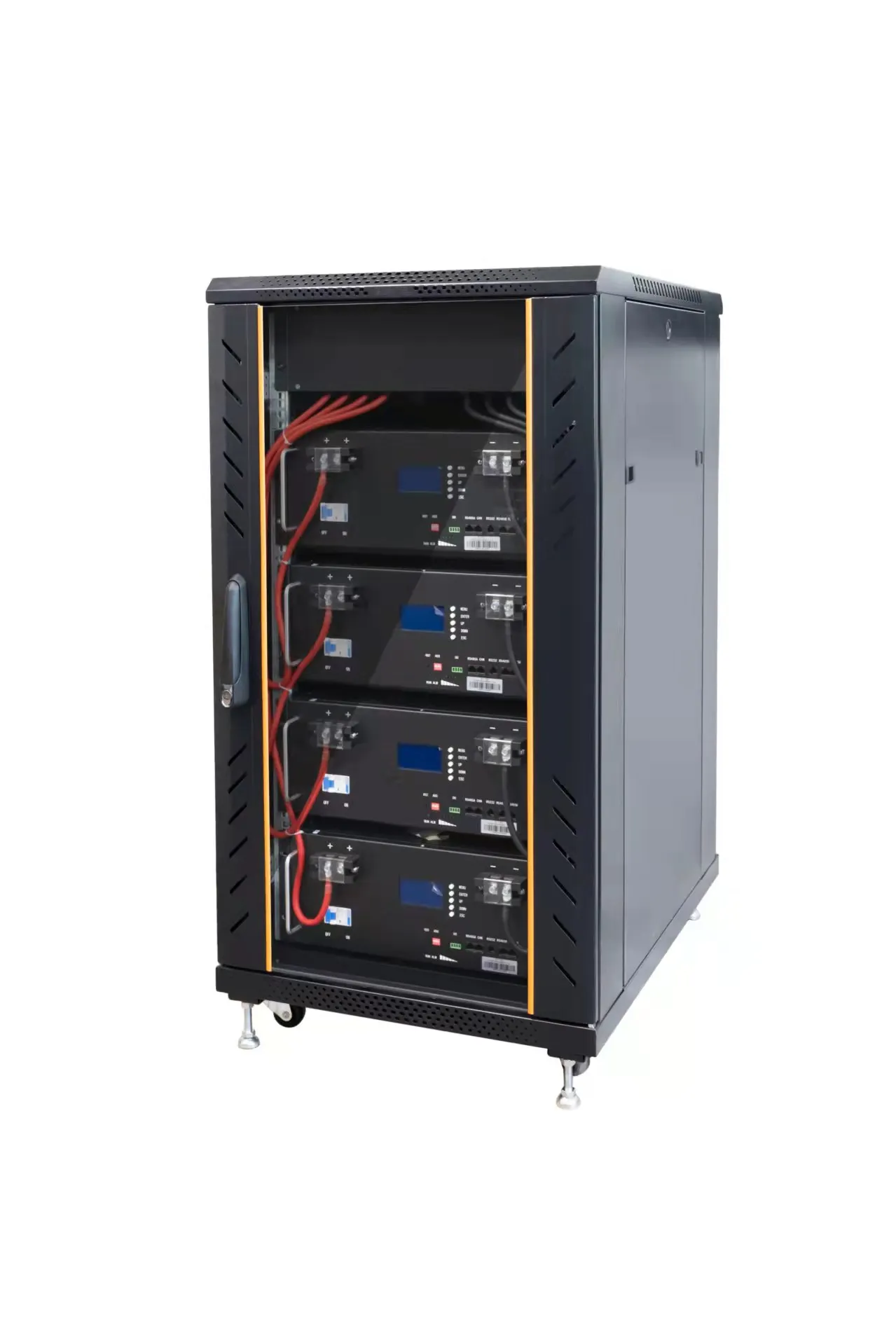

Type | Rack Mount Battery | ||||
Model | BLR-5KWH | BLR-10KWH | BLR-15KWH | ||
Battery Capacity [Ah] | 100Ah | 200Ah | 300Ah | ||
Nominal Battery Energy [kwh] | 4.8/5.12 | 9.6/10.24 | 14.4/15.36 | ||
Max Discharge Current [A] | 100 | 200 | 200 | ||
Net Weight[kg] | 48 | 75 | 111 | ||
Dimension [D*W*H, mm] | 440*442*176 | 620*450*200 | 740*520*200 | ||
Nominal Voltage [V] | 48/51.2 Vdc | ||||
Operating Temperature Range | -20 ~ 50 [℃ ] | ||||
Life Cycles | >6000 | ||||
Warranty | 10 Years | ||||
Communication | CAN/RS485/DRY CONTACT | ||||
Certificate & Safety Standard | TUV / CE / EN62619 / IEC62040 / UN38.3 / MSDS | ||||
Alarms | Battery Operation/Out of Battery/System fault | ||||
Pros | Applied in off-grid and hybrid system, Compact Design, Modular Expansion | ||||
Monitoring & Protection | With BMS protection in each Module, and breaker embedded in the system |
