Высококачественная Светодиодная лента 3000K 4000K 6500K 2835 60 светодиодов на метр 12 В 24
1,22-1,67 $
WS2815 G8208 Светодиодная лента SMD5050 Лампа неоновая вывеска смарт пиксели Адресуемая RGB полноцветная DC12V
- Категория: >>>
- Поставщик: Shenzhen Star Sources Lighting Technology Co. Ltd.Shenzhen Ltd.
Сохранить в закладки 1600979605329:
Описание и отзывы
Характеристики
Note:
The price is only Led Strip, Not Included Power Supply or Led Controller!
WS2815 Must Use DC12V Power Supply AND Led Controller to Control!
every 0.5meter with solder joints, please note!
WS2815 Pixel LED Strip Pay attention:
30Led,60Led,74led,96led ,144LED
Means :30leds/m, 60leds/m,74leds/m,96leds/m ,144leds/m

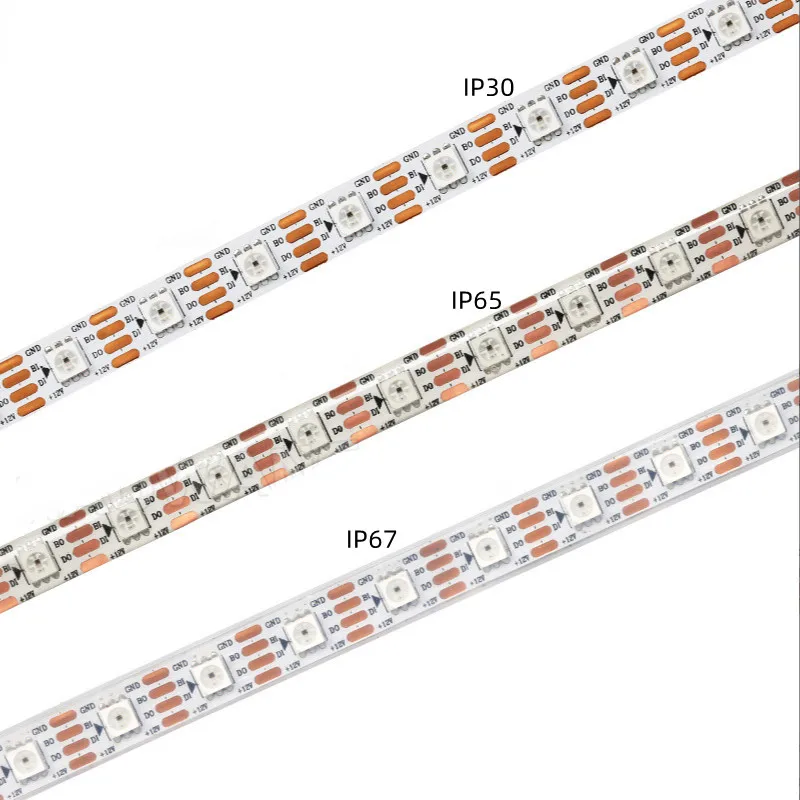

IP30 Non Waterproof
IP65 Waterproof with glue
IP67 Waterproof with silicon cover
IP65 Waterproof with glue
IP67 Waterproof with silicon cover

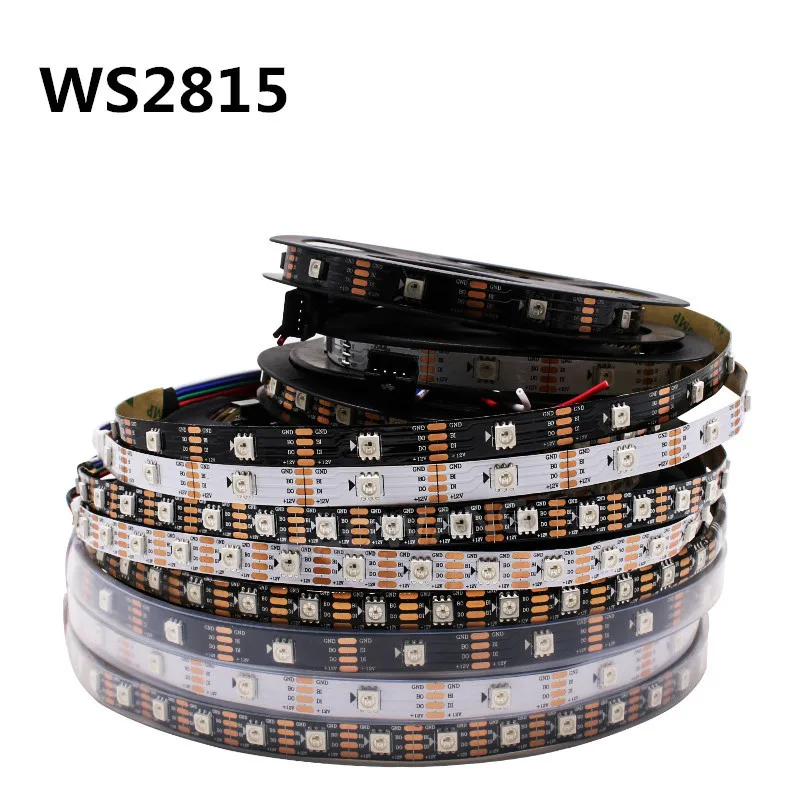

WS2815 Pixel LED Strip Main feature:
| Item Number | 12V-WS2815-30LED/M 12V-WS2815-60LED/M 12V-WS2815-74LED/M 12V-WS2815-96LED/M 12V-WS2815-1444LED/M |
| LED Type | SMD5050 |
| IC Type | WS2815 |
| 1 LED 1ic inside SMD5050 RGB LED) | |
| LED Quantity & pixel | 12V-WS2815-30LED-30 pixel per meter 12V-WS2815-60LED-60 pixel per meter 12V-WS2815-74LED-74 pixel per meter 12V-WS2815-96LED-96 pixel per meter 12V-WS2815-144-144 pixel per meter |
| Signal Protocol | SPI (Data,GND,Positive) |
| Wattage | 9W/M |
| PCB Size | 10mm width for 30/60/74/96led 12mm width for 144led |
| Length | 5Meters /Reel |
| Working Voltage | DC 12V |
| Light Color | digital RGB,Each LED individual control |
| IP Grade | IP30 Non Waterproof IP65 Waterproof with glue IP67 Waterproof with silicon cover |
| PCB Color | White ,Black Color |
| Working temperature | -20 to 60°C |
| View Angle | 120° |
| Life Span | >50000hrs |
one pixel damaged will not affect the other LEDs'working
Dual signal wires version, signal can jump to transfer
LED light source: WS2815 LEDs
same protocol as WS2813S with Dual-signal wires,so can be controlled by the same WS2811/ws2812 controllers
Input voltage:.............DC12V;
Power:.......................30leds/m----9watt/meter
.......................60leds/m----18watt/meter
LED resource:...........WS2815 led(5050 SMD RGB LED with built-in improved version of ws2811 ic)
LED: ...............each LED is separately controlled
IC Type: ....................improved version ws2815 IC(built inside the 5050 smd rgb led)
of IC: ..................(1 IC drives 1 led chip);
Pixels: .........30/60/144meter;
Pitch: ........................16.6mm(1000/64);
Grey scale: ...............256;
Bits/color: .................8-bits/color;
FPC Width: :..............30leds/m----10mm
.......................60leds/m----10mm
.........................144leds/m----12mm
FPC color: .........Black/White PCB
Protection rate ......IP30/ IP65 /IP67
Colors: .......................Full color RGB, dream color changing;
Cuttable:.....................every LED is cuttable;
Package: ...................in anti-static bag,IP30 IP65 with 3M adhensive tape on the back(IP67 without 3M adhensive)
working temperature...............-40 ~ 70 °C
Storage temperature...............-50 ~ 80 °C
Source life ...............50,000 hours
Connector ...............4PIN connector terminal pair
(Red: 12V power , green: Date line, Blue: standby date line,Black: GND)
Recommand controllers:
T-1000s,T-8000A;T-100K;T-200K;T-300K
WS2815 Pixel LED Strip Main feature:
(1)One pixel damaged will not affect the other LEDs working.
(2)The power protection,if +12V and GND reverse polarity,the LED will not be burned.
(3) Dual signal wires version, signal can jump to transfer.
(4)The original electronic devices integrated,it does not cause virtual welding in the installation process.
1, all the electronic components are integrated in a 5050 lamp beads, it does not require any other peripheral auxiliary electronic components to form a complete external control pixels. While reducing the product at the time of installation inverted Weld, caused by poor.
2, serial cascade interface, dual-line signal transmission, to achieve the functions of HTTP, which under a single pixel without causing damage to its lower pixel normal lighting, silk ho does not affect the overall results.
3, intelligent reverse polarity protection, product installation access 5V power supply in case of reverse, will not cause damage to the lamp beads.
4, built-in signal shaping circuit, any one pixel after receiving the signal through the waveform shaping and then output to ensure line waveform distortion will not accumulate.
6, the transmission distance between any two points in less than 5 meters without any additional signal amplification circuit.
7, when a refresh rate of 30 frames / sec, the number of cascades of not less than 1024 points.
8, the data transmission speed of up to 800Kbps. Light color consistency, cost-effective.
LED WS2815 Symphony light strip Function Description:
Happy control a single lamp, water, windows, rear meteor, chasing, pattern change animation, video, text, and so on. Use of the lamp, in which a pixel bad, does not affect the normal operation of other lights so as not to affect the overall results. Any color can show, random combinations into any pattern, in particular made light of the screen to use. No separate address to write to the lamp can be achieved HTTP, installation easier. Meanwhile lamp beads which also integrates a capacitive resistance, so that electronic components do not need to be on board the auxiliary light bar, thus increasing the stability of the product.

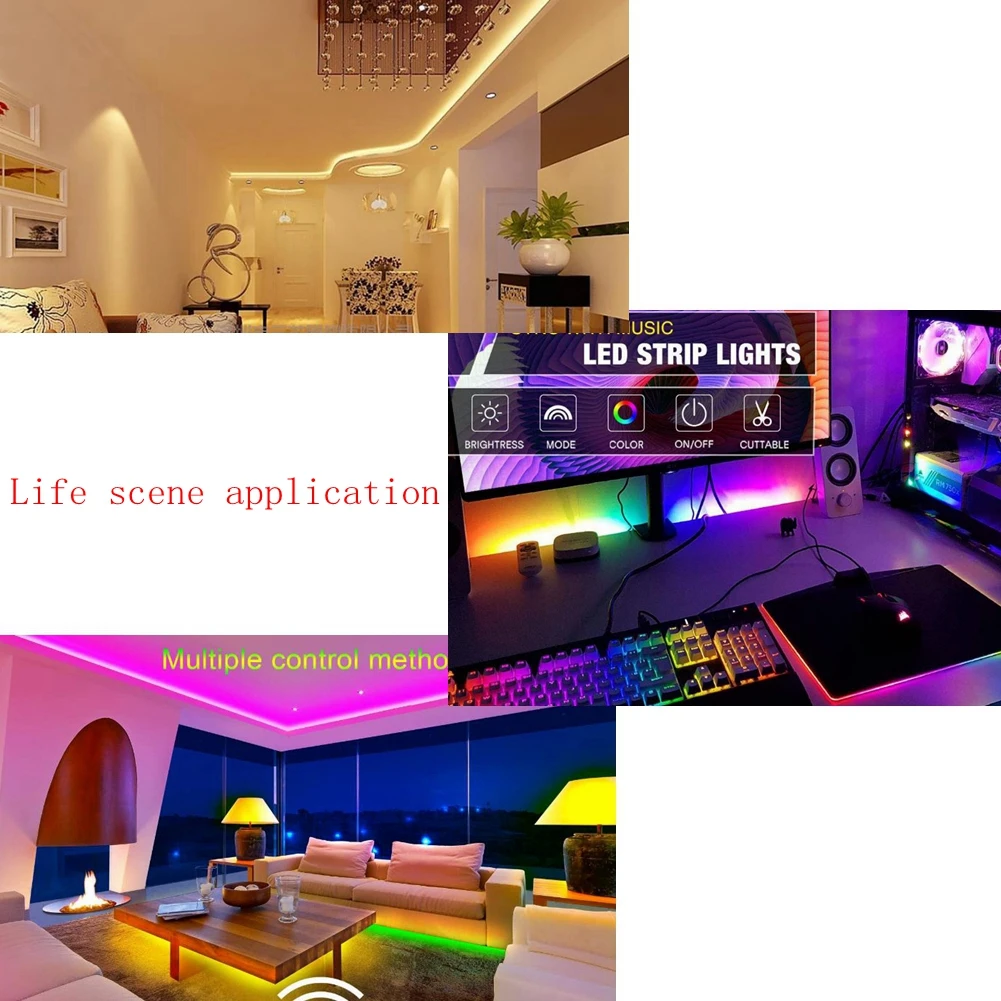

LED WS2815 strip use for :
The product rich colors and bright light, high visibility, more visually appealing. Is widely used in the corridor wall, indoor decoration, product model decorative lighting, decorative lighting consoles, speakers decorative lighting, entertainment, wine cooler bar backlight, smallpox backlight, LED light boxes, LED luminous signs, aquarium supplies, car decoration etc., it is to replace the traditional neon signs, fluorescent lamps and a new generation of lighting.
