100% синтетического целлюлозного нано волокна HEPA ГАЗОТУРБИННЫЙ воздухозаборный фильтр
- Категория: >>>
- Поставщик: Henan Bofilter Environmental Technology Company Limited
Сохранить в закладки 1600979863520:
Описание и отзывы
Характеристики
Product Description
Product Name | Air Cartridge Filter |
Material | Spun Bond Polyester Fiber/Antistatic/Aluminium Coating/Fire Reterdant/Japan Toray PTFE Membrane/HV Cellulose Paper/80% Polyester+20% Cellulose/Synthetic Fiber/Flame Reterdant/Nano Fiber |
Function | Sandblasting, Laser cutting, Woodworking, Welding fume, Coal, Machinery, Dust, Lithium electricity industries, Gas turbine, Air compressor, Sandblasting, Tobacco, Coal, Power plant , cement silo plant etc |
Package | Plastic Bag First, Carbon box second, then pallet package or wooden box |
Industrial Bag Air Filter

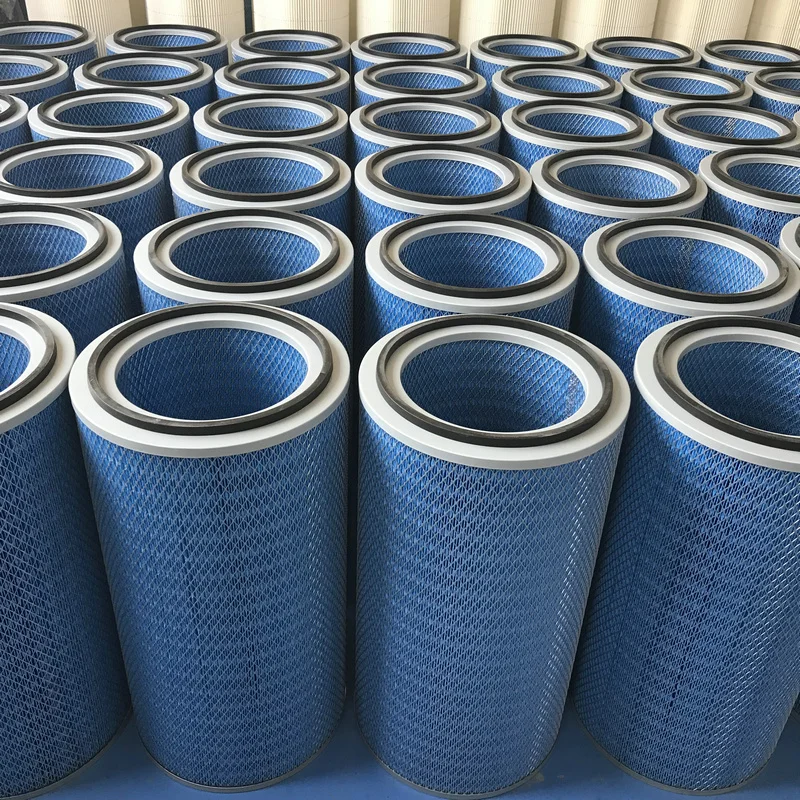

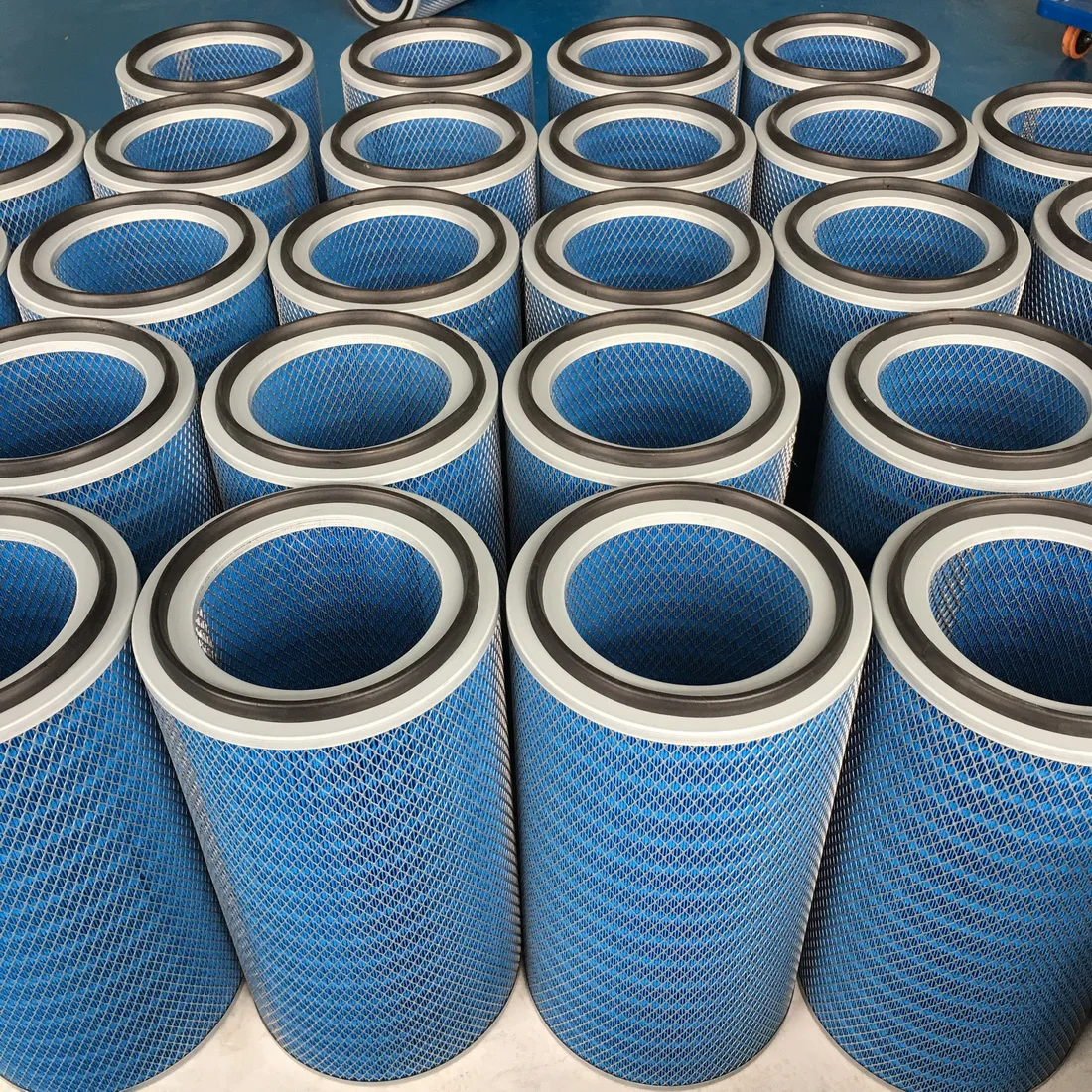

Air Cartridge Filter be used widly in industrial dust collector machinery. Installation including vertival、slant、horizontal. Filter end frame and mesh is galvanized or SS304. Bag filter seal is endless rubber or silicone. Filter media advantage are stiffness, good air permeability, low resistance, wearproof, washable.

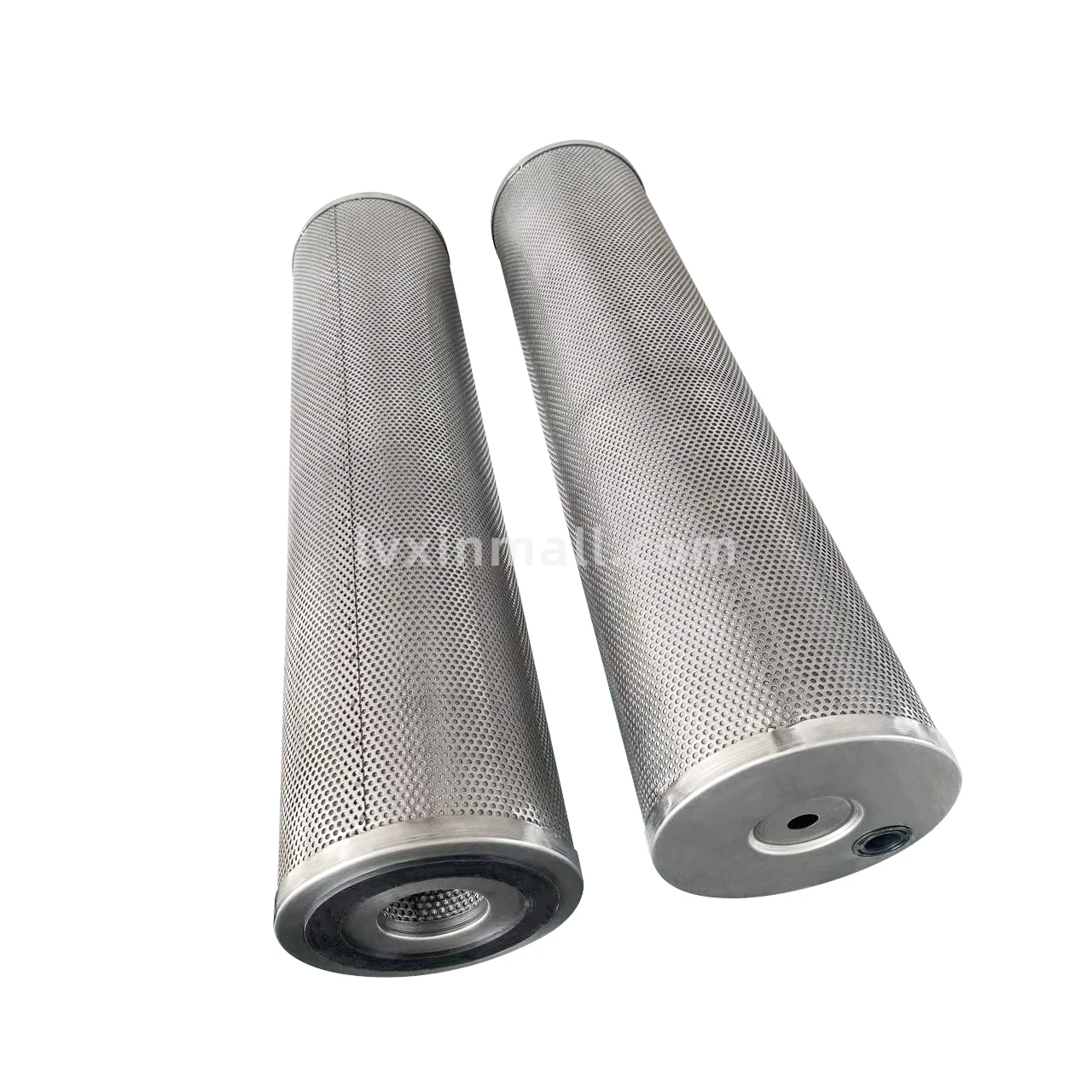

Galvanized Inner/Outer Mesh

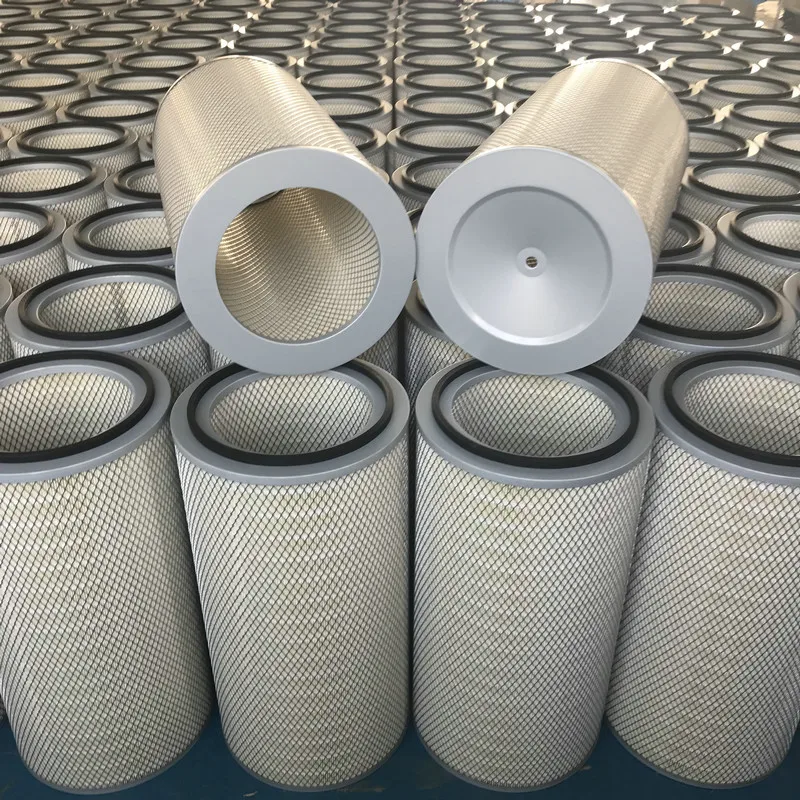

Top Open With Rubber Gasket
Bottom Open Cap
Product Paramenters
Model | Shape | Outer Diameter(mm) | Inner Diameter (mm) | H (mm) | Filtration Area (m2) |
BF-Z3260 | cylinder | 324 | 213 | 600 | 19 |
BF-Z3566 | cylinder | 350 | 240 | 660 | 23 |
BF-Z3266 | cylinder | 324 | 213 | 660 | 21 |
BF-Z445 | conical | 445-324 | 330-213 | 660 | 23.5 |
BF-Z559 | cylinder | 406 | 292 | 559 | 21.5 |
BF-Z876 | cylinder | 406 | 292 | 876 | 34 |
BF-Z476 | cylinder | 406 | 356 | 660 | 22 |
Details Images

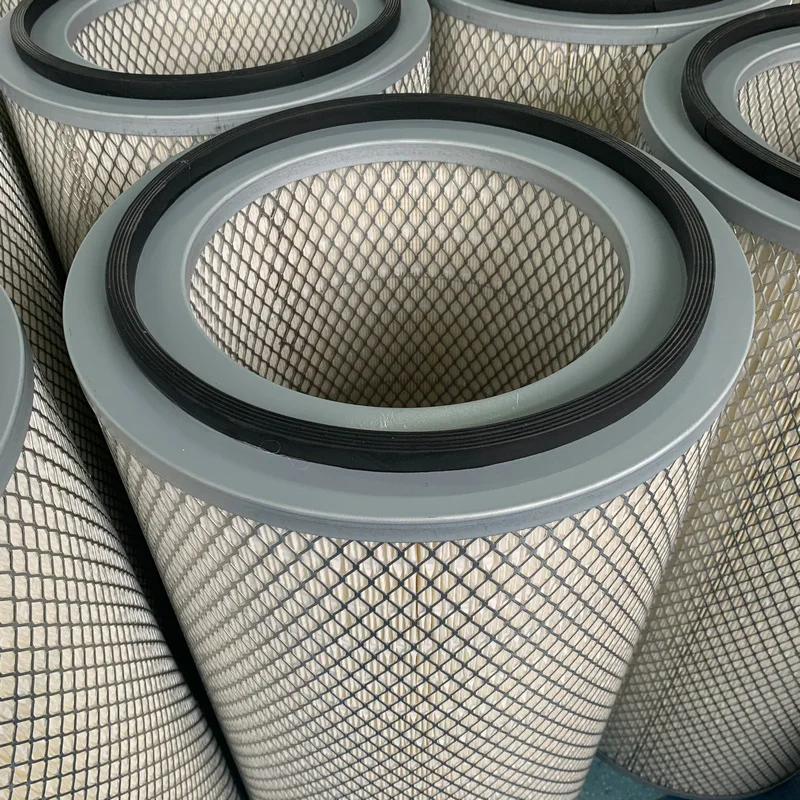

Air cartridge filter be composed by filter media, galvanized metal cap and galvanized mesh. Filter media are polyester, antistatic, PTFE membrane, FR fire reterdant, cellolose, nano. Filter end media can do galvanized, plastic, SS304. Gasket is endless EPDM.
Galvanized Filter Open/Close Cap

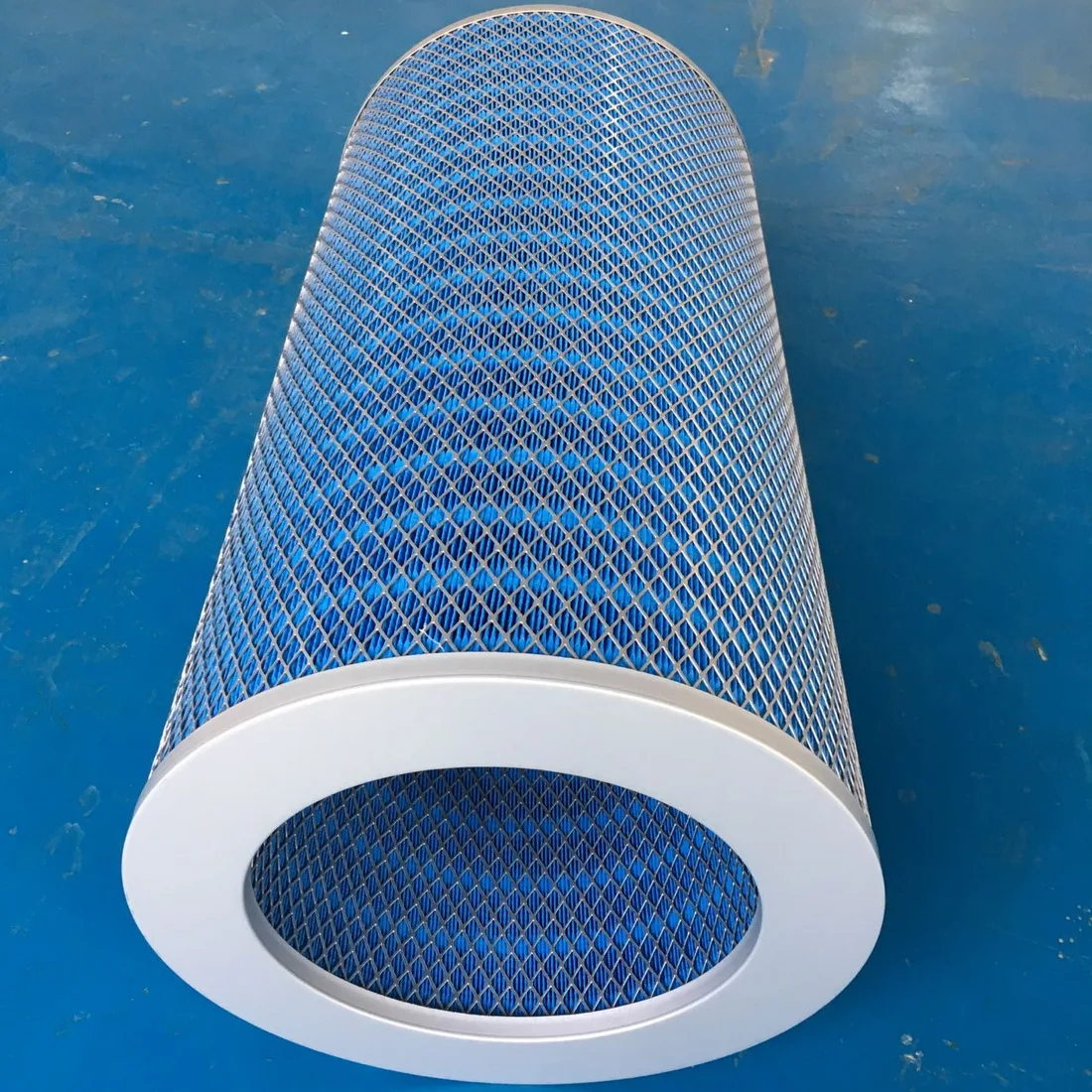

Diamond Galvanized Mesh
Synthetic Filter Media
Related Products
Long Pleated Bag Filter
Polyester Dust Collector Filter
PU Type Bag Filter
Product Usage
Filter Dust Collector Machine
Air filter cartridge be installed with vertical way in portable dust collector machine. Machine are applied to laser cutting, welding fume, food、biopharming, lithium electric, grinding, polishing, woodworking, casting, mixing, powder etc.
Air Cartridge Filter Dust Collector
Air filter cartridge be installed with vertival way in portable dust collector machine. Machine are applied to laser cutting, plsma cutting, welding, food, metal, powder grinding, coal ash, cement etc.
wood-working factory flourmill/fine powder power plant sand blasting/shot blasting
iron and steel plant laser cutting pharmacy industry lithium battery
Installation Instructions
Cellusose Gas Turbine Filter Be Installed
Synthetic Filter in Power Plant
Packing&Shipping
Package way: carton box, pallet, wooden box
Transportation: by sea, by truck, by air, railway, international express DHL/TNT/FEDEX/UPS
Company Introduction
Henan Bofilter Environmental Technology Co., Ltd. is a professional technology and environmental protection enterprise integrating R&D, design, manufacturing and sales, focusing on the production and sales of air filters, filter elements, filter bags and dust collector equipment accessories and other filtration products. The company has introduced advanced production equipment, the core filter material imported from the United States, Japan, South Korea, Europe and other high-quality filter materials, advanced processing technology, strict production process control, extensive professional technology and years of rich application experience, it is well received by domestic and foreign customers.
The company's main products are: cartridge dust collector, self-cleaning filter, high-efficiency box filter, composite fiber filter cartridge, long fiber polyester filter cartridge, PTFE membrane、nano、pulse pleated long filter cartridge, high temperature resistant 、anti-static、flame retardant filter cartridge, special filter cartridge for air conditioner and vacuum cleaner, etc.
Products are widely used in steel, petrochemical, electric power, shipbuilding, aviation, containers, tobacco, rubber, machinery manufacturing, ceramics, wood processing, automobiles, special powders, non-ferrous metals, mining, etc.
The company adheres to the tenet of "quality first", provides customers with satisfactory service as its own responsibility,
constantly improves itself and pursues development.
The company's main products are: cartridge dust collector, self-cleaning filter, high-efficiency box filter, composite fiber filter cartridge, long fiber polyester filter cartridge, PTFE membrane、nano、pulse pleated long filter cartridge, high temperature resistant 、anti-static、flame retardant filter cartridge, special filter cartridge for air conditioner and vacuum cleaner, etc.
Products are widely used in steel, petrochemical, electric power, shipbuilding, aviation, containers, tobacco, rubber, machinery manufacturing, ceramics, wood processing, automobiles, special powders, non-ferrous metals, mining, etc.
The company adheres to the tenet of "quality first", provides customers with satisfactory service as its own responsibility,
constantly improves itself and pursues development.
