Product Description
920mm Paper Cutter Large Size Paper Trimmer Cutting Machine
The 9211D dual hydraulic paper cutter has a one-piece casting body, which in addition to ensuring stability and cutting accuracy, is also strong and durable. High-power motor, dual hydraulic pressure and strong power output, fast speed, no knife drift. The platform has a chrome-plated air-blowing ball design, which makes the paper retracting and placing neatly and making the work easy.
Specification
Model | MT-9211D |
Cutting width | 920mm |
Cutting thickness | 100mm |
Min cutting length | 30mm |
Cutting precision | 0.2mm |
Cutting paper | Hydraulic |
Clamp paper | Hydraulic |
Push paper | Double Rod&Double Guide |
Protection | Infrared |
Dimension | 146*175*157cm |
Weight | 850KG |
Details Images

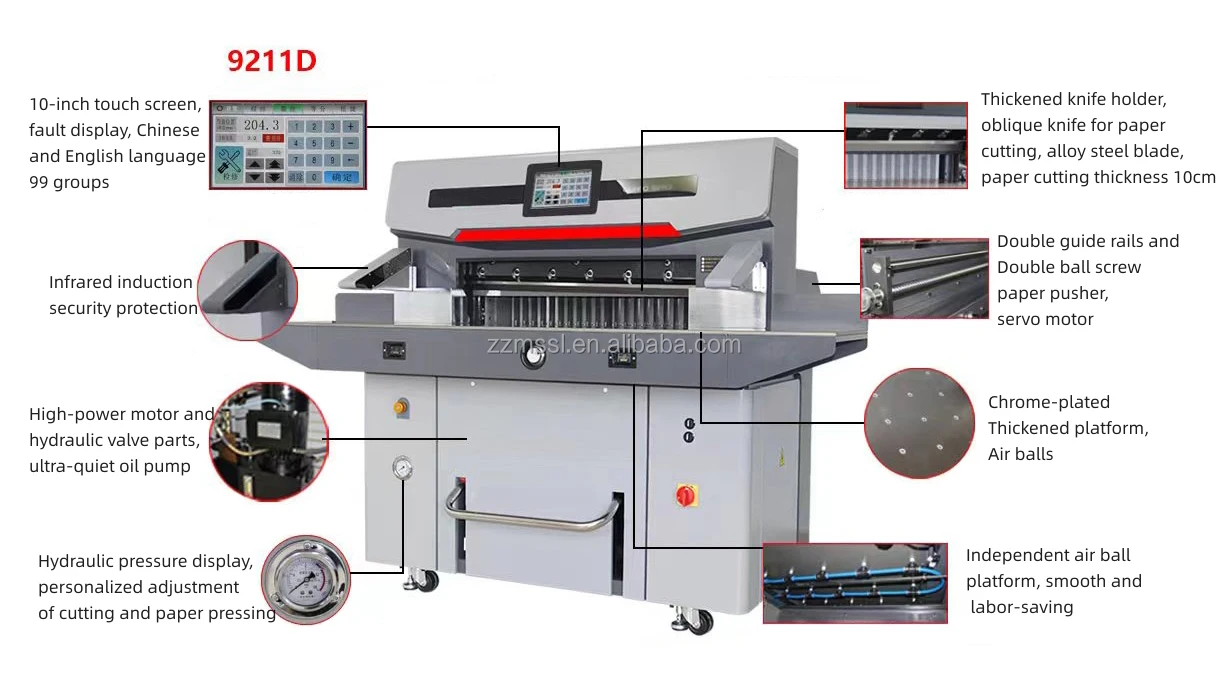

Features:
1. Heavy-duty frame structure, the body is firm, stable and durable.

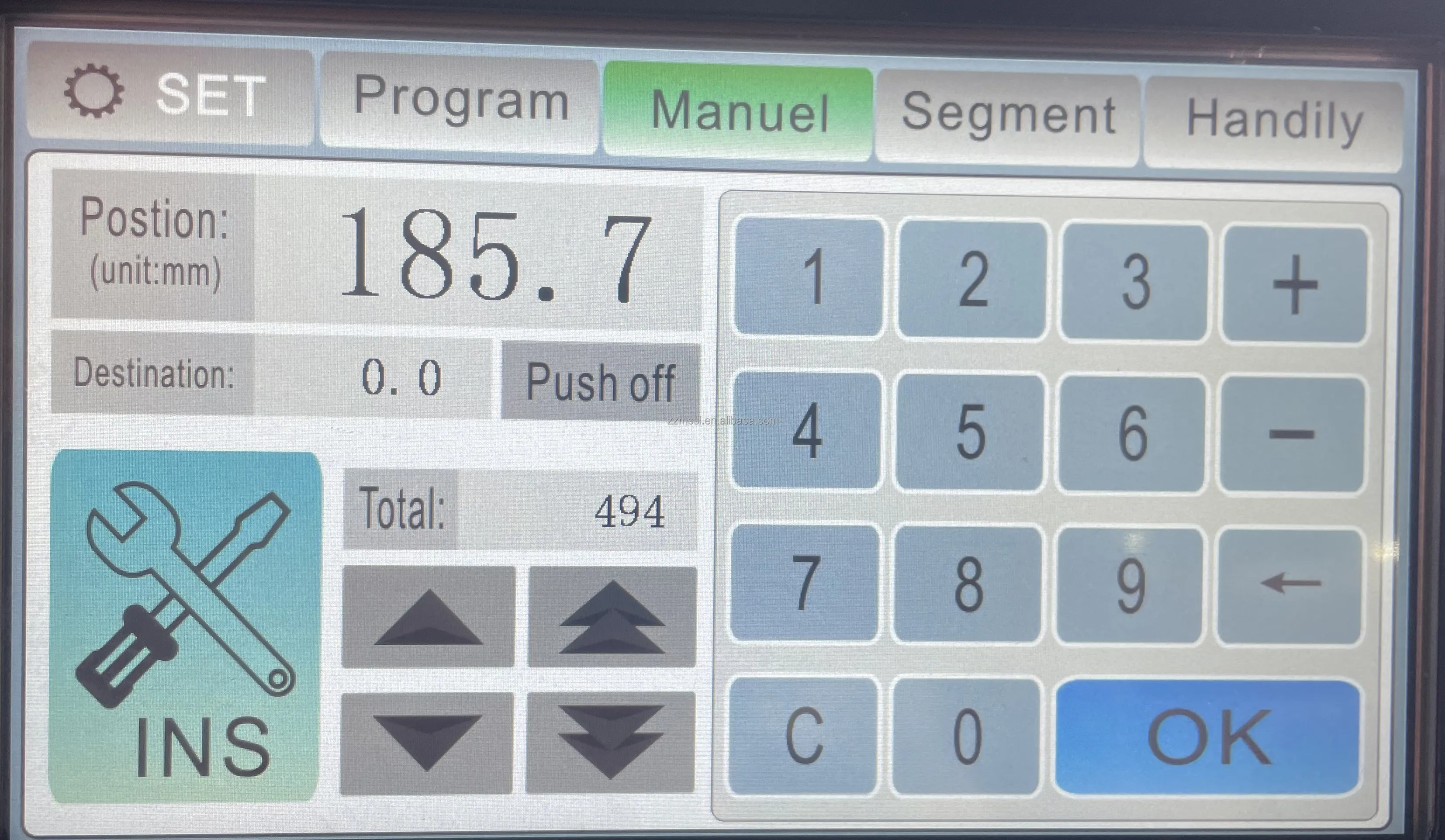

2. Control system: 10-inch touch screen display, fault detection, and computer size calibration.
3. Protection device: infrared photoelectric protection. Safe operation and high sensitivity.
4. Power system: high-power Taiwan-made hydraulic main motor, electrical valves and oil pump.
5. Dual hydraulic pressure: Paper cutting and pressing are operated independently by dual hydraulic cylinders, with fast speed and sufficient power.
6. Paper pusher: Double guide rail and double ball screw paper pusher, improved servo motor, stable and high accuracy.
7. Cutting: The internal force design of the knife holder and the thickened high-quality alloy steel blade ensure that the knife holder remains stable and the knife does not drift during long-term use.
8. Cutting mode: CNC, program-controlled, and segmented cutting modes can be selected arbitrarily. In the program-controlled mode, 20 knives and 99 sets of stored data can be input.
9. Independent paper pressure control: it can be controlled independently.
10. Front paper pusher pulse rotation fine-tuning wheel: easy to adjust size, cutting accuracy 0.2 mm.
11. Operating platform: 1 cm thick air-blown ball platforms at the front and rear. Large-format paper movement is also smooth without damaging the paper surface.
2. Control system: 10-inch touch screen display, fault detection, and computer size calibration.
3. Protection device: infrared photoelectric protection. Safe operation and high sensitivity.
4. Power system: high-power Taiwan-made hydraulic main motor, electrical valves and oil pump.
5. Dual hydraulic pressure: Paper cutting and pressing are operated independently by dual hydraulic cylinders, with fast speed and sufficient power.
6. Paper pusher: Double guide rail and double ball screw paper pusher, improved servo motor, stable and high accuracy.
7. Cutting: The internal force design of the knife holder and the thickened high-quality alloy steel blade ensure that the knife holder remains stable and the knife does not drift during long-term use.
8. Cutting mode: CNC, program-controlled, and segmented cutting modes can be selected arbitrarily. In the program-controlled mode, 20 knives and 99 sets of stored data can be input.
9. Independent paper pressure control: it can be controlled independently.
10. Front paper pusher pulse rotation fine-tuning wheel: easy to adjust size, cutting accuracy 0.2 mm.
11. Operating platform: 1 cm thick air-blown ball platforms at the front and rear. Large-format paper movement is also smooth without damaging the paper surface.
Finished Products
Recommend Products
Packing & Delivery
Company Profile
Zhengzhou Miles Technology Co. , Ltd. is a production of paper processing and packing machinery manufacturers, with perfect testing facilities and strong technical force.Our products are widely recognized and trusted by our users to meet changing economic and social needs. We welcome new and old customers from all walks of life to contact us, looking for future business relations and common success
FAQ
1.Q: Are you a manufacturer?
A: Yes we have been manufacturing such machines over 10 years and also a professional exporter.
2. Q: What about the payment term?
A: Mostly 30%T/T in advance as deposit, 70% T/T when machine is finished before shipping.
3. Q: What is the warranty?
A: One year warranty after sales.During the warranty period, we will send the spare parts that break out due to the quality.
4. Q: What is your after sale service?
A: Any questions will be responded within 24 hours by email, Skype, call or Whatsapp/Wechat.
5. Q: What is the delivery time?
A: Mostly it takes 5 to 10 working days (depend on different machine).
2. Q: What about the payment term?
A: Mostly 30%T/T in advance as deposit, 70% T/T when machine is finished before shipping.
3. Q: What is the warranty?
A: One year warranty after sales.During the warranty period, we will send the spare parts that break out due to the quality.
4. Q: What is your after sale service?
A: Any questions will be responded within 24 hours by email, Skype, call or Whatsapp/Wechat.
5. Q: What is the delivery time?
A: Mostly it takes 5 to 10 working days (depend on different machine).
Похожие товары

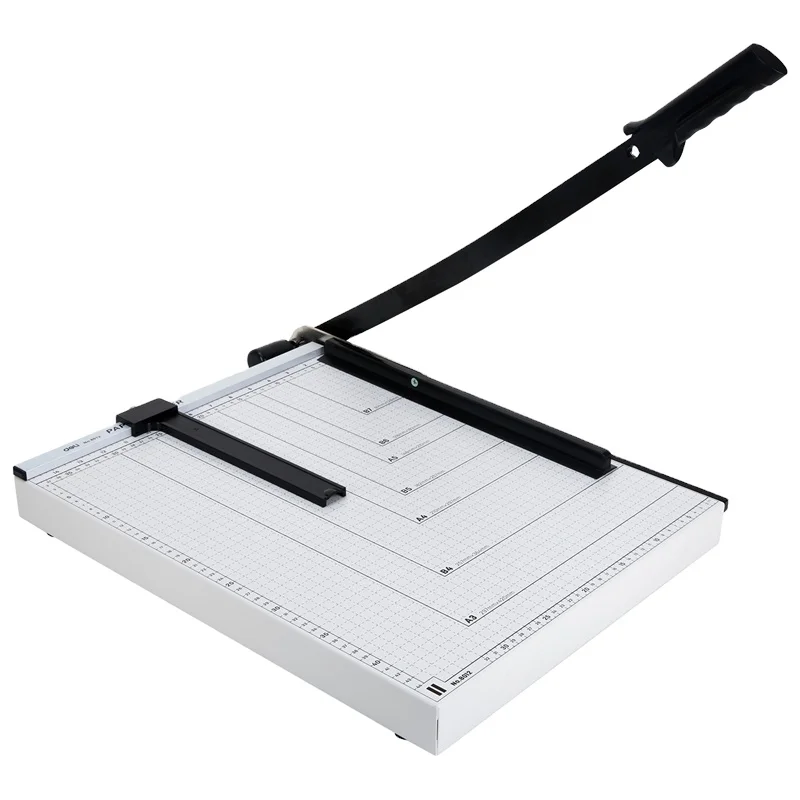

Deli E8012 прочный многофункциональный станок для резки бумаги канцелярские принадлежности
