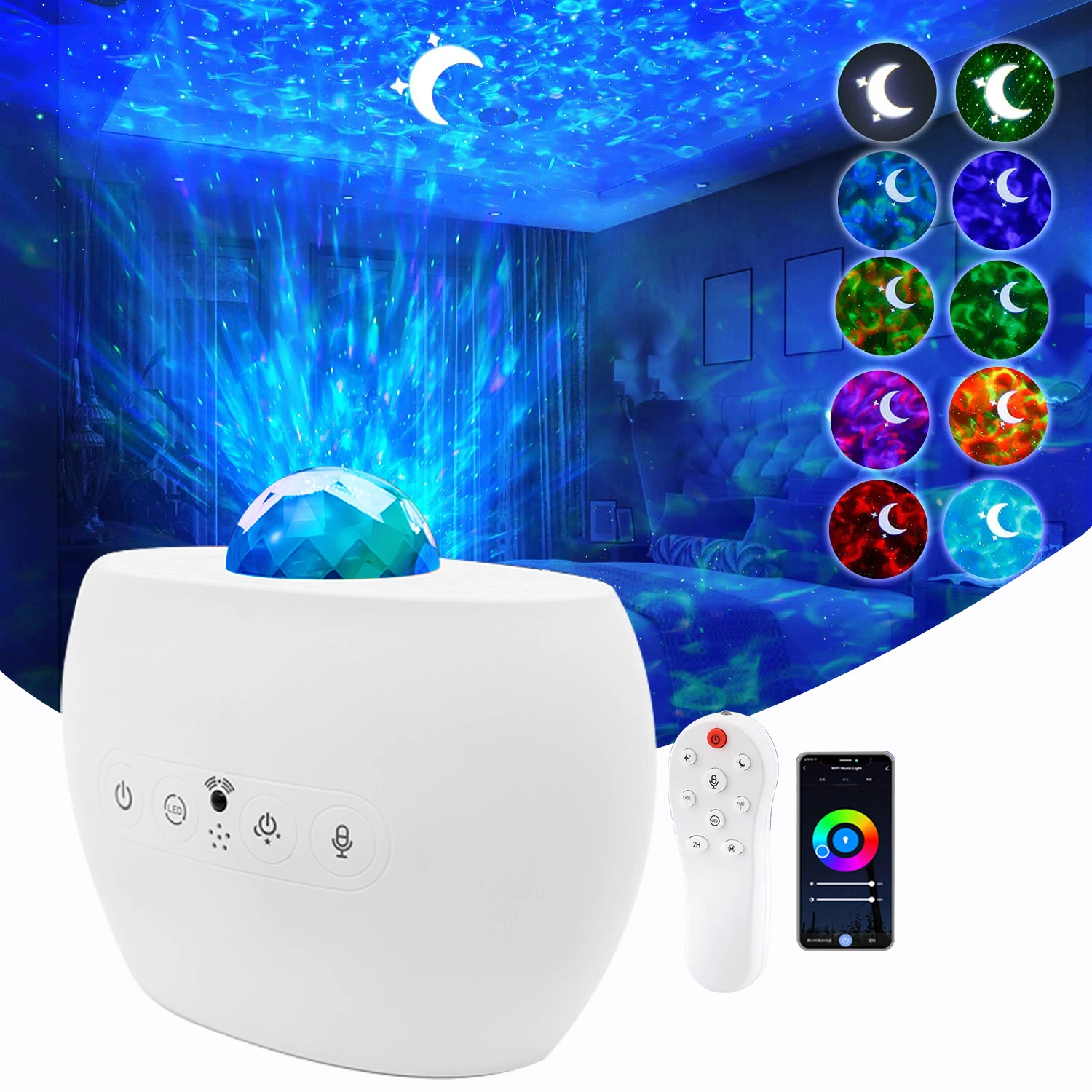

Высококачественный дешевый умный Галактический проектор, проектор звездного неба, проектор звездного света, проектор звездного неба
7,40 $ - 8,89 $

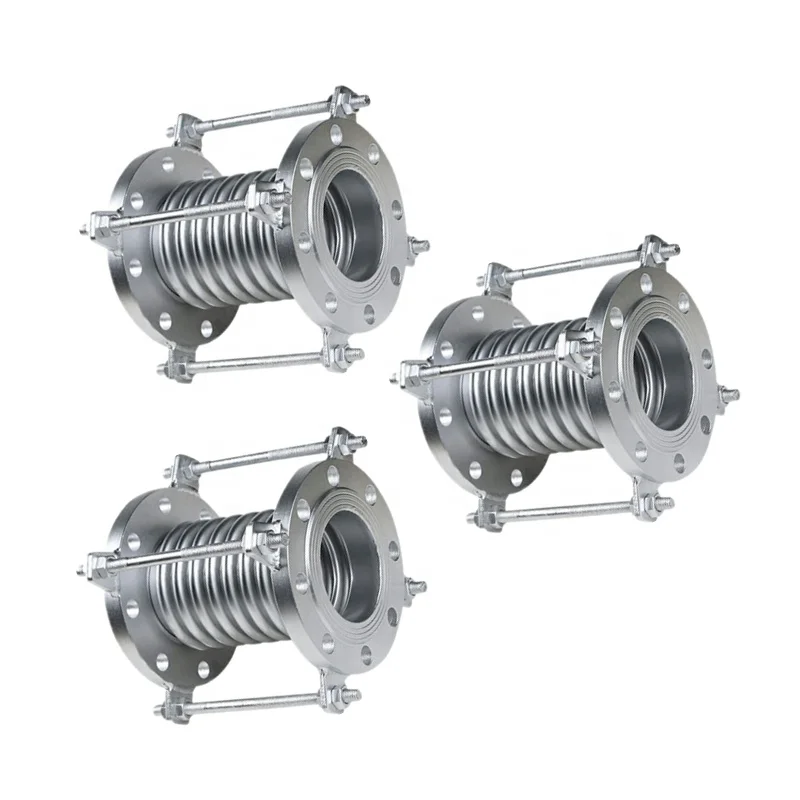

Производство ruixuan DN600 PN 10 двойной фланец из углеродистой стали металлический расширительный Соединительный фитинг
- Категория: >>>
- Поставщик: Henan Ruixuan Environmental Protection Technology Co. Ltd.
Сохранить в закладки 1600980596568:
Описание и отзывы
Характеристики
Product Description

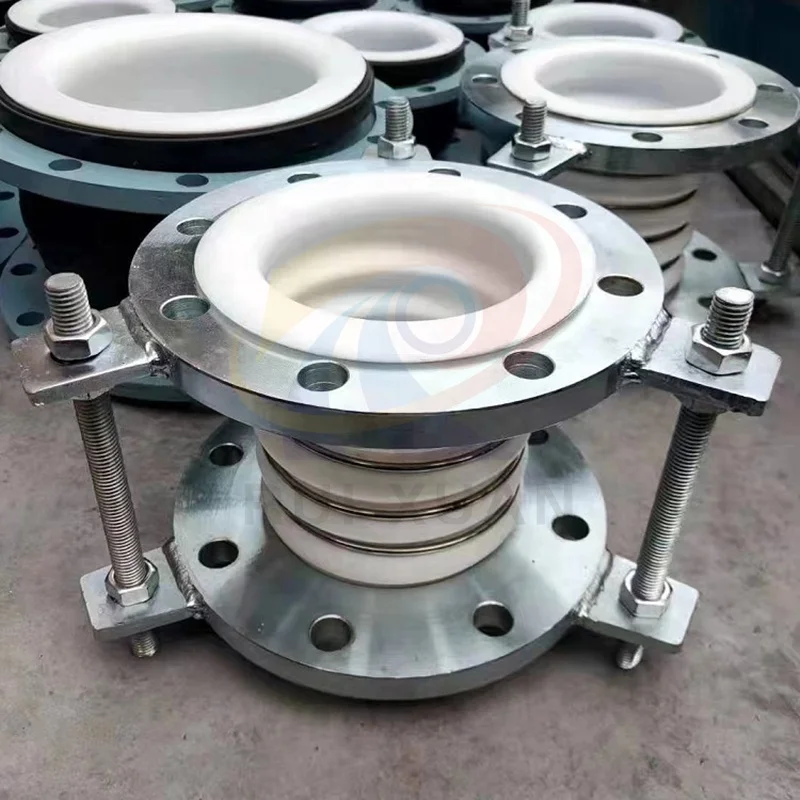

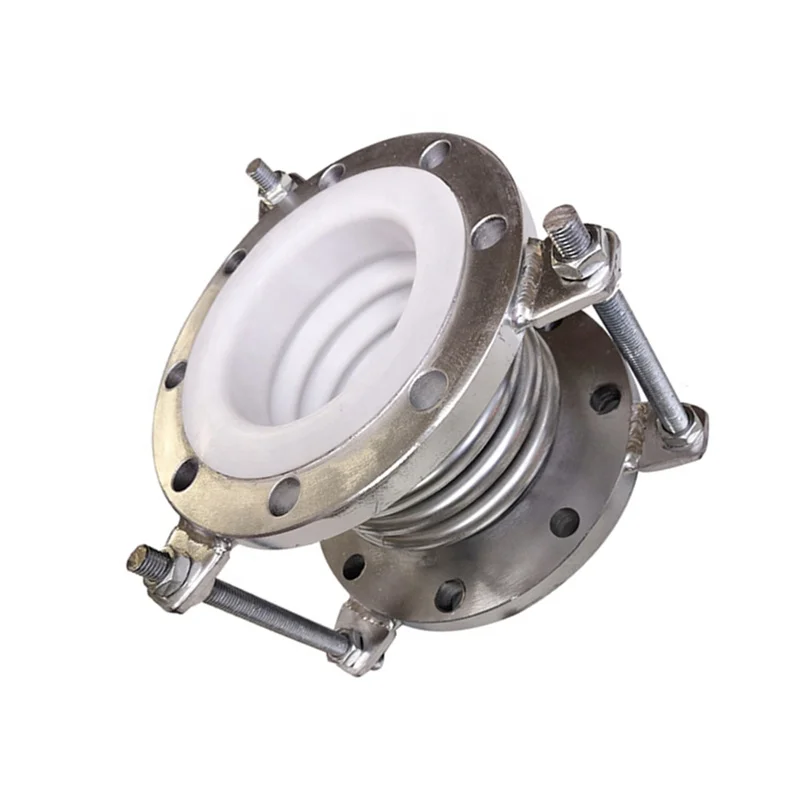

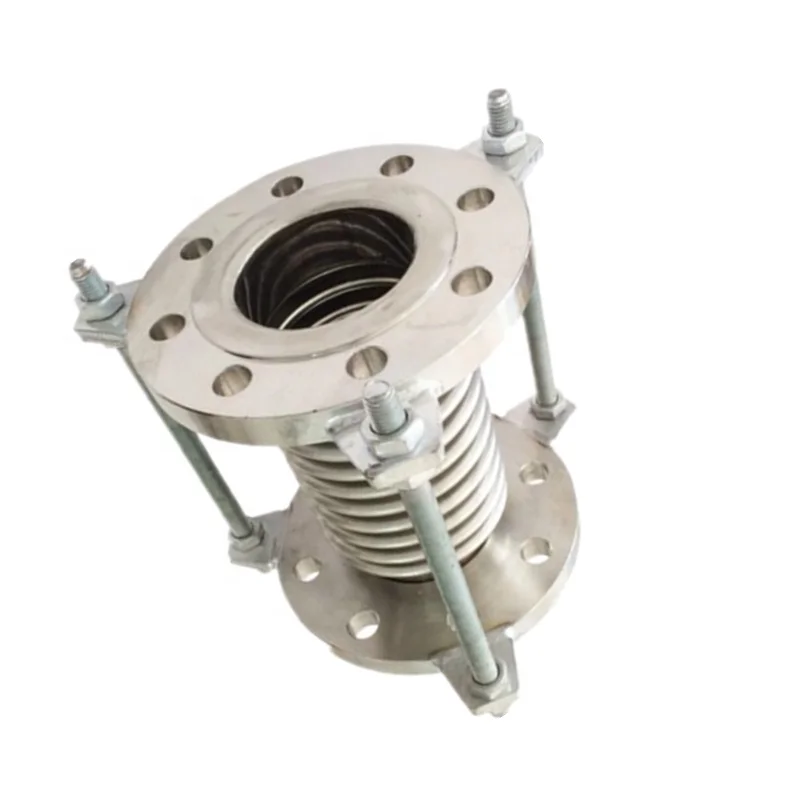

Bellows expansion joints is a compensation element, effective use of bellows telescopic body deformation, dimensional change in absorption pipeline,thermal expansion and contraction caused by the container, or compensation pipeline, conduit, vessel axial, transverse and angular displacement.The PTFE lined bellows expansion joints produced by our company can withstand various concentrations of acid and alkali, and solve the problem of poor corrosion resistance of metal corrugated joint . It also has the pressure of stainless steel bellow compensator.
Specification
DN | wave number | pressure rating MPa | length | ||||||
0.6 | 1.0 | 1.6 | flange(mm) | take over(mm) | |||||
axial compensation(mm) rigidty (N/mm) | |||||||||
32 | 8 | 22/26 | 20/26 | 18/63 | 160/250 | 264/280 | |||
32 | 16 | 46/14 | 41/14 | 36/32 | 224/291 | 316/321 | |||
40 | 8 | 22/44 | 20/44 | 18/89 | 164/259 | 269/289 | |||
40 | 16 | 46/22 | 41/22 | 36/45 | 230/304 | 319/334 | |||
50 | 8 | 22/51 | 20/70 | 18/70 | 172/276 | 282/306 | |||
50 | 16 | 46/26 | 41/35 | 36/35 | 240/342 | 347/372 | |||
65 | 8 | 30/35 | 26/44 | 22/55 | 215/294 | 300/322 | |||
65 | 12 | 38/22 | 38/32 | 34/40 | 260/334 | 340/362 | |||
80 | 8 | 36/26 | 34/33 | 28/41 | 240/338 | 344/366 | |||
80 | 10 | 49/17 | 49/21 | 43/26 | 270/368 | 374/390 | |||
100 | 6 | 45/60 | 40/75 | 35/93 | 235/317 | 232/345 | |||
100 | 10 | 74/32 | 64/40 | 57/50 | 305/381 | 387/409 | |||
125 | 5 | 42/47 | 38/59/ | 34/74 | 282/314 | 316/342 | |||
125 | 9 | 77/29 | 66/36 | 58/45 | 382/386 | 388/414 | |||
150 | 5 | 44/50 | 40/62 | 34/78 | 282/339 | 338/367 | |||
150 | 8 | 71/43 | 64/51 | 54/59 | 356/339 | 402/427 | |||
200 | 4 | 46/55 | 42/68 | 38/78 | 280/348 | 348/372 | |||
200 | 6 | 65/44 | 59/52 | 53/58 | 340/402 | 402/426 | |||
250 | 4 | 65/34 | 59/42 | 52/45 | 315/379 | 415/379 | |||
250 | 6 | 97/21 | 87/35 | 79/39 | 393/459 | 493/399 | |||
300 | 4 | 65/55 | 59/59 | 52/65 | 366/427 | 466/467 | |||
300 | 6 | 97/35 | 87/37 | 79/41 | 464/525 | 564/565 | |||
350 | 4 | 65/62 | 59/67 | 52/74 | 397/452 | 497/452 | |||
350 | 6 | 97/41 | 87/44 | 79/48 | 509/564 | 609/604 | |||
400 | 4 | 65/58 | 59/62 | 52/68 | 412/478 | 512/518 | |||
400 | 6 | 97/39 | 87/43 | 79/47 | 522/588 | 622/628 | |||
450 | 4 | 97/35 | 87/37 | 79/41 | 403/498 | 503/523 | |||
450 | 6 | 145/22 | 131/23 | 118/25 | 503/658 | 603/648 | |||
500 | 4 | 97/64 | 87/68 | 79/75 | 431/523 | 531/554 | |||
500 | 6 | 145/37 | 131/39 | 118/43 | 531/665 | 631/742 | |||
600 | 4 | 97/80 | 87/85 | 79/94 | 478/548 | 578/588 | |||
600 | 6 | 145/45 | 131/49 | 118/53 | 658/679 | 758/781 | |||
700 | 4 | 97/72 | 87/77 | 79/85 | 490 | 590 | |||
700 | 6 | 145/45 | 131/49 | 118/53 | 690 | 790 | |||
800 | 4 | 108/95 | 102/102 | 94/112 | 502 | 602 | |||
800 | 6 | 164/72 | 156/77 | 144/85 | 610 | 710 | |||
900 | 4 | 108/90 | 102/97 | 94/107 | 698 | ||||
900 | 6 | 164/65 | 156/69 | 144/76 | 850 | ||||
1000 | 4 | 108/98 | 102/105 | 97/116 | 692 | ||||
1000 | 6 | 164/65 | 156/71 | 144/81 | 855 | ||||
The above data is for reference only, we can also customize according to your needs.
If you want to know more details of our products,please click here to contact us!
If you want to know more details of our products,please click here to contact us!
producing process
Application

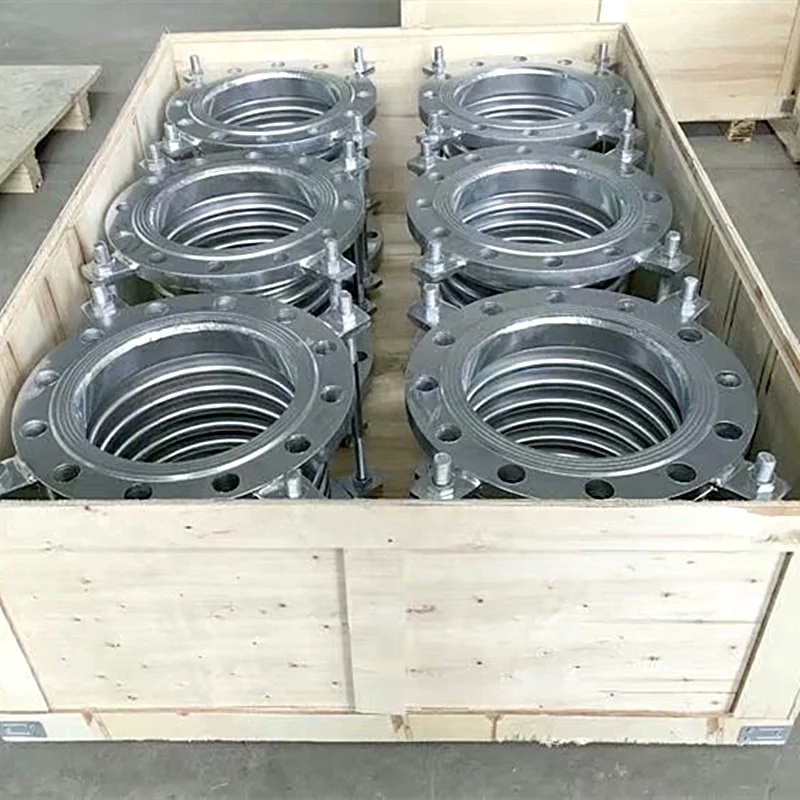

Packing & Delivery
To better ensure the safety of your goods, professional, environmentally friendly, convenient and efficient packaging services will be provided.
Exhibition
Company Profile
Gongyi Ruixuan pipeline equipment factory was founded in 1996.It is an excellent enterprise specializing in manufacturing and selling pipe fittings.It's located in Xicun village ,Gongyi city,Henan province ,the concentrated area of pipeline equipment industry in China.The company factory is located in Xicun town pipeline equipment industrial park.It covered an area of 20000 square meters.
At present, the company has the production capacity of pipeline equipment with a maximum diameter of 4000 mm, and its main products are: Steel expansion joint, flexible waterproof sleeve, large diameter flange, double flange force transfer expansion joint, large deflection loose sleeve compensation joint, spherical compensation joint, sleeve compensator, bellows compensator, non-metallic compensator, rubber expansion joint, DC medium no thrust sleeve compensator, flexible expansion pipe and other pipeline equipment. The annual production capacity is 30 million sets.
The flexible telescopic pipe equipment is mainly used in the pipeline crossing different geological structures under different conditions and the application of pipe installation drop, reduce or avoid the impact of geological settlement and crustal activity on the pipeline, so that the construction unit can save more than 50% of the cost when purchasing the equipment. The rubber expansion joint series products of the company, the maximum production diameter of 3600 mm, have been applied in millions of units of thermal power projects in China for many times, and have been praised by the users.
The company passed ISO 9001:2008 quality management system certification in 2009 and ISO 14000:200 environmental management system certification in 2009. The company has a strict quality control system, standard production process, standard factory inspection hand section, to ensure that every product meets the national standards and customer requirements.
Business philosophy: responsible production of products, return the trust of customers; To build a community with a sense of belonging and appreciate employees' contributions; Make a contribution to the society of enterprises, give back to the good times. Gongyi Ruixuan pipeline equipment factory is willing to work with friends from all walks of life hand in hand, mutual support, create a better future!
FAQ
Q : Are you trading company or manufacturer?
A: We are manufacturer of rubber expansion joint,bellow, dismantling joint, dresser coupling, flange adapter and flange with more than 20-year experience.
Q: Do you have products catalog?
A: Yes, we have. Please tell me your email or instant message, we will send our catalog.
Q: Can you provide drawings and technical data?
A: Yes, our professional technical department will design and provide drawings and technical data.
Q: Do you provide samples? Is it free or charged?
A: Yes, we can offer sample free but shipping charges covered by customer.
Q: How long is your delivery time?
A: Depends on QTY, but normally no more than 20 working days.
Q: Can the products be made by customer's requirement?
A: Yes, the specifications stated above are the standard ones, we can design and manufacture as requirement.
Q: Visiting factory is allowed or not?
A: Yes, we welcome customers visiting our factory. Our factory is located Gongyi city,Henan province,China mainland
A: We are manufacturer of rubber expansion joint,bellow, dismantling joint, dresser coupling, flange adapter and flange with more than 20-year experience.
Q: Do you have products catalog?
A: Yes, we have. Please tell me your email or instant message, we will send our catalog.
Q: Can you provide drawings and technical data?
A: Yes, our professional technical department will design and provide drawings and technical data.
Q: Do you provide samples? Is it free or charged?
A: Yes, we can offer sample free but shipping charges covered by customer.
Q: How long is your delivery time?
A: Depends on QTY, but normally no more than 20 working days.
Q: Can the products be made by customer's requirement?
A: Yes, the specifications stated above are the standard ones, we can design and manufacture as requirement.
Q: Visiting factory is allowed or not?
A: Yes, we welcome customers visiting our factory. Our factory is located Gongyi city,Henan province,China mainland
Похожие товары
Распродажа с завода, разные ретрансляторы сигналов, усилитель сигнала Wi-Fi, расширитель диапазона, Беспроводной ретранслятор
YTM17-HT QD2602F для RF8 / UD грузовик/V8/350 24V11T6KW 23300-97509 стартер
75,00 $ - 100,00 $
Переработанный коврик из полиэтилена hdpe, коврики для защиты грунта/сверхпрочные дорожные коврики
2,20 $ - 4,90 $
125 мм резиновая рамка для автомобиля грузовика с перекрестными шлицевыми направляющими, Напольный домкрат, адаптер для дисковой колодки, инструмент, набор инструментов для ремонта авто и подъема
0,99 $ - 1,55 $

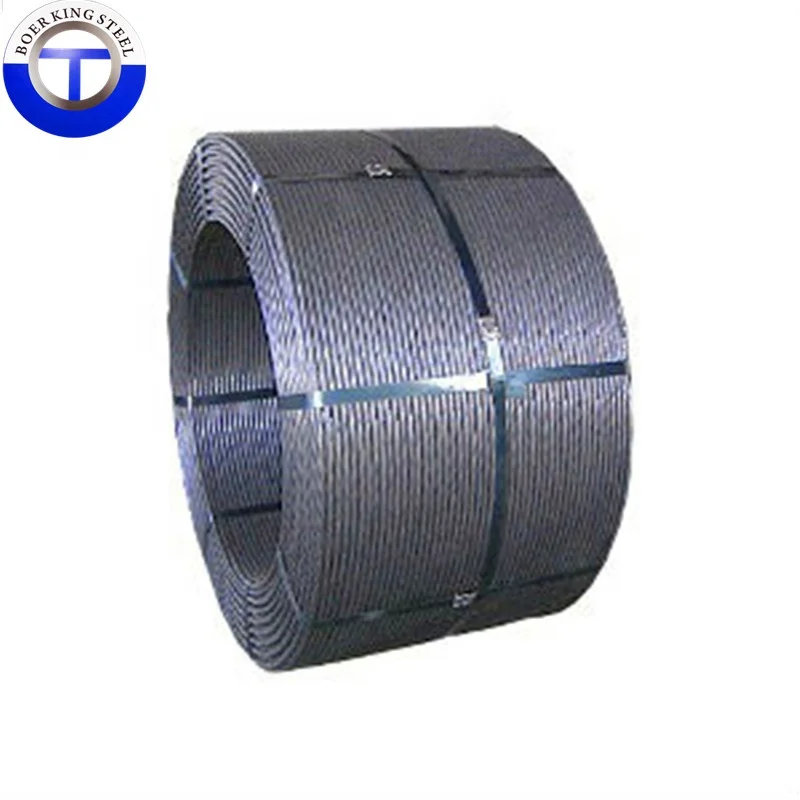

ASTM A416 15,24 мм pc стальная нить prestressed бетонная стальная нить
