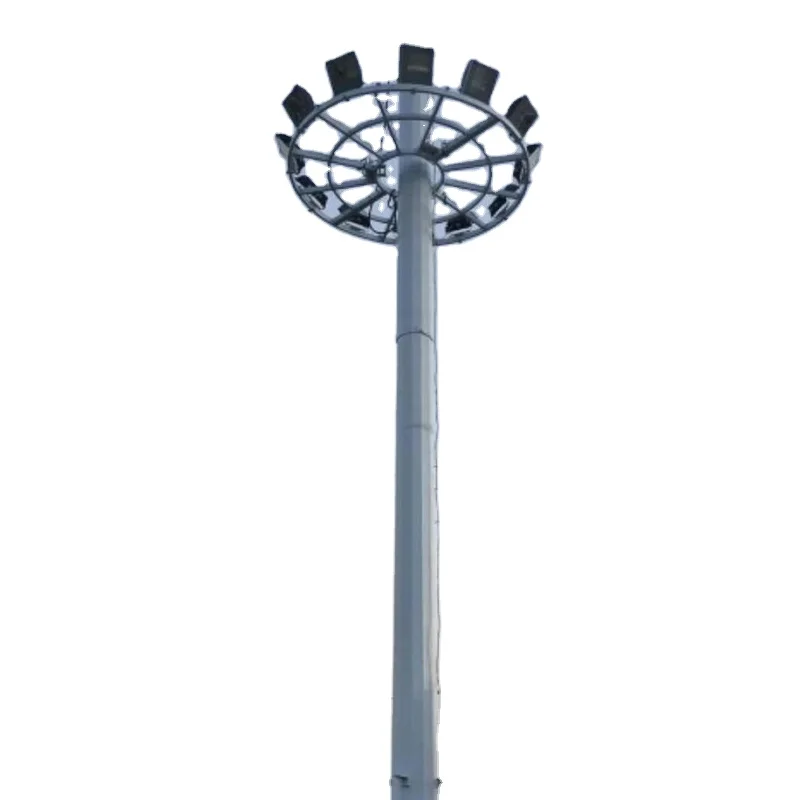

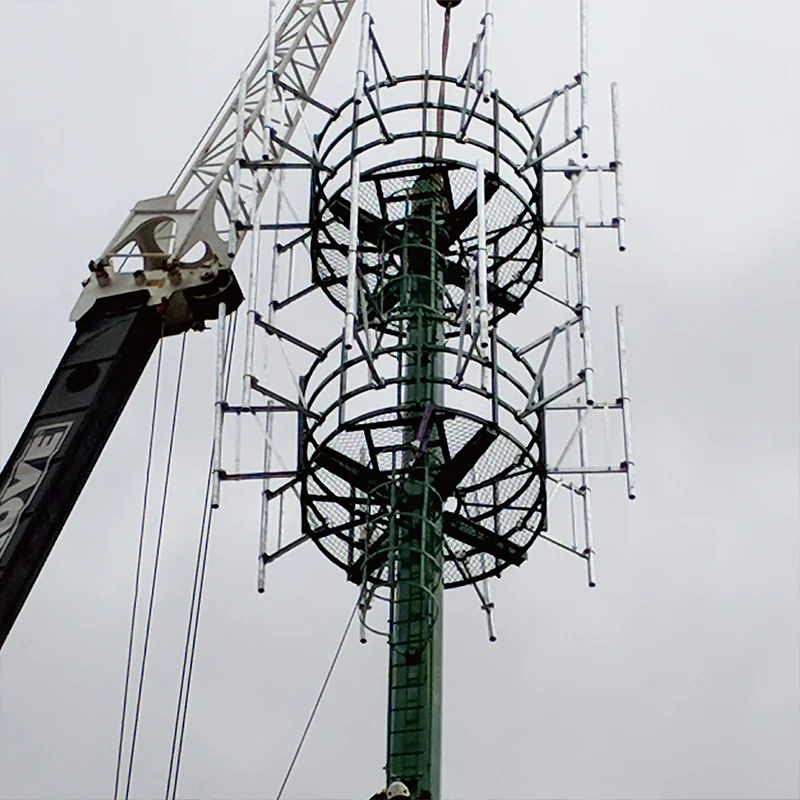

Высококачественная стальная Складная высокомачтовая опора прочно Выдерживает напряжение горячего цинкования 31 м Коммуникационный антенный Полюс
- Категория: >>>
- Поставщик: Panailo Smart Technology Co. Ltd.
Сохранить в закладки 1600981432880:
Описание и отзывы
Характеристики
Essential details | ||
Warranty(Year):10-Year | Lighting solutions service:auto CAD layout | |
Luminous Efficacy(lm/w):/ | Product Weight (kg) :2977 | |
Place of Origin:Jiangsu, China | Brand Name:PANAILO | |
Material:Steel,Hot roll galvanizing | Type:Polygonal, Round or octangon | |
Application:Square, Highway;airport;road | Name:Hot Dip Galvanized 31M High Mast Mono Pole | |
Surface treatment:Hot dip galvanized | Height:31M | |
Thickness: 4 mm (negative tolerance) | Powder coated:White;blue;silver;grey | |
Wind speed:160 Km/h | Quality Control:ISO9001:2000 | |
Height | 31m |
Suit for | Airport ,seaport,plaza,stadium ,square,highway,street way etc |
Shape | Conoid ,Multi-pyramidal,Columniform,polygonal or conical |
Material | Usually Q345B/A572, Q235B/A36,As well as Hot rolled coil from Q460,ASTM573 GR65, GR50,SS400, SS490,to ST52- |
Torlance of the dimenstion | +-2% |
Electroshock resistant protective grade | Grade one |
The casing anti- corrosion performance | Class two |
Working atmosphere of lighting fixture | -35℃~+45℃ |
Surface treatment | Hot dip galvanized Following ASTM A 123,color polyester power or any other standard by client required. |
Joint of Poles | Insert mode,innerflange mode,face to face jint mode |
Design of pole | Against earthquake of 8 grade |
Wind Speed | 160 Km/Hour |
Standard | ISO 9001 |
Length of per section | Within 12m once forming without slip joint |
Welding | We has past flaw testing.Internal and external double welding makes the welding beautiful in shape Welding Standard :AWS (American Welding Society ) D 1.1 |
Thickness | 1 mm to 30 mm |
Production Process | Rew material test→Cuttingj→Molding or bending→Welidng (longitudinal)→Dimension verify→Flange welding →Hole drilling→Calibration→Deburr→Galvanization or powder coating ,painting →Recalibration→Thread →Packages |

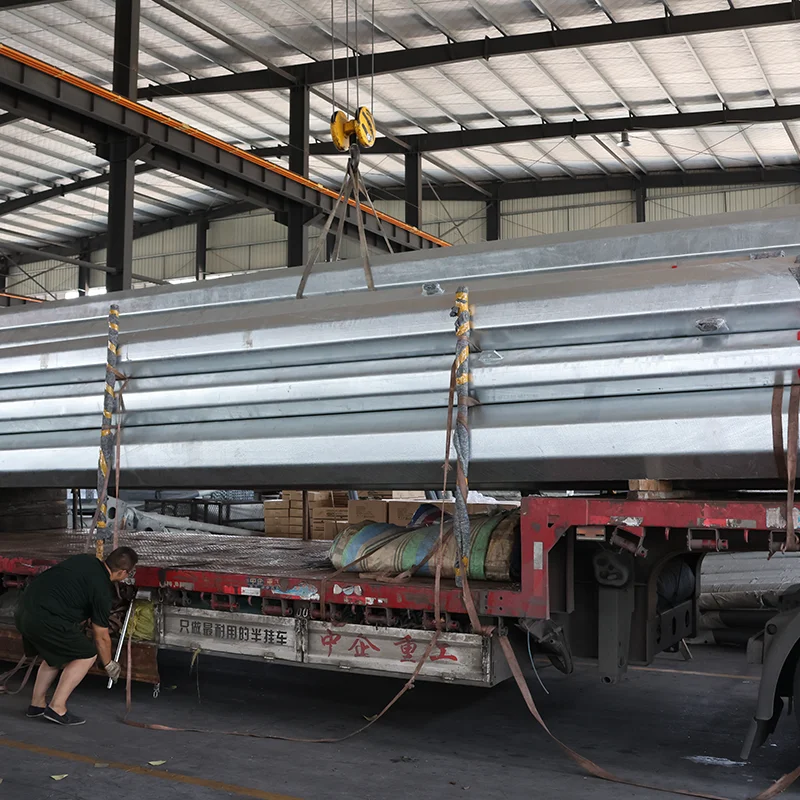

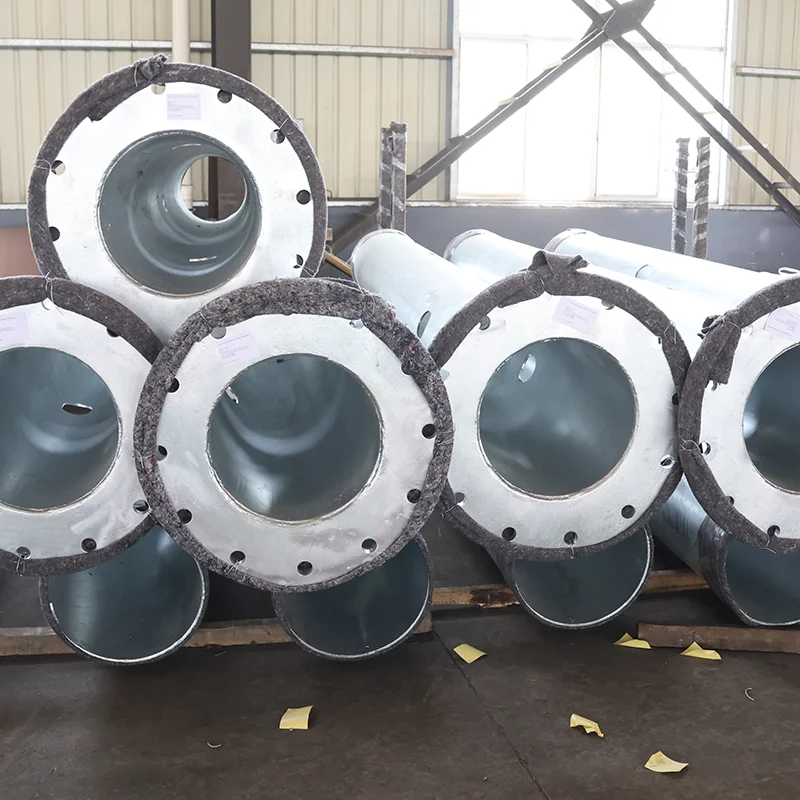

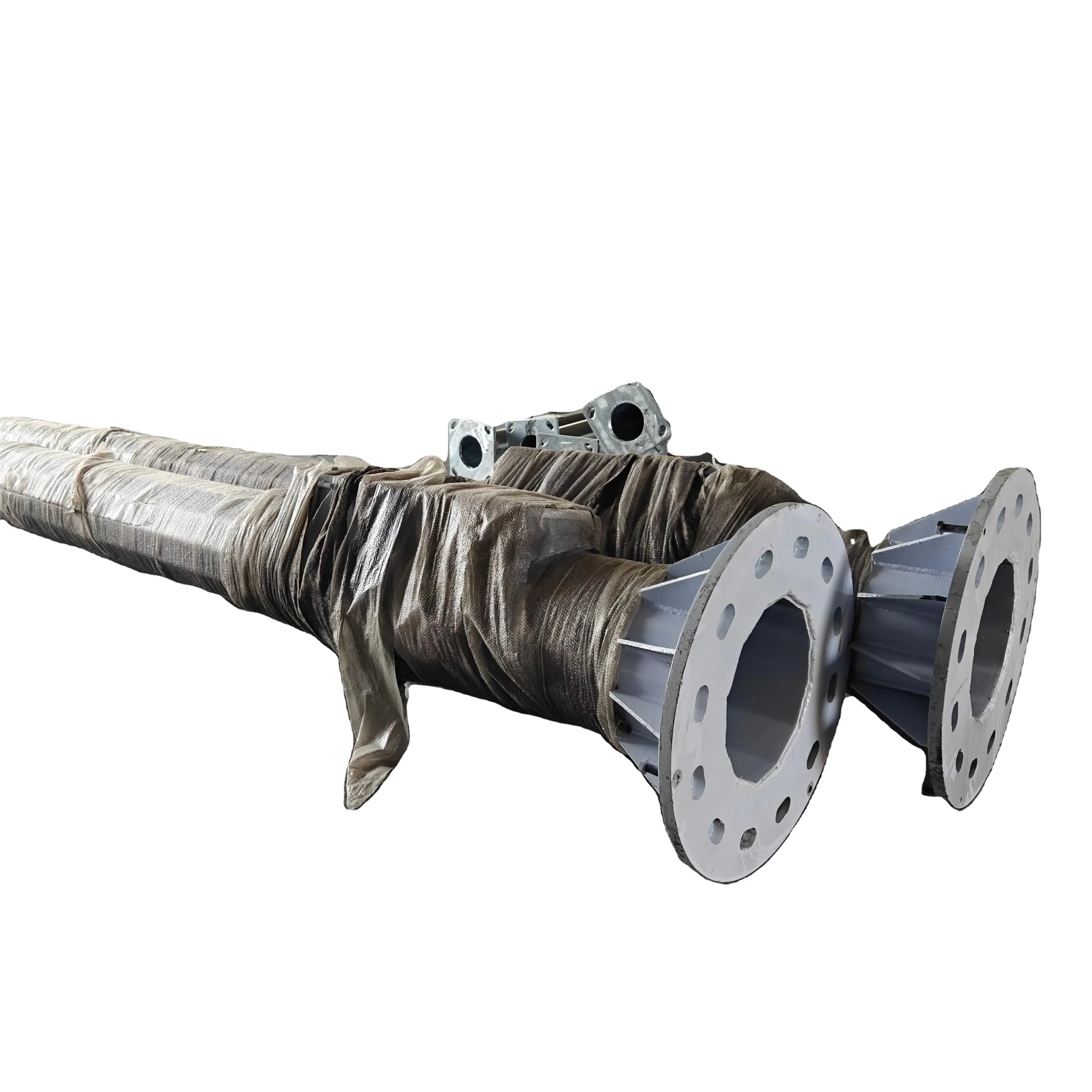

Packages | Our poles as normal cover by Mat or straw bale at the top and bottom ,anyway also can following by client required, each 40HC or OT can loading how many pcs will calculation base on the client actually specification and data. |
Style | Size and styles are veriable as per customer request |
OEM&ODM
● easy for installion
● concise design lighting pole
● high cost performance lighting pole
● Material :SS400, Q235B,A36 (yield strength: 235Pa 24kg/mm2 Tensile Strength: 375-460Pa 38-47kg/mm2
● (Other Material is Available on Request)
● Hot Dip Galvanized (≥86um)
● Any Color Polyester Powder Coated (≥100 um)
● Taper Conical , Octagonal, Polygon Section
● With demounted bracket design,easy loaded,install,and maintenance
● Theftproof slide lock
● Category: Garden lighting,Street lighting pole, light mast,street light mast
● concise design lighting pole
● high cost performance lighting pole
● Material :SS400, Q235B,A36 (yield strength: 235Pa 24kg/mm2 Tensile Strength: 375-460Pa 38-47kg/mm2
● (Other Material is Available on Request)
● Hot Dip Galvanized (≥86um)
● Any Color Polyester Powder Coated (≥100 um)
● Taper Conical , Octagonal, Polygon Section
● With demounted bracket design,easy loaded,install,and maintenance
● Theftproof slide lock
● Category: Garden lighting,Street lighting pole, light mast,street light mast
Q1:Are you a factory or a trading company?
A: Yes, we are manufacturer of solar street lights for 15 years, has the capacity of R & D, accept OEM and ODM.
Q2:Can I have a sample order for solar products?
A: Yes, we welcome sample order to test and check quality. Mixed samples are acceptable.
Q3:When you will make the delivery?
A: 10-15 days after receiving customers payment.
Q4:How can I get the price of needed pole?
A: Yes, we are manufacturer of solar street lights for 15 years, has the capacity of R & D, accept OEM and ODM.
Q2:Can I have a sample order for solar products?
A: Yes, we welcome sample order to test and check quality. Mixed samples are acceptable.
Q3:When you will make the delivery?
A: 10-15 days after receiving customers payment.
Q4:How can I get the price of needed pole?
A:1.Please give the exactly dimensions such as height, thickness, material, top and bottom dia. We can give you a similar price according to your specification.
2.You can give a drawing.We can give you the price according to your drawing.
2.You can give a drawing.We can give you the price according to your drawing.
Q5:Do you offer guarantee for the products?
A: Yes, we have different warranty periods for different product. For examplewe usually offer 5 years warranty for solar street light, while, 5 years for LED street light, up to 10 years warranty for lighting poles.
Похожие товары
Высококачественная многофункциональная интеллектуальная камера видеонаблюдения

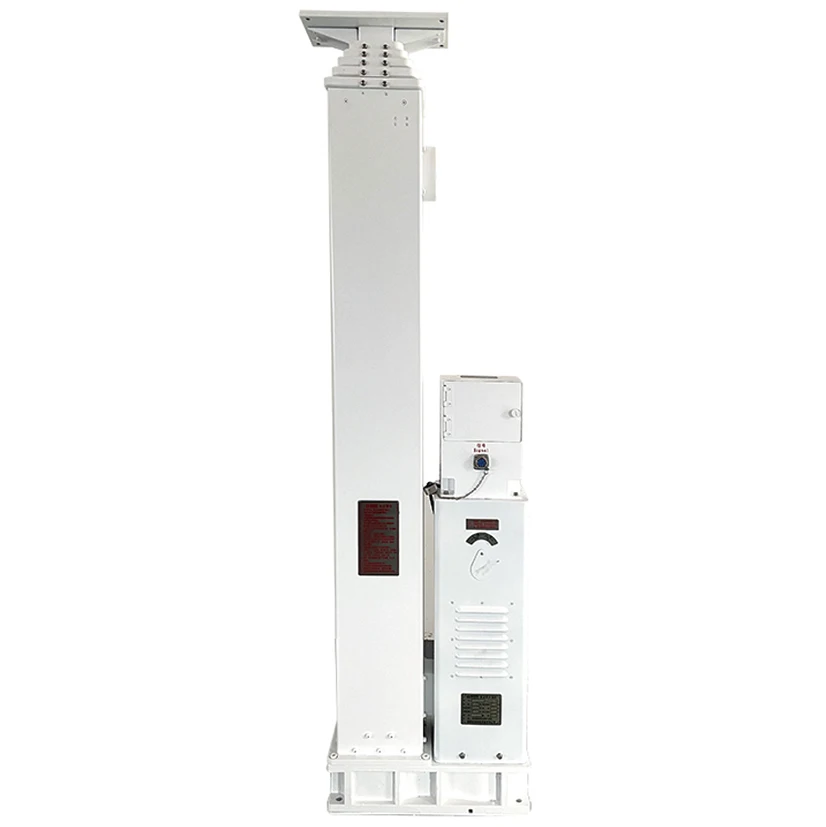

3 6 9 12 25mtr телескопическая мачта электродвигателя для радиосвязи
499 173,75 ₽ - 554 637,50 ₽

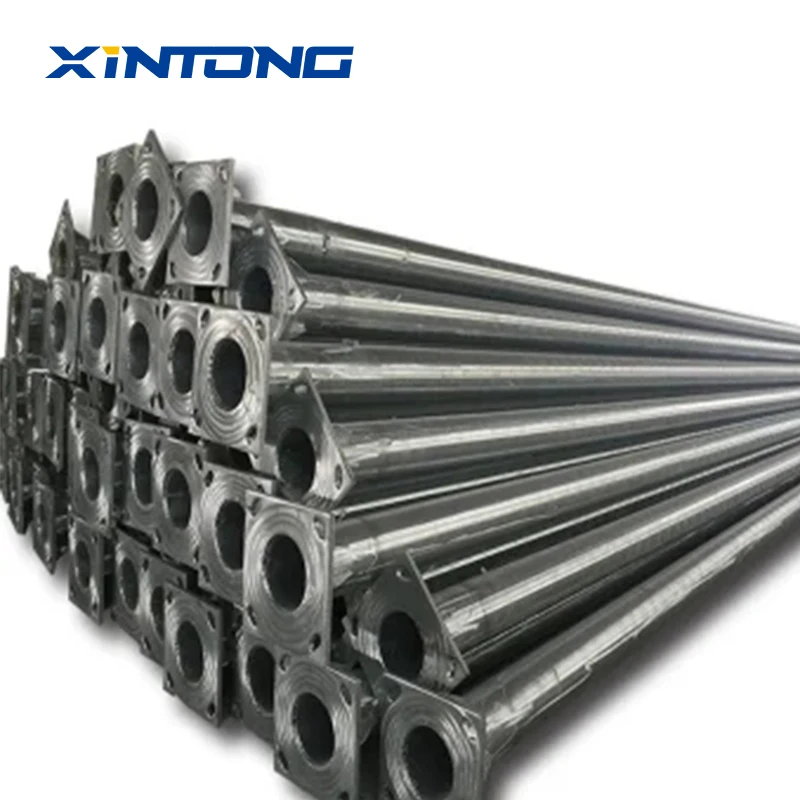

XINTONG наружный 6 м 8 10 восьмиугольный конический круглый оцинкованный уличный фонарный столб
