Индикатор уровня топливного бака Holykell датчик дизельного топлива бензоколонка
- Категория: >>>
- Поставщик: Holykell Technology Company Limited
Сохранить в закладки 1600981682688:
Описание и отзывы
Характеристики
Products Description

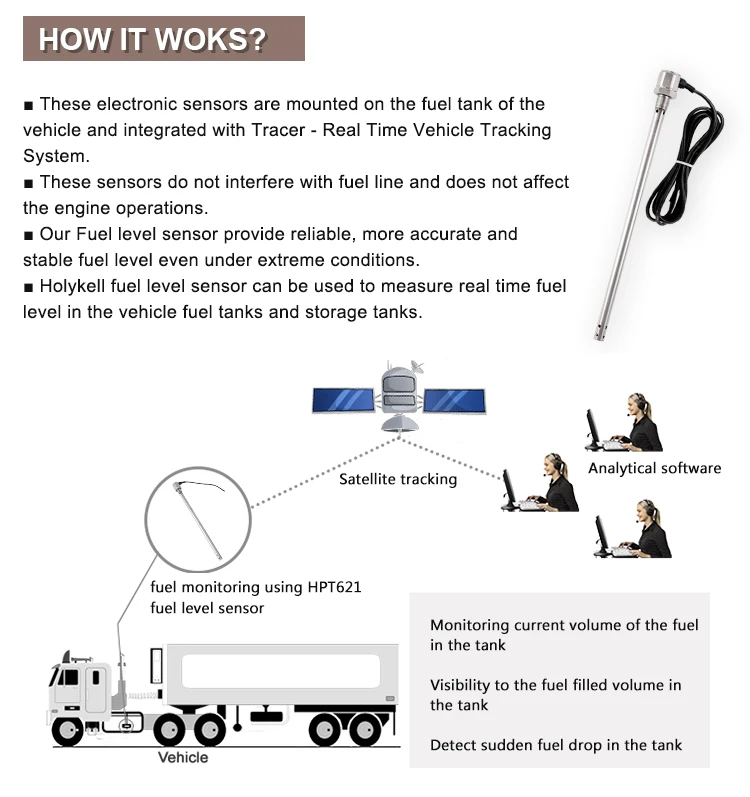

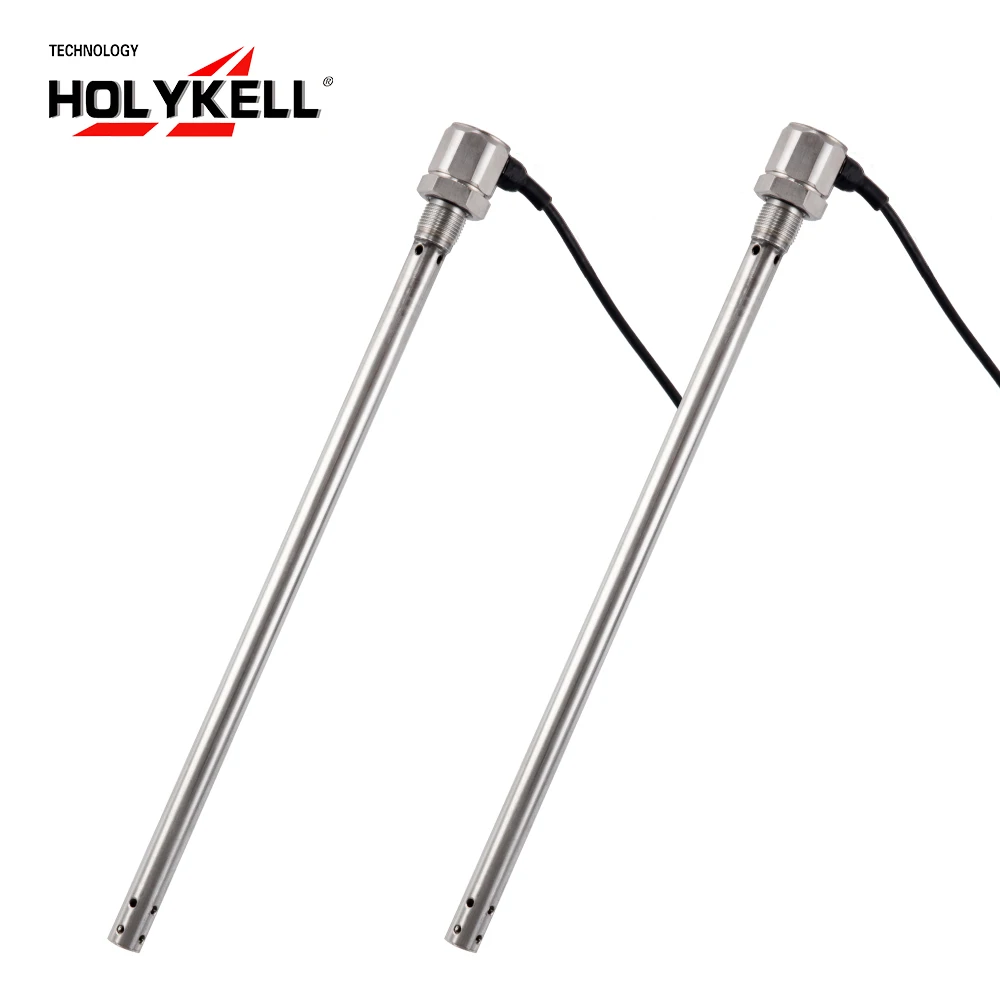

HPT621 smart capacitance level sensors are designed for liquid level measurements where the levels are lower than 3 meter, for instance the fuel tank of automobile.
HPT621 smart capacitance level sensors features threads mounting and flange mounting. Both of the models are made from 316 stainless steel. 316 stainless steel allows the transmitters to be suitable for harsh environments and various measuring medium, such as oil, fuels, or other media compatible with 316 stainless steel.
HPT621 smart capacitance level sensors features threads mounting and flange mounting. Both of the models are made from 316 stainless steel. 316 stainless steel allows the transmitters to be suitable for harsh environments and various measuring medium, such as oil, fuels, or other media compatible with 316 stainless steel.
Product Parameter
Level range | 0 to 100mm 0 to 3000mm |
Accuracy | ≤ ±1.0%F.S(Typical); ≤ ±0.5%F.S(by customized) |
Probe Diameter | 16 mm (Typical); 12 mm (Customize) |
Medium working Temp. | -30~+80℃ |
Output | 4-20mA, 0-5V, RS485 Modbus |
Power supply | 11-33VDC |
Probe materials | 304 stainless steel with PTFE/brass |
Medium compatible | gasoline; water and others liquid is customized |
Bottom Blind Zone | 10mm(Standard). |
Stability | Standard: 0.1%F.S/year,Max: 0.15%F.S/year |
Zero Temp. Drift | 0.2%f.s./10℃ |
Electronic connection | Fixed cable by stainless steel cap |
Certificate | CE Certificate and Exia II CT6 |
Product Feature
Feature | Advantage | Benefit |
Using high-quality IC chips and capacitors imported from the United States | Accuracy: 0.5%F.S Resolution: 0.1mm | Ensure the safe and stable operation of the product in demanding environments |
High temperature can be customized | Max medium temp: 200℃ | Durable, suit for high temperature environment |
Comes with built-in oil and temperature compensation functions | Ensure the circuit operates normally and stably within a certain range of temperature variations | Not affected by temperature variations, accurate measurements |
Analog signal supports local calibration； Digital signal RS485 supports computer automatic calibration | For calibration of different media, simply use two keys, "Zero" and "Full Scale," to easily accomplish it | Convenient to operate and suitable for measuring various liquids |

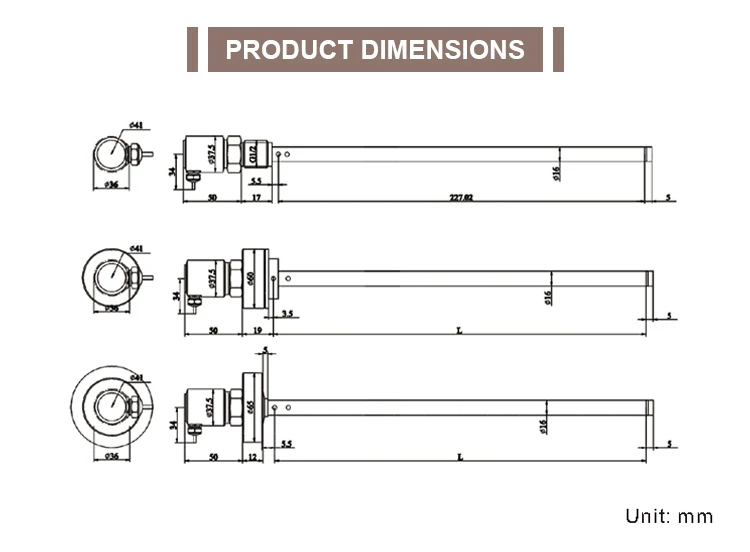

Product Dimension

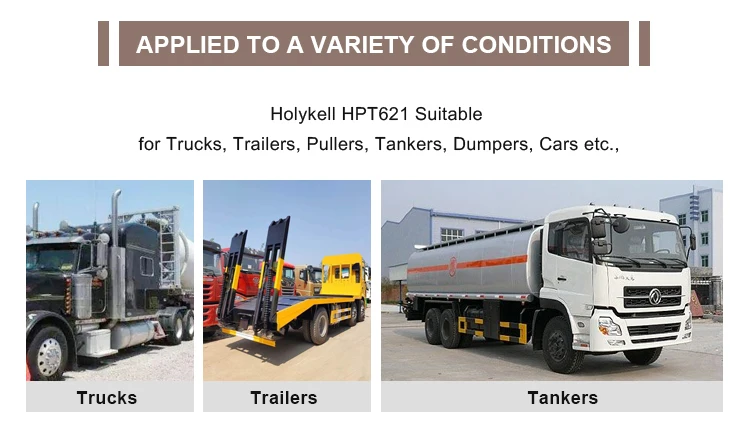

Product Application
Why Choose Us
Price Policy
The displayed price is for reference only, the actual price will change according to your project needs.
HOLYKELL reserves the right of final interpretation.
Please send us your requirements to get the best quotation!
HOLYKELL reserves the right of final interpretation.
Please send us your requirements to get the best quotation!
FAQ
1:How long will you give me the reply?
we will contact you in 2 hours as soon as we can.
2:Could I get samples?
Yes,we have materials in stock to help you to get the samples as soon as we can.
3:How about the quality of the magnets?
We have the certification of ISO,CE and ROSH,we could send the certification test of our company to you.
4:How is the price?
As we believe the quality is the most important,we will provide the best quality pressure sensor we can with reasonable price.
5:Could you provide me the shortest lead time?
We have materials in our stock,if you really need,you can tell us and we will try our best to satisfy you.
6:Could I visit your factory?
Of course,if you need we will help you to visit our factory.
7:If I have paid,when will you help me to produce?
When we have received the money in our account,we will give you the receipt and arrange to produce immediately.
we will contact you in 2 hours as soon as we can.
2:Could I get samples?
Yes,we have materials in stock to help you to get the samples as soon as we can.
3:How about the quality of the magnets?
We have the certification of ISO,CE and ROSH,we could send the certification test of our company to you.
4:How is the price?
As we believe the quality is the most important,we will provide the best quality pressure sensor we can with reasonable price.
5:Could you provide me the shortest lead time?
We have materials in our stock,if you really need,you can tell us and we will try our best to satisfy you.
6:Could I visit your factory?
Of course,if you need we will help you to visit our factory.
7:If I have paid,when will you help me to produce?
When we have received the money in our account,we will give you the receipt and arrange to produce immediately.
Похожие товары
Батарея для часов MURATA из оксида серебра 373 SR916SW 916 1,55 в 100% оригинальный бренд, батарейка для часов 373, Кнопочная батарейка 0% Hg
0,75 $ - 1,00 $
10 шт. автоматическая система полива для капельного орошения капельница Спайк наборы традиционный домашний Садовый цветок растение Автоматический водяной инструменты для ухода за кожей
MEEDEN 12-Well круглая фарфоровая Акварельная краска Палитра для акварели гуашь акриловая масляная живопись 7 дюймов
1,31 $ - 1,38 $
В наличии ALC1310-CG интегральная микросхема ic чип ALC1310-CG

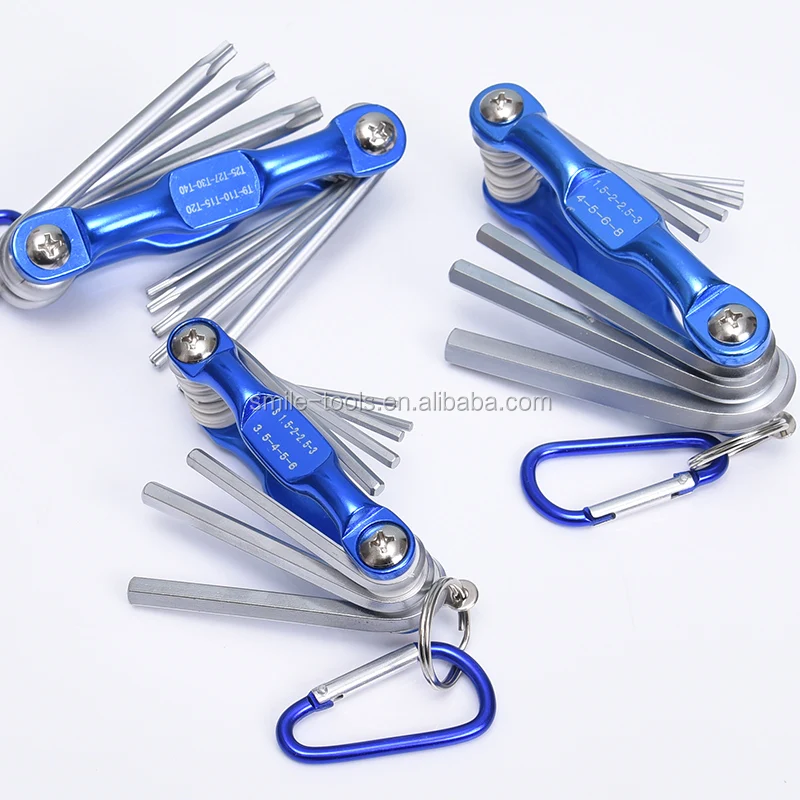

8 шт CR-V Torx шестигранный набор мульти инструмент складной шестигранный ключ T9/T10/T15/T20/T25/T27/T30/T40
1,33 $
Дизайн кафе ресторан дешевый стул современная итальянская мебель Честерфилд диван
320,00 $ - 440,00 $

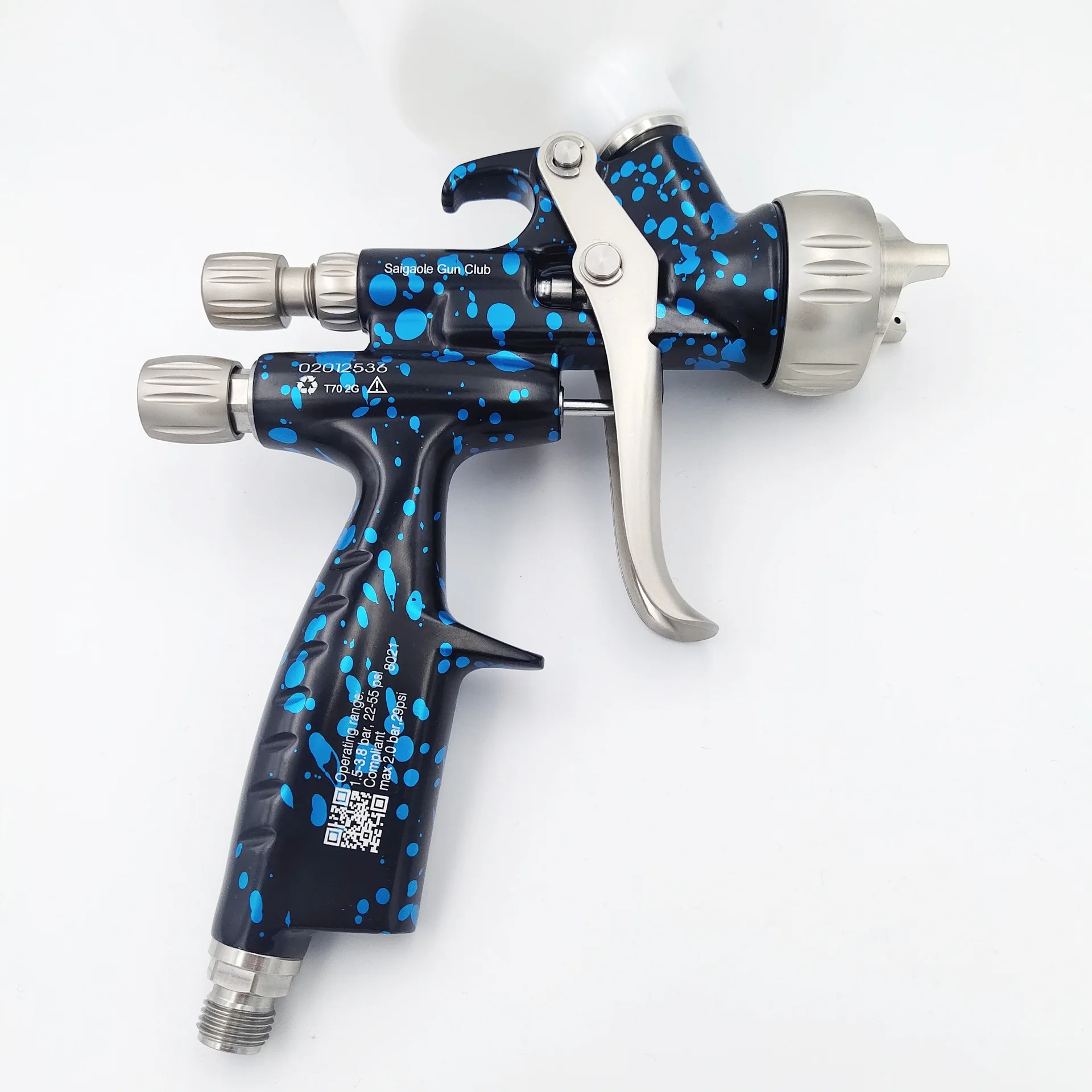

Профессиональный распылитель для краски автомобиля, 1,3 мм
