Распределительная коробка BENY AC на сетке вне сети солнечная энергетическая система PV
- Категория: >>>
- Поставщик: Zhejiang Benyi International Trade Co. Ltd.
Сохранить в закладки 1600982607142:
Описание и отзывы
Характеристики
Why Choose Us
BENY with 30+ years experience of working in the electrical industry offers a full range of solar PV combiner boxes for
residential, commercial, and utility-scale renewable energy projects.
With over 10 production lines, we produce over 200w annually and receive out orders at any volume. We also carry out quality testing that determines the durability of our combiner boxes under extreme conditions. Talk with us today for fast development and negotiable prices.
residential, commercial, and utility-scale renewable energy projects.
With over 10 production lines, we produce over 200w annually and receive out orders at any volume. We also carry out quality testing that determines the durability of our combiner boxes under extreme conditions. Talk with us today for fast development and negotiable prices.
WE PROVIDE COMPREHENSIVE & PROFESSIONAL SERVICE
Consulting & Designing
We have a professional team that can assist you in knowing your particular solar panel combination box requirements. You can expect that we are here to support and guide you in every custom combiner box manufacturing stage, starting from designing up to laying the materials and costing.
Quality Control
Each of our PV combiner boxes is checked thoroughly to ensure that we only deliver IP-rated string combiner boxes. This means that our custom electrical enclosures are waterproof, dustproof, and can even resist corrosion that harsh weather conditions can cause.
Engineering & Assembly Support
BENY custom combiner box solutions are tailored-fit to provide output with efficiency and speed. Our company utilizes the latest tools to automize our manufacturing process. This is why BENY is outstanding in terms of production speed, aiming to fulfill bulk orders while ensuring the function and quality of our PV protection products.
5-year warranty
What’s more interesting, we offer a 5-warranty service to your solar combination boxes. Just reach us through our technical support hotline that is available 24/7.
We have a professional team that can assist you in knowing your particular solar panel combination box requirements. You can expect that we are here to support and guide you in every custom combiner box manufacturing stage, starting from designing up to laying the materials and costing.
Quality Control
Each of our PV combiner boxes is checked thoroughly to ensure that we only deliver IP-rated string combiner boxes. This means that our custom electrical enclosures are waterproof, dustproof, and can even resist corrosion that harsh weather conditions can cause.
Engineering & Assembly Support
BENY custom combiner box solutions are tailored-fit to provide output with efficiency and speed. Our company utilizes the latest tools to automize our manufacturing process. This is why BENY is outstanding in terms of production speed, aiming to fulfill bulk orders while ensuring the function and quality of our PV protection products.
5-year warranty
What’s more interesting, we offer a 5-warranty service to your solar combination boxes. Just reach us through our technical support hotline that is available 24/7.
CUSTOMIZATION OPTIONS
WHAT CAN YOU CUSTOMIZE FOR A COMBINER BOX
A solar combiner box is an electrical enclosure where multiple Solar circuit components are housed. Here in BENY, we offer custom solar combiner boxes to ensure that our clients’ preferences are met. We provide custom features that introduce the general inverter requirements, including your logo, box measurement, components, DC inputs and outputs, and chosen over-voltage protection degree. Send us your requirements.
A solar combiner box is an electrical enclosure where multiple Solar circuit components are housed. Here in BENY, we offer custom solar combiner boxes to ensure that our clients’ preferences are met. We provide custom features that introduce the general inverter requirements, including your logo, box measurement, components, DC inputs and outputs, and chosen over-voltage protection degree. Send us your requirements.
To improve rooftop fire protection in residential and commercial applications, we offer numerous custom features that cover all common inverter concerns, from logo to components . Each of our combiner boxes has different numbers of DC inputs and outputs and 3 MPPT variants.
Choose from class I or II variants of overvoltage protection, along with voltage level and IP protection functions that fit into your specific application.
Choose from class I or II variants of overvoltage protection, along with voltage level and IP protection functions that fit into your specific application.

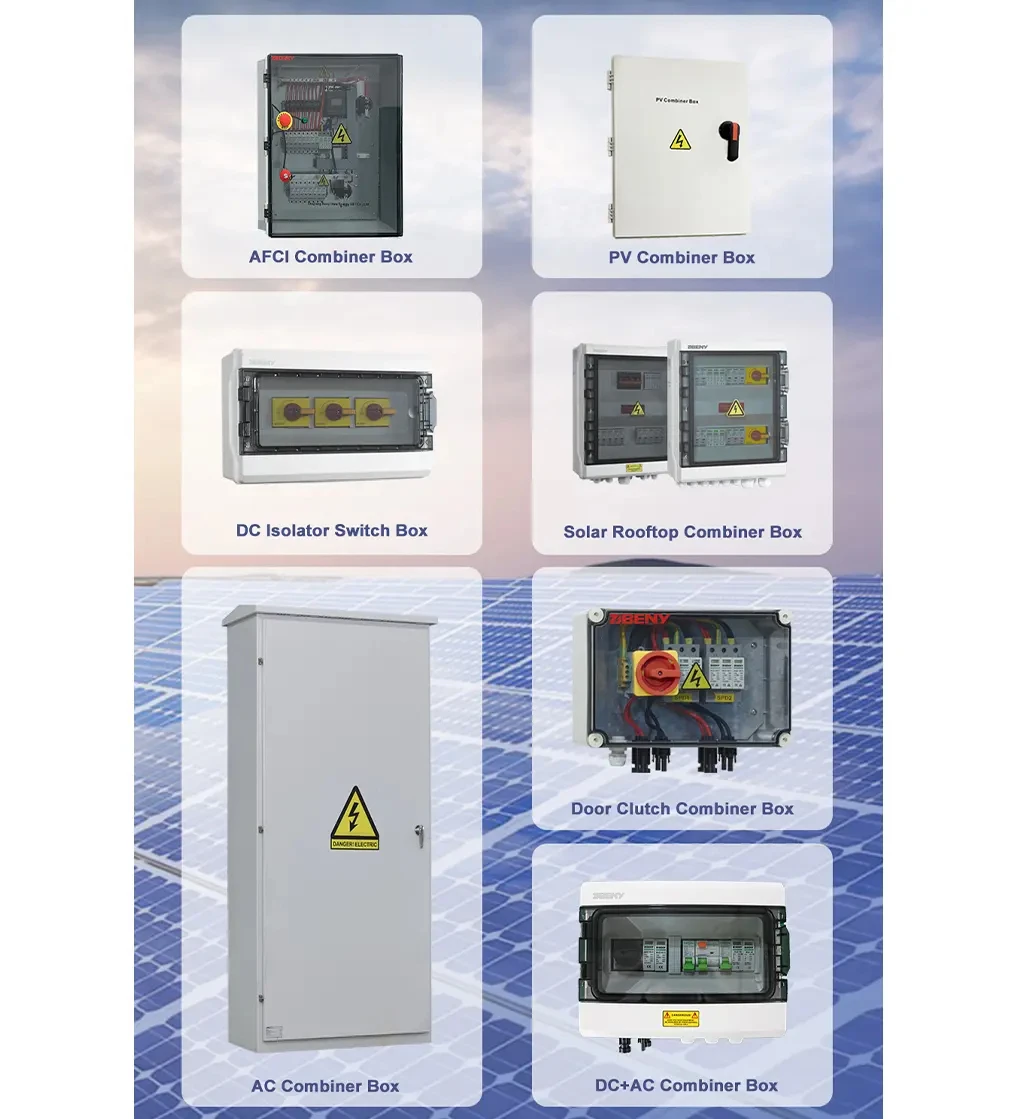

OUR QUALITY SELECTION OF SOLAR COMBINER BOXES

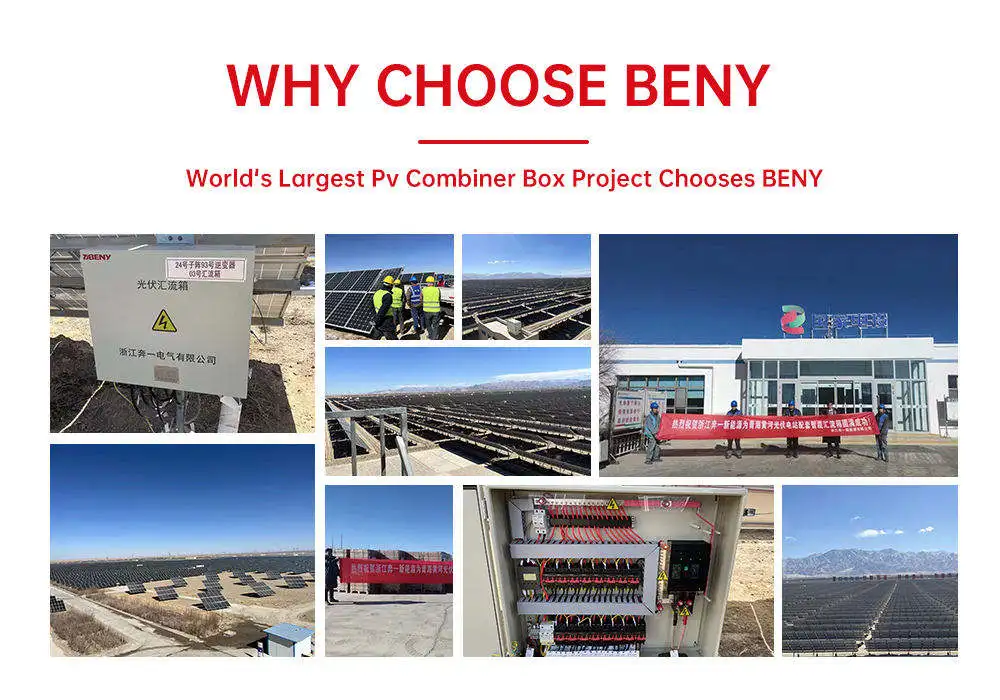

WHY CHOOSE BENY SOLAR COMBINER BOX
Grade IP 65/66
Our combiner box is waterproof, dustproof and anti-corrosion, resisting harsh conditions for long-term and uninterrupted use.
PV Solar String Current Aggregation
We offer multiple strings input up to 24 solar strings, with a maximum of 30 A per string.
Effective Isolating
Series Isolator Switches with a max voltage up to 1500V DC widely meet various demands from PV power systems.
Lightning Protection
We install a pluggable BU-40/3 Surge protector device, providing lightning protection for your PV power system.
Over-current Protection
A BR-30 touch-safe fuse with LED indicator light offers over-current protection for stable performance.
Short-Circuit Protection
BD and BB1 series circuit breakers provide short-circuit protection, preventing damages and accidents.
Our combiner box is waterproof, dustproof and anti-corrosion, resisting harsh conditions for long-term and uninterrupted use.
PV Solar String Current Aggregation
We offer multiple strings input up to 24 solar strings, with a maximum of 30 A per string.
Effective Isolating
Series Isolator Switches with a max voltage up to 1500V DC widely meet various demands from PV power systems.
Lightning Protection
We install a pluggable BU-40/3 Surge protector device, providing lightning protection for your PV power system.
Over-current Protection
A BR-30 touch-safe fuse with LED indicator light offers over-current protection for stable performance.
Short-Circuit Protection
BD and BB1 series circuit breakers provide short-circuit protection, preventing damages and accidents.
600V DC COMBINER BOX
With one or two true solar DC disconnect switches and type 2 surge arresters, our combiners prevent over-voltage and ensure consistent functionality for specified solar PV systems.
DC ISOLATOR BOX
IP65 PC enclosure with two or more isolators build-in, for the solar system which requires multiple strings and isolators.
1000V DC COMBINER BOX
Designed with different numbers of strings inputs and string outputs, our combiners are equipped with the latest DC-PV2 disconnect switch for added protection from over current.
1500V DC COMBINER BOX
A compact and affordable solution, our 1500V DC combiners have 2P fuse holders and other disconnect components that guarantee full
over-current and over-voltage protection.
over-current and over-voltage protection.
AFCI SOLAR COMBINER BOX
BENY Electric’s AFCI solar combiners detect wide ranges of electrical arc faults to keep power systems from igniting, improving action responses against fires.
DC+AC COMBINER BOX
Our DC+AC combiner boxes come with over-voltage and over-current protection for solar DC sides, and RCBO and AC SPD for AC side protection.
AC COMBINER BOX
Each AC combiner comes with AC MCCB build-in for AC inputs and type 2 AC SPD for over-voltage protection.
AC DISTRIBUTION BOX
Our distribution boxes reduce system connection cable length and provide great switching isolation.
MODULAR ENCLOSURE
Made of high thermal stability plastic, our modular enclosures possess UV resistance and flame retardance, working at operating temperatures from -25 to 100 degrees.
Products Description

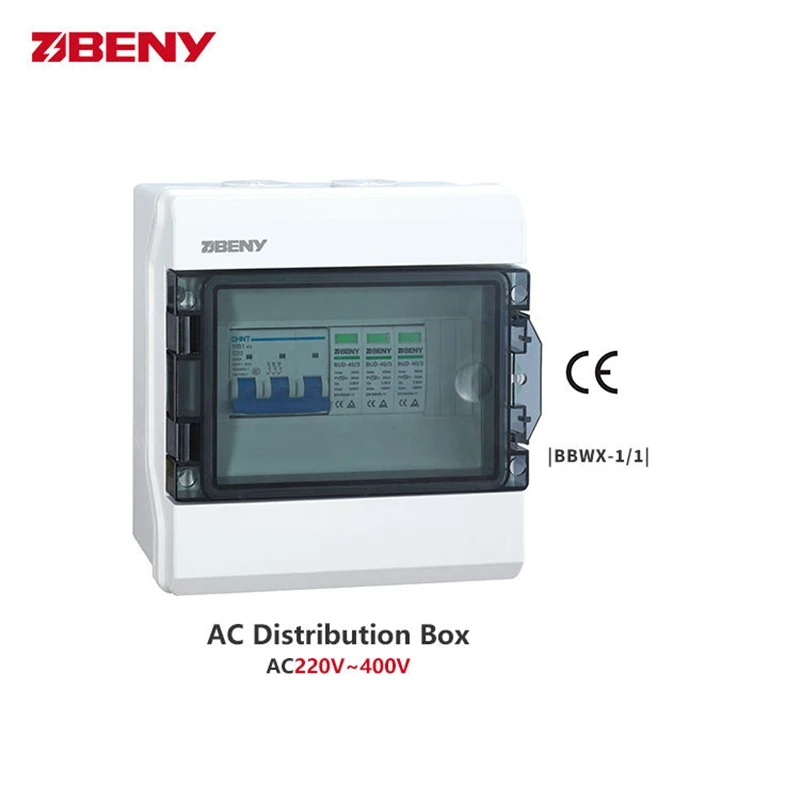

AC Distribution Box
-BBWX is a series of AC distribution box for on-grid solar residential system. -Build-in with AC breaker and AC SPD from
220V-400V.
BENY Electric Solar Combiner Box 1 Strings to 36 Strings
600V/1000V/1500V/AFCI/Monitoring Option
BENY Electric with 30+ years experience of working in the electrical industry offers a full range of solar PV combiner boxes for residential, commercial, and utility-scale renewable energy projects.
*5 Years warranty
*600V/1000V/1500V
*AFCI Combiner Box
*IP65 Waterproof Enclosure
*Build-in UL98B listed DC switchgears
*From 1 to 24 strings customized solutions
*Design and customized at IEC 62109-1 with CE, and TUV certificates.
*Over-voltage, over-load, lightning protection; Real-time detection, long-distance communication.
-BBWX is a series of AC distribution box for on-grid solar residential system. -Build-in with AC breaker and AC SPD from
220V-400V.
BENY Electric Solar Combiner Box 1 Strings to 36 Strings
600V/1000V/1500V/AFCI/Monitoring Option
BENY Electric with 30+ years experience of working in the electrical industry offers a full range of solar PV combiner boxes for residential, commercial, and utility-scale renewable energy projects.
*5 Years warranty
*600V/1000V/1500V
*AFCI Combiner Box
*IP65 Waterproof Enclosure
*Build-in UL98B listed DC switchgears
*From 1 to 24 strings customized solutions
*Design and customized at IEC 62109-1 with CE, and TUV certificates.
*Over-voltage, over-load, lightning protection; Real-time detection, long-distance communication.
General Data | ||
Model No. | BBWX-1 | |
Rated Voltage | AC 220V~400V | |
Rated Current | 0-125A | |
Rated Frequency | 50-60Hz | |
Enclosure | ||
Material Type | Polycarbonate/ABS | |
Degree of Protection | IP65 | |
Degree of Resistance to Impacts | IK10 | |
Dimension（W*H*D） | 292*220*120mm | |
Cable input Entry | PG25 2.5-25mm² | |
Output Cable Gland | PG21 2.5-25mm² | |
Modular Measurement and Control Relays | ||
Network number of phases | Single Phase/3 Phases | |
Rated Current | 0-125A | |
Measurement range | 220V~400V voltage AC | |
Supply Frequency | 50~60Hz±10％ | |
AC Surge Arrester | ||
Electric Rating | 220V~440V,50-60HZ | |
Maximum Discharger Current | 40KA | |
Certification | CE | |
Details Images
Company Profile
FAQ
1. What's the payment term?
We accept T/T, L/C, D/P, PAYPAL, CASH.
2. What's the production ability?
30000 pcs combiner box monthly and rush order for any quantity.
3. What is the standard of package?
Export standard package or special package with requirement
4. Do you accept OEM business?
We accept OEM with your authorization.
5. How is the after-sale service?
We offer spare parts accordingly and English-speaking engineer offer online service.
6. Which market do you already sell?
We already ship to many South America, African countries, Middle East, Southeast Asia etc.
7. What kind of certificate you have?
We have CE, IEC,UL,TUV, ISO90001 etc.
We accept T/T, L/C, D/P, PAYPAL, CASH.
2. What's the production ability?
30000 pcs combiner box monthly and rush order for any quantity.
3. What is the standard of package?
Export standard package or special package with requirement
4. Do you accept OEM business?
We accept OEM with your authorization.
5. How is the after-sale service?
We offer spare parts accordingly and English-speaking engineer offer online service.
6. Which market do you already sell?
We already ship to many South America, African countries, Middle East, Southeast Asia etc.
7. What kind of certificate you have?
We have CE, IEC,UL,TUV, ISO90001 etc.
Похожие товары

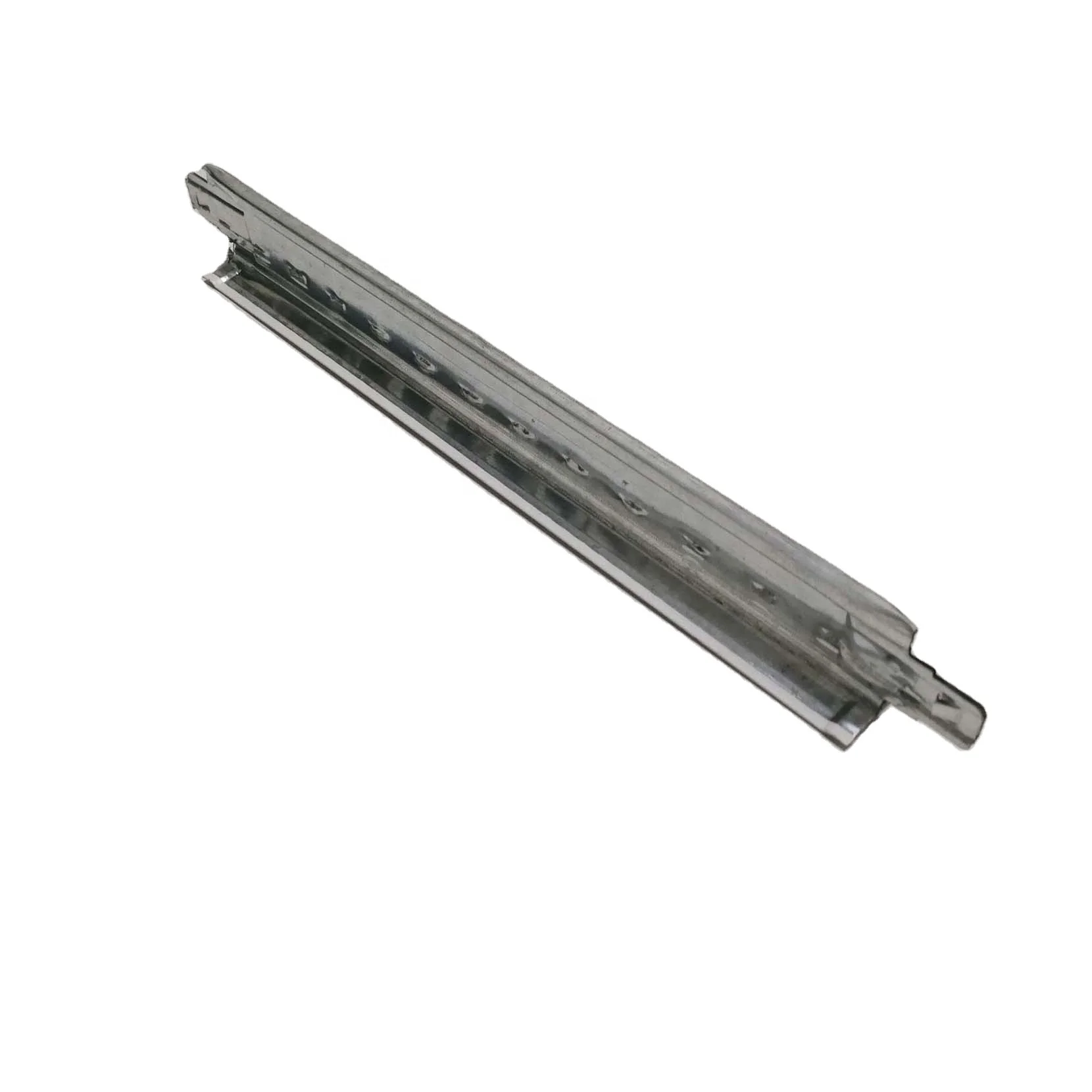

24*26*32*3600 мм белая решетка Гипсокартон T-Bar/решетка
86,32 ₽ - 97,11 ₽

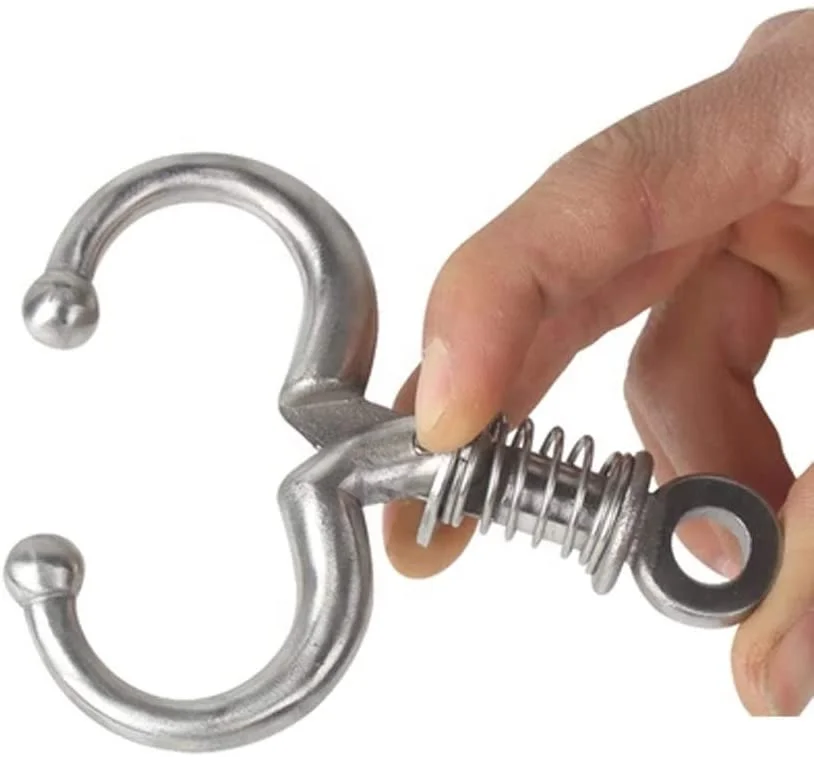

Высококачественный подпружиненный держатель для носа из нержавеющей стали 12 см ветеринарный инструмент премиум-класса уникальный дизайн
755,29 ₽ - 917,14 ₽

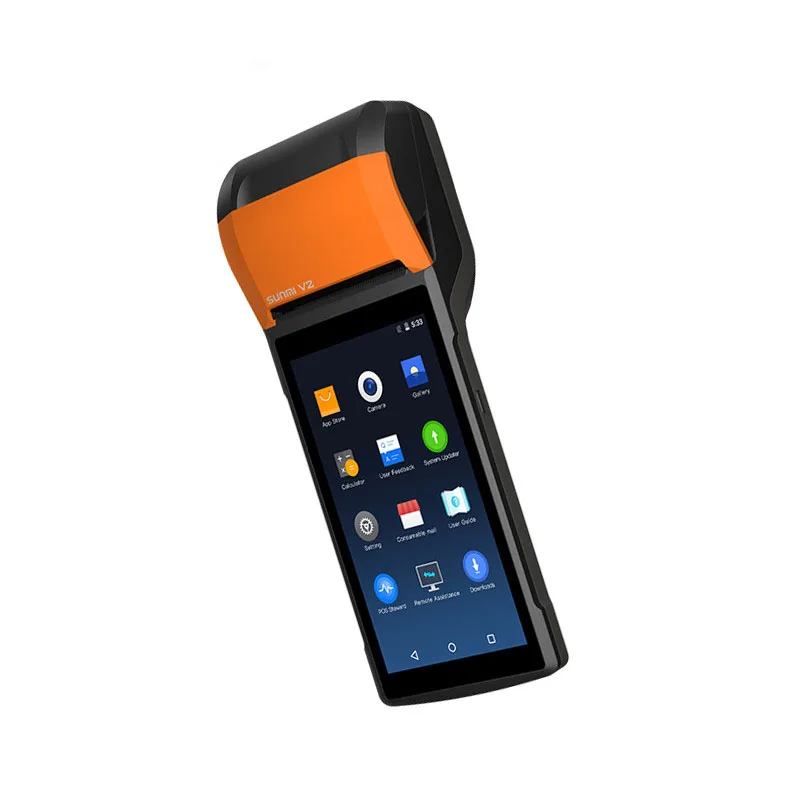

Терминал для мобильного телефона Android POS портативный сенсорный экран Pos 58 мм термальный принтер 4G WIFI система точки продажи
Женский
84,17 ₽ - 91,72 ₽
Премиум Тонгкат Али белый кофе растворимый премикс для повышения энергии и насыщенного кофейного аромата Малайзия классический ароматный
410,02 ₽ - 485,55 ₽

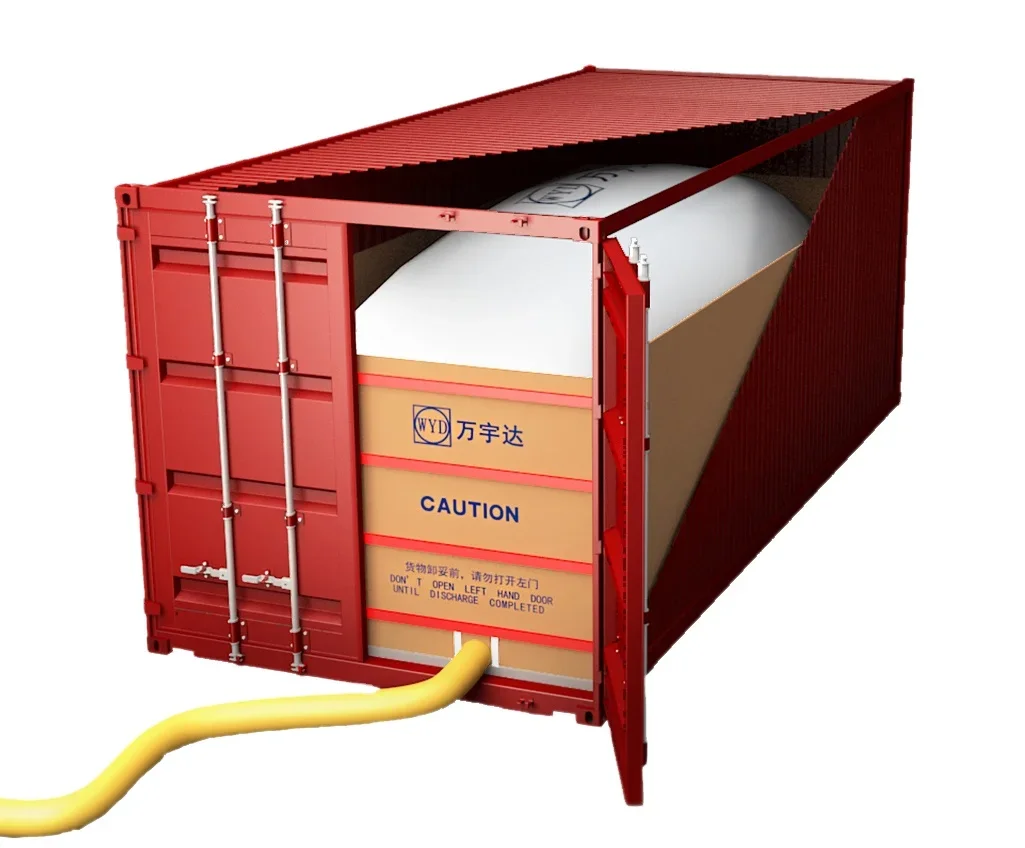

24000l flexitank для транспортировки жидкости в
