Производственная линия для прессования масла под ключ машина рисовых отрубей цена/установка
12 000,00 $
Линия по производству прессования масла под ключ/установка переработке арахисового масла/цена Машина Для Производства
- Категория: >>>
- Поставщик: Henan Huatai Cereals And Oils Machinery Co. Ltd.Henan Ltd.
Сохранить в закладки 1600982912961:
Описание и отзывы
Характеристики
Oil Pressing Production Line
Product Description
Process flow for oil pressing machine
Oilseeds---cleaning ,stones removal---(husking)---crushing---flaking---cooking---pressing---filtration---crude pressing oil.
1. Cleaning machine: adopt vibration cleaning screen to remove bigger and smaller impurities from oilseeds, specific gravity stoner to remove heavy impurities like stones, and magnetic separator to remove metal impurties.
2. Some oilseeds like peanut, sunflower seeds need husking, we need adopting husking machine to separate husk to get kernel to process.
3. For some bigger oilseeds, like soybean, peanut, to increase superficial area and convenient for pressing oil, cracking them into smaller pieces.
4. Flaking is breaking oil cell tissue to separate oil smoothly, adopt alloy rollers to prolong service life, with hydraulic fastening roller system,to ensure flake thickness is uniform, about 0.3-0.5mm.
5. Use steam cooker,heat with steam, with stirring blade, to make flakes become matured, and increase oil yield.

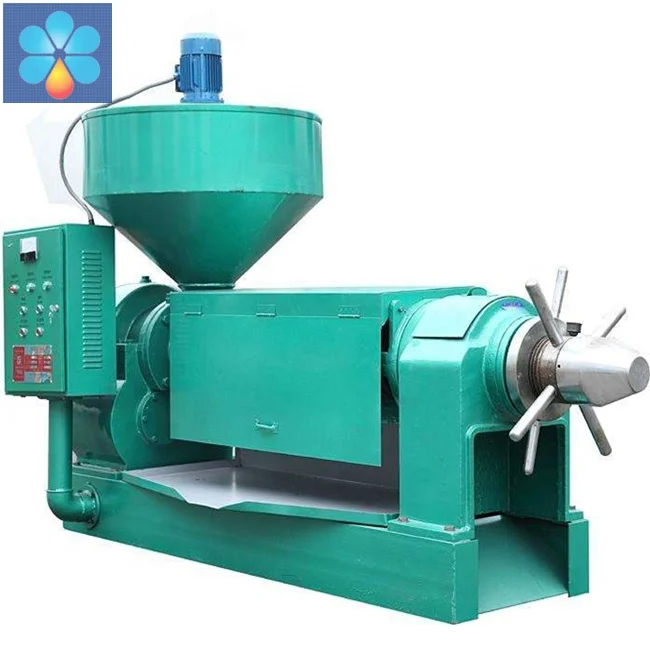

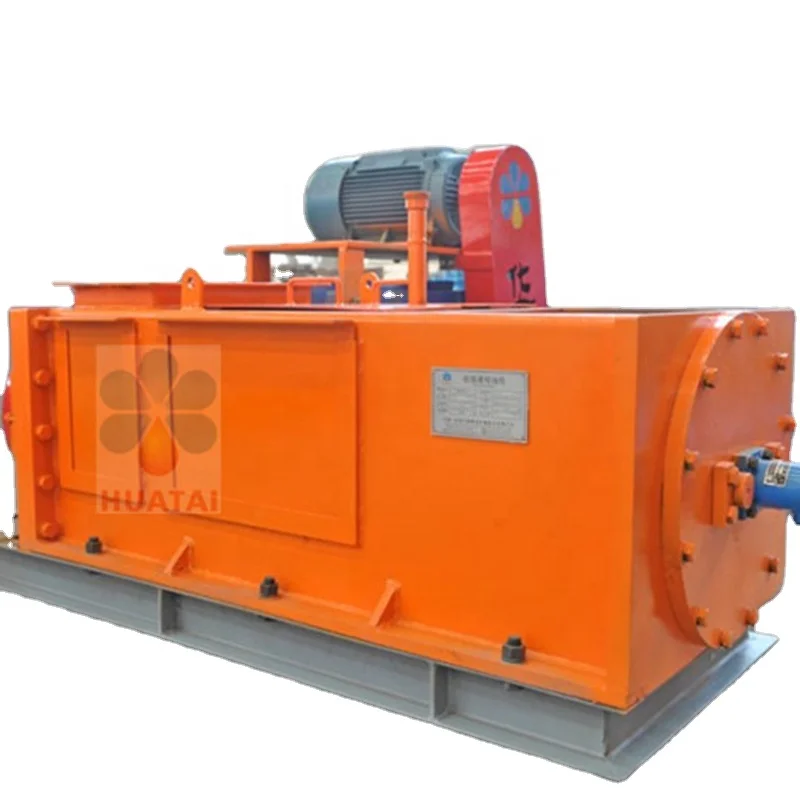

6. Oil pressing machine: Use spiral oil press to physically press oil from oilseeds, oil yield is high, residual oil rate in cake is low, cake quality is good.

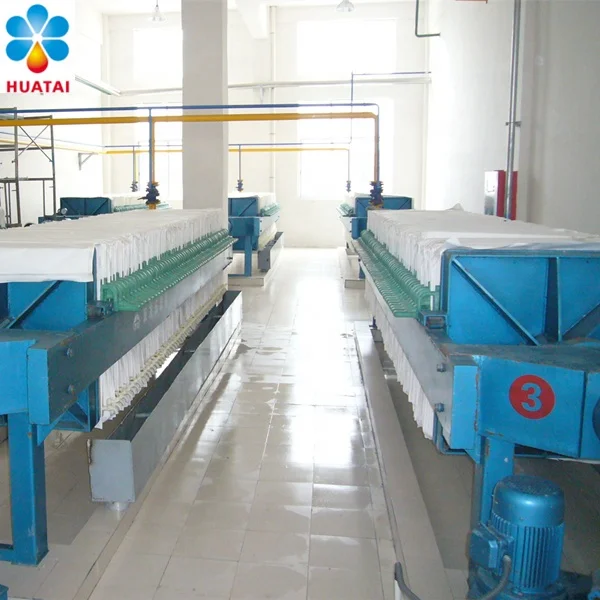

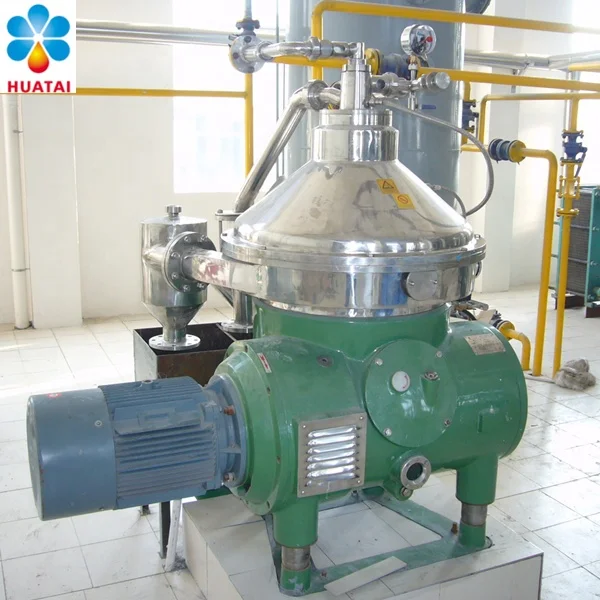

7. Use filter to remove cake powder and other impurity from oil to make oil clear.
Advantages of our oil pressing machine:
1. High capacity
2. Low power consumption
3. Low cost in running
4. Small occupation area
5. The structure of the press cake is soft but not fragmentary.
6. Low residual oil in cake.
7. Excellent choose of press equipment for the large and medium-sized oil plant.
Model | Processing capacity | Residual oil rate | Power (kw) | Overall dimensions (L*W*H) | Weight (kg) |
ZY18 | 7~10T/D | 5~7% | 18.5 | 2900*1850*3240mm | 5000 |
ZY24 | 15~20T/D | 7~9% | 38.5 | 2900*1850*3640mm | 5500 |
ZY28 | 40~60T/D | 7~9% | 70 | 3740*1920*3843mm | 9160 |
ZY32 | 90~100T/D | 8~10% | 106.5 | 4100*2270*3850mm | 1100 |
ZY120 | 6.5T/D | ≤6.5% | 11 | 1860×622×1275mm | 680 |
ZY130 | 8~10T/D | ≤8.0% | 15 | 1950×742×1500mm | 825 |
ZY168 | 20T/D | ≤7.0% | 37~45 | 2670×1000×1726mm | 1710 |
Specification: 10T/D----5000T/D (daily processing capacity)
Machining Work
We have 210 senior engineering technicians among 580 staff, invest USD60,000.000 to establish 8 production workshops, 2 machining workshops,with 202 sets of automatic processing equipment, such as automatic laser cutting machine, flame cutting machine, double housing planer,union melt welding machine, tube-sheet welding machine, etc, annual processing capacity is more than 3000 sets.
Company Information
Henan Huatai Cereals and Oils Machinery Co., Ltd. ,outstanding membership enterprise of CCOA,also public company in oil machine field in China.We are a large scale oil machinery manufacturer integrating research, development, design, manufacture and installation.We have self-supported import and export right and has passed ISO9001:2008 Quality Management System Certification.Registered trademarks"Huatai" and "Hangpeng" won Henan provincial famous brand,and was awarded "Provincial outstanding quality products".
We have successfully obtained 29 national patents (including 9 invention patents), 6 international awards, 2 national awards and 2 provincial awards. Our oil machines sell well in more than 30 provinces, cities and districts, and exported to Estonia, Russia, Kazakhstan,Uzbekistan,Tajikistan,Malaysia, Indonesia, Egypt, Bangladesh, Myanmar, the Philippines,Nigeria, Sudan, Tanzania,Rwanda,Bolivia,Peru and other countries, and now we have developed into a major oil machinery manufacturing base in China.
Packing & Delivery
Packing: Our oil machines adopt wooden case or power distribution cabinet and motors, reducers, and adopt solid packing for flanges, meters, valves,etc.
For all machines, after sand blasting and rust protection, also use film to keep cleaning before delivery, also fixing treatment to prevent rolling and collision.
Delivery: We have gantry cranes in every workshop for heavy machines, and forklifts for normal machines.
Похожие товары
Машина для производства Красного пальмового масла под ключ машина переработки установка
12 000,00 $

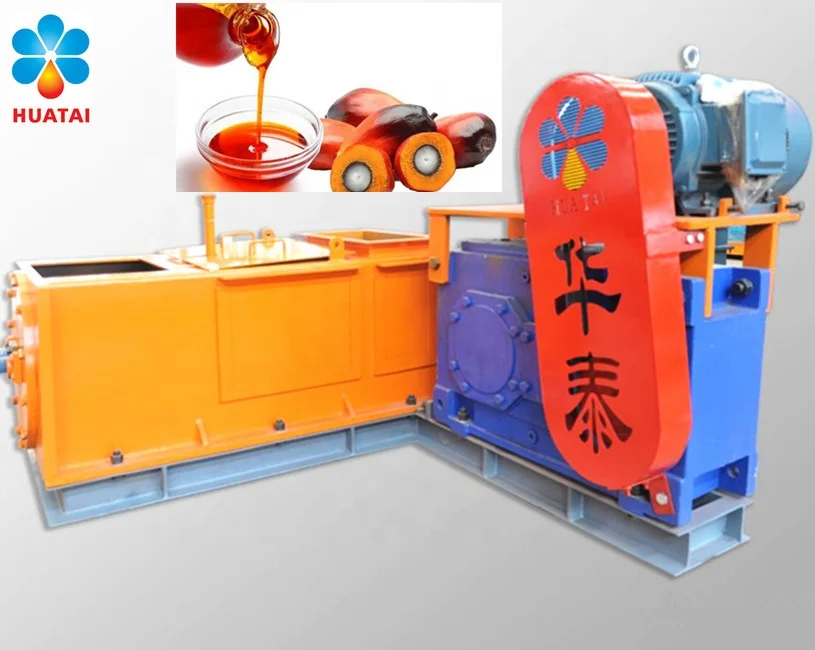

Машина для прессования пальмового масла под ключ EPC/машина обработки масла/линия по производству
12 000,00 $
Машина для прессования пальмового ореха под ключ машина обработки масла линия экстракции
12 000,00 $

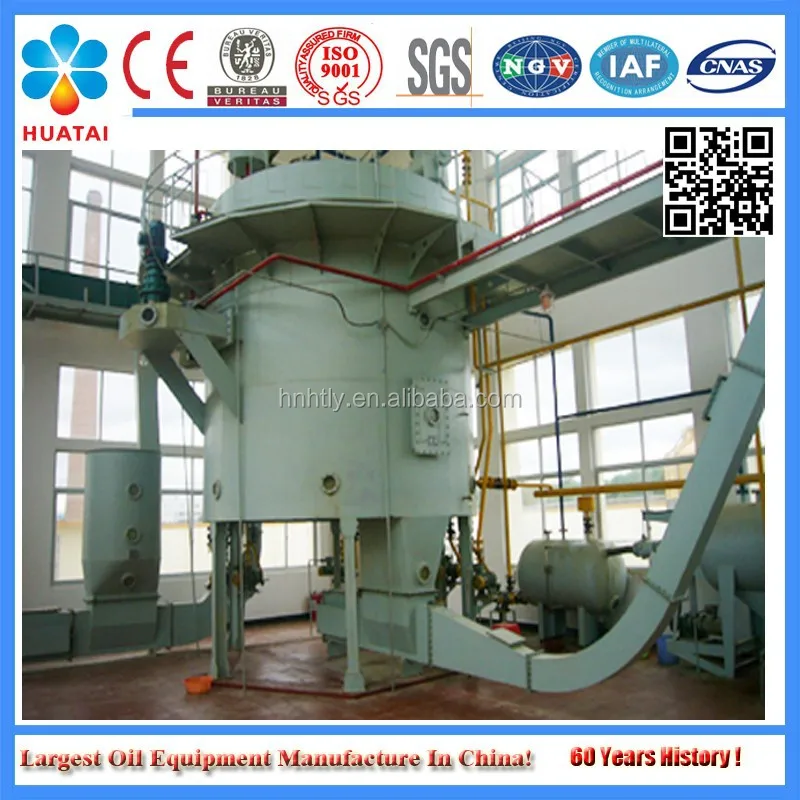

Китайская установка для извлечения масла рисовых отрубей Huatai
300 000,00-2 000 000,00 $

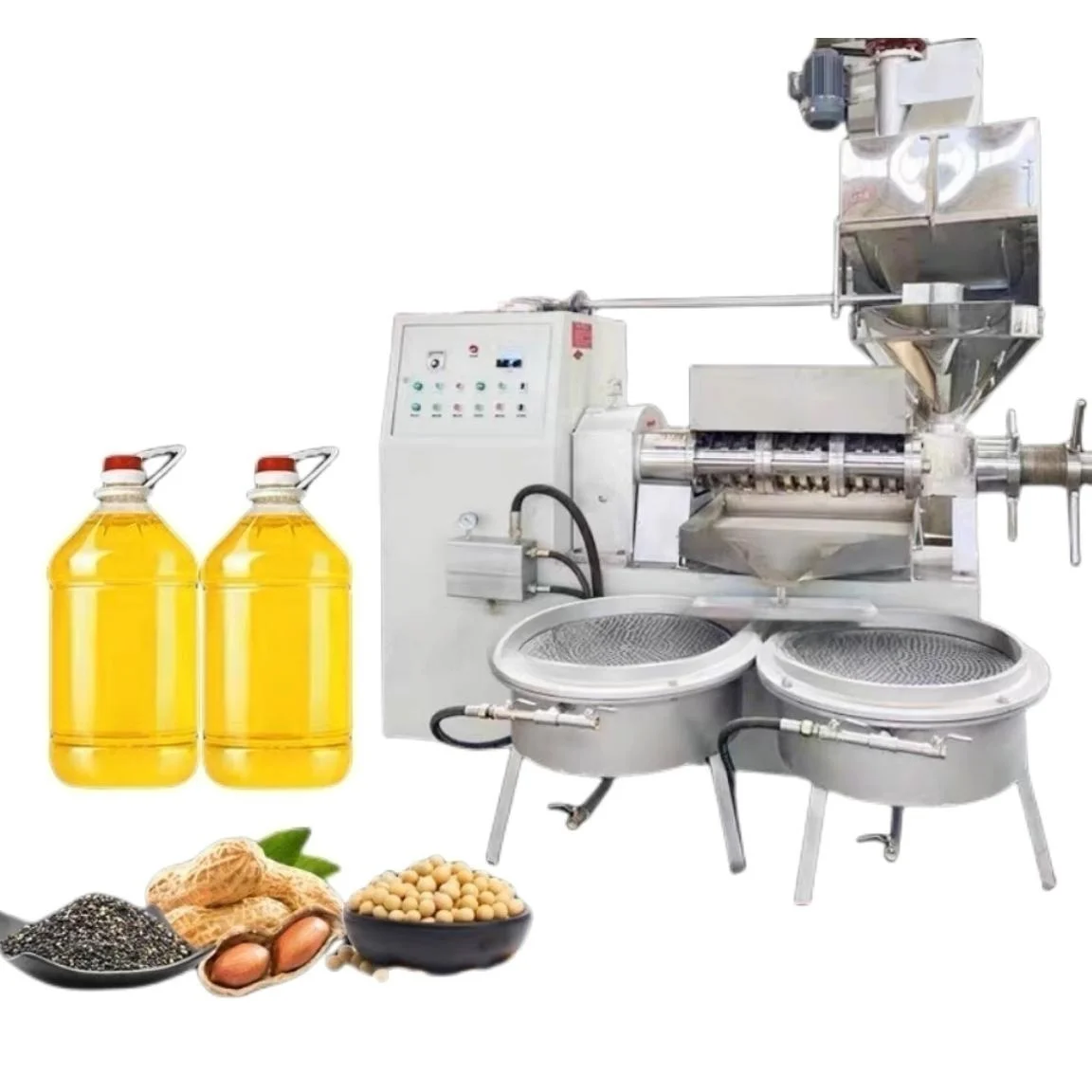

Простая в эксплуатации машина для выдавки растительного масла с завинчивающимся растительным маслом подсолнечника семена арахиса масломельница поставщиков
1 100,00-3 500,00 $

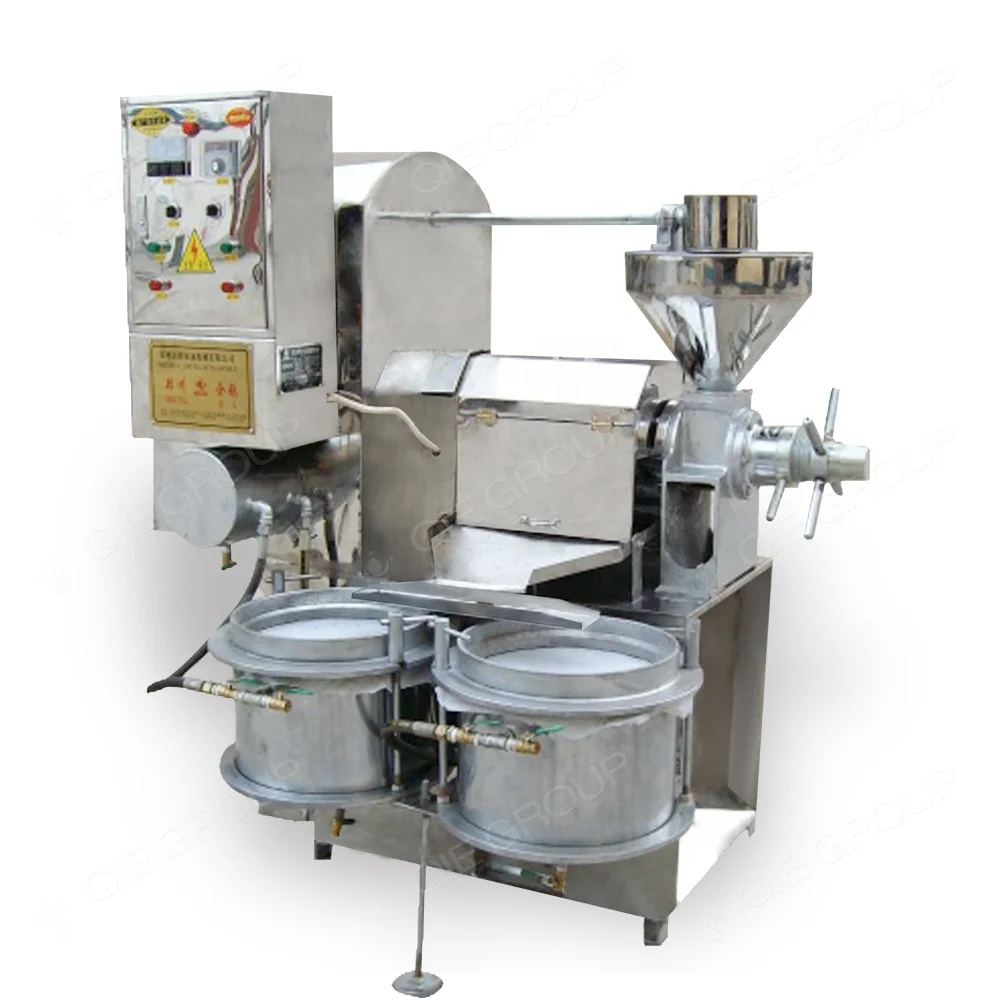

Масляный пресс
790,00-1 450,00 $

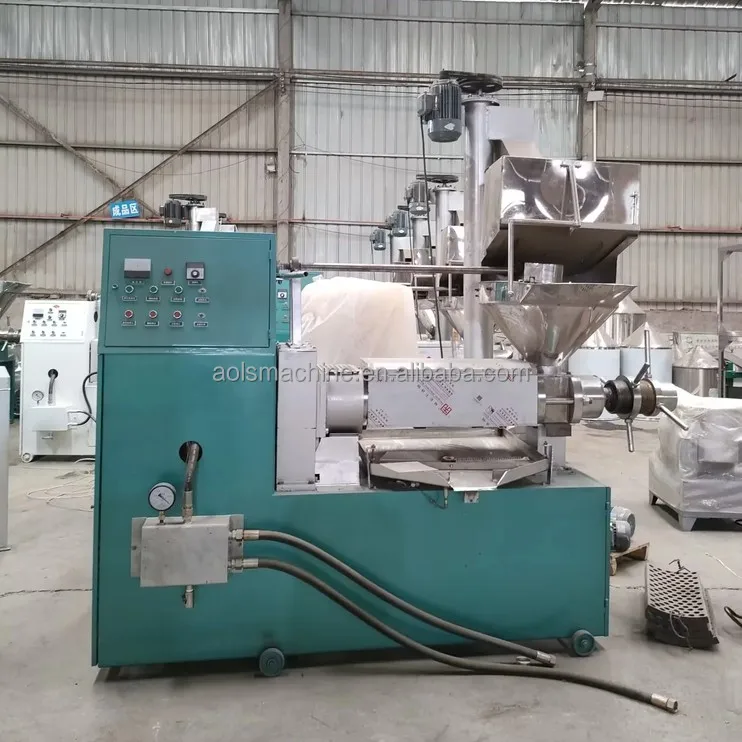

300-400 кг/ч машина для экстракции кукурузного масла из семян подсолнечного хлопка/машина производства масла/линия по производству растительного
