Подводный генератор постоянного магнита с водонепроницаемой коробкой
32 784,88 ₽
5 кВт горизонтальная ветряная турбина на сетке вне сетки Полная система
- Категория: >>>
- Поставщик: Qingdao Greef New Energy Equipment Co. Ltd.
Сохранить в закладки 1600983236189:
Описание и отзывы
Характеристики

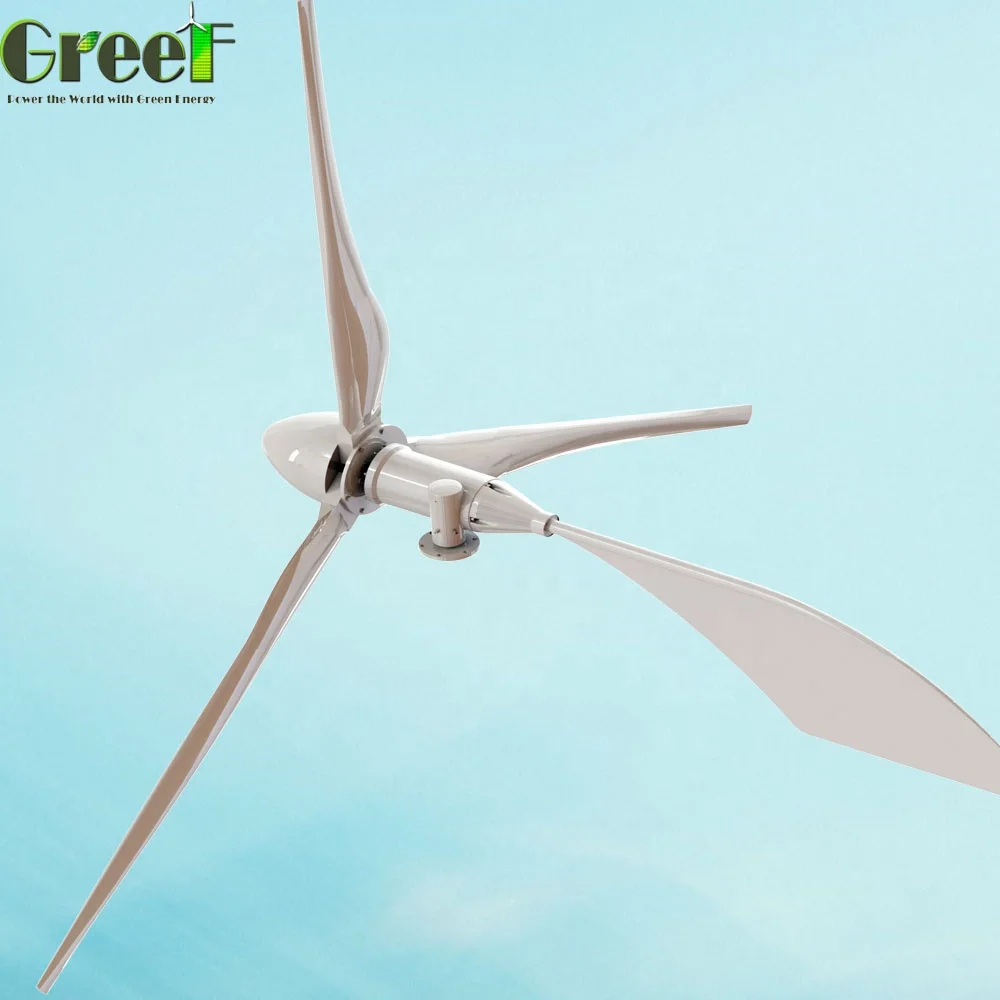

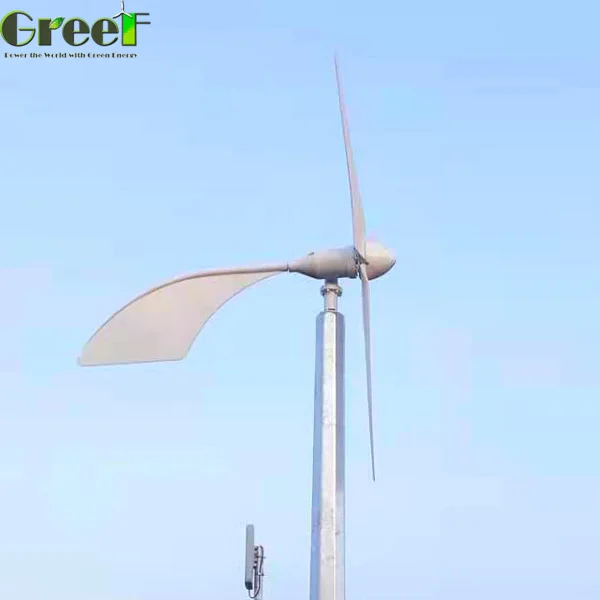

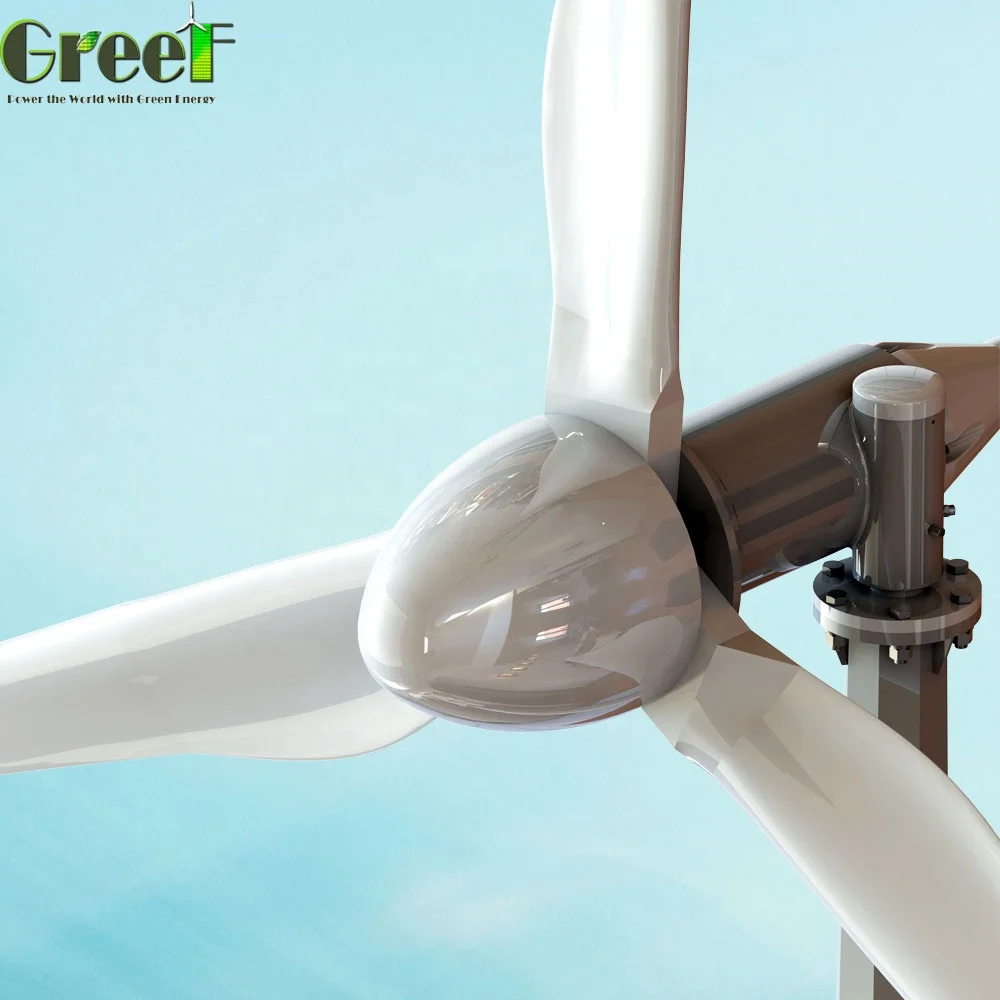

Why Choose Horizontal Wind Turbine
GREEF wind generator for home is the conversion of wind energy into mechanical energy first and electric energy afterwards. This equipment can fully make use of wind power to recharge a battery, and also can saved energy into ac source alternating current. Without the necessity of fuel, the GREEF wind power generator is pollution free and far away from noise. It is generally applicable to the area which has good condition but is far away from the power grid, or the power grid is not normal. The equipment can supply lighting, the television set, the searchlight, the communication equipment, the power tool and other household appliances.
Technical specification
Model | GH-1KW | GH-2KW | GH-3KW | GH-5KW | |||
Rated Power | 1000W | 2000W | 3000W | 5000W | |||
Max Power | 1500W | 3000W | 4000W | 7000W | |||
Start Wind Speed | 3m/s(6.72mph) | 3m/s(6.72mph) | 3m/s(6.72mph) | 3m/s(6.72mph) | |||
Rated Wind Speed | 8m/s(17.92mph) | 8m/s(17.92mph) | 10m/s(22.4mph) | 10m/s(22.4mph) | |||
Working Wind Speed | 3-25m/s (6.72-56 mph) | 3-25m/s(6.72-56 mph) | 4-25m/s (8.96-56 mph) | 4-25m/s(8.96-56 mph) | |||
Safety Wind Speed | 40m/s(89.6mph) | 40m/s(89.6mph) | 50m/s(112mph) | 50m/s(112mph) | |||
Blades Length | 1.35M(4.43ft) | 1.6M(5.25ft) | 1.9M(6.23ft) | 2.49M(8.17ft) | |||
Blades Rotor Diameter | 2.8M(9.18ft) | 3.2M(10.50ft) | 4M(13.12ft) | 6M(16.4ft) | |||
Blades Material &Quantity | FRP /3PCS | FRP /3PCS | FRP /3PCS | FRP /3PCS | |||
Top Weight | 55kg | 68kg | 150kg | 310kg | |||
Swept Area | 6.15㎡ | 8.04㎡ | 8.04㎡ | 19.625㎡ | |||
Tower Height | 6m(39.36ft.) Free stand tower | 6m(19.68ft.) Free folding tower | 8m(26.24ft.) Free folding tower | 8m(26.24ft.) Free stand tower | |||
Generator Type | Axial Flux Coreless outer rotor disc permanent magnet direct drive generator | Permanent Magnet Generator | Permanent Magnet Generator | Permanent Magnet Generator | |||
Rated Speed | 400RPM | 350RPM | 300RPM | 260RPM | |||
Start Torque | 0.4N.M | 0.8N.M | 2.5N.M | 4.5N.M | |||
Option Voltage | 48V AC | 24-350VAC | 48-240VAC | 48-500VAC | |||
Protection Method | Electromagnetic Brake +PWM | Electromagnetic Brake +PWM | Electromagnetic Brake +PWM | IP54 | |||
Protection Grade | IP54 | IP54 | IP54 | -40-50℃ | |||
Working Temperature | -40-50℃ | -40-50℃ | -40-50℃ | 20 Years | |||
Life time | 20 Years | 20 Years | 20 Years | ||||
Model | GH-10KW | GH-15KW | GH-20KW | GH-30KW | |||
Rated Power | 10000W | 15000W | 20000W | 30000W | |||
Max Power | 15000W | 20000W | 25000W | 35000W | |||
Start Wind Speed | 3m/s(6.72mph) | 3m/s(6.72mph) | 3m/s(6.72mph) | 3m/s(6.72mph) | |||
Rated Wind Speed | 12m/s(26.88mph) | 12m/s(26.8mph) | 12m/s(26.88mph) | 12m/s(26.88mph) | |||
Working Wind Speed | 4-25m/s (6.72-56 mph) | 4-25m/s (8.96-56 mph) | 4-25m/s (8.96-56 mph) | 4-25m/s (8.96-56 mph) | |||
Safety Wind Speed | 50m/s(112mph) | 50m/s(112mph) | 50m/s(112mph) | 50m/s(112mph) | |||
Blades Length | 3.8M(12.46ft) | 4.795M(15.73ft) | 4.795M(15.73ft) | 5.885M(19.3ft) | |||
Blades Rotor Diameter | 8M(26.24ft) | 10M(32.8ft) | 10M(32.8ft) | 12M(39.36ft) | |||
Blades Material &Quantity | FRP /3PCS | FRP /3PCS | FRP /3PCS | FRP /3PCS | |||
Top Weight | 650kg | 1050kg | 1200kg | 1500kg | |||
Swept Area | 38.47㎡ | 63.59㎡ | 63.59㎡ | 113.04㎡ | |||
Tower Height | 12m(39.36ft.) Free stand tower | 15m(49.2ft.) Free stand tower | 18m(59.04ft.) Free stand tower | 18m(59.04ft.) Free stand tower | |||
Generator Type | Permanent Magnet Generator | Permanent Magnet Generator | Permanent Magnet Generator | Permanent Magnet Generator | |||
Rated Speed | 200RPM | 150RPM | 150RPM | 150RPM | |||
Start Torque | 7.5 N.M | 9.6N.M | 10N.M | 11.5N.M | |||
Option Voltage | 120-500VAC | 240-500VAC | 240-500VAC | 240-500VAC | |||
Protection Method | Electromagnetic Brake +PWM | Electromagnetic Brake +PWM | Electromagnetic Brake +PWM | Electromagnetic Brake +PWM | |||
Protection Grade | IP54 | IP54 | IP54 | IP54 | |||
Working Temperature | -40-50℃ | -40-50℃ | -40-50℃ | -40-50℃ | |||
Life time | 20 Years | 20 Years | 20 Years | 20 Years | |||

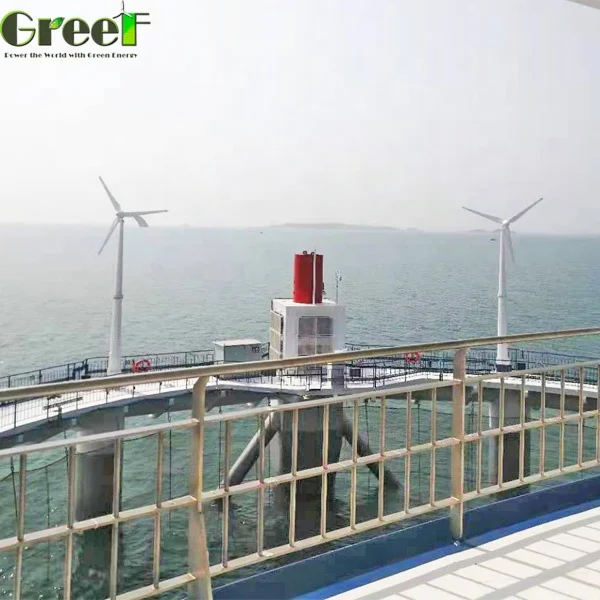

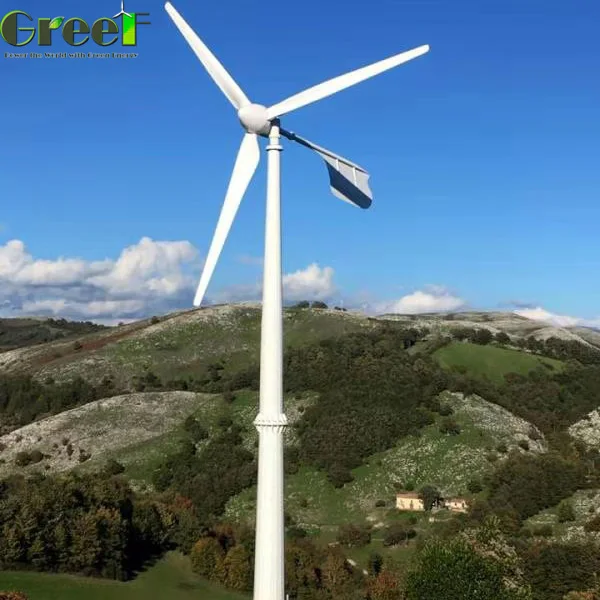

• Household, Garden, farm
• Telecom sites.
• Rural electrification programs. Island , sentry, island, sight lighting
The electric turbine 600W is often used in conjunction with solar panels to provide more reliable year-round energy supply.
• Telecom sites.
• Rural electrification programs. Island , sentry, island, sight lighting
The electric turbine 600W is often used in conjunction with solar panels to provide more reliable year-round energy supply.
System Solution
We can design different system for customers according their request For example, on-grid or off-grid system , solar wind hybrid system or solar wind diesel generator system like below
Packaging & Shipping
1. wind mill 600w use inner foam protection outer Plywooden case .
2. Tower with Foam package only .
3. controller invertor with inner carton box outer plywooden case.
4.Pakage size and weight please refer to our sales.
5.Shipping by sea with FCL LCL or by air .
If you have any request in package and shipping please tell our sales we will do according to your request.
2. Tower with Foam package only .
3. controller invertor with inner carton box outer plywooden case.
4.Pakage size and weight please refer to our sales.
5.Shipping by sea with FCL LCL or by air .
If you have any request in package and shipping please tell our sales we will do according to your request.
Why Choose Us
After Sale Service
Our wind energy system 600W main parts are free 3 years warranty, controller and invertor are 1 years warranty.
All lifelong technical support and part cost supply.
(1) The warranty period is start from the date of shipment which show on the bill of loading or air waybill.
(2) Free maintenance services during the warranty period the cost involved be borne by the company, do not charge a fee to customers, free warranty if any damage outside the warranty period, the company will charge a fee for labor costs and materials.
(3) the warranty period, company's quality problems caused by the maintenance of the freight borne by the company, if not under warranty or man-made damage, the freight charges by the customer.
Our wind energy system 600W main parts are free 3 years warranty, controller and invertor are 1 years warranty.
All lifelong technical support and part cost supply.
(1) The warranty period is start from the date of shipment which show on the bill of loading or air waybill.
(2) Free maintenance services during the warranty period the cost involved be borne by the company, do not charge a fee to customers, free warranty if any damage outside the warranty period, the company will charge a fee for labor costs and materials.
(3) the warranty period, company's quality problems caused by the maintenance of the freight borne by the company, if not under warranty or man-made damage, the freight charges by the customer.
