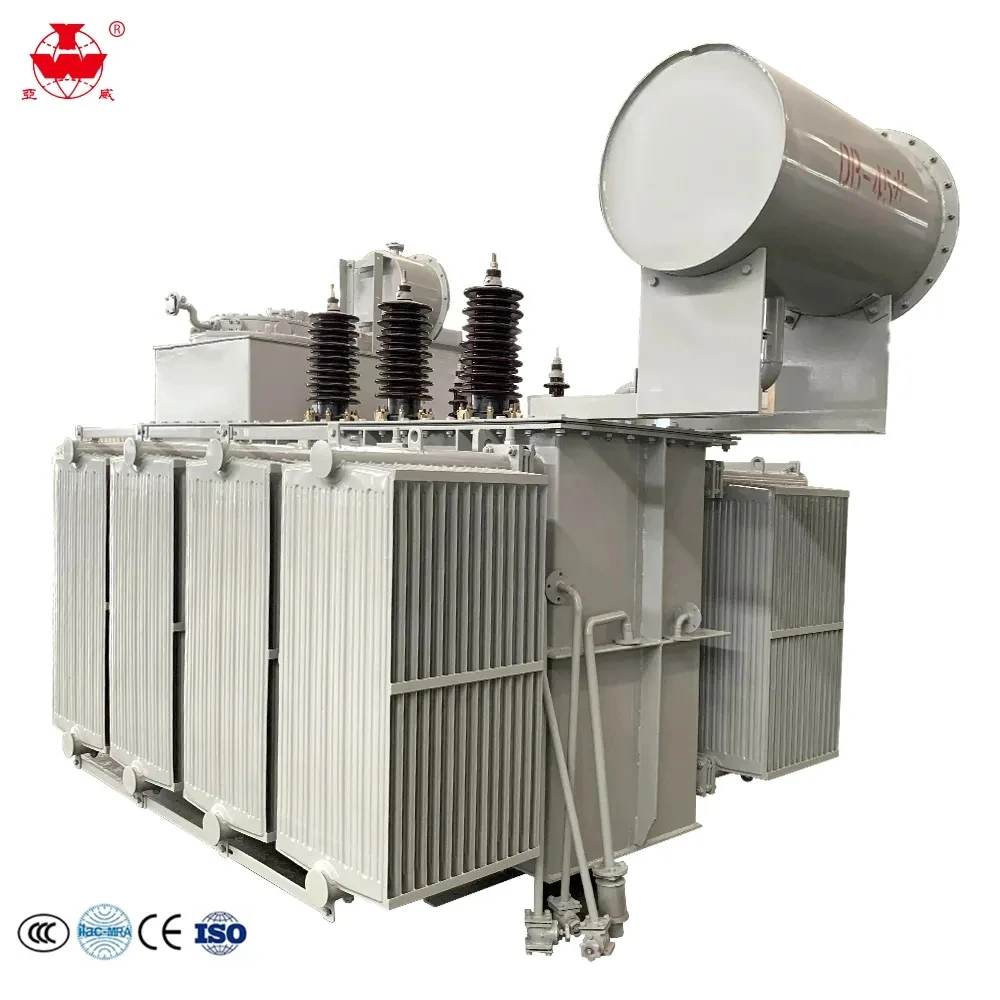

Масляные трансформаторы Yawei 1600 кВА 10/11 кВ S11 распределительный трансформатор Электрический 100 630 1250

Масляные трансформаторы Yawei 1600 кВА 10/11 кВ S11 распределительный трансформатор Электрический 100 630 1250

Категория: >>>
Поставщик: Jiangsu Yawei Electric Power Engineering Co. Ltd.

Цена:*

Количество:

В избранное

Описание и отзывы

Характеристики

Product Description

What is a Distribution Transformer?

A distribution transformer provides the final voltage transformation in the electric power distribution system, stepping down or up the voltage used in the distribution lines to the level used by the customer in their home, businesses, and commercial buildings.

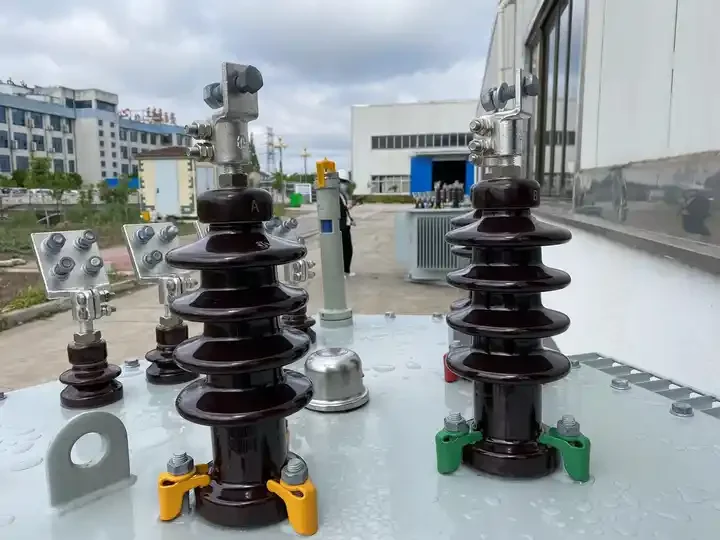

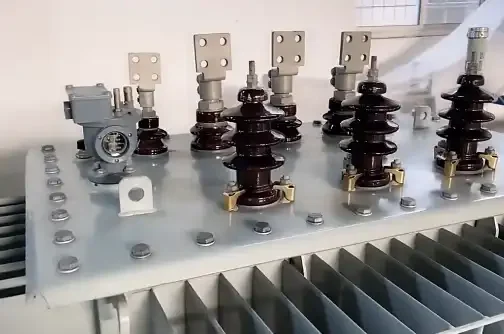

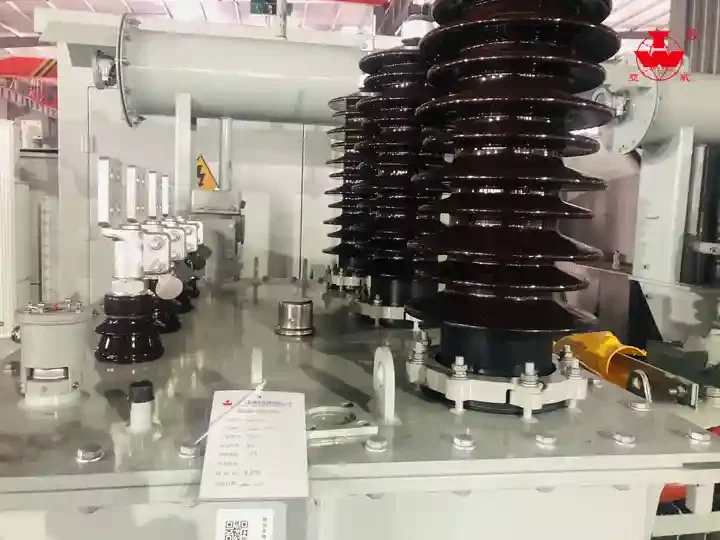

Details Images

Specification

Rated Capacity (kva)	HV (kV)	Tapping Ranges	LV (kV)	Vector-group	No-load Loss	75 ℃ Load Loss	No-load Loss	Short -Circuit Impendance
30	6 6.3 10 10.5 11 or others	±5% ±2 2.5%	0.4 or others	Dyn11 Yyn0 or others	100	630/600	0.80	4.0
50										130	910/870	0.75
63										150	1090/1040	0.75
80										180	1310/1250	0.70
100										200	1580/1500	0.65
125										240	1890/1800	0.65
160										280	2310/2200	0.60
200										340	2730/2600	0.50
250										400	3200/3050	0.50
315										480	3830/3650	0.45
400										570	4520/4300	0.45
500										680	5410/5150	0.40
630									810	6200	0.40	4.5
800									980	7500	0.35
1000									1150	10300	0.35
1250									1360	12000	0.30
1600									1640	145000	0.30

Rated Capacity (kva)	HV(kV)	Tapping Ranges	LV(kV)	Vector-group	No-load Loss	75 ℃ Load Loss	No-load Loss	Short -Circuit Impendance
630	35	±5%	3.15 6.3 10.5		830	7870	1.10	6.5
800										980	9410	1.00
1000										1150	11540	1.00
1250										1410	13940	0.90
1600										1700	16670	0.80
2000										2180	18380	0.70
2500										2560	19670	0.60
3150	35-38.5	±5%	3.15 6.3 10.5			3040	23090	0.56	7.0
4000										3620	27360	0.56
5000										4320	31380	0.48
6300									5250	35060	0.48	7.5
8000	35-38.5	±2x2.5%	3.15 3.3 6.3 6.6 10.5 11	Ynd11 or others	7200	38480	0.42
10000									8700	45320	0.42
12500									10080	53870	0.40	8.0
16000									12160	65840	0.40
20000									14400	79520	0.40
15000									14400	94050	0.32
31500									20220	112860	0.32

Packing & Delivery

Packaging: Wooden case or according to client's requirementsPackaging: Wooden case or nude packing according to client's requirements.The requirements for the making and reinforcement of packing boxes. we strictly apply to international standards.

Our Services

Customer-oriented Worry free after-sales service
1. We provide customized service and we can produce transformers according to several international standards, such
as:ANSI/IEEE,IEC, etc. 2. We provide technical solutions and price solutions for our customers for free.
3. Free technician training in our factory and installation video operation manual for customers
4. Large production capacity, short lead time and welcomed large-big programme.

Company Profile

We are a professional manufacturer of transformers which can produce Single phase transformer. Three-phase transformer, Pad mounted transformers, Dry transformer, Distribution transformer and High voltage transformer of 69KV and above. It can meet IEEE/ANSI/DOE/CSA and IEC standards. Moreover, we、have have nearly 20 years of export transformer manufacturing experience. Our transformers have at least two-year warranty. OEM and ODM accepted.
Our company has more than 50 engineers and technical personnel. More than 1000 employees, covering an area of 240,000 square meters. we have 6 branch Branch factories. Cover complete production line of transformer from winding wire silicon sheet slitting and rolling, transformer oil tank producing and power transformer manufacturing. Better control of quality and cost for complete production line.
We are not only leading domestic manufacturer of power transformer in China. We also cooperate overseas trading company or factory or domestic trading company for all kinds of export power transformer program. Fully experienced and qualified technical team. Partner welcomed.

Our Advantages

Why us?
1. Over 20 years professional experience in manufacture different kinds of transformers.
2. Customer oriented professional technician team service. Complete and satisfying and in-time service for customer
3. Pass high standard quality test and certificate of UL, EC, IEC, CNAS,SA,IEEE,ISO9001:2000 quality system certification
4. Large and complete manufacturing from winding casing and power transfer. Complete control and main machine and material
quality. Service and product and customer cost is under control.
5. Good after-sales installation service for team abroad
6. Factory supply willing to establish long term cooperation with end user or trading company.

Our Certificates

UL FOR NORTH-AMERICA STANDARDUDEM AND ECM FOR EUROPE SA,CQS CNAS CERTIFCATES AND SO ON...

More you like

Power Transformer

Cusomized based on demand

Power Transformer

Cusomized based on demand

Three Phase

Pad-mouted Power Transformer

Single Phase

Pad-mouted Power Transformer

Compact Power Transformer

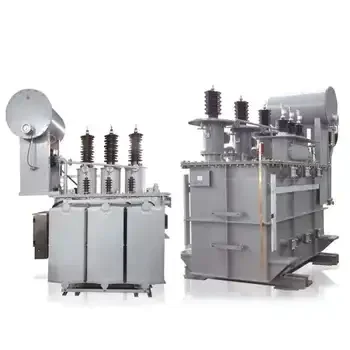

Oil Immersed Power Transformer
