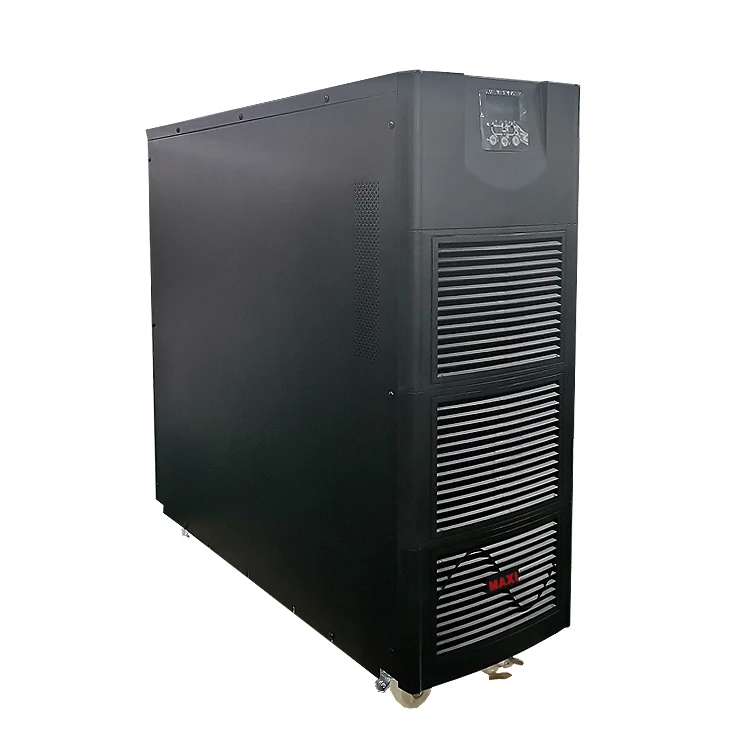

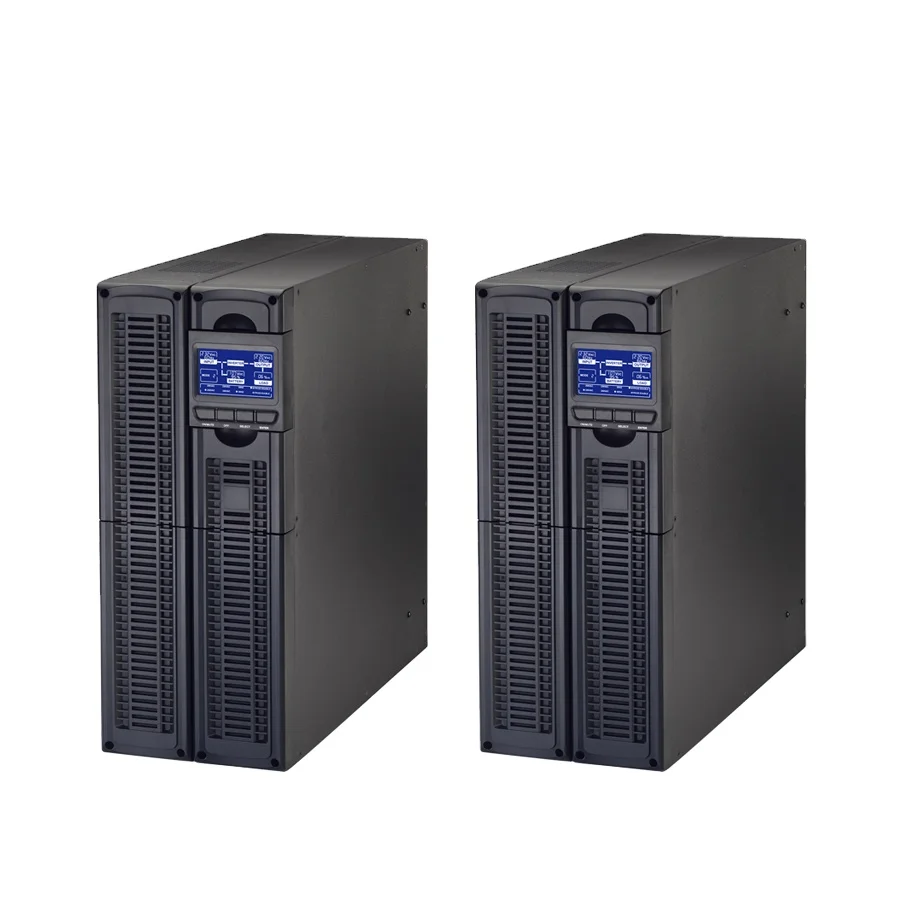

Высококачественная мощность ups 10 кВА 3 фазы ups 5 кВт ture sine wave ups
60 181,93 ₽ - 61 808,47 ₽
60kva оптовый коэффициент выходной мощности 0 9 трехфазный источник питания для онлайн ИБП по заводской цене
- Категория: >>>
- Поставщик: Shenzhen Gitenno Technology Co. Ltd.
Сохранить в закладки 1600986873510:
Описание и отзывы
Характеристики
Details Images
Product Paramenters
Model number | GTO-3H3-60KL | |
Capacity | 60KVA/54KW | |
Input | ||
Rectifier Type | 6 pulse | |
Main Input and Bypass Input | Supports dual inputs | |
Nominal Voltage | 380VAC/400VAC/415VAC | |
Acceptable Voltage Range | 1304VAC ~ 456VAC | |
Frequency | 50Hz ± 10% | |
TVSS | 40kA (optional) | |
Bypass | ||
Nominal Voltage | 380VAC/400VAC/415VAC | |
Input Voltage Range | 285VAC ~ 475VAC | |
Battery | ||
Battery Voltage | 384 VDC (Adjustable) | |
Charging current | The charging current is determined by the battery capacity. charging current range is 0.1C to 0.2C,Default is 0.1 C Maximum 0.2C, 5A @ full load | |
Cold Start | Yes | |
Ouput | ||
Power Factor | 0.9, customized up to 1.0 | |
Nominal Output Voltage | 380VAC/400VAC/415VAC | |
Output Voltage Regulation | ±1% | |
Overload Capability | 110% continuous running; 125% for 10 min; >150% for 1 min | |
Physical | ||
IP Protection | IP31 (default), IP42 (optional) | |
Dimensions,DxWxH(mm) | 971 x 554 x 1290 | |
Net Weight (Kgs) | 471 | |
Environment | ||
Operating Temperature | 0 ~ 50°C | |
Storage Temperature | -25°C ~ 55°C | |
Humidity | 0~95% (non-condensing) | |
Altitude | 1000m | |
Management | ||
Modbus RS-232/RS485 | Supports Windows® Family, Linux and MAC | |
Dry Contact | 5 outputs and 4 inputs | |
Optional SNMP | Power management from SNMP manager and web browser | |
Standard | ||
Safety | IEC62040-1-2017 | |
Shenzhen Gitenno Technology Co., Ltd.
Shenzhen Gitenno Technology Co., Ltd. is a comprehensive company dedicated to the research and development, design, production and sales in UPS uninterruptible power supplies and new energy products such as photovoltaic inverters, batteries, energy storage and other products. Shenzhen Gitenno is based in Shenzhen, the core area of the Zhu River Delta Economic Zone and the center of China's R&D and manufacturing as well.
We have a large-scale R&D team in the industry, with more than 60 R&D personnel, more than 95% of whom have bachelor's and master's degrees or above.
Each worker has more than five years of foreign trade experience. They are well versed in foreign trade processes and familiar with the cultures of various countries. We respect and understand every customer and do our best to satisfy our business partners from all over the world. All of Gitenno people promise that you will receive the most professional and considerate services when cooperating with us.
Product packaging
20+ various of certification like CE,IEC,ISO,COC,SONCAP,EMC,LVD,SASO etc.
FAQ
Q: Are you a manufacturer of a trading company?
A: We are a manufacturer as well a trading company.
Q: What are your main products?
A: Our products range from inverter, battery, energy storage to UPS power supplies etc.
Q: Can you provide a sample?
A: Yes, we can provide a sample. But you will pay for it.
Q: What is the production time for a sample?
A: 10-15 days.
Q: What is the production time for mass order?
A: 18-45 days as per the ordering quantity and our production schedule.
Q: Can you accept customized order?
A: Yes, we can.
Q: Can you provide logo printing?
A: Yes, we can. We also can provide different color in logo printing.
Q: What’s your business terms?
A: FOB is common but other business terms is negotiable.
Q: What is your frequently-used payment terms?
A: 1) T.T. 2) Alipay 3) Irrevocable LC 4) Other mode negotiable
Q: What's the FOB port?
A: Tianjin port, Guangzhou Port or Shenzhen Port.
A: We are a manufacturer as well a trading company.
Q: What are your main products?
A: Our products range from inverter, battery, energy storage to UPS power supplies etc.
Q: Can you provide a sample?
A: Yes, we can provide a sample. But you will pay for it.
Q: What is the production time for a sample?
A: 10-15 days.
Q: What is the production time for mass order?
A: 18-45 days as per the ordering quantity and our production schedule.
Q: Can you accept customized order?
A: Yes, we can.
Q: Can you provide logo printing?
A: Yes, we can. We also can provide different color in logo printing.
Q: What’s your business terms?
A: FOB is common but other business terms is negotiable.
Q: What is your frequently-used payment terms?
A: 1) T.T. 2) Alipay 3) Irrevocable LC 4) Other mode negotiable
Q: What's the FOB port?
A: Tianjin port, Guangzhou Port or Shenzhen Port.
Похожие товары

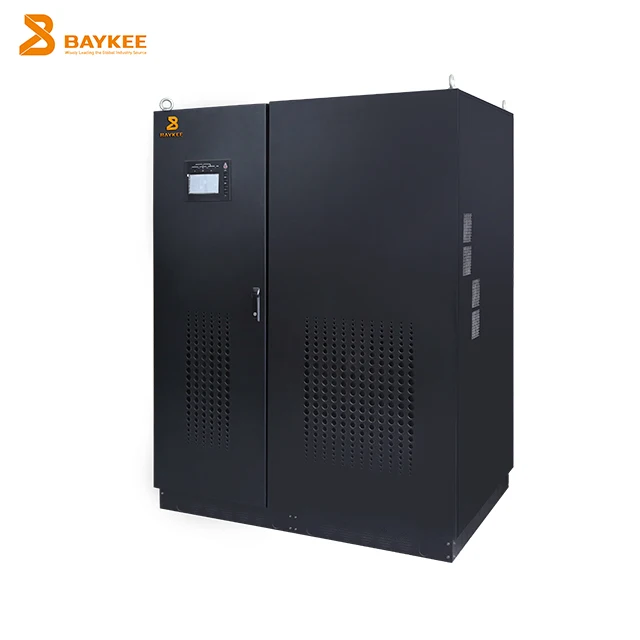

BAYKEE промышленный низкочастотный трехфазный чистый синусоидальный двойной конверсионный онлайн с 220 В 30 кВА на 120 кВА
867 487,20 ₽ - 921 705,15 ₽

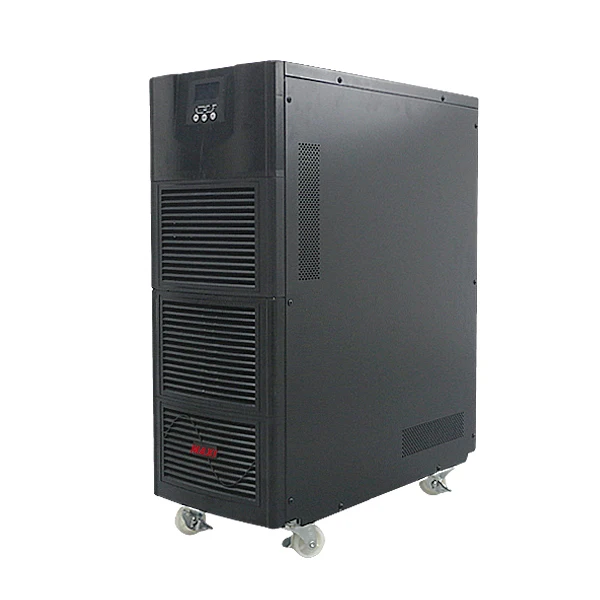

Power ups 10 кВА 3 фазы 220 В онлайн ture sine wave
60 181,93 ₽ - 61 808,47 ₽

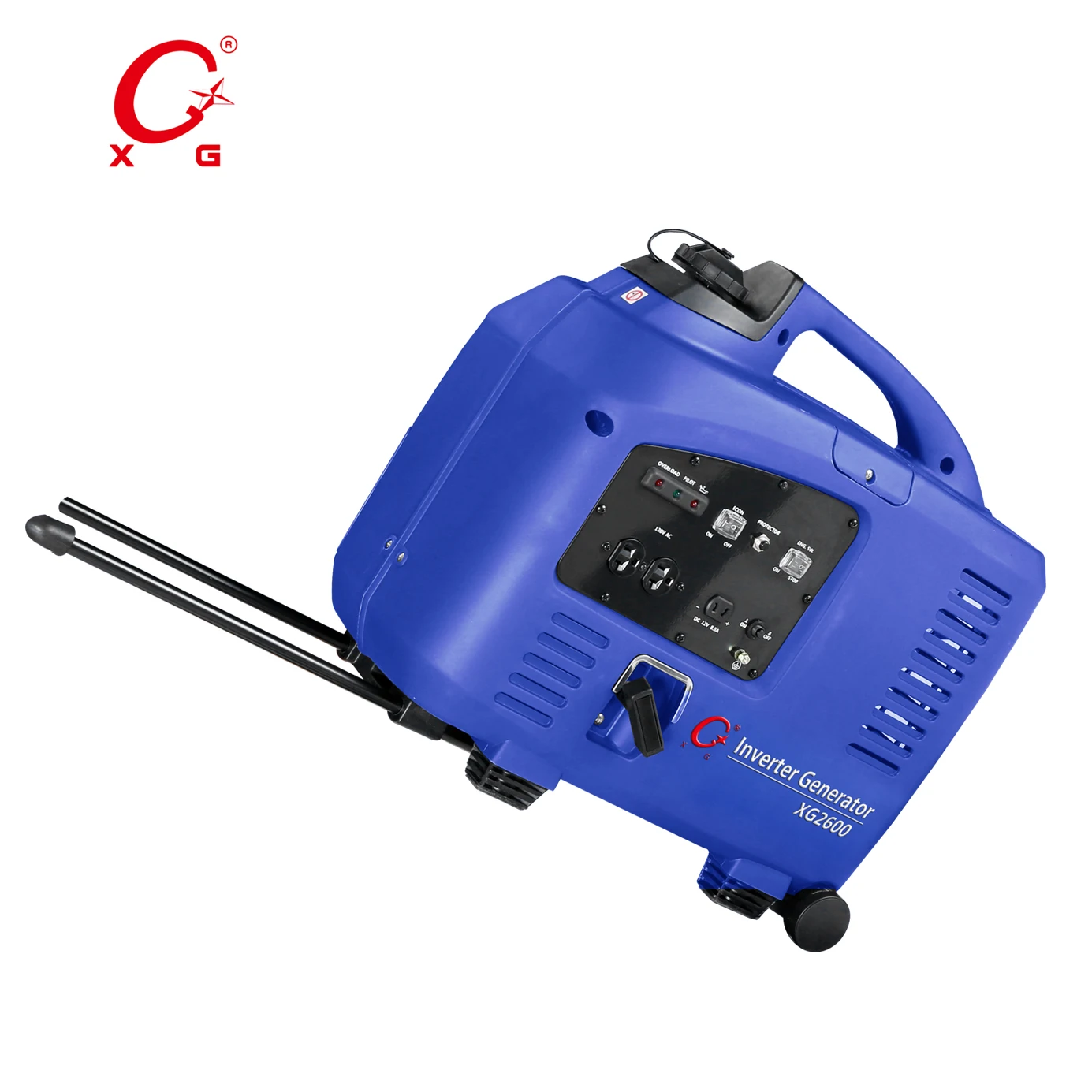

Умный Супер Бесшумный бензиновый генератор, инверторный генератор 2.6kW, портативный генератор дистанционного запуска, легкий запуск ключа, двухтопливный LPG
31 229,54 ₽ - 33 398,26 ₽

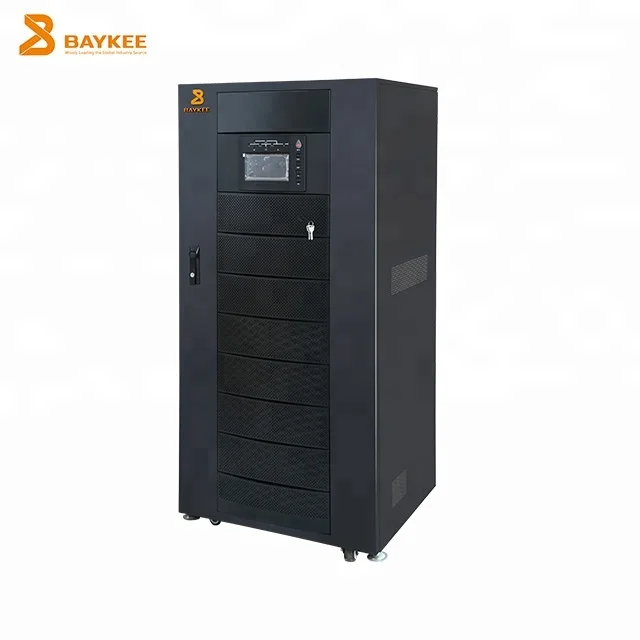

10kva 20kva 25kva 30kva 60kva 380 В низкочастотный онлайн-ИБП со свинцово-кислотным аккумулятором 3-фазный ИБП Промышленный источник питания по цене
216 763,37 ₽ - 244 956,70 ₽

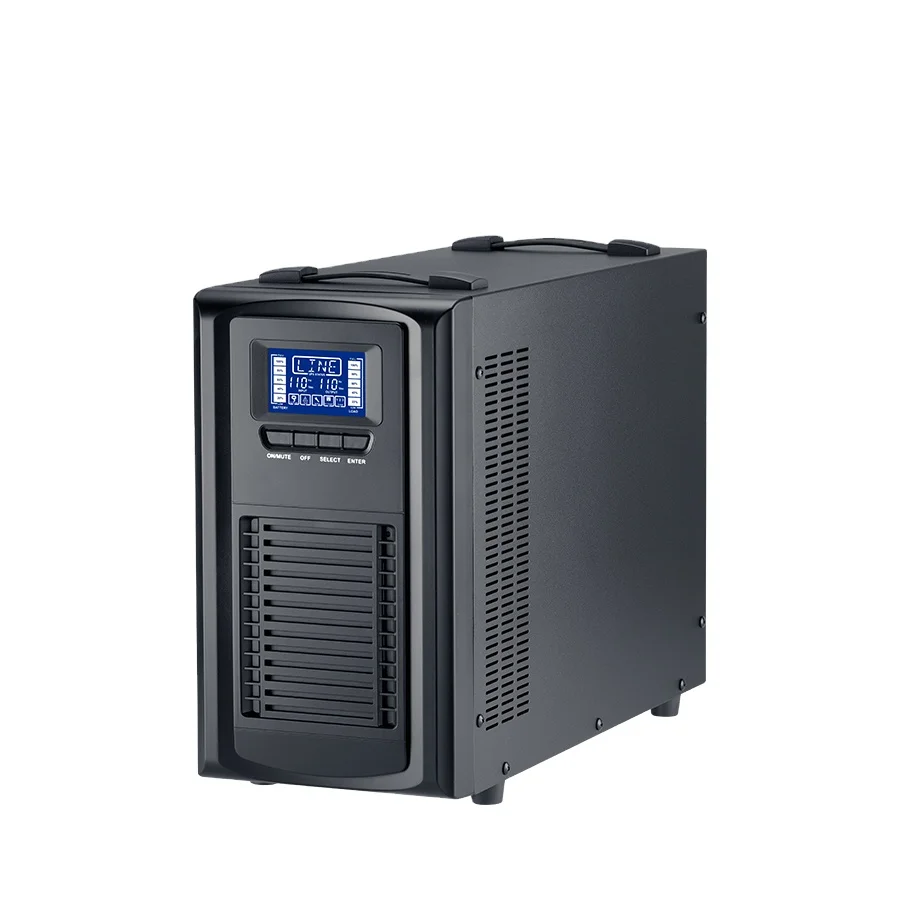

Online UPS 3KVA с ручкой (вход и выход 110 В) чистый синусоидальный
