ПЗС-камера 5 осей cnc пила для резки камня плитки гранитного мрамора кварца столешницы конкурентоспособная цена
22 050,00-24 000,00 $

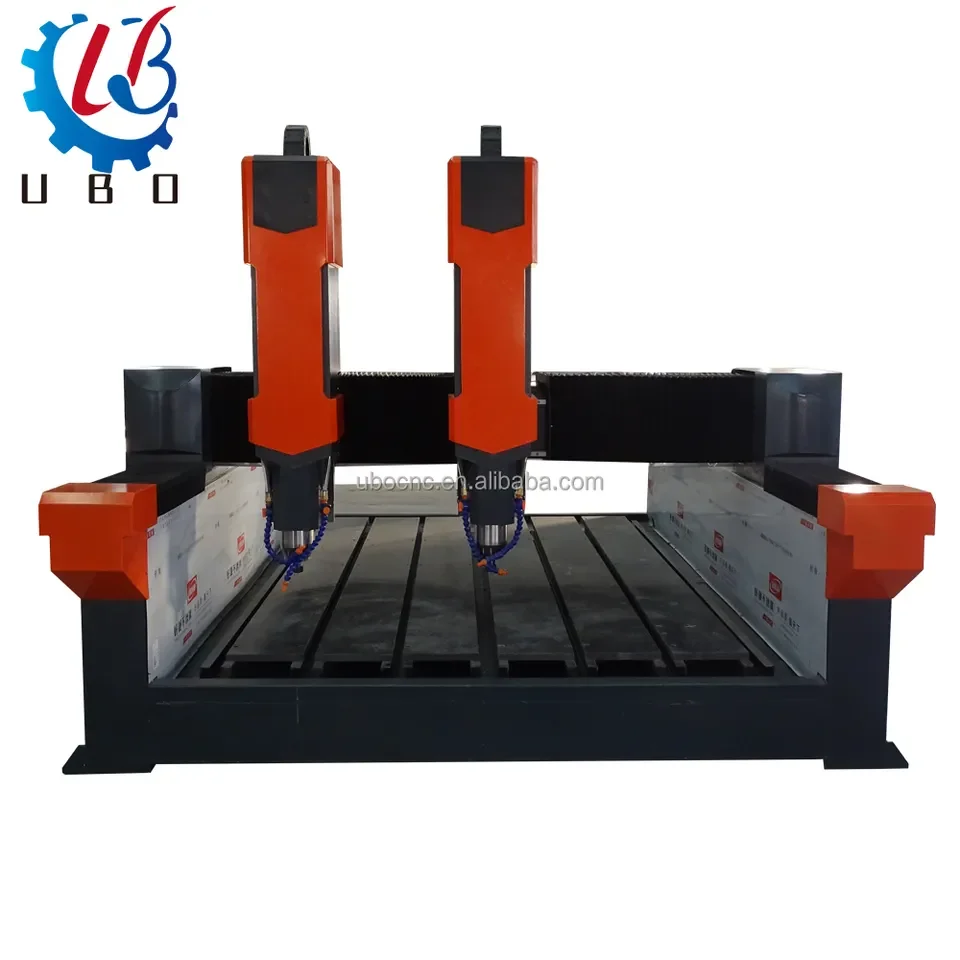

UBO сделано в Китае вогнутая каменная гравировальная машина для 3020 резки камня
- Категория: >>>
- Поставщик: Shandong UBO CNC Machinery Co. Ltd.Shandong Ltd.
Сохранить в закладки 1600987316117:
Описание и отзывы
Характеристики

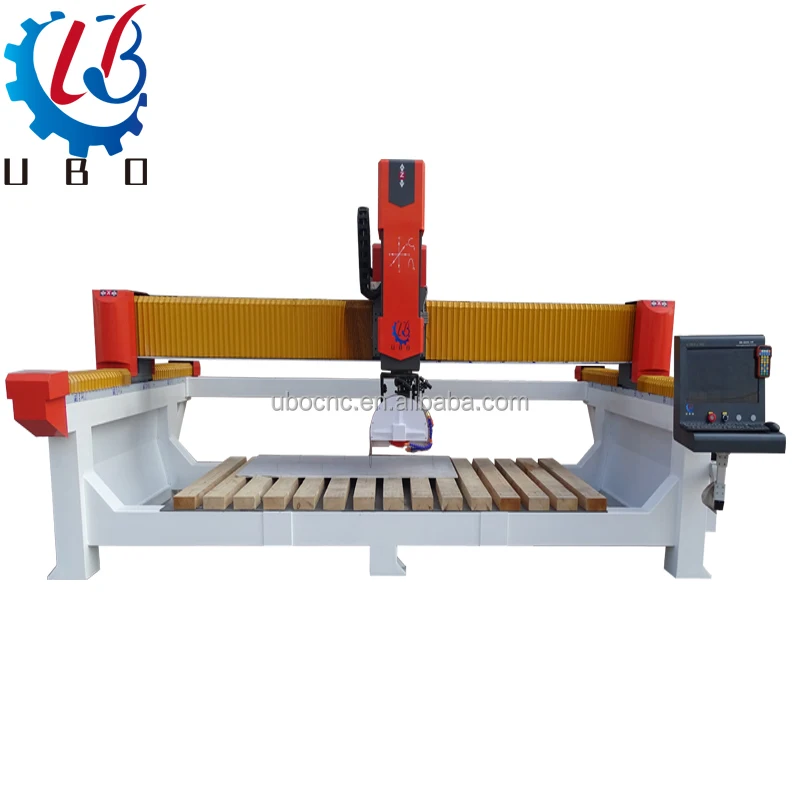

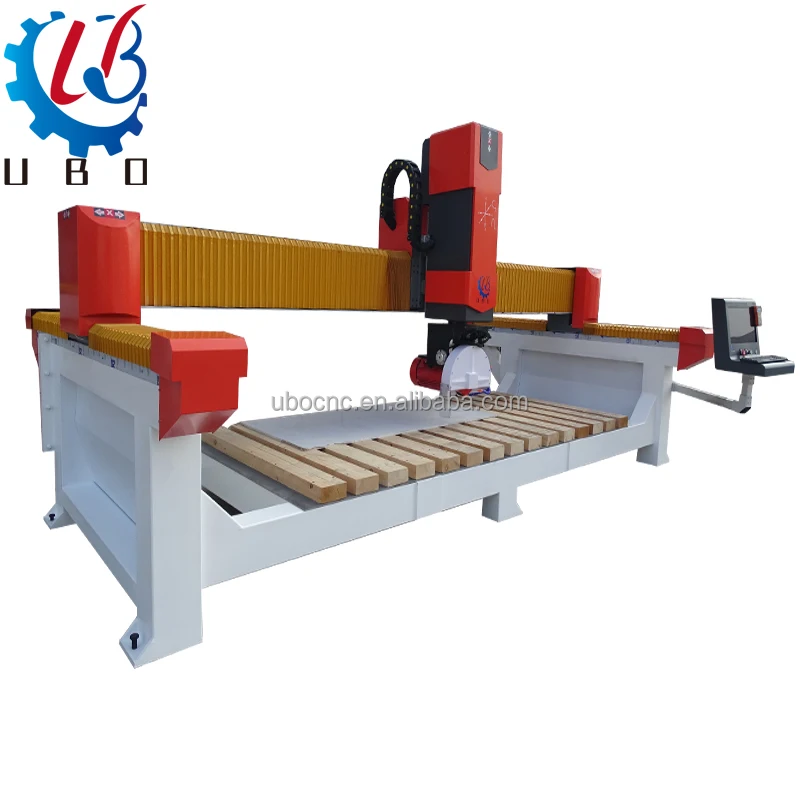

Machine Overview
Machine feature
1.Powerful 1.5kw servo motor,high precision,long life time,steady working,easy to start up.
2.huge thickness square pipe structure ,well welded, no distortion for whole structure high precision ,and long life time.
3.cnc controller system with USB interface,working without connecting with computer during working and easy to control.
4.all axis with dustproof design and automatic oiling system.
5.Adopt high speed powerful servo motor and drivers,and two motors for Y axis.max speed is 55mm/min.
6.tilting table max in 0-87degree ,can help loading the stone easily.
2.huge thickness square pipe structure ,well welded, no distortion for whole structure high precision ,and long life time.
3.cnc controller system with USB interface,working without connecting with computer during working and easy to control.
4.all axis with dustproof design and automatic oiling system.
5.Adopt high speed powerful servo motor and drivers,and two motors for Y axis.max speed is 55mm/min.
6.tilting table max in 0-87degree ,can help loading the stone easily.
Technical Parameter
Items | Standard | ||||||
Model No. | US-B3020 | ||||||
Machine body | Thickness tube welding structure | ||||||
Working area(mm) | X | 3000 | |||||
Y | 2000 | ||||||
Z | 500 | ||||||
Structure | Table size | 2250*4200mm | |||||
Table | Wood surface table | ||||||
Transmission system | X | Taiwan HIWIN square guide rail ,WHM Rack driving | |||||
Y | Taiwan HIWIN square guide rail ,WHM Rack driving | ||||||
Z | Taiwan HIWIN square guide rail ,WHM Rack driving | ||||||
Spindle | Power | Powerful 15kw air-cooling spindle | |||||
Rotary Speed | 3000rpm | ||||||
Cooling Type | air- cooling/pump | ||||||
B Axis Rotation | 0-45 degree chamfer （automatic） | ||||||
A Axis Stroke | 360 Rotation （automatic） | ||||||
X Axis Cutting Speed | 1-8000mm/min | ||||||
Y Axis Cutting Speed | 1-8000mm/min | ||||||
Z Axis Cutting Speed | 1-1000mm/min | ||||||
A Axis Rotating Speed | 0-7r/min | ||||||
Cutting Thickness | Max 150mm | ||||||
About drive systems | X | Powerful 1500W servo motor and driver+Shimpo reducer | |||||
Y | powerful double 1500W servo motor and driver+Shimpo reducer | ||||||
Z | Powerful 1500W servo motor and driver+Shimpo reducer | ||||||
A | Powerful 750W servo motor and driver+Shimpo reducer | ||||||
Control System | 4.5axis Control system | ||||||
Data reading mode | line by line | ||||||
Compatible file format | G code /PLT/DXF/ENG | ||||||
Working Voltage | 3 phase AC380V/50/60Hz | ||||||
Precision | 0.1mm | ||||||
speed | 5500mm/min | ||||||
XYZ Positioning Accuracy (MM) | <0.1 | ||||||
Repetitive Positioning Accuracy(MM) | <0.1 | ||||||
Gantry made of | Thickness Steel tube 10mm | ||||||
oil-inject lubrication system | Auto Oil system | ||||||
Power off memory | Function of re-carving after break point and power failure | ||||||
Maintenance tools | Tool Box Available | ||||||
Maintenance | Service can be supplied on line | ||||||
Guarantee / Warranty | 36 MONTHS | ||||||
Tech Support | Available | - Online | |||||
Damaged / Spoil spare part support | Available | ||||||
Delivery Time | 15-20 WORKING DAYS | ||||||

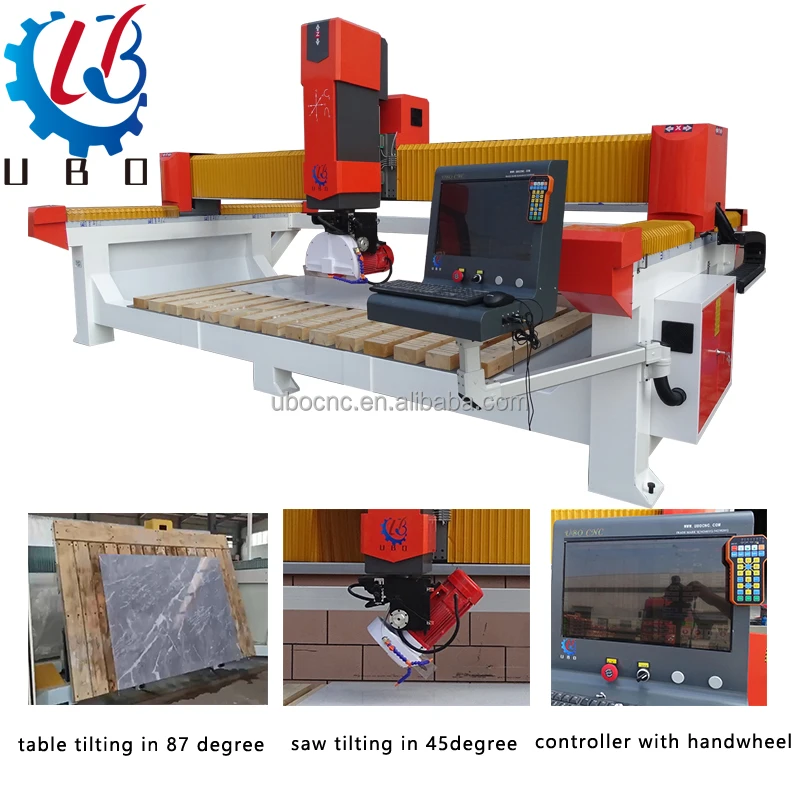

Main Parts
0-87 degree tilting table
45degree tilting saw
1500w servo motor and reduer

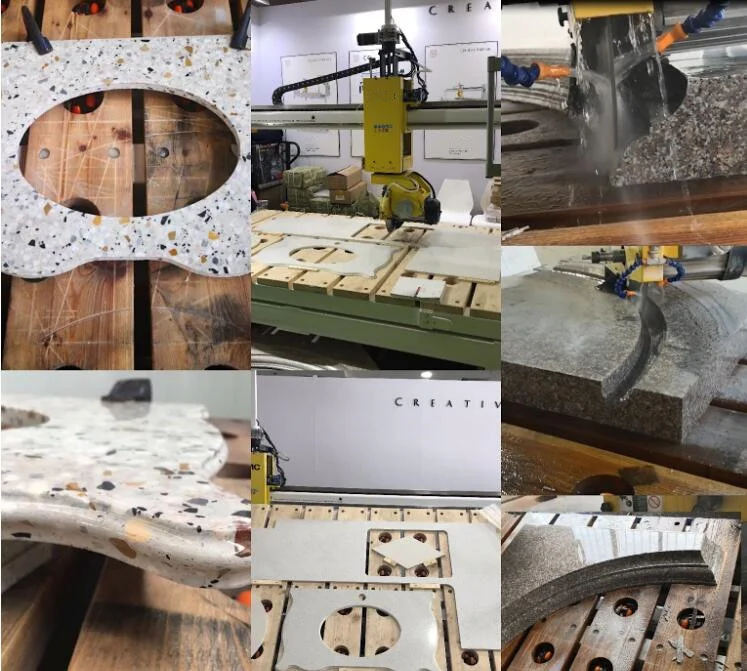

Application
Application Industries:
Suitable for cabinets artificial stone, quartz stone countertops and sink, tea tray carving, European style edging, and other heterosexual stone, ceramics, glass and ceramic stone drilling, sanding, edge down,carving.
Product Packaging
WARRANTY AND SERVICE
1. Engineers availbal to service machinery overseas.
2. 3 year guarantee for whole machine.
3. Technical support by phone,e-mail,whatsapp and skype.If you have any problems,we will within 24 hours to solve it.
4. You will be get free training advice towards our machine in our factory.
5. If you need any component of the machine,we will provide the best price for you.
6. Friendly English version manual and operation video CD disk.
2. 3 year guarantee for whole machine.
3. Technical support by phone,e-mail,whatsapp and skype.If you have any problems,we will within 24 hours to solve it.
4. You will be get free training advice towards our machine in our factory.
5. If you need any component of the machine,we will provide the best price for you.
6. Friendly English version manual and operation video CD disk.
SHANDONG UBO CNC MACHINERY Co. Ltd.
established in 2010, is a supplier of wood cnc router(3axis/4axis/5axis etc.),stone cnc(stone cnc engraving router/kitchen stone cnc ATC/5axis cnc bridge cutting machine etc.),laser machine(CO2 laser /fiber laser etc.),mini cnc(advertising cnc engraving machine) and customized cnc(cnc surfboard shaping machine/foam cnc milling machine etc.).
Now ,We have exported more than 100 countries North America,South America,Europe,Mid-east,Southeast Asia,South Asia etc. All of our Machines are CNC ,and we are manufacturer,so we can control the quality from structure to finished products.we have professional service team can help customer solve problem on time.
And we can do the best What we can offer:
1) Good quality and easy operation
2) Highly competitive prices
3) state-of-art technology products
4) Best professional team of after sale.
5) Smooth communication
6) Effective OEM&ODM service
We insist on product innovation as the orientation, product quality as the cornerstone, and customer service as the purpose.After continuous reform and development, we are at the forefront of the CNC industry step by step. Looking for agent all over the world ,welcome you join us.
Now ,We have exported more than 100 countries North America,South America,Europe,Mid-east,Southeast Asia,South Asia etc. All of our Machines are CNC ,and we are manufacturer,so we can control the quality from structure to finished products.we have professional service team can help customer solve problem on time.
And we can do the best What we can offer:
1) Good quality and easy operation
2) Highly competitive prices
3) state-of-art technology products
4) Best professional team of after sale.
5) Smooth communication
6) Effective OEM&ODM service
We insist on product innovation as the orientation, product quality as the cornerstone, and customer service as the purpose.After continuous reform and development, we are at the forefront of the CNC industry step by step. Looking for agent all over the world ,welcome you join us.
Our Advantages
1. service before sales: our sales will communicate with you to know your requirements about the cnc router specification and what kind of work you will do, then we will offer our best solution for you. So that it can confirm each customer get their real needed machine.
2. service during production: we will send photos during manufacturing, so customers can know more details about the procession of making their machines and give their suggestions.
3. service before shipping: we will take photos and confirm with customers the specifications of their orders to avoid the mistake of wrong making machines.
4. service after shipping: we will write to customers in time when the machine departs, so customers can make enough preparation for the machine.
5. service after arrival: we will confirm with customers if machine is in good condition, and see if there is any spare part
missing.
6. service of teaching: there are some manual and videos about how to use machine. If some customers have further question about it, we have professional technician to help install and teach how to use through Skype, calling, video, mail or remote control,etc.
7. service of warranty: we offer 12 month warranty for whole machine. If any fault of the machine parts within warranty period, we hope every customer can use our machine easily and enjoy using it. If customers have any problems of machine in 3 or more years,please contact us freely.
2. service during production: we will send photos during manufacturing, so customers can know more details about the procession of making their machines and give their suggestions.
3. service before shipping: we will take photos and confirm with customers the specifications of their orders to avoid the mistake of wrong making machines.
4. service after shipping: we will write to customers in time when the machine departs, so customers can make enough preparation for the machine.
5. service after arrival: we will confirm with customers if machine is in good condition, and see if there is any spare part
missing.
6. service of teaching: there are some manual and videos about how to use machine. If some customers have further question about it, we have professional technician to help install and teach how to use through Skype, calling, video, mail or remote control,etc.
7. service of warranty: we offer 12 month warranty for whole machine. If any fault of the machine parts within warranty period, we hope every customer can use our machine easily and enjoy using it. If customers have any problems of machine in 3 or more years,please contact us freely.
FAQ
Q1: How can I get an accurate price?
Please tell us your cutting material and the working size.
Q2: How is your after sales service?
Our sales are online for 24-hours. We can also supply overseas install service. Also we have more than 10 countries warehouse and department.
Q3: How long is the delivery time?
Generally 10 ~ 15 working days.
Q4: Can I get a machine according to my own requirements?
Sure.We accept OEM and ODM
Q5: If my machine is broken. Can you repair it for me?
Yes. We have free traning online. If there is big trouble with your machine in the warrenty time, we can repair it.
Q6: How is the quality of your machine?
Our machine adopts heavy lathe bed, and each part is processed by CNC machining center, which greatly improves the accuracy of machine operation.
Please tell us your cutting material and the working size.
Q2: How is your after sales service?
Our sales are online for 24-hours. We can also supply overseas install service. Also we have more than 10 countries warehouse and department.
Q3: How long is the delivery time?
Generally 10 ~ 15 working days.
Q4: Can I get a machine according to my own requirements?
Sure.We accept OEM and ODM
Q5: If my machine is broken. Can you repair it for me?
Yes. We have free traning online. If there is big trouble with your machine in the warrenty time, we can repair it.
Q6: How is the quality of your machine?
Our machine adopts heavy lathe bed, and each part is processed by CNC machining center, which greatly improves the accuracy of machine operation.
