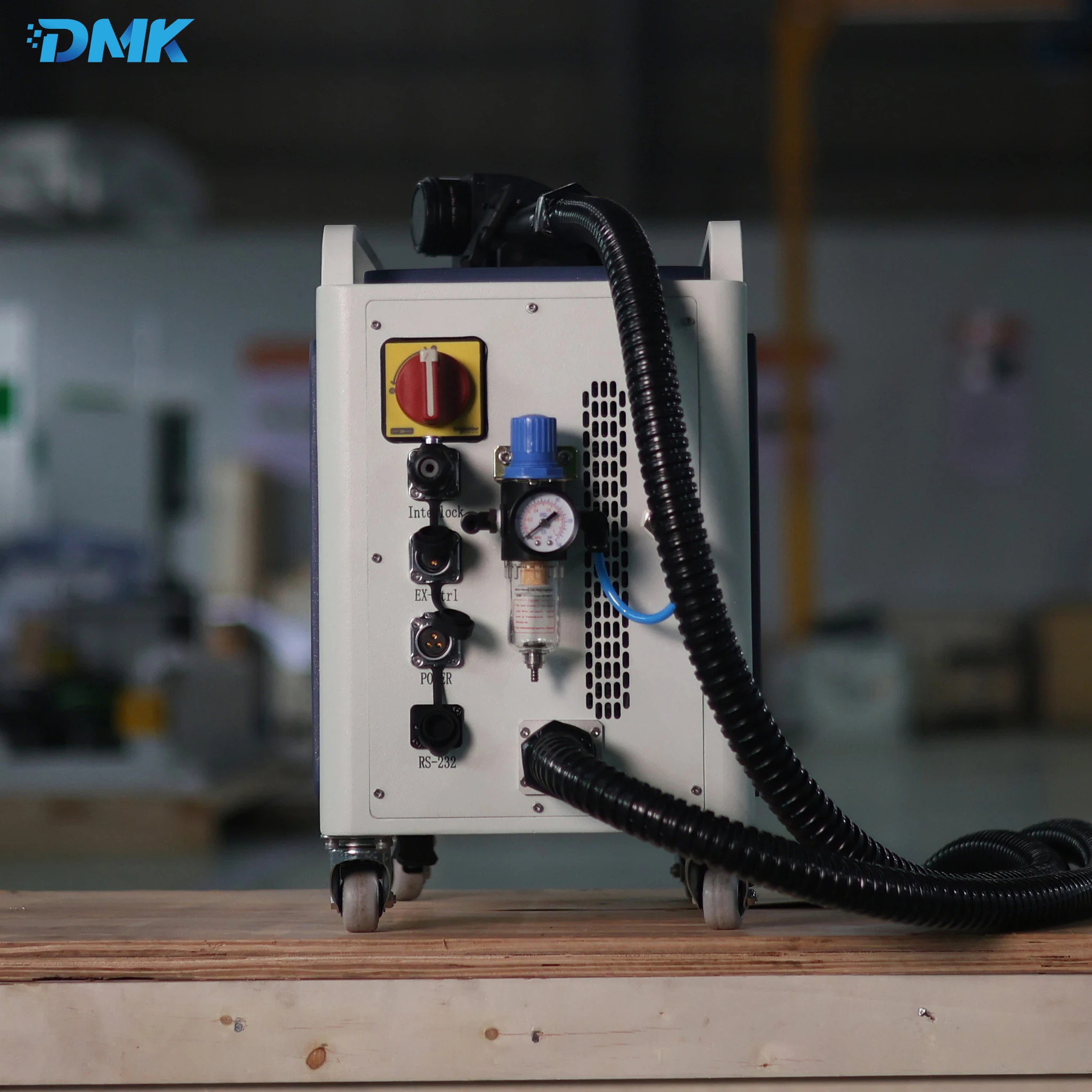

DMK JPT лазерный источник ржавчины краска для удаления древесной краски Чистая модель импульсной очистки машина
- Категория: >>>
- Поставщик: Demark (Wuhan) Technology Co. LtdDemark Ltd
Сохранить в закладки 1600987767483:
Описание и отзывы
Характеристики
About Demark
Demark (Wuhan) Technology Co.,Ltd has focused on laser technology for over 20 years in China, including laser marking, laser cleaning, laser welding and laser cutting applications. We started as a small operation, but now have become one of the leading suppliers in the laser industry in China.
Today, Demark (Wuhan) Technology Co.,ltd has been one of the top manufacturers of laser machine and laser equipment parts, such as: laser marking machine, laser cleaning machine, laser welding machine and laser cutting machine.
Today, Demark (Wuhan) Technology Co.,ltd has been one of the top manufacturers of laser machine and laser equipment parts, such as: laser marking machine, laser cleaning machine, laser welding machine and laser cutting machine.
Products Description
Average laser power | 300W |
Power regulation range | 10%~100% |
Central wavelength | 1064 nm |
Polarization direction | arbitrarily |
Beam quality factor | M2 ＜1.5 |
Spectral width | 5 nm |
Laser line-width | Length: 5mm ~ 100mm, adjustable Width: 5mm ~ 100 mm, adjustable |
Scanning images | Support linear, 2D, circular, rectangular progressive scanning, rectangular ring, triangle, spiral |
Laser pulse frequency | 5kHz ~ 200kHz adjustable |
Maximum single pulse energy | 5 mJ |
Fiber length | 5m |
Minimum bending radius of optical fiber | 60mm |
Stability of laser output | <5% |
Cooling mode | Wind cooling |
Polarization direction | arbitrarily |
Guided laser function | have |
Anti hyper reflexes | have |
Field mirror model | F160/F210/F254 The model is optimized according to the actual working condition |
Crate size | Length * width * height: 616 * 260 * 438mm |
Net weight | 60kg |
Operation type | Hand-held & Automation |
Supply voltage | AC 220±10%V |
Mains frequency | 50/60 Hz |
Operating temperature range | 0℃ ~ 40℃ |
Storage temperature range | -10℃ ~ 60℃ |
Power consumption @ 25 ℃ | ＜500w |
Weight and size after packing | 56kg 800*430*780mm |

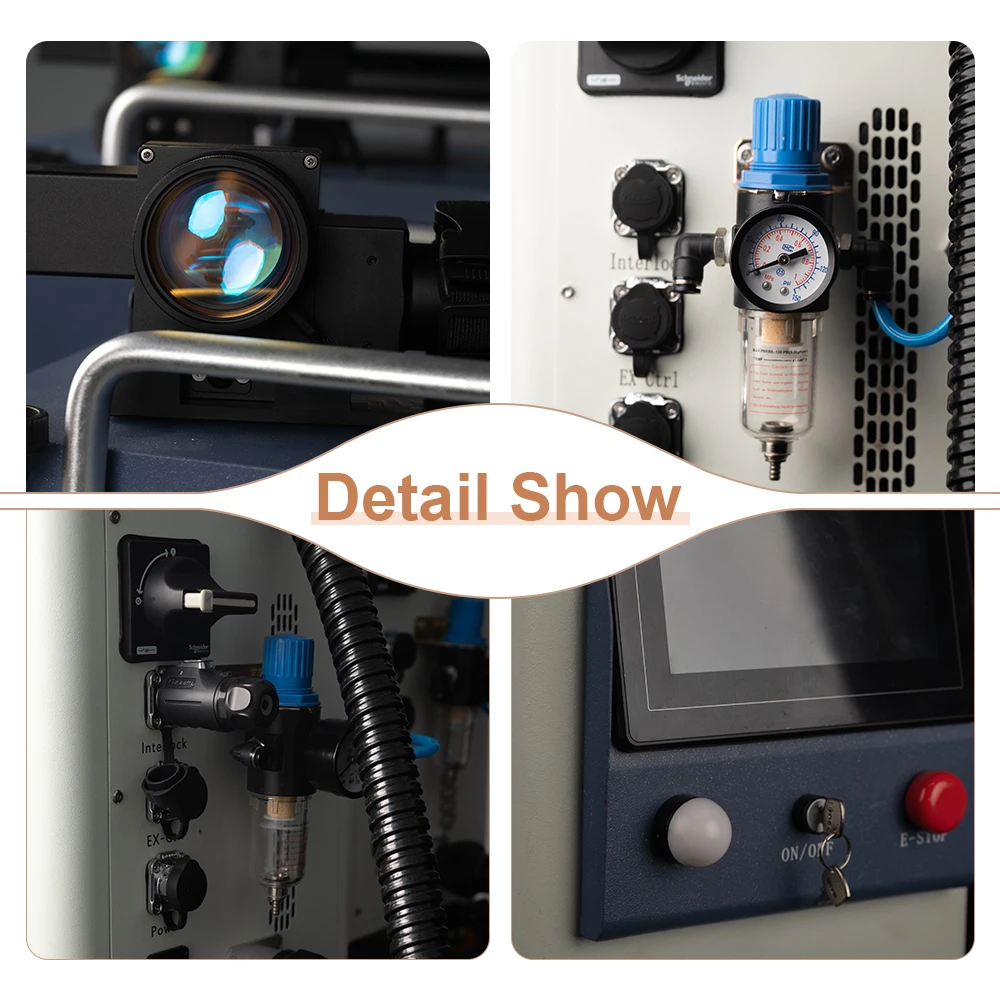

Detailed Images

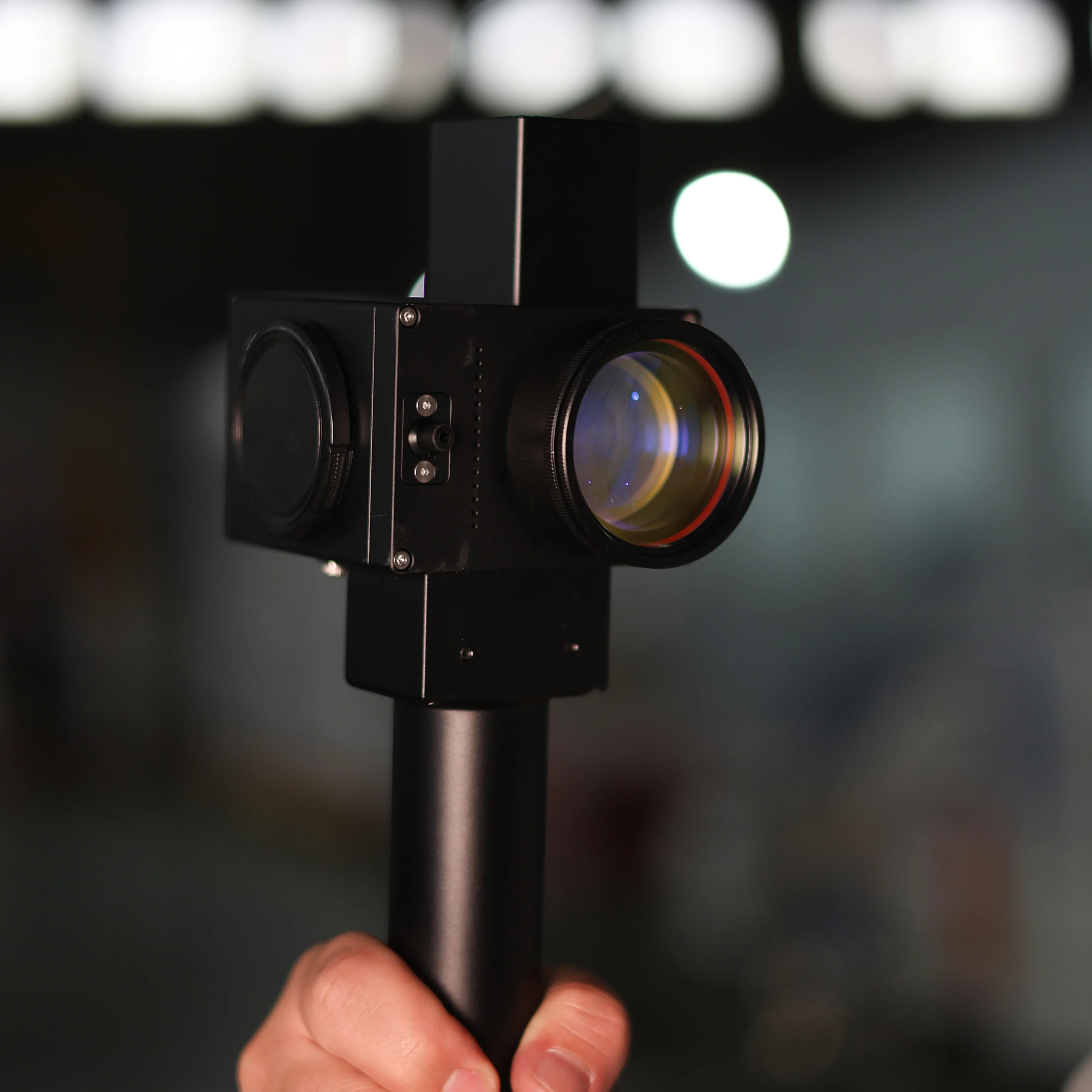

Portable cleaning head:
Light weight, compact structure only 1.2kg, convenient one-hand operation
Introduction to operation buttons and panels
1、Red is the emergency stop button
Green is the start button
The white buttons are for X-axis adjustment and Y-axis adjustment respectively.
Green is the start button
The white buttons are for X-axis adjustment and Y-axis adjustment respectively.
2、 The device sets a variety of scanning graphics, including straight line, two-dimensional, circular (ring), rectangular A
(progressive scanning), rectangular B (rectangular ring), triangle, spiral. It is used to improve the cleaning efficiency and
effect. Different scanning patterns are suitable for different occasions. Straight line, two-dimensional and spiral line are
suitable for hand-held mobile cleaning; circle (ring), rectangle a (progressive scanning), rectangle B (rectangular ring) and
triangle (ring) are suitable for fixed-point cleaning of complex graphics
(progressive scanning), rectangular B (rectangular ring), triangle, spiral. It is used to improve the cleaning efficiency and
effect. Different scanning patterns are suitable for different occasions. Straight line, two-dimensional and spiral line are
suitable for hand-held mobile cleaning; circle (ring), rectangle a (progressive scanning), rectangle B (rectangular ring) and
triangle (ring) are suitable for fixed-point cleaning of complex graphics
APPLICATIONS
Packaging Process
Moisture-proof package
,shock-proof fixed
,wooden box transport
Our patent
FAQ
01： I do not know about this machine, is it suitable for me to clean my work piece ?
A: We will help you and give you the suggestion, you can share us what material of your work piece and what impurity will you clean and the impurity thickness.
02： When I got this machine, but I don’t know how to use it. What should I do?
A: It is very easy to operation. We will send operation video and manual for the machine. Our engineer will do training online. If needed, we can send our engineer to your site for training or you can send the operator to our factory for training.
A: We will help you and give you the suggestion, you can share us what material of your work piece and what impurity will you clean and the impurity thickness.
02： When I got this machine, but I don’t know how to use it. What should I do?
A: It is very easy to operation. We will send operation video and manual for the machine. Our engineer will do training online. If needed, we can send our engineer to your site for training or you can send the operator to our factory for training.
03：What is the run time on the machine? Can I run it on full power for extended periods?
The life of the laser cleaning machine is 50,000 hours, and the single continuous running time is measured by ourselves and the customer is running for 24 hours with full power.Higher single continuous run times have not been measured
04:：If some problems happen to this machine, what should I do?
A: We provide One year machine warranty. During the One year warranty, in case any problem for the machine, we will provide the parts free of charge ( except for artificial damage). After the warranty, we still provide whole lifetime service. So any doubts, just let us know, we will give you solutions and help you solve it.
05：What's consumables of Laser cleaning machine?
A:It does not have consumable. It’s very economical and cost effective.
06： What's package, will it protect the products ?
A: We have 3 layers package. For the outside, we adopt wooden cases free of fumigation. In the middle, the machine is covered by foam, to protect the machine from shaking. For the inside layer, the machine is covered by waterproof plastic film.
07：What's delivery time?
A: Commonly, the lead time is within 5 working days after receiving the payment.
08：What payment terms can you accept ?
A: Any payment is possible for us , like TT , LC, Western Union, Paypal, E-Checking, Master Card, Cash etc.
09： How is the shipping method ?
A: As per your actual address, we can effect shipment by sea, by air, by truck or railway. Also we can send the machine to your office as per your requirement .
The life of the laser cleaning machine is 50,000 hours, and the single continuous running time is measured by ourselves and the customer is running for 24 hours with full power.Higher single continuous run times have not been measured
04:：If some problems happen to this machine, what should I do?
A: We provide One year machine warranty. During the One year warranty, in case any problem for the machine, we will provide the parts free of charge ( except for artificial damage). After the warranty, we still provide whole lifetime service. So any doubts, just let us know, we will give you solutions and help you solve it.
05：What's consumables of Laser cleaning machine?
A:It does not have consumable. It’s very economical and cost effective.
06： What's package, will it protect the products ?
A: We have 3 layers package. For the outside, we adopt wooden cases free of fumigation. In the middle, the machine is covered by foam, to protect the machine from shaking. For the inside layer, the machine is covered by waterproof plastic film.
07：What's delivery time?
A: Commonly, the lead time is within 5 working days after receiving the payment.
08：What payment terms can you accept ?
A: Any payment is possible for us , like TT , LC, Western Union, Paypal, E-Checking, Master Card, Cash etc.
09： How is the shipping method ?
A: As per your actual address, we can effect shipment by sea, by air, by truck or railway. Also we can send the machine to your office as per your requirement .
Pick up the phone and contact Penny at +8615391557130
