Применение оборудования для плазменного напыления покрытия оксидом алюминия на ступенчатых колесных стальных деталях
- Категория: >>>
- Поставщик: Zhuzhou Sanxin Metal Technology Co. Ltd.
Сохранить в закладки 1600987881791:
Описание и отзывы
Характеристики
Brief Introduction

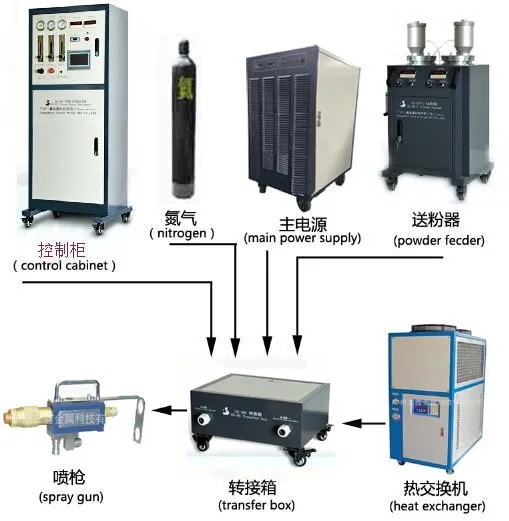

Configuration of SX-80 plasma spray equipment
SX-80 absorbs the experiences of PT-A3000 and METCO-9M plasma spray equipment and its performance level is equivalent to METCO-9M.
It mainly consists of main electricity supply, control cabinet, transfer box, powder feeder, spray gun and heat exchanger.

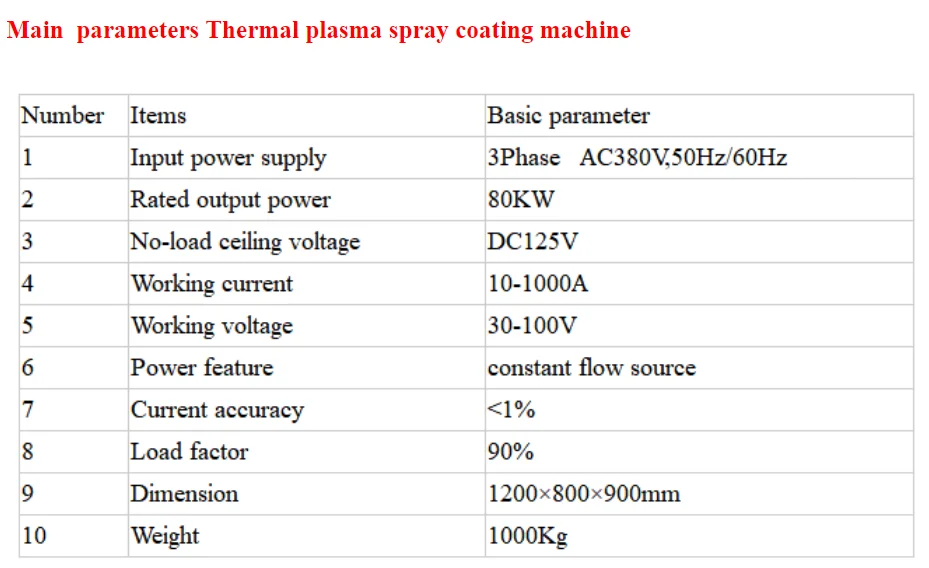

SX-80 Main power supply
silicon controlled rectifier, biggest input power 105kw, duty cycle 100%, biggest output power 80kw, electric current fluctuation range ±1-2%,when electric grid fluctuation is within ±15%, it can normally work.
SX-80 Transfer box
It’s the transfer center of spray equipment which connects power supply, control cabinet, heat exchanger and spray gun together.
It has high-frequency ignition, waterway and gas circuit alarm equipment insides. The box can be moved freely and the standard length of cable is 5m.

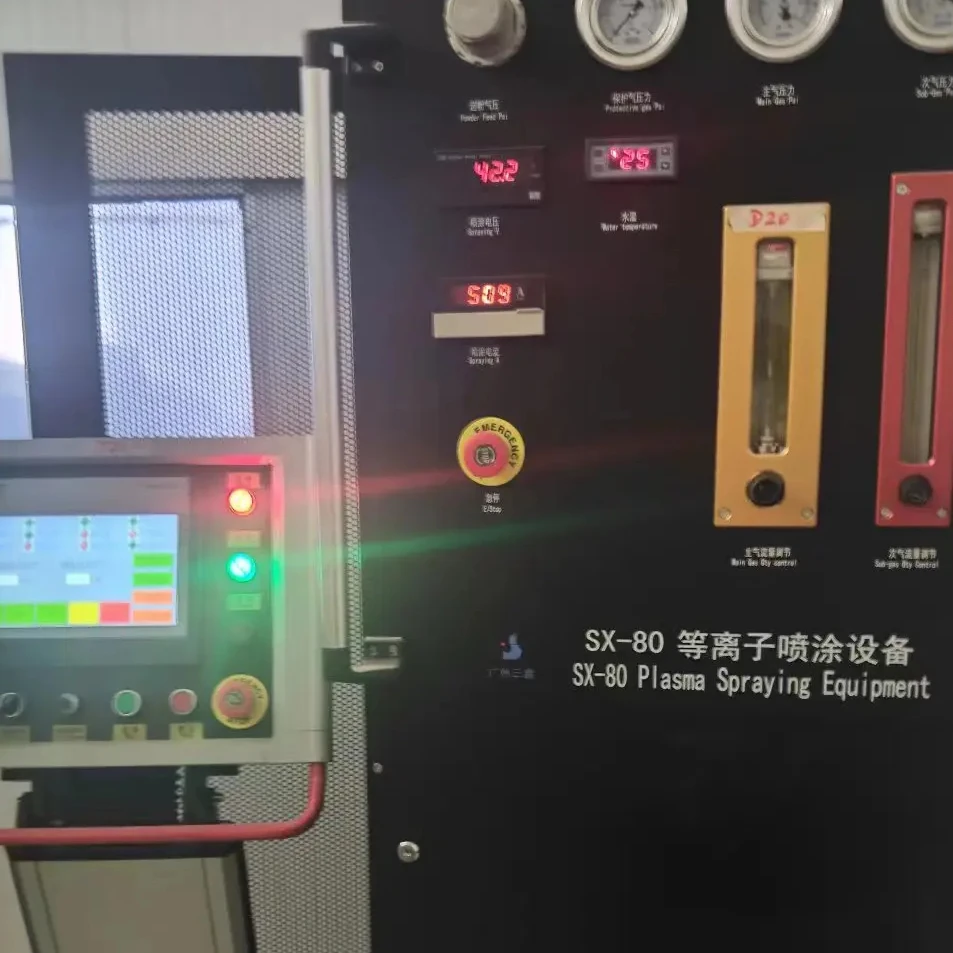

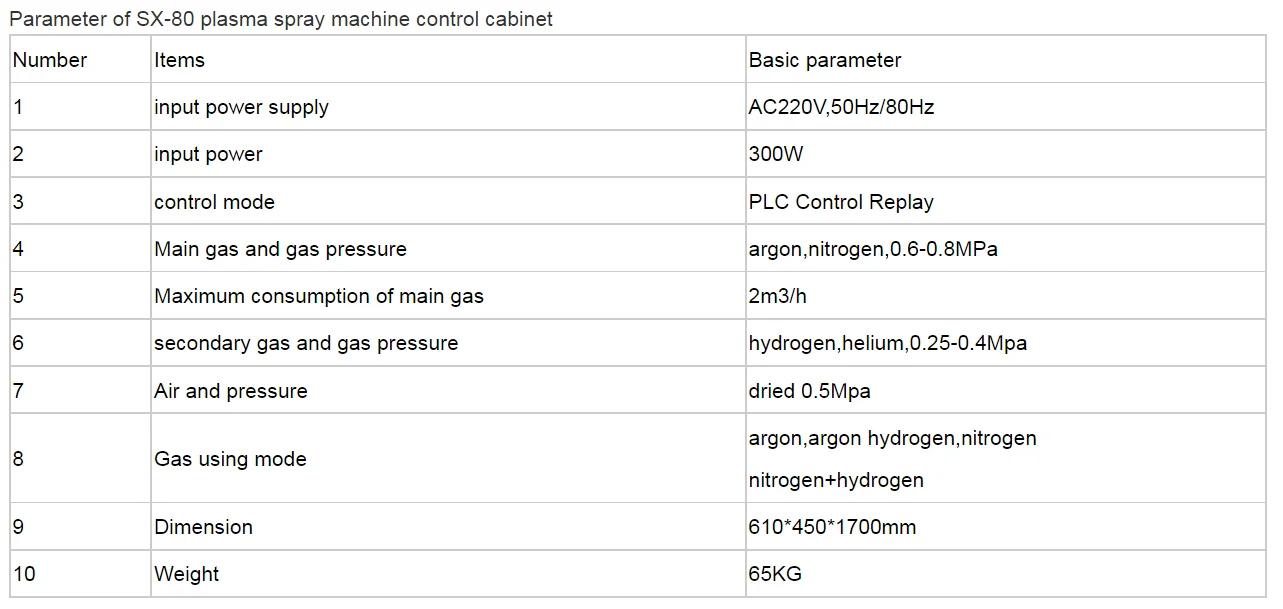

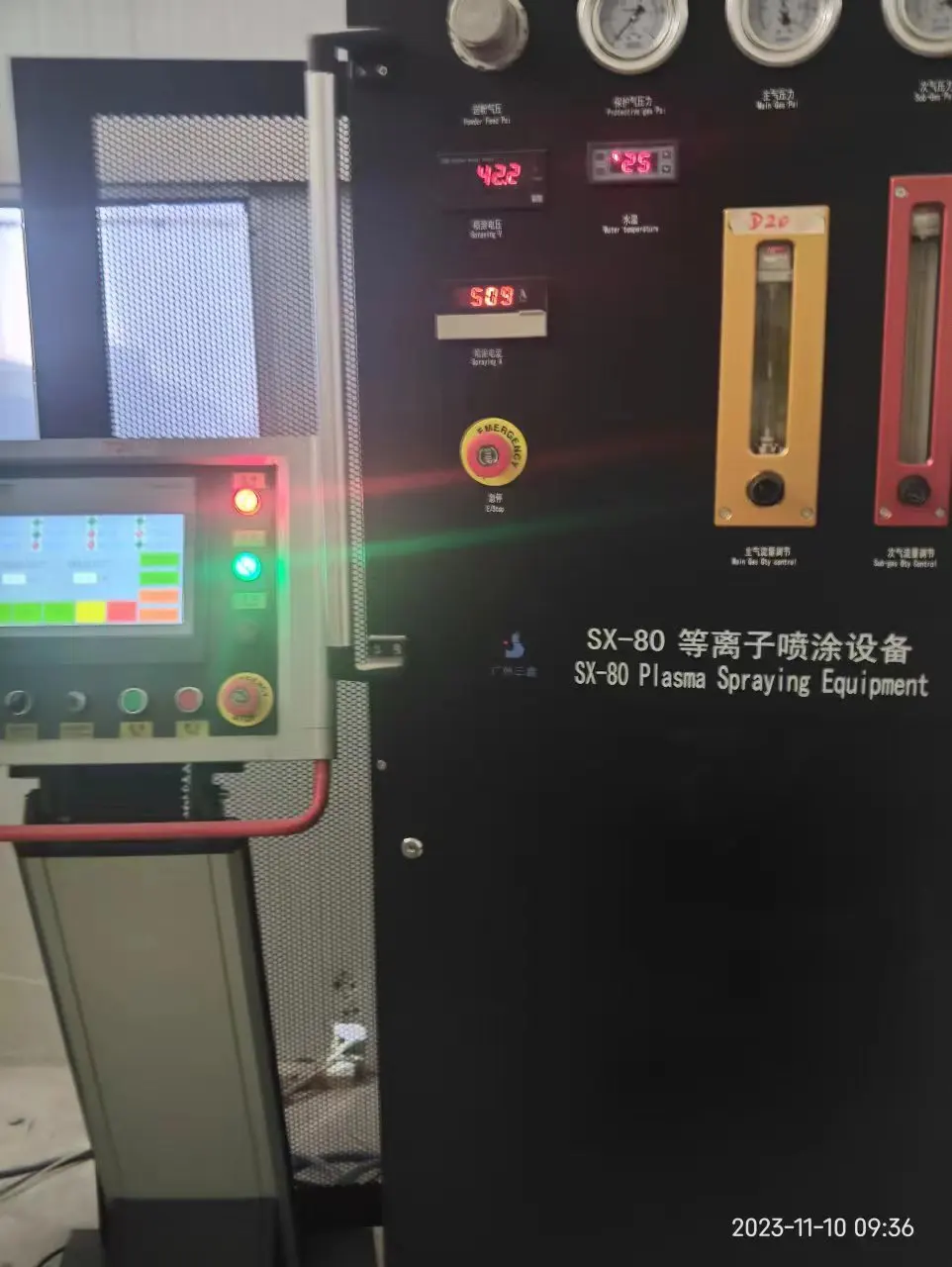

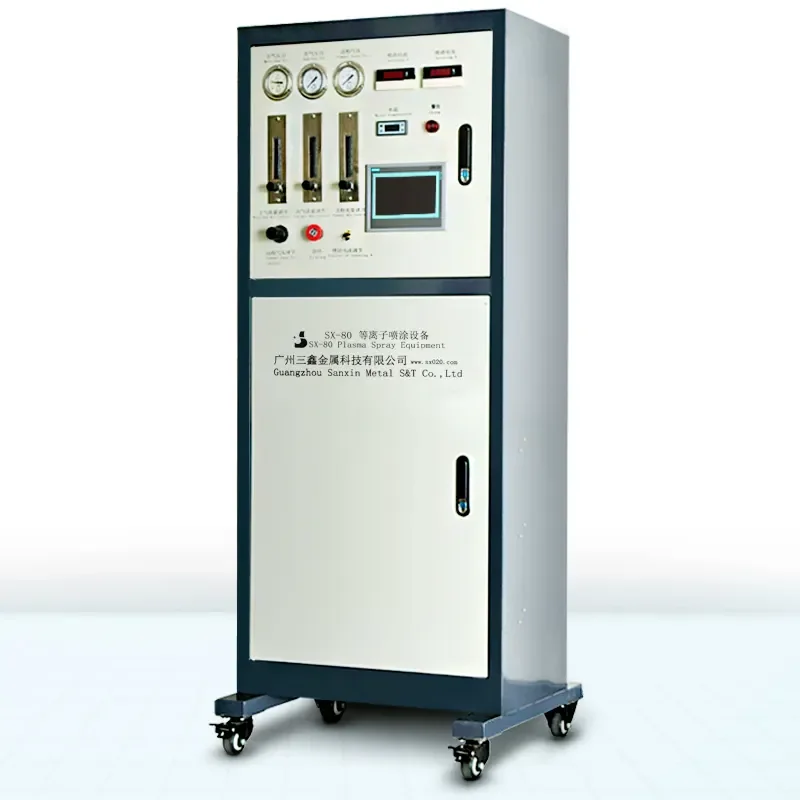

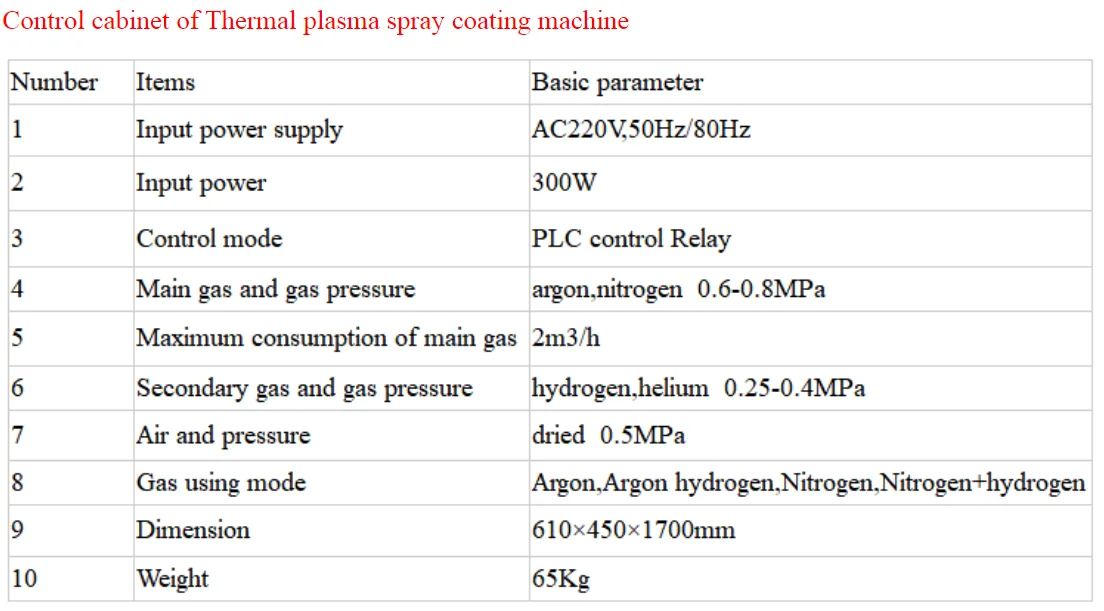

SX-80 Control cabinet
It’s the control center of the whole spray equipment. Single-phase 220V, 1KW, float flowmeter equipped, current and voltage, digisplay. Having manual, automatic and economic working modes.
Alarm and malfunction indicating function, generally it alarms under such conditions:
when the main and assistant gas pressure<0.3MPa or the main gas flow rate<30L/min
when water temperature>50°C or water flow rate<8L/min
SX-80 Powder feeder
Supply one set of two-tubed powder feeder
powder measurement scope: 5-200μm; powder repeated-feeding error rate<±1%
The two tubes can feed powder at the same time, feeding rate is between 20-150g/min.
SX-80 Spray gun
Supply imitative METCO 9MB spray gun, main working gas is argon or nitrogen, assistant gas is hydrogen.
Working electric current: 100-800A.
Working voltage:
Ar+H2: 50-75V, N2+H2: 50-80V
1. Imitative 9MB machine-made gun
2. Imitative 9MB manual-made gun
3. Large-inner-hole spray gun
Supply spray gun accessories: GH,G,GP,GE type spray mouth, powder feeding and cooling air jetting-shelf, water cooled cable, electrode tip, insulator, obturating ring, special purpose tools.
Also we can supply customer imitative F4 spray gun (machine-made or manual-made) and accessories such as water cooled cable, spray mouth, electrode tip, powder feeding shelf, powder feeding mouth, obturating ring and special purpose tools.
SX-80 Heat exchanger
We provide two kinds of heat exchangers:
(1), water pumping heat exchanger has interior and exterior circulation. The interior circulation cools down the spray gun by distilled water, while the exterior circulation cools down the distilled water by tap water. We use imported water pump and below is the parameter of this heat exchanger:
SX-80 absorbs the experiences of PT-A3000 and METCO-9M plasma spray equipment and its performance level is equivalent to METCO-9M.
It mainly consists of main electricity supply, control cabinet, transfer box, powder feeder, spray gun and heat exchanger.
SX-80 Main power supply
silicon controlled rectifier, biggest input power 105kw, duty cycle 100%, biggest output power 80kw, electric current fluctuation range ±1-2%,when electric grid fluctuation is within ±15%, it can normally work.
SX-80 Transfer box
It’s the transfer center of spray equipment which connects power supply, control cabinet, heat exchanger and spray gun together.
It has high-frequency ignition, waterway and gas circuit alarm equipment insides. The box can be moved freely and the standard length of cable is 5m.
SX-80 Control cabinet
It’s the control center of the whole spray equipment. Single-phase 220V, 1KW, float flowmeter equipped, current and voltage, digisplay. Having manual, automatic and economic working modes.
Alarm and malfunction indicating function, generally it alarms under such conditions:
when the main and assistant gas pressure<0.3MPa or the main gas flow rate<30L/min
when water temperature>50°C or water flow rate<8L/min
SX-80 Powder feeder
Supply one set of two-tubed powder feeder
powder measurement scope: 5-200μm; powder repeated-feeding error rate<±1%
The two tubes can feed powder at the same time, feeding rate is between 20-150g/min.
SX-80 Spray gun
Supply imitative METCO 9MB spray gun, main working gas is argon or nitrogen, assistant gas is hydrogen.
Working electric current: 100-800A.
Working voltage:
Ar+H2: 50-75V, N2+H2: 50-80V
1. Imitative 9MB machine-made gun
2. Imitative 9MB manual-made gun
3. Large-inner-hole spray gun
Supply spray gun accessories: GH,G,GP,GE type spray mouth, powder feeding and cooling air jetting-shelf, water cooled cable, electrode tip, insulator, obturating ring, special purpose tools.
Also we can supply customer imitative F4 spray gun (machine-made or manual-made) and accessories such as water cooled cable, spray mouth, electrode tip, powder feeding shelf, powder feeding mouth, obturating ring and special purpose tools.
SX-80 Heat exchanger
We provide two kinds of heat exchangers:
(1), water pumping heat exchanger has interior and exterior circulation. The interior circulation cools down the spray gun by distilled water, while the exterior circulation cools down the distilled water by tap water. We use imported water pump and below is the parameter of this heat exchanger:
Exhibition

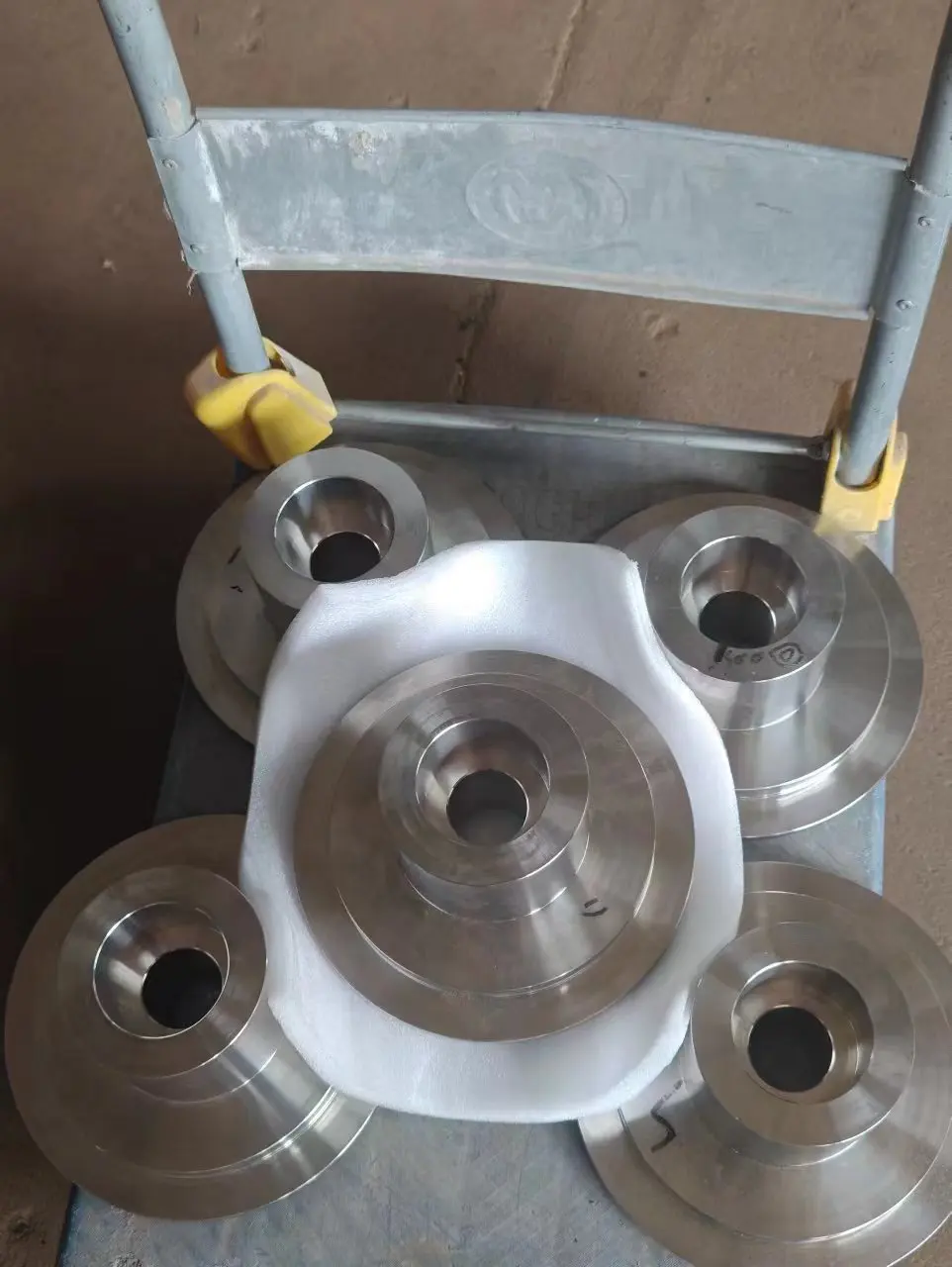

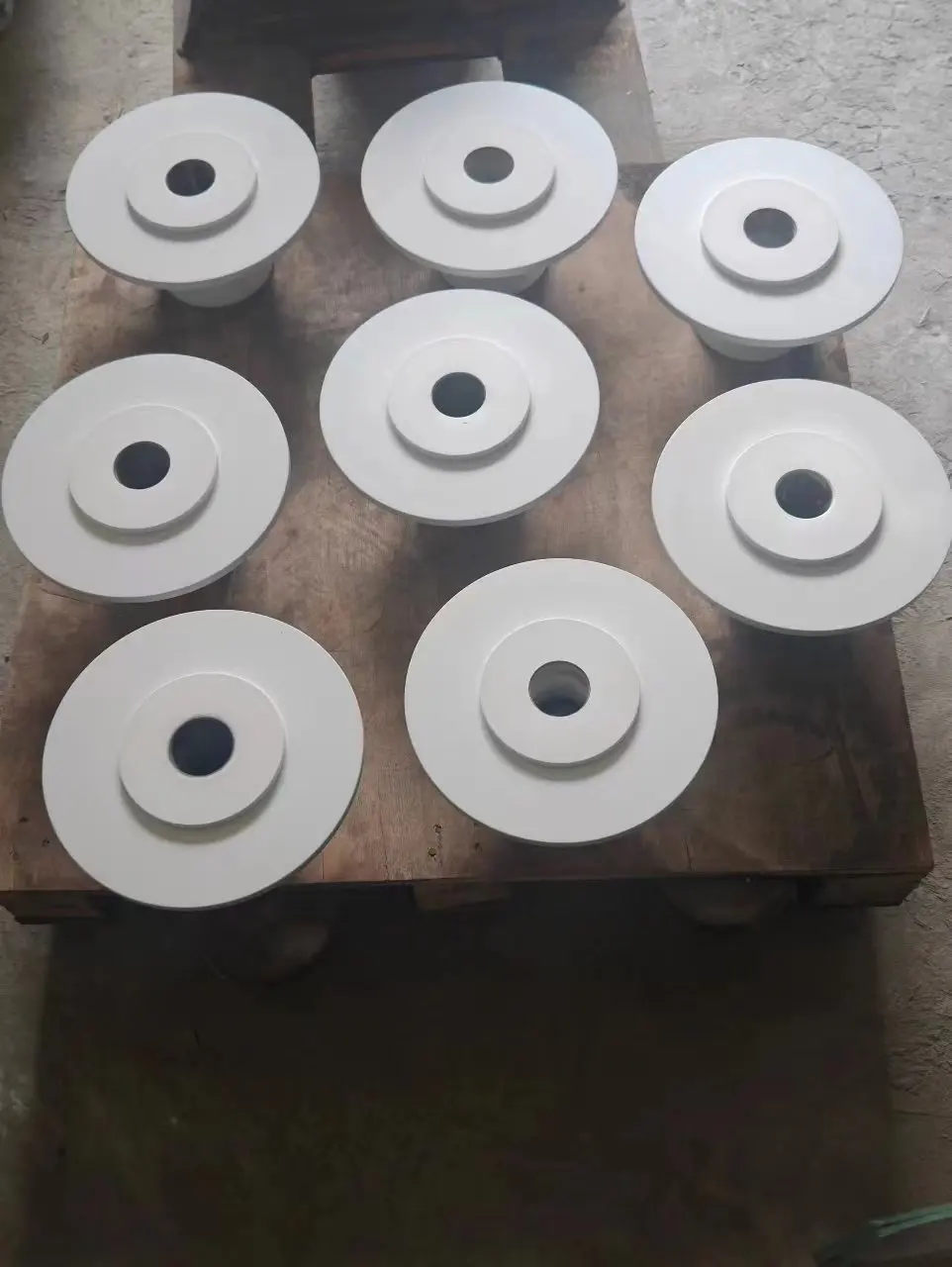

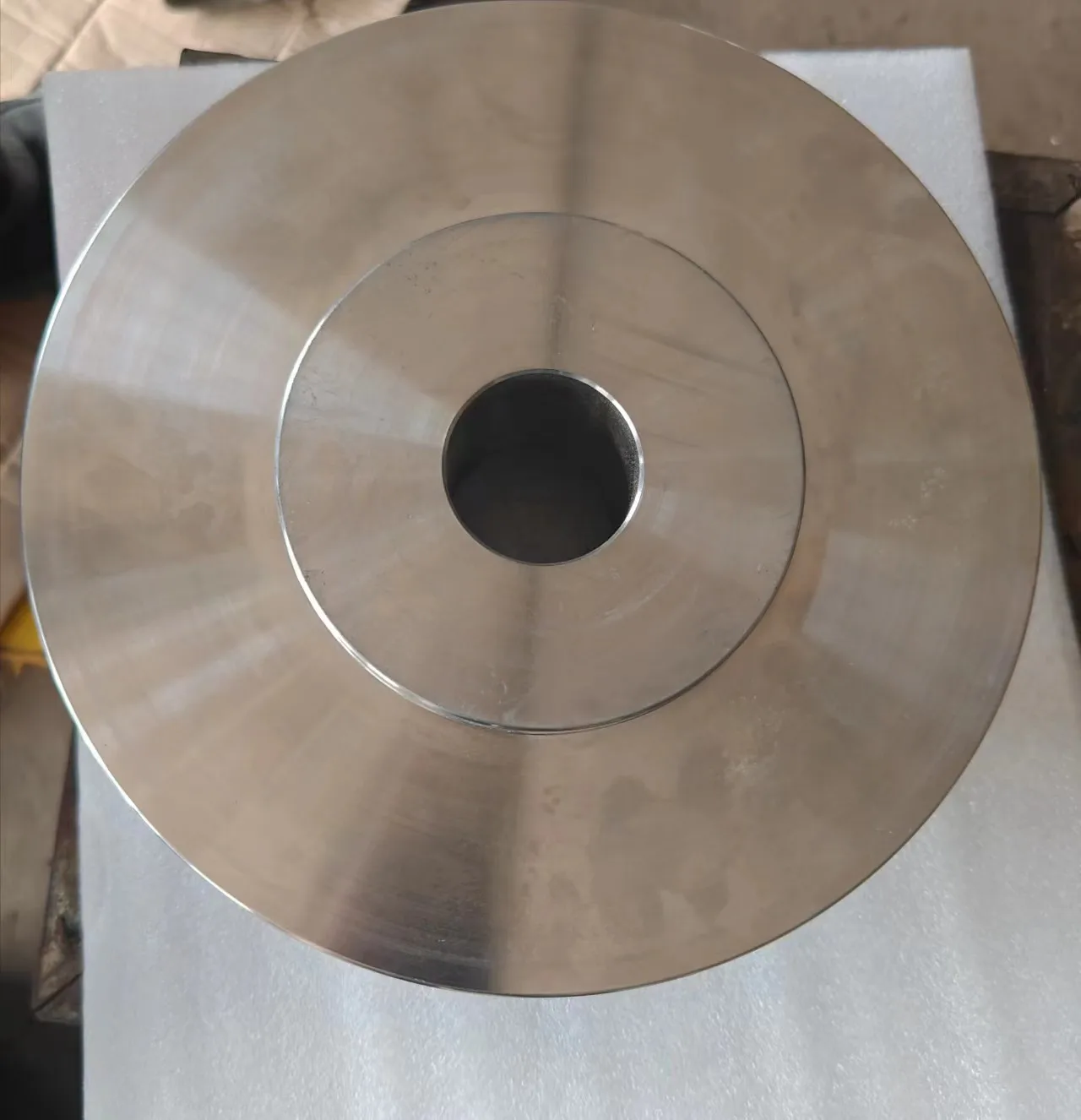

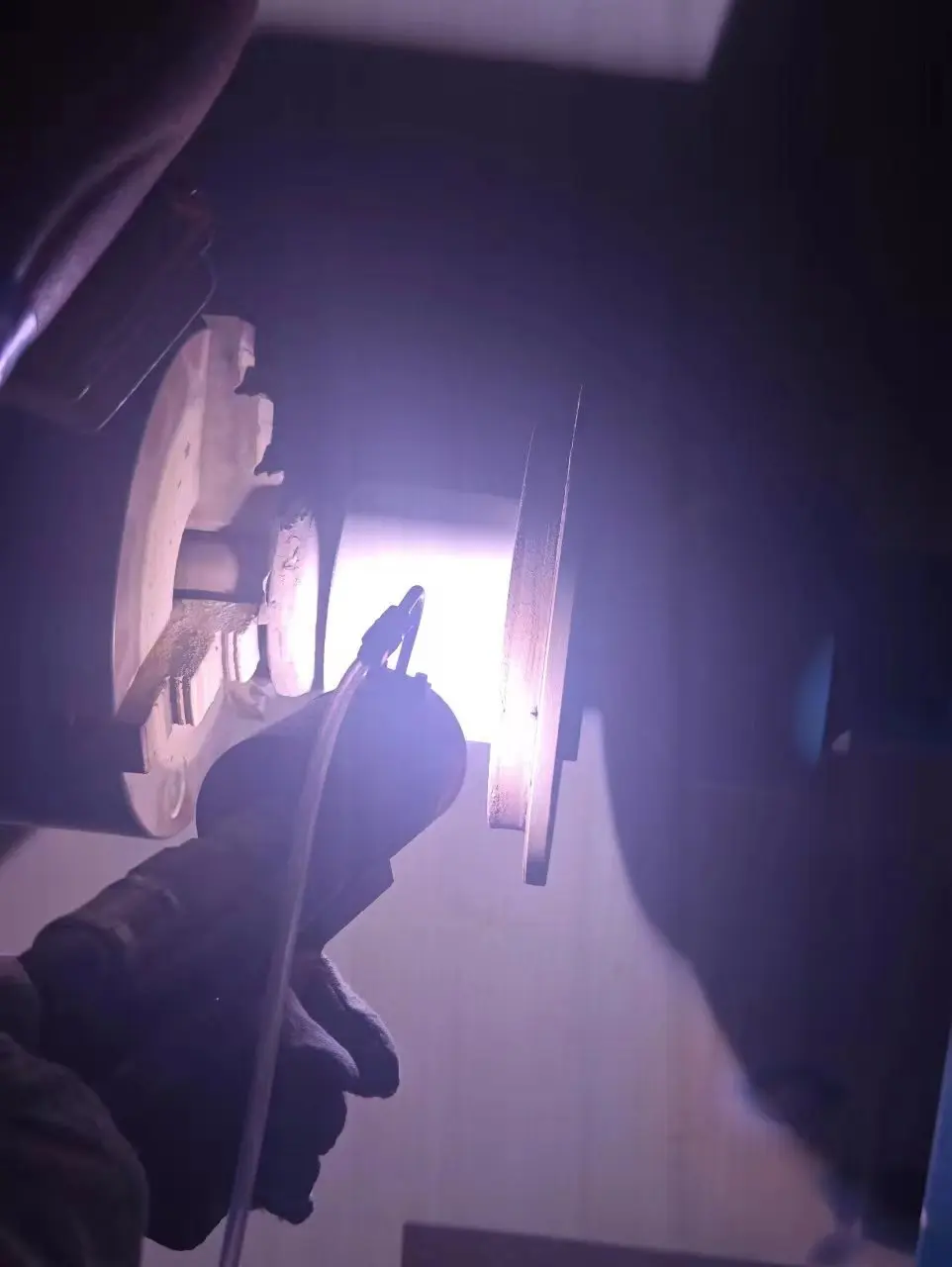

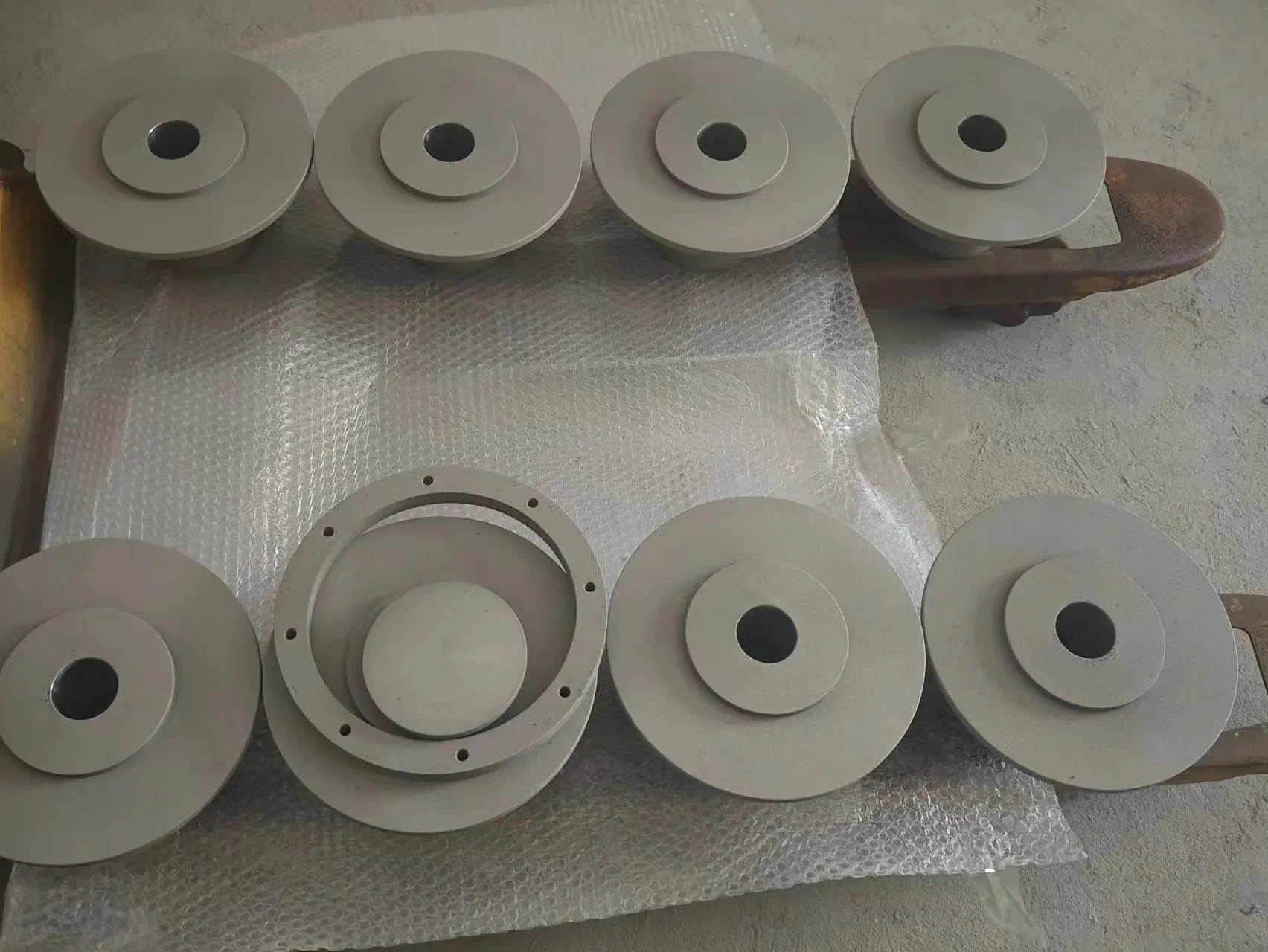

Application of Plasma Spraying Equipment for Aluminum Oxide Coating on Graded Wheel Steel Parts
Certifications
Clients

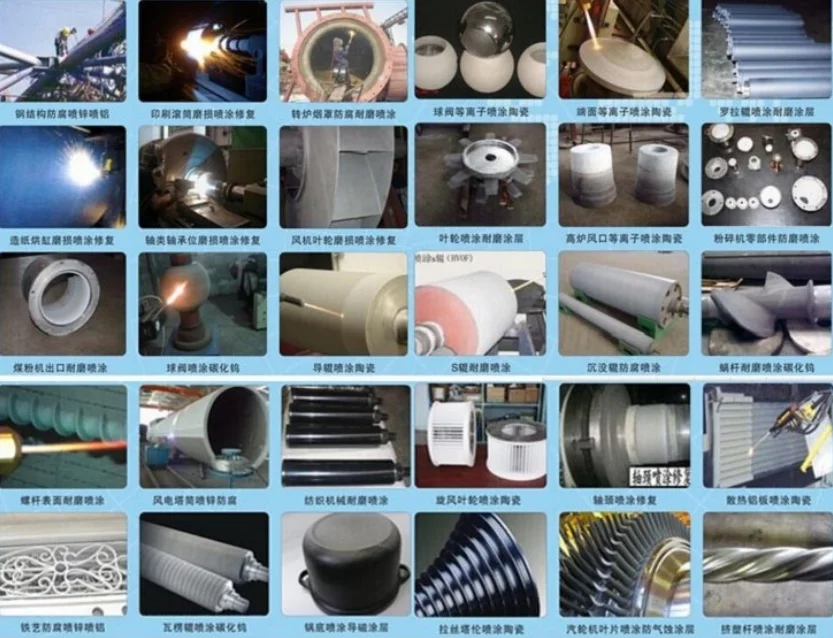

Other main thermal spraying equipment and service:
(1) Vacuum plasma spray machine
(2) Thermal spray coating services
(3) HVOF spray equipment
(4) Plasma spray equipment
(5) Arc spray equipment
(6) Sputter Target Produce Equipment and technology
(7) Industrial water chillers
(8) Precious metal vacuum coating equipment
(9) Cooker magnetism and thermal conduction coating spraying production line
(10) Electro Brush Plating Equipment
(11) High power flame plastic spray equipment
(12) Arc spray wires (Zinc wire, Aluminum wire, copper wire, NiAl alloy wire, brass wire, etc)
(13) Thermal spray powder (Al2O3, Cr2O3, TiO2, ZrO2, WC-Co, CrCo-NiCr, etc)
(1) Vacuum plasma spray machine
(2) Thermal spray coating services
(3) HVOF spray equipment
(4) Plasma spray equipment
(5) Arc spray equipment
(6) Sputter Target Produce Equipment and technology
(7) Industrial water chillers
(8) Precious metal vacuum coating equipment
(9) Cooker magnetism and thermal conduction coating spraying production line
(10) Electro Brush Plating Equipment
(11) High power flame plastic spray equipment
(12) Arc spray wires (Zinc wire, Aluminum wire, copper wire, NiAl alloy wire, brass wire, etc)
(13) Thermal spray powder (Al2O3, Cr2O3, TiO2, ZrO2, WC-Co, CrCo-NiCr, etc)
Product packaging
Our machines are very professional ,in order to help you get the best solution ,please kindly reply the following technical questions.
1.What kind of product will you want to spray ? --- Could you provide some pictures?
2. What is the working conditions for your product ? --- What is the PH and temperature ?
3. What kind of material will you want to use? --- aluminum wire,zinc wire or tungsten carbide powder ,ceramic powder or some others?
4. Which effect will you want to get ? --- high temperature resisting ,wear resisting or anti corrosion ,repairing work or others?
5. Do you have any other technical requirements? --- the more the better
1.What kind of product will you want to spray ? --- Could you provide some pictures?
2. What is the working conditions for your product ? --- What is the PH and temperature ?
3. What kind of material will you want to use? --- aluminum wire,zinc wire or tungsten carbide powder ,ceramic powder or some others?
4. Which effect will you want to get ? --- high temperature resisting ,wear resisting or anti corrosion ,repairing work or others?
5. Do you have any other technical requirements? --- the more the better
Похожие товары
Онлайн насос высокого сдвига, гомогенизатор головки гомогенизатора ткани
500,00 $
Сварочный аппарат TIG 200 AC DC для бесгазового инвертора дуговой сварки
95,00 $
2021 китайские производители меха, Оптовая торговля, хвост оленя, завязанные волосы, рыболовный крючок, морская рыболовная приманка, США.
8,00 $ - 11,00 $
Запчасти для грузовиков A/C компрессор 11Q6-90040 11Q690040 11Q6-90041 11Q690041 A5W00258A для экскаватора Harrison V5
Универсальные многоразовые чернила Ciss и экосольвентные чернила для принтеров Epson/ Mimaki/ Roland
Высококачественная строительная машина SP129615 масляный топливный насос 729949-51320 для колесного погрузчика liugong

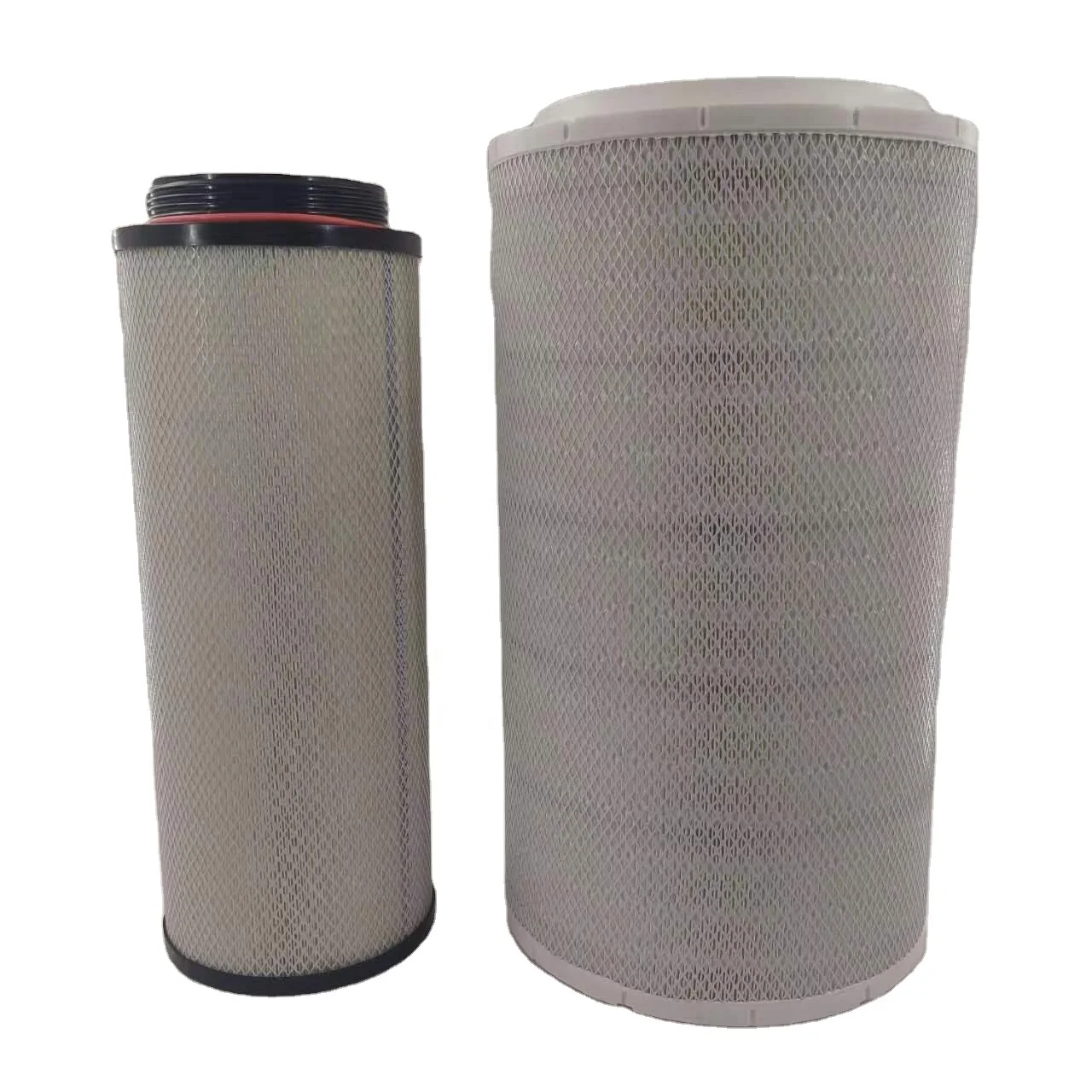

4190704017 4190704018 K3560PU 4110001276 LGMG MT86H MT95 MT96L MT106 SDLG DONGFENG XUGONG BEIBEN Запчасти для карьерных грузовиков Воздушный Фильтр
