Product Description

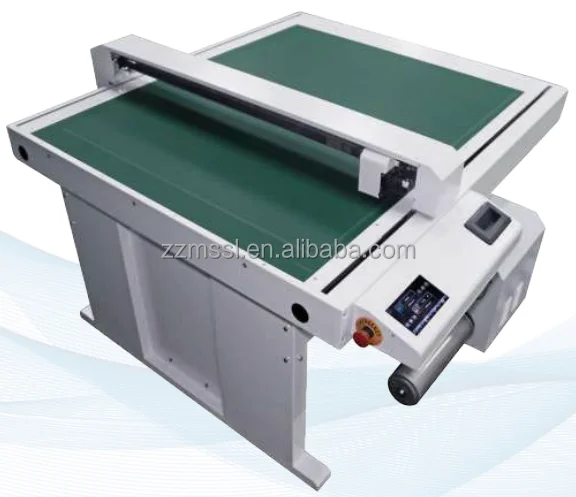

Flatbed Cutter Plotter Cardboard Cutting Plotter Flatbed Die Cutting Machine Graph Plotter
The digital cutter plotter adopts fully automatic vacuum suction feeding platform.
Equipped with 3 tools, 1 blade for cutting ,1 pen for die-cut and 1 creasing tool.
It can quickly and precisely make through cutting, half cutting, creasing and marking.
Besides, the machine has CCD camrea, which highly improve cutting accuracy, It is a cost-effective smart equipment that meets all your creative processing.
Besides, the machine has CCD camrea, which highly improve cutting accuracy, It is a cost-effective smart equipment that meets all your creative processing.
Specification
Machine Configuration | ||||
Model | FCT-6698 | FCT-6992 | ||
Cutting control system | X-High power brushless servo motor Y-High power brushless servo motor | |||
Positioning sensor type | Digital camera (CCD) | |||
Control panel | 7 inch capacitive touch screen | |||
Number of tool holders | Double tool holders | |||
Blade types | Blade, creasing tool and pen | |||
Number of tangential blade | Double tool holders | / | ||
Tangential blade types | Blade, creasing tool | / | ||
Machine Performance | ||||
Media hold method | Vacuum suction | |||
Scanning code type | Mark/ QR code | |||
Max. width | 730*1015mm | 700*990mm | ||
Max. Cutting size | 660*980mm | 690*920mm | ||
Scanning speed | 5-10s | |||
Max. actual cutting speed | 100mm/s-700mm/s 10mm/s 1Step | |||
Max. cutting force | Creasing:0-1900gf (10gf 1Step) Blade:0-1900gf(10gf-1Step) | Creasing: 0-1500gf (10gf 1Step) Blade: 0-1000gf(10gf-1Step) | ||
Max paper weight | 600g (Varies from different cutting materials ) | |||
Min character cutting size | About 10mm² (Varies from contour patterns and medias) | |||
Mechanical resolution | 0.02mm | |||
Programmable resolution | HPGL 0.025mm | |||
Repeat precision | ≤0.05mm | |||
Cutting media types | Self-adhesive sticker, cardboard, corrugated paper, etc | |||
Software and Compatibility | ||||
Connectivity | USD, TCP, WiFi, U disk, Interface | USD, Interface | ||
Software and compatibility | Corel Draw/ Illustrator Plug-in (U disk Interface) | Corel Draw/ Illustrator Plug-in (Standard) DragonCut for PC, compatible Windows7,8,10 (Optional) | ||
Power and Working Environment Requirements | ||||
Working voltage and current | 110VAC-120VAC,50/60Hz, Max current 6.8A 200VAC-240VAC,50/60Hz, Max current 3.4A | |||
Power | Max 350W | |||
Vacuum pump voltage and current | 110VAC, 50Hz, Rated current 12.4A, 60Hz, Rated current 17.2A 220VAC, 50Hz, Rated current 6.2A, 60Hz, Rated current 8.6A | |||
Power (Vacuum pump) | 50Hz, 1.1 KW; 60Hz, 1.3KW | |||
Stand | Included | |||
Operation environment | Temperature +5℃ to 35℃ (41-95℉), Humidity 30%-70% (Non-condensing) | |||
Dimension and Weight | ||||
Dimension | L1360*W1350*H1015mm | L1286.5*W1228*H1000mm | ||
Packaging dimension | L1860*W1480*H615mm | L1560*W1356*H620mm | ||
Gross/net weight | 219kg/ 139kg | 151kg/98.5kg | ||
Features:
1.Direct USB makes the flat bed cutter reliable and convenient
1.Direct USB makes the flat bed cutter reliable and convenient
2.The linear guide of the flat bed cutter ensures high speed and few errors.
3.The flat bed cutter feature imported digital servo drivers and their SD cards offer mass storage.
4.The powerful compatible function enables connection with many different kids of software.
5.The flat bed cutter has an LCD touch screen in English or Chinese.
6.The flat bed cutter feature intellective order printing.

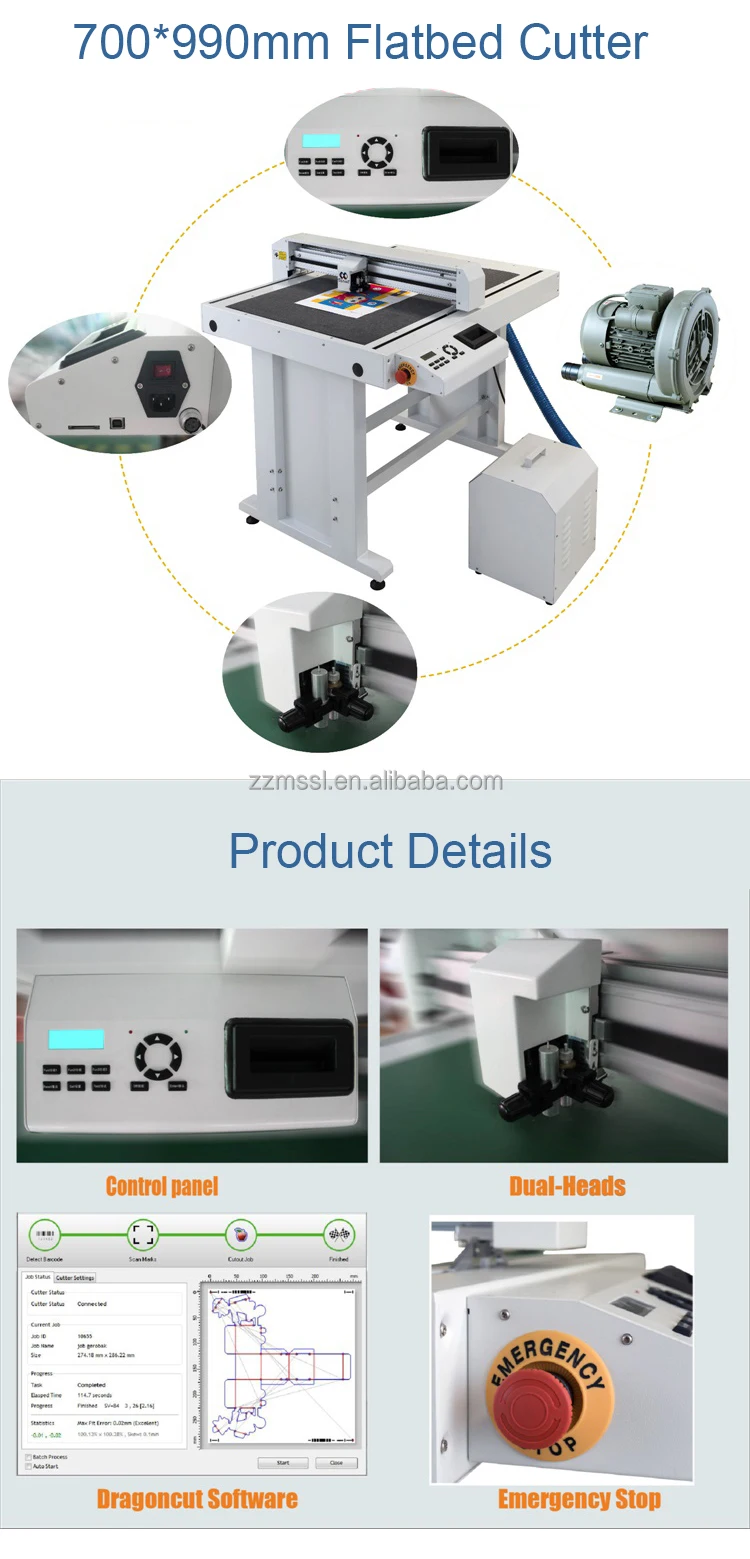

Details Images
Finished Products
Packing & Delivery
We use shockproof foam and bubble film to safely pack the machine. We use wooden boxes that are all fumigated.Taking into account the international long-distance transportation, we have done a good job of safety considerations and related protective measures from the inside to the outside.Please do not worry.
Wooden Case
Wooden Case
Carton
Recommend Products
Company Profile
Zhengzhou Miles Technology Co. , Ltd. is a a production of paper embossing machine, creasing machine, paper cutter, glue binding machine, laminating machine, folding machine, counting machine, collating machine, pillow packaging machine, etc., with perfect testing facilities and strong technical force.
A wide range of products, good quality, reasonable price, design fashion, widely used in printing, packaging and other industries.
Our products are widely recognized and trusted by our users to meet changing economic and social needs.
We welcome new and old customers from all walks of life to contact us, looking for future business relations and common success.
A wide range of products, good quality, reasonable price, design fashion, widely used in printing, packaging and other industries.
Our products are widely recognized and trusted by our users to meet changing economic and social needs.
We welcome new and old customers from all walks of life to contact us, looking for future business relations and common success.
FAQ
1. Q: Are you a manufacturer?
A: Yes we have been manufacturing such machines over 10 years and also a professional exporter.
A: Yes we have been manufacturing such machines over 10 years and also a professional exporter.
2. Q: What about the payment term?
A: Mostly 30%T/T in advance as deposit, 70% T/T when machine is finished before shipping.
A: Mostly 30%T/T in advance as deposit, 70% T/T when machine is finished before shipping.
3. Q: What is the warranty?
A: One year warranty after sales.During the warranty period, we will send the spare parts that break out due to the quality.
A: One year warranty after sales.During the warranty period, we will send the spare parts that break out due to the quality.
4. Q: What is your after sale service?
A: Any questions will be responded within 24 hours by email. In addition, we have professional engineer available for overseas service.
A: Any questions will be responded within 24 hours by email. In addition, we have professional engineer available for overseas service.
5. Q: What is the delivery time?
A: Mostly it takes 5 to 10 working days (depend on different machine) after receiving the deposit and confirming the drawing or samples as required.
A: Mostly it takes 5 to 10 working days (depend on different machine) after receiving the deposit and confirming the drawing or samples as required.
Похожие товары
PPF пленочный график резки кожи режущий плоттер с камерой
86 804,21-98 755,52 ₽
V24 V48 V60 многоразмерный Графический Плоттер с опорой для режущего
Хорошая липкость низкая цена лучшее качество обычный термоплавкий клей прозрачный клеевой
352,25-452,90 ₽

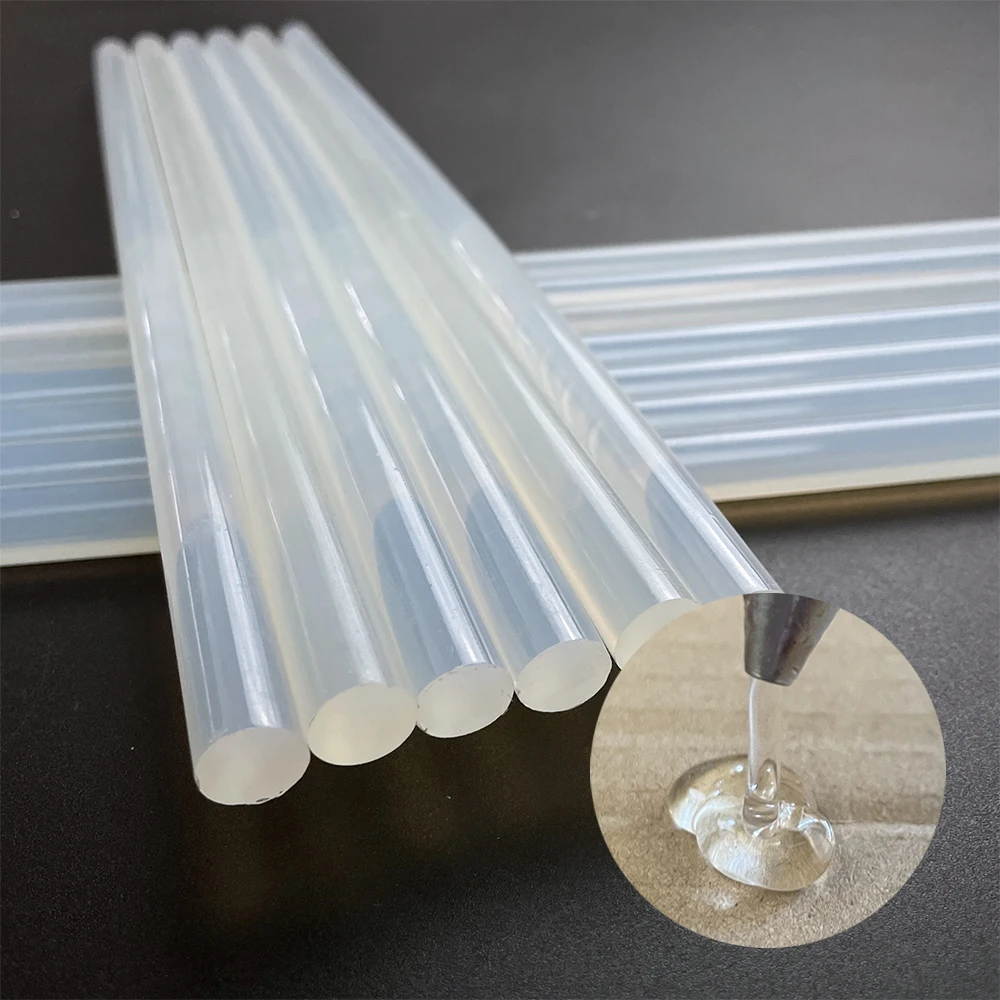

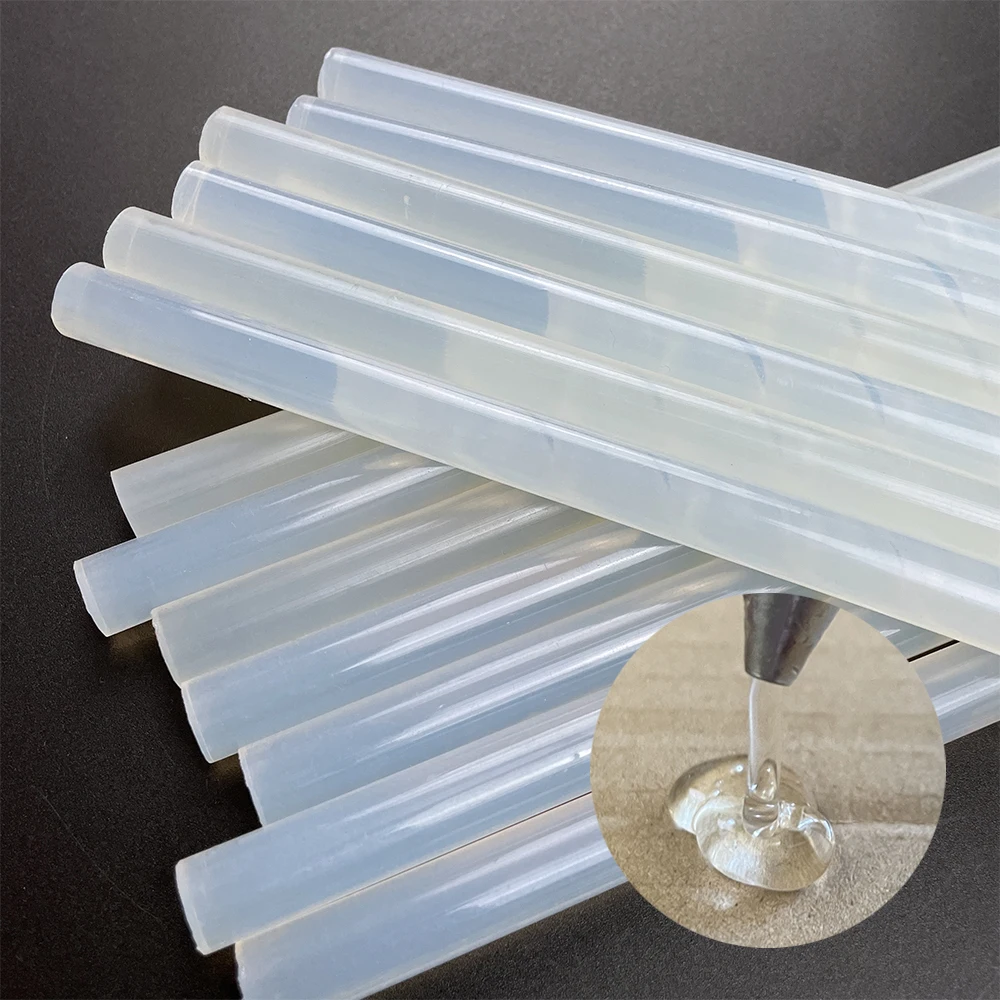

Стержень термоплавкого силикона белый прозрачный кристалл без рисунка стержень ЭВА для упаковочной
