18 5 дюймовый ЖК модуль BOE TFT DV185WHM NM1 1366*768 60 Гц 30P LVDS RTD2513A панель HDM I вход поддерживается

18 5 дюймовый ЖК модуль BOE TFT DV185WHM NM1 1366*768 60 Гц 30P LVDS RTD2513A панель HDM I вход поддерживается

Категория: >>>
Поставщик: Shenzhen Caison Technology Co. Ltd.Shenzhen Ltd.

Цена:9 667,88 ₽*

Количество:

В избранное

Описание и отзывы

Характеристики

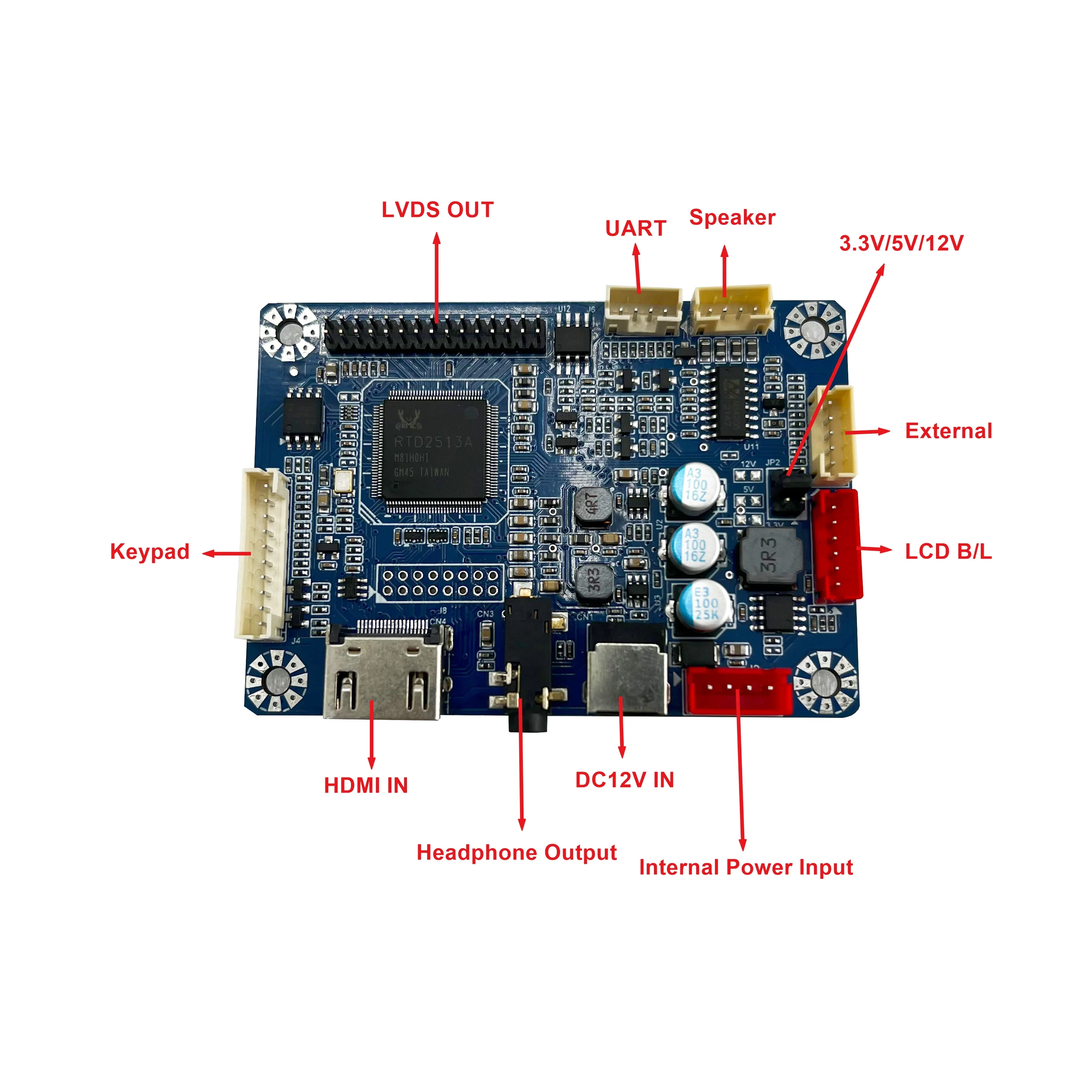

Product Description

Max. Resolution up to 1920x1200@60Hz
Support 1-ch/2-ch 6-bit/8-bit LVDS panel
Support 3.3V/5V/12V panel voltage
1*HDMI1.4a input
Support 2x3W Class-D AMP at 4ohm
Support Headphones output
Keypad(5Key/6Key/7Key)
12V DC power input
Standby mode power consumption less than 0.5W
Support DDC/CI/2B protocol
Support UART protocol(TTL)
Support external sensor control(via I2C or ADC)

Chipset	RTD2513A
Target Market	Industrial Display
OSD Language	English、Simplified Chinese
Panel	Voltage	3.3V/5V/12V
		Interface	1-ch/2-ch 6-bit/8-bit LVDS
		Resolution	1920x1200@60Hz
LED Backlight	Dimming	PWM/DC(Default is PWM)
Video Input	HDMI 1.4a	19P Type-A, Max. resolution is 1920x1200@60Hz
Video Input	HDMI 1.4a		2.0mm 2x8P, Max. resolution is 1920x1200/60Hz
Power	Power Input	DC 12V
		Normal Consumption	Max. 3W(not include panel consumption)
		Standby Consumption	< 0.5W

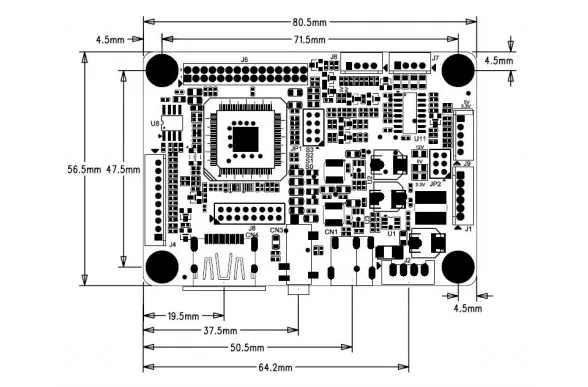

Standby Consumption	Power、Menu、Right、Left、Exit、Auto(Default)		116mm(L) x 87.3mm(W) x 19mm(H)

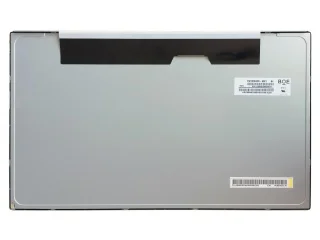

2.Specification of the LCD panel

Brand	AUO	Model P/N	DV185WHM-NM1
Diagonal Size	18.5"	Panel Type	a-Si TFT-LCD, LCM
Resolution	1366(RGB)×768, WXGA 84PPI	Pixel Format	RGB Vertical Stripe
Active Area	409.8(W)×230.4(H) mm	Bezel Opening	413.4(W)×234.0(H) mm
Outline(mm)	430.4(W)×254.6(H) ×11.4(D) mm	Treatment	Antiglare (Haze 25%), Hard coating (3H)
Luminance	250 cd/m² (Typ.)	Contrast Ratio	1000 : 1 (Typ.) (TM)
Viewing Angle	89/89/89/89 (Typ.)(CR≥10	Work Mode	ADS, Normally Black, Transmissive
Best View on	Symmetry	Response	14 (Typ.)(G to G)
Support Color	16.7M 99% sRGB	Backlight	6S4P WLED , 30K hours , Without Driver
Weight	1.30Kgs (Typ.)	Touch Screen	Without
Refresh Rate	60Hz
Signal Interface	LVDS (1 ch, 8-bit) , 30 pins Connector
Input Voltage	5.0V (Typ.)
Environment	Operating Temp.: 0 ~ 50 °C ; Storage Temp.: -20 ~ 60 °C

Product Usage

Related Products

Packing&Shipping

1.About the test

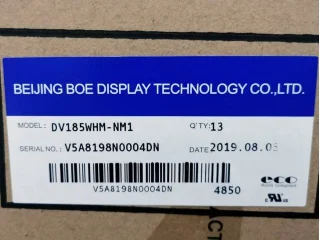

2.About the Packing

EPE with Carton with Carton & Plywood case EPE with Carton&Pallet

3.About the Shipping

Company Introduction

Shenzhen Caison Technology co., LTD. Is a professional LCD module solution provider.Our product include:
Transparent OLED display（30 inch/49 inch/55 inch）

Round LCD display

Square LCD display

stretched Bar LCD display

LCD advertising machine (4.3 inch -110 inch )

LCD/LED panel(4.3 inch -110 inch );
High brightness panel(1000 -7000 brightness)

LCD kits(1080P-8K LCD controller board,Android board/Media player board, LVDS cable ,Inverter board, OSD board,Remote controll ,
Power supply,Power adapter);
Touch panel(Resistive touchscreen,IR touchscreen,Capacitance touchscreen);

We accept all kinds of customized products, including LCD screen, cable, many kind of the board (1080P-5K LCD controller
board,Android board/Media player board),Shell.....All products can be printed with your logo.
We can also apply for certificates for customers' products.Such CE ,SASO, KC, BIS, PSE and CE, FCC, RoHS to UL.....

Welcome you esteemed partners to visit us and start business on mutual benefits together. Thanks!

FAQ

1. Are you a factory or a trading company?
A: We are an OEM / ODM factory.
2. Can I customize the product? and can I add logo to the products?
A: We can customize any products according to any requirements of customers, such as motherboard, cable, shell .... We can also
add your logo to the product.
3. What is the warranty period of the product?
A: According to different products, our warranty time is 1 - 3 years.
4. Why choose your company?
A: We are Alibaba's 5-year faithful member, and the transaction score is always full score.
We are a factory, with certain price advantage and professional and fast technical service support.
We can also apply for certificates for customers' products.Such CE ,SASO, KC, BIS, PSE and CE, FCC, RoHS to UL.....
5. What method of payment is accepted?
A: We accept most payment methods, but mainly wire transfer, letter of credit, Western Union, paypal and MoneyGram.
6. What is the delivery time and mode of transportation?
If it is not a customized product, the sample and small orders are 1-3 days,
And the order quantity meets more than 2000 sets, which takes 5-15 days.
There are DHL, UPS, TNT and FedEx for fast transportation.
Slow and cheap modes of transportation include sea transportation, EMS, and postal parcels.
