Vevor 1490 1400*900 мм CO2 лазерная гравировальная машина для резки 100W/130W/ 180W MDF дерево Акриловая Ткань Кожа по конкурентоспособной цене
- Категория: >>>
- Поставщик: Shanghai Sihao Machinery Equipment Co. Ltd.
Сохранить в закладки 1600991327345:
Описание и отзывы
Характеристики
1400*900MMLaser Cutting Machine Desktop Carving Cutter 130W 1490
Product Description
Introduction

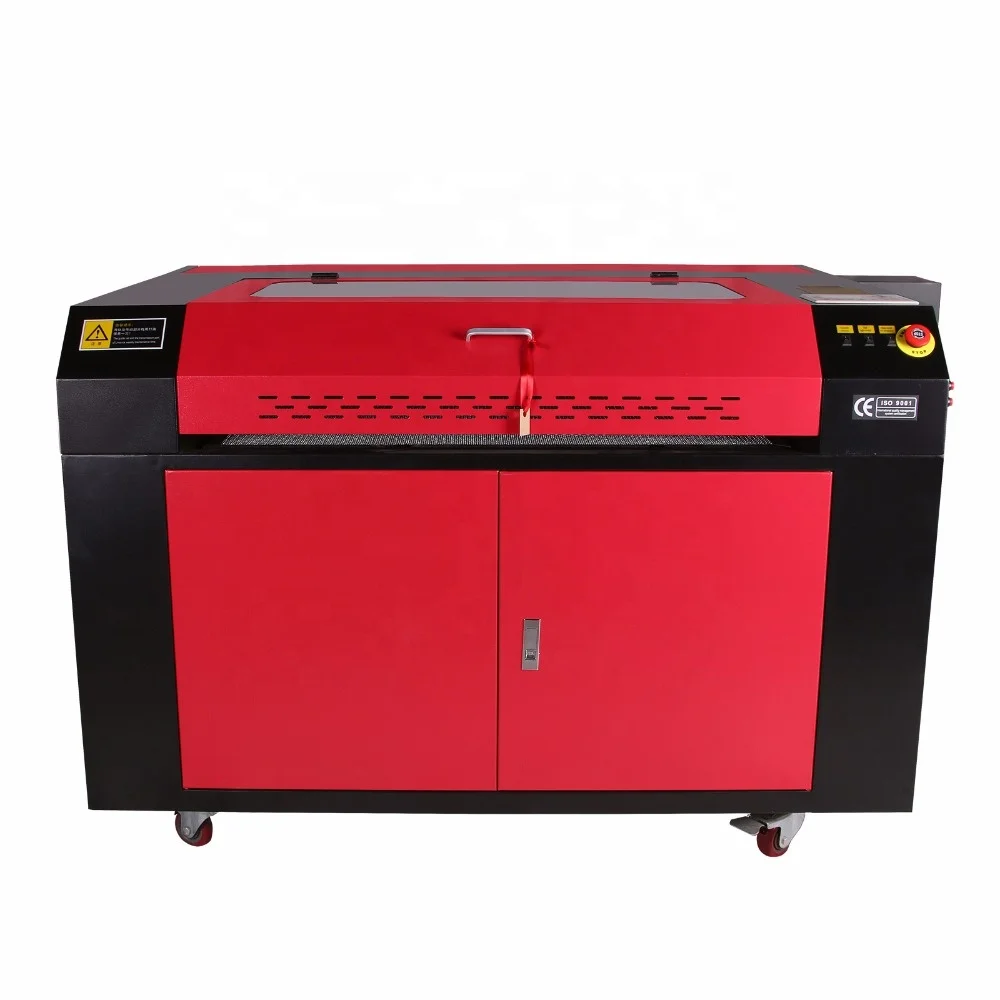

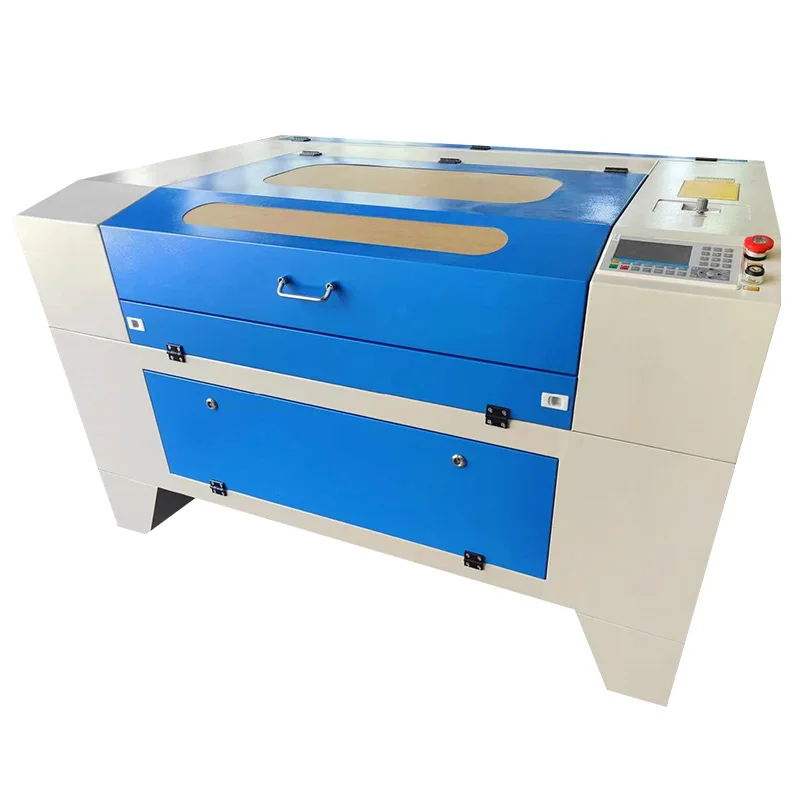

130W CO2 Laser Engraving Machine
New Laser Engraving and Cutting Machine. The machine is a kind of Laser Engraving Machine System equipped with CO2 laser Tube.
It is used to engrave on wood, bamboo, plexiglass, crystal, leather, rubber, marble and etc.
It is most suitable and the preferred choice of equipment in industries such as advertisement, gifts, shoes,toys and etc.
It supports multiple graphic formats, such as HPGL, BMP, GIF, JPG, JPEG, DXF, DST, AI and so on.
This machine must connect with computer with USB cable when you change the settings of machine for the design files,you can transfer the file with USB memory stick to the machine, or can download it to the machine directly with USB cable from computer.

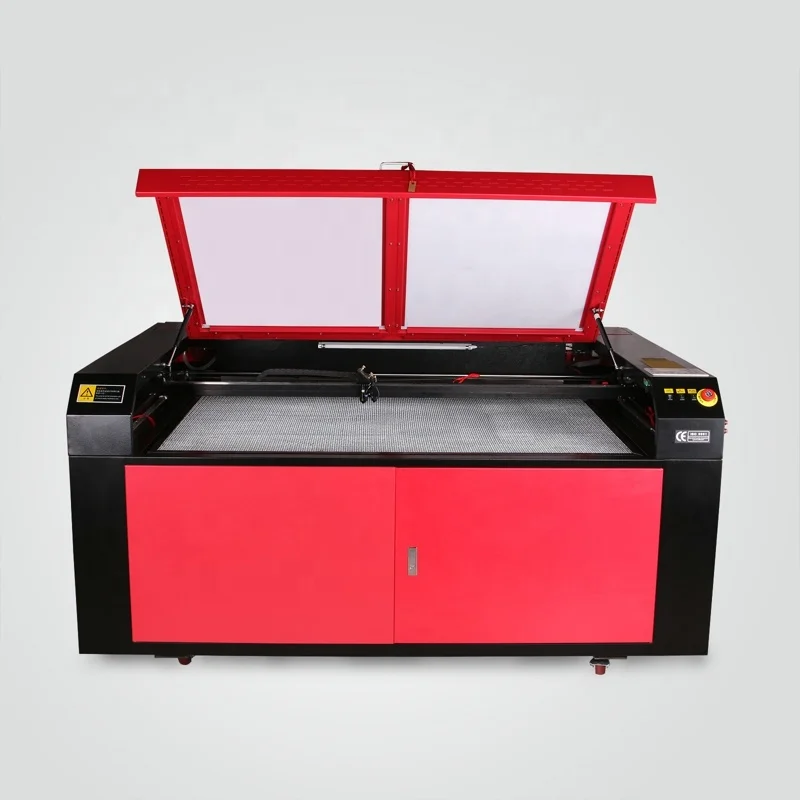

Even on the same Job, you can do setting with different colour in the software and also can making holes.And it can the legs separate from the main body of the machine. The machine has doors which can be opened to accommodate larger materials.
130W CO2 Laser Engraving Machine
New Laser Engraving and Cutting Machine. The machine is a kind of Laser Engraving Machine System equipped with CO2 laser Tube.
It is used to engrave on wood, bamboo, plexiglass, crystal, leather, rubber, marble and etc.
It is most suitable and the preferred choice of equipment in industries such as advertisement, gifts, shoes,toys and etc.
It supports multiple graphic formats, such as HPGL, BMP, GIF, JPG, JPEG, DXF, DST, AI and so on.
This machine must connect with computer with USB cable when you change the settings of machine for the design files,you can transfer the file with USB memory stick to the machine, or can download it to the machine directly with USB cable from computer.
Even on the same Job, you can do setting with different colour in the software and also can making holes.And it can the legs separate from the main body of the machine. The machine has doors which can be opened to accommodate larger materials.
All laser engraving machines can not carve and cut metal.
Features & Details
Features & Details

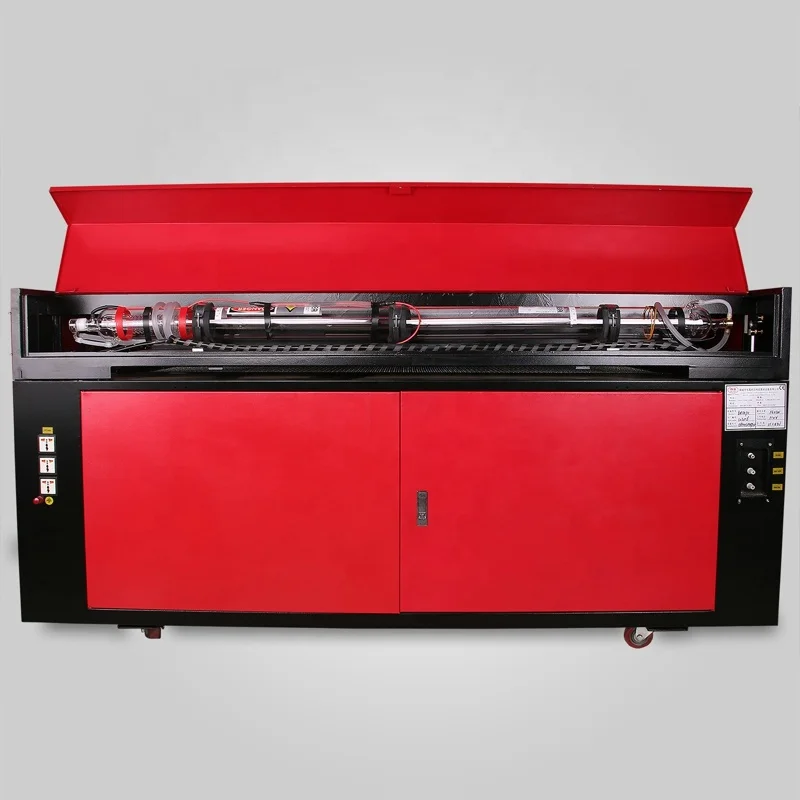

[DURABLE QUALITY]- Adopts 130W CO2 glass sealed laser tube, whose lifetime is up to 2000-4000 hours, premium laser head,

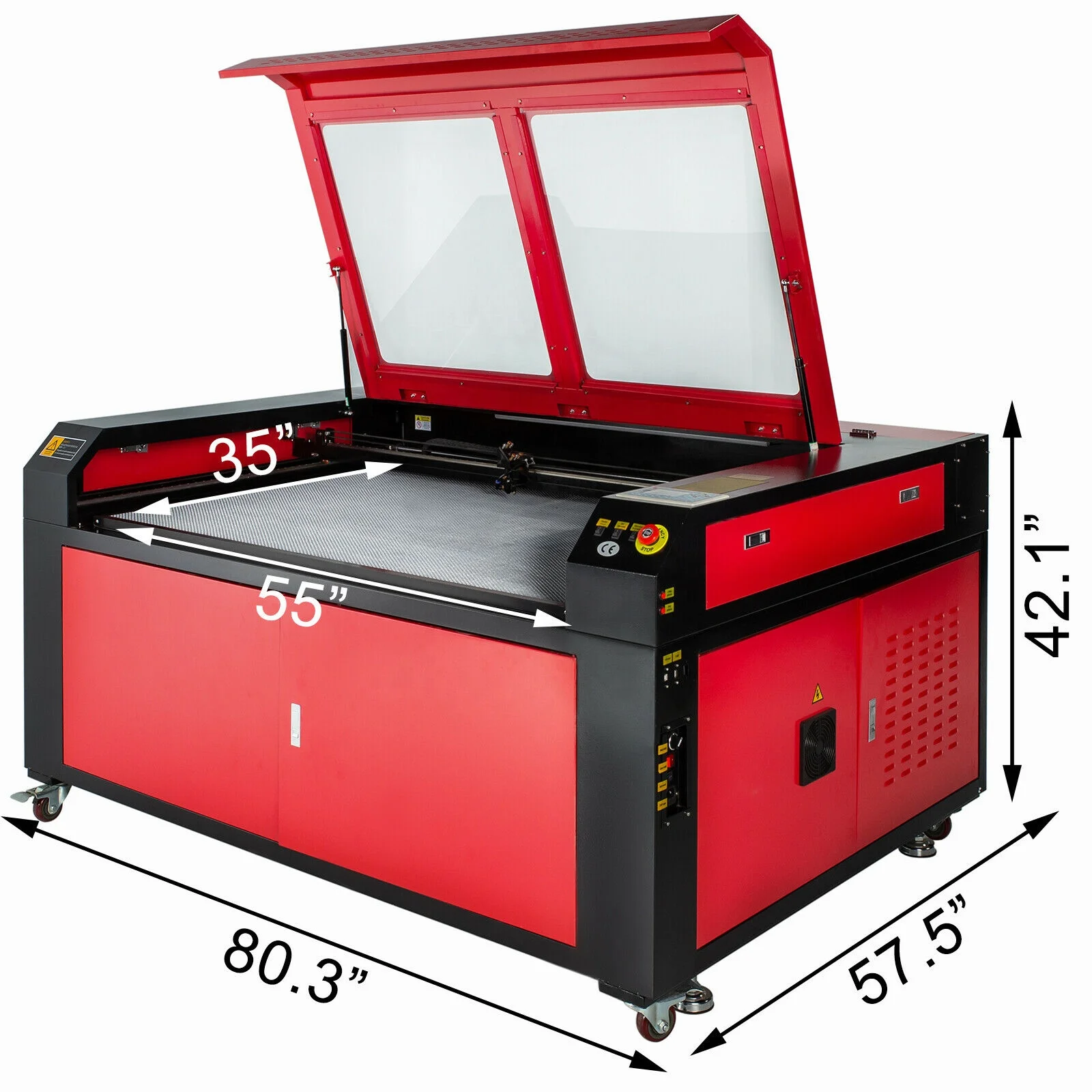

international standard laser power supply, and integrated framework design; With large engraving area of 55"x35" (140x90cm).
[SAFETY & RELIABILITY]- With air assist, removing heat and combustible gases from the cutting surface to prevent burning during
engraving working, and with a built-in cooling fan for effective ventilation; Owns ,CE Certification, ISO9001 Quality
Certification.

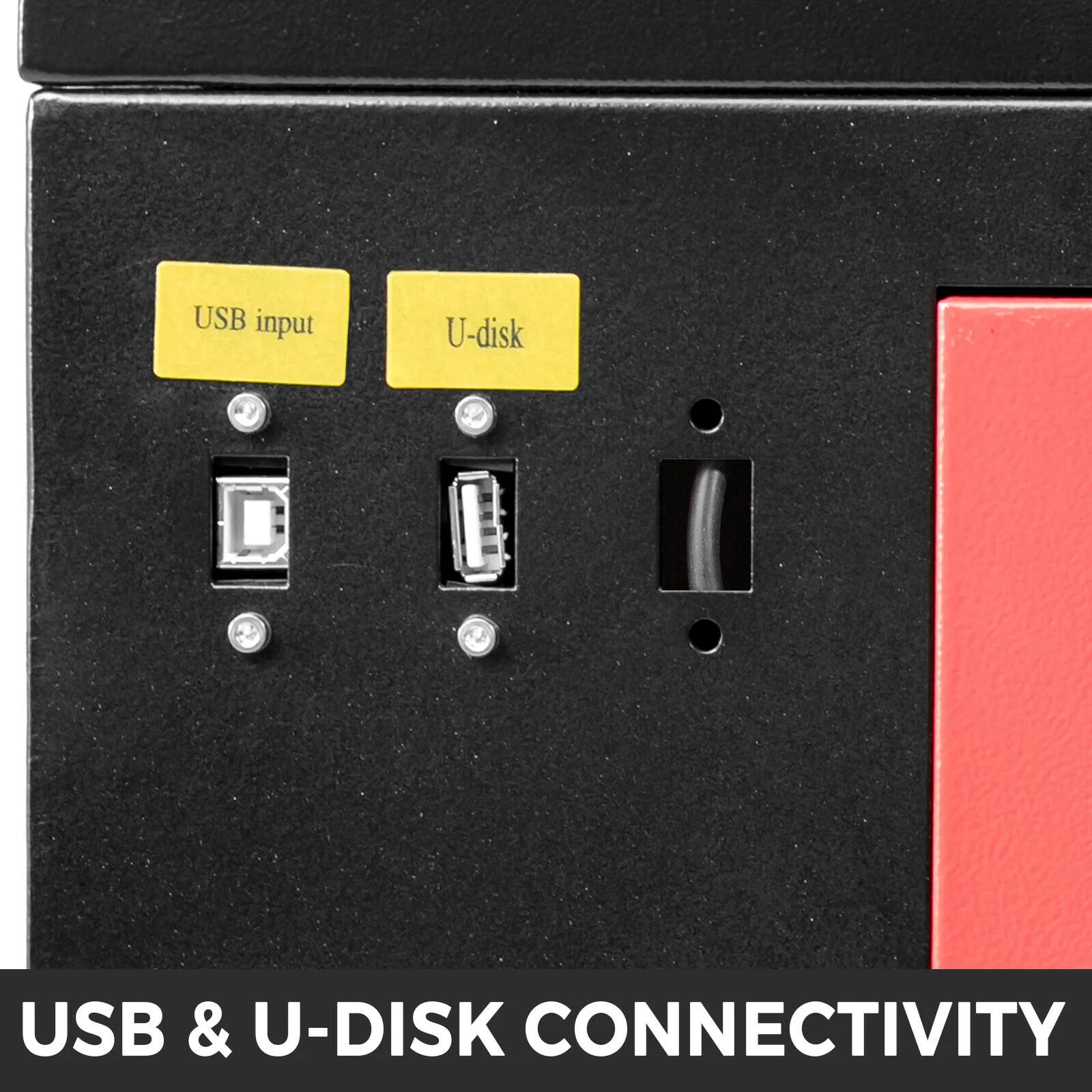

[POWERFUL PERFORMANCE]- Support USB2.0 port, U disk reading and writing, support U disk system upgrade; Able to work independently
from PC; Visible red dot pointer for better guidance; Use virtual array list and additional off-cut graph to realize the off-cut
function; With feeding devices to realize the cyclical model of working-feeding-working; Separation of cutting up to 256 Colors.
[HIGH COMPATIBILITY]- Supports multiple graphic formats, including HPGL, BMP, GIF, JPG, JPEG, DXF, DST, AI, etc. Adopts advanced
DSP digital control system, able to directly output from CorelDraw and Auto CAD.
[WIDELY USED]- Can be used to engrave on wood, bamboo, plexiglass, crystal, leather, rubber, marble, glass, and etc. Suitable for
advertisement, gifts, shoes, toys and etc.
Feature
· CE Certification, ISO9001 Quality Certification.
· Smooth and Precise Engraving and Cutting.
· Supports CorelDraw and Auto CAD .
· Optimization of mechanical and electrical design.
· More friendly control panel with Color Screen.
· English, French, German, Italian, Spanish and more languages updating.
· Separation of cutting up to 256 Colors.
· One key to install, more convenient.
· Use virtual array list and additional off-cut graph to realize the off-cut function.
· Machines with feeding devices can realize the cyclical model of working-feeding-working.
· USB Interface, U-Flash Disk Supported,Machine will read files from memory stick,you can work even without a PC.
· Air Assist, Remove heat and combustible gases from the cutting surface and make the engraving and cutting projects a breeze.
· Adopt advanced DSP digital control system, international standard laser power supply,integrated framework style
· 2 years free warranty and life time free maintenance service.
[DURABLE QUALITY]- Adopts 130W CO2 glass sealed laser tube, whose lifetime is up to 2000-4000 hours, premium laser head,
international standard laser power supply, and integrated framework design; With large engraving area of 55"x35" (140x90cm).
[SAFETY & RELIABILITY]- With air assist, removing heat and combustible gases from the cutting surface to prevent burning during
engraving working, and with a built-in cooling fan for effective ventilation; Owns ,CE Certification, ISO9001 Quality
Certification.
[POWERFUL PERFORMANCE]- Support USB2.0 port, U disk reading and writing, support U disk system upgrade; Able to work independently
from PC; Visible red dot pointer for better guidance; Use virtual array list and additional off-cut graph to realize the off-cut
function; With feeding devices to realize the cyclical model of working-feeding-working; Separation of cutting up to 256 Colors.
[HIGH COMPATIBILITY]- Supports multiple graphic formats, including HPGL, BMP, GIF, JPG, JPEG, DXF, DST, AI, etc. Adopts advanced
DSP digital control system, able to directly output from CorelDraw and Auto CAD.
[WIDELY USED]- Can be used to engrave on wood, bamboo, plexiglass, crystal, leather, rubber, marble, glass, and etc. Suitable for
advertisement, gifts, shoes, toys and etc.
Feature
· CE Certification, ISO9001 Quality Certification.
· Smooth and Precise Engraving and Cutting.
· Supports CorelDraw and Auto CAD .
· Optimization of mechanical and electrical design.
· More friendly control panel with Color Screen.
· English, French, German, Italian, Spanish and more languages updating.
· Separation of cutting up to 256 Colors.
· One key to install, more convenient.
· Use virtual array list and additional off-cut graph to realize the off-cut function.
· Machines with feeding devices can realize the cyclical model of working-feeding-working.
· USB Interface, U-Flash Disk Supported,Machine will read files from memory stick,you can work even without a PC.
· Air Assist, Remove heat and combustible gases from the cutting surface and make the engraving and cutting projects a breeze.
· Adopt advanced DSP digital control system, international standard laser power supply,integrated framework style
· 2 years free warranty and life time free maintenance service.
Specification
Item | Laser engraving machines |
Control System | 32 bit DSP |
Working size | 55"x35"(1400mm x 900mm) with unlimited length design |
Laser tube type | Co2 Glass sealed laser tube |
Laser power | 130W |
Driver type | Micro Stepping Motor |
Max speed | 500mm/s |
Resolution | 1000 DPI |
Location precision | 0.01mm |
PC Interface | USB2.0 and USB Disk |
Software | Auto Laser |
Image form | HPGL, BMP, GIF, JPG, JPEG, DXF, DST, AI |
Machine Dimension(L/W/H) | 2040*1460*1070(mm) |
Package Dimension(L/W/H) | 2140*1950*1240(mm) |
Package | Standard Wooden case for export |
N.W. | 400KG |
G.W. | 565KG |
Customer Payments
Certifications
Company Profile
Packing & Delivery
·Package Content
· Laser engraving software package (English Version)
· User manual (CD)
· Water pump
· Air exhaust fan
· Air pump
· Communication cable
· 3 Reflect optics (installed in the machine)
· 1 Focus optics (installed in the machine)
· 1 Laser tube
· User manual (CD)
· Water pump
· Air exhaust fan
· Air pump
· Communication cable
· 3 Reflect optics (installed in the machine)
· 1 Focus optics (installed in the machine)
· 1 Laser tube
Recommend Products
Похожие товары
6090 лазерный гравировальный станок СО2 гравер 60 Вт для лазерной трубки Деревообрабатывающие инструменты резак и принтер
4060/9060/1325 50 Вт 60 80 co2 лазерная гравировальная машина гравировка и резка древесины/МДФ/кожи/акрила
176 338,08 ₽ - 495 950,85 ₽
Подходит для пластиковых кожаных стеклянных керамических материалов УФ-лазерная маркировочная машина электронных компонентов QR-кода печатных плат
661 157,59 ₽

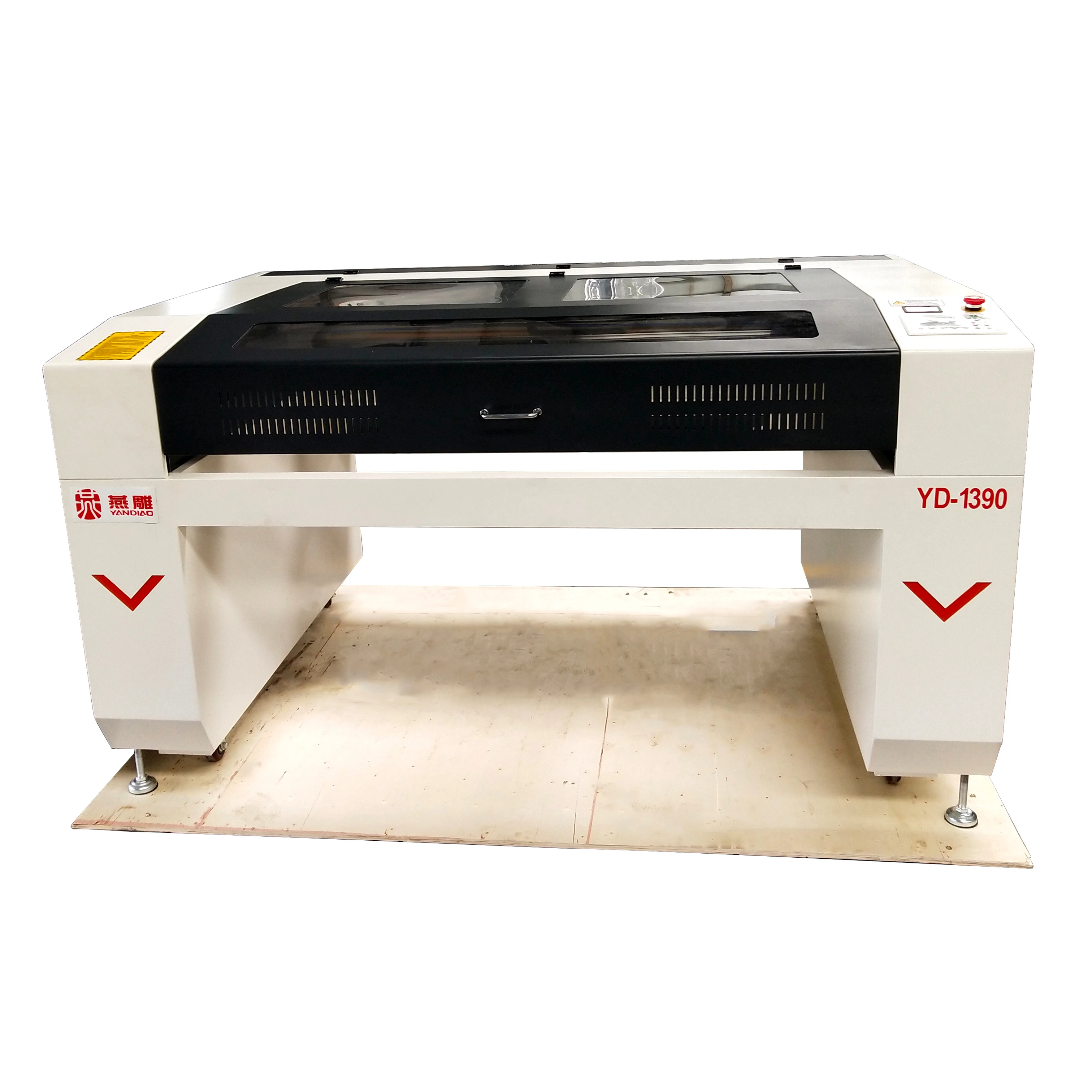

1490 лазерная машина резка для акриловой древесины гравировки и резки
44 084,52 ₽ - 55 105,65 ₽
Малый бизнес идея мини Co2 лазерная гравировальная машина портативный дерево Акрил резки
49 595,09 ₽ - 55 105,65 ₽

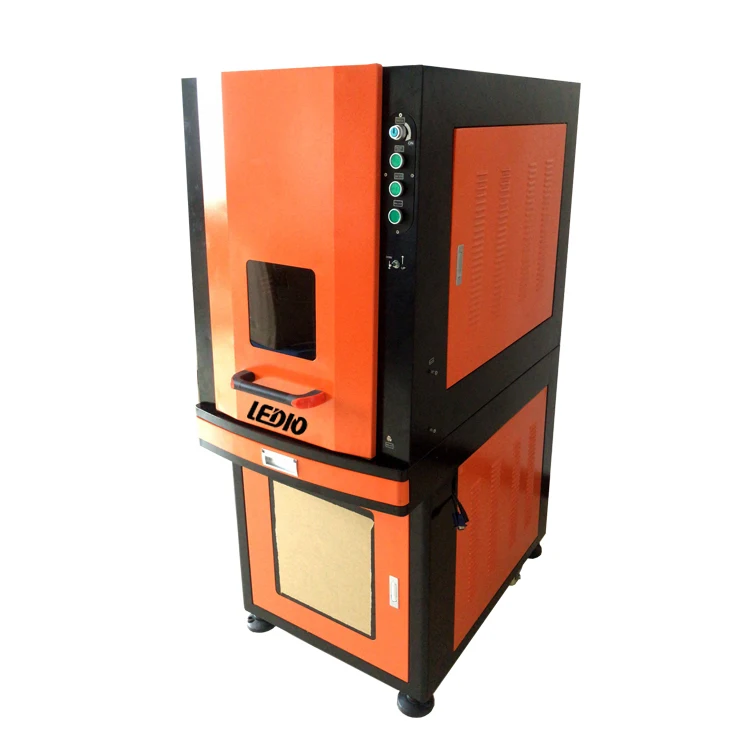

Закрытая 3d волоконная лазерная маркировочная машина для ювелирных изделий гравировка быстрая скорость
440 845,20 ₽

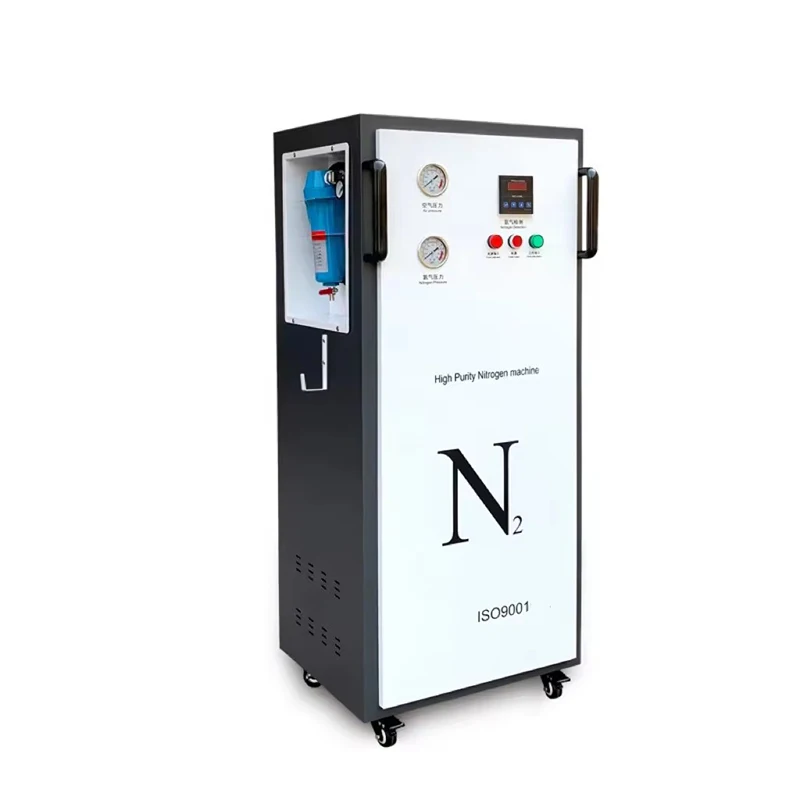

Генератор жидкого азота с быстрым производством для лазерной резки очистки и сварки
